Machined Aluminium Mosfet Regulator Rectifier
Triumph 600, 650, 955, 1050 (1994-2018) · Ducati 749, 848, 999, 1198 (2003-2015)

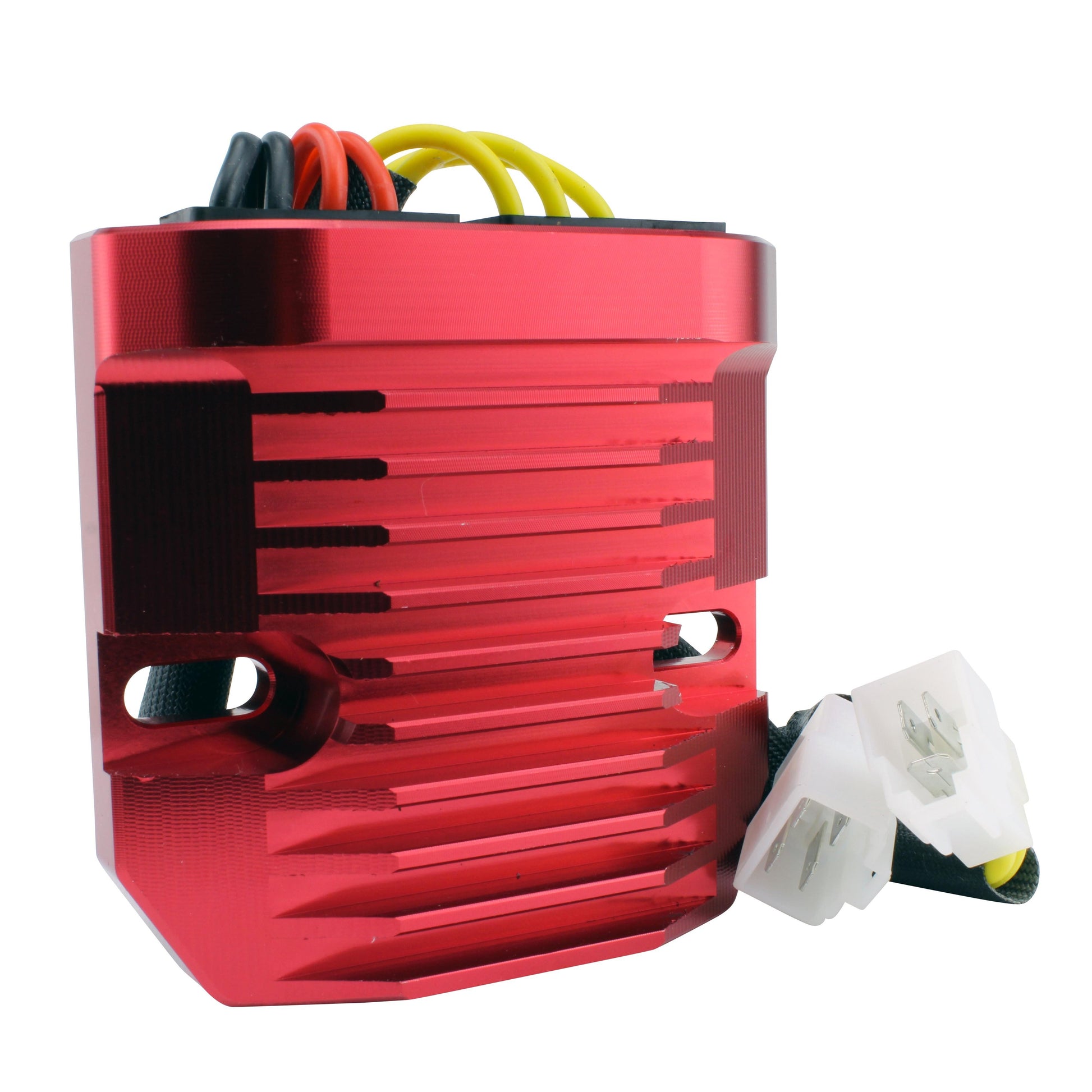

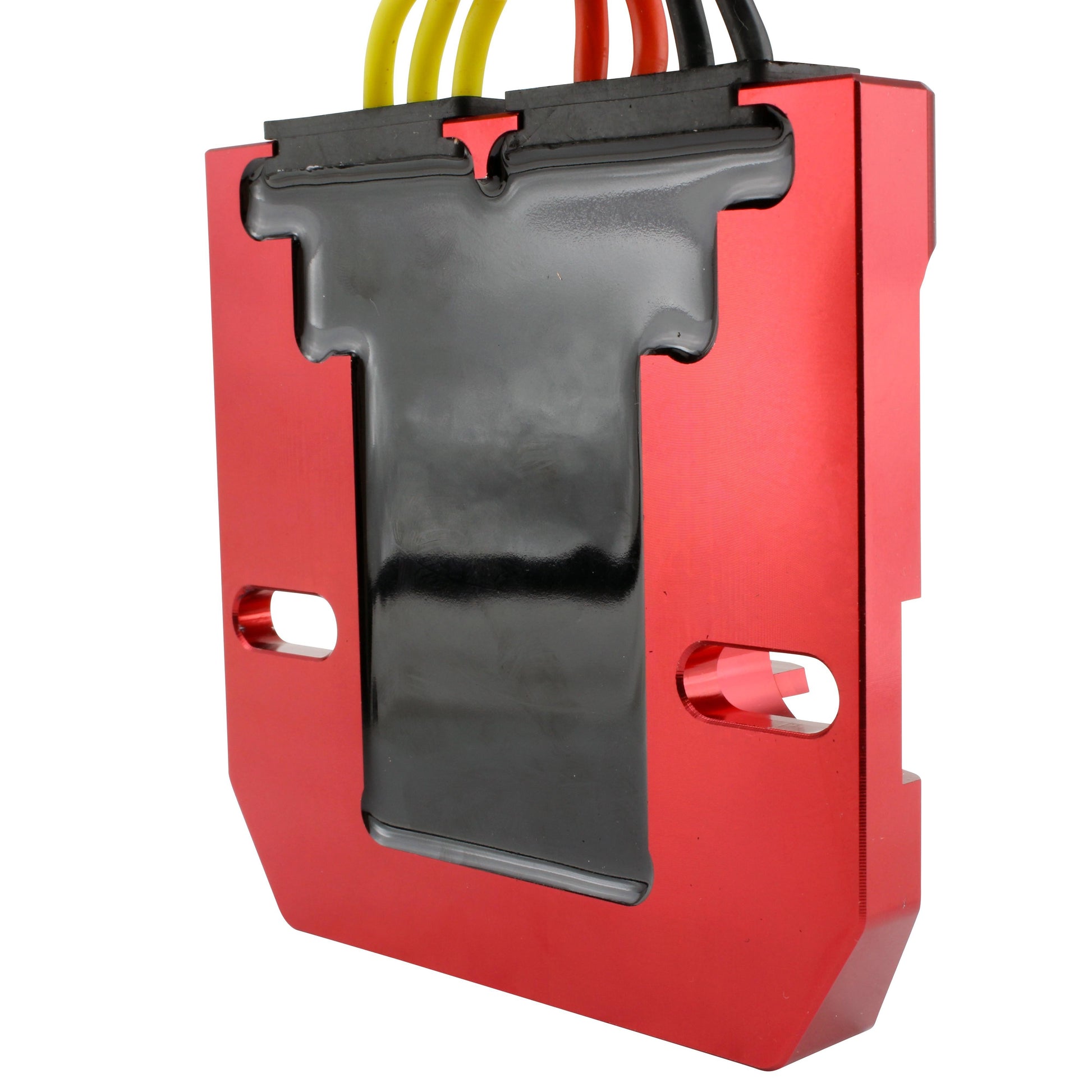

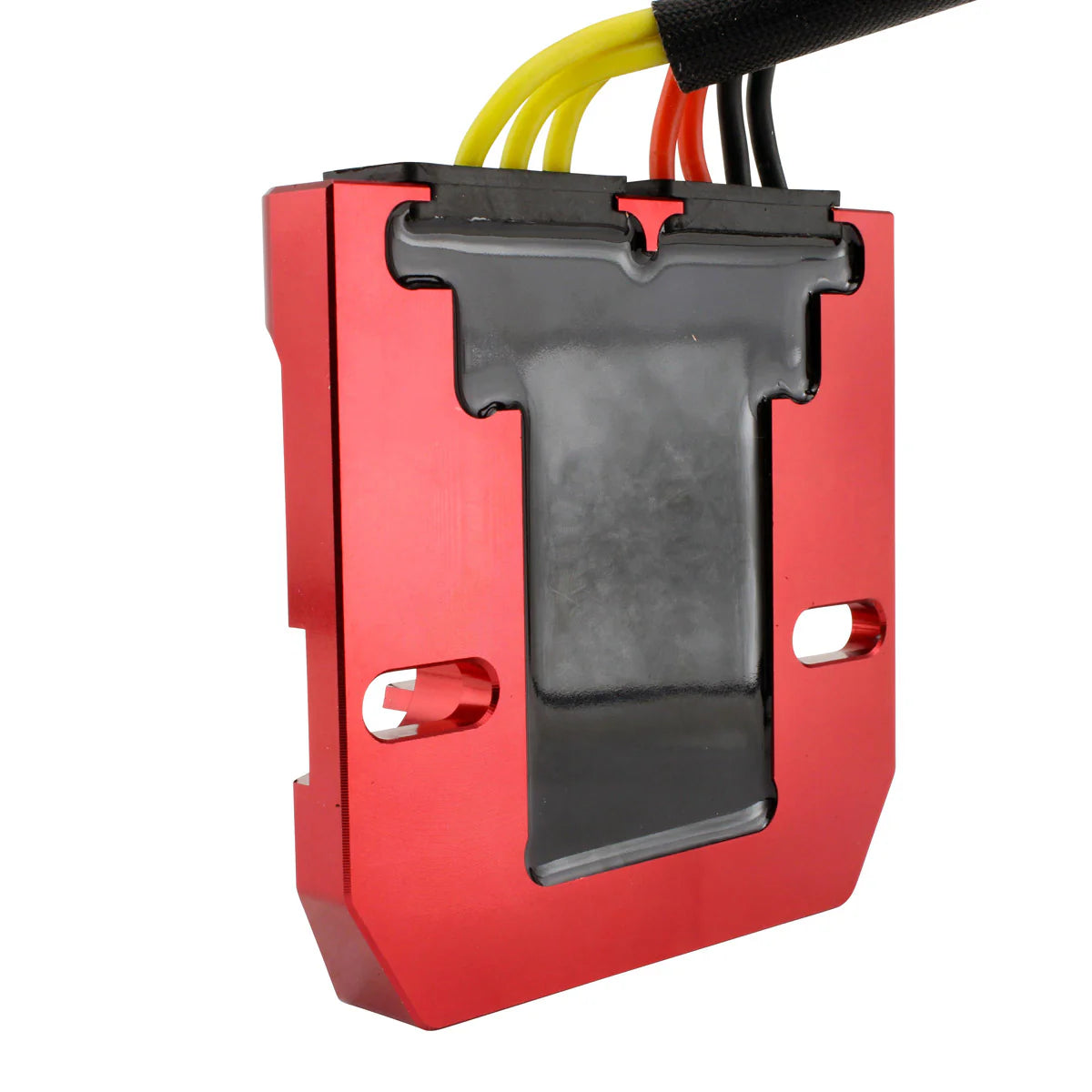

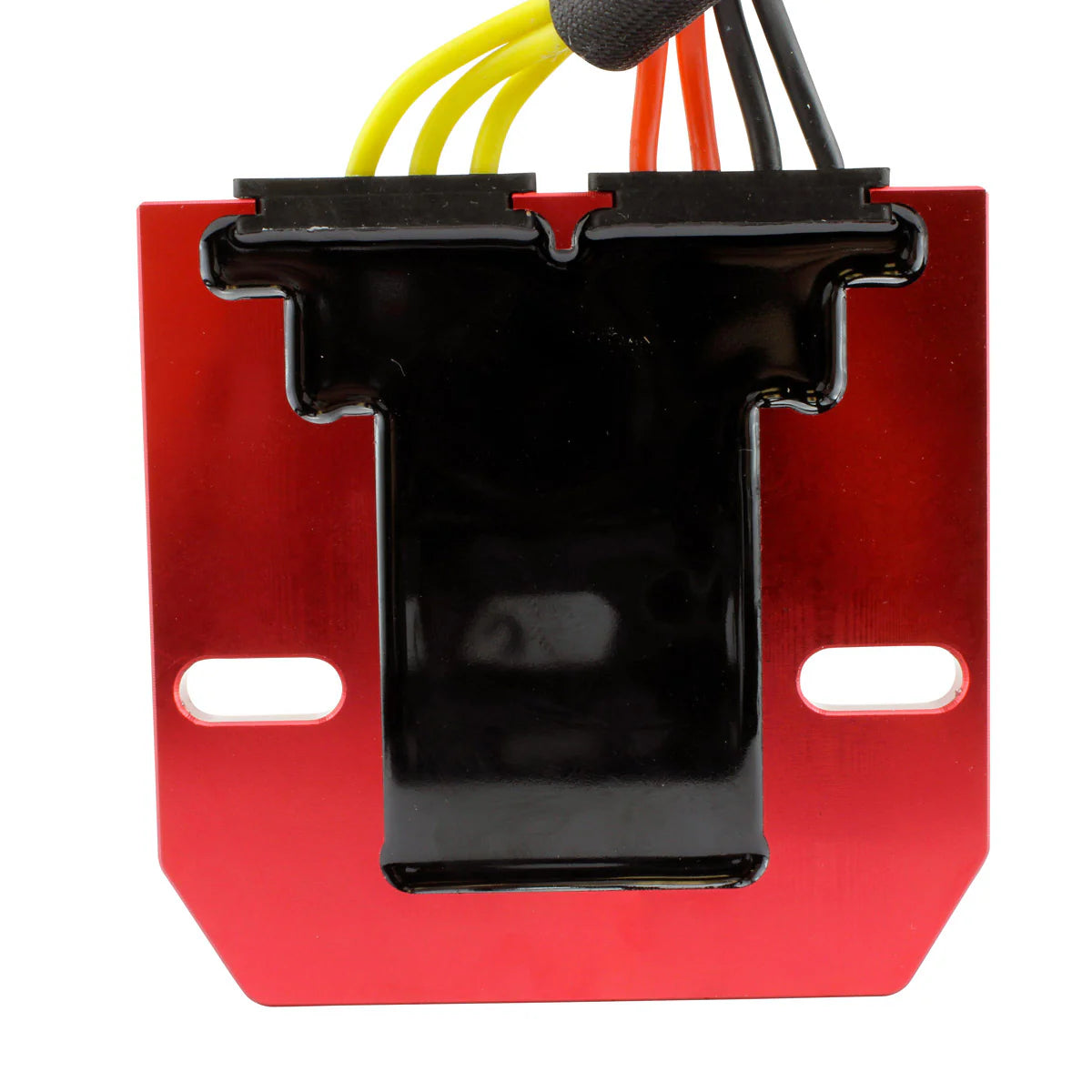

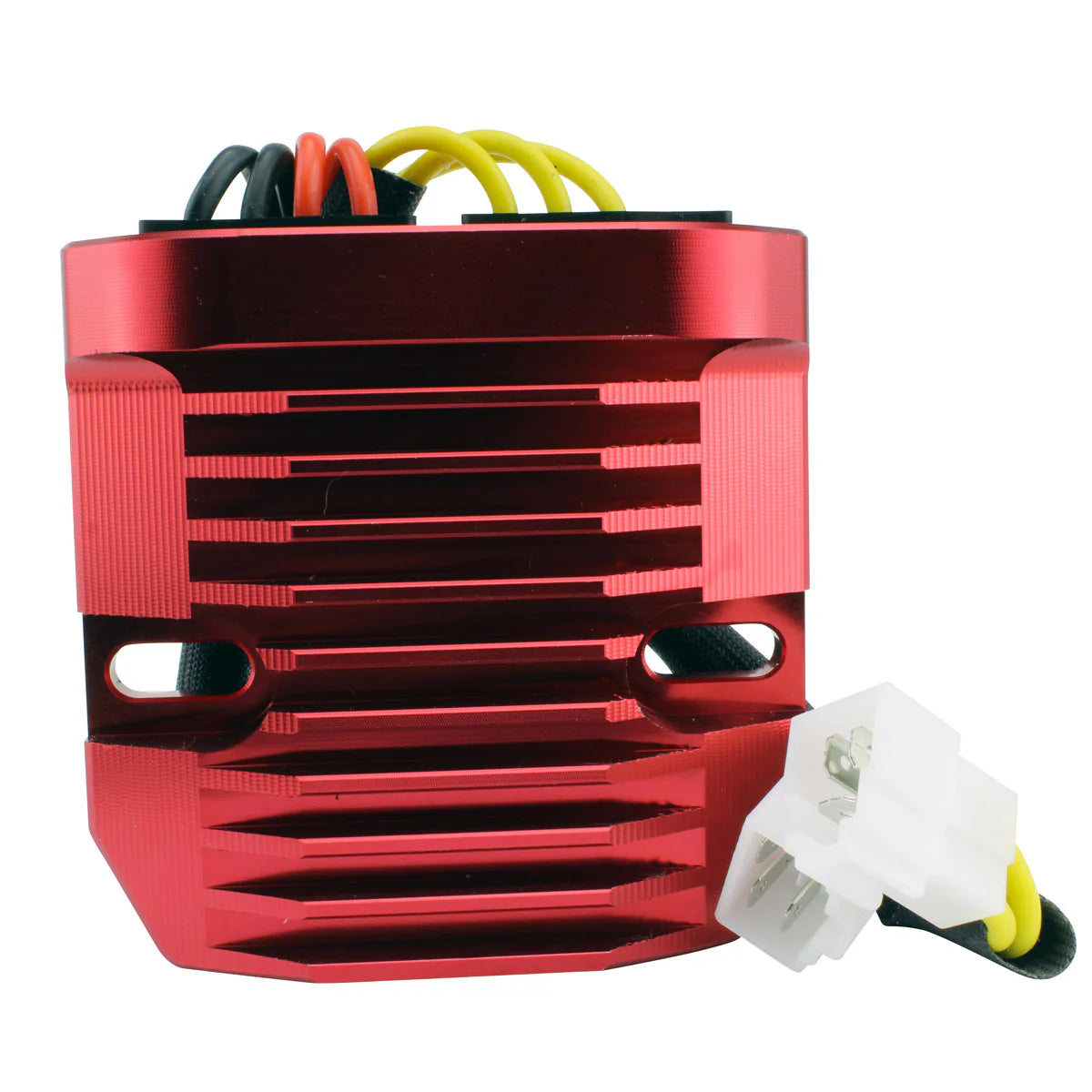

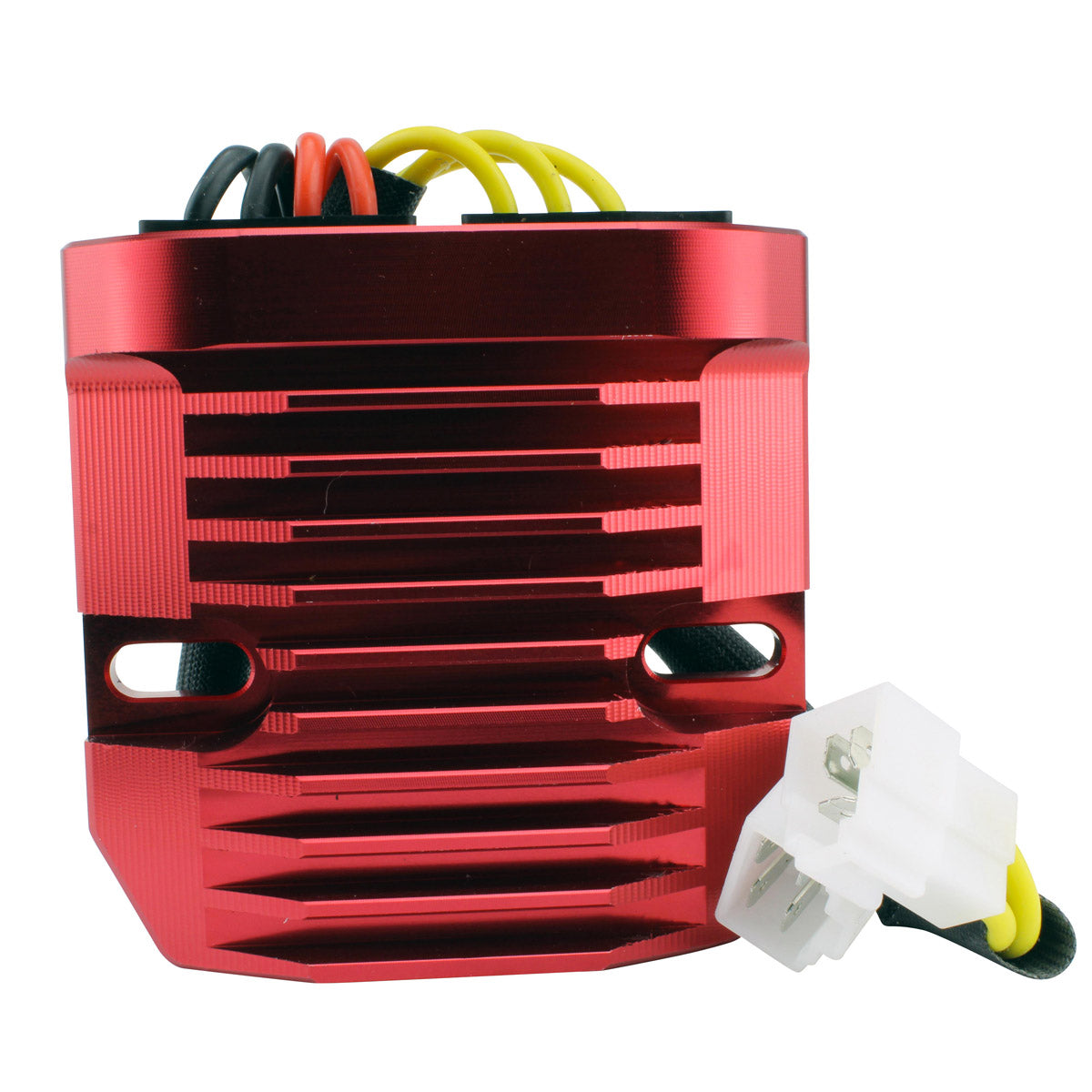

This is a red machined aluminium MOSFET voltage regulator rectifier, part number RMS022-106230, designed for powersports charging systems and supplied for Triumph 600, 650, 955 and 1050 models from 1994 to 2018 and Ducati 749, 848, 999 and 1198 models from 2003 to 2015. The regulator rectifier converts the alternating current produced by the stator into direct current and holds the system voltage steady, so it is the component that decides whether the battery is charged properly or slowly cooked.

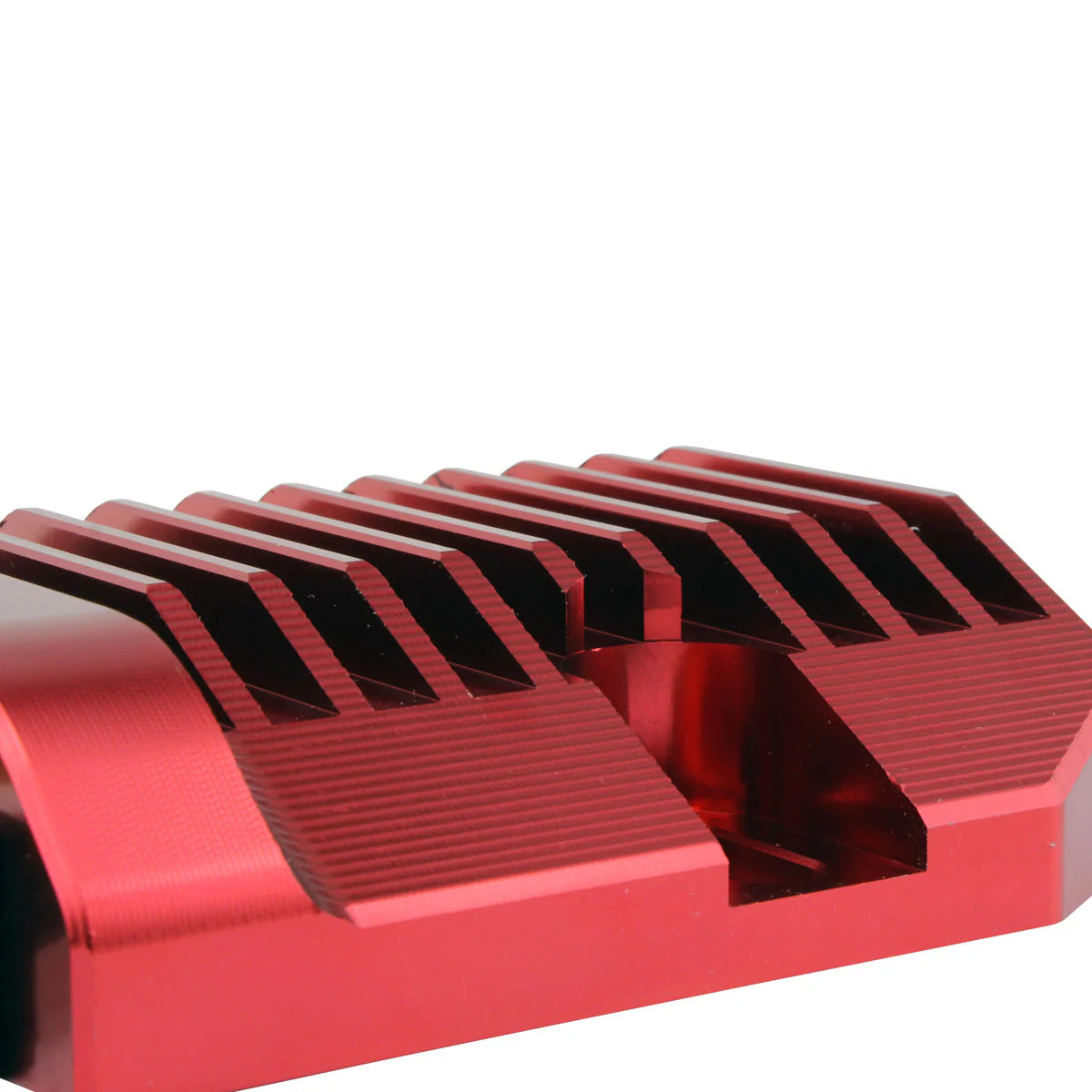

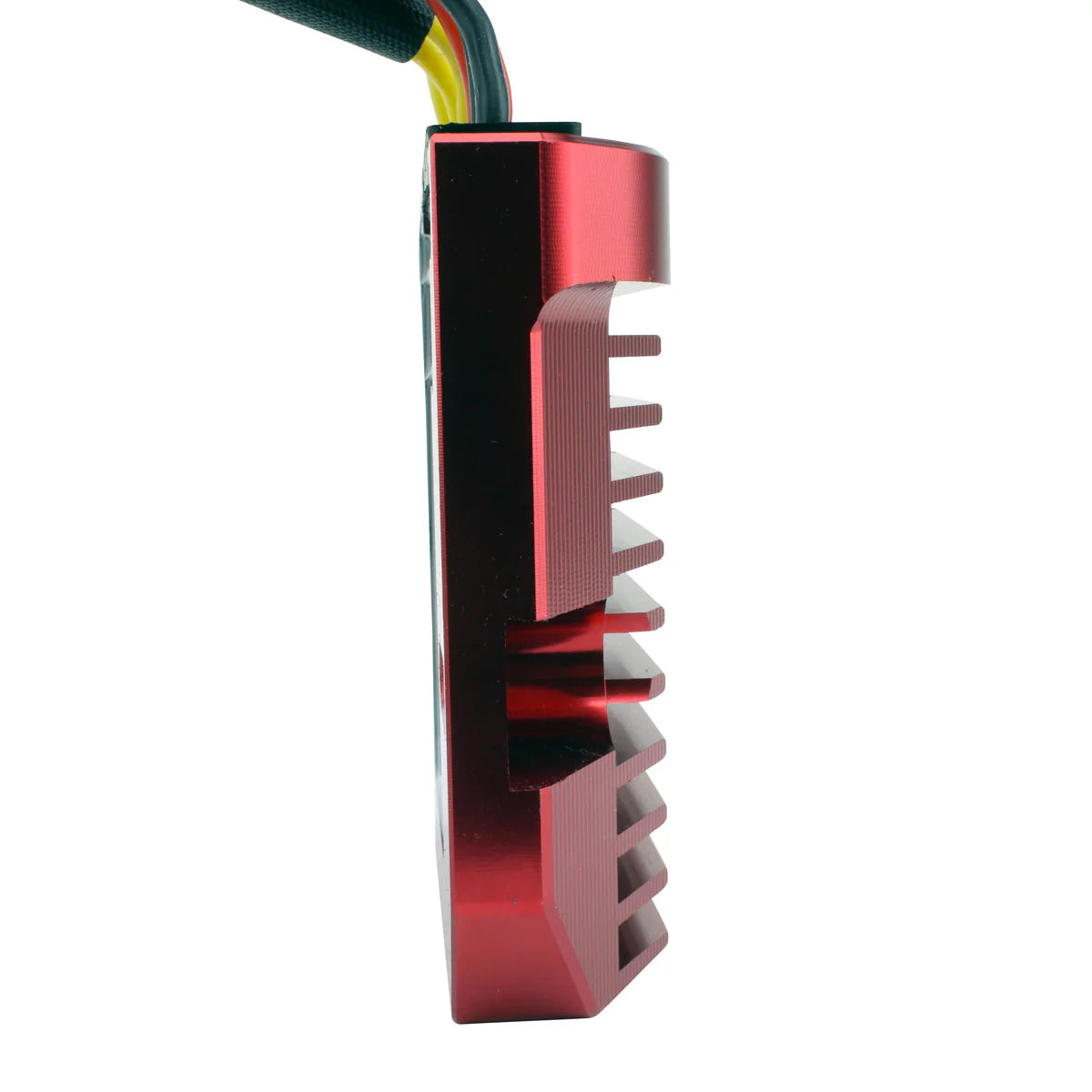

Heat is what kills regulators, and the billet aluminium heatsink on this unit runs 33 percent cooler than a standard cast regulator housing after ten minutes of use. MOSFET switching, built-in overheat protection and a 50 A / 500 W maximum charging current give it the headroom that the original cast units lack. Installation is plug-and-play, the body measures 94 mm long by 90 mm wide by 30 mm high with fixing holes 79 mm apart centre to centre, and the opposite connector for the main harness side is included in the box.
Key Features
- Red machined billet aluminium MOSFET regulator
- Heatsink runs 33 percent cooler than standard cast regulator housings after 10 minutes of use
- Built-in overheat protection
- Plug-and-play installation
- Quality that exceeds the OEM equipment

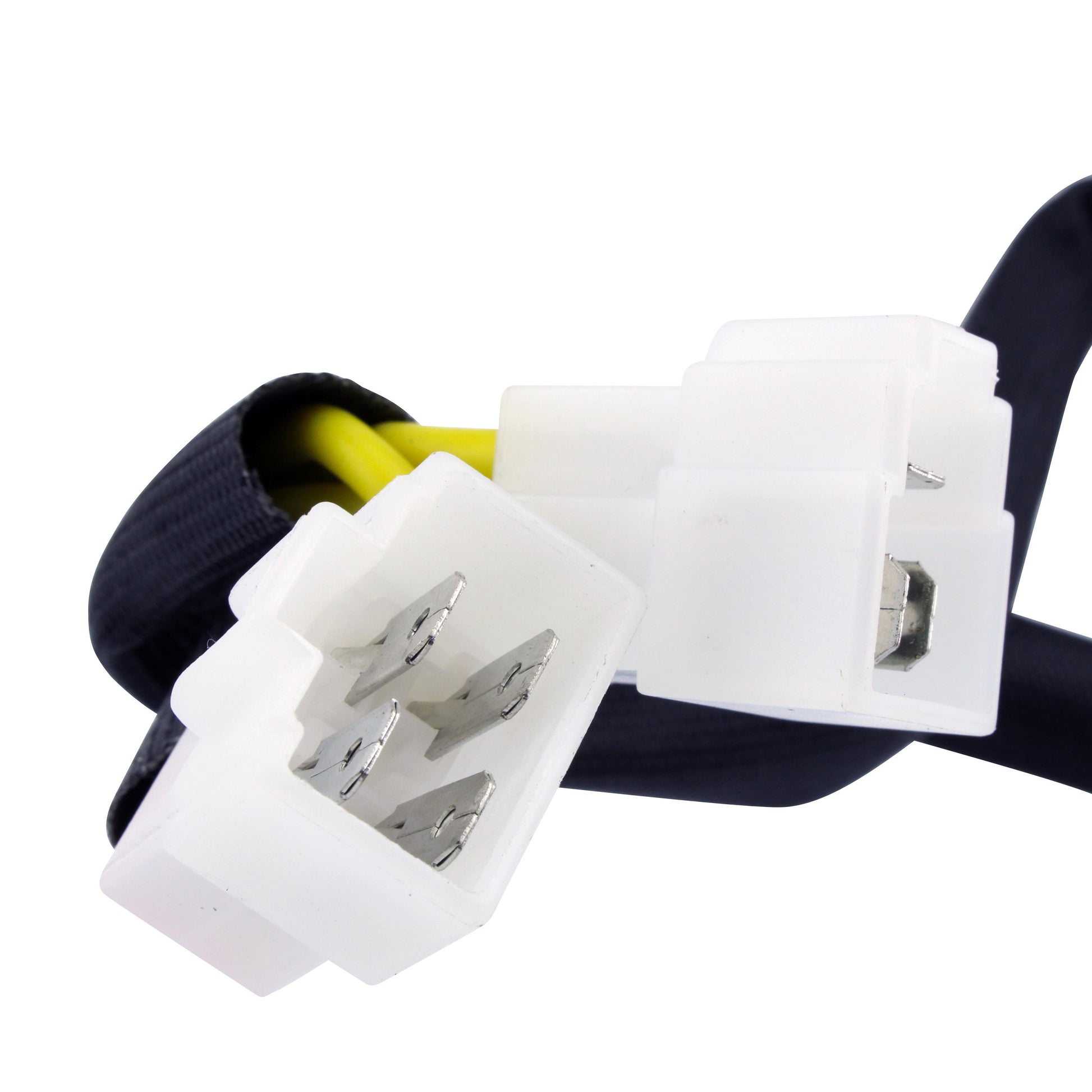

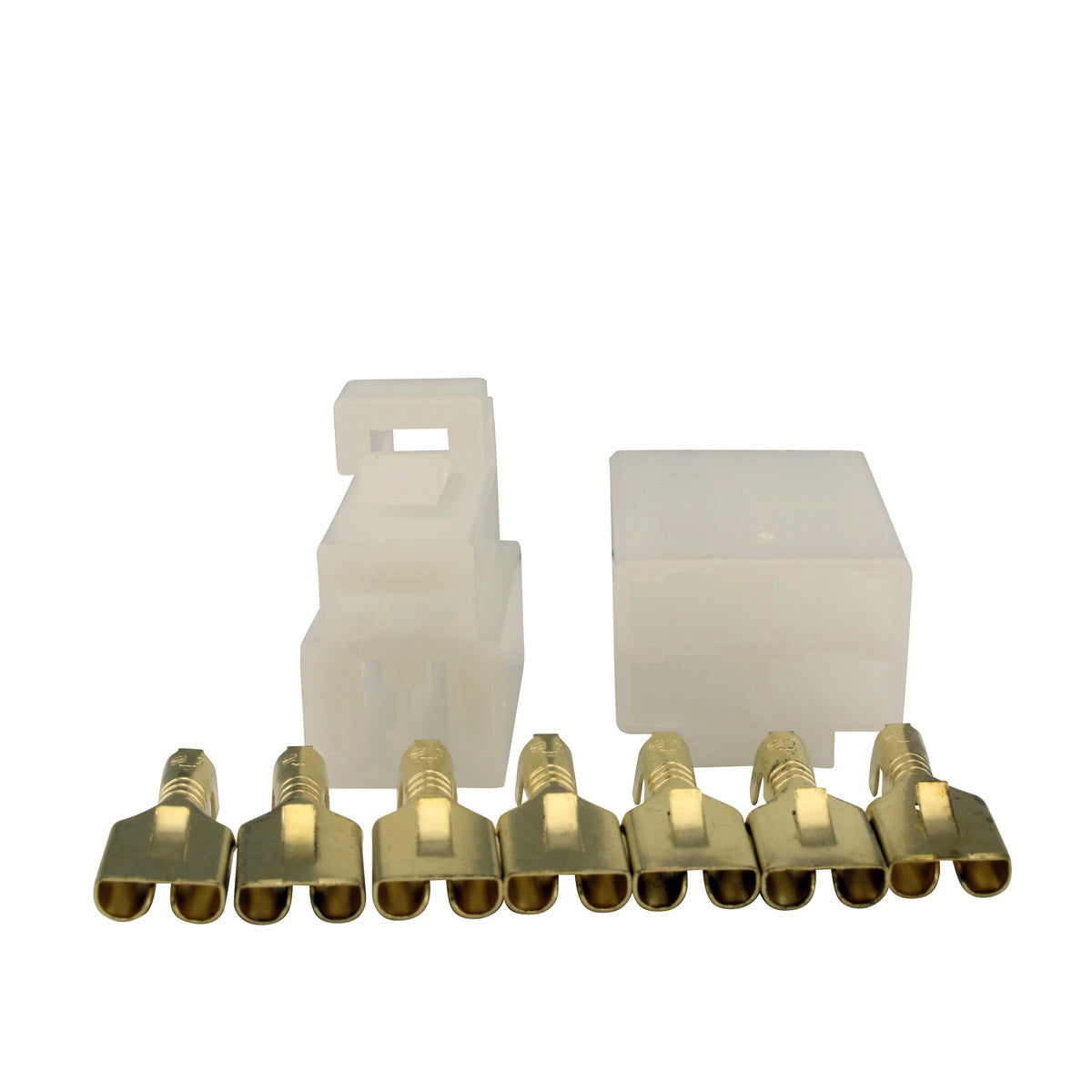

- Opposite connector for the main harness side included
Technical Specs
| Specification |
Detail |
| Part number |
RMS022-106230 |
| Width |
90 mm |
| Length |
94 mm |
| Height |
30 mm |

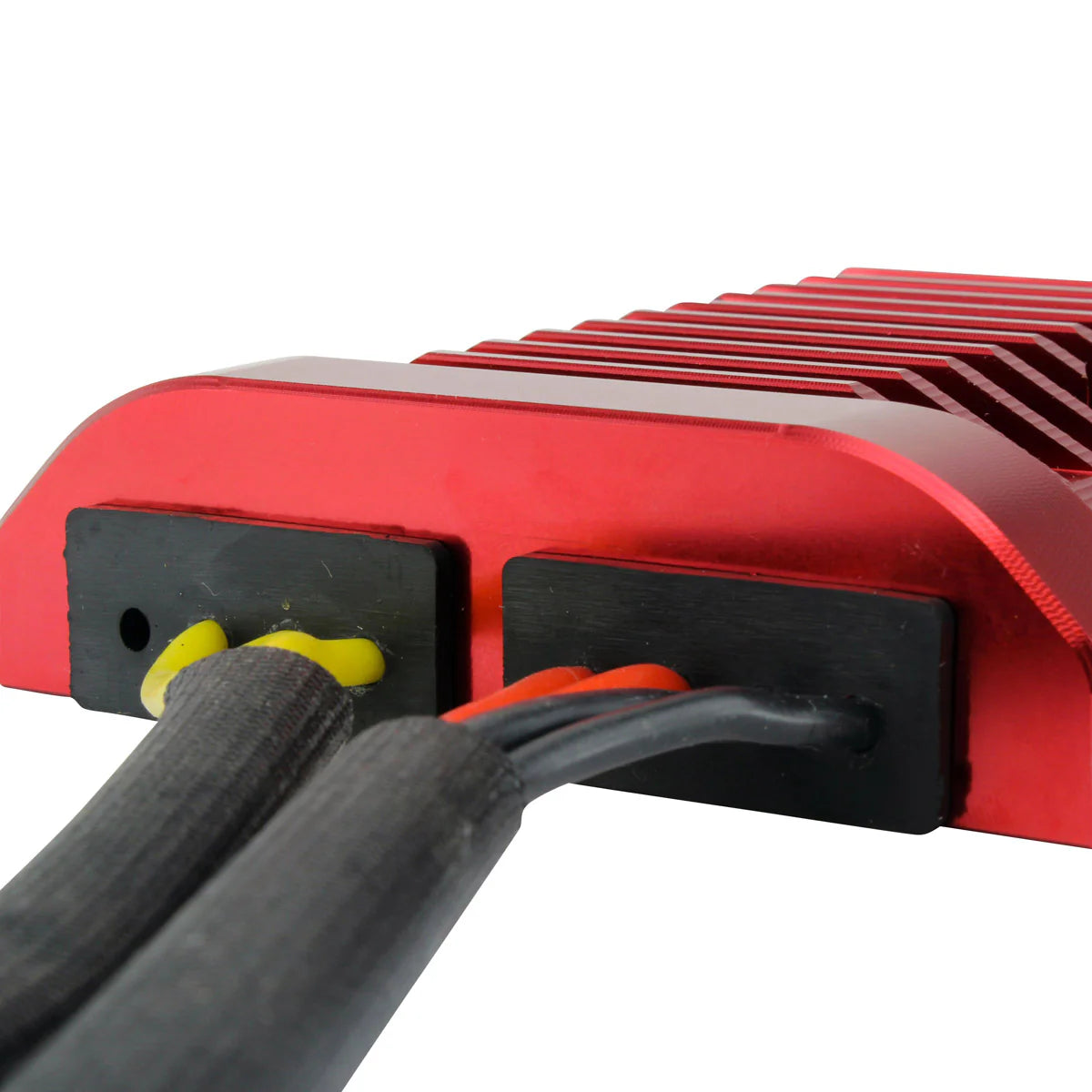

| Wire lengths |
320 mm & 235 mm |
| Fixation holes centre to centre |
79 mm |
| Number of plugs |
2 |
| Number of pins |
7 |
| Number of wires |
7 |
| Minimum charging voltage |
14.5 V +- 0.5 V |
| Maximum charging current |
50 A / 500 W |
| Open circuit voltage |
< 15 V |
| Operation temperature |
-20 C to 85 C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Triumph 600 |
1994-2018 |
| Triumph 650 |
1994-2018 |
| Triumph 955 |
1994-2018 |
| Triumph 1050 |
1994-2018 |
| Ducati 749 |
2003-2015 |
| Ducati 848 |
2003-2015 |
| Ducati 999 |
2003-2015 |
| Ducati 1198 |
2003-2015 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| T1304040 |
Triumph |
| T1300560 |
Triumph |
| 540.4.019.1A |
Ducati |
| 540.4.027.1A |
Ducati |
Frequently Asked Questions
Does fitting it require any modification?
No. Installation is plug-and-play, and the opposite connector for the main harness side is supplied so the loom can be joined without cutting into the original wiring.
What is included?

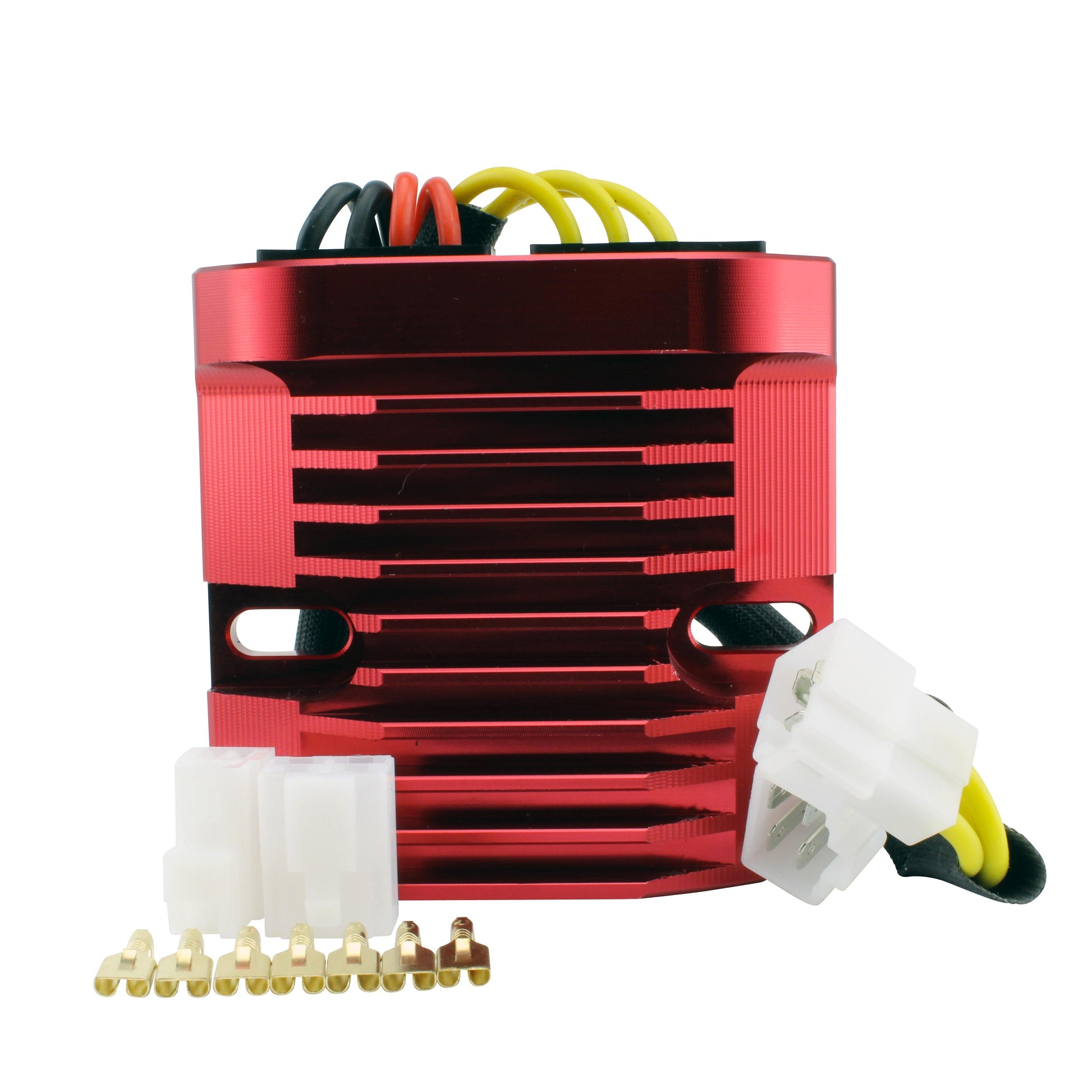

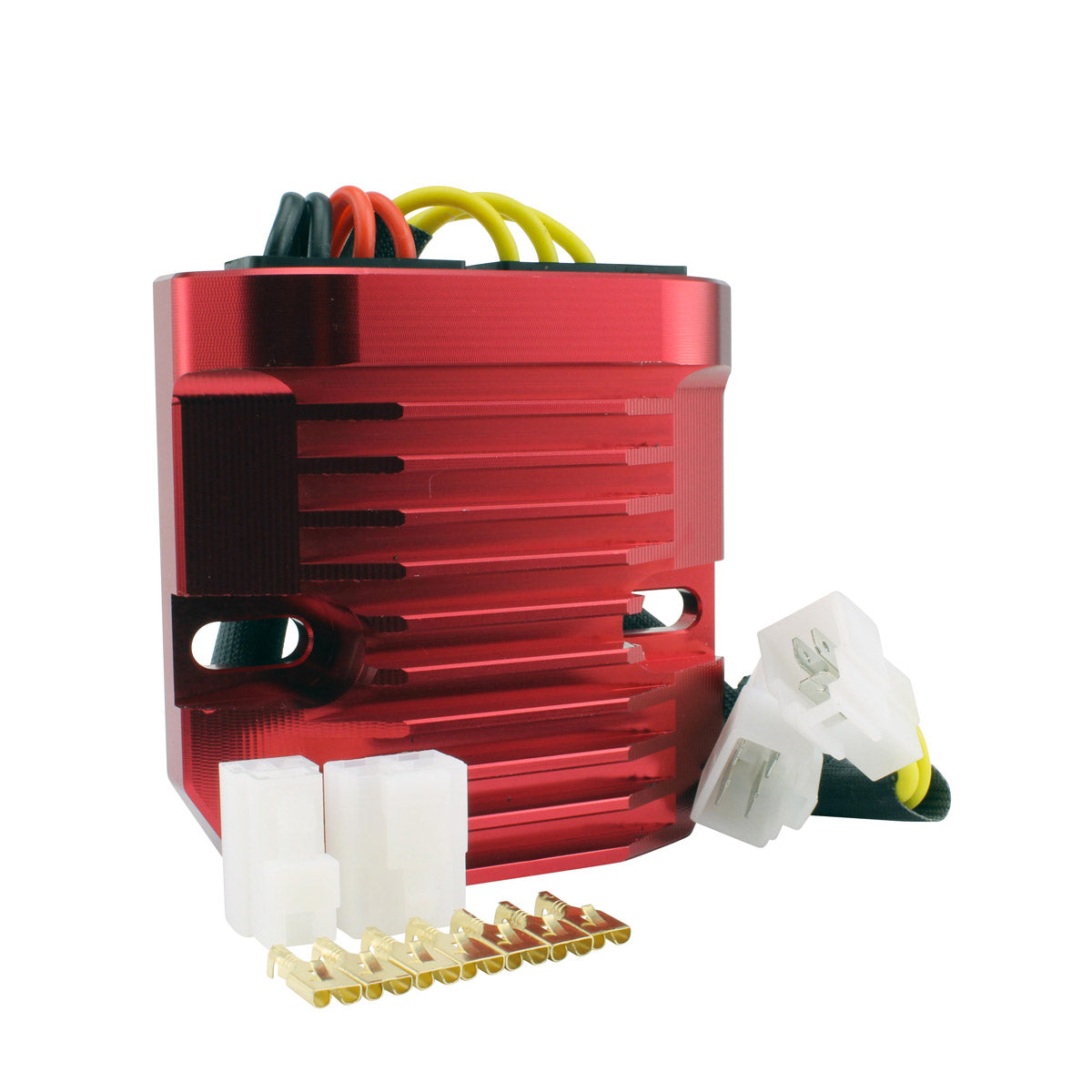

One machined aluminium MOSFET regulator rectifier plus the opposite connector for the main harness side.
How do I know my old regulator has failed?
Typical signs are a battery that keeps going flat, charging voltage that sits below the 14.5 V this unit is rated to deliver, boiling or bulging batteries from overcharging, and a regulator body that is discoloured or too hot to touch after a short ride.
Why choose a MOSFET regulator over the original cast unit?
MOSFET switching wastes less energy as heat, and the machined billet aluminium heatsink here runs 33 percent cooler than a standard cast regulator housing after ten minutes of use. Overheat protection and a 50 A / 500 W maximum charging current give the unit more margin under sustained load.
