Stator, Mosfet Regulator and Gasket Kit for Suzuki GSXR 600 & 750
Suzuki GSXR 600 and GSXR 750 - 2006-2009 and 2011-2019

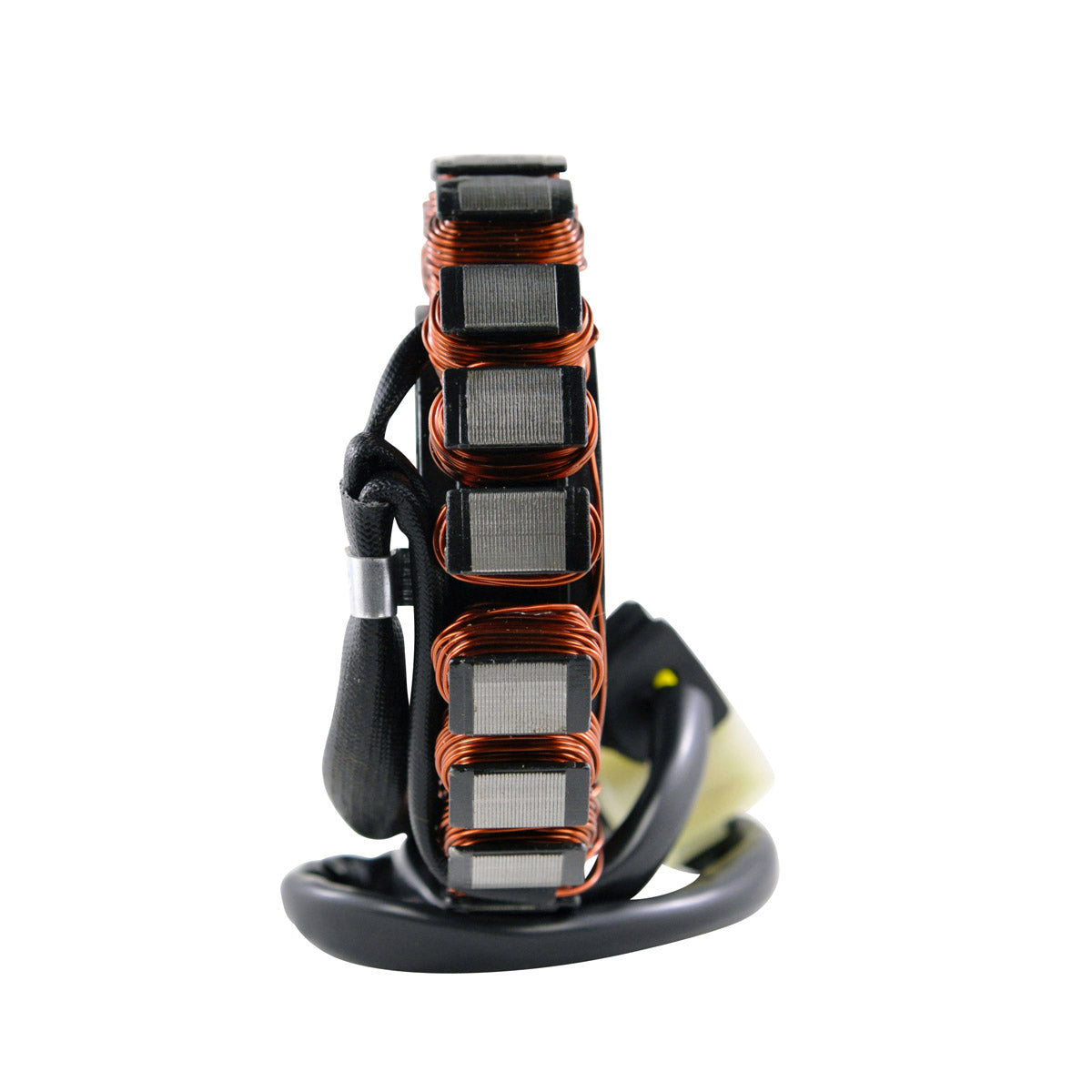

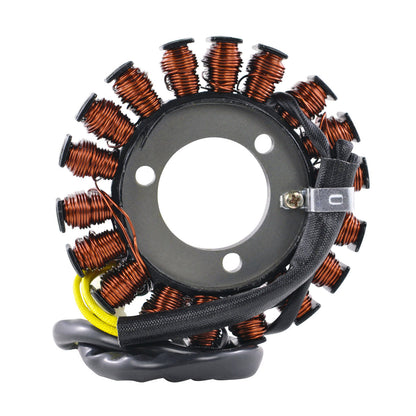

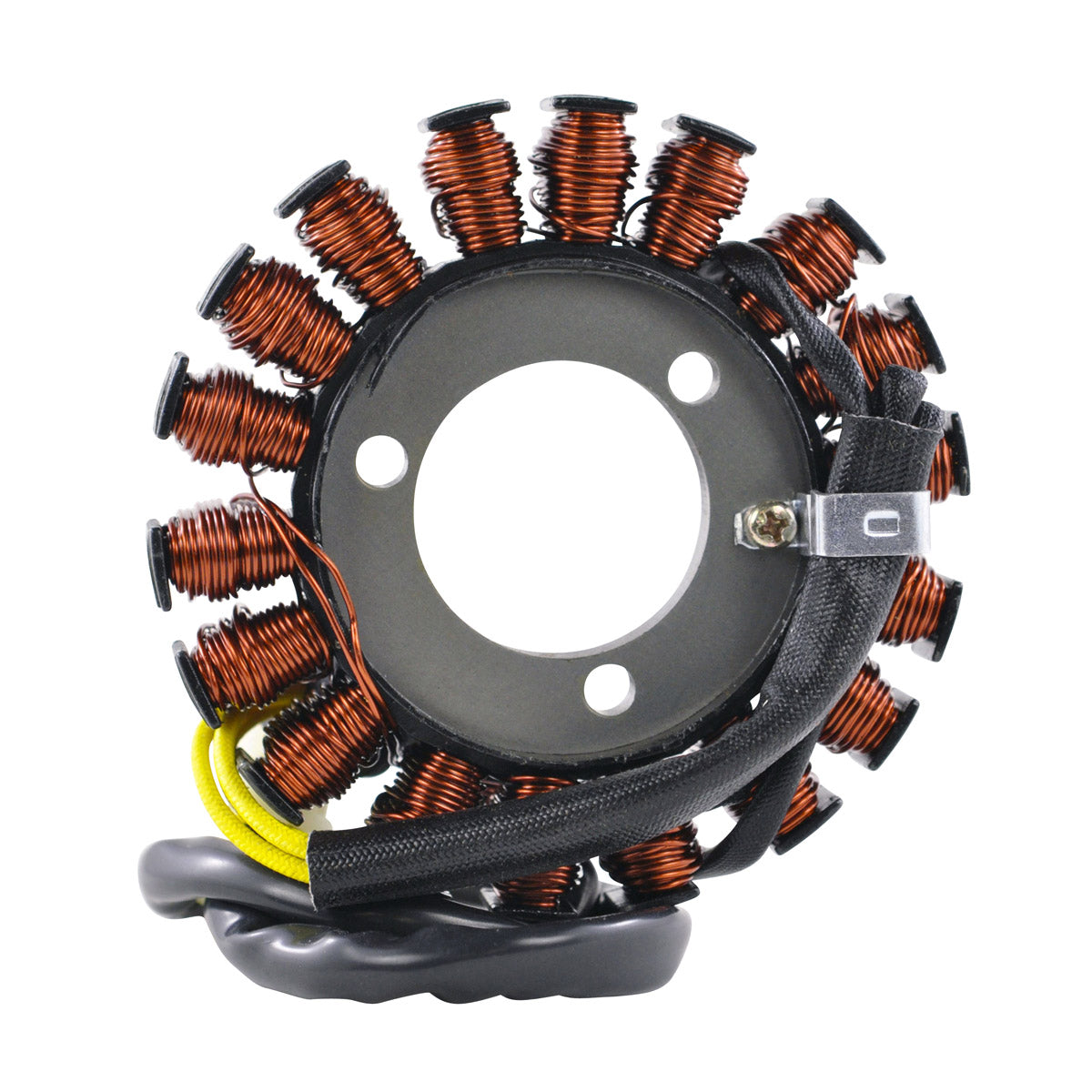

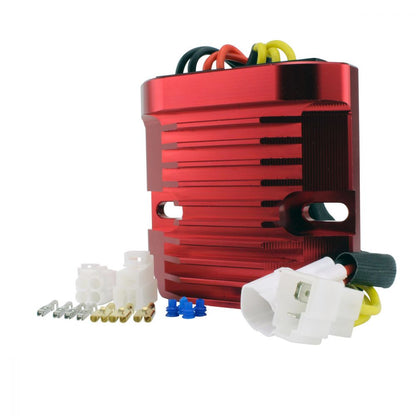

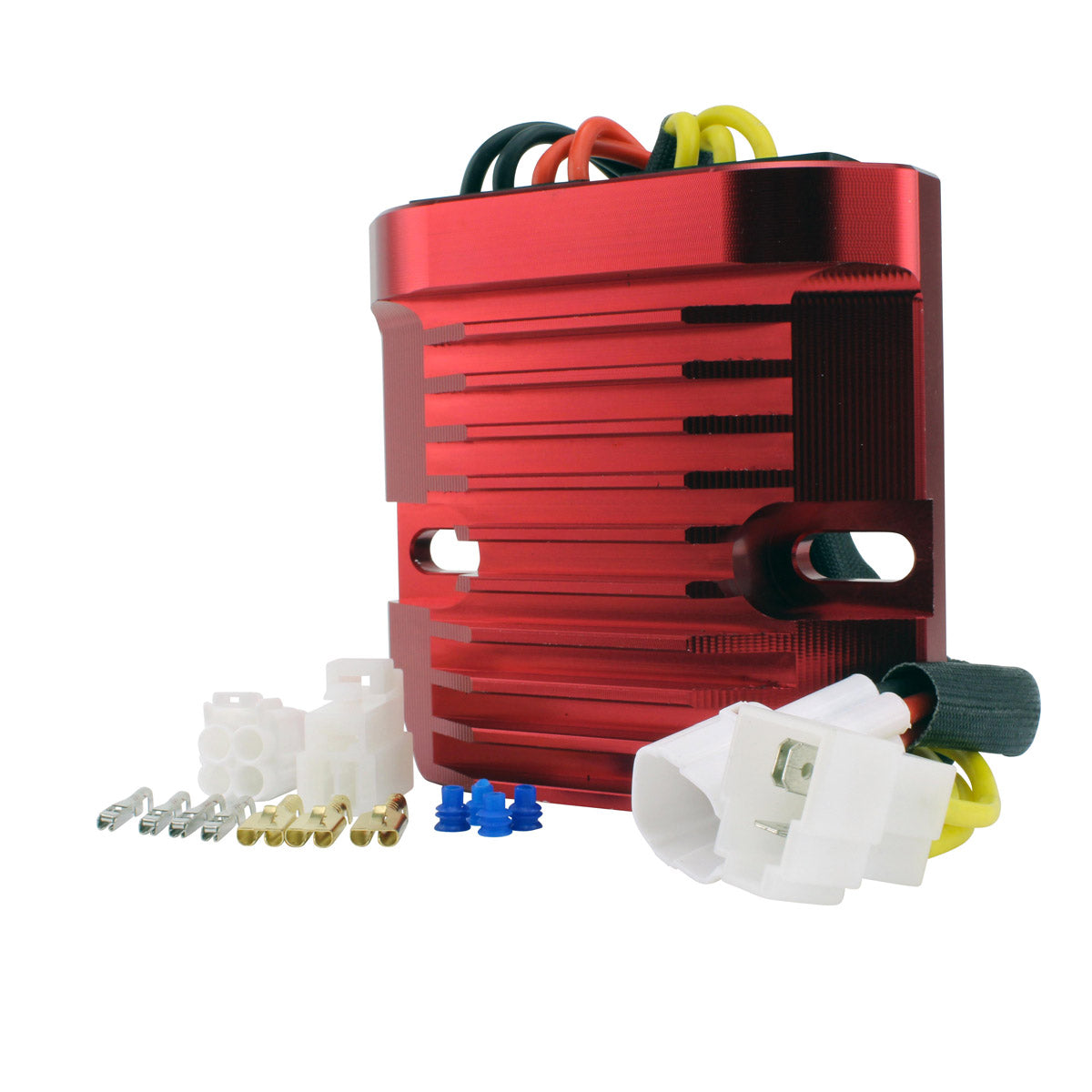

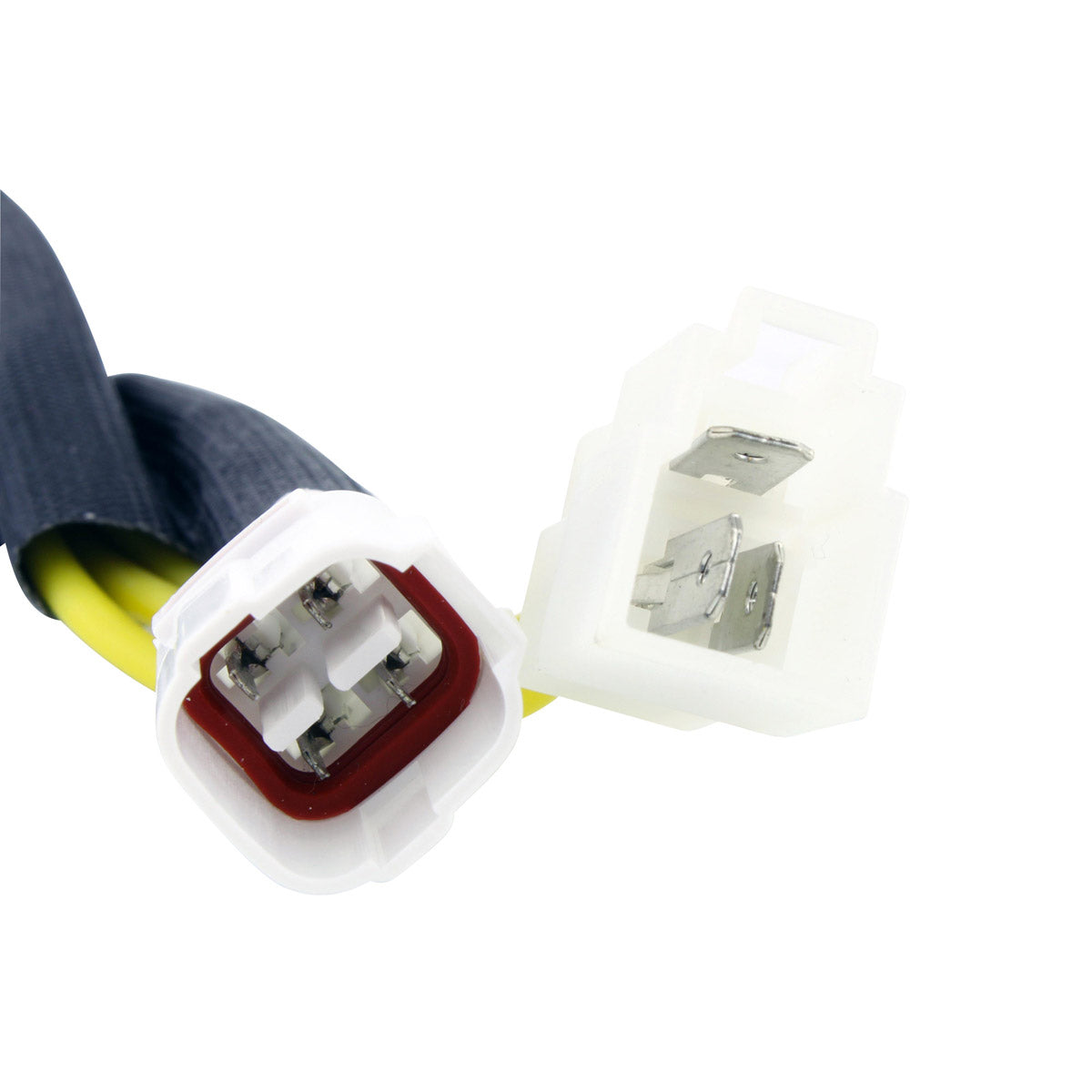

Brand new aftermarket stator kit with crankcase cover gasket and a CNC red machined aluminium mosfet voltage regulator. It is a direct replacement for your original units, plug-and-play and easy to install. An additional connector for the main harness side is included in the kit, because the harness side connectors are often melted, corroded or defective and cause charging faults on their own.
The stator is wound with the highest grade of copper winding, rated to 200 degrees Celsius, on the highest grade of lamination materials. The mosfet regulator holds a minimum charging voltage of 14.5 V plus or minus 0.5 V, handles a maximum charging current of 50 A / 500 W, keeps open circuit voltage below 15 V and operates from -20 C to 85 C. Replacing the stator and the regulator together is the sensible approach, because a shorted regulator is the most common reason a new stator burns out.
Key Features

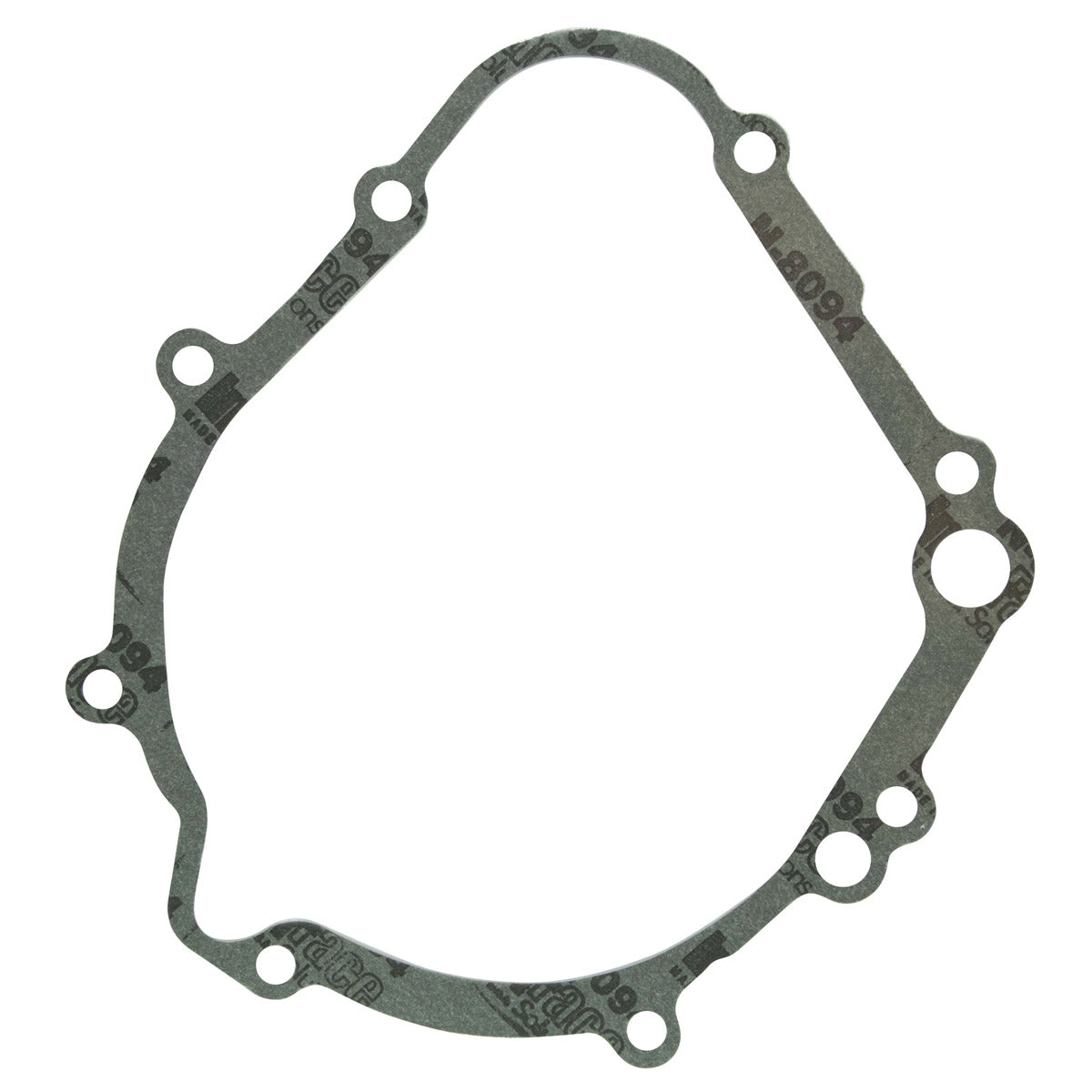

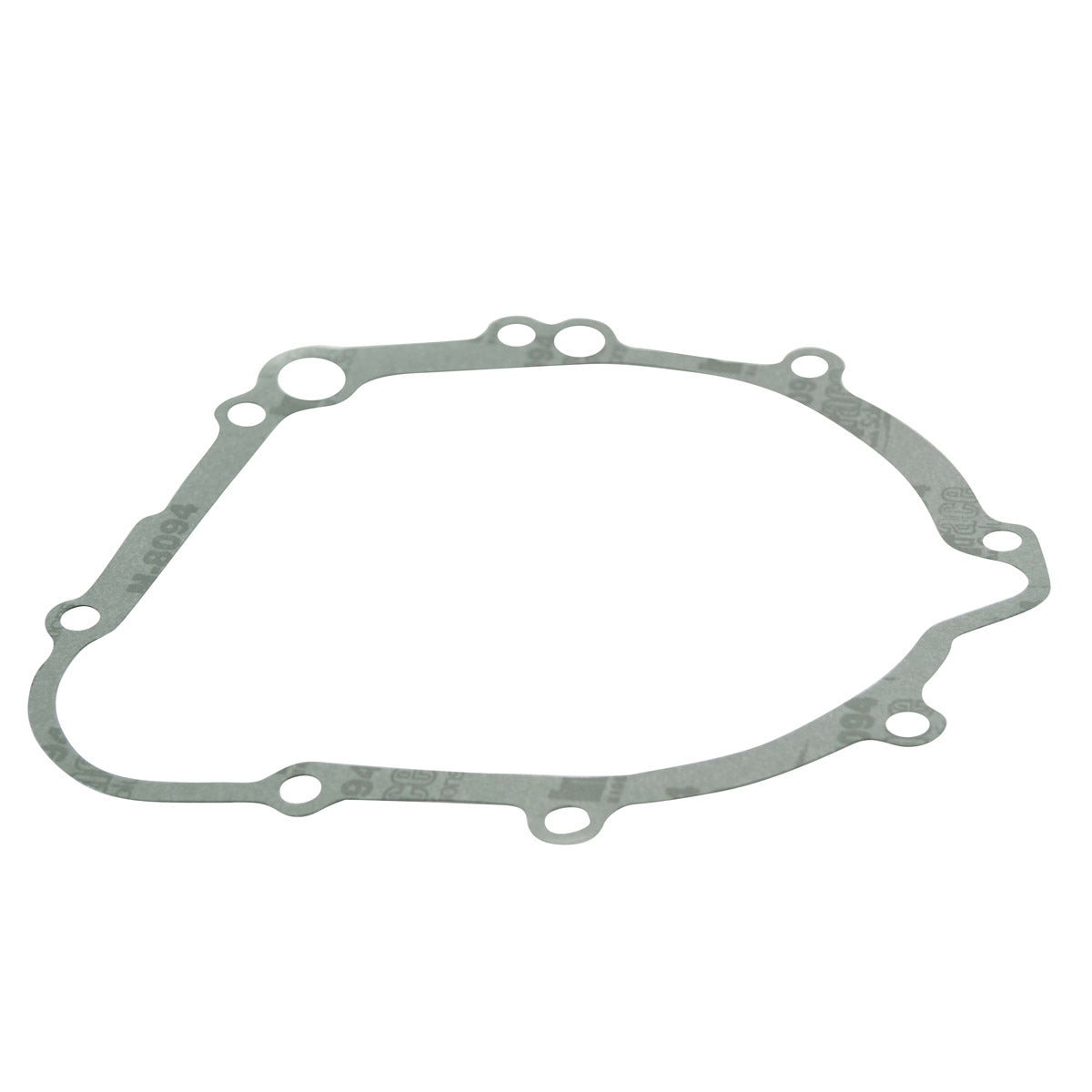

- Complete kit - stator, mosfet voltage regulator and crankcase cover gasket

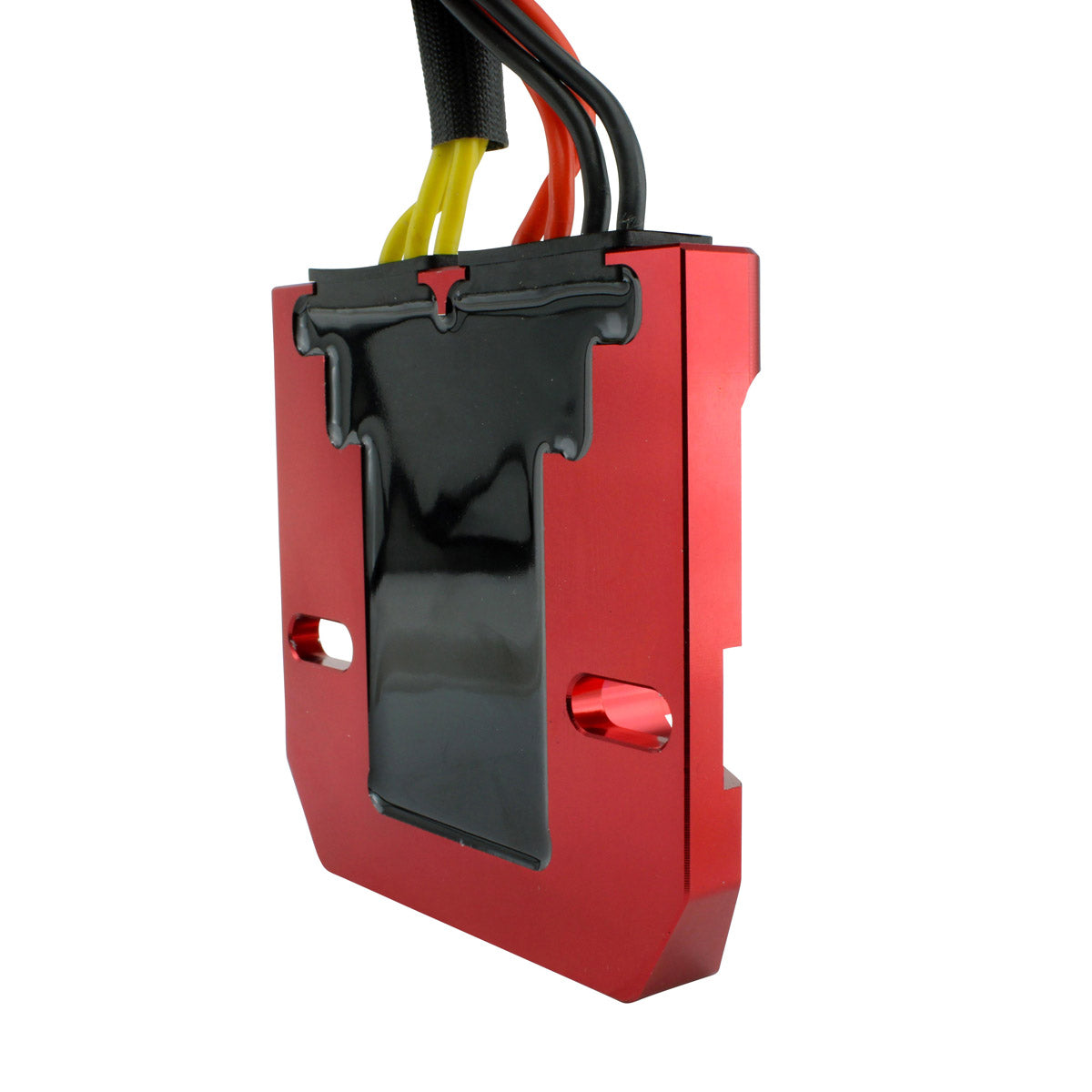

- CNC red machined aluminium mosfet regulator body

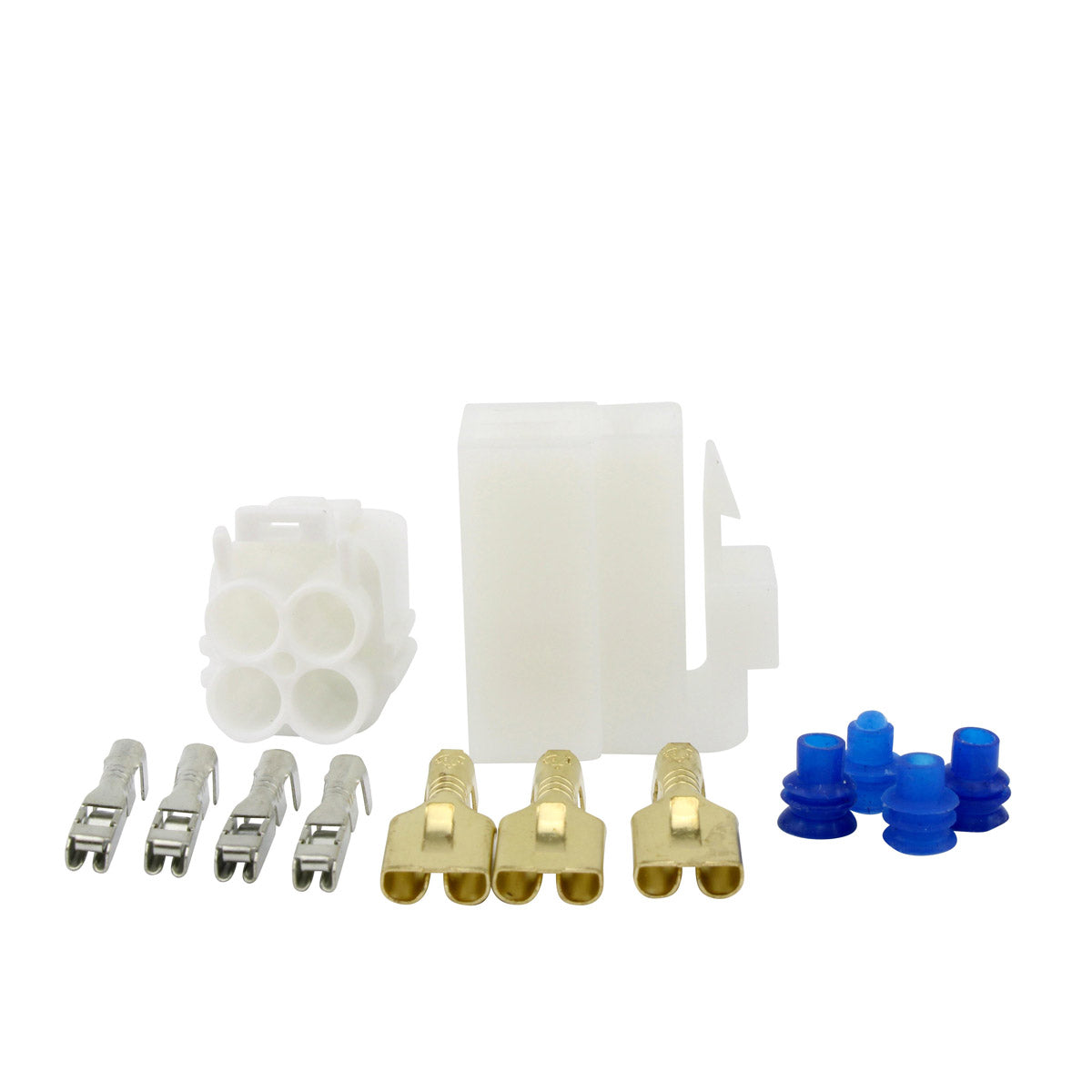

- Additional opposite connector for the main harness side included
- Highest grade of lamination materials and copper winding rated to 200 degrees Celsius

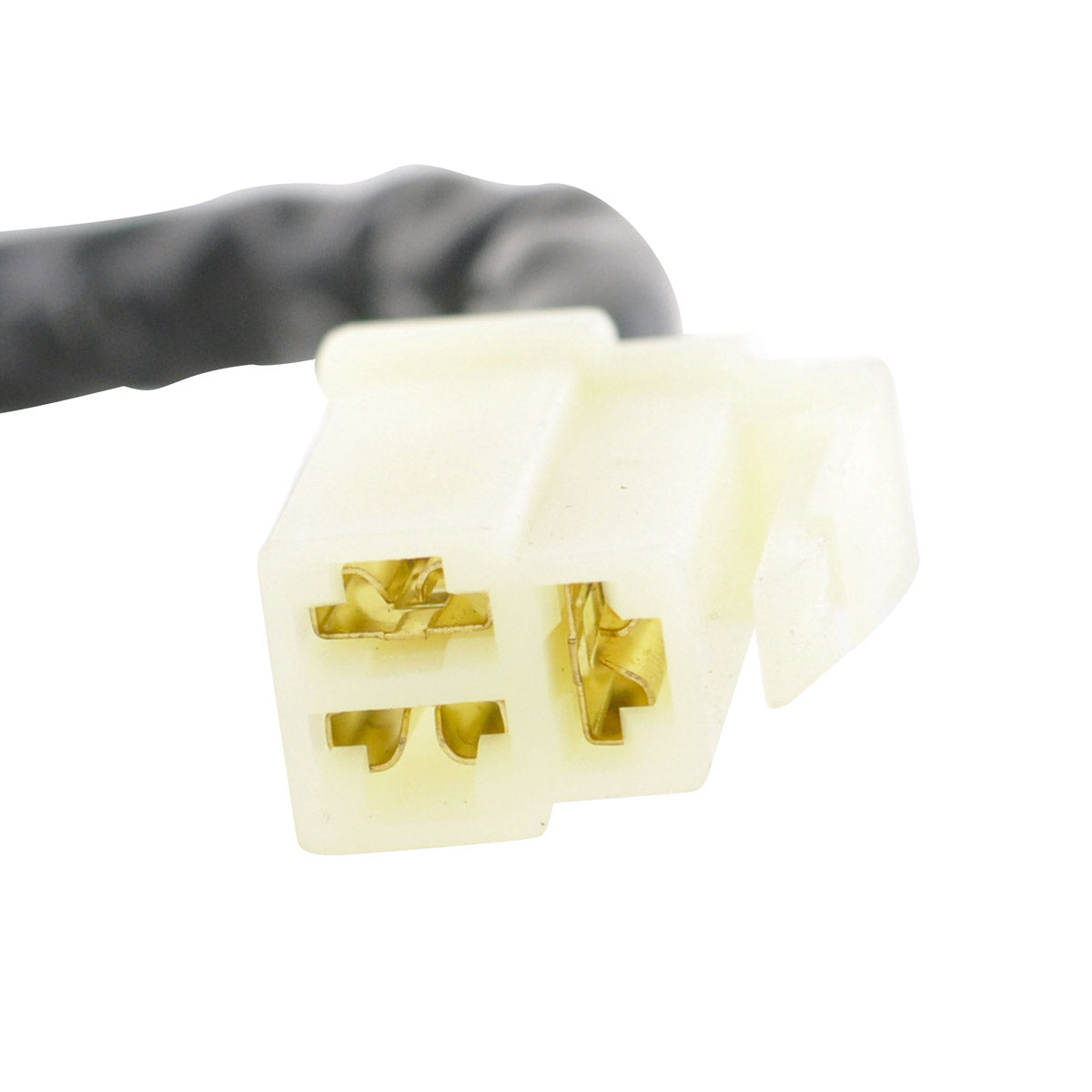

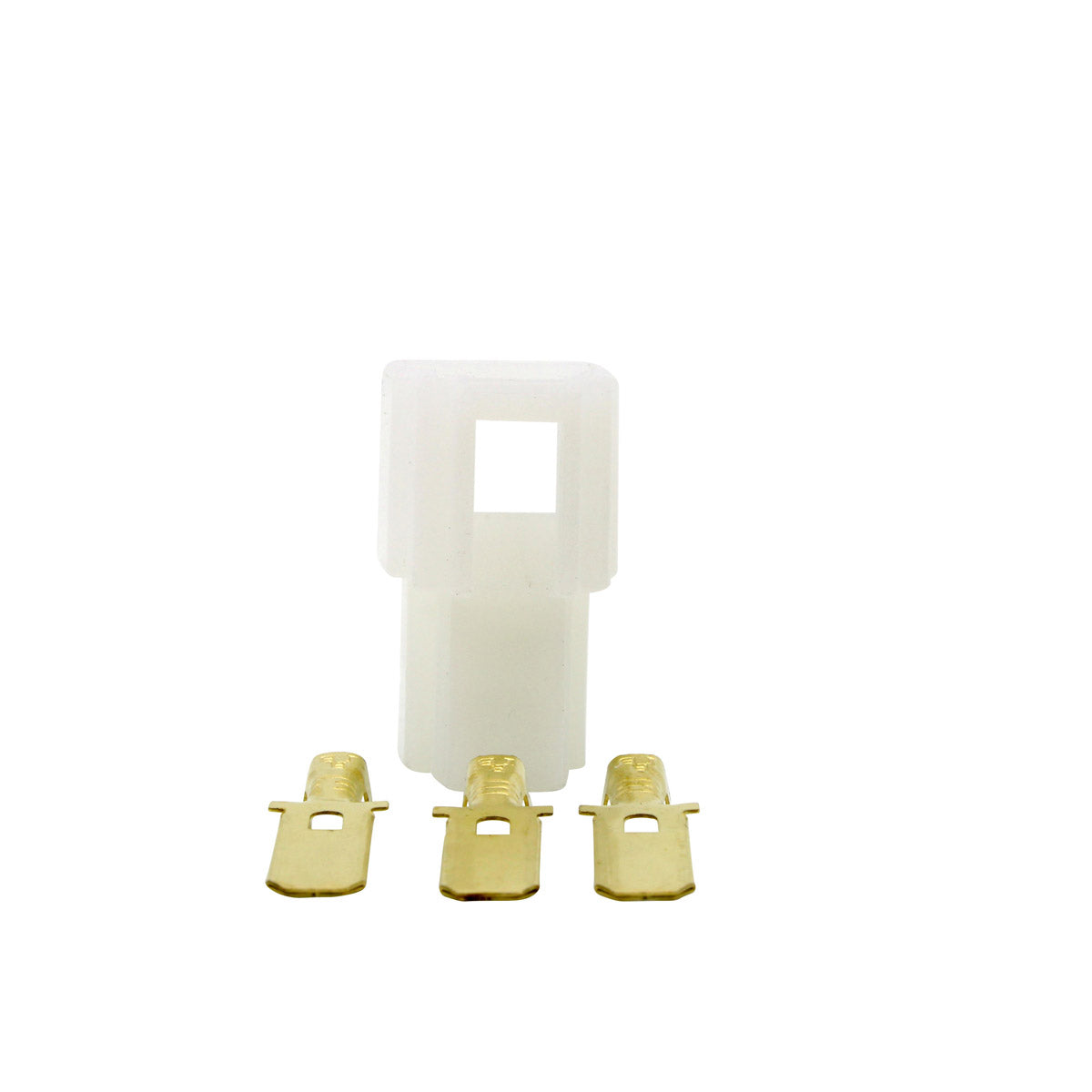

- Rubber grommet and connectors supplied
- Plug-and-play, direct fit, easy installation
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | RMS900-107319 |
| Stator interior diameter | 38 mm |
| Stator exterior diameter | 107 mm |
| Stator thickness | 12 mm |
| Wire length (stator to grommet) | 160 mm |
| Wire length (grommet to plug) | 330 mm |
| Stator wires / plugs / pins | 3 wires, 1 plug, 3 pins |
| Stator resistance | Yellow to Yellow = 0.5 ohms +/-20% |
| Regulator width x length x height | 92 mm x 92 mm x 30 mm |
| Regulator fixation hole spacing | 75 mm |
| Regulator wire length | 300 mm |
| Regulator wires / plugs / pins | 7 wires, 2 plugs, 7 pins |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | Less than 15 V |
| Operating temperature | -20 C to 85 C |
| Condition | New aftermarket |
| Warranty | 12 months |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki GSXR 600 | 2006-2009, 2011-2019 |
| Suzuki GSXR 750 | 2006-2009, 2011-2019 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31401-01H00 | Stator - OEM reference |
| 31401-01H10 | Stator - OEM reference |
| 31401-01H11 | Stator - OEM reference |
| 31401-01H20 | Stator - OEM reference |
| 31401-01H21 | Stator - OEM reference |
| 32800-02H00 | Mosfet voltage regulator - OEM reference |
| 32800-18H00 | Mosfet voltage regulator - OEM reference |
| 32800-41F10 | Mosfet voltage regulator - OEM reference |
| 32800-41F11 | Mosfet voltage regulator - OEM reference |
| 32800-41G00 | Mosfet voltage regulator - OEM reference |
| 32800-41G10 | Mosfet voltage regulator - OEM reference |
| 32800-47H00 | Mosfet voltage regulator - OEM reference |
| 32800-47H10 | Mosfet voltage regulator - OEM reference |
| 11483-01H00 | Gasket - OEM reference |
Frequently Asked Questions
Does it fit without modification?
Yes. On the models listed above it is a direct replacement for the original units, plug-and-play with easy installation and no modification required.
What is included in the kit?

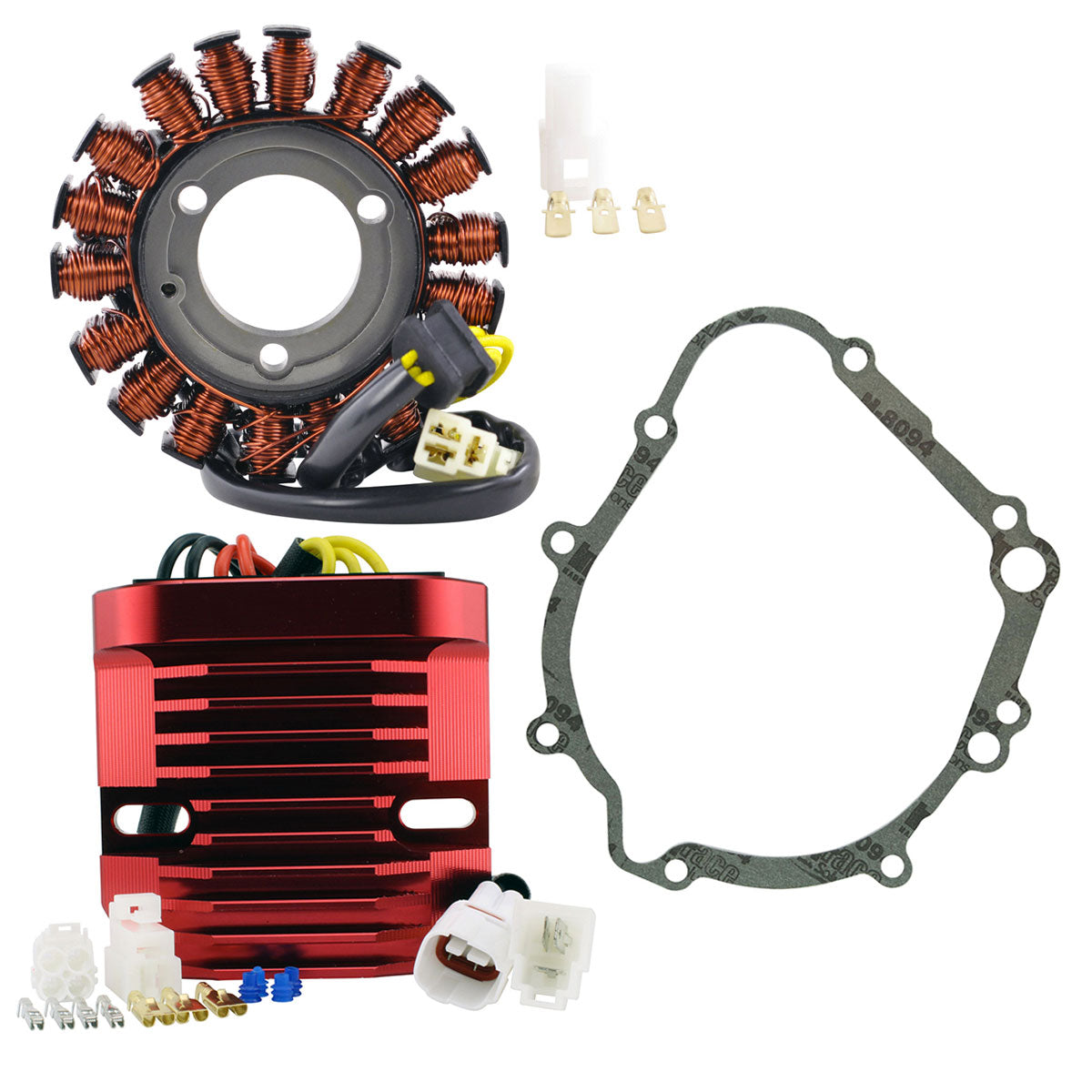

A brand new stator with connector and rubber grommet, the stator crankcase cover gasket, a red machined aluminium mosfet voltage regulator, and an additional opposite connector for the main harness side.
How do I tell the old parts have failed?
Measure the stator yellow to yellow - it should read 0.5 ohms plus or minus 20 per cent, with no continuity to earth. Then check charging voltage at the battery with the engine running: this regulator holds a minimum of 14.5 V plus or minus 0.5 V, so a much lower reading points at the regulator or the stator, and a reading above 15 V points at the regulator.
Why is a mosfet regulator worth fitting?
A mosfet unit runs cooler than an older shunt type and this one is rated to 50 A / 500 W in a CNC machined aluminium body, which helps it shed heat. Heat is what kills regulators, and a failing regulator takes stators with it.
