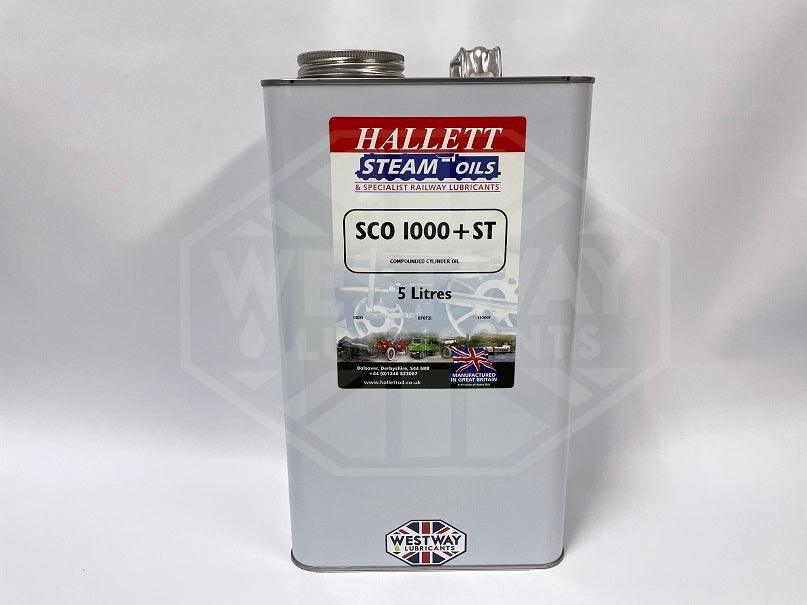

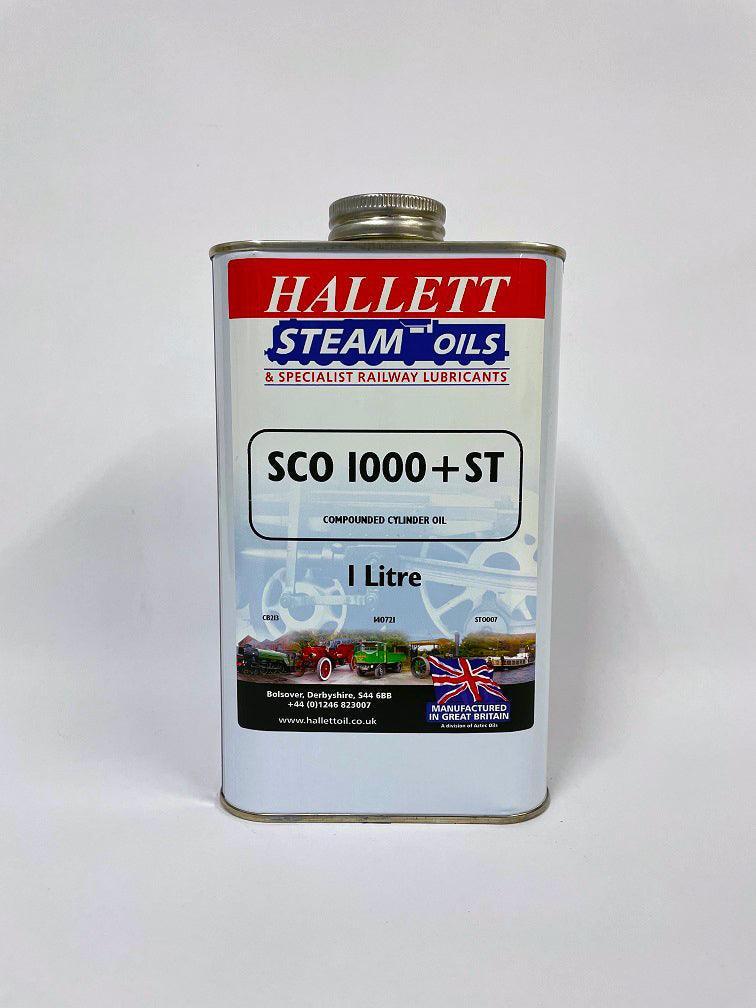

Compounded Stanley Steam Oil 1000+ST - High-Performance Steam Cylinder Oil

Hallett Code: STO007

Compounded Stanley Steam Oil 1000+ST is specially formulated for Stanley Steam Cars. It is made from a blend of solvent refined mineral oil and unique additives to improve corrosion resistance and lubricity, protecting components from premature wear.

The fatty compounding allows the oil to emulsify in the presence of moisture while maintaining a strong lubrication film. This ensures the lubricant disperses and adheres to internal surfaces of steam cylinders and valve blocks.

Product Benefits:

• Does not damage paintwork or stain phosphor bronze, brass, or copper fittings
• Promotes low carbonisation of cylinders and pistons
• Provides a robust lubricating film to protect valves and cylinders
• Offers excellent corrosion resistance
• Exceptional lubricity, even at elevated temperatures
• Improves visibility in the winker sight glass

Suitable for steam temperatures over 290°C (550°F) and boiler pressures over 250 PSI.

Applications:

Designed for high steam temperatures, pressures, and dry superheat steam conditions. Ideal for steam locomotives on preserved lines, traction engines, steam rollers, and stationary engines. Also suitable for lubricating industrial gears and bearings where extreme pressure oils are not required. Not recommended for use with condensate recovery.

Product Test Data:

• Density @ 15°C: 0.900
• Kinematic Viscosity @ 40°C: 1000 cSt
• Kinematic Viscosity @ 100°C: 50 cSt
• Viscosity Index: 95
• Flash Point (COC): >200°C
