384 Piece Connector Kit for AMP Superseal Connectors
Replacement for TE Connectivity AMP Superseal 2-Way / 3-Way / 5-Way / 6-Way

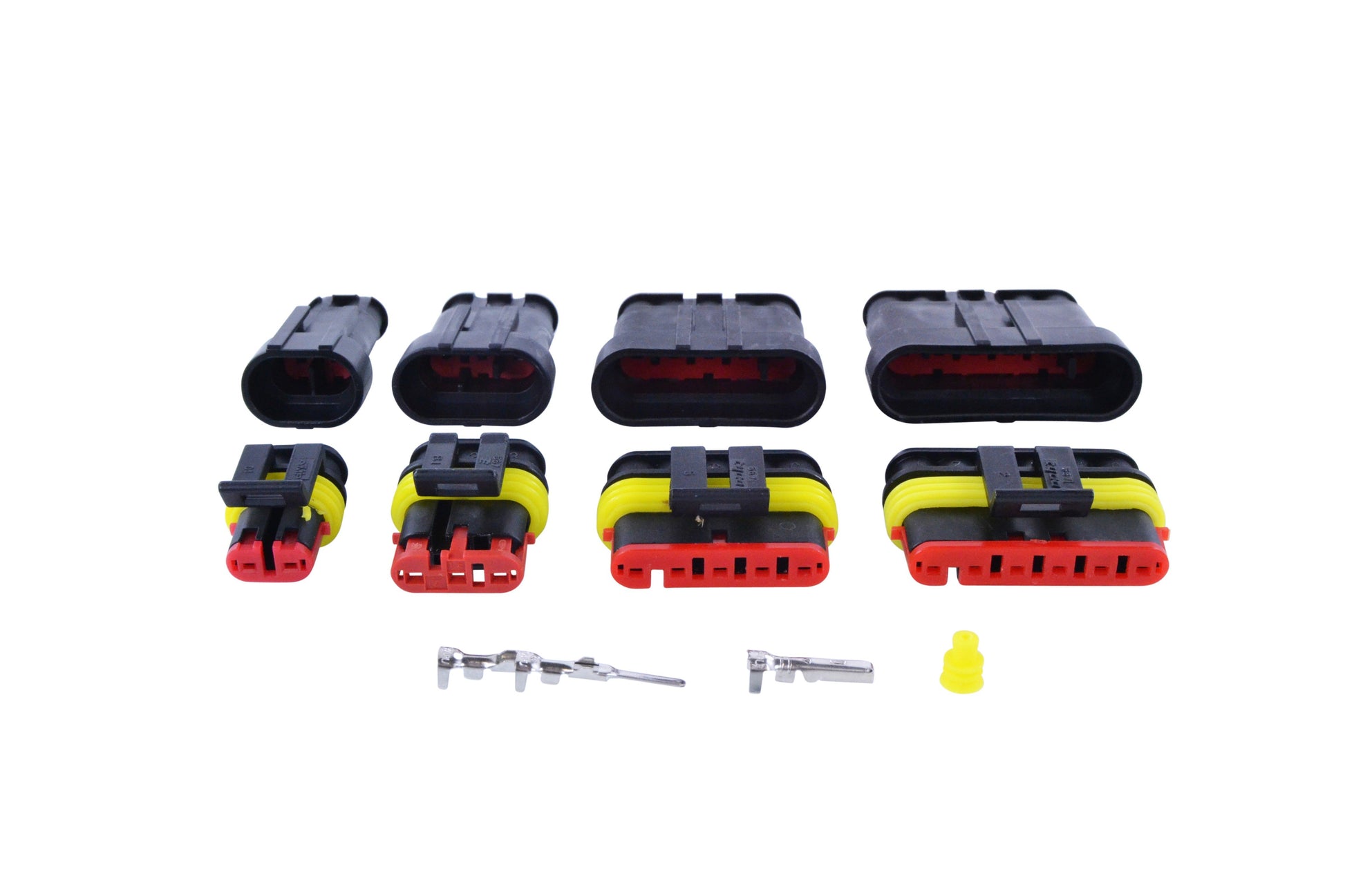

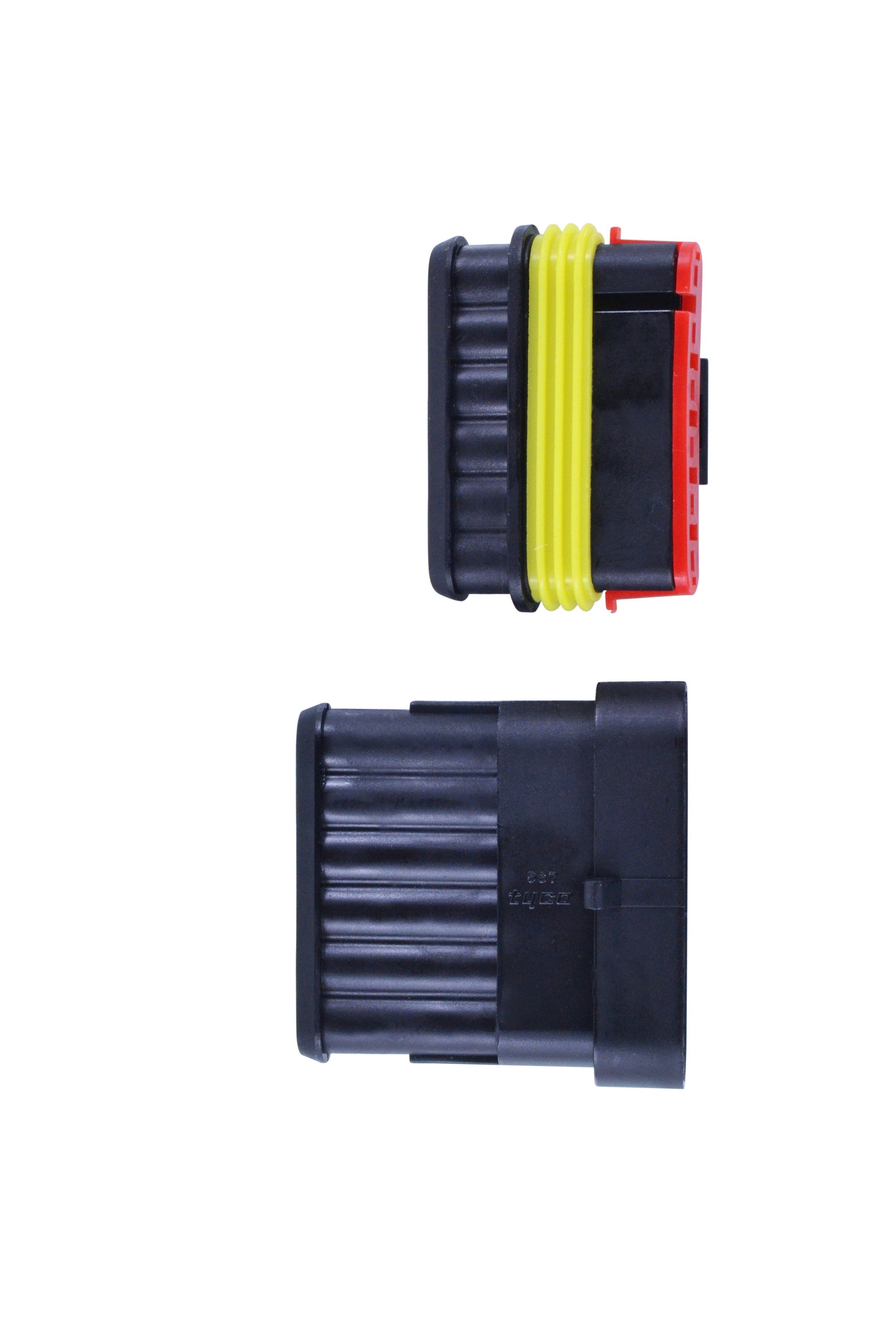

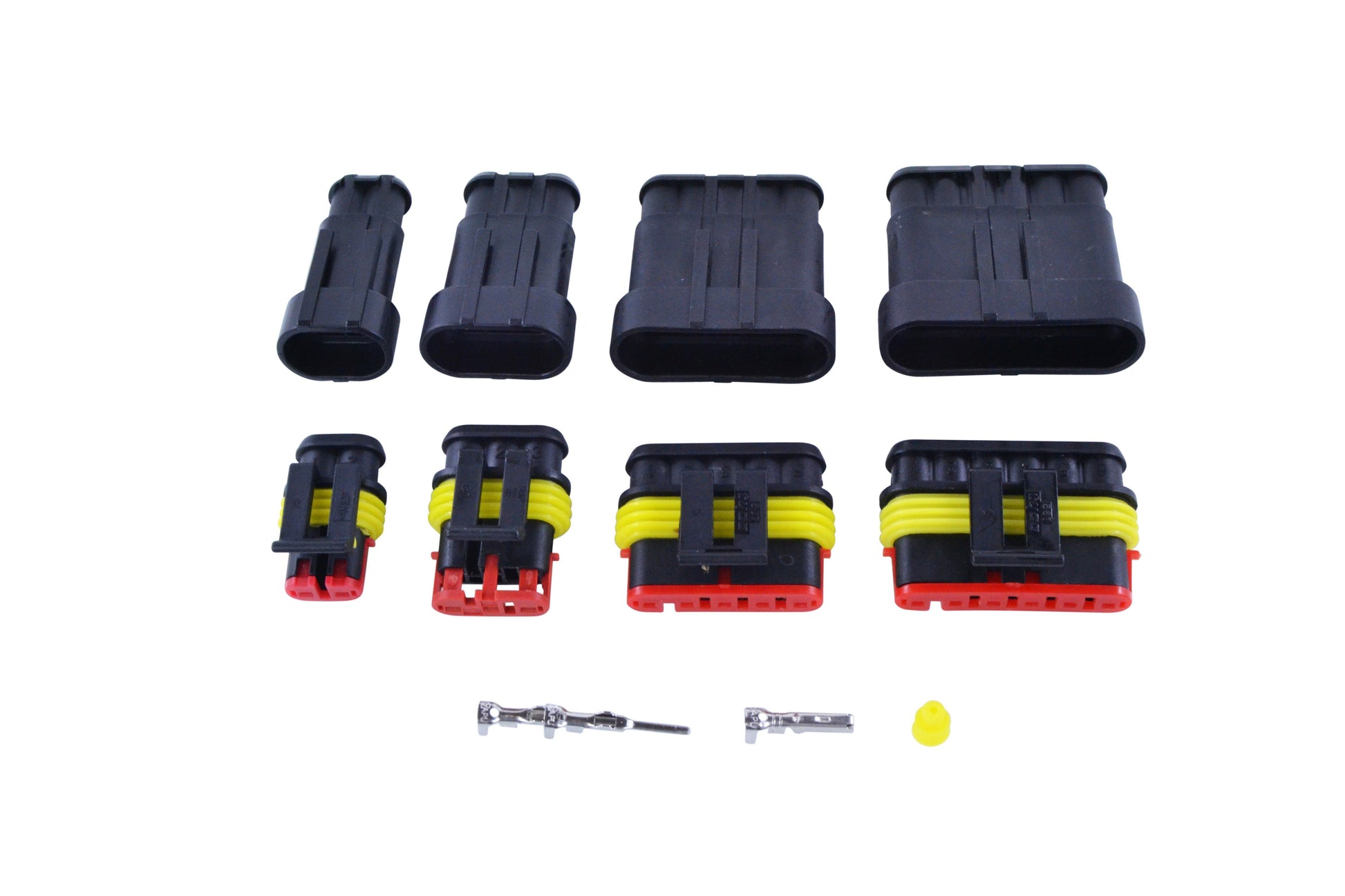

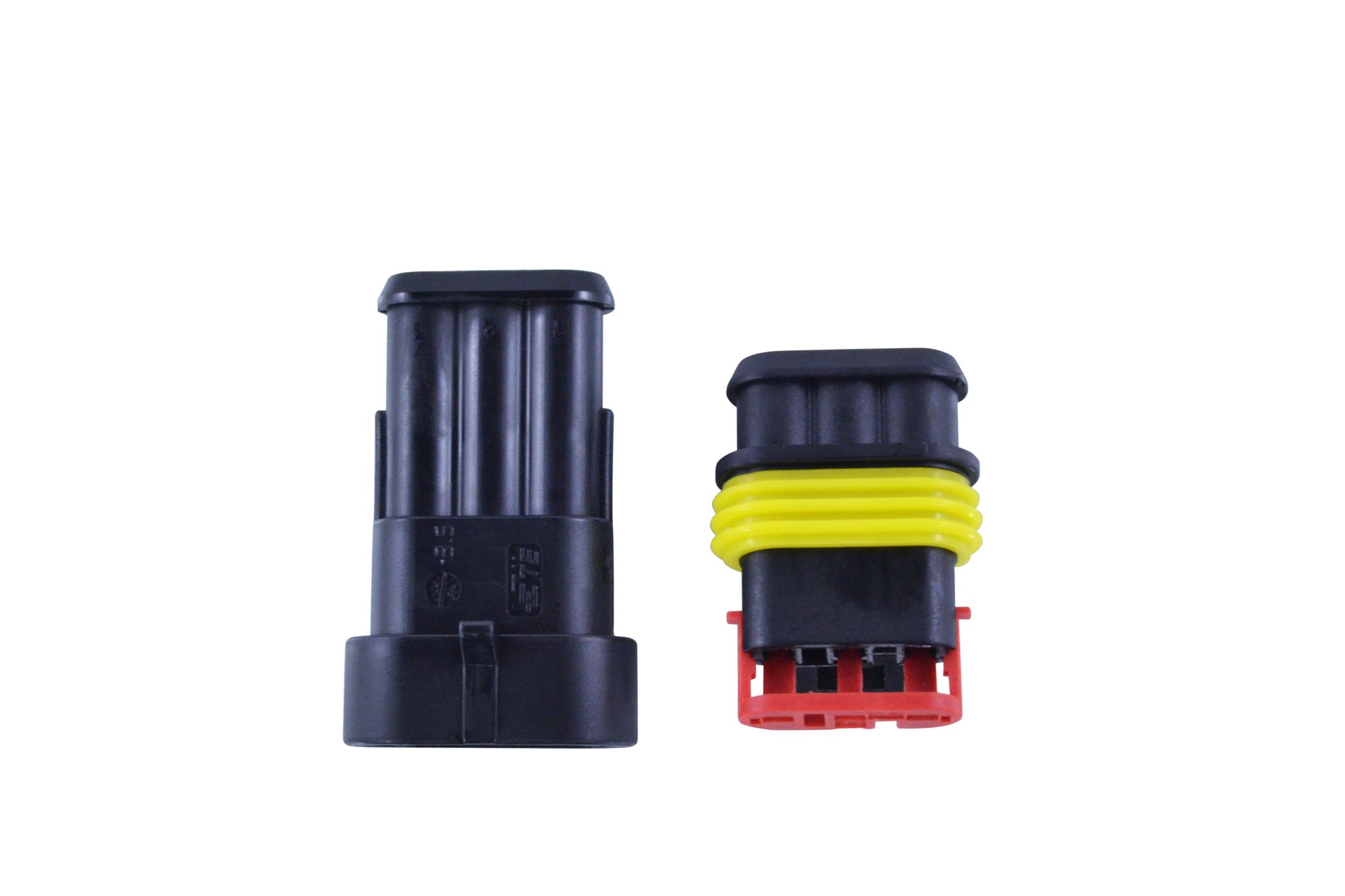

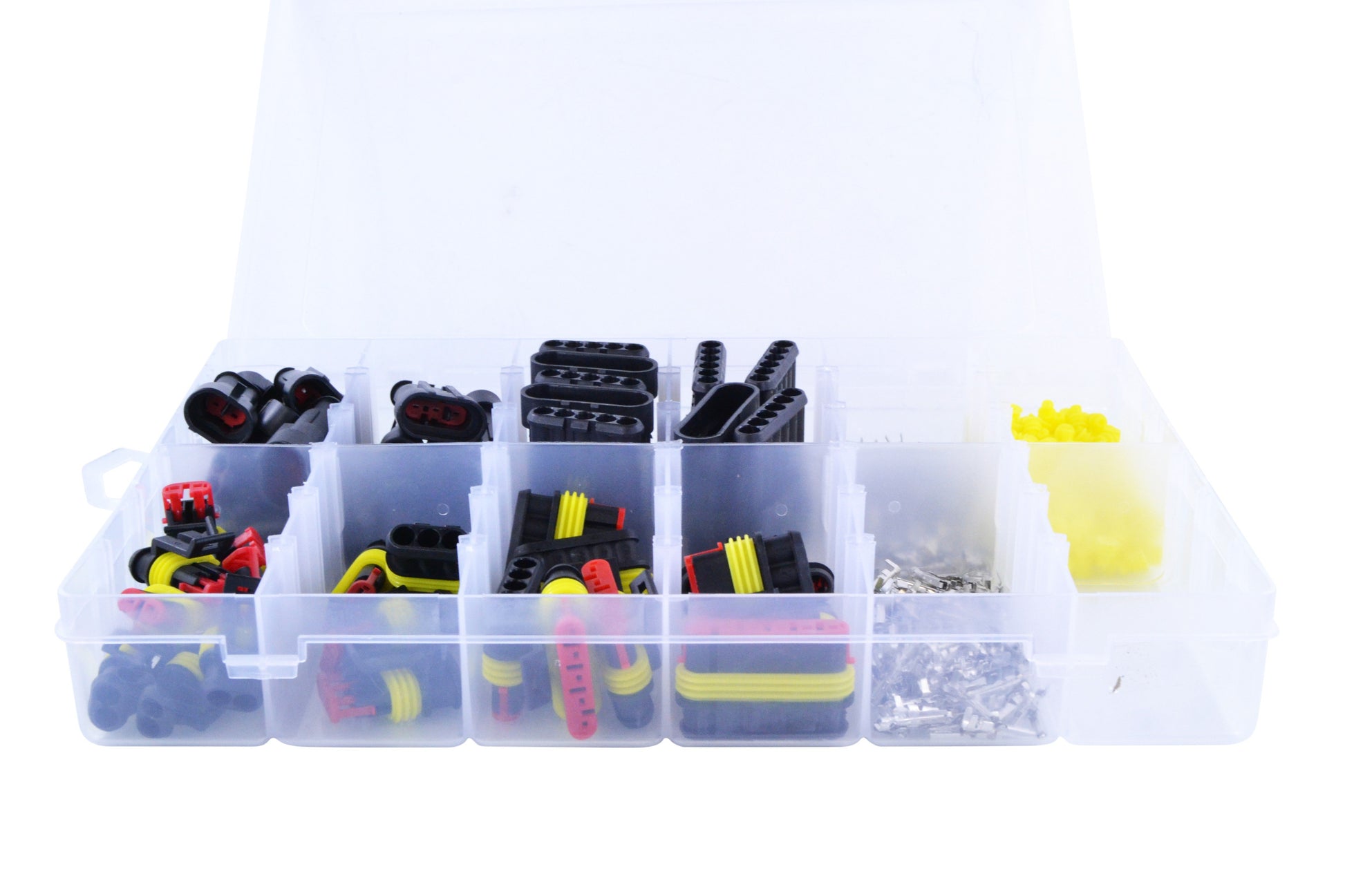

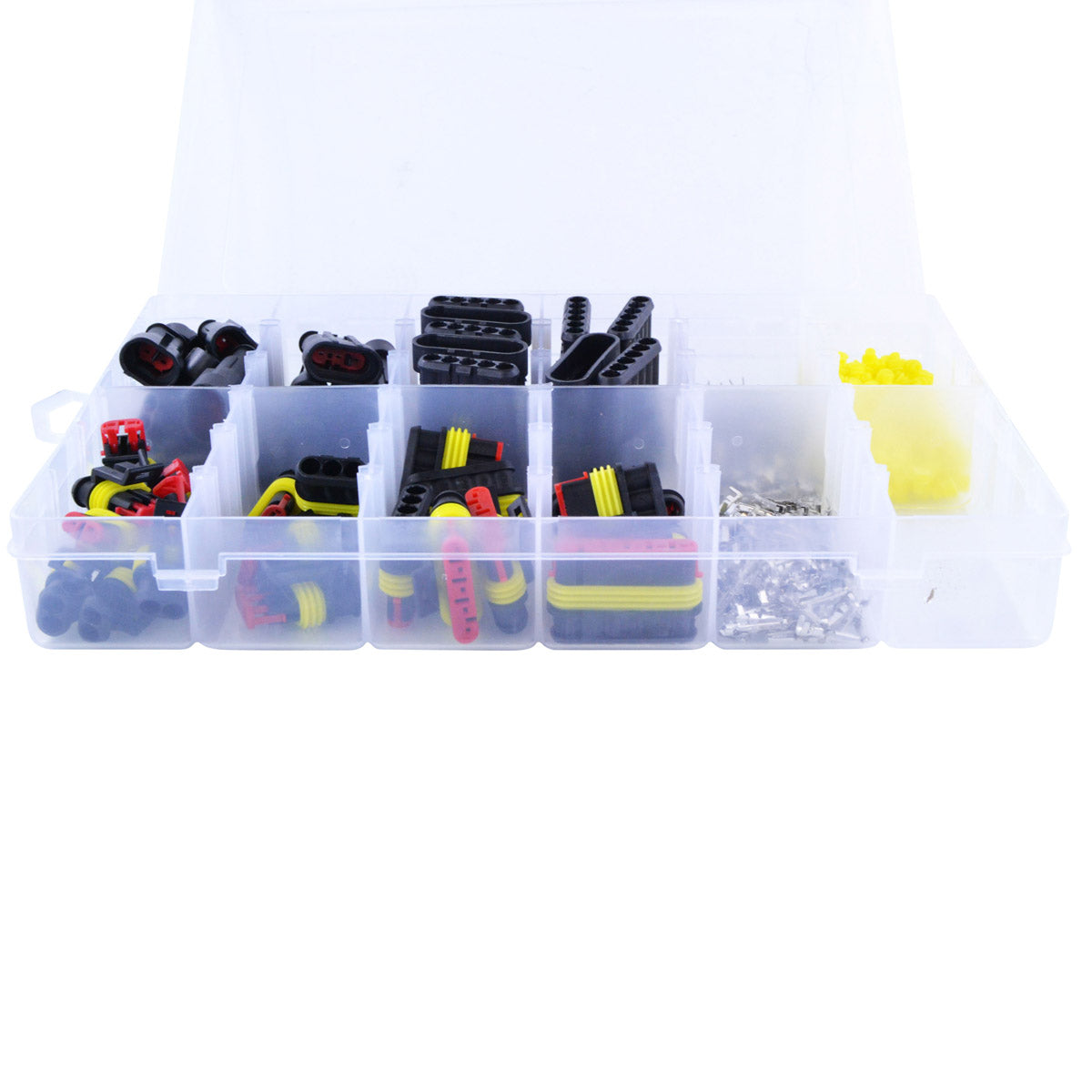

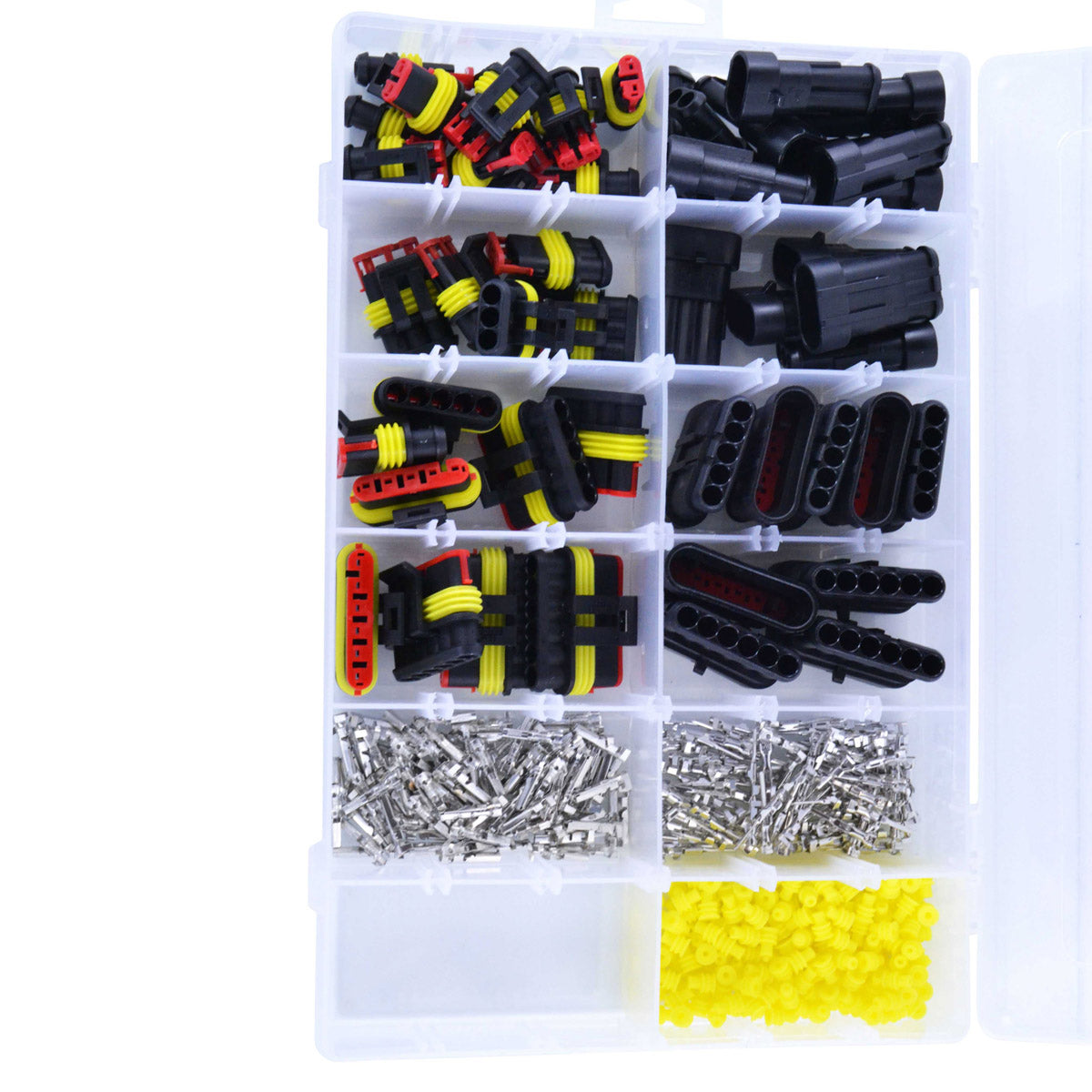

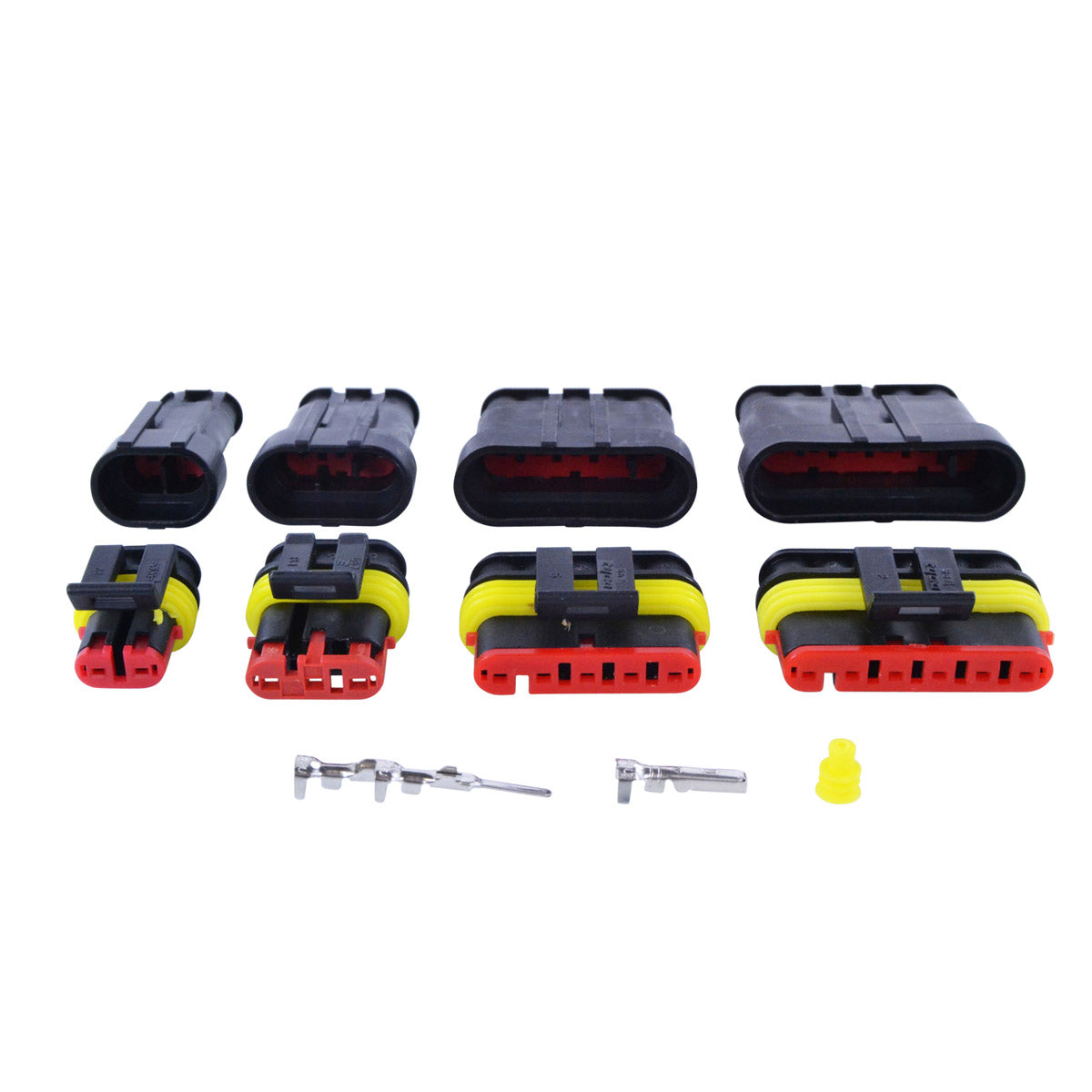

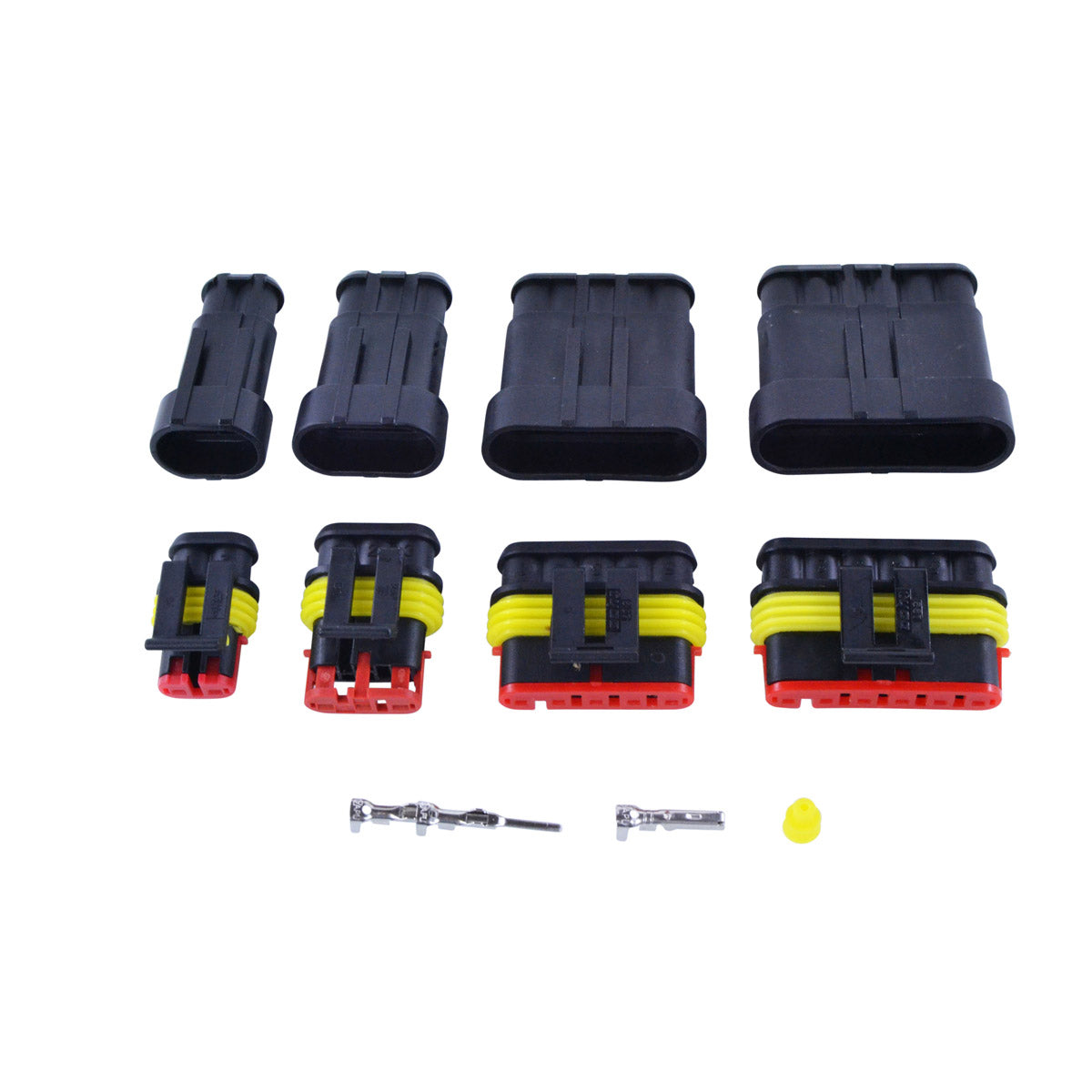

This is a complete 384 piece replacement connector kit for TE Connectivity AMP Superseal Series OEM connectors. It covers the four housing sizes used most often on powersport wiring - 2-way, 3-way, 5-way and 6-way - in both receptacle and plug form, and every connector in the kit comes with its terminals and its wire rubber seals already supplied.

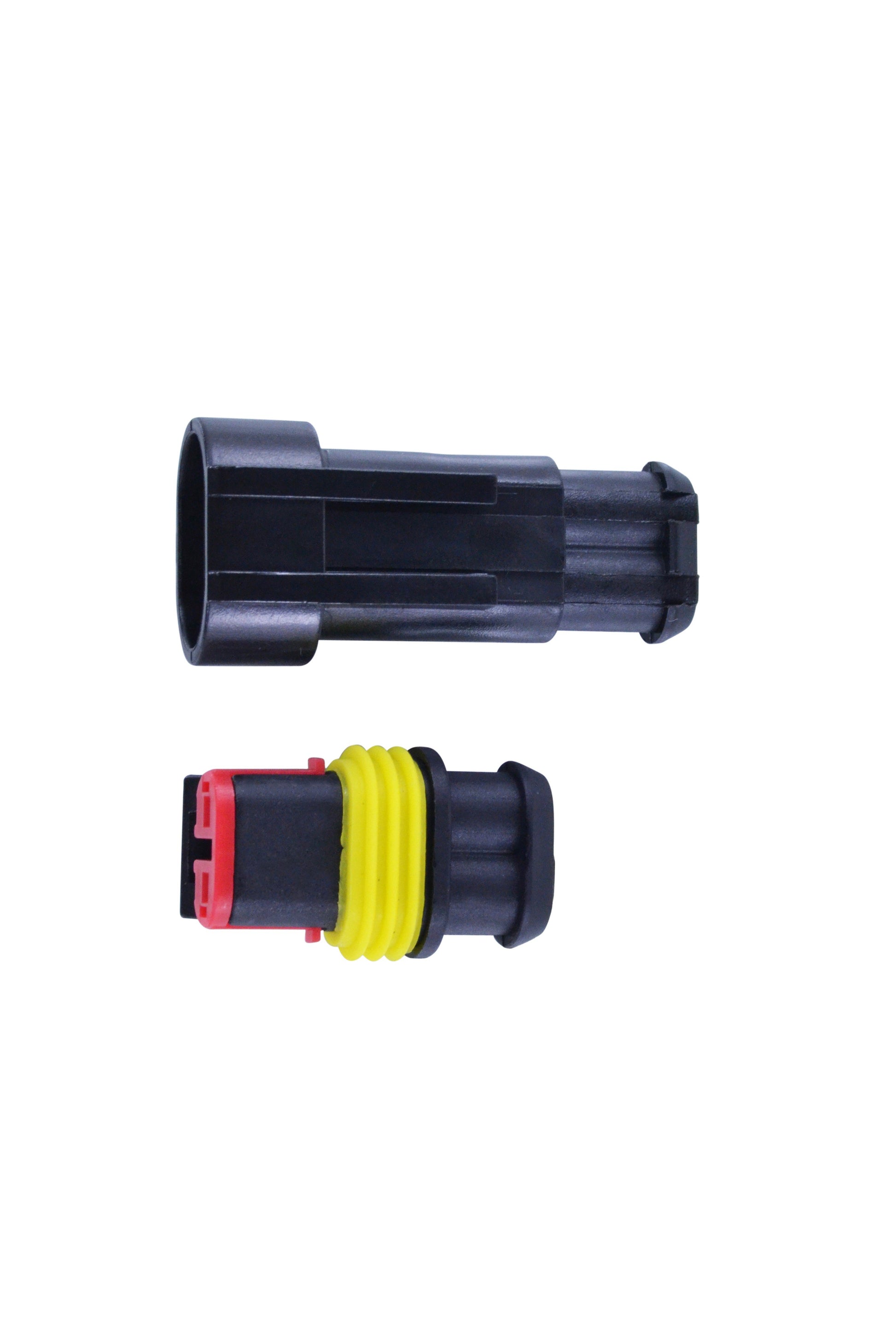

Superseal connectors are the sealed, latching connectors you find throughout ATV, UTV, snowmobile and marine looms, and they are perfectly suited to powersport use in harsh conditions. They are manufactured for reliability and waterproof-ability, rated IP67, and provide a water-tight connection in conditions that would corrode an unsealed block in a season. That makes this kit the right answer for a corroded charging connector, a melted stator plug, a chafed loom repair, or any wiring job where you would rather fit the correct sealed housing than crimp a bullet connector and hope. Eleven terminal removers are included so existing housings can be depinned without damage.
Key Features
- 384 pieces in total, covering four connector sizes
- Rated IP67 for a water-tight connection in harsh conditions

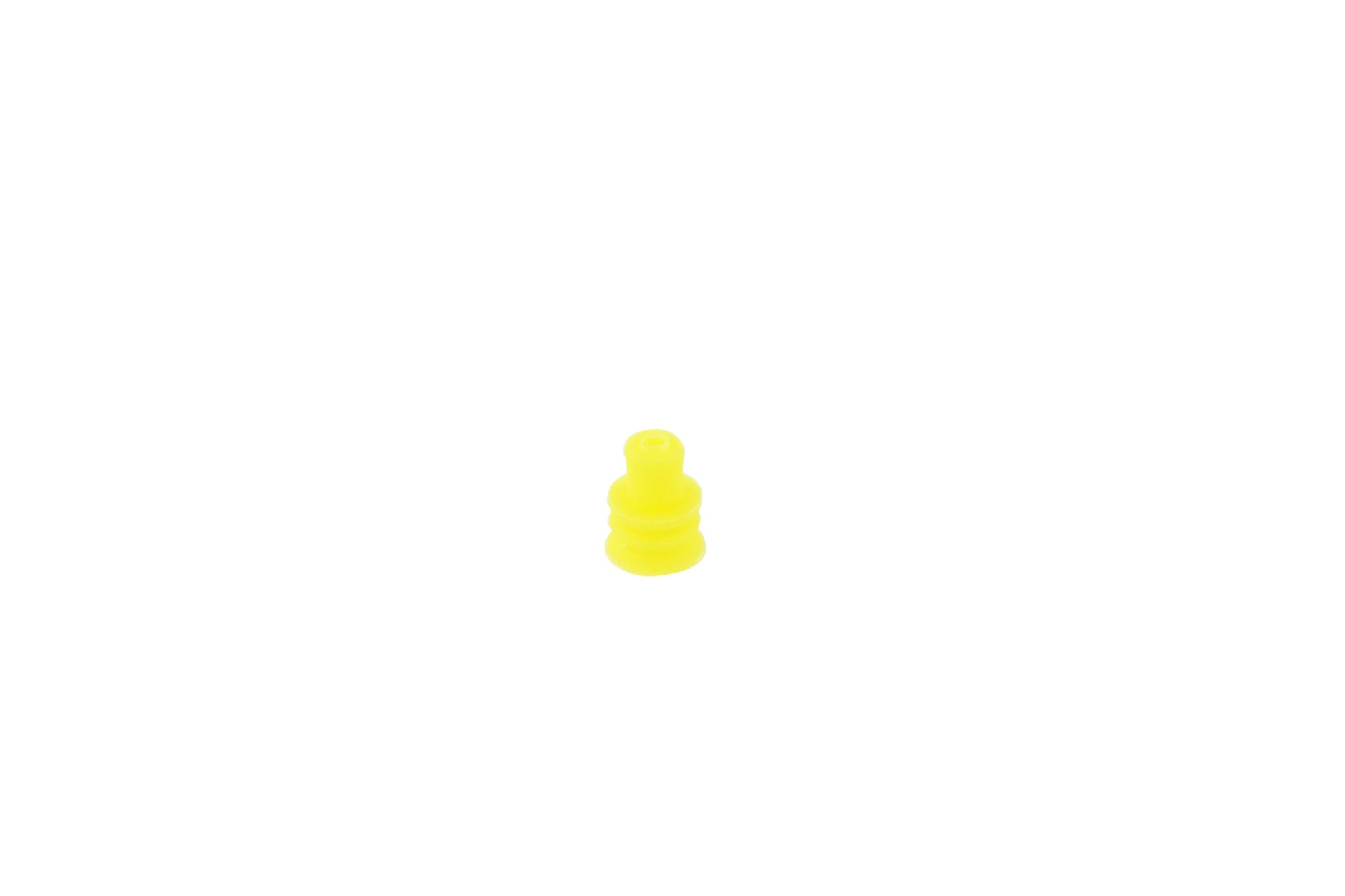

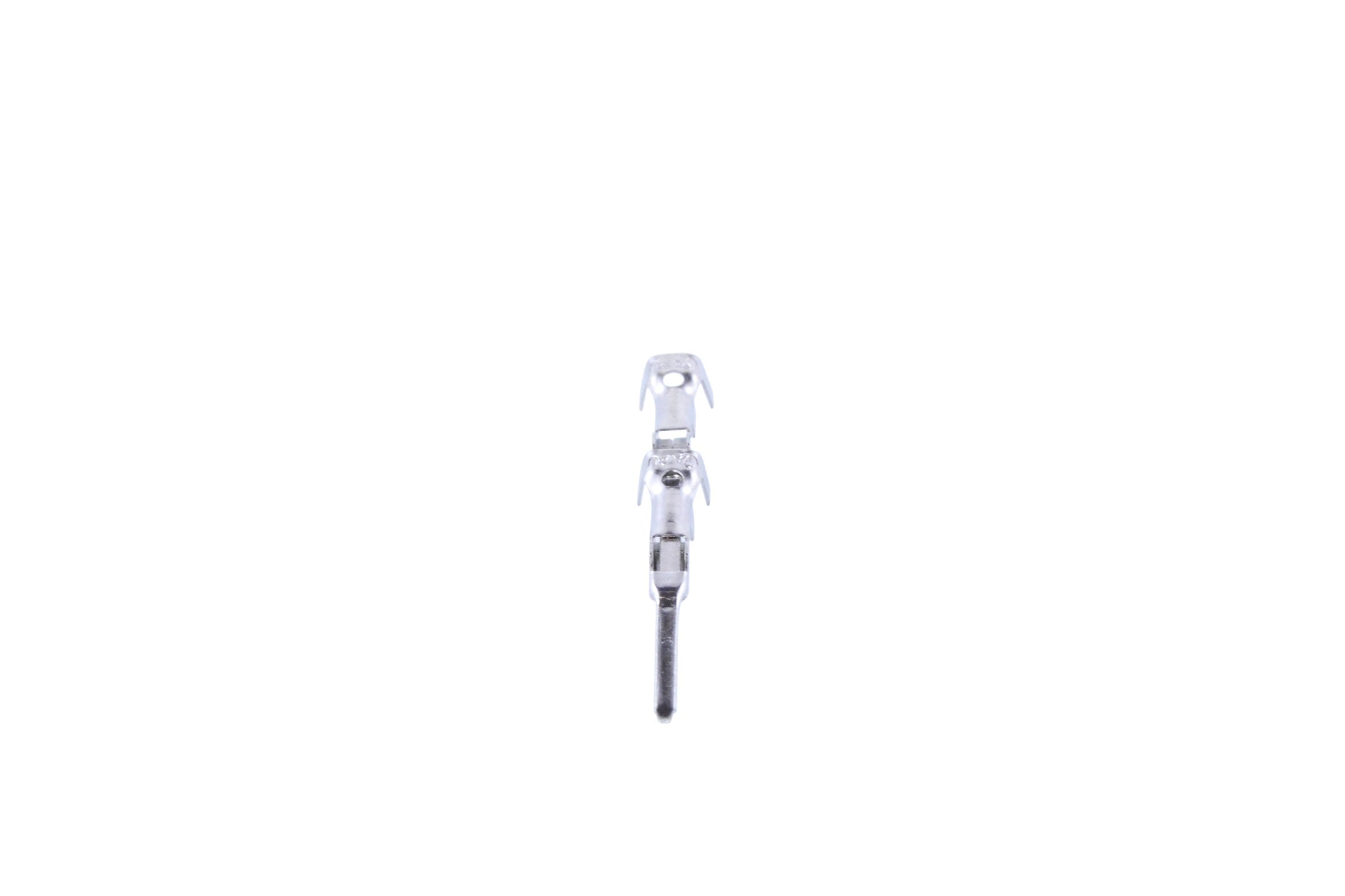

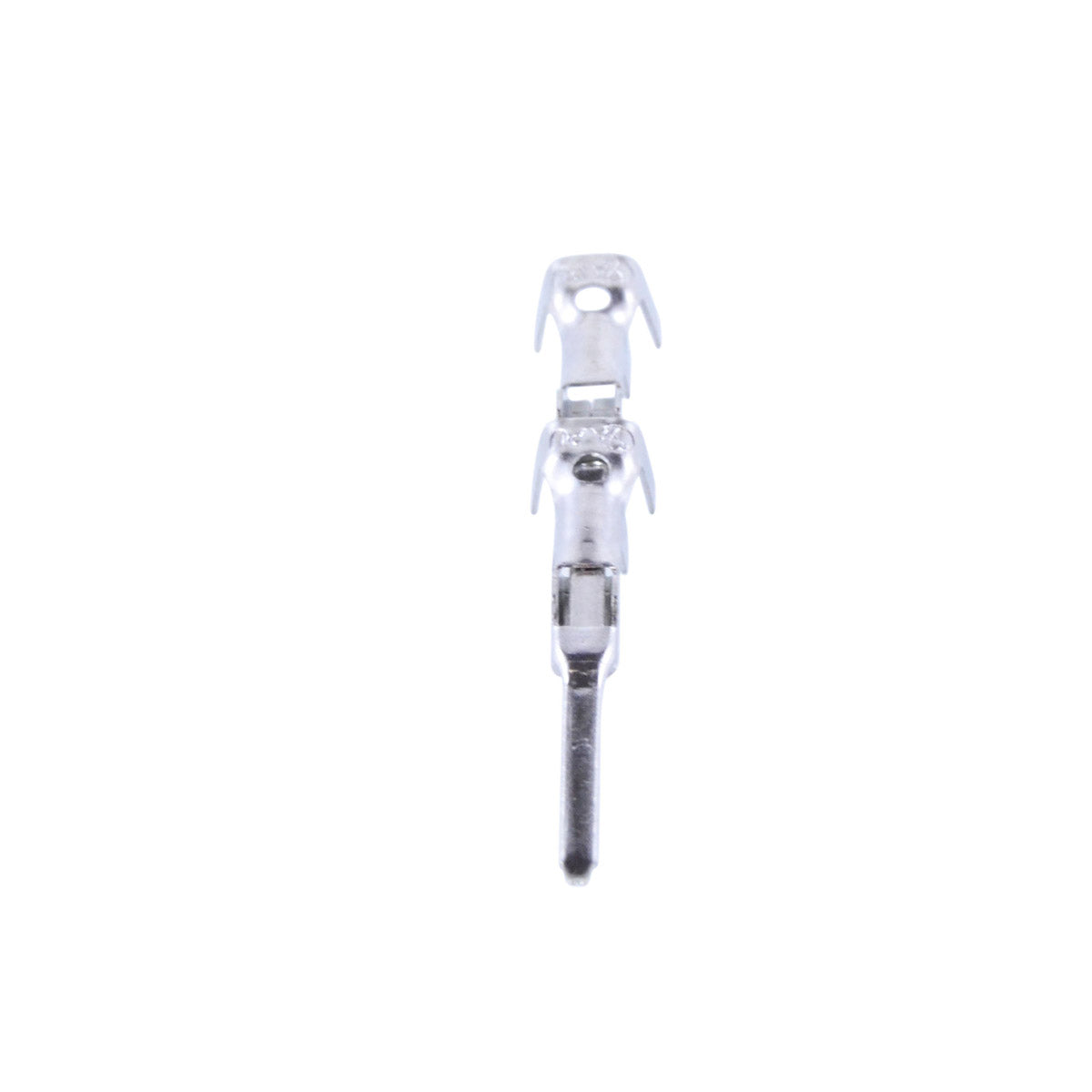

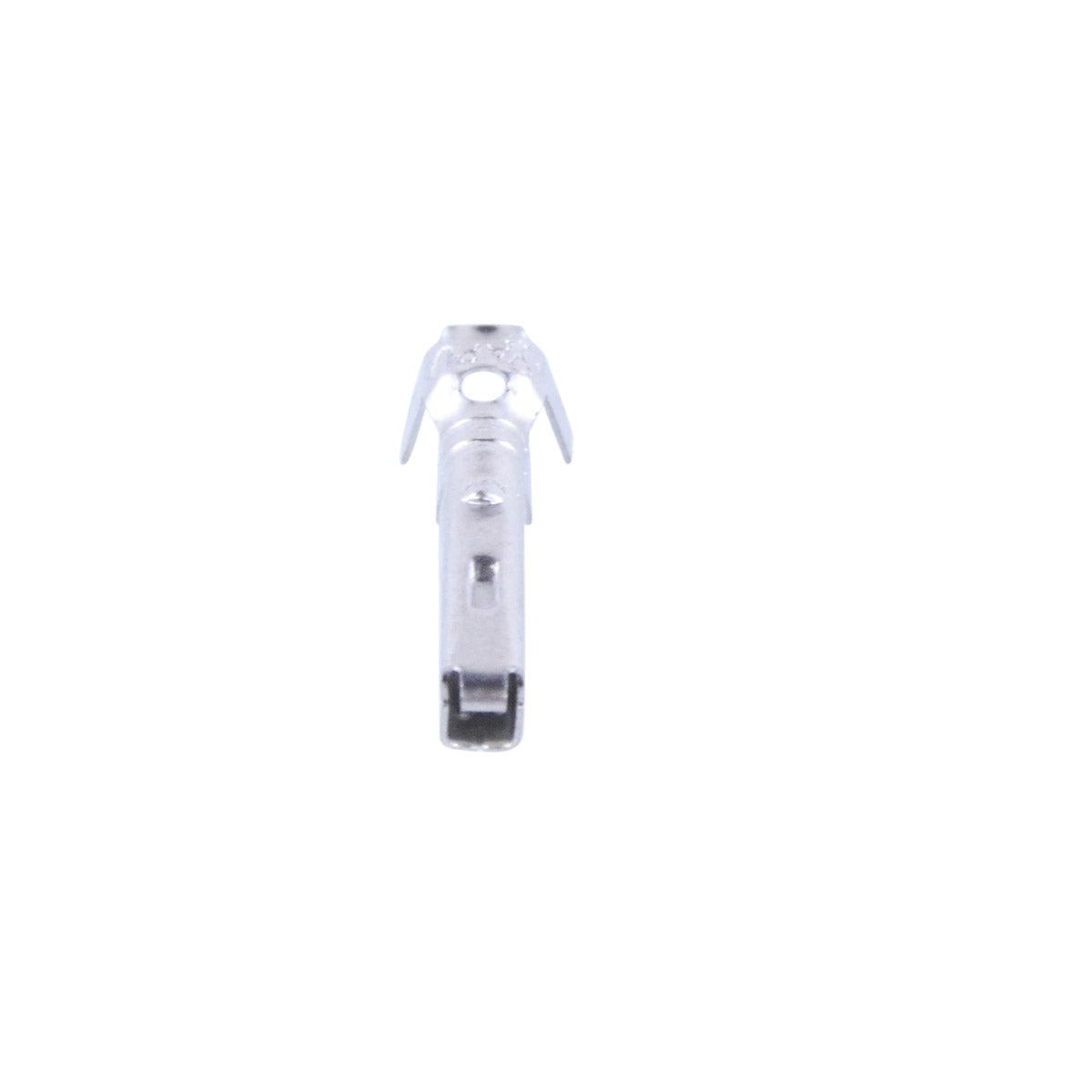

- All connectors include the terminals and the wire rubber seals
- Receptacle and plug housings supplied for every size

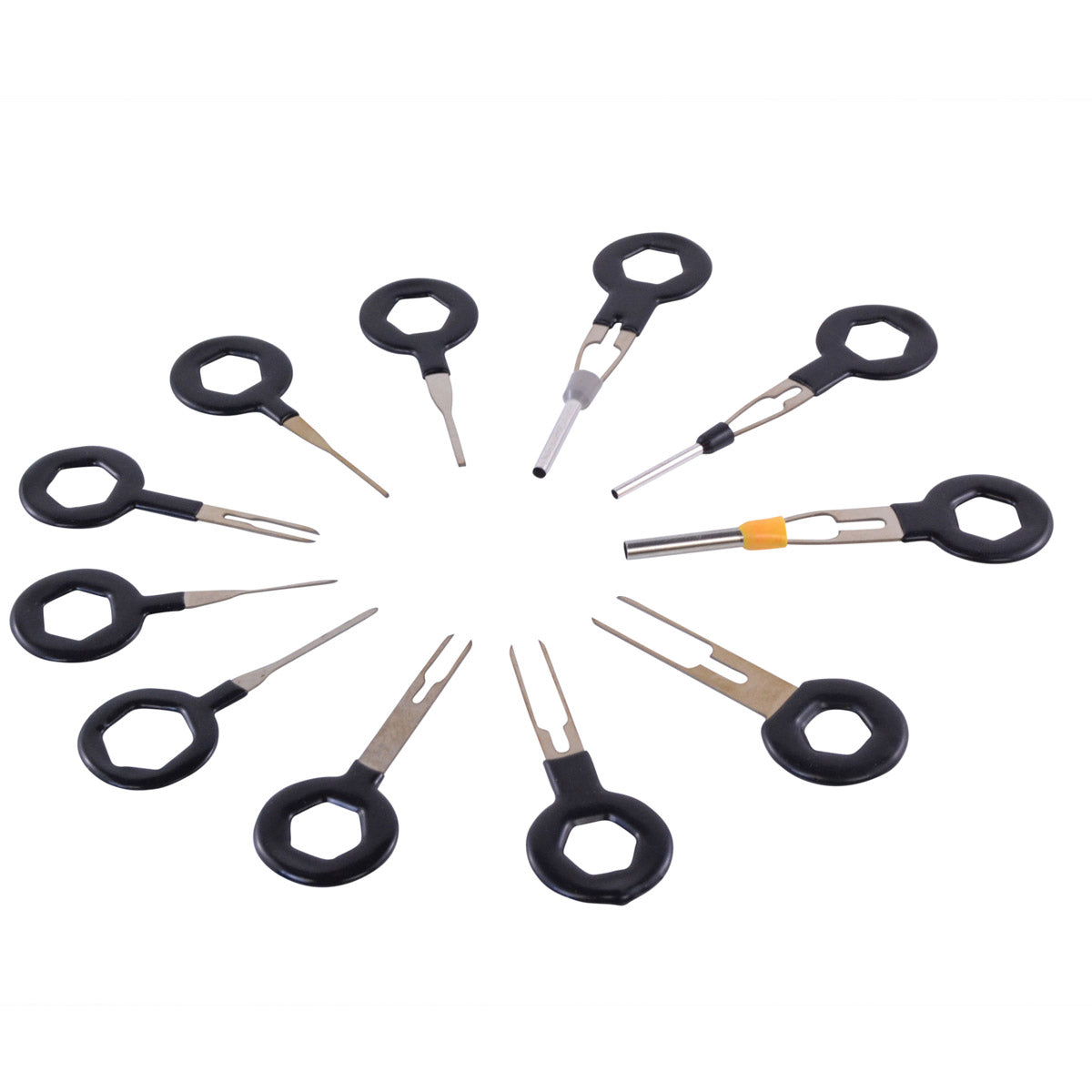

- 11 terminal removers included for depinning existing housings
- Suited to powersport vehicle use - ATV, UTV and snowmobile looms
- Dispatched from the UK with technical support
Technical Specs
| Specification | Detail |
|---|---|
| SKU / Part Code | RMS953-104092 |
| Total pieces | 384 |
| Connector series | TE Connectivity AMP Superseal |
| Ingress protection rating | IP67 |
| 2-Way receptacle housing kits | 10 (P/N 282104-1) |
| 2-Way plug housing kits | 10 (P/N 282080-1) |
| 3-Way receptacle housing kits | 5 (P/N 282105-1) |
| 3-Way plug housing kits | 5 (P/N 282087-1) |
| 5-Way receptacle housing kits | 5 (P/N 282107-1) |
| 5-Way plug housing kits | 5 (P/N 282089-1) |
| 6-Way receptacle housing kits | 4 (P/N 282108-1) |
| 6-Way plug housing kits | 4 (P/N 282090-1) |
| Terminal removers | 11 |
| Condition | New |
Vehicle Fitment Guide
Universal fitment - this part is not model specific. Check the specifications above against the unit you are replacing.
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 282104-1 | TE Connectivity AMP |
| 282080-1 | TE Connectivity AMP |
| 282105-1 | TE Connectivity AMP |
| 282087-1 | TE Connectivity AMP |
| 282107-1 | TE Connectivity AMP |
| 282089-1 | TE Connectivity AMP |
| 282108-1 | TE Connectivity AMP |
| 282090-1 | TE Connectivity AMP |
Frequently Asked Questions
Will these fit my loom without modification?
If your machine uses AMP Superseal housings in 2, 3, 5 or 6-way sizes, yes - these are replacements for the same series, so they mate with the original connectors. Match the housing on your loom against the part numbers in the cross-reference table above before ordering.
What is included in the kit?

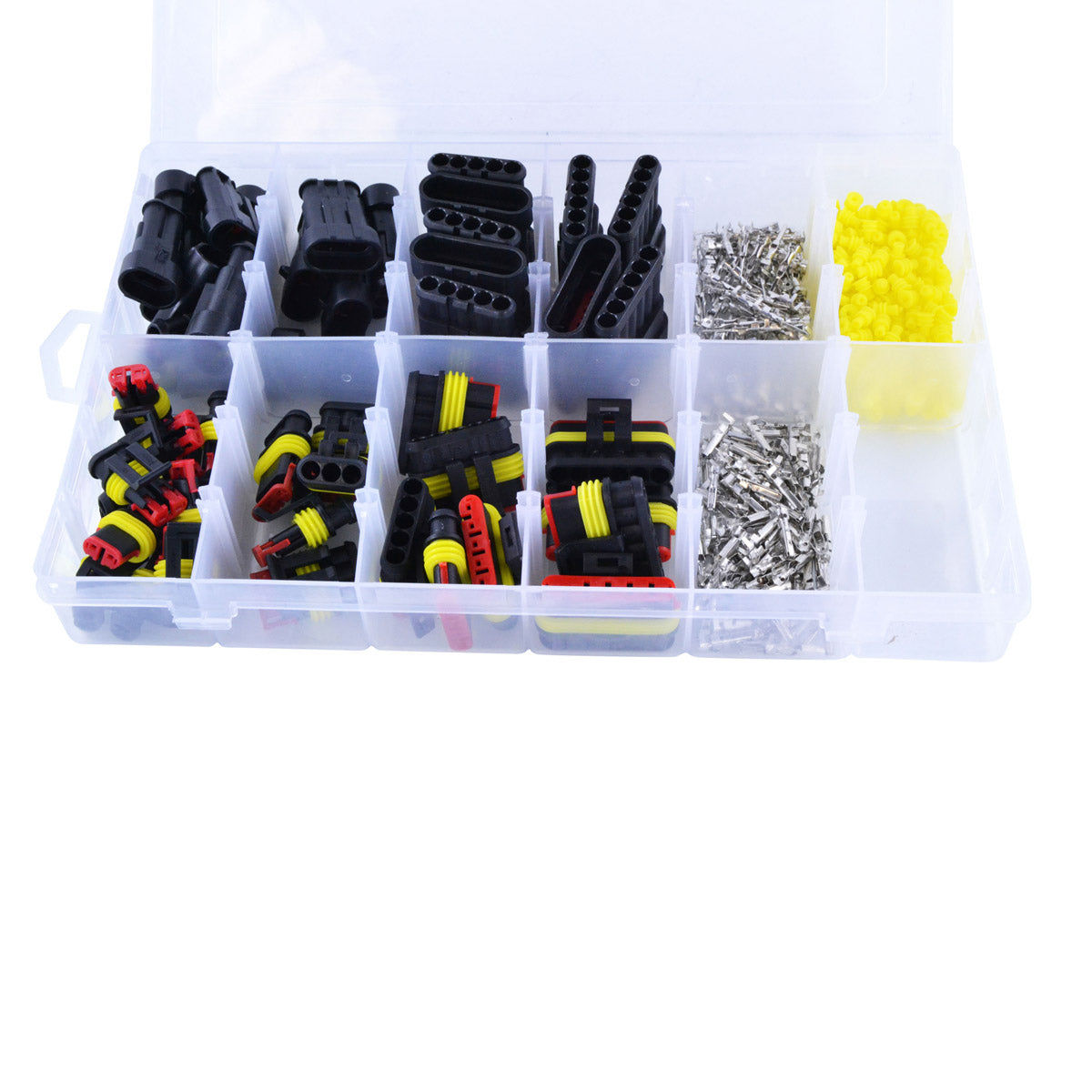

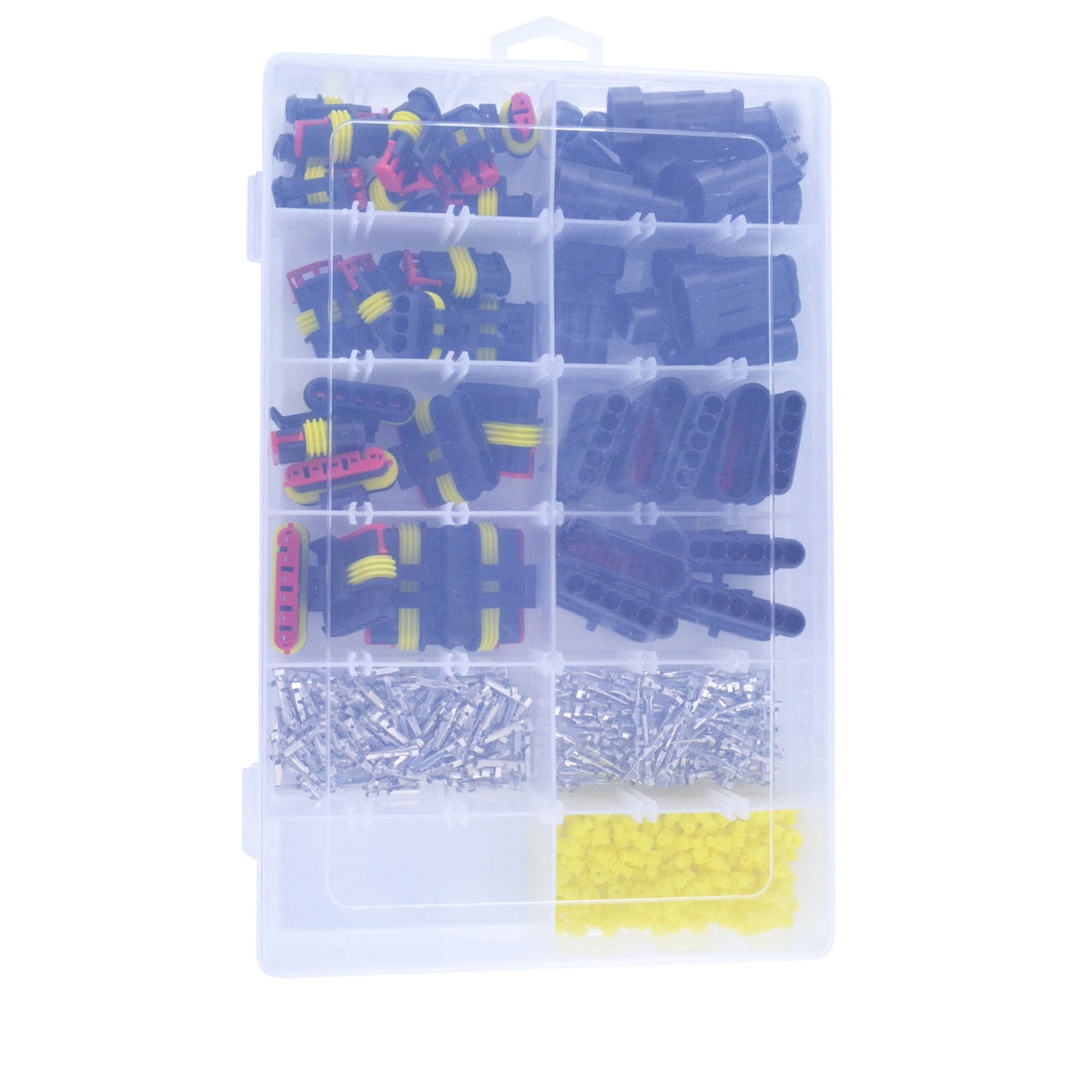

384 pieces in total: 10 pairs of 2-way housings, 5 pairs of 3-way, 5 pairs of 5-way and 4 pairs of 6-way, each supplied in both receptacle and plug form, plus 11 terminal removers. All connectors include the terminals and the wire rubber seals.
How do I know a connector needs replacing rather than cleaning?
Green or white powder inside the housing, terminals that no longer grip, a latch that has broken off, or heat damage and melting around a pin all mean the housing is finished. A connector that is merely dirty can be cleaned, but once a terminal has lost its spring tension it will keep overheating, and the correct repair is a new housing and new terminals.
Are these waterproof?
Yes, when assembled correctly. They are rated IP67 and each connector is supplied with the wire rubber seals that make the seal work. Fit the seal on every populated cavity, and blank off any unused cavity, or water will track into the housing.
