CVT Drive Belt 13G3218 for Arctic Cat 375 & 400

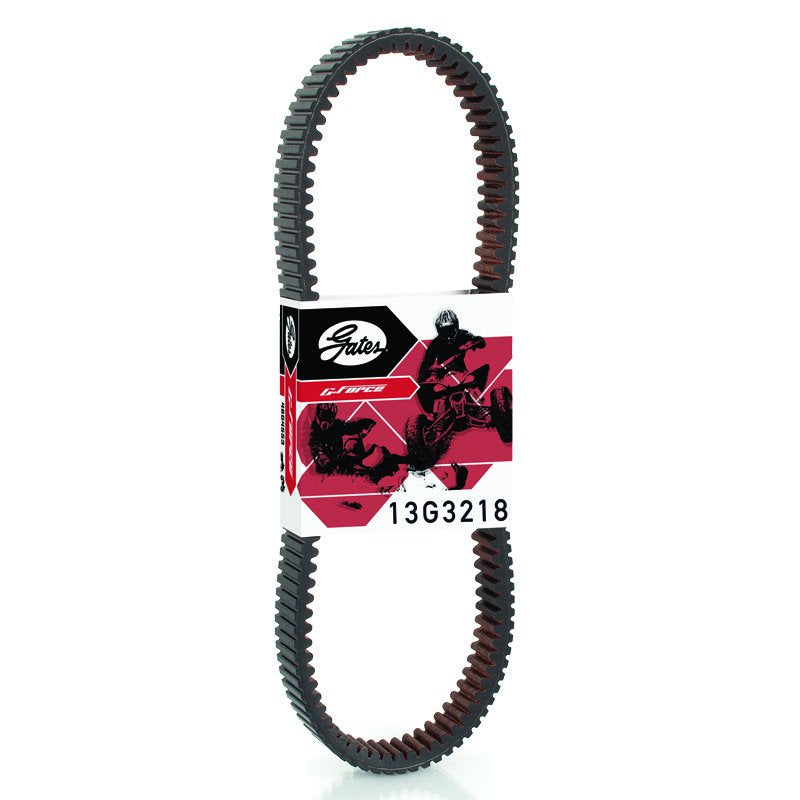

Gates CVT Drive Belt 13G3218 - Arctic Cat 375/400 & Suzuki 700 Twin Peaks
This Gates CVT drive belt (part number 13G3218) is a direct OE-comparison replacement belt for the continuously variable transmission fitted to a range of Arctic Cat 375/400 quads and the Suzuki 700 Twin Peaks.
It is built to the same dimensions and fabric-bottom construction as the original belt, with a double-notch design for reliable power transmission and heat resistance under normal operating conditions.
Key Features
- Gates 13G3218 CVT drive belt
- Top width 29mm (1.13"), pitch length 817mm (32.18")
- Double-notch, fabric bottom construction
- OE comparison rating for performance
- Direct OEM fit and finish
Technical Specs
| Specification | Detail |
|---|---|
| Top Width | 29mm (1.13") |
| Outside Circumference | 848mm (33.38") |
| Pitch Length | 817mm (32.18") |
| Pitch Width | 26.60mm (1.05") |
| Thickness | 14.40mm (0.57") |
| Cord Position | 4.30mm (0.17") |
| Angle | 28° |
| Material | Fabric Bottom |
| Double Notch | Yes |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Arctic Cat 375 2X4 | 2002 (376cc) |
| Arctic Cat 400 4X4 | 2003-2005, 2007-2008 (376cc) |
| Arctic Cat 400 TBX | 2004-2006 (376cc) |
| Arctic Cat 400 TRV | 2007 (376cc) |
| Arctic Cat 400 VP | 2005-2006 (376cc) |
| Arctic Cat 400 DVX | 2005 (398cc) |
| Suzuki 700 Twin Peaks | 2004-2005 (697cc) |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3402-664 | Arctic Cat |
| 3313-898 | Arctic Cat |
| K59011-0003 | Suzuki |
Frequently Asked Questions
Will this fit without modification?
Yes, it is a direct replacement for the original CVT drive belt - no clutch or housing modification is needed.
What's included?
One Gates 13G3218 CVT drive belt.
How can I tell the old belt has failed?
Common signs are a burning rubber smell, visible cracking or fraying on the belt edges, slipping under load, or a loss of drive/acceleration.
Does this fit both the Arctic Cat 375 and 400?
Yes, this belt is listed for the Arctic Cat 375 2X4, 400 4X4, 400 TBX, 400 TRV, 400 VP and 400 DVX models shown in the fitment table, as well as the Suzuki 700 Twin Peaks.
