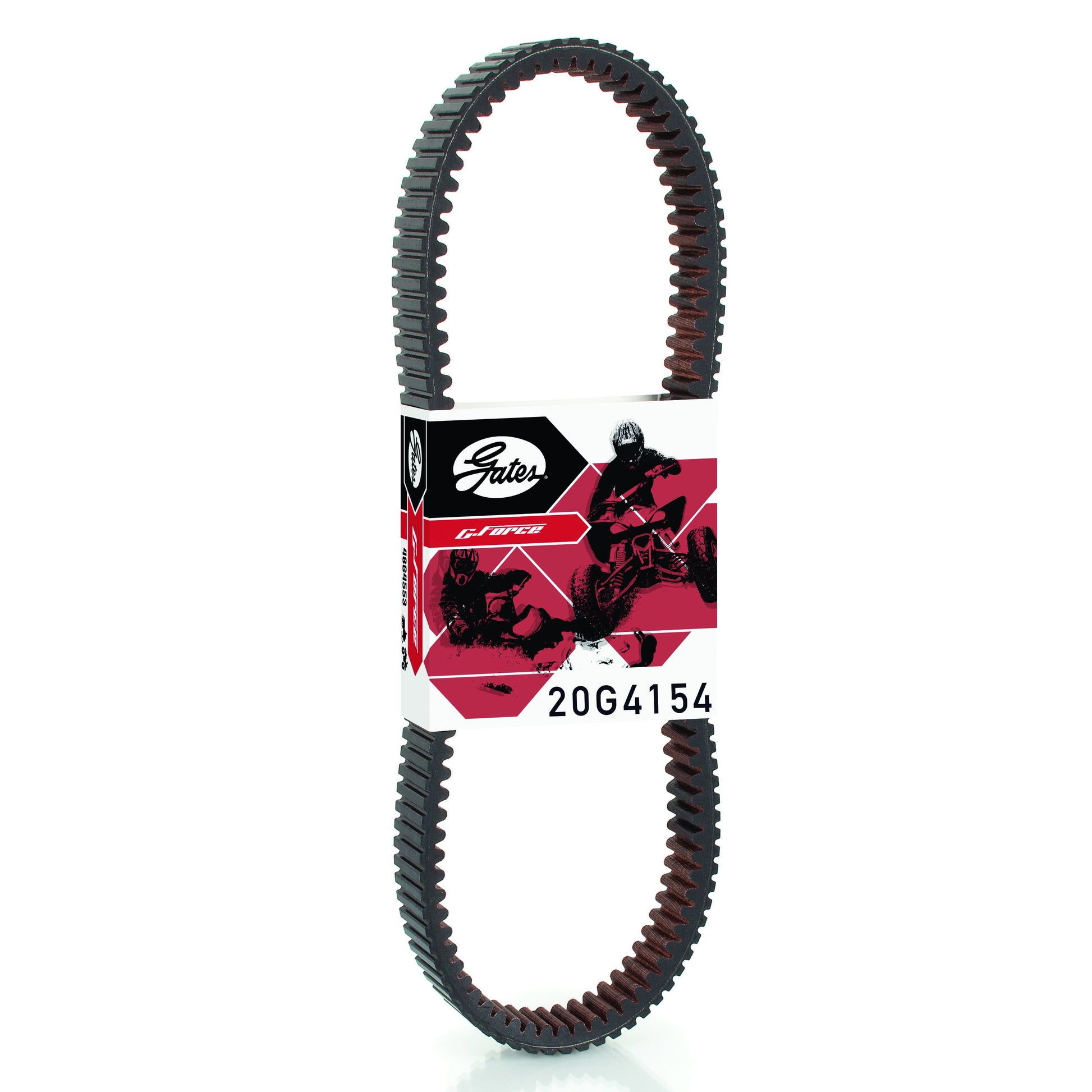

CVT Drive Belt for Argo Avenger, Outfitter & XTI 8x8 2004-2019
CVT Drive Belt for Argo Avenger, Outfitter & XTI 8x8 2004-2019
SKU:225.20G4154
Free shipping over £150. Terms apply
Couldn't load pickup availability
CVT Drive Belt for Argo 8x8 Vehicles
Avenger, Outfitter, Conquest & XTI - 2004-2019
This Gates-spec CVT (Continuously Variable Transmission) drive belt is a direct aftermarket replacement for the belt fitted to the Argo 8x8 amphibious vehicle range, including the Avenger, Conquest, Outfitter, Bigfoot, Aurora and XTI model lines built between 2004 and 2019.
Manufactured with a fabric-bottom, double-notch design to OE performance rating, this belt is a direct replacement for Argo part number 127137.
Key Features
- Direct replacement for Argo 127137 / 127-137
- Double notch, fabric bottom construction
- OE performance rating
- Fits the full Argo 8x8 range 2004-2019
Technical Specs
| Specification | Detail |
|---|---|
| Top Width | 30mm (1.19in) |
| Outside Circumference | 1076mm (42.38in) |
| Pitch Length | 1055mm (41.55in) |
| Pitch Width | 28.90mm (1.14in) |
| Cord Position | 3.20mm (0.13in) |
| Thickness | 13.60mm (0.54in) |
| Angle | 28 |
| Double Notch | No |
| Material | Fabric Bottom |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Argo 700 HD 8x8 (674cc) | 2010-2016 |
| Argo 750 HDi 8x8 (748cc) | 2010-2016 |
| Argo Aurora 8x8 (747cc) | 2019 |
| Argo Avenger 8x8 (various configurations) | 2004-2019 |
| Argo Bigfoot MX6/MX8 (747cc) | 2019 |
| Argo Conquest 8x8 (747cc) | 2017-2019 |
| Argo Outfitter 8x8 (748cc) | 2016 |
| Argo XTI 8x8 (748cc) | 2013-2016 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 127137 / 127-137 | Argo |
Frequently Asked Questions
Will this belt fit my exact model?
Check your Argo model and year against the fitment guide above, and compare against OEM part number 127137 on your original belt before ordering.
What's included?
One CVT drive belt.
How do I know my belt has failed?
Common symptoms include a burning rubber smell, slipping or reduced power under load, visible cracking or fraying, or a belt that has stretched beyond its usable range.
Is this an OE-spec belt?
Yes, this belt carries an OE performance rating with the same double notch, fabric bottom construction as the original.
