CVT Drive Belt for Can-Am Maverick X3, Ryker & Ski-Doo - Replaces 422280652

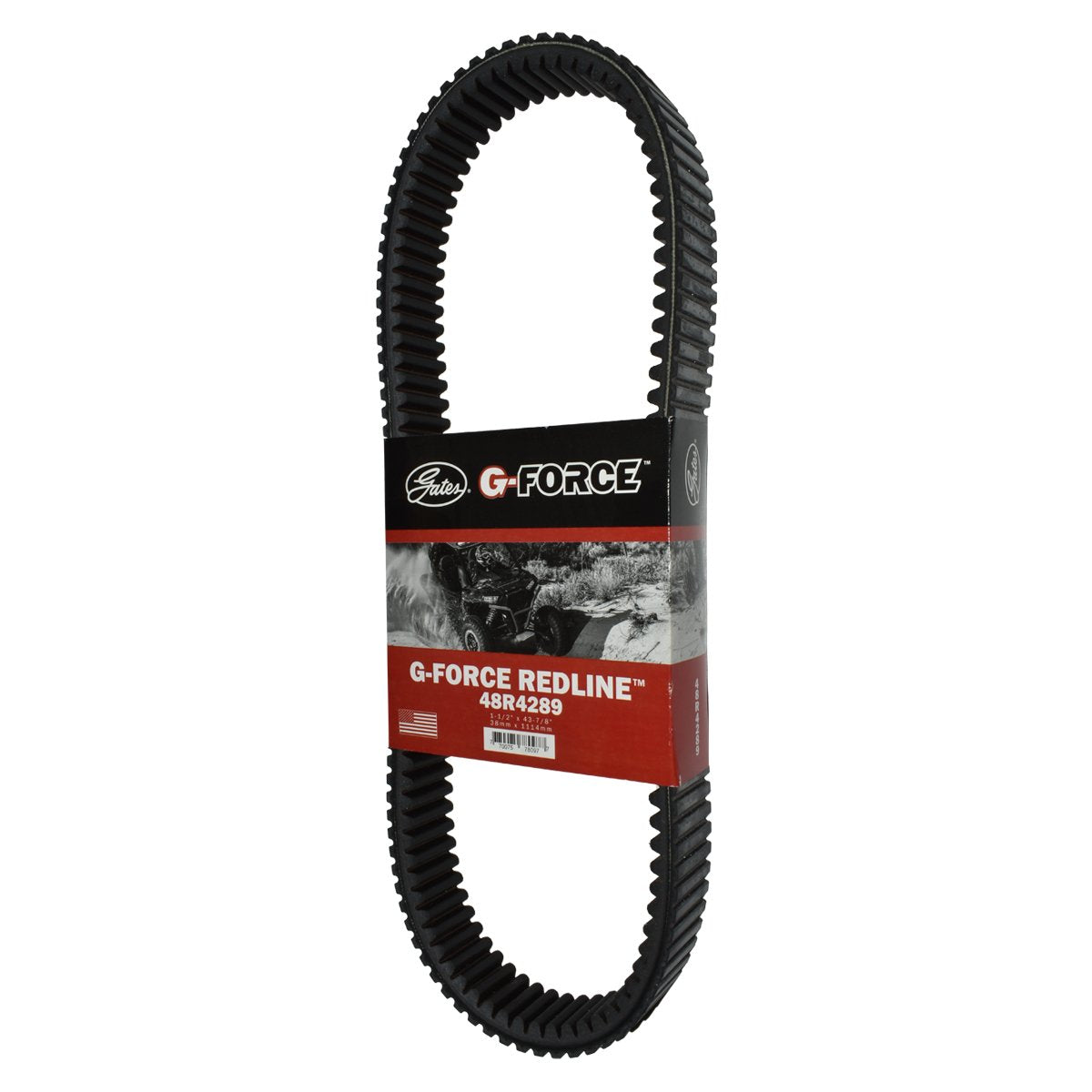

Gates G-Force RedLine 48R4289 - fits Can-Am Maverick X3 & MAX X3 Turbo, Ryker Roadster 900 and Ski-Doo Backcountry & Expedition
This Gates G-Force RedLine CVT belt (Gates 48R4289) is an aramid-reinforced direct replacement for the Can-Am and Ski-Doo machines that specify the 422280652 belt, built to OEM dimensions for a fit-and-function match.
The RedLine construction uses aramid and ethylene elastomer materials rather than a standard fabric belt, giving high transverse stiffness and heat resistance for turbocharged side-by-sides and high-output snowmobiles. It is finished in the standard black compound and set to a 26-degree angle to match factory pulley geometry.
Key Features
- Aramid-reinforced, ethylene elastomer construction for maximum heat resistance
- OE Improved / reinforced version over a standard fabric belt
- Width 37mm (1.469in), outer circumference 1119mm (44.07in)
- 26-degree angle to match factory pulley geometry
- Covers Can-Am Maverick X3 turbo models, Ryker Roadster 900 and Ski-Doo Backcountry & Expedition
Technical Specs
| Specification | Detail |
|---|---|
| Gates Part Number | 48R4289 |
| Version | OE Improved / Reinforced |
| Material | Aramid & ethylene elastomer (EE) compound |
| Colour | Black |
| Top Width | 37mm (1.469in) |
| Outside Circumference | 1119mm (44.07in) |
| Angle | 26° |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Can-Am Maverick X3 Turbo (Turbo, Turbo DS, Turbo R, Turbo RR, Turbo X - all trims) | 2018-2026 |
| Can-Am Maverick MAX X3 Turbo (Turbo, Turbo DS, Turbo R, Turbo RR, Turbo X - all trims) | 2018-2025 |
| Can-Am Ryker Roadster 900 (incl. Rally Edition & Sport) | 2019-2025 |
| Ski-Doo Backcountry 600R E-TEC Adrenaline | 2024-2026 |
| Ski-Doo Backcountry 850 E-TEC / E-TEC Adrenaline | 2019-2025 |
| Ski-Doo Backcountry 850 E-TEC X | 2019-2027 |
| Ski-Doo Backcountry 850 E-TEC X-RS | 2019-2027 |
| Ski-Doo Expedition 1200 LE & SE | 2011-2018 |
| Ski-Doo Expedition 800 E-TEC Xtreme | 2016-2019 |
| Ski-Doo Expedition 850 E-TEC Xtreme | 2020-2024 |
| Ski-Doo Expedition 850 E-TEC SE | 2023-2026 |
| Ski-Doo Expedition 900 ACE LE | 2019-2022 |
| Ski-Doo Expedition 900 ACE SE | 2019-2027 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 422280652, 422280651, 422280654 | Can-Am / Bombardier |
| 417300166, 417300377, 417300383, 417300391, 417300531, 417300571 | Ski-Doo / BRP |
| 48R4289 | Gates G-Force RedLine |
Frequently Asked Questions
How do I know this belt fits my machine?
Check your model and year against the fitment guide above, or compare the OEM number stamped on the belt currently fitted to your Can-Am or Ski-Doo against the cross reference table.
Is the same belt really used on a Maverick X3 and a Ski-Doo?
Yes. BRP uses a shared CVT belt specification across several Can-Am and Ski-Doo platforms, which is why one Gates 48R4289 covers both side-by-side and snowmobile applications.
What's included?
One Gates G-Force RedLine CVT belt, ready to fit.
How do I know my old belt has failed?
Look for cracking, glazing or fraying on the belt surface, a burning smell, or a slipping or bogging sensation under acceleration.
What makes the RedLine range different from a standard CVT belt?
RedLine belts use an aramid and ethylene elastomer construction rather than a plain fabric belt, giving greater transverse stiffness, heat resistance and service life under heavy loads.
