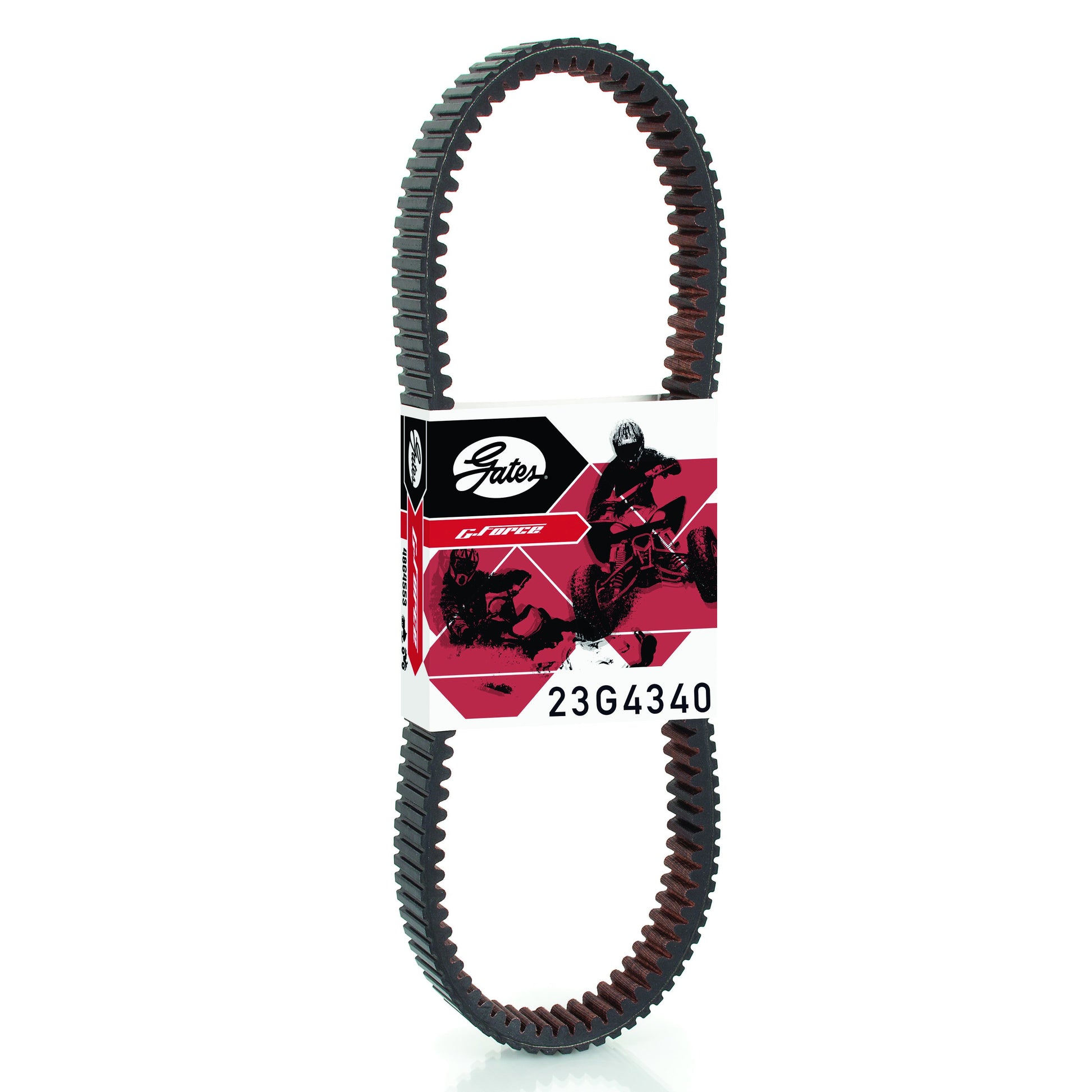

CVT Drive Belt for John Deere Gator RSX 850i & 860i 2013-2015
CVT Drive Belt for John Deere Gator RSX 850i & 860i 2013-2015
SKU:225.23G4340
Free shipping over £150. Terms apply
Couldn't load pickup availability
CVT Drive Belt for John Deere Gator RSX 850i & 860i 2013-2015
Fits John Deere Gator RSX 850i & 860i, 839cc, 2013-2015
This CVT drive belt is a direct replacement for the standard belt fitted to the John Deere Gator RSX 850i and 860i range (839cc), using OEM part number M168196 and built to the same dimensions and specification as the original for a fit-and-function match.
The belt uses a fabric-bottom, double notch construction that improves flex and cooling, matching OE performance ratings for smooth power transfer through the CVT clutch system.
Key Features
- Direct OE-spec fit and function replacement
- Double notch design for improved cooling and flex
- Fabric bottom construction
- 26-degree belt angle to match factory clutch
- Matches OE performance rating
Technical Specs
| Specification | Detail |
|---|---|
| Top Width | 31mm (1.22in) |
| Outside Circumference | 1133mm (44.63in) |
| Pitch Length | 1102mm (43.40in) |
| Pitch Width | 29.20mm (1.15in) |
| Thickness | 15.20mm (0.60in) |
| Angle | 26 degrees |
| Double Notch | Yes |
| Material | Fabric Bottom |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| John Deere Gator RSX 850i (839cc) | 2013 |
| John Deere Gator RSX 850i Sport (839cc) | 2014 |
| John Deere Gator RSX 850i Trail (839cc) | 2015 |
| John Deere Gator RSX 860i (839cc) | 2015 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| M168196 | John Deere |
Frequently Asked Questions
Will this belt fit without modification?
Yes, this belt is manufactured to the same dimensions and angle as the original equipment belt, so it fits directly into the CVT clutch system with no modification required.
What is included?
One CVT drive belt, ready to fit.
How do I know my old belt has failed?
Common signs include cracking or glazing on the belt surface, a burning rubber smell, reduced acceleration, slipping under load, or a belt that has visibly stretched or frayed at the edges.
How do I confirm this is the right belt for my John Deere machine?
This belt is confirmed for the John Deere Gator RSX 850i and 860i (839cc) models and years listed above. Cross-reference OEM part number M168196 against the part fitted to your unit if you are unsure.
