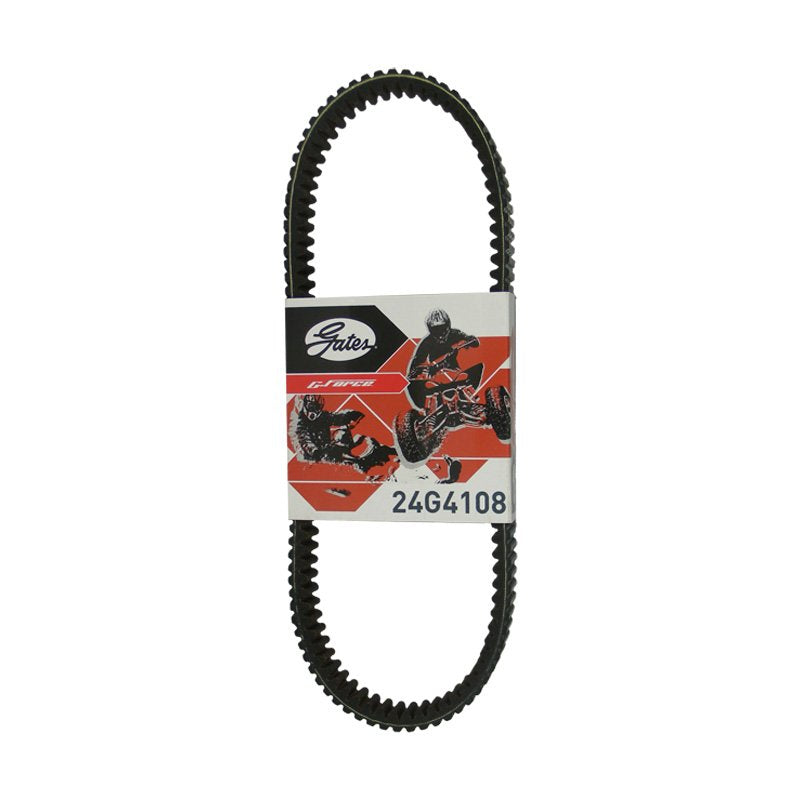

CVT Drive Belt for Kawasaki Mule
Fits Kawasaki Mule 1000-4010, 454cc-617cc, 1990-2022
This CVT drive belt is a direct replacement for the standard belt fitted across the Kawasaki Mule range, built to the same dimensions and specification as the original equipment part for a fit-and-function match.
The belt uses a fabric-bottom, double notch construction that improves flex and cooling under load, matching OE performance ratings for smooth power transfer through the CVT clutch system.
Key Features
- Direct OE-spec fit and function replacement
- Double notch design for improved cooling and flex
- Fabric bottom construction
- 28-degree belt angle to match factory clutch
- Matches OE performance rating
Technical Specs
| Specification | Detail |
|---|---|
| Top Width | 32mm (1.25in) |
| Outside Circumference | 1073mm (42.25in) |
| Pitch Length | 1043mm (41.08in) |
| Pitch Width | 29.30mm (1.15in) |
| Thickness | 13.60mm (0.54in) |
| Angle | 28 degrees |
| Double Notch | Yes |
| Material | Fabric Bottom |
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kawasaki Mule 617cc | 2018-2022 |
| Kawasaki Mule 1000 454cc | 1995-1998 |
| Kawasaki Mule 2010 / 2020 / 2030 540cc | 1990-1992 |
| Kawasaki Mule 3000 / 3010 617cc | 2001-2008 |
| Kawasaki Mule 3020 617cc | 2001-2003 |
| Kawasaki Mule 4000 / 4010 617cc | 2009-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 59011-1077 | Kawasaki |
Frequently Asked Questions
Will this belt fit without modification?
Yes, this belt is manufactured to the same dimensions and angle as the original equipment belt, so it fits directly into the CVT clutch system with no modification required.
What is included?
One CVT drive belt, ready to fit.
How do I know my old belt has failed?
Common signs include cracking or glazing on the belt surface, a burning rubber smell, reduced acceleration, slipping under load, or a belt that has visibly stretched or frayed at the edges.
Which Mule models does this belt fit?
It covers the Mule 1000, 2010, 2020, 2030, 3000, 3010, 3020, 4000, 4010 and current Mule 617cc models listed above - check the years against your unit before ordering.
