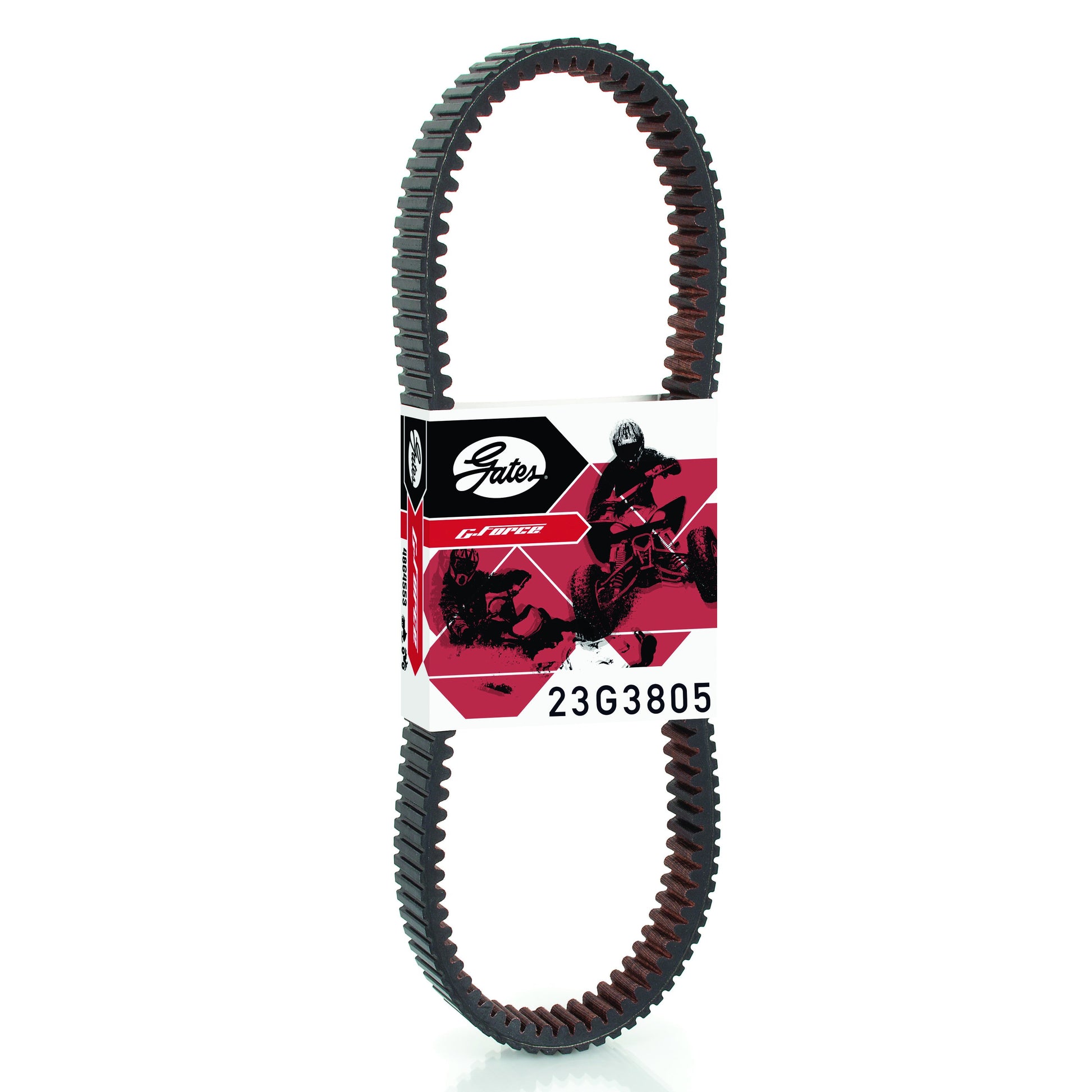

CVT Drive Belt for Kawasaki Prairie 300 1999-2002 - Replaces 59011-1065
CVT Drive Belt for Kawasaki Prairie 300 1999-2002 - Replaces 59011-1065
SKU:225.23G3805
Free shipping over £150. Terms apply
Couldn't load pickup availability
CVT Drive Belt for Kawasaki Prairie 300 1999-2002 - Replaces 59011-1065
Fits Kawasaki KVF300 Prairie 300 & Prairie 300 4x4 290cc (1999-2002)
This CVT drive belt is a direct replacement for the standard belt fitted to the Kawasaki KVF300 Prairie 300 and Prairie 300 4x4, using OEM part number 59011-1065, built to the same dimensions and specification as the original for a fit-and-function match.
The belt uses a fabric-bottom, double notch construction that improves flex and cooling, matching OE performance ratings for smooth power transfer through the CVT clutch system.
Key Features
- Direct OE-spec fit and function replacement
- Double notch design for improved cooling and flex
- Fabric bottom construction
- 28-degree belt angle to match factory clutch
- Matches OE performance rating
Technical Specs
| Specification | Detail |
|---|---|
| Top Width | 31mm (1.22in) |
| Outside Circumference | 997mm (39.25in) |
| Pitch Length | 966mm (38.05in) |
| Pitch Width | 29.20mm (1.15in) |
| Thickness | 13.60mm (0.54in) |
| Angle | 28 degrees |
| Double Notch | Yes |
| Material | Fabric Bottom |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Kawasaki KVF300 Prairie 300 290cc | 1999-2002 |
| Kawasaki KVF300 Prairie 300 4x4 290cc | 1999-2002 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 59011-1065 | Kawasaki |
Frequently Asked Questions
Will this belt fit without modification?
Yes, this belt is manufactured to the same dimensions and angle as the original equipment belt, so it fits directly into the CVT clutch system with no modification required.
What is included?
One CVT drive belt, ready to fit.
How do I know my old belt has failed?
Common signs include cracking or glazing on the belt surface, a burning rubber smell, reduced acceleration, slipping under load, or a belt that has visibly stretched or frayed at the edges.
How do I confirm this is the right belt for my Kawasaki Prairie 300?
Cross-reference OEM part number 59011-1065 against the part fitted to your unit, or compare the dimensions listed above against your original belt.
