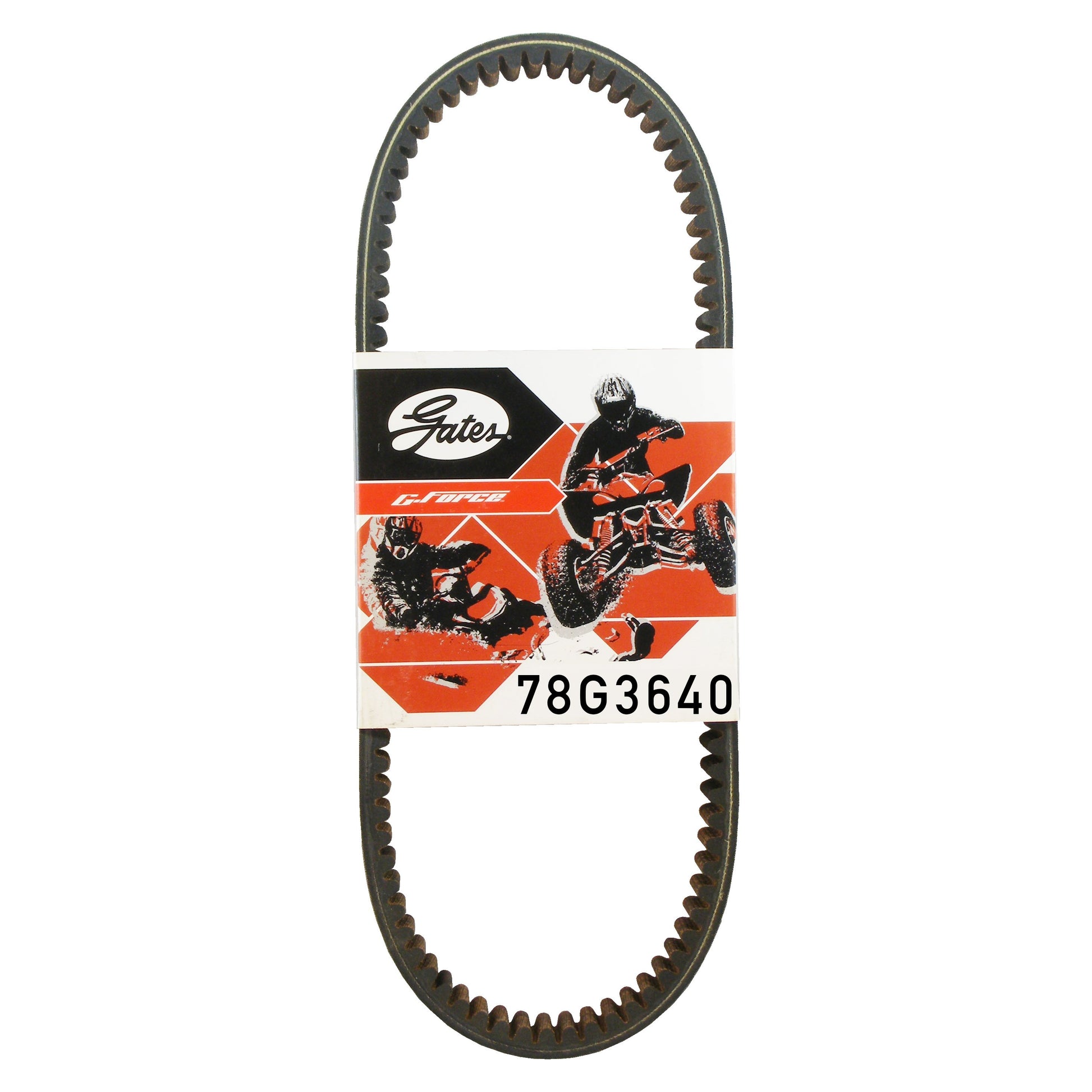

CVT Drive Belt for Yamaha Breeze & Grizzly 125 1991-2013 - Replaces 3FA-17641-00-00
CVT Drive Belt for Yamaha Breeze & Grizzly 125 1991-2013 - Replaces 3FA-17641-00-00
SKU:225.78G3640
Free shipping over £150. Terms apply
Couldn't load pickup availability
CVT Drive Belt for Yamaha Breeze & Grizzly 125 1991-2013 - Replaces 3FA-17641-00-00
Fits Yamaha Breeze 124cc (1991-2004), Grizzly 125 (2004-2009) & Grizzly 125 Automatic (2010-2013)
This Gates CVT drive belt is a direct replacement for the Yamaha Breeze and Grizzly 125, built to OEM dimensions for a fit-and-function match with the factory belt.
It uses a fabric-faced underside with a plain (non-notched) profile, matching the original top width, circumference and thickness specifications. Gates rates this belt to an OE Performance standard, meaning it is tested to match the power transfer and service life of the factory-fitted original.
Key Features
- Direct OEM fit and function replacement
- Plain-sided (non-notched) belt matching factory design
- Fabric bottom construction
- Outside circumference 946mm, pitch length 924mm
- Rated to OE Performance standard
Technical Specs
| Specification | Detail |
|---|---|
| Top Width | 20mm (0.78in) |
| Outside Circumference | 946mm (37.25in) |
| Pitch Length | 924mm (36.40in) |
| Pitch Width | 18.90mm (0.74in) |
| Thickness | 9.70mm (0.38in) |
| Angle | 28° |
| Double Notch | No |
| Material | Fabric bottom |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Yamaha Breeze 124cc | 1991-2004 |
| Yamaha Grizzly 125 124cc | 2004-2009 |
| Yamaha Grizzly 125 Automatic 124cc | 2010-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3FA-17641-00-00 | Yamaha |
Frequently Asked Questions
Will this belt fit my Yamaha Breeze or Grizzly 125 without modification?
Yes. This belt is manufactured to the same dimensions as the original Yamaha 3FA-17641-00-00 belt, so it fits and functions as a direct replacement.
What's included?
One Gates CVT drive belt, ready to fit.
How do I know my old belt needs replacing?
Common signs include a burning rubber smell, visible cracking or glazing on the belt surface, a slipping or bogging sensation under load, and reduced top speed.
Is this belt notched like some CVT belts?
No, this belt uses a plain-sided profile, matching the original factory design for these models.
