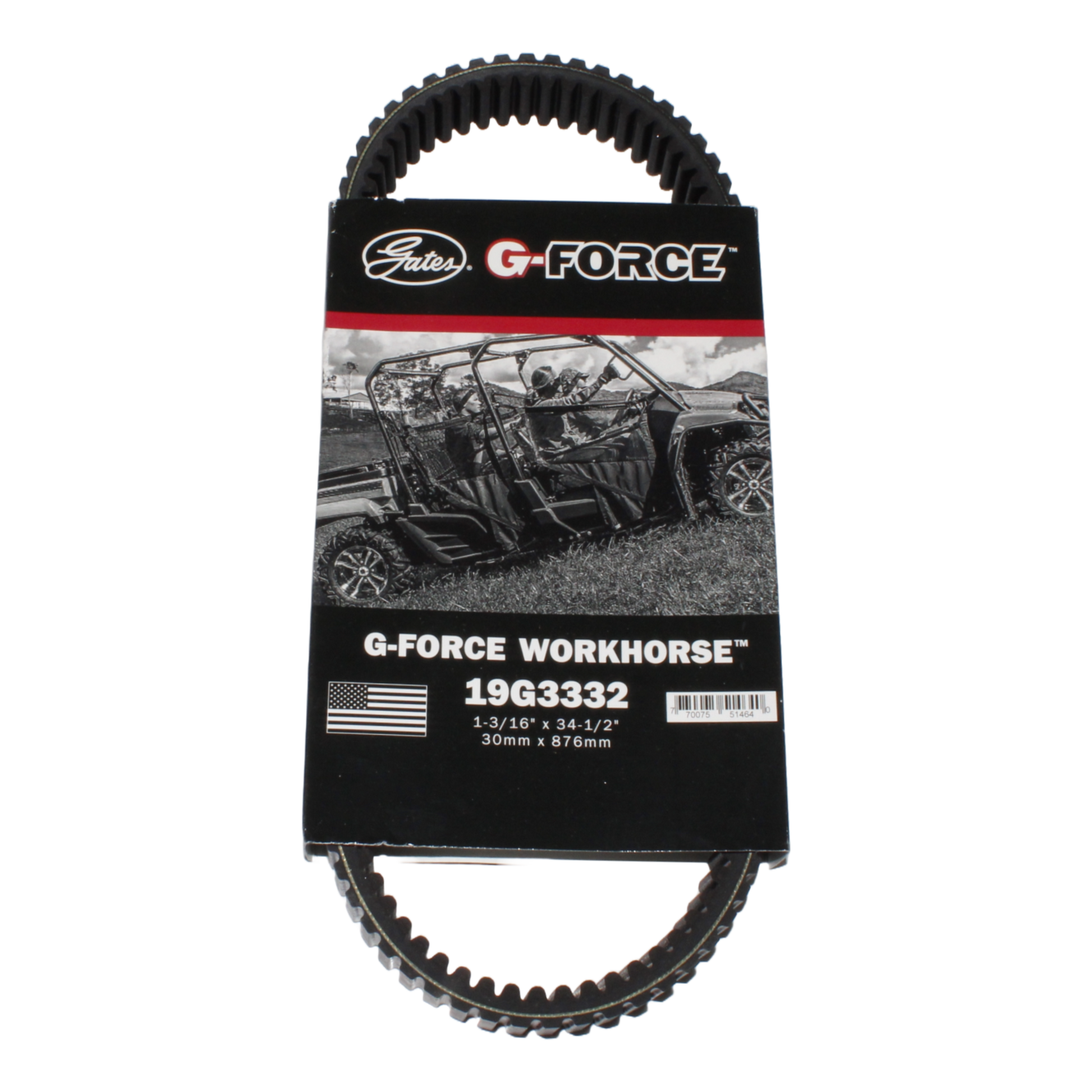

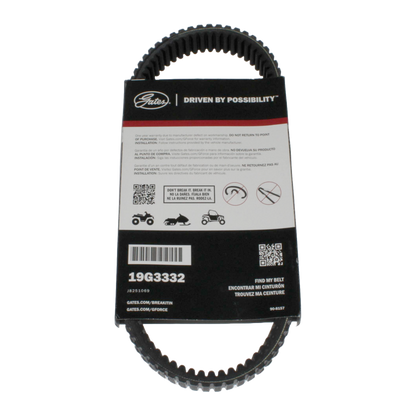

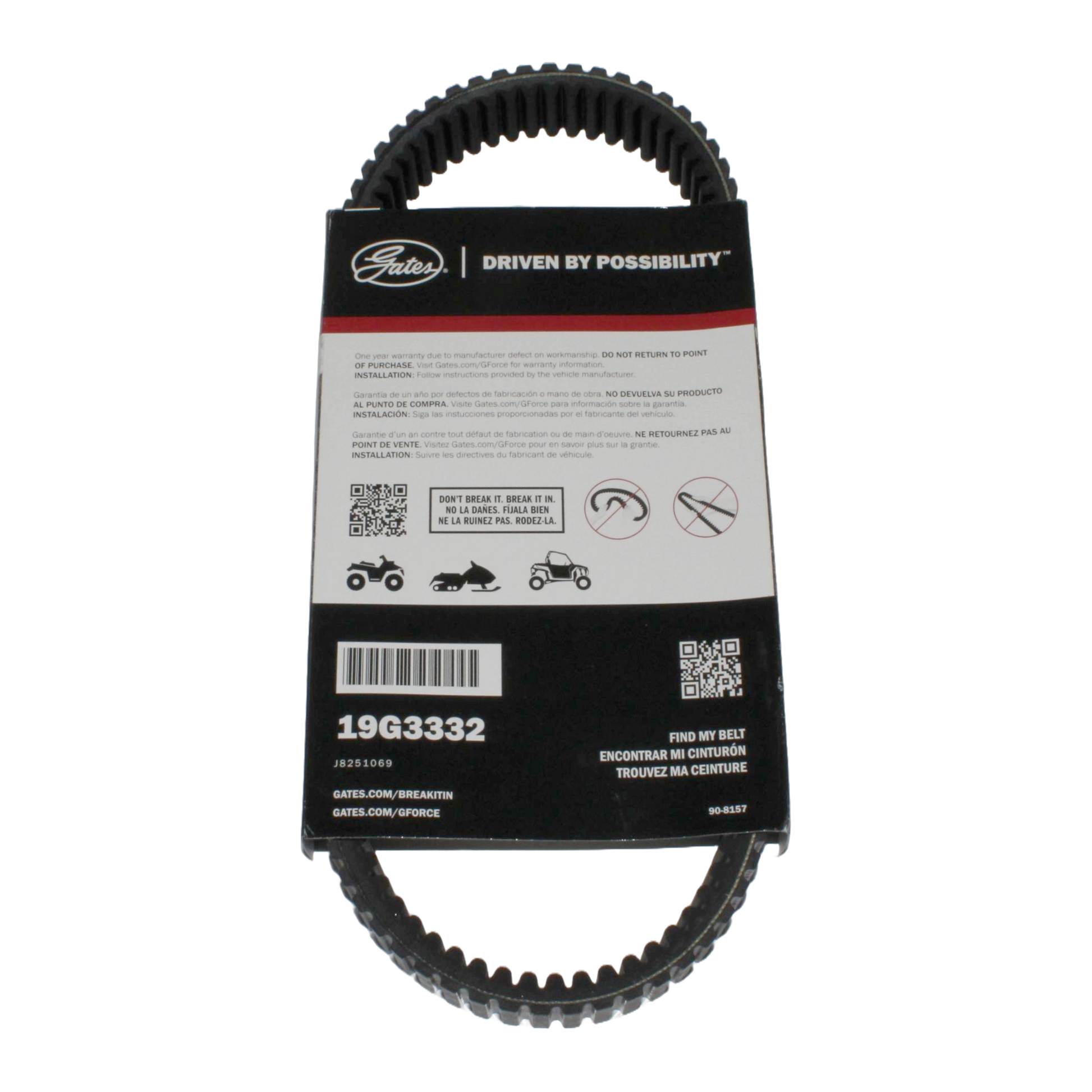

CVT Drive Belt for Yamaha 400-450cc Automatics
Fits Yamaha Grizzly, Kodiak, Rhino & Wolverine 400/450 2000-2014
This CVT drive belt is a direct replacement primary belt for the Yamaha 400cc and 450cc automatic ATV/UTV range, built to OE performance specification for consistent power delivery through the variator clutch.
Manufactured with a double-notch, fabric bottom cover to the original dimensions, it is designed to resist slip and heat build-up under the load these automatic transmissions see in everyday use.
Key Features
- OE performance rating
- Double-notch, fabric bottom construction
- Direct OEM fit and function
- Precision-matched dimensions for correct clutch engagement
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Top Width | 30mm (1.19in) |
| Outside Circumference | 876mm (34.50in) |
| Pitch Length | 846mm (33.32in) |
| Thickness | 13.40mm (0.53in) |
| Angle | 28 degrees |
| Material | Fabric bottom, double notch |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Grizzly 400 Automatic | 2007-2008 |
| Yamaha Grizzly 450 Auto 4x4 / Auto 4x4 EPS / Auto 4x4 IRS / Automatic | 2007-2014 |
| Yamaha Kodiak 400 / 400 Automatic | 2000-2008 |
| Yamaha Kodiak 450 / 450 Automatic | 2003-2020 |
| Yamaha Rhino 450 Automatic | 2006-2009 |
| Yamaha Wolverine 450 / Auto 4x4 | 2006-2010 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 5GH-17641-10-00 | Yamaha |
| 5GH-17641-00-00 | Yamaha |
Frequently Asked Questions
Will this fit my Yamaha 400 or 450 without modification?
Yes, provided your model and year fall within the fitment guide above, this belt is a direct drop-in replacement with no modification required.
What's included?
One CVT drive belt, ready to fit.
How do I know my belt has failed?
Signs include a burning rubber smell, visible cracking or glazing on the belt surface, slipping under load, loss of drive, or a belt that has physically snapped.
My model isn't listed by name - will this still fit?
Check the OEM part numbers 5GH-17641-10-00 or 5GH-17641-00-00 against your original belt or workshop manual to confirm before ordering.
