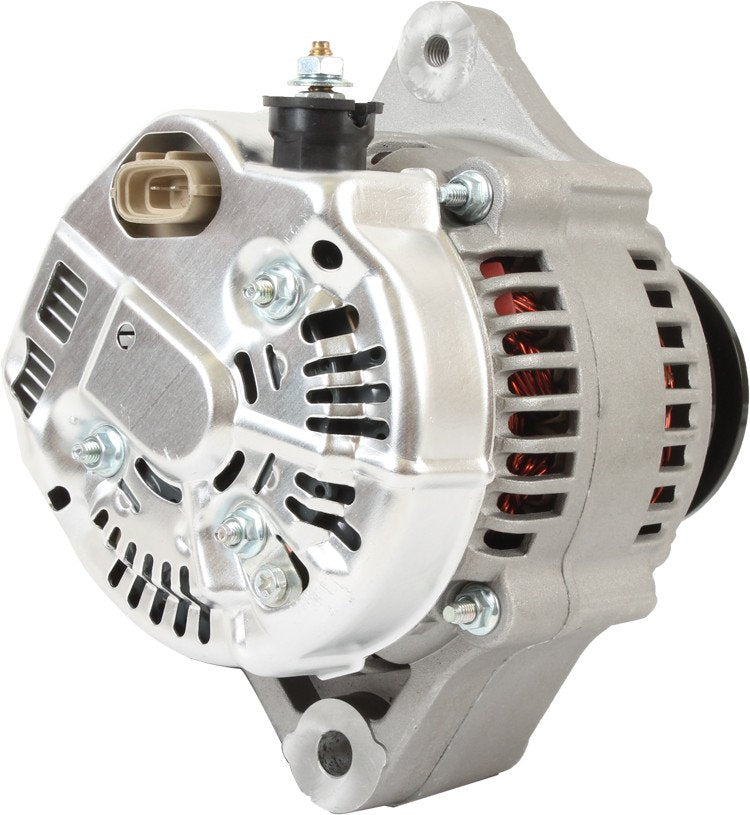

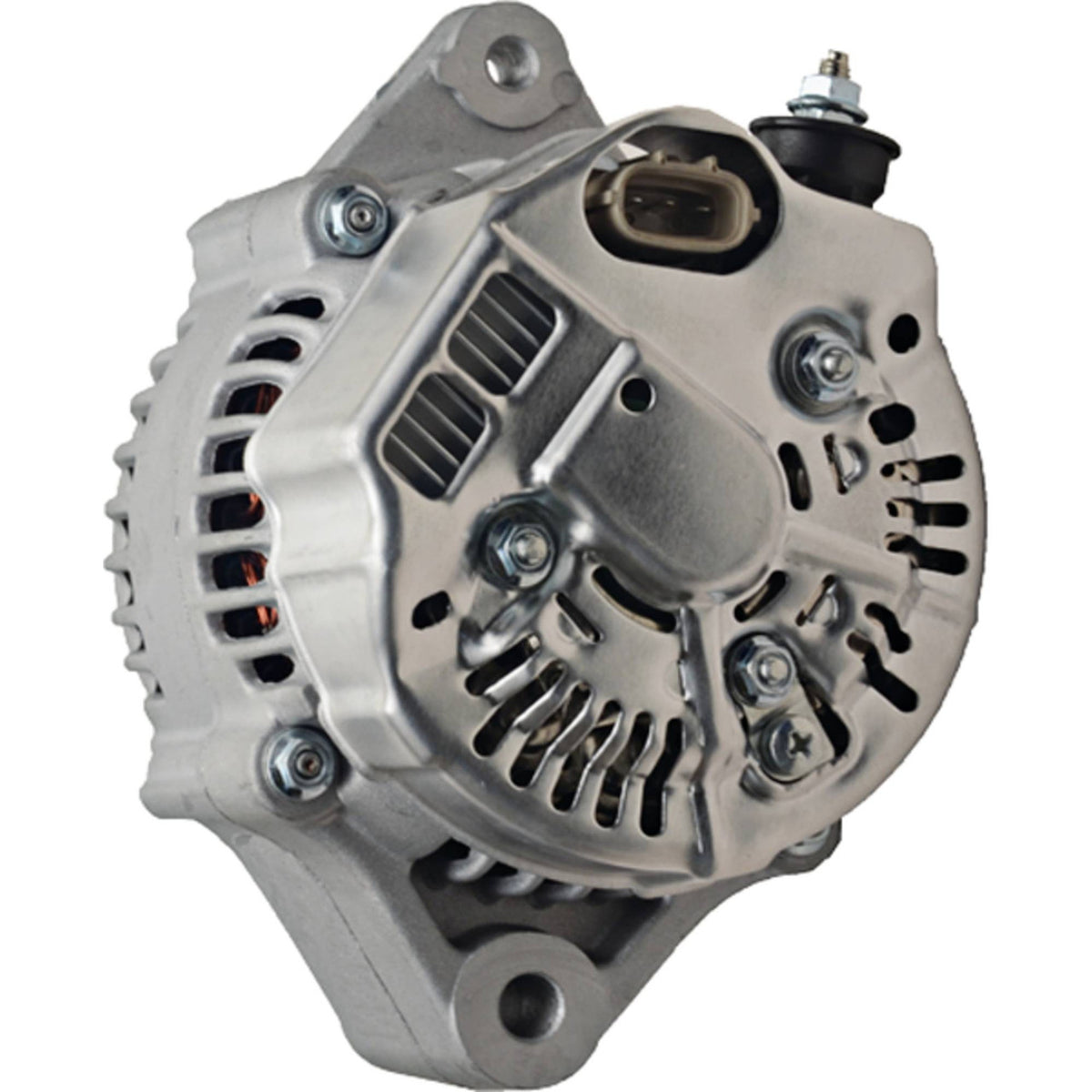

Keep your Caterpillar running with this 90 Amp 12V replacement alternator. Designed as a direct-fit replacement for the excavators - mini listed below, it delivers reliable charging for standard and accessory electrical loads.
This unit features an internal fan (IF) and an internal regulator (IR), and is supplied with a V2 pulley already fitted.
DIRECT FIT: Replaces Arrowhead AND0558 — no modification required on the machines listed below.
Key Features
✔High Capacity: 90 Amps of charging output.
✔Direct Replacement: Replaces Arrowhead AND0558.
✔Pulley Fitted: V2 pulley installed and ready to fit.
✔Robust Design: IF fan. IR regulator.
✔Quality Assured: New aftermarket unit, 12 month warranty.
Technical Specs
Voltage:
12 Volts
Amperage:
90 Amps
Rotation:
CW (Clockwise)
Pulley:
V2 (Twin Groove)
Regulator:
Internal (IR)
Fan Type:
Internal (IF)
Clock:
12
SKU Reference:
400-52092
Vehicle Fitment Guide
Make
Equipment Type
Models
Caterpillar
Excavators - Mini
302.5C, 303 CR
OEM Part Number Cross Reference
Arrowhead
AND0558, 400-52092, ND102211-1830
Caterpillar
0R9699, 144-9963
Denso
102211-1830, 102211-9010
J&N Electrical Products
400-52092, 400-52092R
Lester
11633
Mitsubishi Industrial
32868-03201
Frequently Asked Questions
Will this fit my Caterpillar 302.5C?
Yes — the 302.5C appears in the fitment guide above. Check your existing part number against the cross reference table to confirm.
Is this a 90 Amp alternator?
Yes, this is a 90 Amp 12V unit with an IR regulator.
Is the pulley included?
Yes, a V2 pulley is pre-installed.
Is this new or remanufactured?
This is a brand new aftermarket unit — not a remanufactured core.
Note: Please verify your machine's serial number or existing part number to ensure compatibility. Fast shipping available across the UK and Europe.
