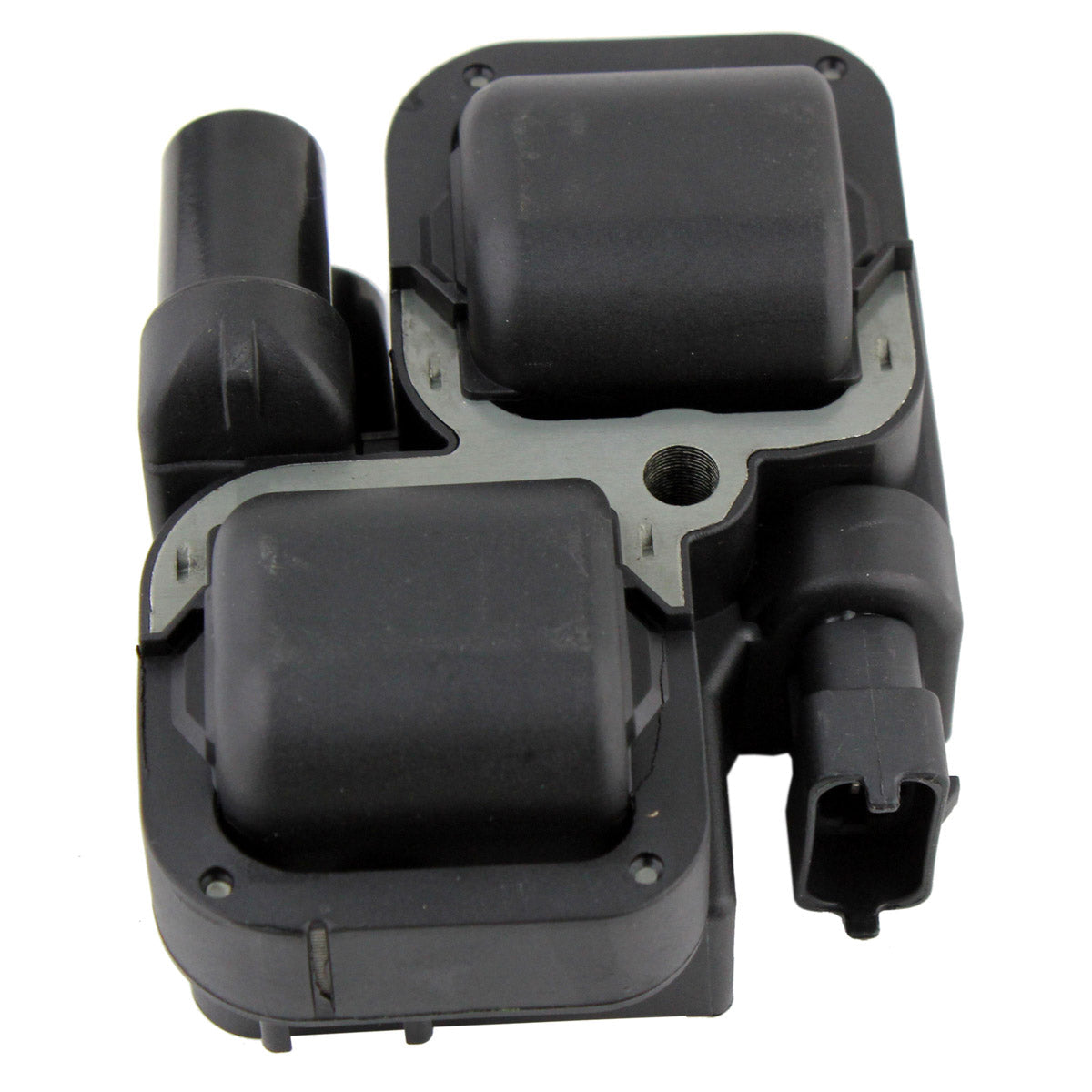

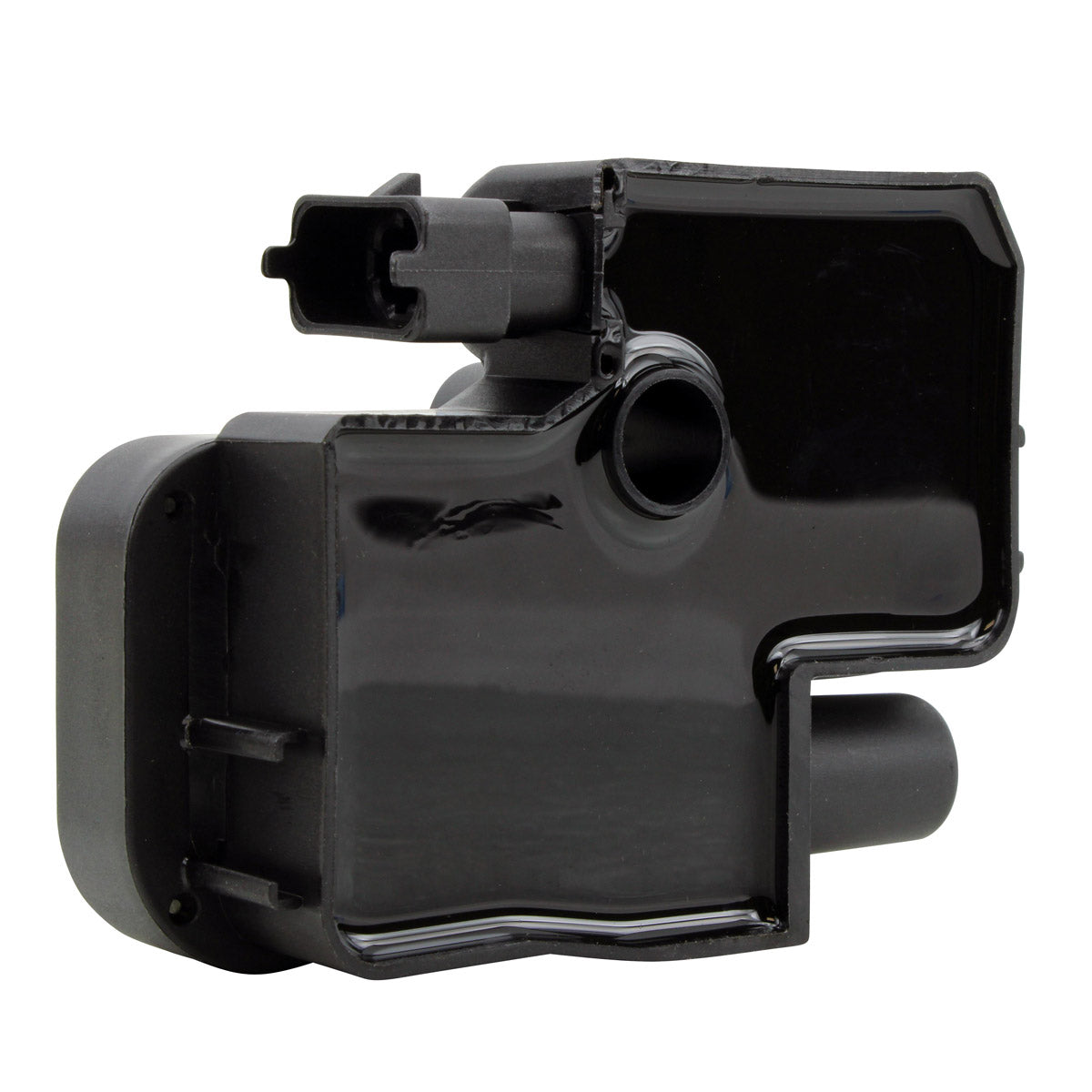

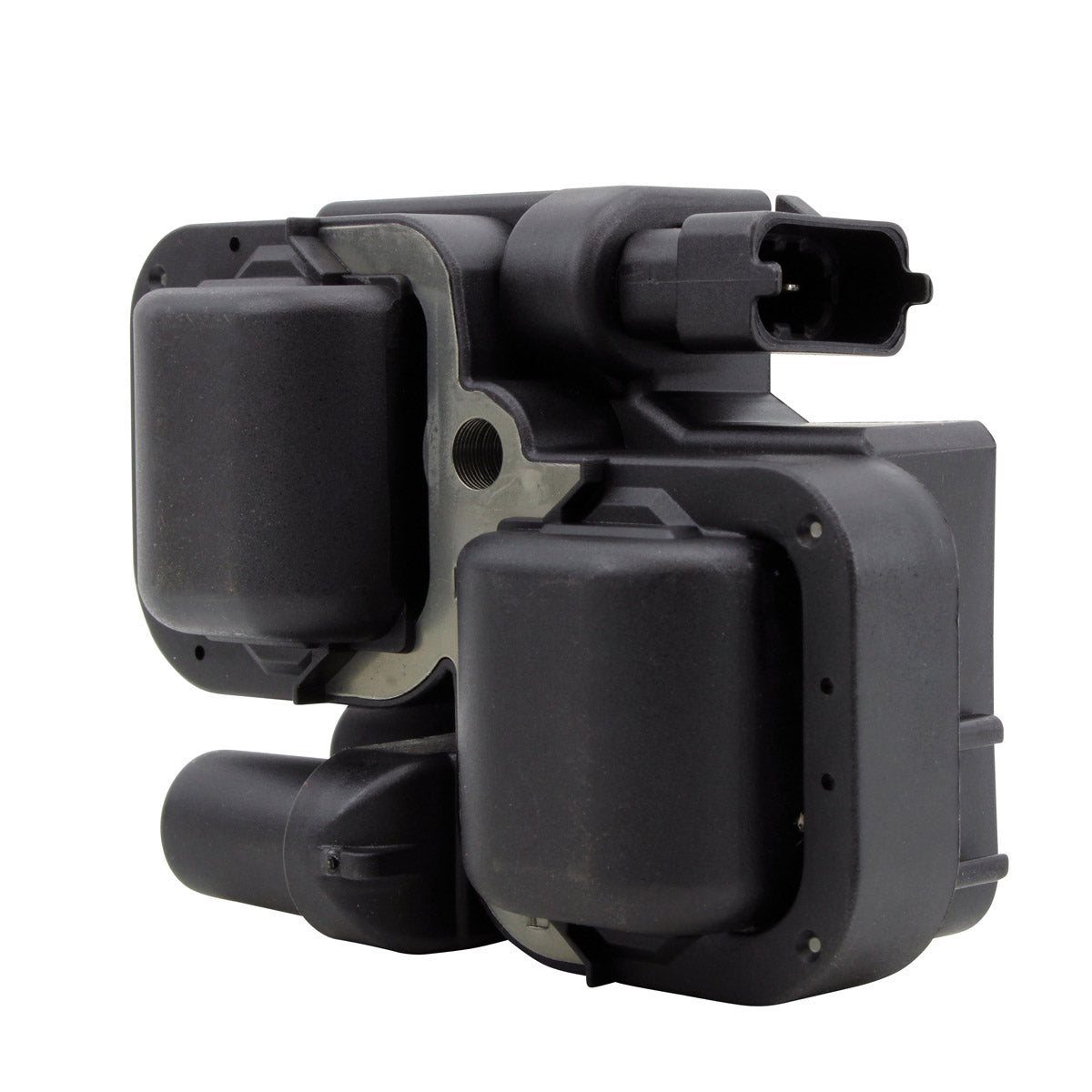

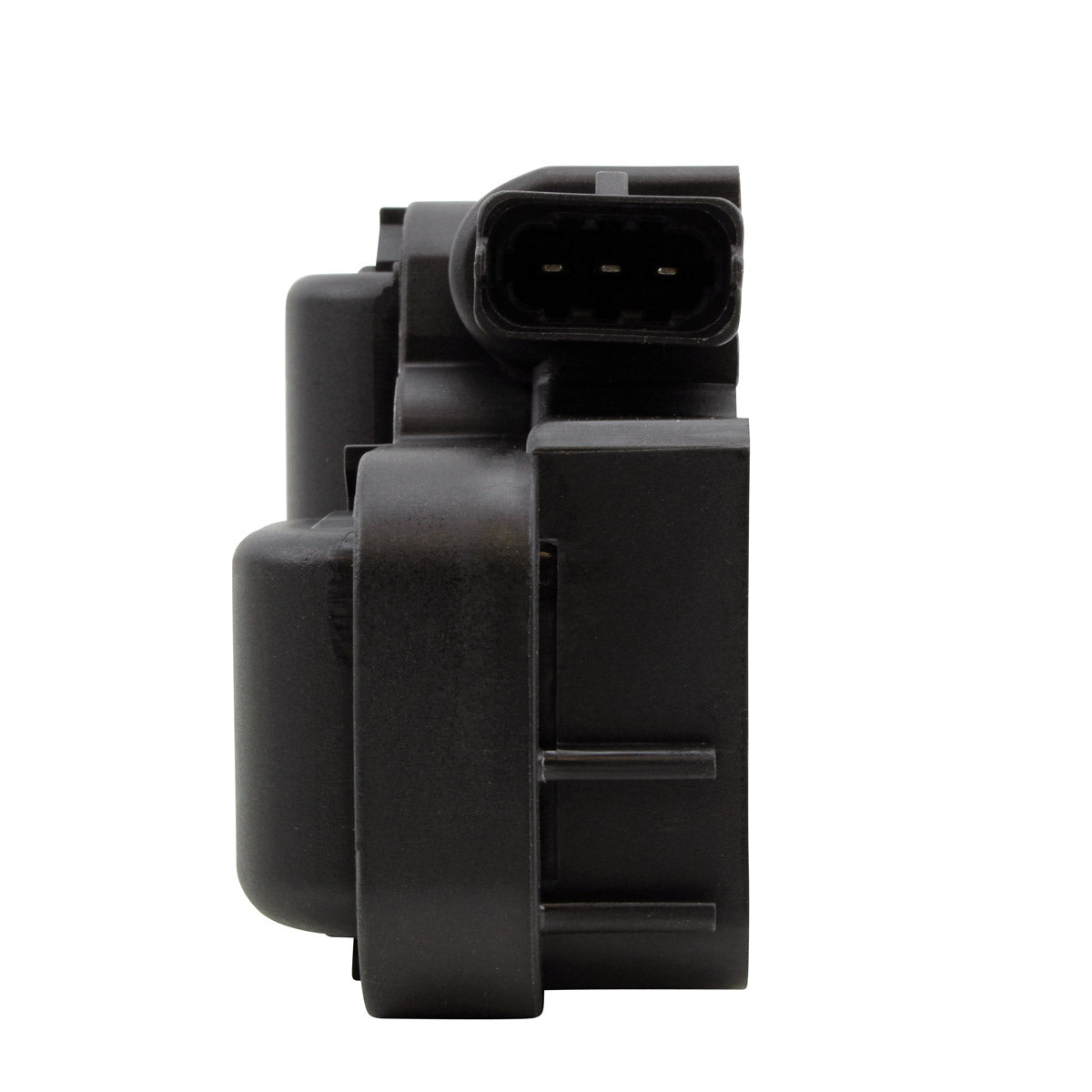

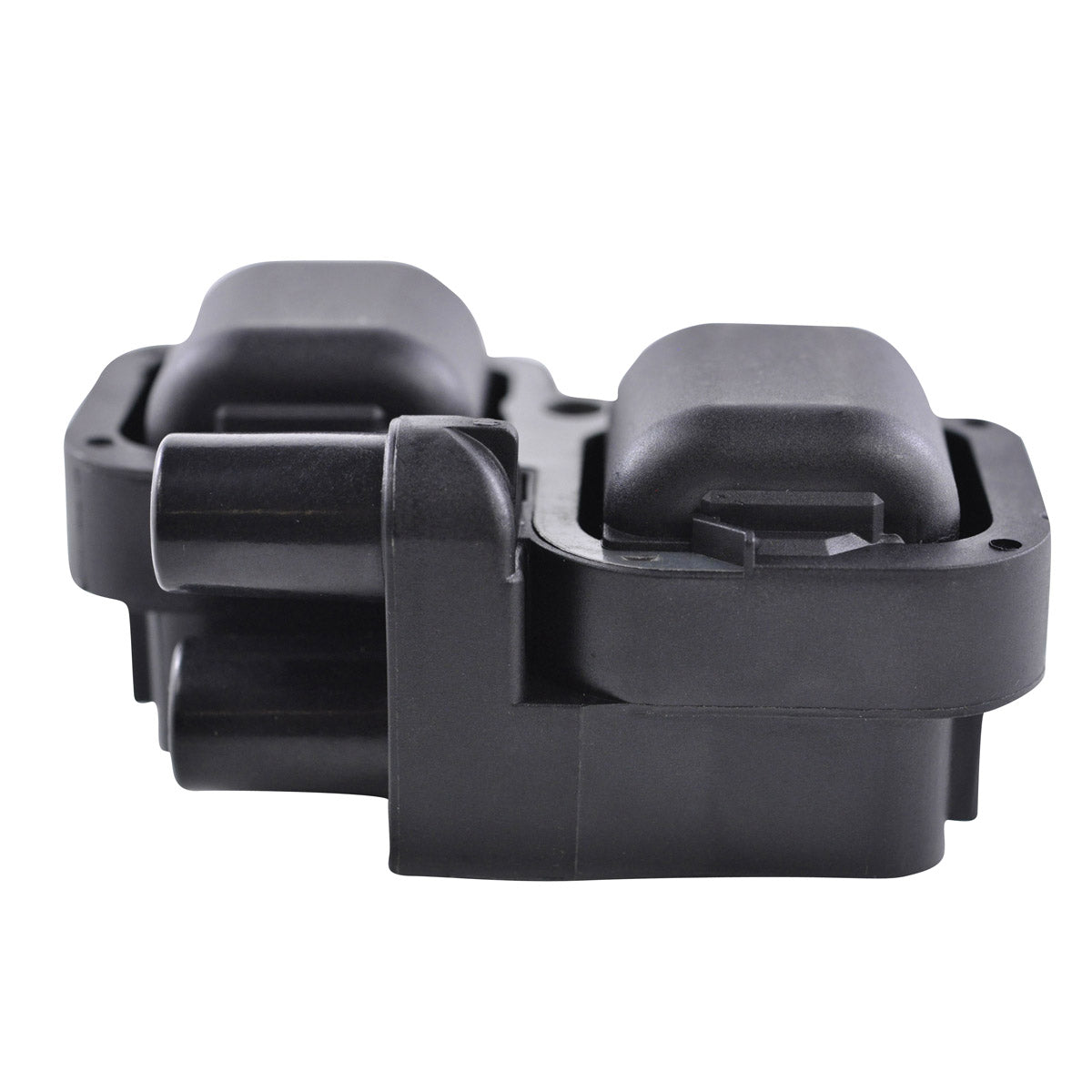

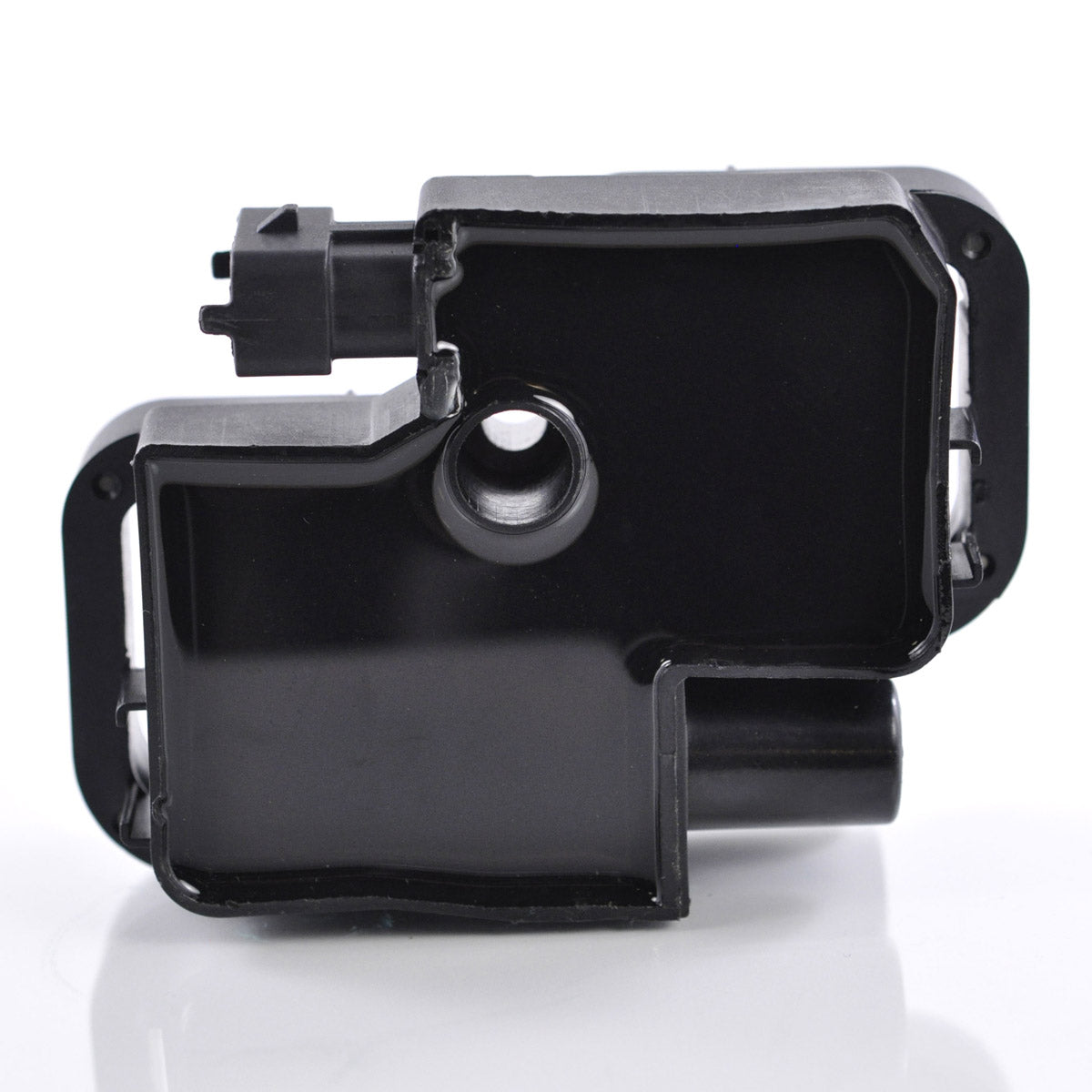

External Ignition Coil for Can-Am, Ski-Doo, Sea-Doo, Lynx, Polaris and Victory
Can-Am, Lynx, Polaris, Sea-Doo, Ski-Doo, Victory - 2000-2026 - OEM replacement 2876049 / 4010425 / 420266070 - Part number RM06021

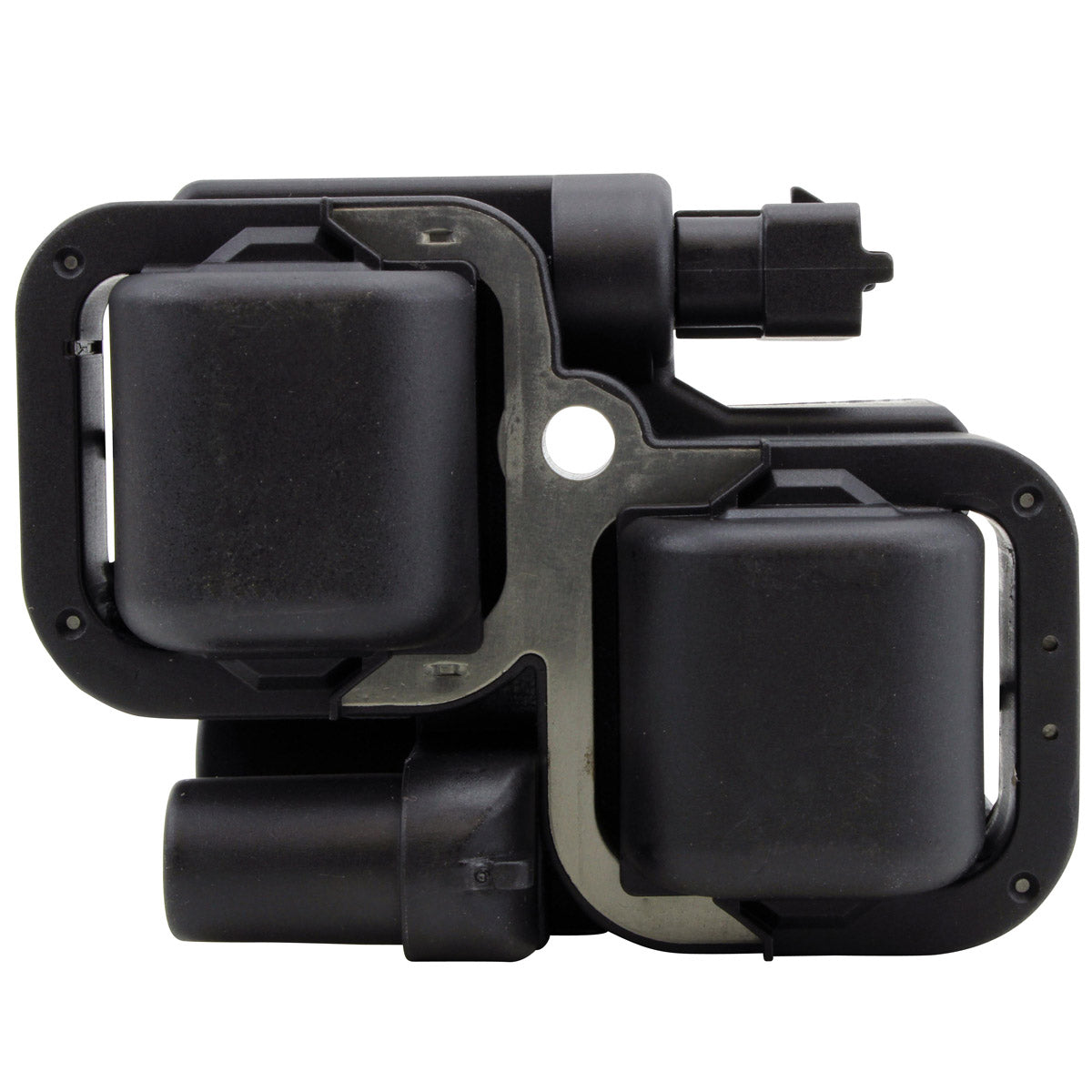

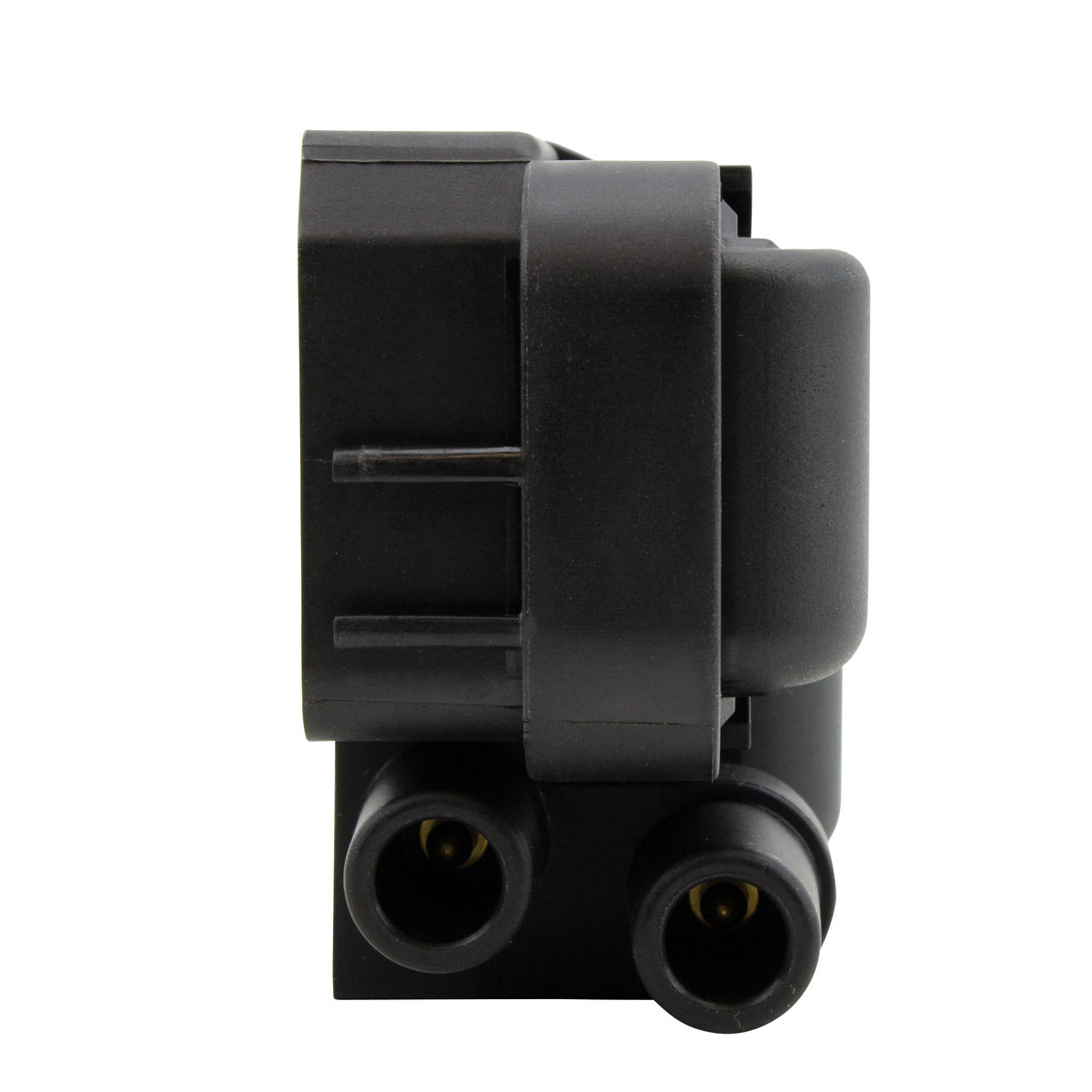

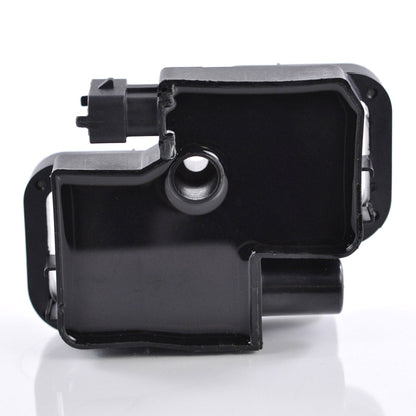

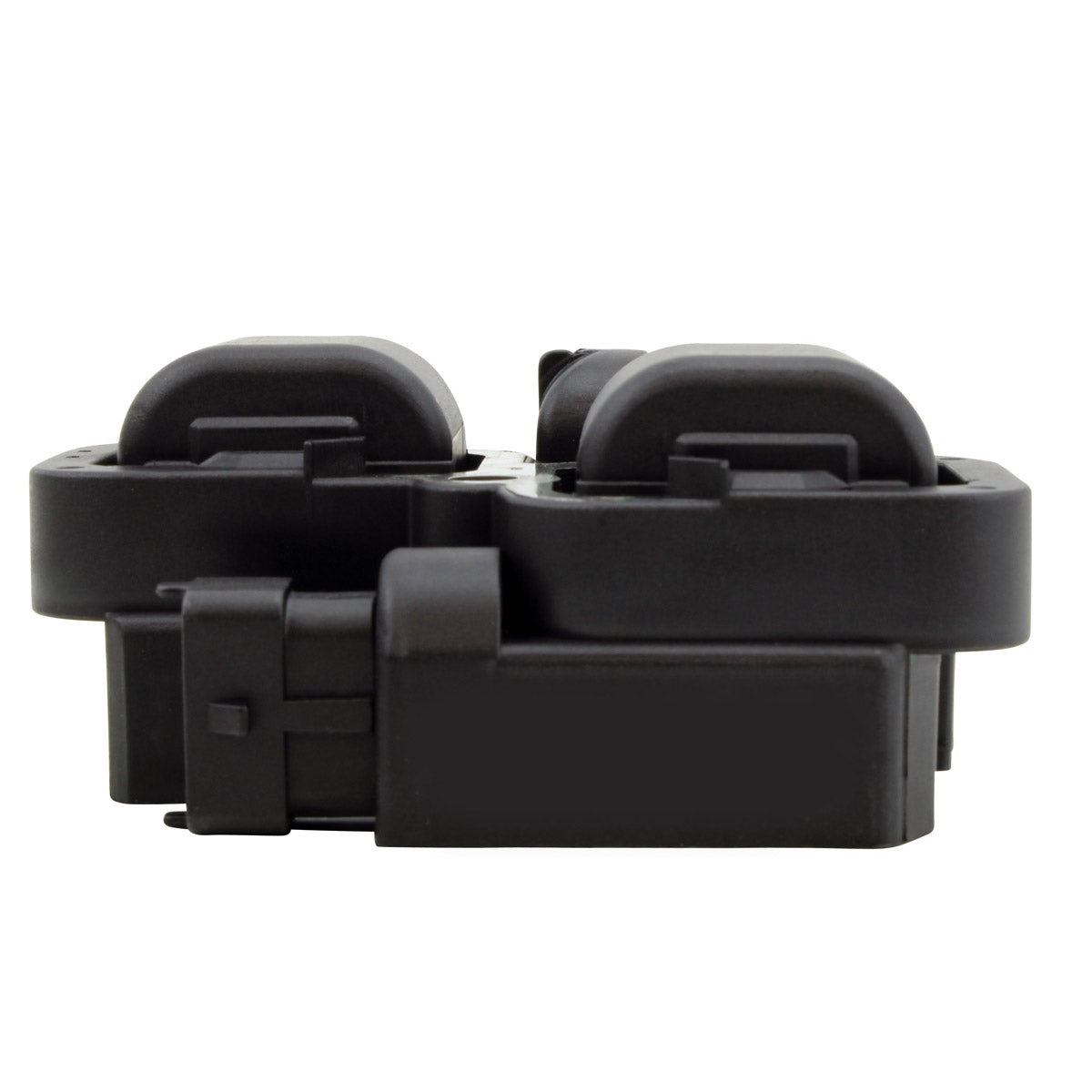

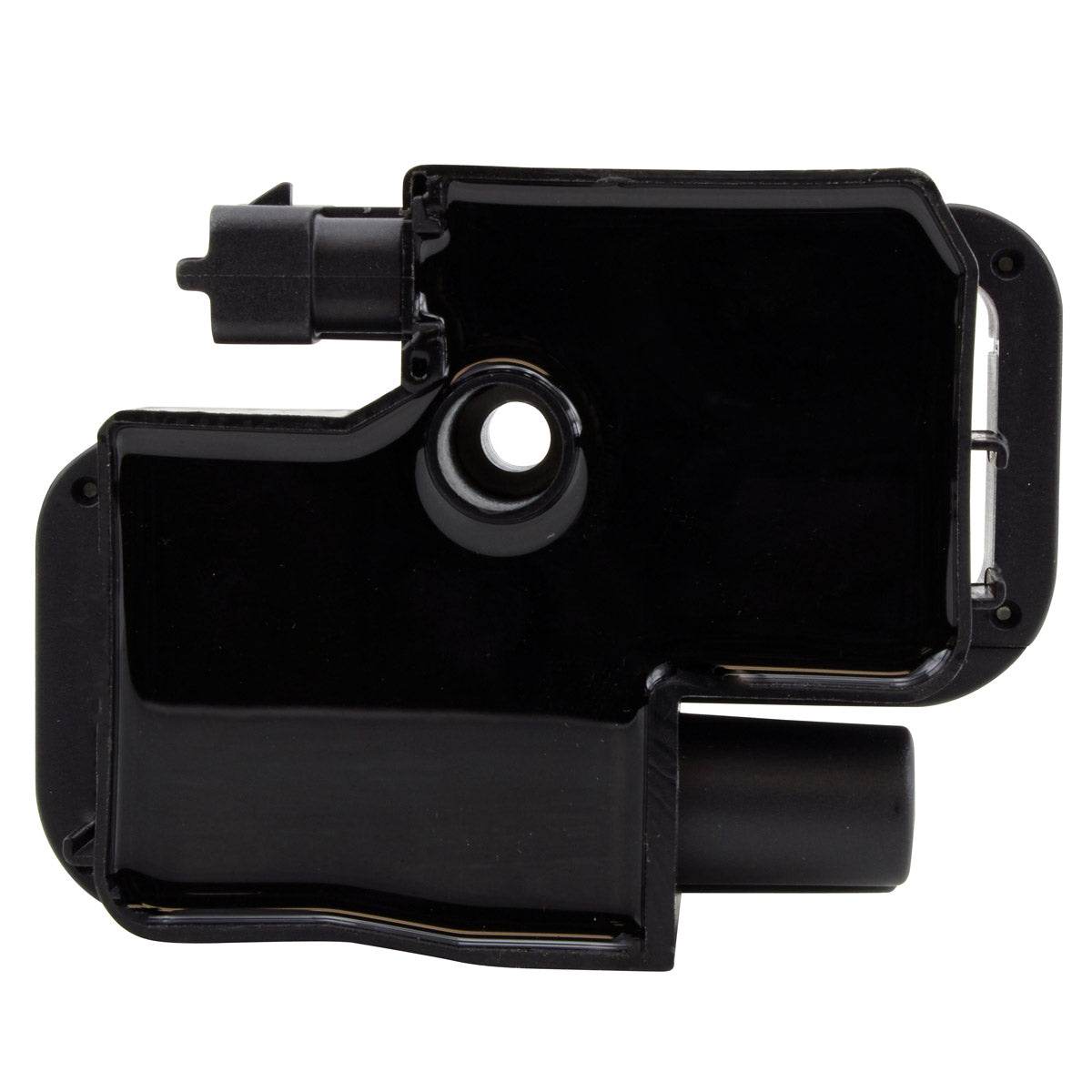

This is a brand new external ignition coil built as a direct replacement for the original unit fitted across a broad span of Can-Am, Lynx, Polaris, Sea-Doo, Ski-Doo and Victory machines. It is a twin output coil, feeding both the PTO and the MAG cylinder through their own high tension leads, which is the arrangement used on the parallel twin and V-twin engines these makes share. The coil is what converts the low voltage switching signal into the high tension charge that fires the plugs, so when it starts to break down the symptoms show up as a misfire on one cylinder, hard starting, or a machine that runs badly once it is hot.
Fitting is plug-and-play and direct fit. Reinstall your original OEM spark plug caps onto the new leads and the coil goes straight in using the standard mounting position - no cutting, splicing or adapting is required. Note that this is the updated replacement design, as used by OEM part number 278001546: the connection is integrated internally, so unlike the earlier version it no longer requires a separate external wire. Primary resistance is 0.9 ohms plus or minus 20 percent across terminals 1 and 2 and terminals 2 and 3, with the PTO lead at 7.0k ohms and the MAG lead at 7.4k ohms, so the unit can be verified with a multimeter. All products shipped are tested.
Key Features
- Brand new external ignition coil - direct replacement for the original unit
- Updated design as used by OEM 278001546 - integrated internally, no separate external wire needed

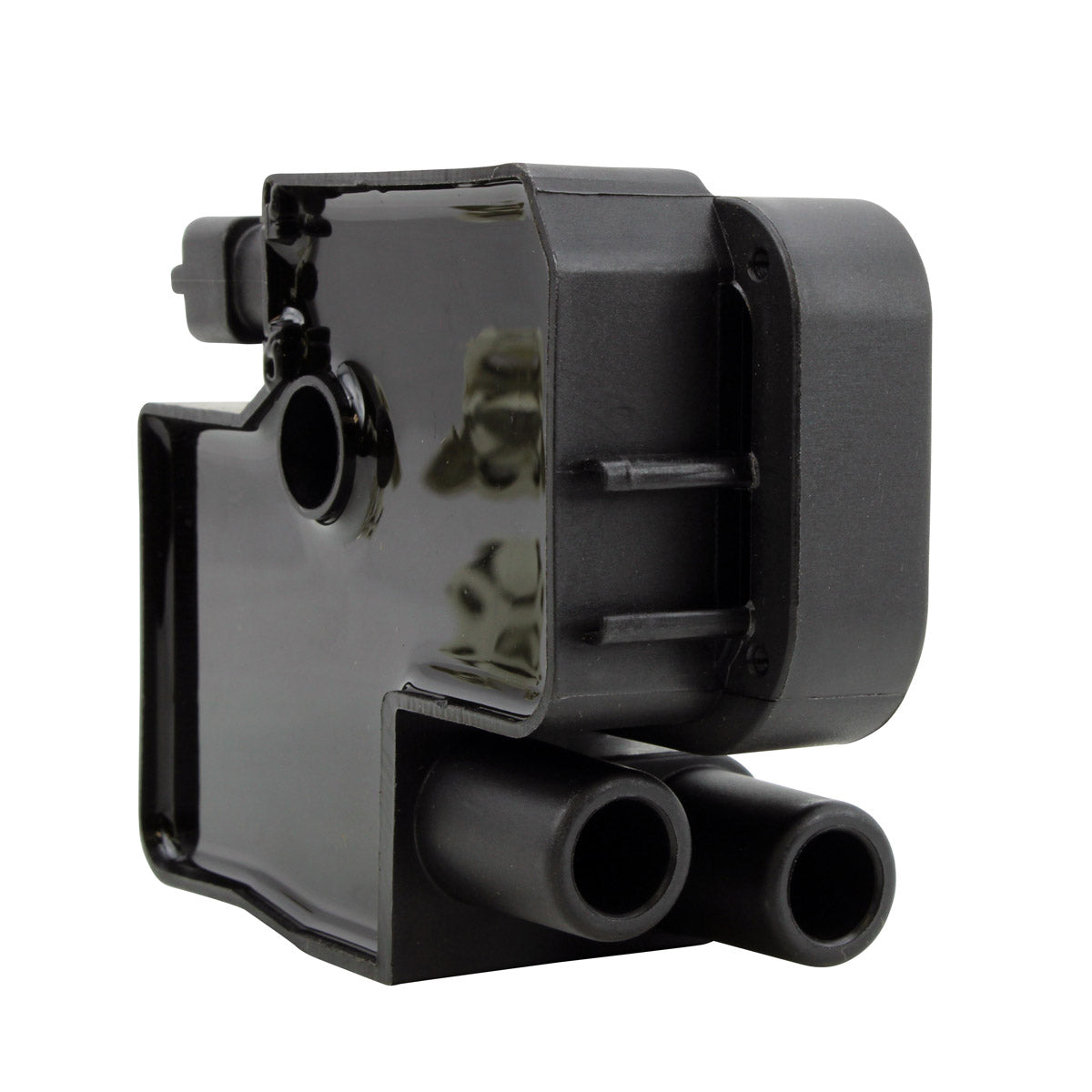

- Twin output, feeding both the PTO and MAG cylinders
- Plug-and-play, direct fit once the OEM spark plug caps are reinstalled
- Easy installation with no cutting or splicing of the loom
- Covers Can-Am, Lynx, Polaris, Sea-Doo, Ski-Doo and Victory across a 2000-2026 span
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM06021 |
| Type | External ignition coil, twin output |
| Width | 72 mm |
| Length | 100 mm |
| Height | 45 mm |

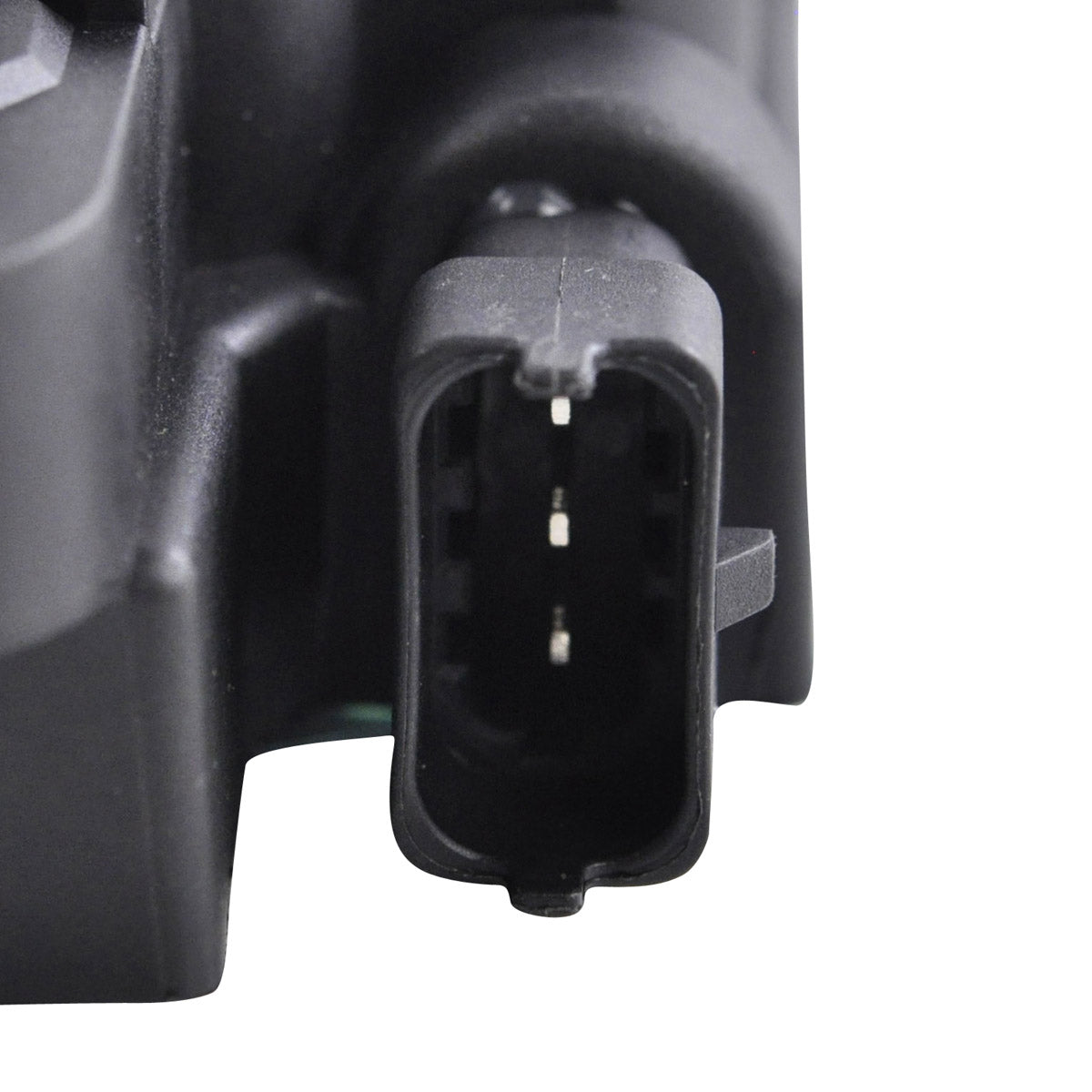

| Primary resistance (terminals 1 and 2, 2 and 3) | 0.9 ohms +/- 20% |
| PTO spark plug wire | 7.0k ohms +/- 5% |
| MAG spark plug wire | 7.4k ohms +/- 5% |
| Spark plug caps | Reuse the original OEM caps |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Can-Am | 2000-2026 |
| Lynx | 2000-2026 |
| Polaris | 2000-2026 |
| Sea-Doo | 2000-2026 |
| Ski-Doo | 2000-2026 |
| Victory | 2000-2026 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 420266070 | BRP (Can-Am / Ski-Doo / Sea-Doo / Lynx) |
| 278001546 | BRP (Can-Am / Ski-Doo / Sea-Doo / Lynx) |
| 270600002 | BRP (Can-Am / Ski-Doo / Sea-Doo / Lynx) |
| 2876049 | Polaris / Victory |
| 4010425 | Polaris / Victory |
| 0221503035, 0221503036, 221503037, 001587303, 001587803, A0001587803, 0040100297, 5098138AA, 51259190016, N61100000, 1789358 | Additional cross reference |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct replacement for the original coil - plug-and-play, direct fit, easy installation - provided you reinstall your OEM spark plug caps onto the new leads. Nothing on the loom needs to be cut or spliced. Check the coil body against the dimensions listed above, 100 mm long by 72 mm wide by 45 mm high, and confirm your original part number in the cross reference table before ordering.
My original coil had a separate external wire. Is this the right part?
Yes. This is the updated replacement design used by OEM part number 278001546, in which that connection is integrated internally and a separate external wire is no longer required. If your original unit is the earlier type with the external wire, this coil supersedes it and the external wire is simply not needed once the new unit is fitted.
What is included?
The external ignition coil with both high tension leads. Spark plug caps are not supplied - the coil is designed for you to transfer the OEM caps across from your original unit, which is what keeps it a direct fit across this many makes and models. Unscrew each cap from the old leads and fit them to the new ones before installation.
How do I know the old coil has failed?
Typical signs are hard starting, a misfire on one cylinder, poor running that gets worse as the engine heats up, or a machine that cuts out when hot and then restarts once it has cooled down. On a twin output coil like this one, a fault often shows on only one side - the PTO or the MAG cylinder. A multimeter check is the reliable test: this unit reads 0.9 ohms across the primary terminals, with 7.0k ohms on the PTO lead and 7.4k ohms on the MAG lead.
