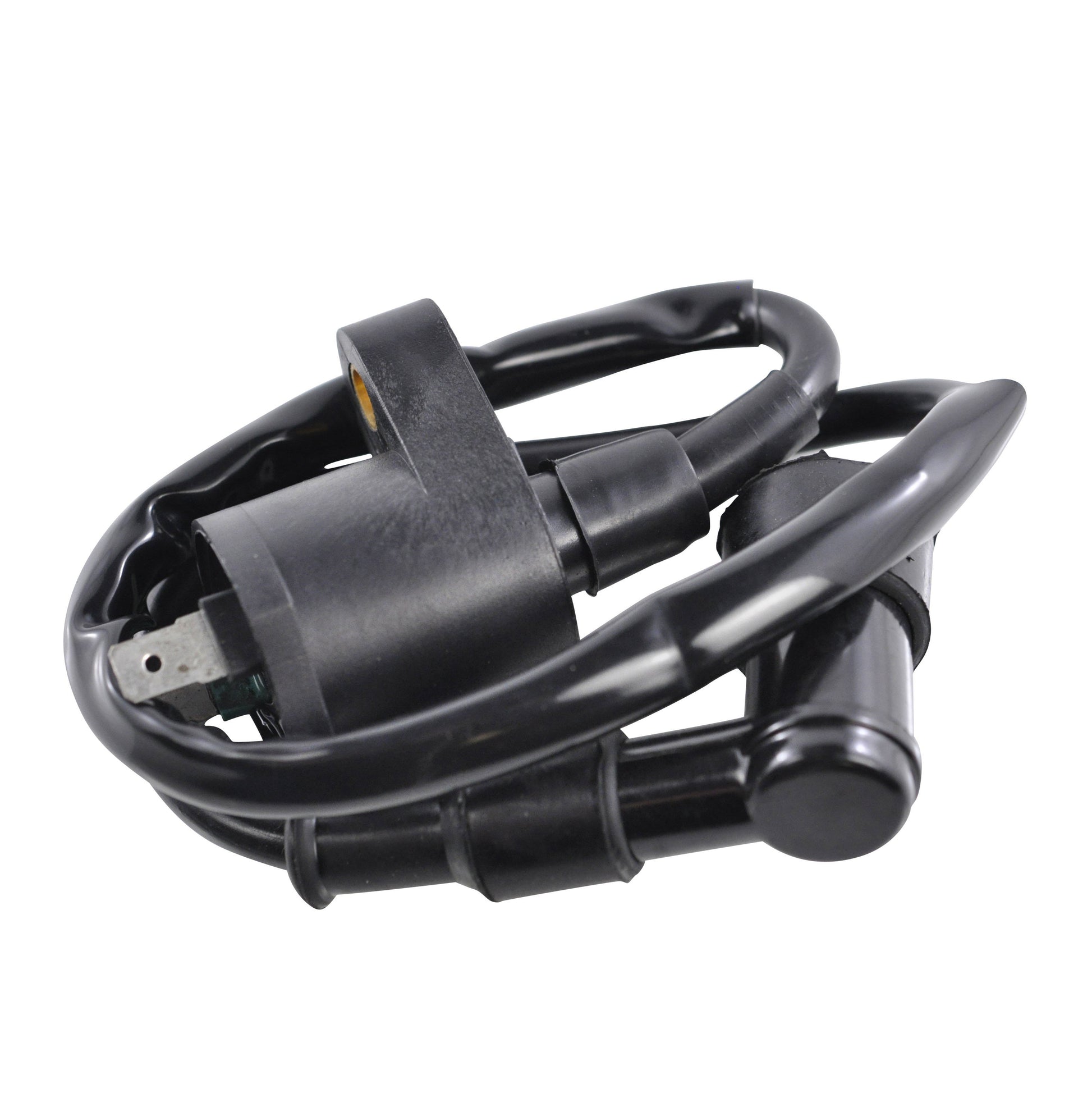

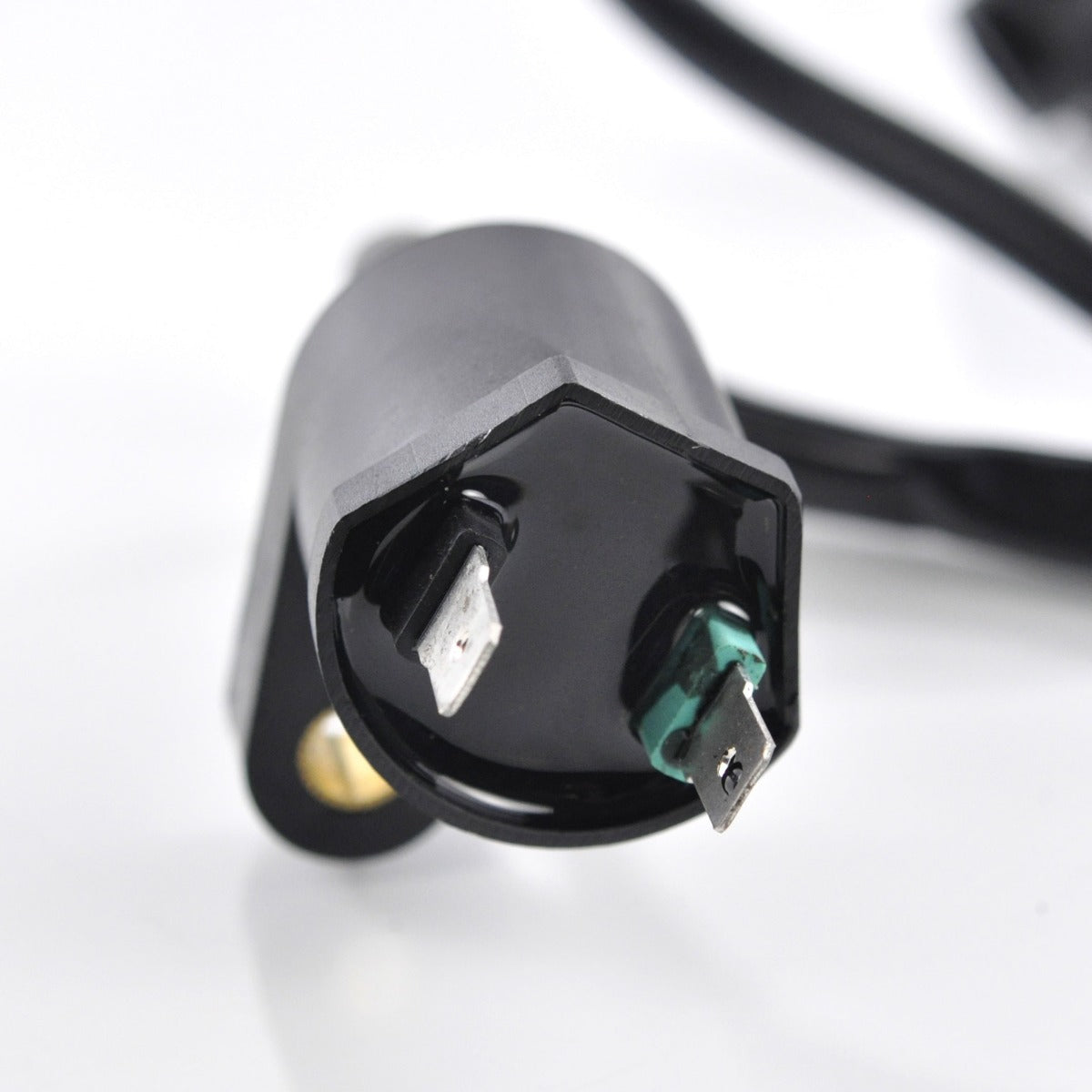

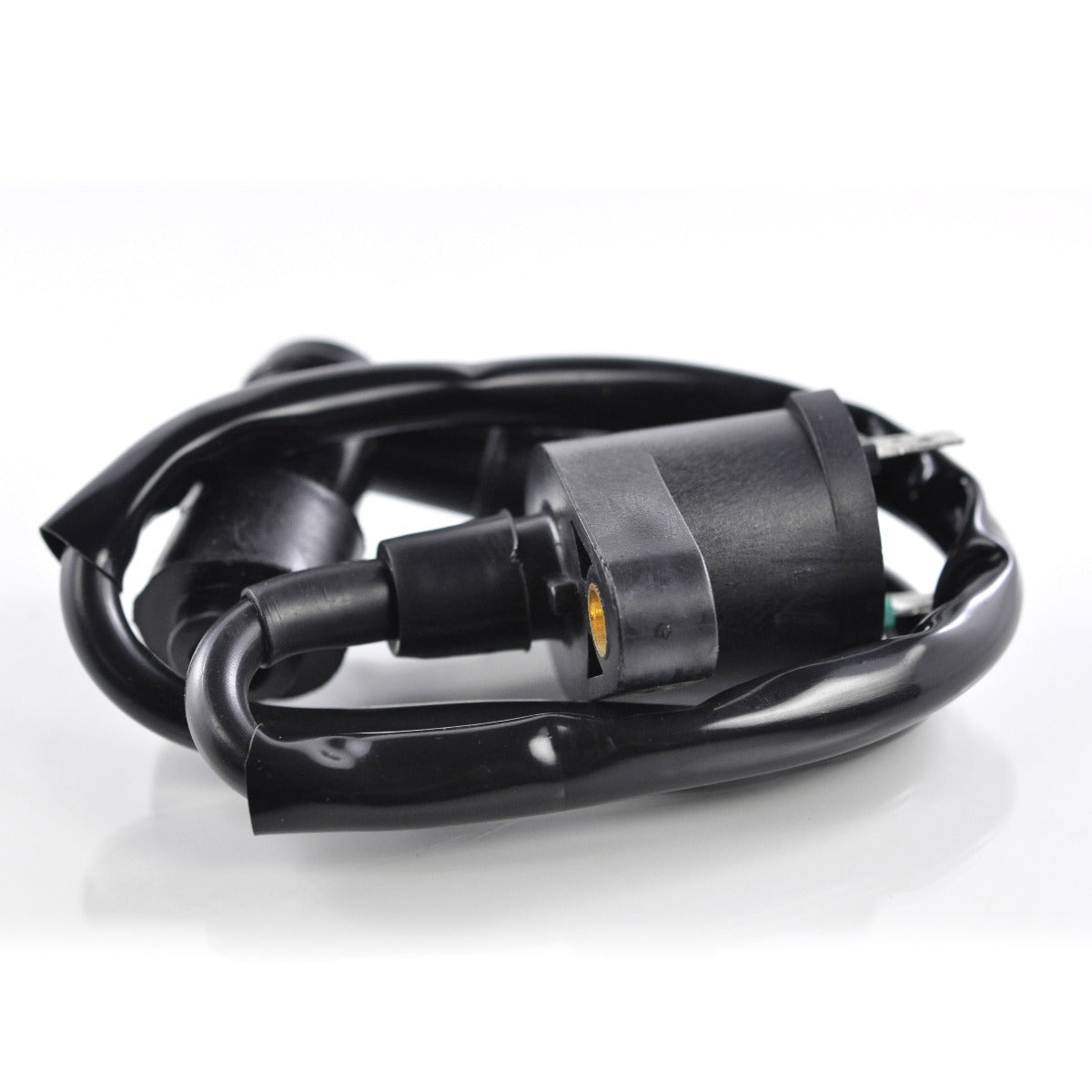

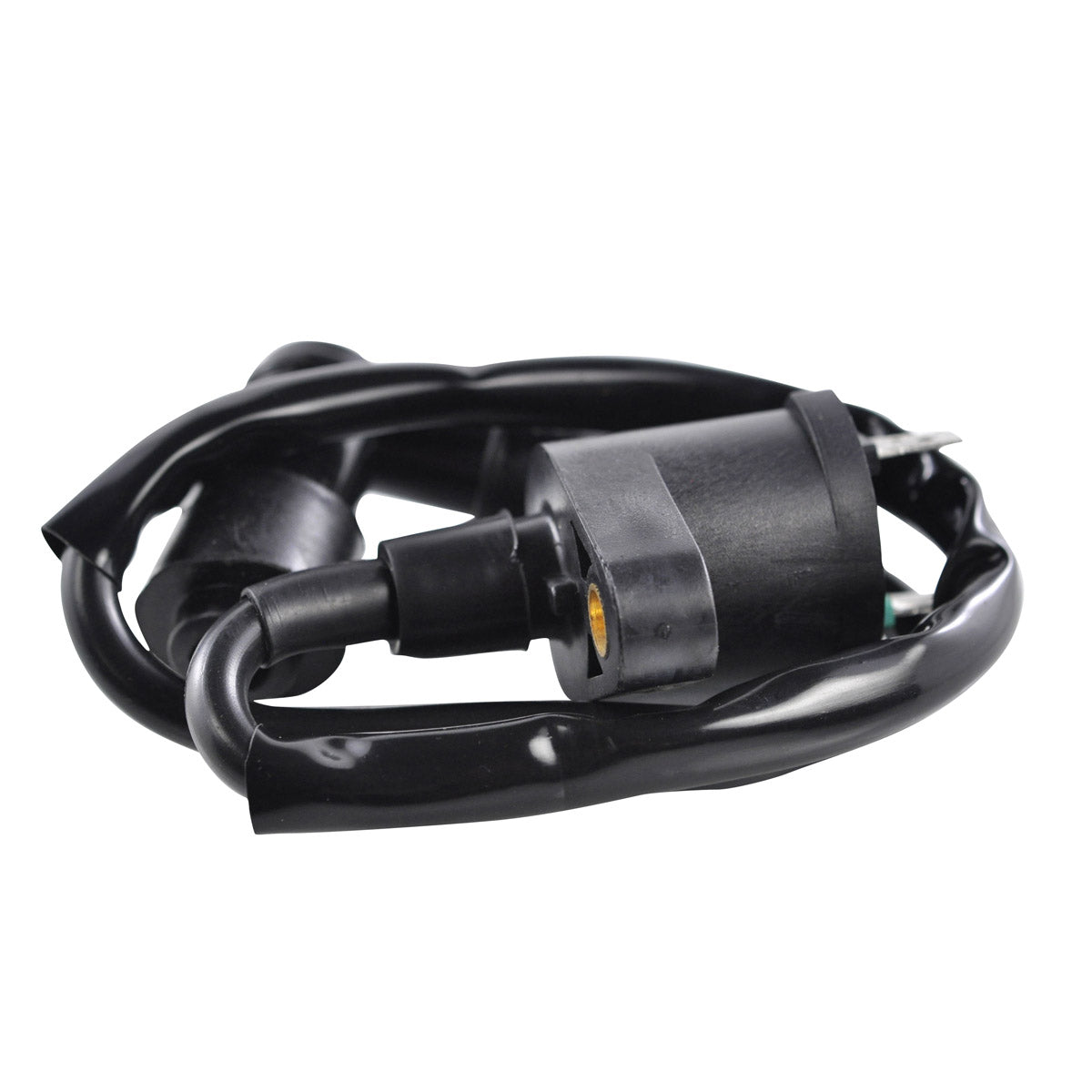

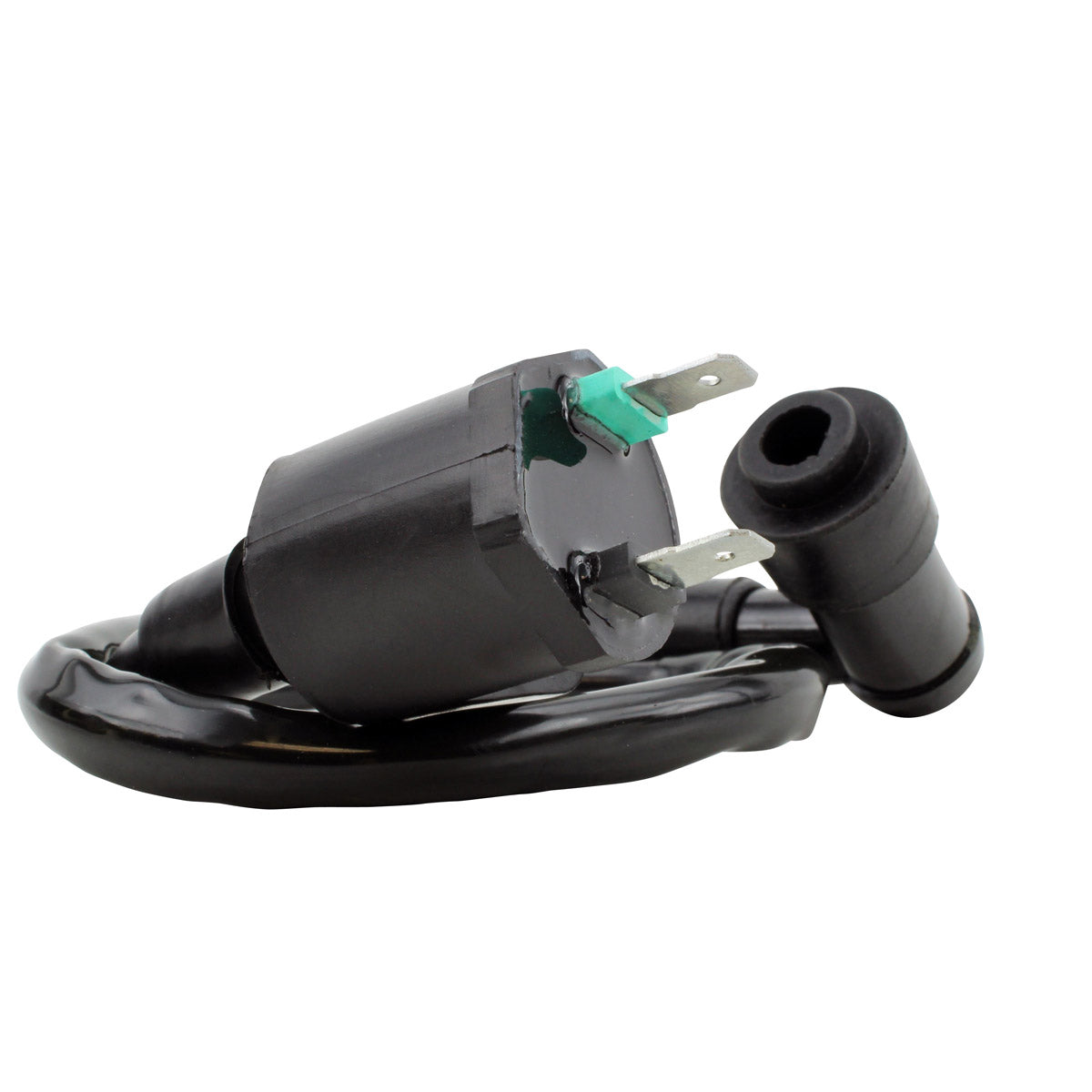

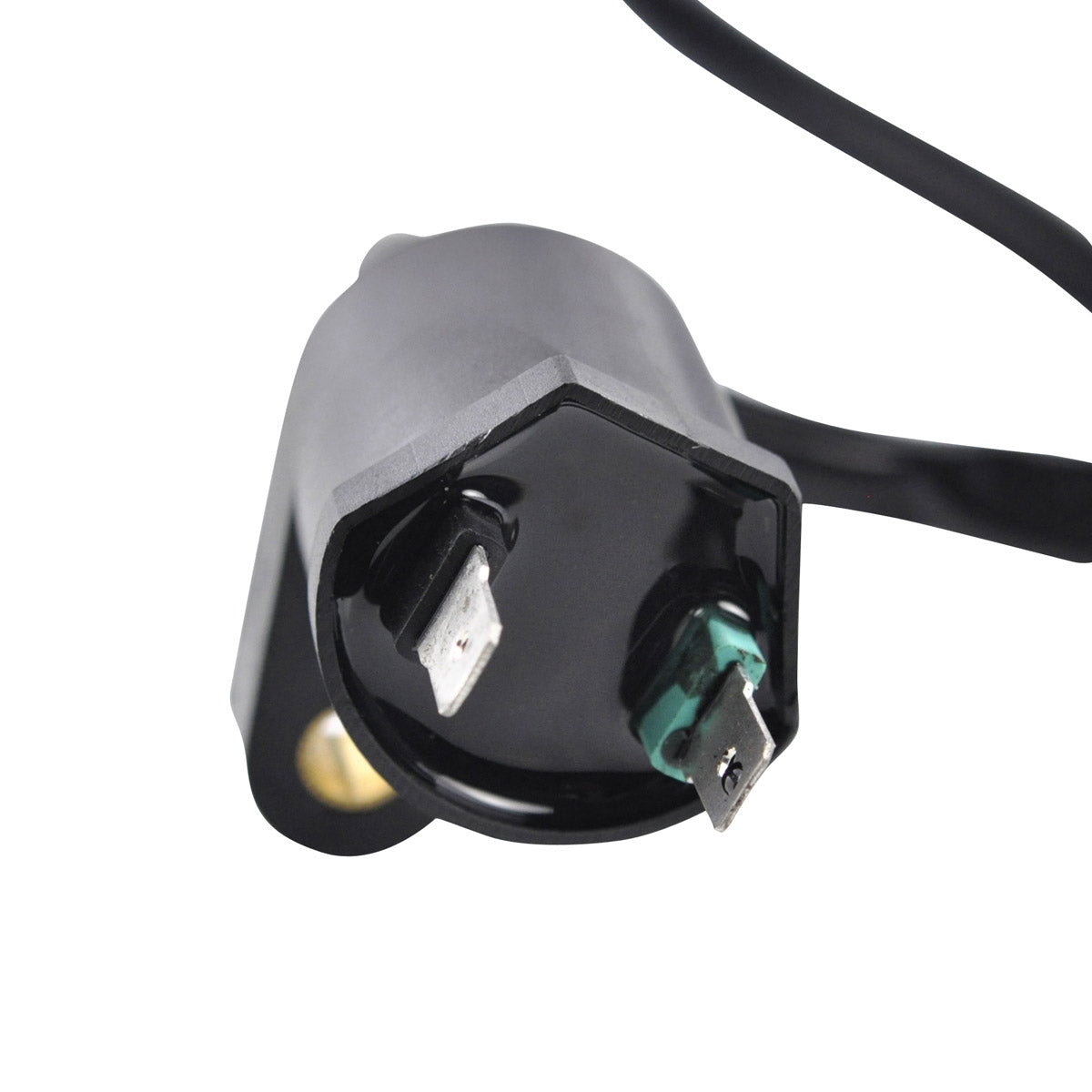

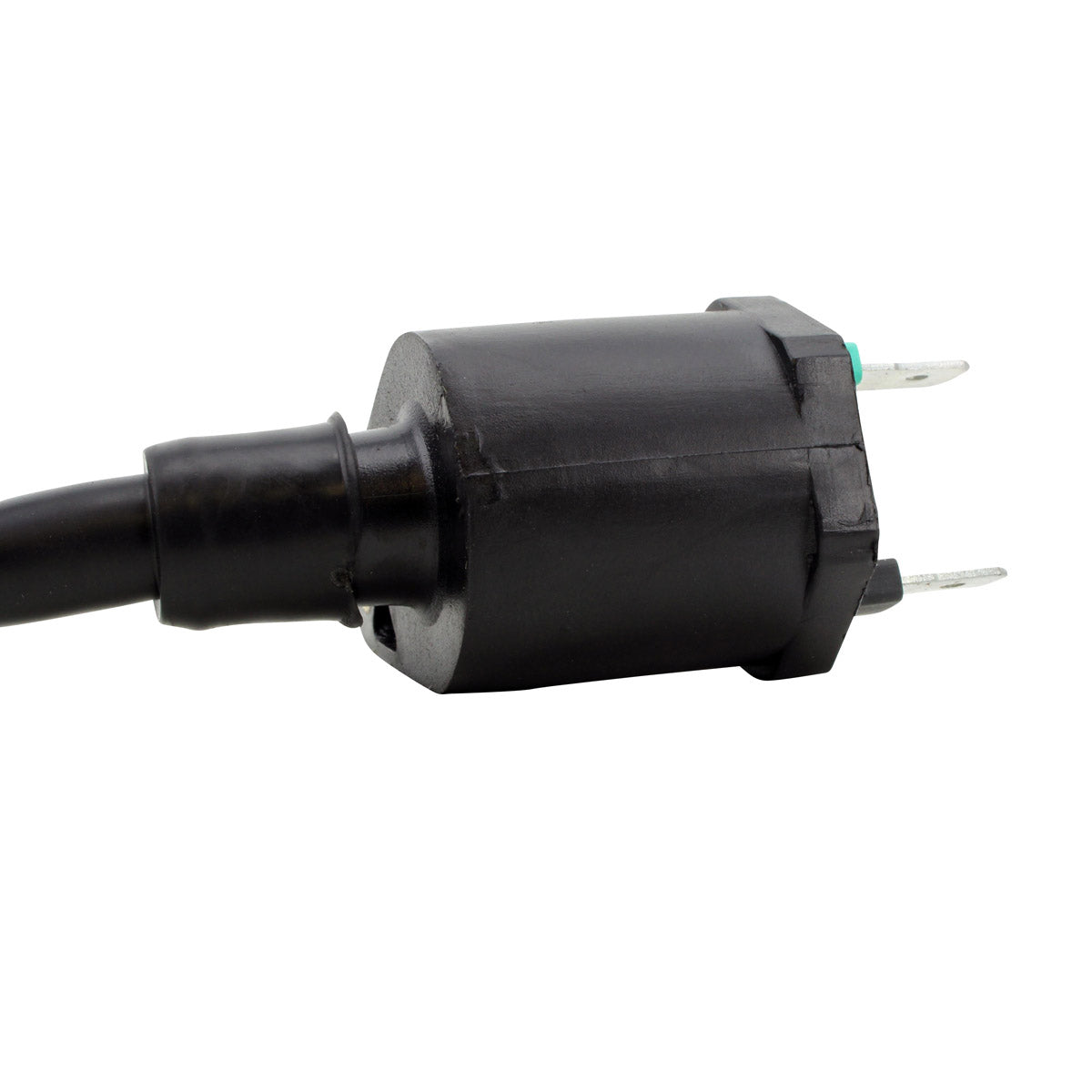

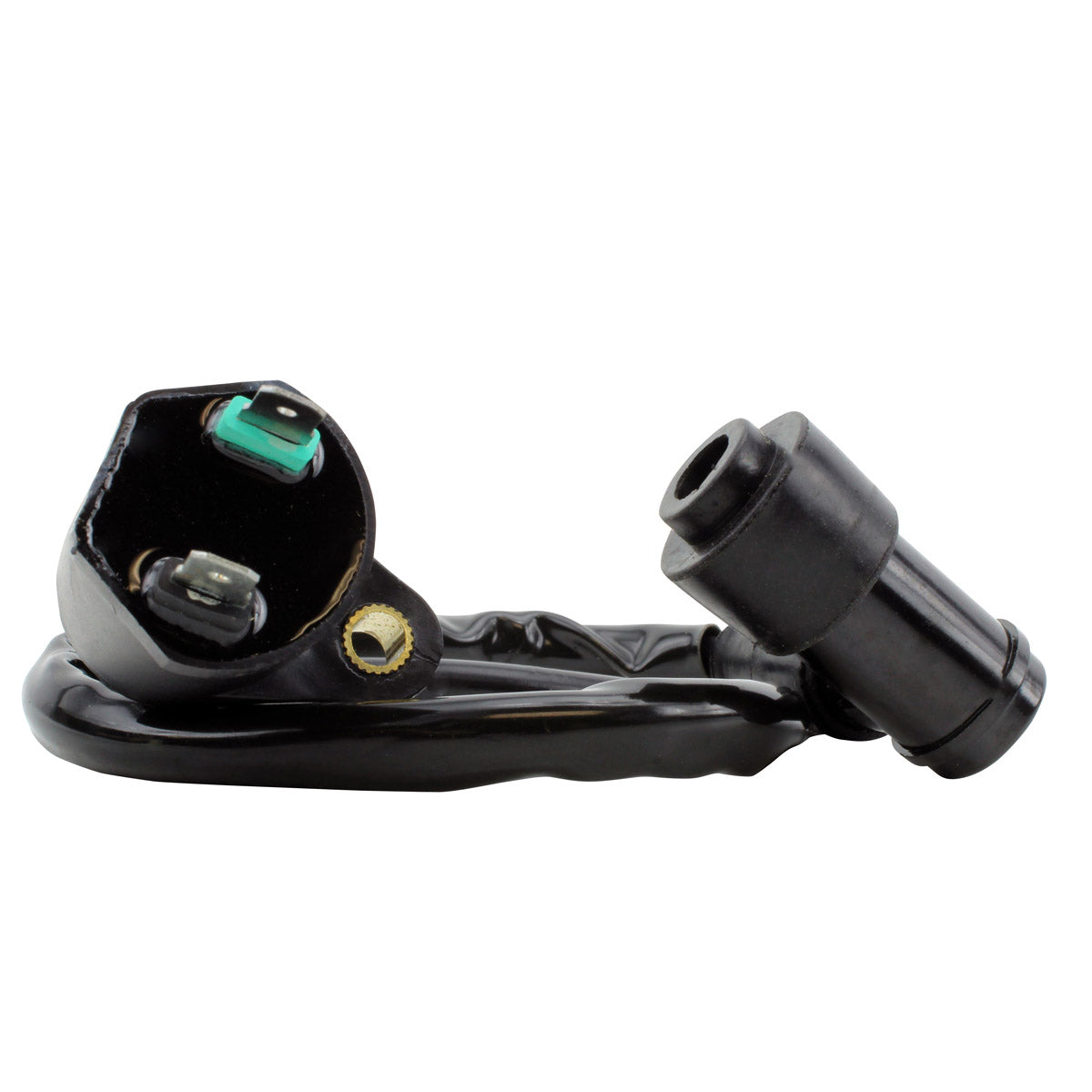

The RM06001 is a brand new external ignition coil supplied complete with its spark plug cap, built as a direct replacement for the original unit on a broad range of Honda, Kawasaki and Polaris ATVs, UTVs and motorcycles built between 1985 and 2024. The ignition coil takes the low voltage feed from the ignition system and steps it up to the tens of thousands of volts needed to jump the spark plug gap, which means a tired coil shows up long before it fails outright as a hard start, a misfire under load, or a machine that dies once everything is hot.

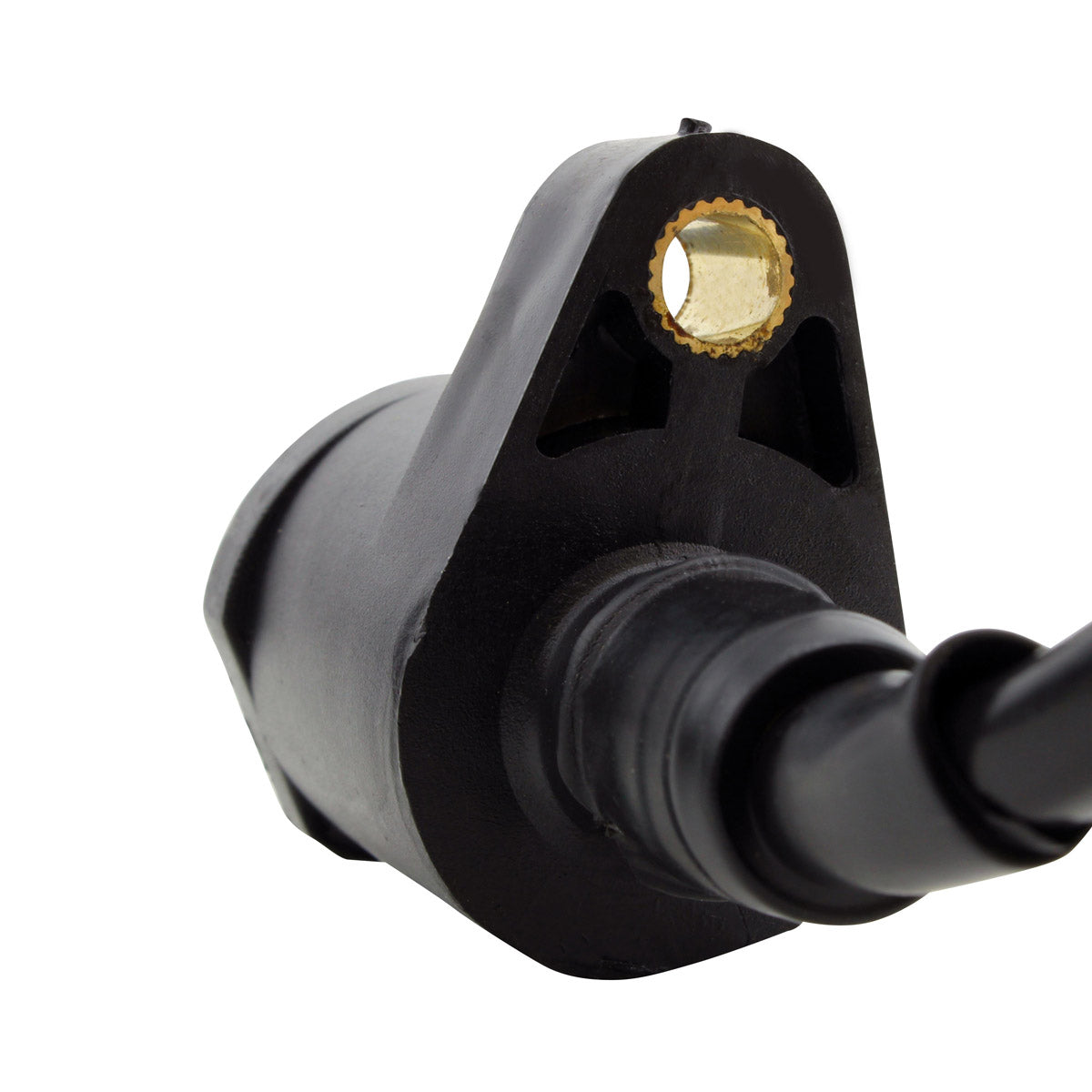

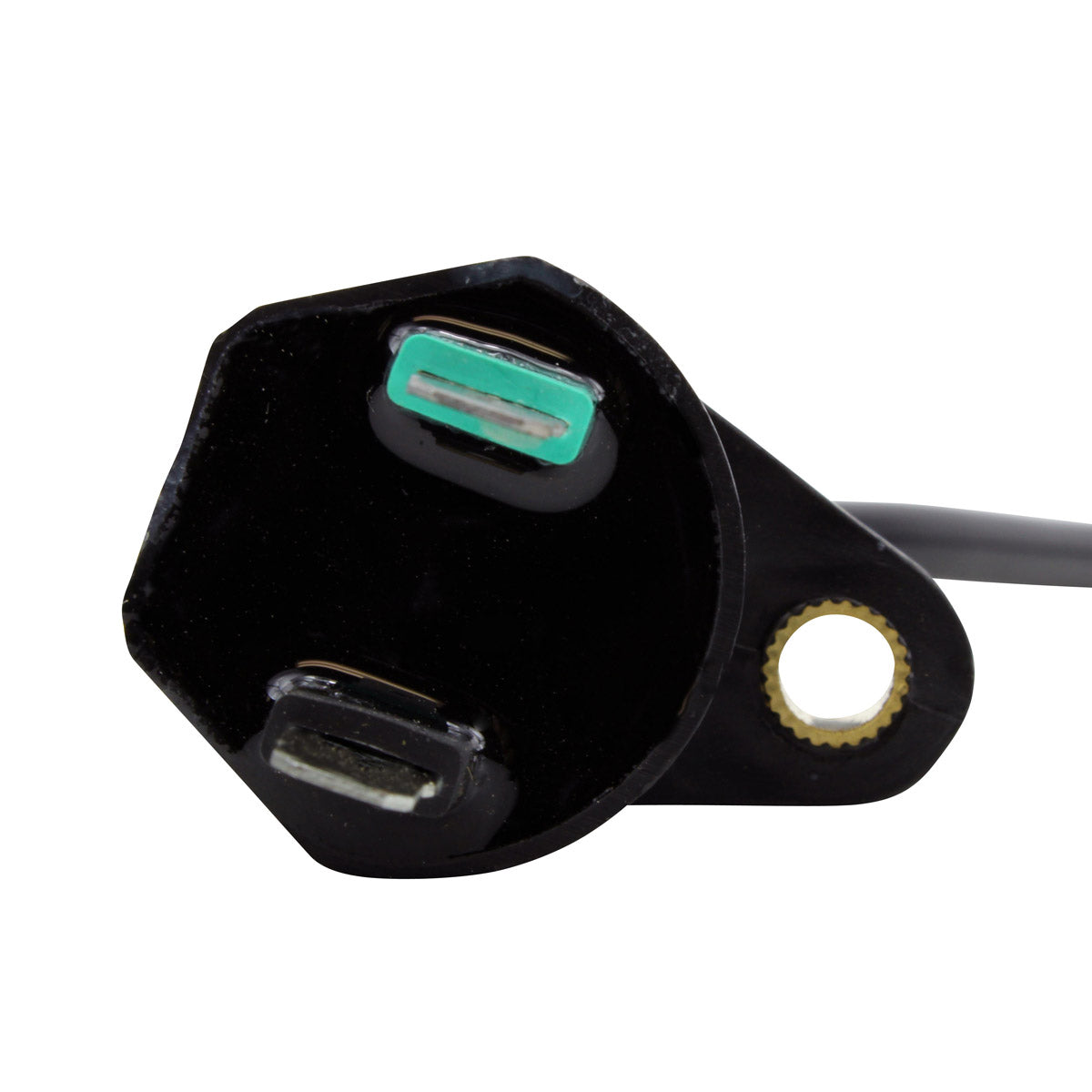

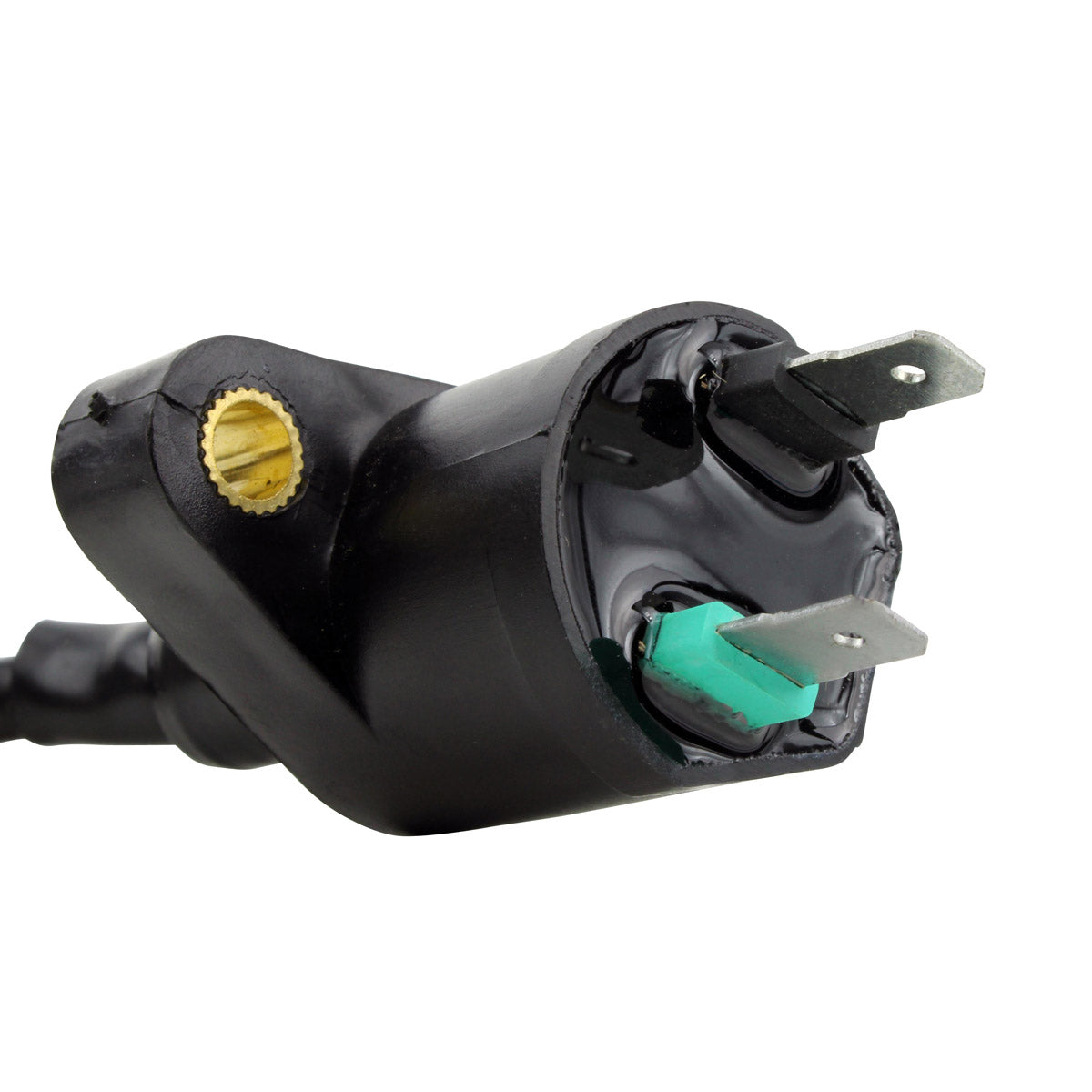

This is a plug-and-play, direct fit part. It is built on the highest grade lamination materials, measures 32 mm long by 28 mm wide by 43 mm high, and carries a 360 mm high tension lead with the spark plug cap already fitted. Mounting is via holes 6.7 mm centre to centre, matching the original bracket. Electrically it reads 0.4 ohms on the primary and 3.0K ohms on the secondary measured with the cap in place, and all products shipped are tested before they leave the factory.
Key Features
- Brand new external ignition coil
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Spark plug cap included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Width |
28 mm |
| Length |
32 mm |
| Height |
43 mm |
| Wire length |
360 mm |
| Fixation holes centre to centre |
6.7 mm |
| Primary resistance |
0.4 ohms |
| Secondary resistance with cap |
3.0K ohms |
| Part number |
RM06001 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Honda ATV, UTV and motorcycles |
1985-2024 |
| Kawasaki ATV, UTV and motorcycles |
1985-2024 |
| Polaris ATV, UTV and motorcycles |
1985-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only. This coil cross references to 62 interchange numbers in total; the principal ones are shown below.
| Part Number |
Manufacturer / Brand |
| 30510-GAG-000 |
Honda |
| 30510-HN5-670 |
Honda |
| 30510-HN6-A31 |
Honda |
| 30510-KK4-003 |
Honda |
| 30500-VM0-000 |
Honda |
| 0452309 |
Polaris |
Frequently Asked Questions
Does fitting this coil require any modification?
No. It is a plug-and-play, direct fit replacement. The mounting holes are 6.7 mm centre to centre as per the original and the 360 mm high tension lead reaches the plug on the applications this coil is listed for, so no new brackets and no rewiring are needed.
Is the spark plug cap included?

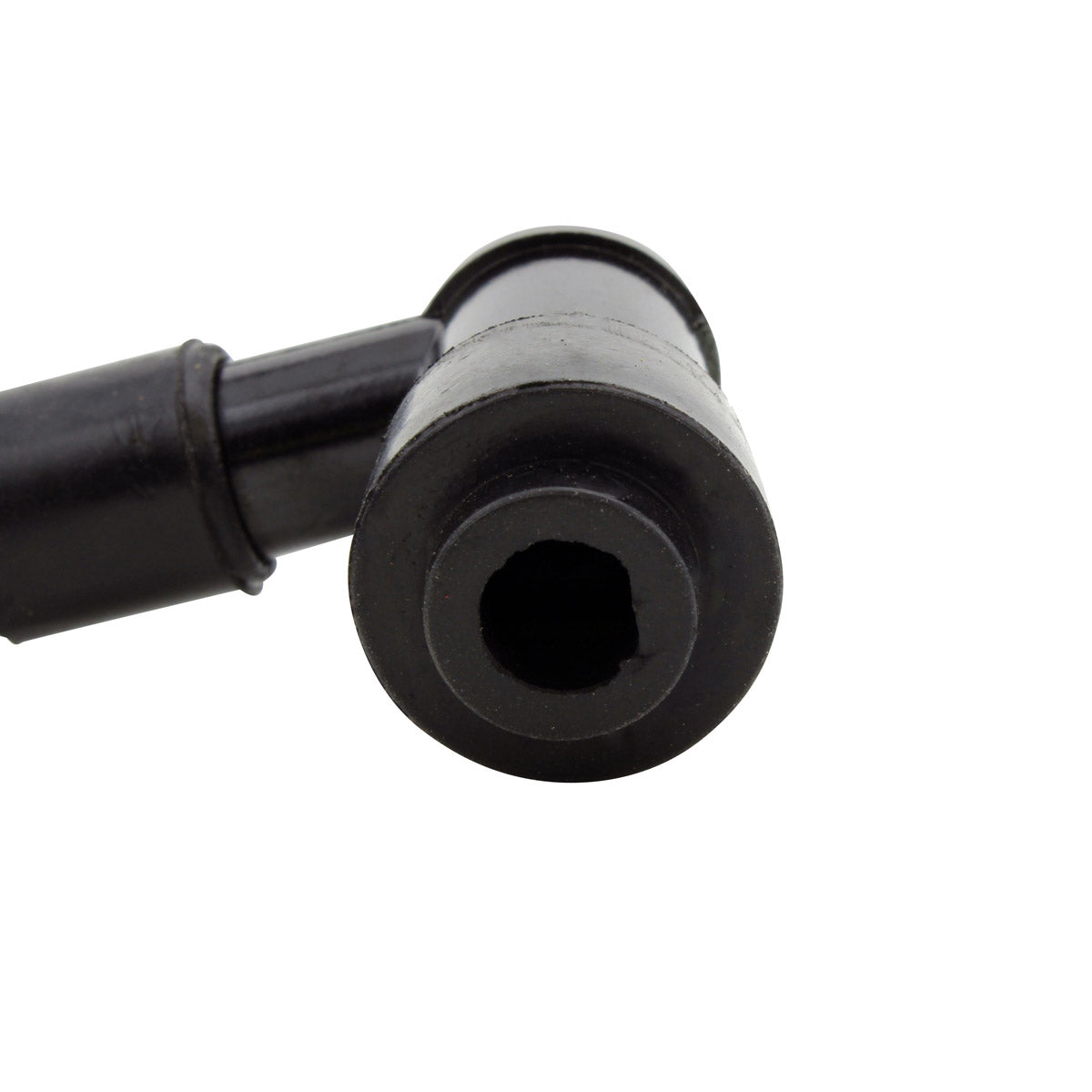

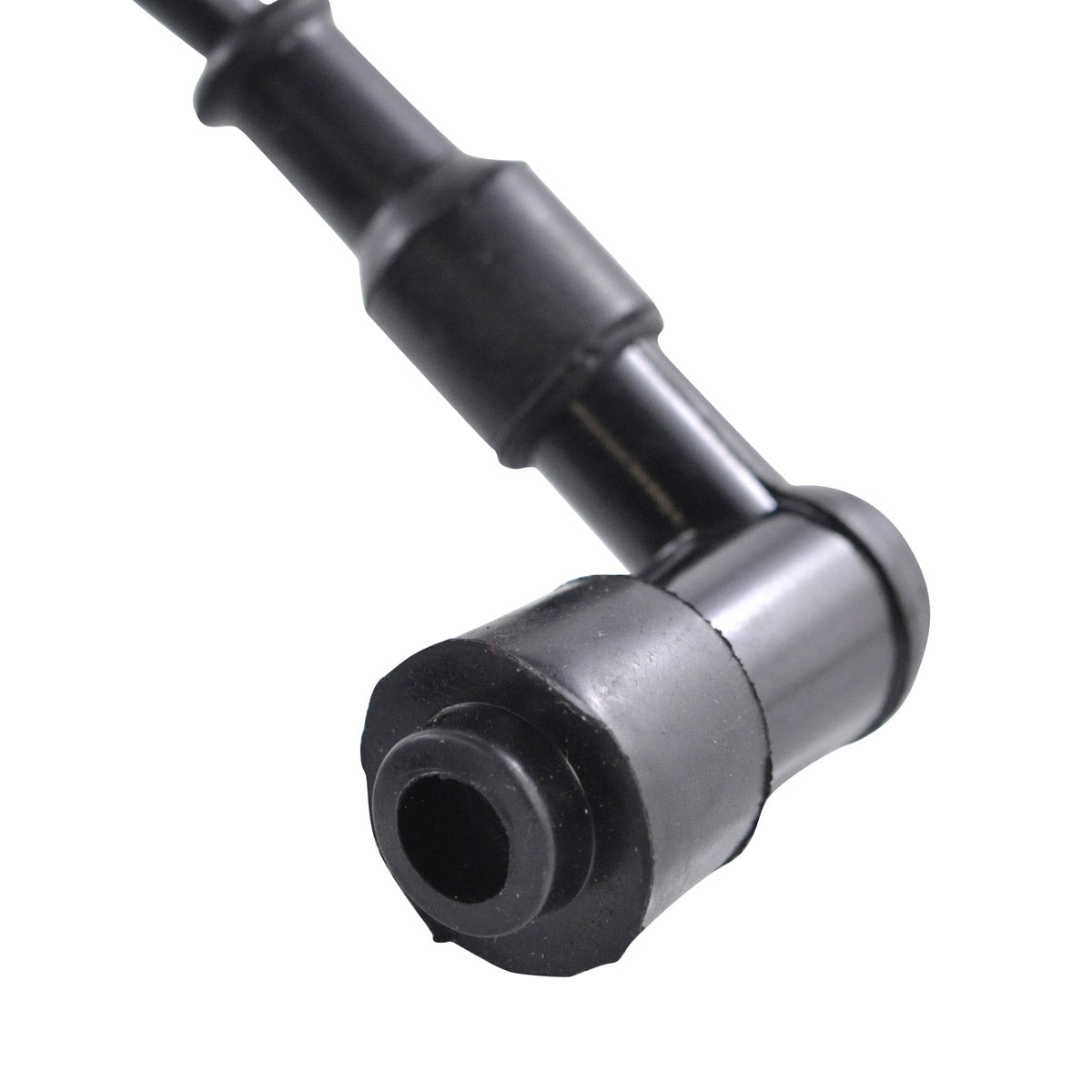

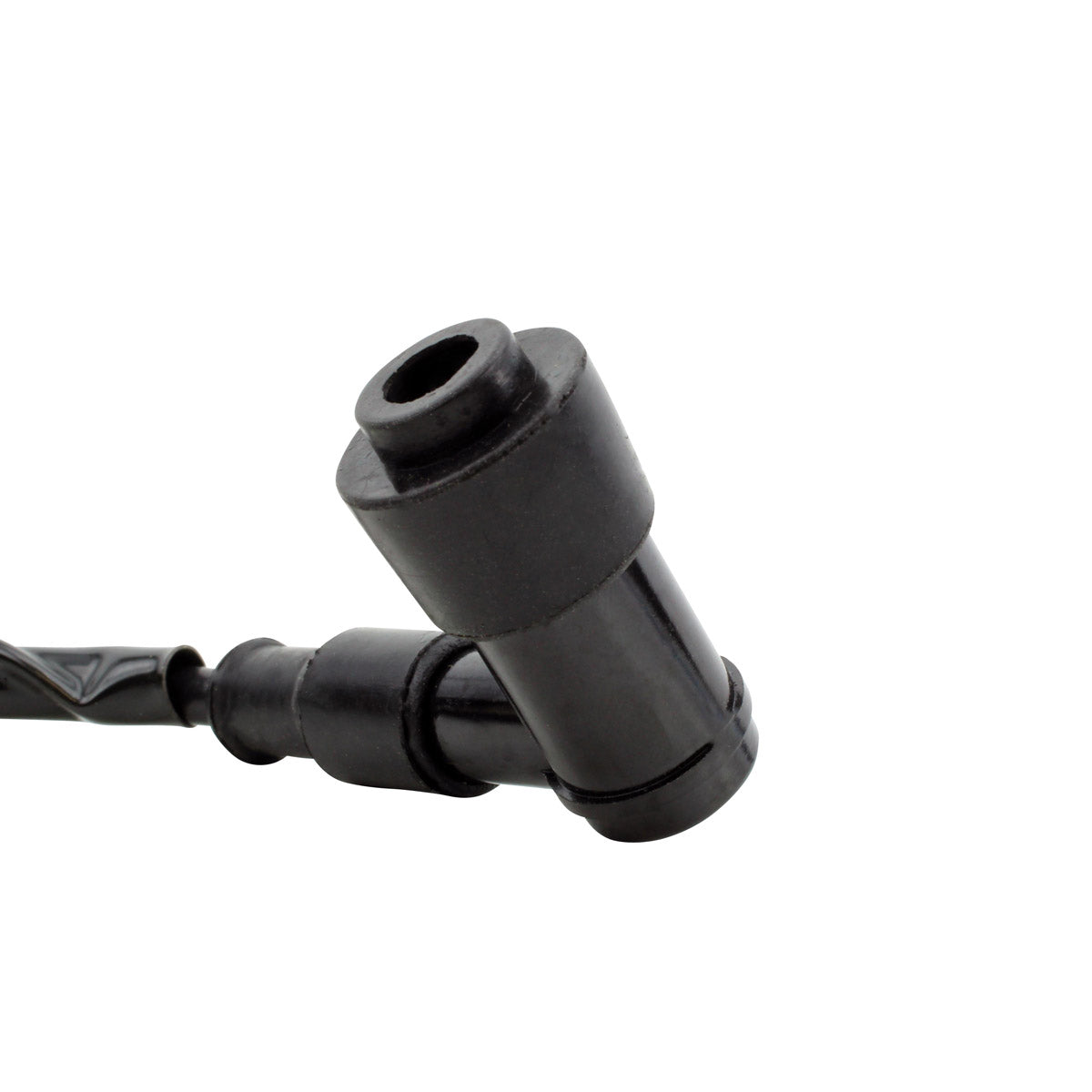

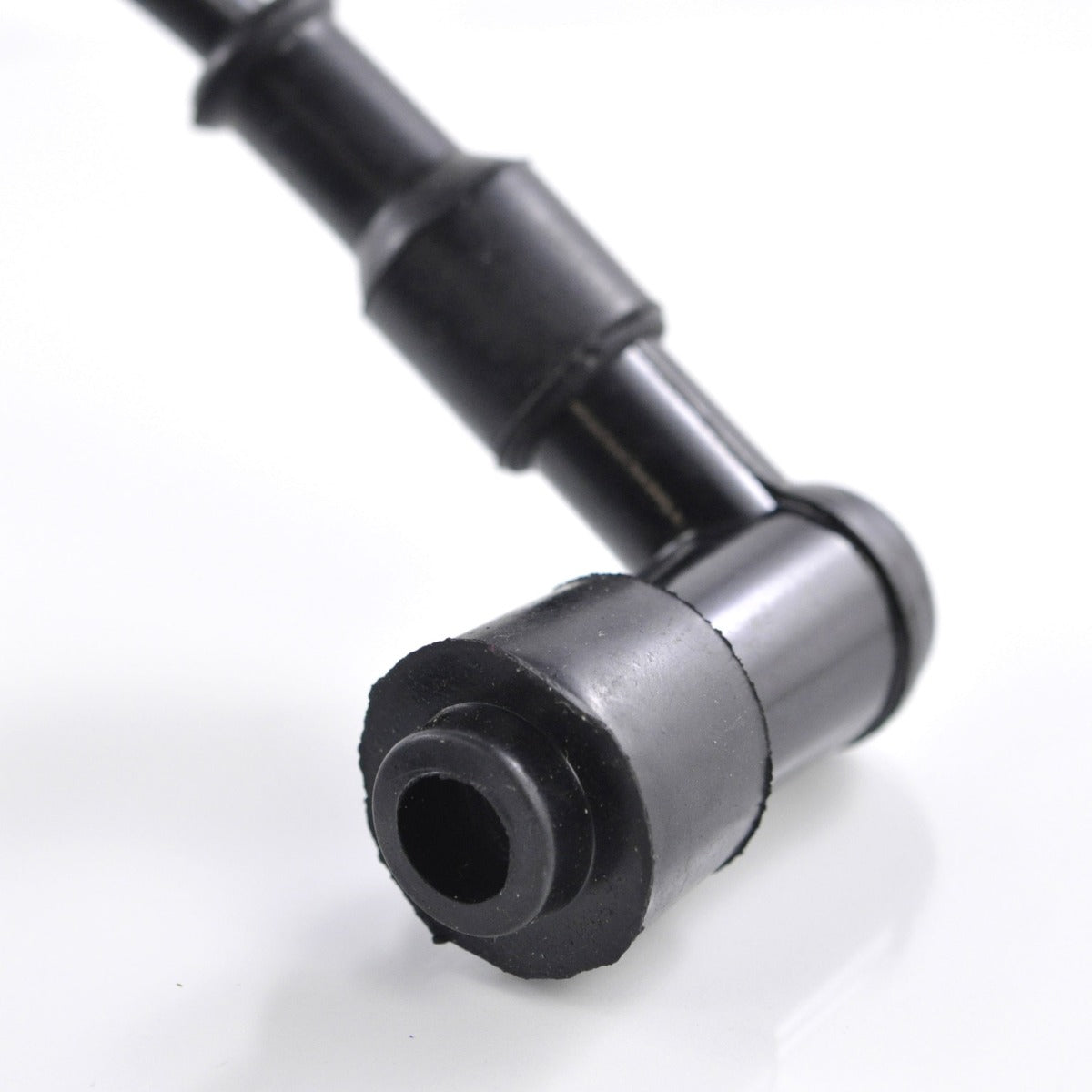

Yes. The coil is supplied with its spark plug cap already fitted to the high tension lead, so there is nothing to salvage from the old unit.
How do I tell whether my old ignition coil has failed?
Typical signs are hard starting, a misfire that worsens under load or at higher revs, and an engine that cuts out once it is fully warm and restarts after it cools. A multimeter settles it: this coil reads 0.4 ohms across the primary and 3.0K ohms on the secondary with the cap fitted. A reading that is open circuit or far outside those values indicates the coil has failed internally.
This one part number covers many machines - how do I confirm it suits mine?
Read the number moulded or stamped on your existing coil and check it against the cross reference table above. That is the most reliable way to confirm the match, since a single coil design was shared across many Honda, Kawasaki and Polaris models over four decades.
