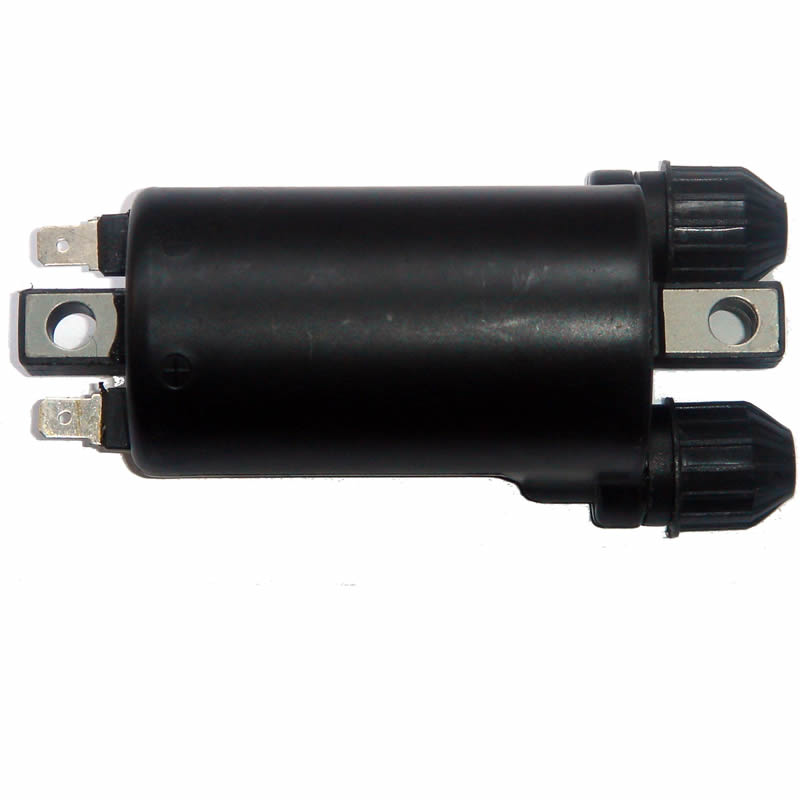

External Ignition Coil for Honda Motorcycles
Honda CB, CBR, Gold Wing, Shadow, VTX & more, 1965-2014
This external ignition coil is a direct replacement for the original unit fitted across a very wide range of Honda motorcycles, from classic CB models through to Gold Wing, Shadow, VTX and CBR machines, built to OEM specifications for correct fit, function and spark output.
Electrically it matches the original coil, with a primary resistance of 2.42 ohm (+/-12%) and a secondary resistance of 11.5-12 k-ohm, so ignition performance is unaffected. The original spark plug cap(s) simply transfer across to the new coil.
Key Features
- Direct OEM fit across the listed Honda model range
- Matches original primary and secondary resistance values
- Spark plug cap(s) transfer from your original coil
- Yellow wire can be removed if not used on your model
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Primary Resistance | 2.42 ohm +/- 12% |
| Secondary Resistance | 11.5-12 k-ohm |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda ATC / CA / CR Series | 1966-1981 |
| Honda CB Series | 1965-2014 |
| Honda CBF 1000 | 2006-2010 |
| Honda CBR Series | 1987-2014 |
| Honda GL Gold Wing / Valkyrie | 1980-2002 |
| Honda NT 650 Hawk GT | 1988-1991 |
| Honda PC 800 Pacific Coast | 1989-1998 |
| Honda ST Series | 1991-2015 |
| Honda VF Series (Magna) | 1987-2003 |
| Honda VT Shadow Series | 1987-2014 |
| Honda VTX Series | 2002-2009 |
| Honda NC 50 | 1981-1983 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 30400-306-672 | Honda |
| 30400-306-673 | Honda |
| 30500-169-000 | Honda |
| 30500-169-010 | Honda |
| 30500-183-013 | Honda |
| 30500-202-003 | Honda |
| 30500-202-004 | Honda |
| 30500-202-014 | Honda |
| 30500-230-000 | Honda |
| 30500-283-000 | Honda |
| 30500-292-670 | Honda |
| 30500-292-671 | Honda |
| 30500-292-672 | Honda |
| 30500-422-003 | Honda |
| 30500-422-013 | Honda |
| 30500-961-000 | Honda |
| 30500-964-000 | Honda |
| 30500-GA6-670 | Honda |
| 30500-GA7-020 | Honda |
| 30500-GA7-405 | Honda |
| 30500KPP862 | Honda |
| 30501-300-003 | Honda |
| 30501-300-013 | Honda |
| 30501-323-003 | Honda |
| 30502-323-003 | Honda |
| 30504-300-004 | Honda |
| 30510-333-013 | Honda |
| 30510-KT7-003 | Honda |
| 30510-KT7-013 | Honda |
| 30510-KT7-023 | Honda |
| 30510-KYJ-901 | Honda |
| 30510MCC003 | Honda |
| 30510-MCC-003 | Honda |
| 30510-MM5-003 | Honda |
| 30510-MM8-003 | Honda |
| 30510-MW0-003 | Honda |
| 30511-MGC-D31 | Honda |
| 30520-333-013 | Honda |
| 30530-413-003 | Honda |
| 31103-300-035 | Honda |
| 31103-300-045 | Honda |
Frequently Asked Questions
Will this fit without modification?
Yes, this coil is a direct bolt-in replacement using the factory mounting points and spark plug cap connections for the listed models - no cutting or splicing required.
What's included?
One external ignition coil, ready to fit in place of the original unit. Transfer the spark plug cap(s) from your original coil onto the new one.
How can I tell my old coil has failed?
Common symptoms include a weak or no spark, hard or intermittent starting, misfiring under load, or the engine cutting out unexpectedly.
My exact model is not shown - how do I confirm fitment?
Check your original coil OEM number and your model/year against the cross reference table above before ordering to ensure compatibility.
