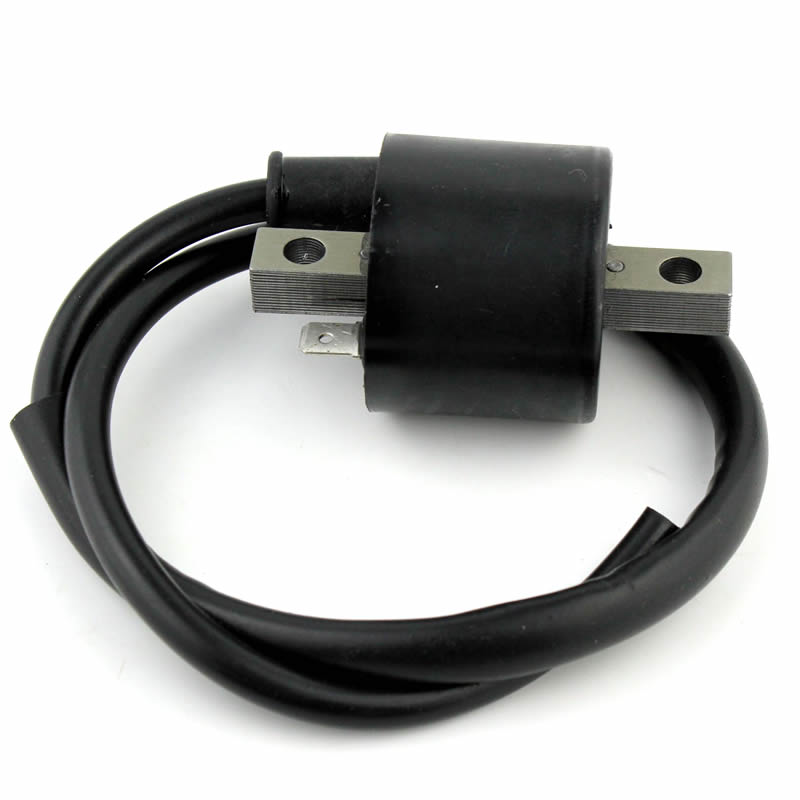

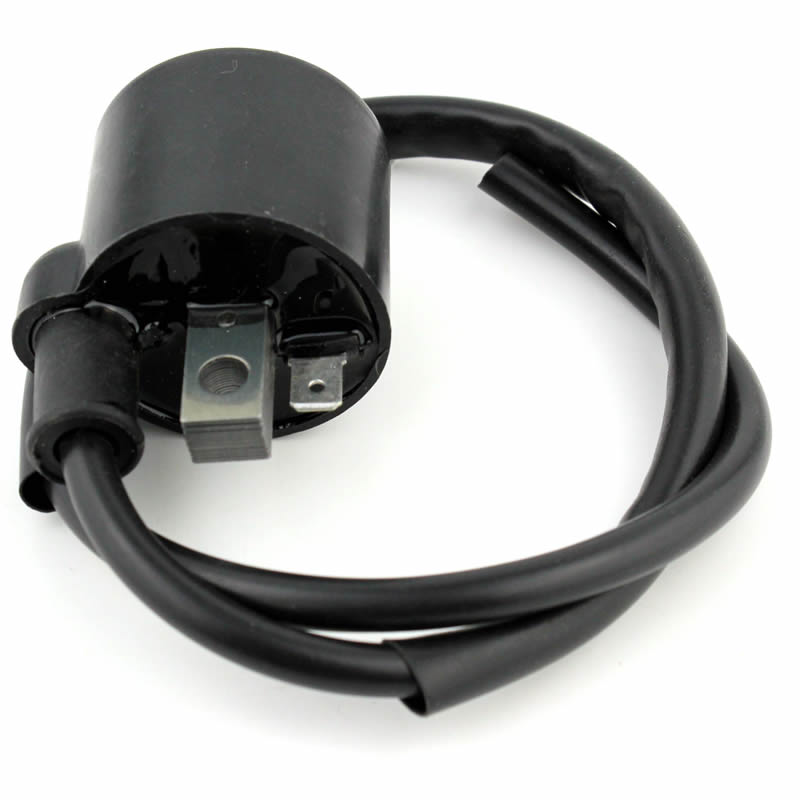

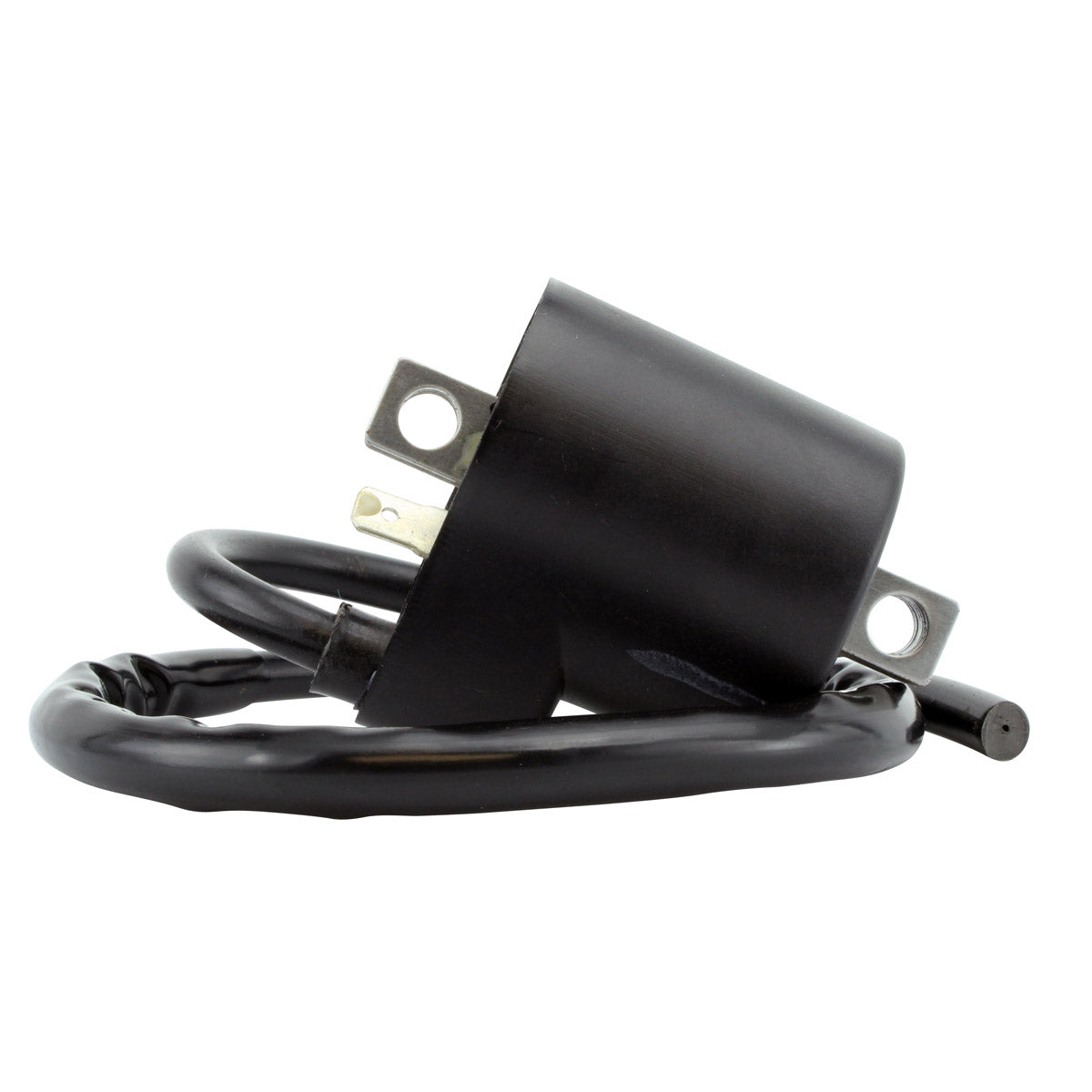

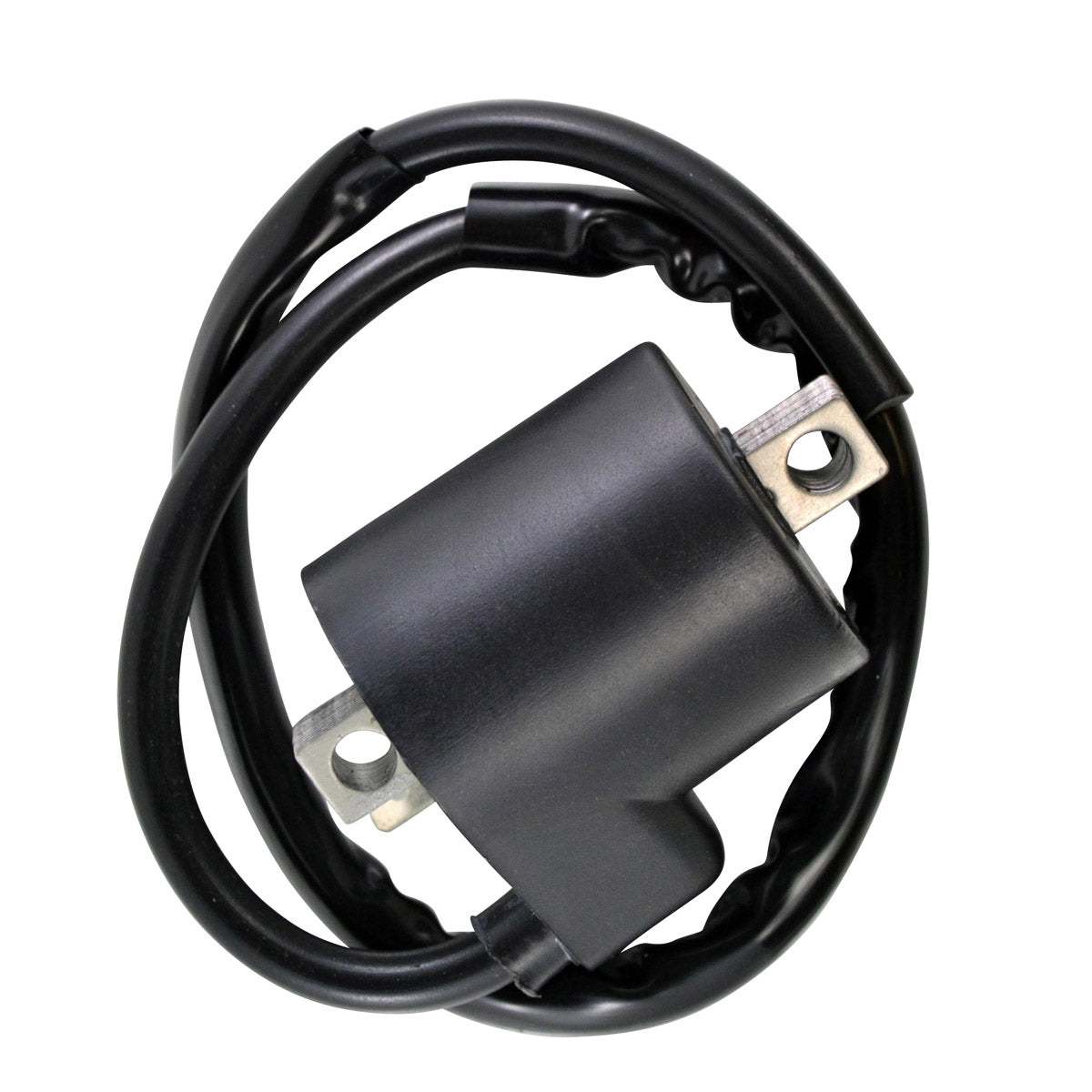

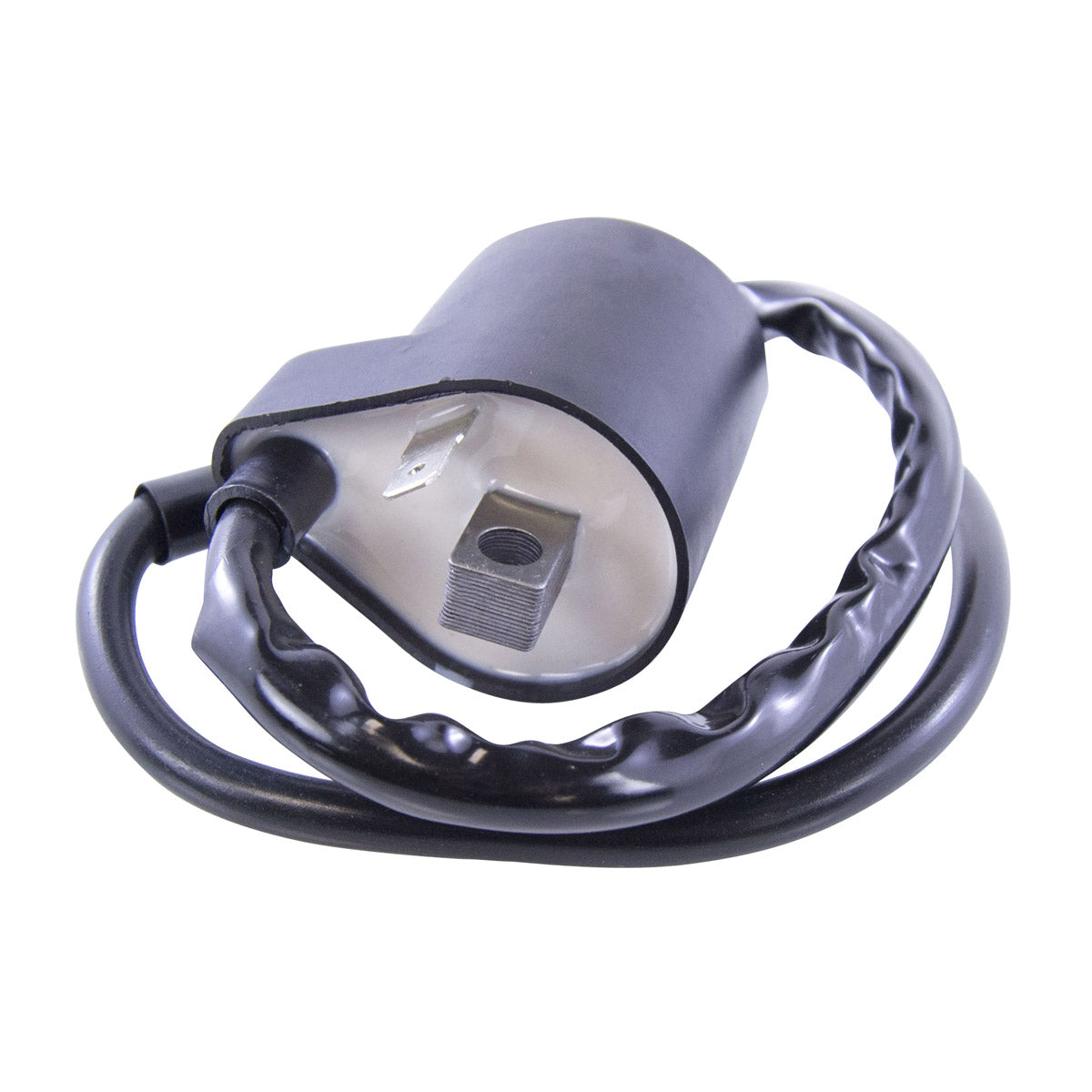

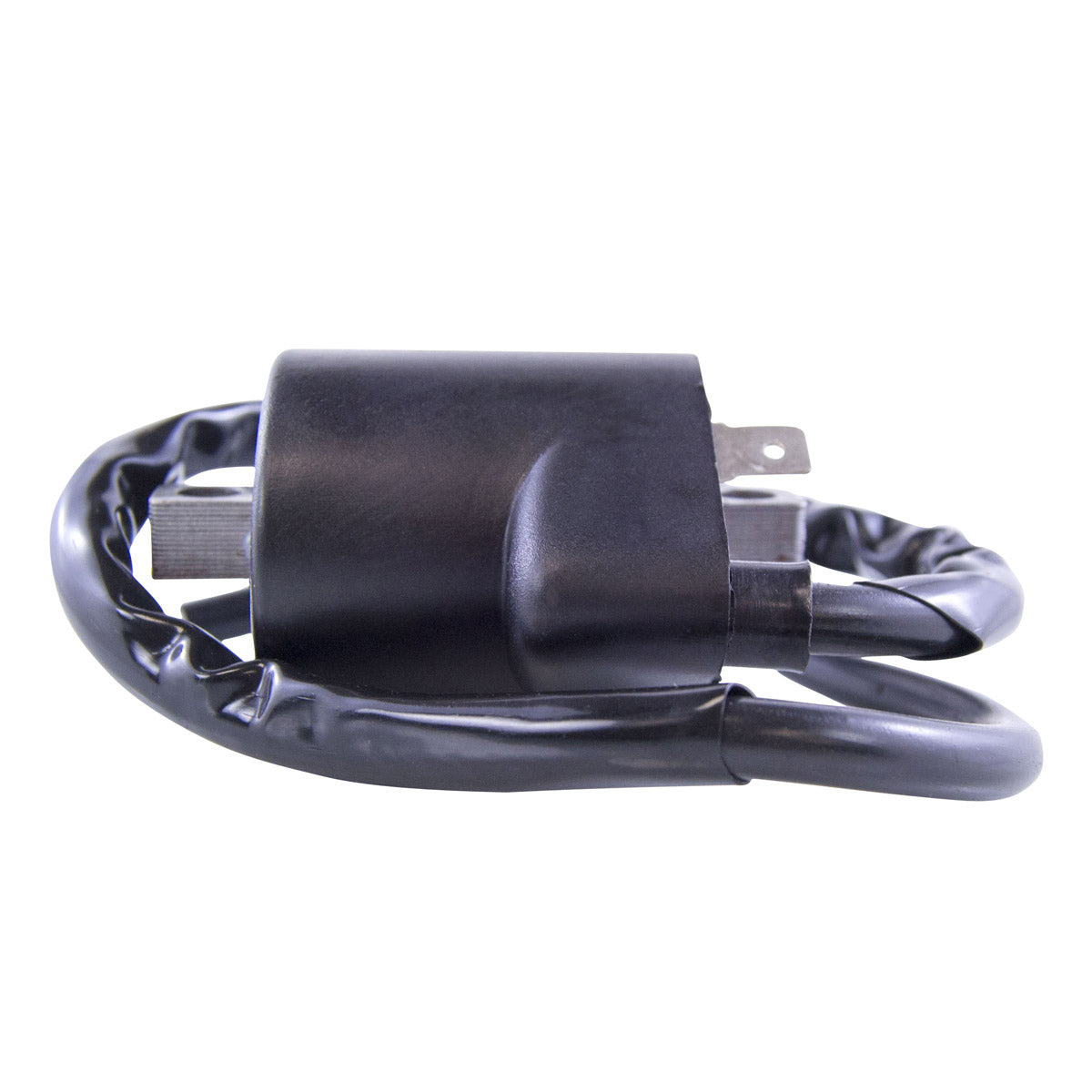

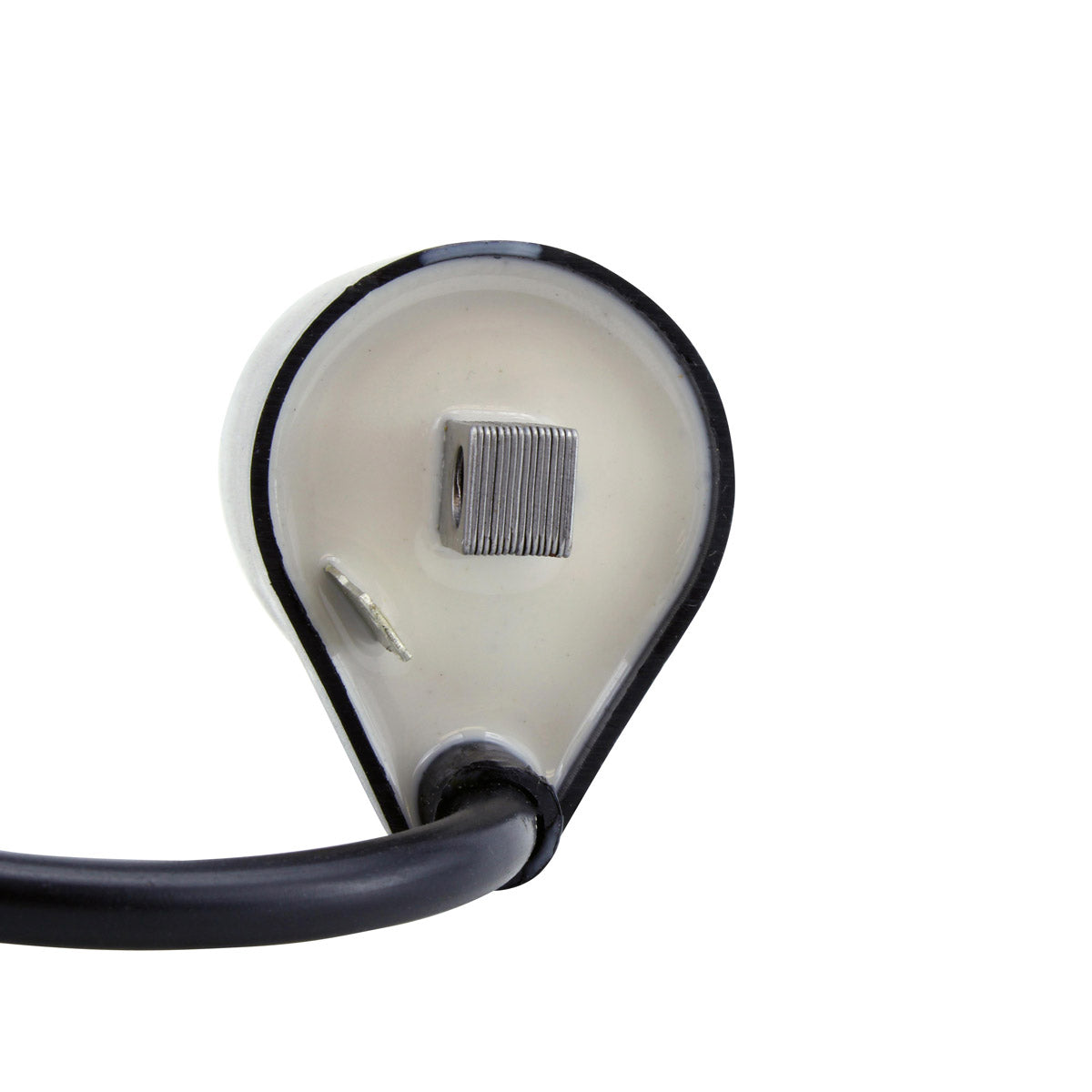

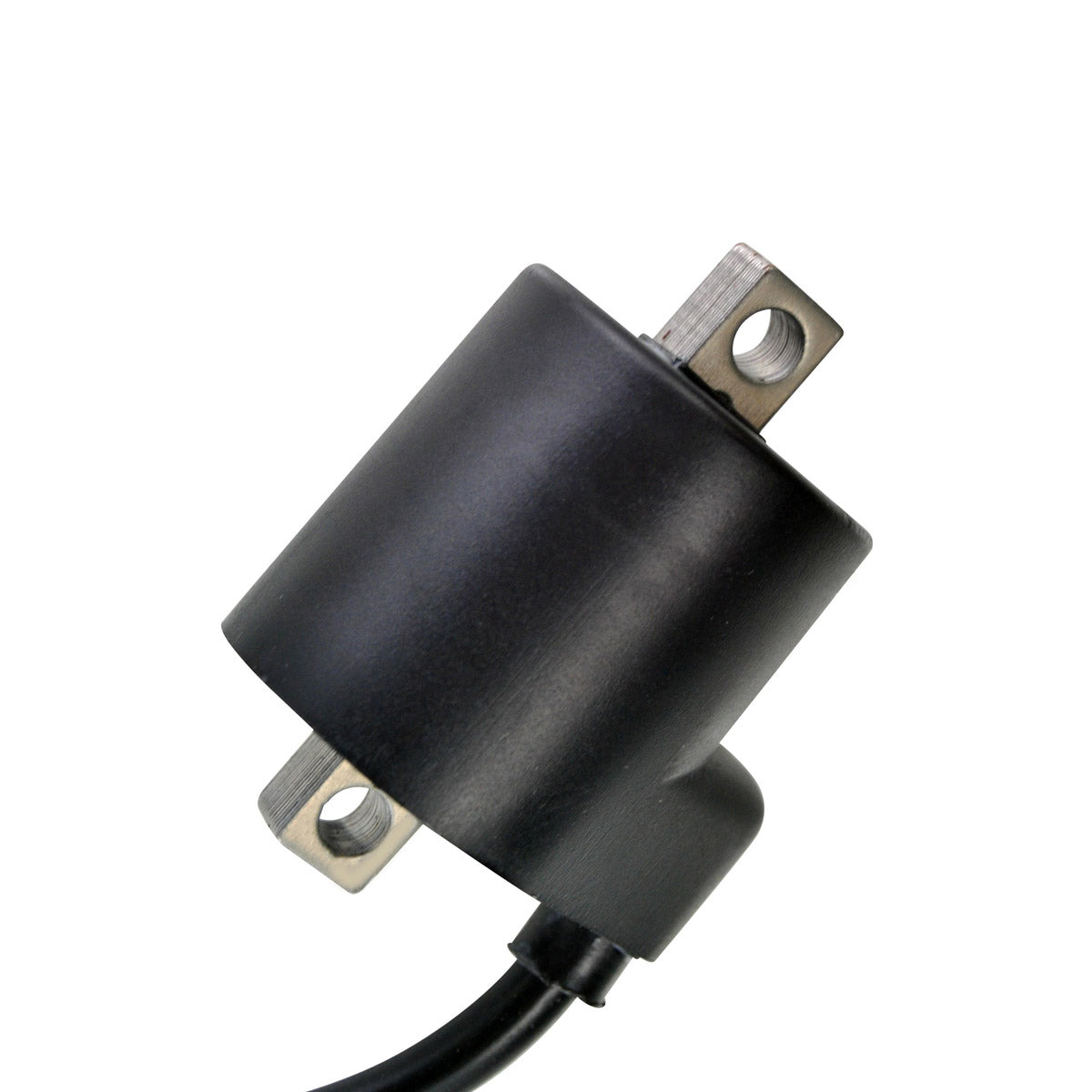

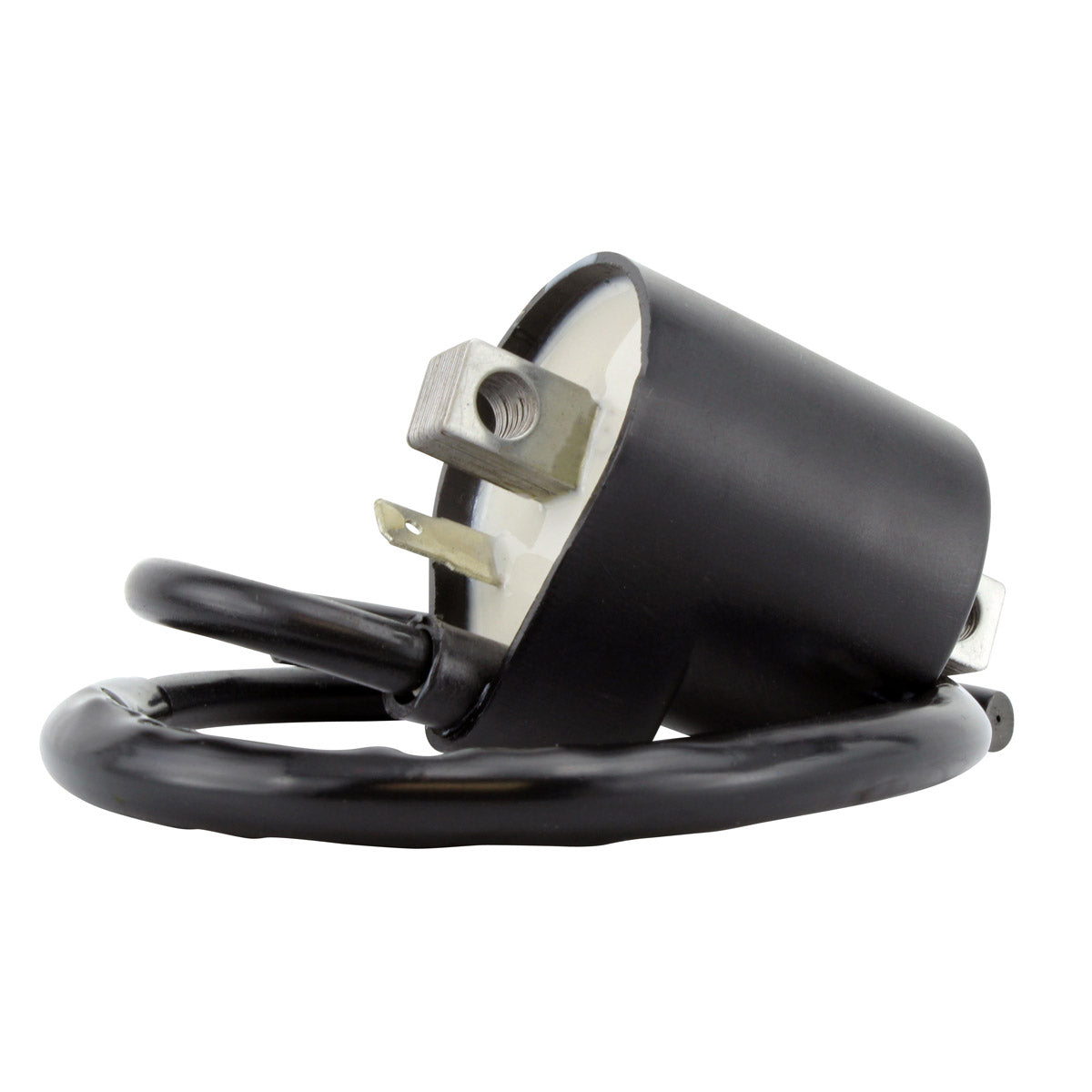

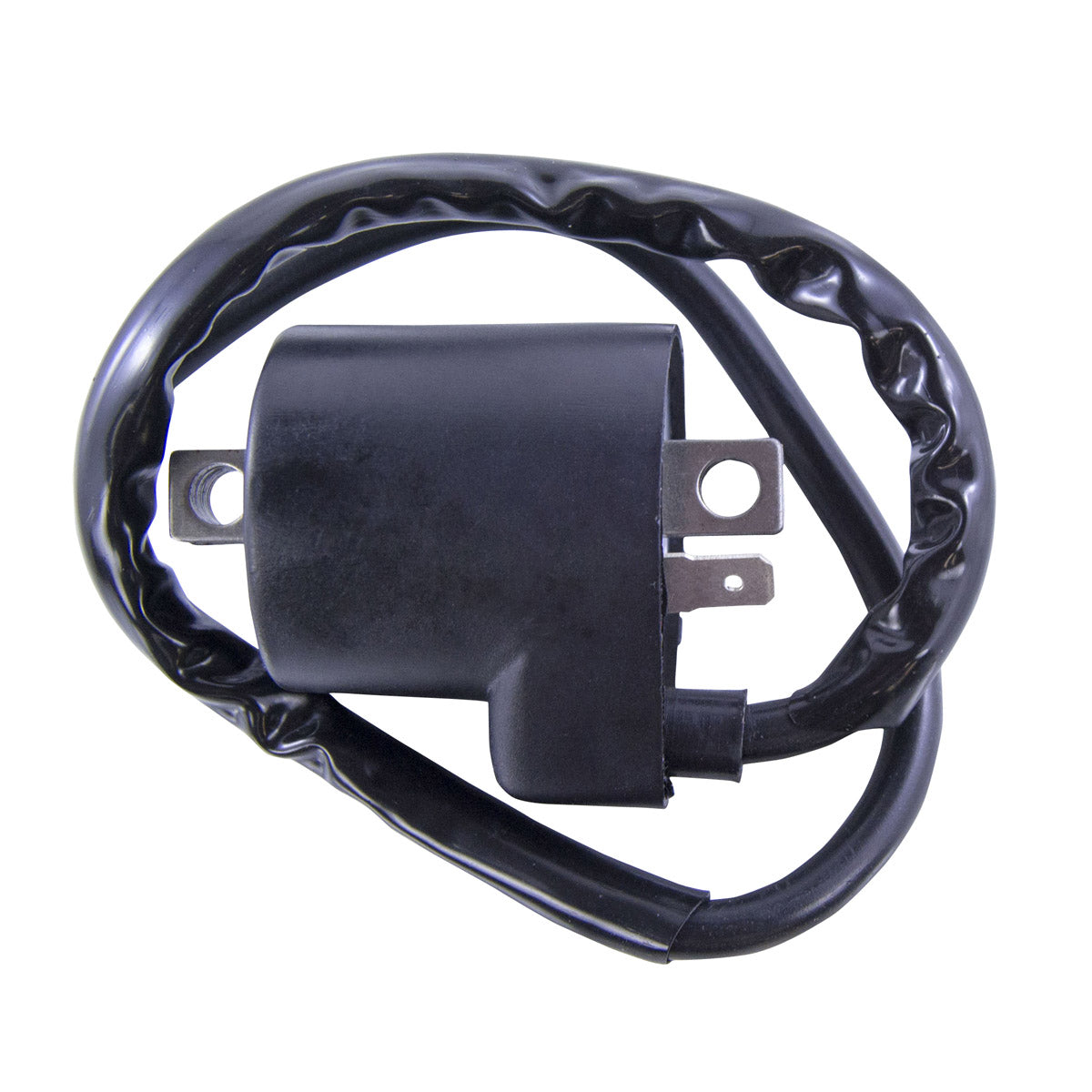

External Ignition Coil for Honda, Kawasaki, Polaris, Suzuki and Yamaha
Honda ATC 200, Kawasaki KLR 250, Polaris 350, Suzuki DR 800, Yamaha YP400 - 1976-2015 - OEM replacement 3088053 - Part number RM06035
This is a brand new external ignition coil covering a wide spread of Honda, Kawasaki, Polaris, Suzuki and Yamaha machines built between 1976 and 2015, supplied as a direct replacement for the original unit. The ignition coil is the step-up transformer of the ignition system: it takes the low voltage pulse it receives and converts it into the high tension charge required to jump the spark plug gap. Sitting as it does in a hot, vibrating and often wet position on the machine, it degrades gradually rather than failing outright, and a tired coil usually shows itself as a weakening spark long before it stops working completely.
The coil is manufactured using the highest grade of lamination materials, which determines how efficiently the magnetic field passes through the core and therefore how strong and consistent the spark stays under load. Quality exceeds the original equipment standard, and all units are tested before dispatch. Installation is simple: reinstall your OEM spark plug cap onto the new coil and it becomes a plug-and-play, direct fit part, mounting on the standard 54 mm fixation hole centres with no cutting, splicing or bracket modification required.
Key Features
- Brand new external ignition coil - direct replacement for the original unit
- Built with the highest grade of lamination materials
- Quality exceeds original equipment specification
- Plug-and-play, direct fit once the OEM spark plug cap is reinstalled

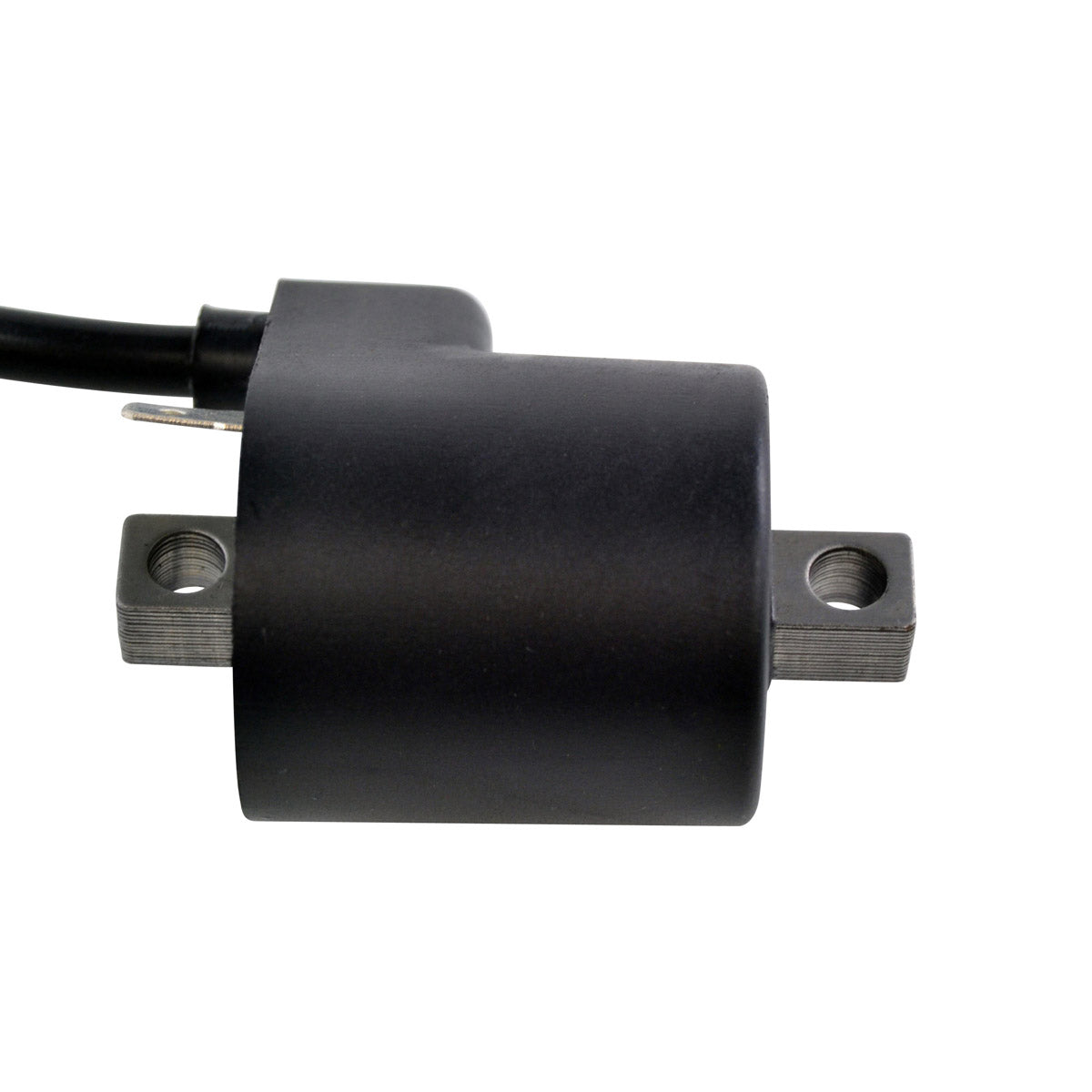

- 54 mm fixation hole centres matching the original mounting
- Replaces close to forty original part numbers across five manufacturers
- All units tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM06035 |
| Type | External ignition coil |
| Distance between fixation holes | 54 mm |
| Spark plug cap | Reuse the original OEM cap |
| Lead OEM reference | 3088053 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda ATC 200 | 1976-2015 |
| Kawasaki KLR 250 | 1976-2015 |
| Polaris 350 | 1976-2015 |
| Suzuki DR 800 | 1976-2015 |
| Yamaha YP400 | 1976-2015 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 30500-167-003 | Honda |
| 30500-167-013 | Honda |
| 30500-187-000 | Honda |
| 30500-187-010 | Honda |
| 30500-196-600 | Honda |
| 30500-950-023 | Honda |
| 30500-958-000 | Honda |
| 30500-GC1-000 | Honda |
| 30500-GC8-000 | Honda |
| 30500-HP0-A00 | Honda |
| 30500-KA2-000 | Honda |
| 30500-KB7-003 | Honda |
| 30500-KB9-000 | Honda |
| 30500-KGA-E01 | Honda |
| 30500-KPH-900 | Honda |
| 30500-KPH-981 | Honda |
| 30500-KRE-900 | Honda |
| 30500-KRH-E21 | Honda |
| 30500-KRP-981 | Honda |
| 30500-KZ4-J20 | Honda |
| 30500-MA0-000 | Honda |
| 30500-VM3-000 | Honda |
| 30500-VM3-405 | Honda |
| 21121-1071 | Kawasaki |
| 21121-1072 | Kawasaki |
| 21121-1118 | Kawasaki |
| 21121-1251 | Kawasaki |
| 3083642 | Polaris |
| 3083923 | Polaris |
| 3088053 | Polaris |
| 3089266 | Polaris |
| 3089783 | Polaris |
| 4012392 | Polaris |
| 33410-13A01 | Suzuki |
| 33410-44B00 | Suzuki |
| 583-82310-50-00 | Yamaha |
| 5RU-82310-00-00 | Yamaha |
| 5RU-82310-03-00 | Yamaha |
| 5Y1-82310-51-00 | Yamaha |
Frequently Asked Questions
Will this fit without modification?
Yes, once your OEM spark plug cap has been reinstalled on the new coil. From that point it is a plug-and-play, direct fit replacement using the original 54 mm mounting hole centres, with no cutting or splicing of the harness. Because this coil covers five different manufacturers, always check the number on your original unit against the cross reference table before ordering.
What is included?

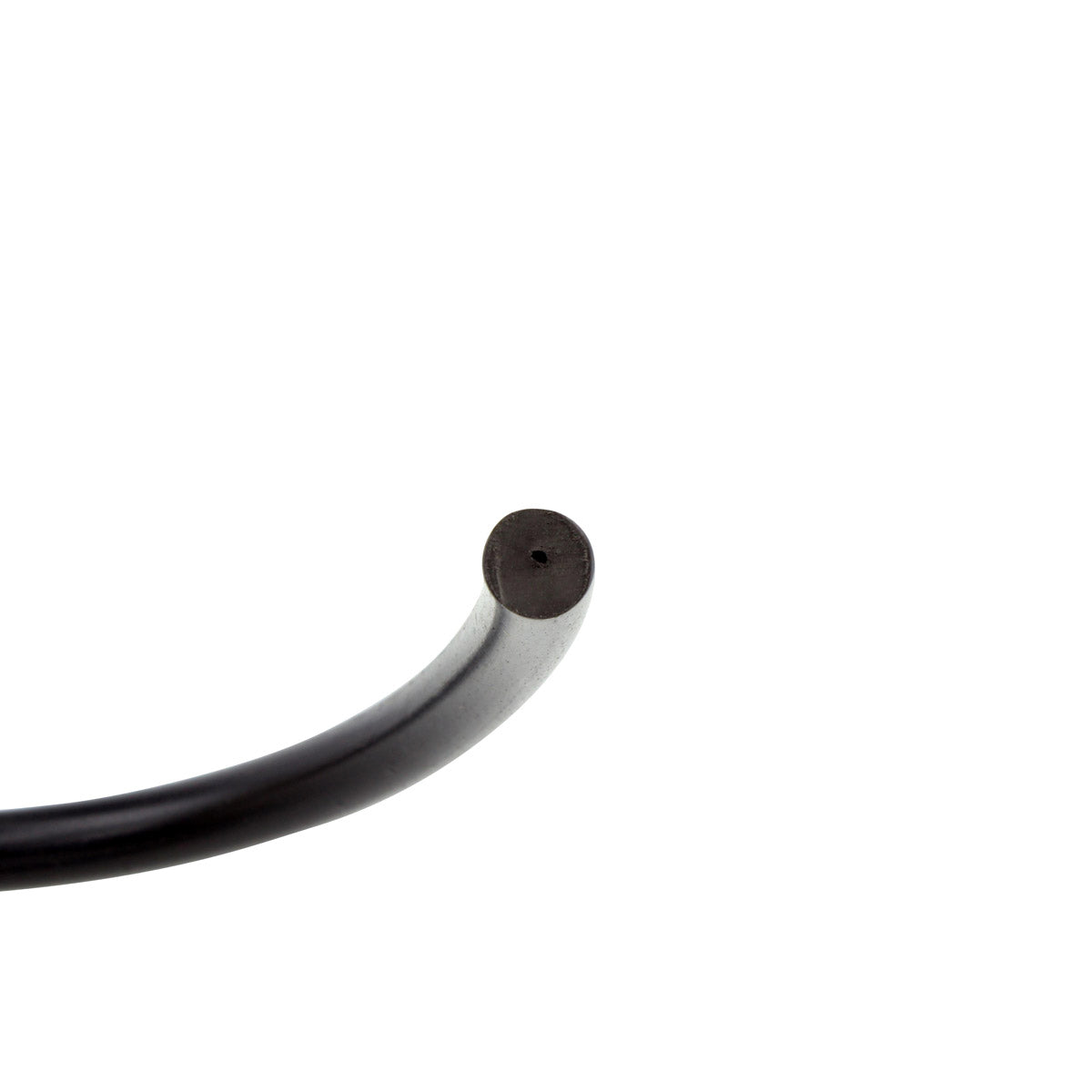

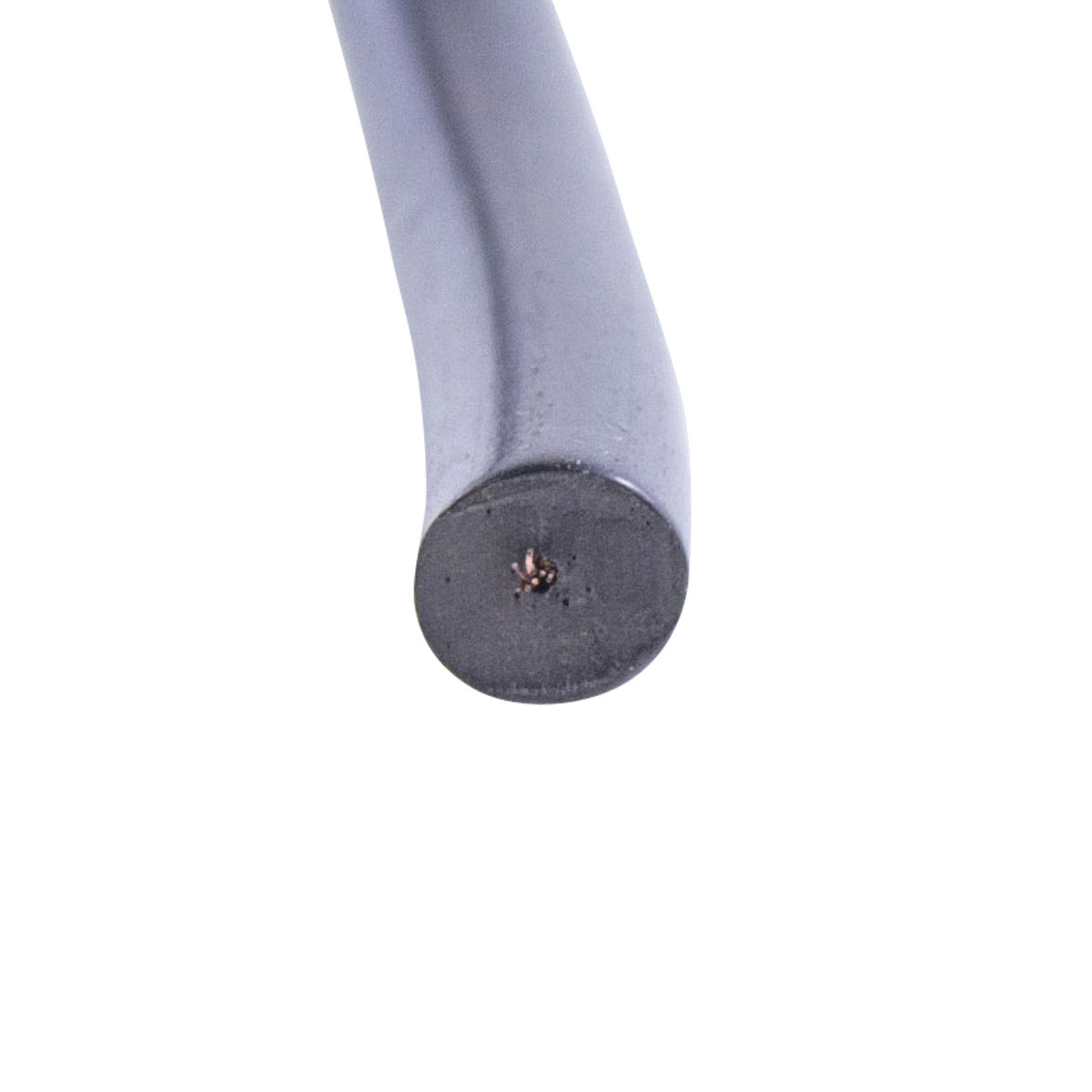

The external ignition coil. A spark plug cap is not supplied - the design assumes you will carry over the OEM cap from your original coil, which is what allows one part to serve so many different machines. Unscrew the cap from the old lead and thread it onto the new one before fitting.
How do I know the old coil has failed?
Coils normally fail progressively. Watch for hard starting, a spark that is weak or intermittent, a misfire that appears or worsens once the engine is hot, hesitation under load, or an engine that cuts out when warm and restarts after cooling. Visible cracking, tracking marks or corrosion on the coil body or the lead are further signs that the insulation has broken down.
My machine is not one of the five listed in the title. Will it still fit?
The models in the title are examples of the range this coil covers, not the complete list - the cross reference table above holds close to forty original part numbers across Honda, Kawasaki, Polaris, Suzuki and Yamaha. If the number on your original coil appears in that table, this is the correct replacement. If it does not, contact our technical team before ordering.
