External Ignition Coil for Honda VTR 1000 F Super Hawk & RVT 1000 RC 51 1998-2006
External Ignition Coil for Honda VTR 1000 F Super Hawk & RVT 1000 RC 51 1998-2006
SKU:RM06174
Free shipping over £150. Terms apply
Couldn't load pickup availability

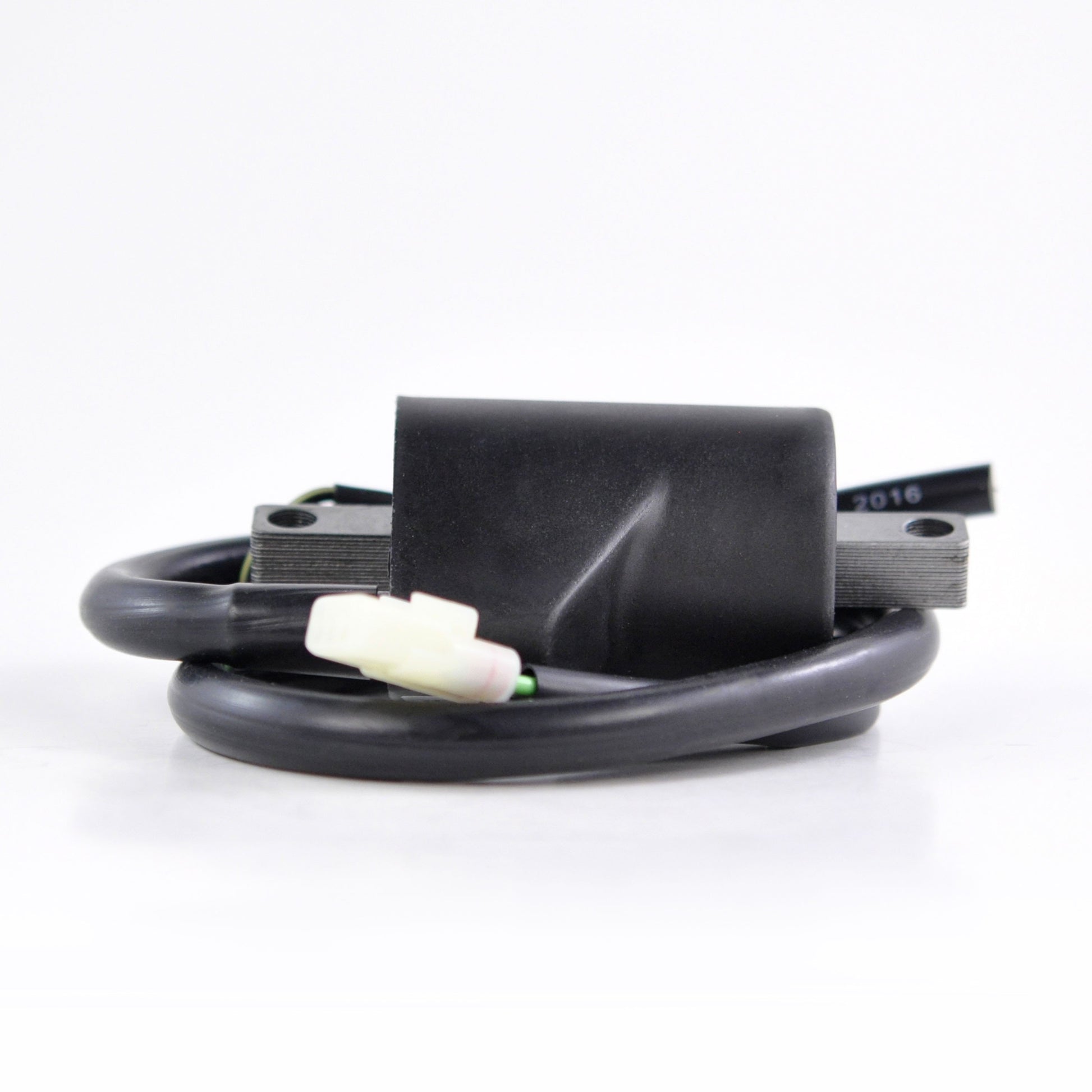

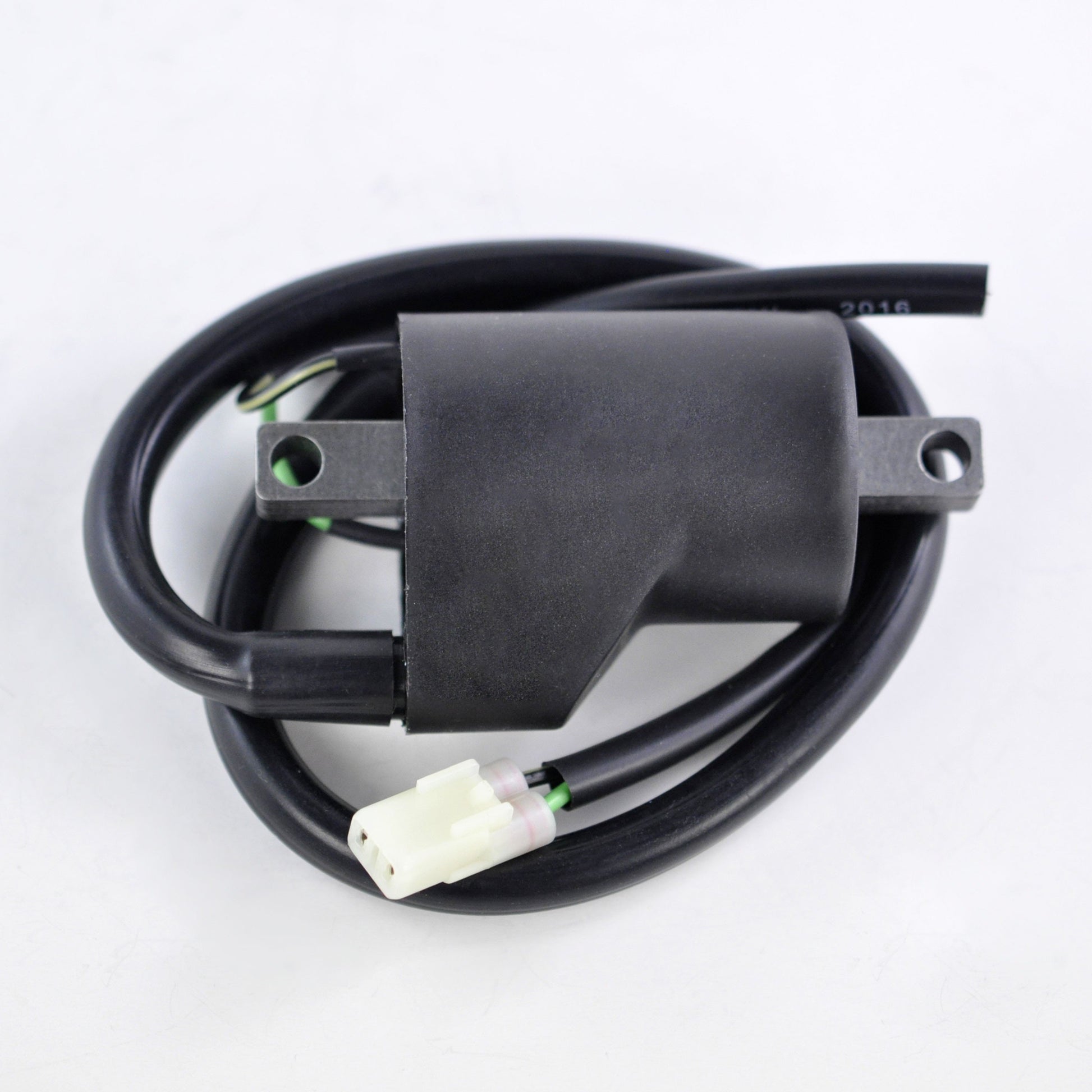

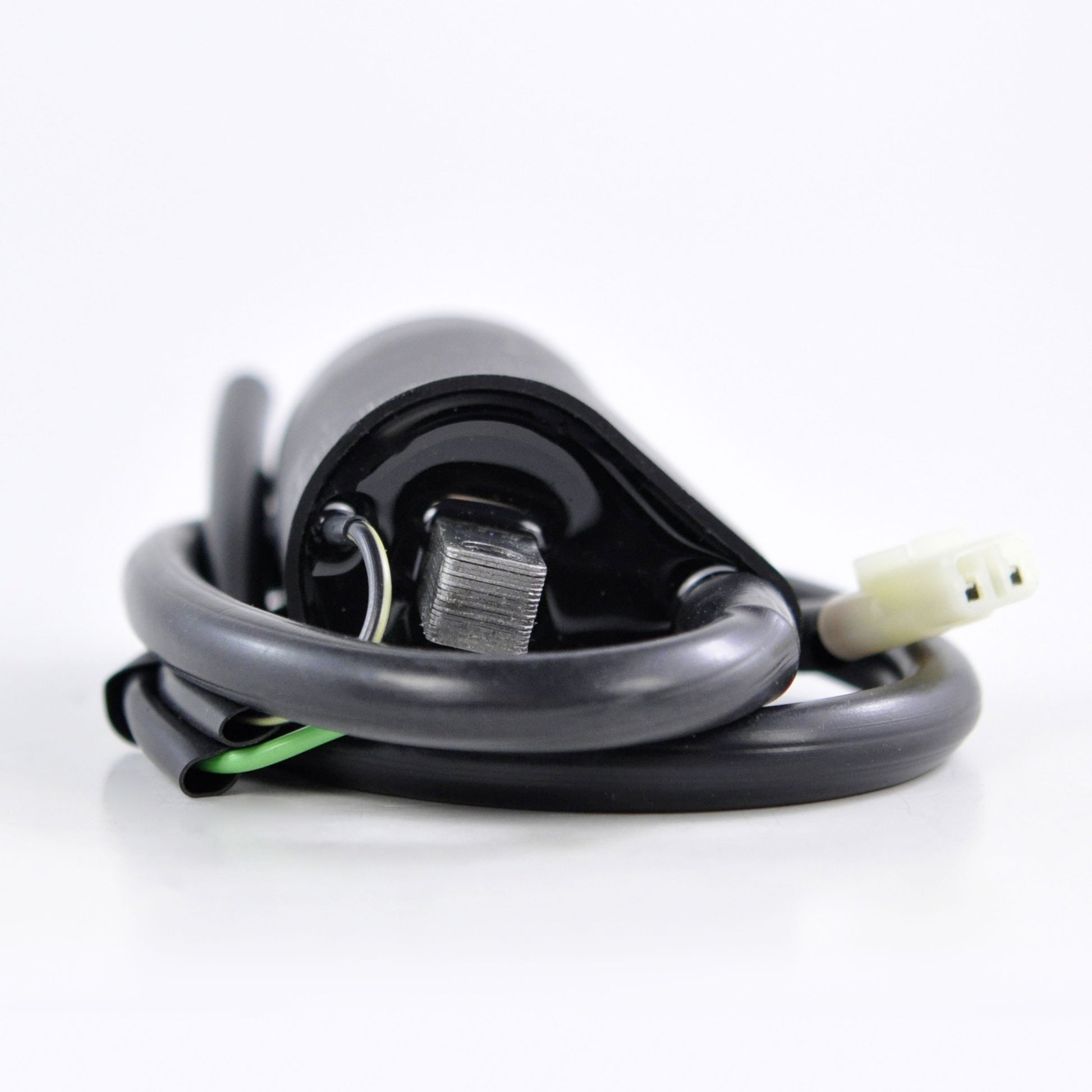

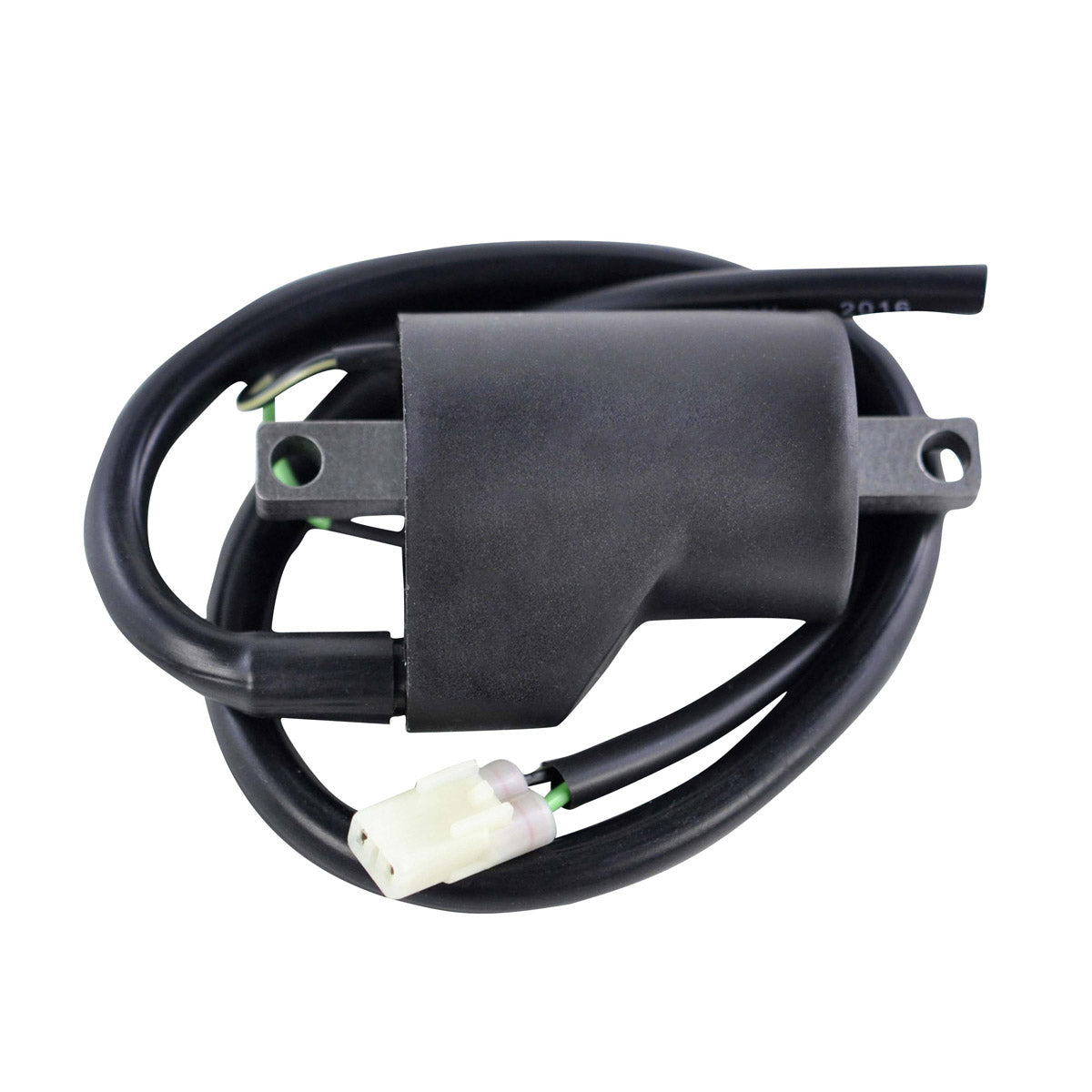

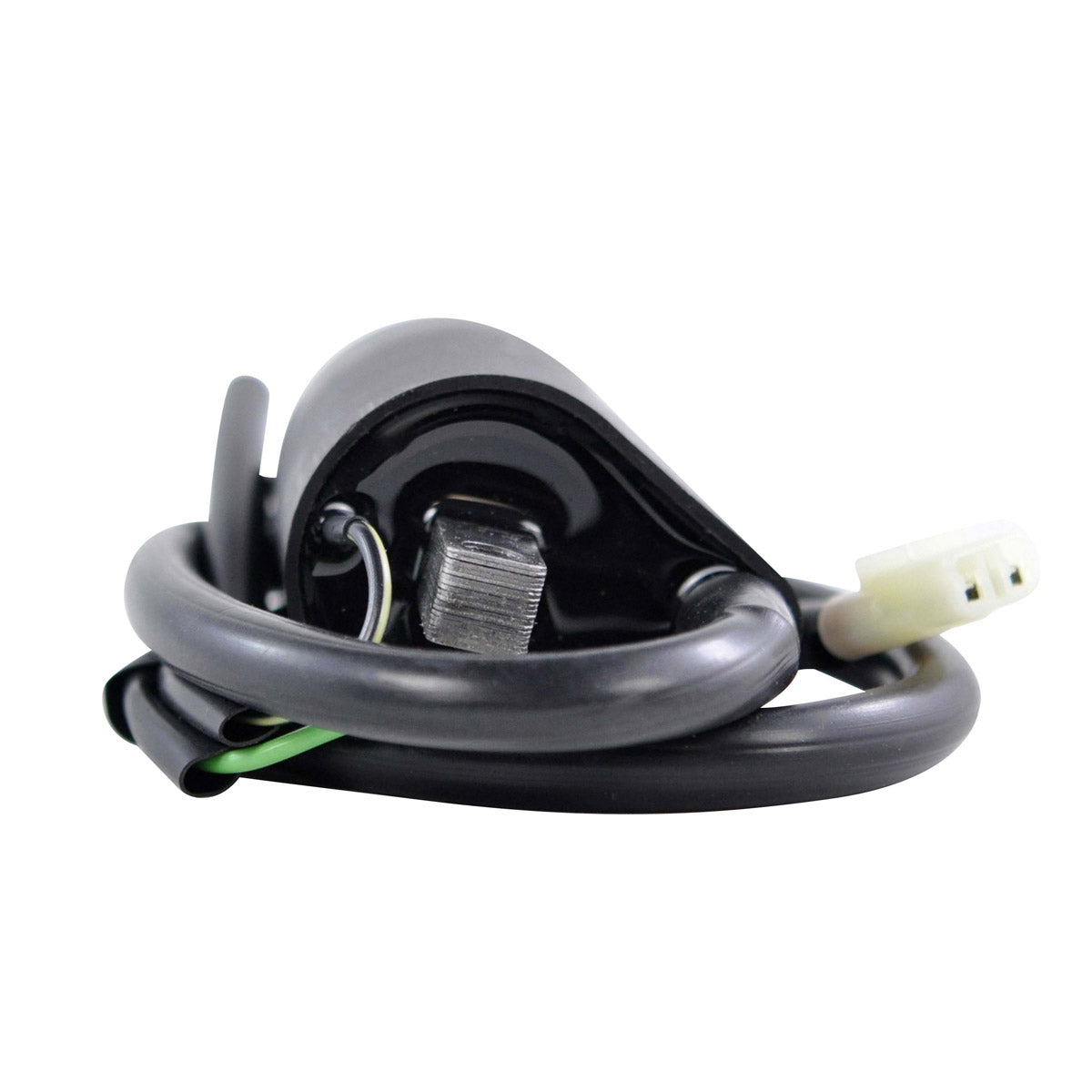

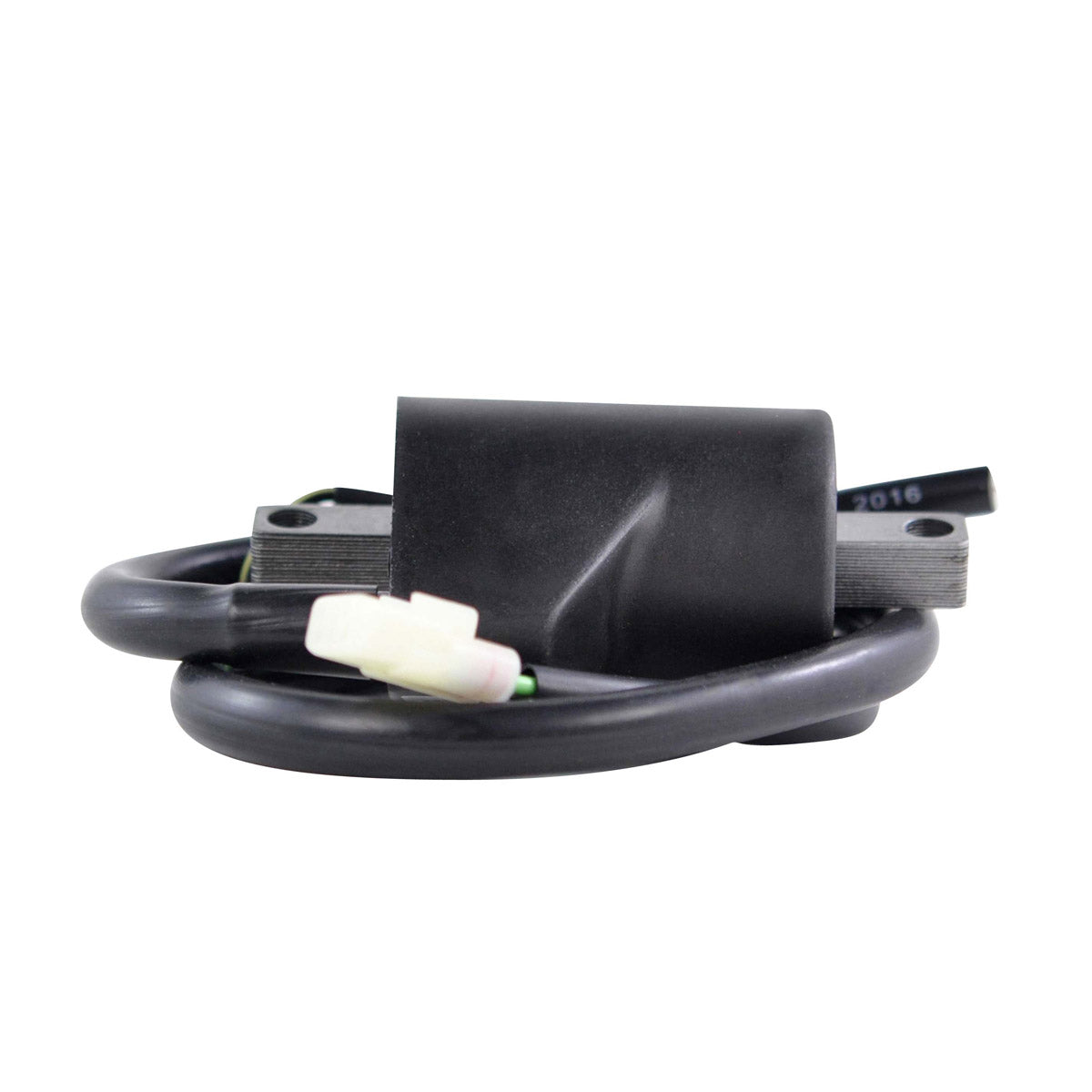

External Ignition Coil for Honda Super Hawk VTR 1000 F and RVT 1000 RC 51
VTR 1000 F 1998-2005 and RVT 1000 RC 51 2000-2006 - OEM replacement 30502-MCF-D31 - Part RM06174
This is a brand new aftermarket external ignition coil for the Honda Super Hawk VTR 1000 F and the RVT 1000 RC 51. The external coil takes the low voltage feed from the ignition system and steps it up to the tens of thousands of volts needed to jump the spark plug gap. Once the windings or the insulation start to break down, the result is a misfire on one cylinder, hard starting, and a bike that runs noticeably worse when hot or in the wet - problems that are easily mistaken for fuelling faults.
You must re-install your OEM spark plug cap(s) onto this coil. Once your original caps are in place the part becomes a plug-and-play unit, a direct fit and easy to install. All products shipped are tested. Electrically it measures 0.9 ohms on the primary and 13k ohms on the secondary, so you have solid reference figures for checking your original unit. The body measures 90 mm long by 51 mm high by 39 mm wide, the fixing holes are 78 mm centre to centre, and the two leads are 445 mm and 200 mm long.
Key Features
- Brand new aftermarket external ignition coil
- Plug-and-play once your OEM spark plug caps are re-installed
- Direct fit and easy to install
- 78 mm fixing hole spacing matching the original mounting
- All products shipped are tested
- Published primary and secondary resistance for easy diagnosis
- Covers both the Super Hawk VTR 1000 F and the RC 51
- Cross references a wide range of Honda OEM numbers
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM06174 |
| Width | 39 mm |
| Length | 90 mm |
| Height | 51 mm |
| Wire lengths | 445 mm and 200 mm |
| Fixation holes centre to centre | 78 mm |
| Primary resistance | 0.9 ohms |
| Secondary resistance | 13k ohms |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda Super Hawk VTR 1000 F | 1998-2005 |
| Honda RVT 1000 RC 51 | 2000-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 30501-MCF-D31 | Honda |
| 30501-MCF-D30 | Honda |
| 30501-MBB-641 | Honda |
| 30501-MBB-E30 | Honda |
| 30501-MCF-E01 | Honda |
| 30501-MCF-641 | Honda |
| 30502-MCF-D61 | Honda |
| 30502-MCF-D31 | Honda |
| 30502-MCF-E01 | Honda |
| 30502-MCF-641 | Honda |
Frequently Asked Questions
Does fitting require modification?
No, but you must re-install your OEM spark plug cap(s) onto the new coil. With your original caps transferred it becomes a plug-and-play unit, a direct fit with 78 mm fixing hole spacing. Check one of the OEM numbers listed above against your original coil before ordering.
What is included?
One brand new external ignition coil with leads of 445 mm and 200 mm already fitted, tested before dispatch. Spark plug caps are not supplied - reuse the caps from your original coil.
How do I know the original coil has failed?
Look for a misfire on one cylinder, hesitation under acceleration, hard starting and running that deteriorates as the engine heats up or in damp conditions. A meter check is conclusive: this replacement reads 0.9 ohms across the primary and 13k ohms across the secondary, so a reading far outside those figures on your original indicates a failed winding.
Do I need one coil or two?
This listing supplies one coil. Both the VTR 1000 F and the RC 51 are V-twins with an external coil per cylinder, so order two if you are replacing both. Many owners change the pair together so spark output is matched front and rear.
