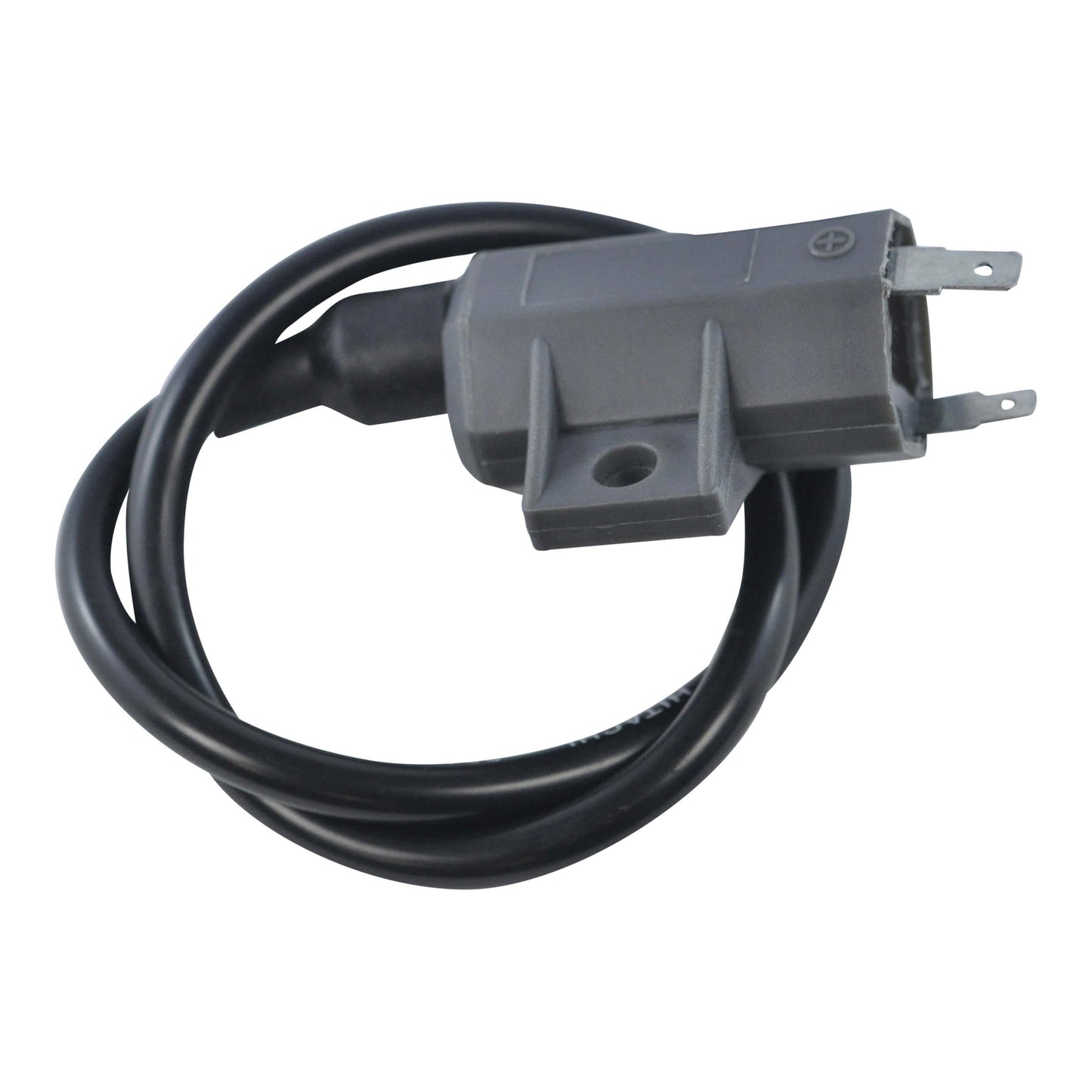

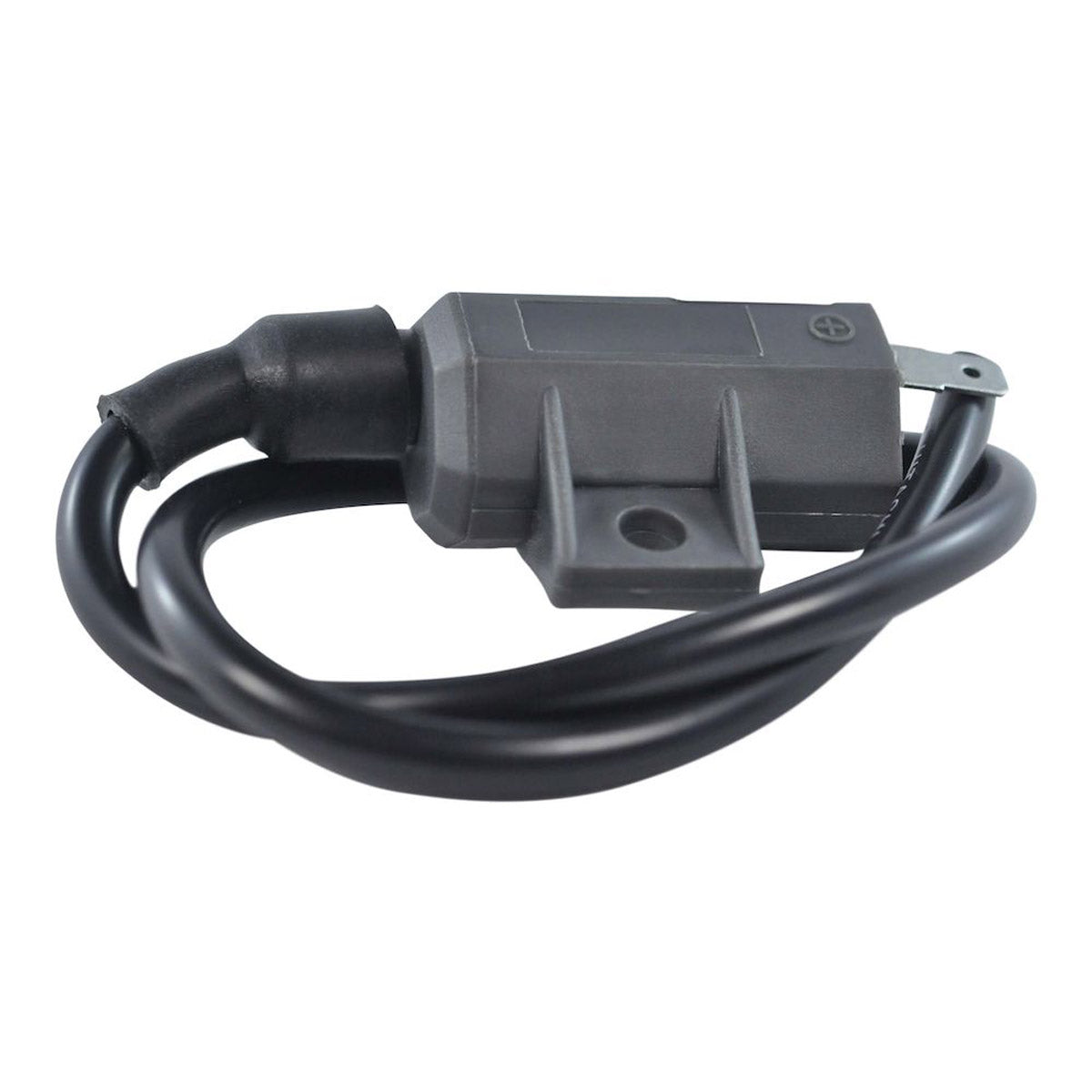

External Ignition Coil for Kawasaki KVF 650 & 700 - RM06084
Kawasaki KVF 650 and KVF 700 Prairie and Brute Force - 2002-2013
A brand new aftermarket external ignition coil supplied under RMSTATOR part number RM06084, built as a direct replacement for the original unit fitted to the Kawasaki KVF 650 and KVF 700 Prairie and Brute Force machines. The ignition coil takes the low voltage pulse from the ignition system and steps it up to the tens of thousands of volts needed to jump the spark plug gap, so when it starts to break down the engine loses spark under load, misfires, or refuses to start at all.
This coil is wound using the highest grade lamination materials and reads a nominal 0.4 ohms, matching the primary resistance of the original part. It is a plug-and-play, direct fit item that uses the existing mounting points and wiring, so no cutting, splicing or bracket modification is required. Every unit is bench tested before it leaves the factory.
Key Features
- Brand new aftermarket external ignition coil, not a reconditioned unit
- Direct replacement for the original Kawasaki unit
- Plug-and-play, direct fit, easy installation
- Wound with the highest grade lamination materials
- Nominal 0.4 ohms resistance
- Every unit is tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Component type | External ignition coil |
| Resistance | 0.4 ohms |
| Fitment type | Plug-and-play direct fit |
| Condition | Brand new aftermarket |
| RMSTATOR part number | RM06084 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki KVF 650 Prairie | 2002-2013 |
| Kawasaki KVF 650 Brute Force | 2002-2013 |
| Kawasaki KVF 700 Prairie | 2002-2013 |
| Kawasaki KVF 700 Brute Force | 2002-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 21121-1306 | Kawasaki |
| 21121-1292 | Kawasaki |
| 21130-1071 | Kawasaki |
| RM06084-R00 | RMSTATOR |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play direct replacement for the original unit and uses the existing mounting points and connector, so no cutting or splicing is needed. Check the number stamped on your original coil against the cross reference table above before ordering.
What is included?
One external ignition coil, tested before dispatch. Spark plug caps, leads and mounting hardware are not supplied, so retain the parts from your original unit.
How do I know my old ignition coil has failed?
Measure the primary resistance across the coil terminals with a multimeter. This coil is wound to a nominal 0.4 ohms, so an open circuit or a reading far removed from that figure indicates a failed unit. Typical symptoms are a weak or intermittent spark, hard starting, misfires that get worse as the engine warms up, and cutting out under load.
Why does the coil resistance matter?
The primary winding resistance sets how much current the ignition system drives through the coil. Fitting a coil with the wrong resistance can produce a weak spark or overload the ignition circuit, which is why this unit is wound to match the 0.4 ohms figure of the original Kawasaki part.
