External Ignition Coil for Kawasaki KLR650 & Mule, Suzuki Boulevard
Kawasaki KLR650 and Mule 3000-4010, Suzuki Boulevard S50, M109R and Intruder 2001-2024 - Part Number RM06176

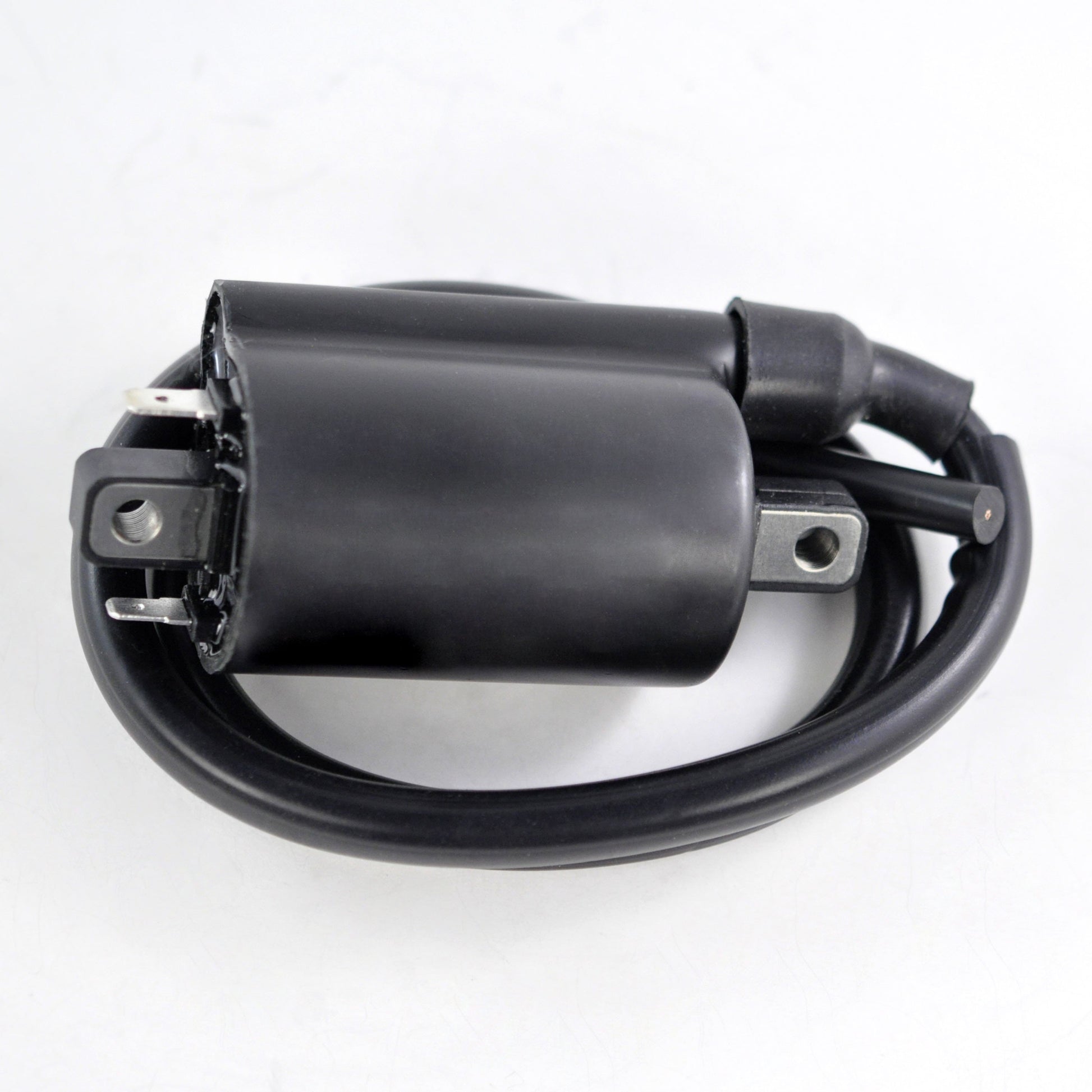

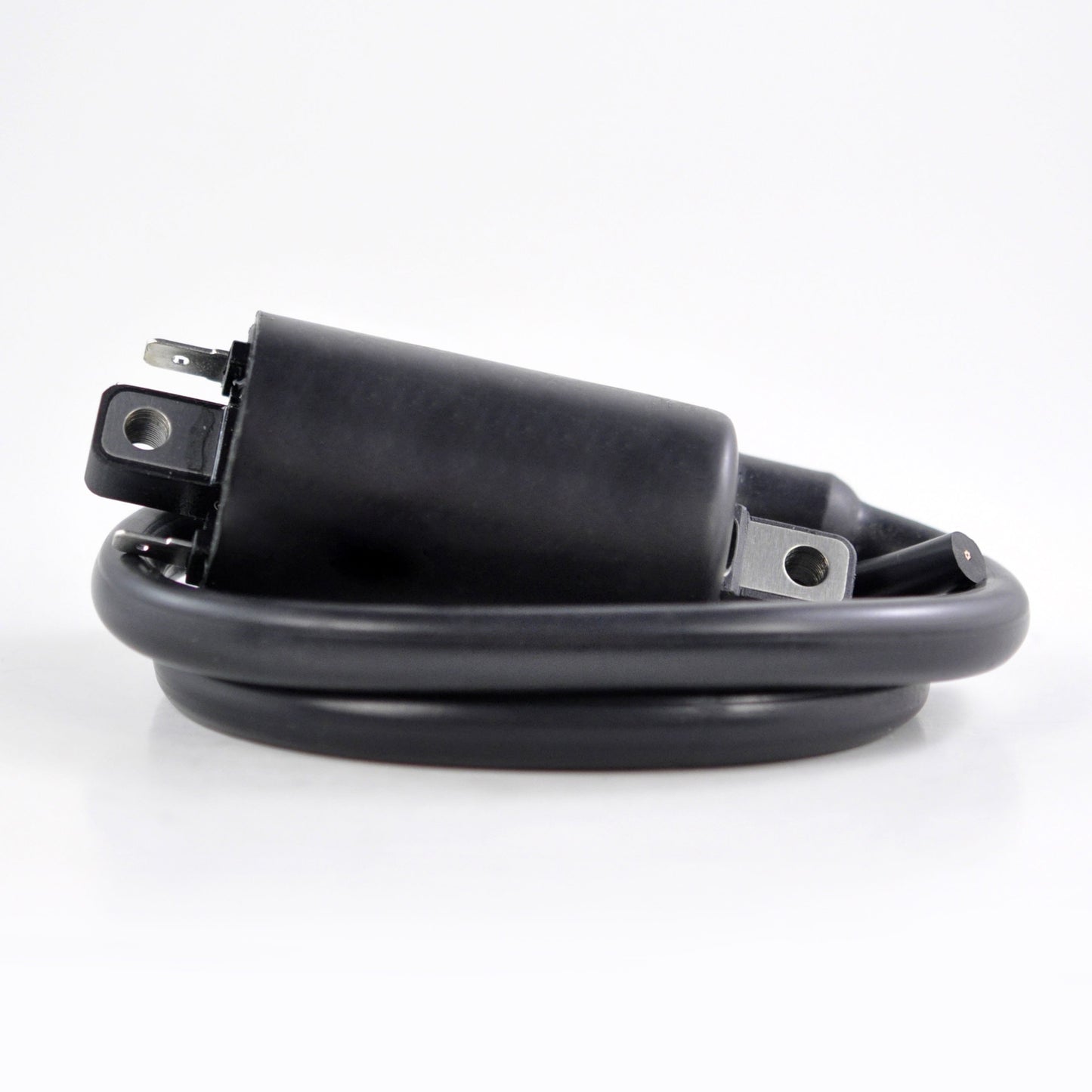

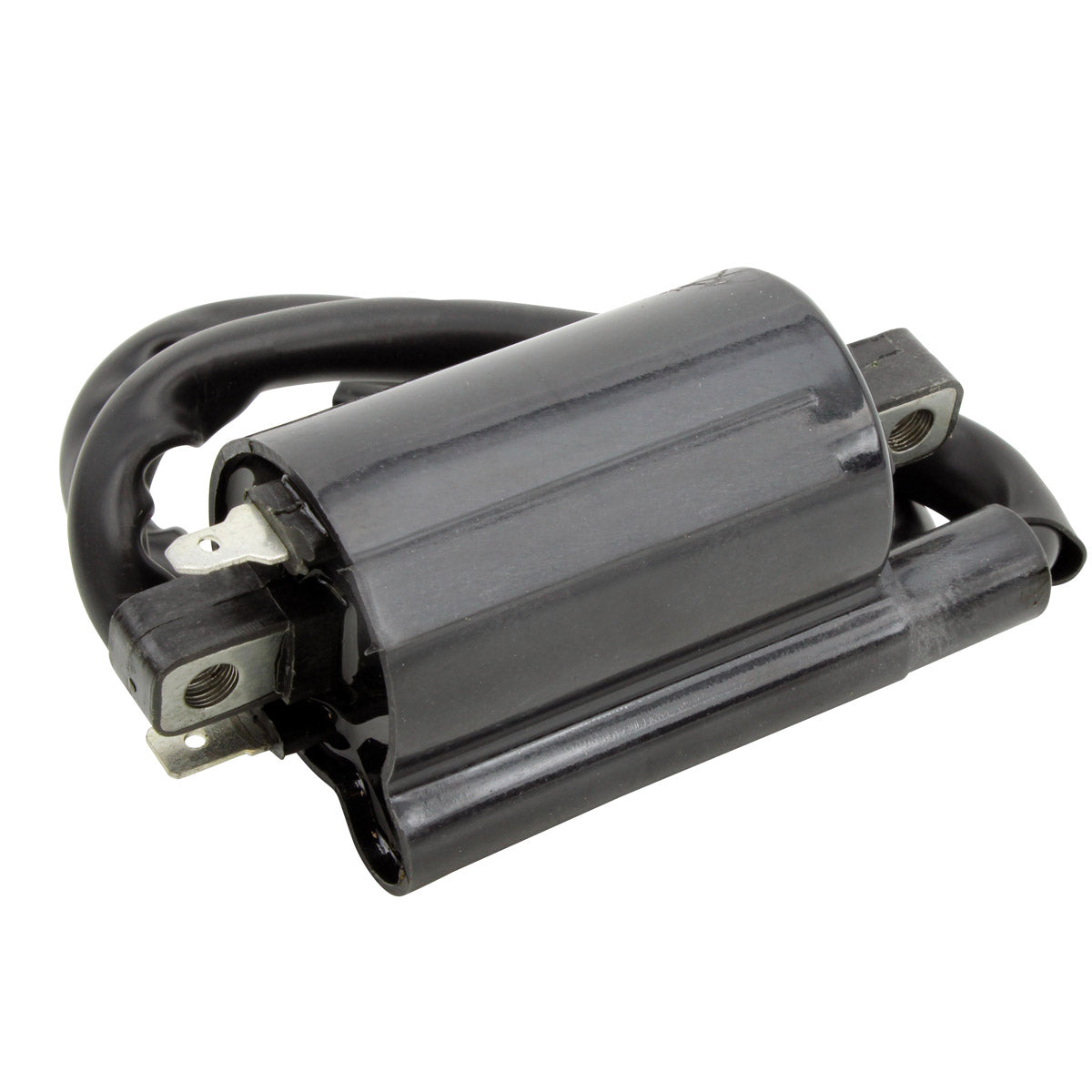

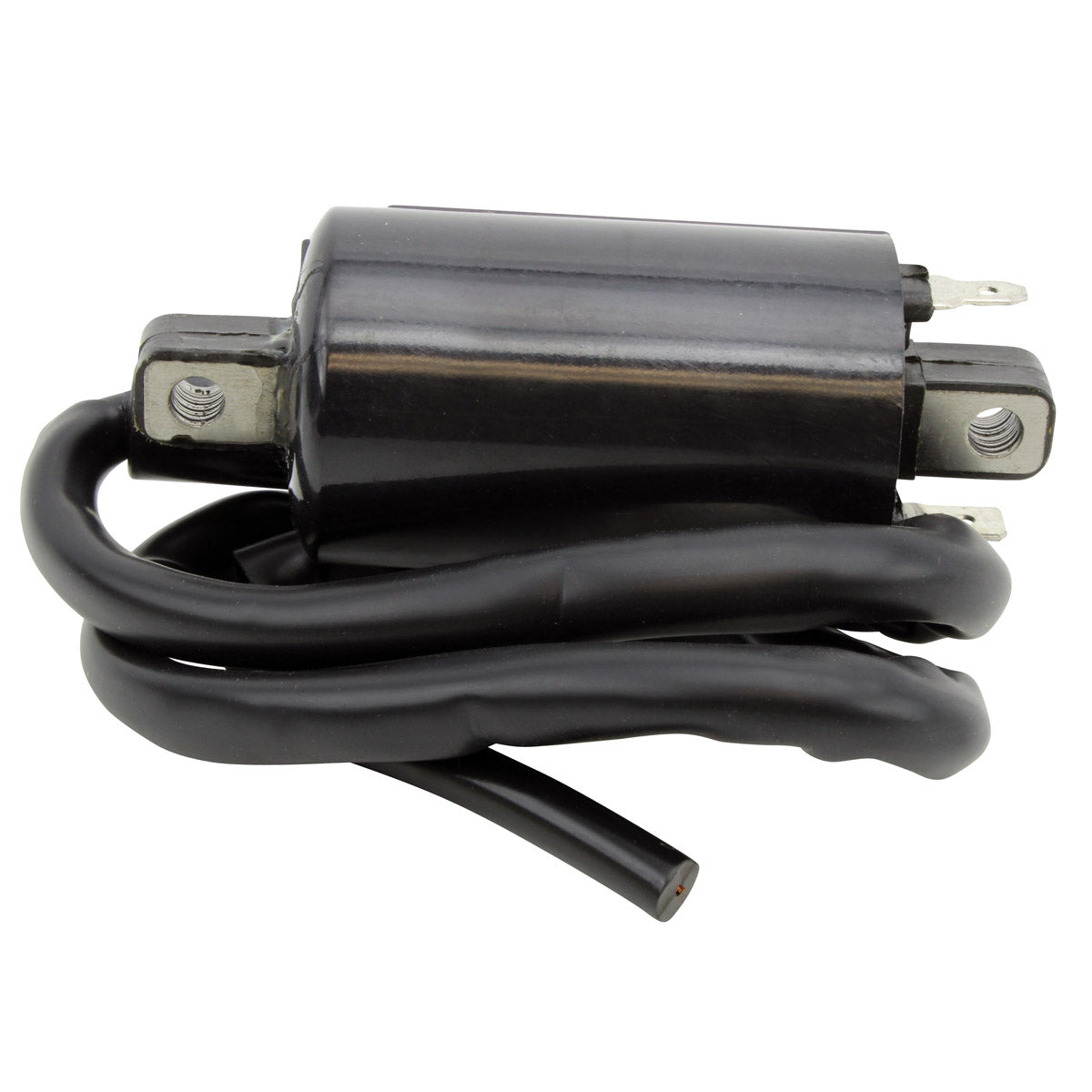

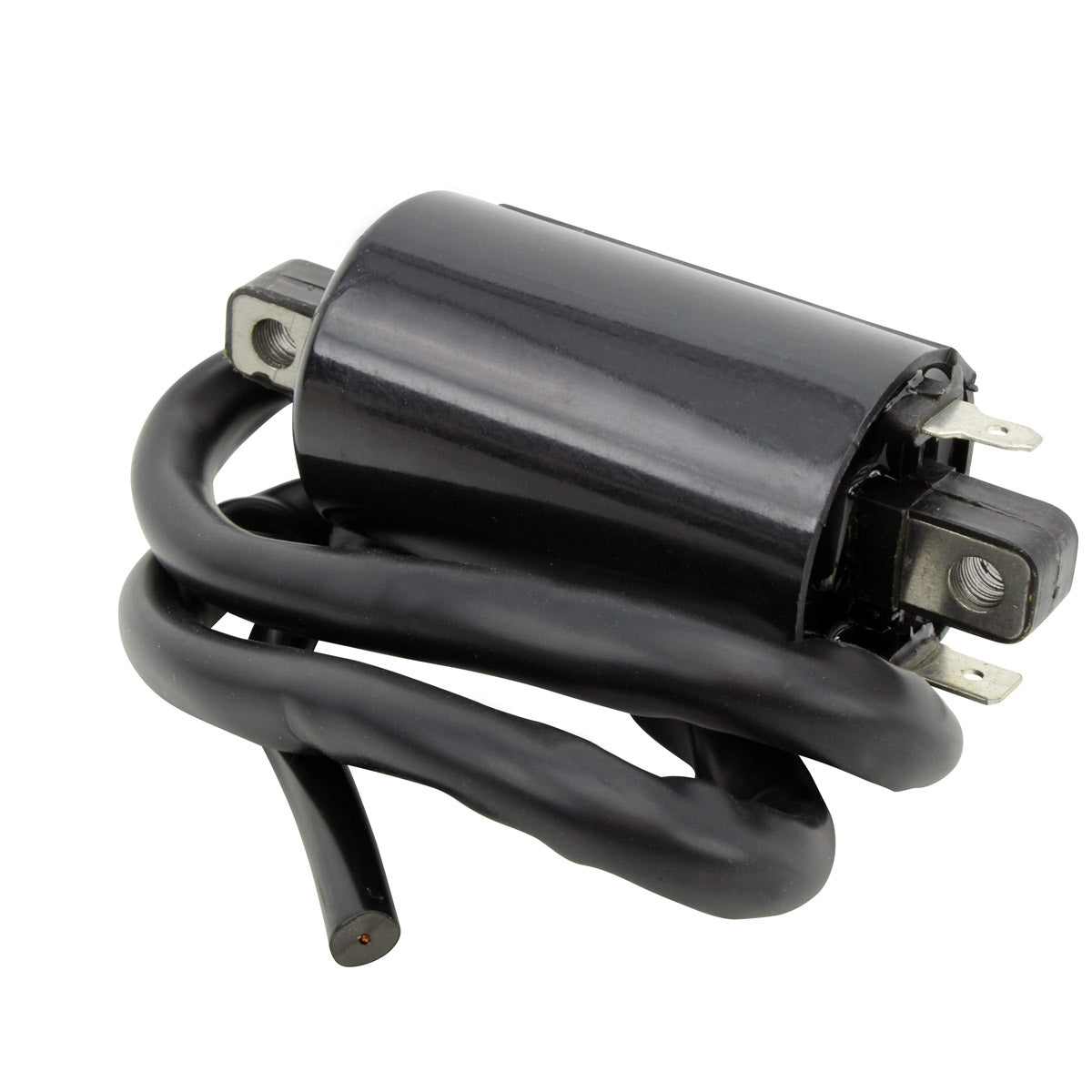

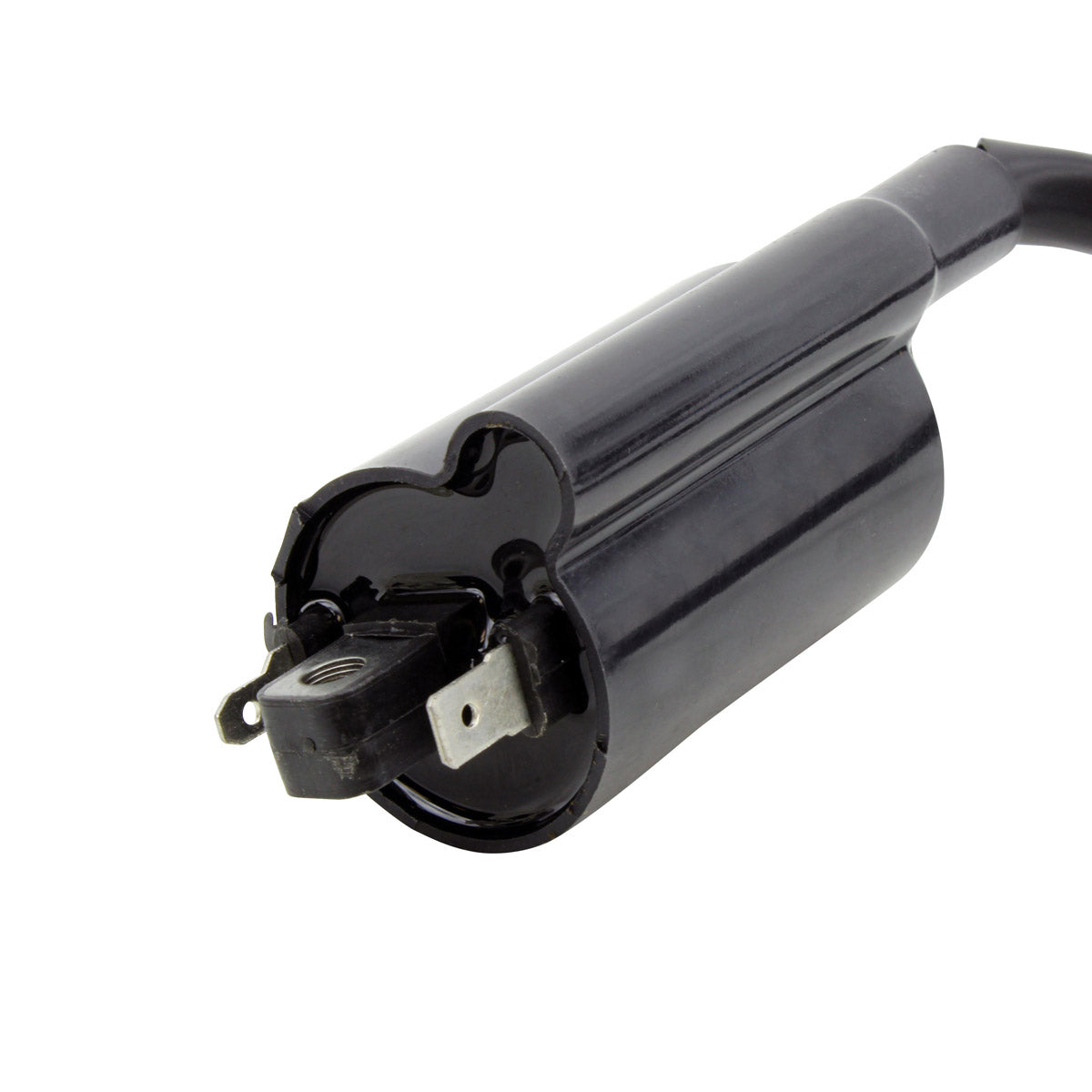

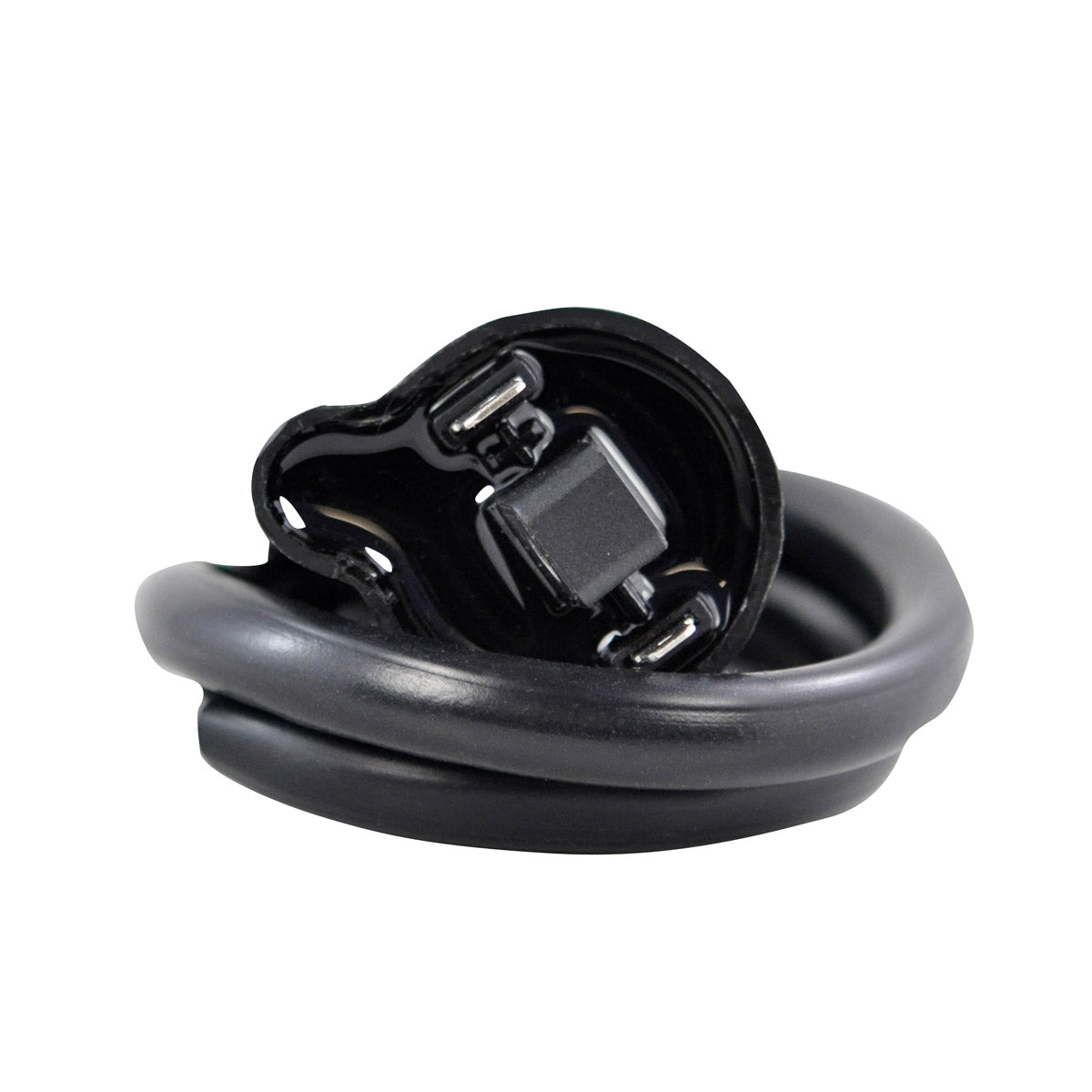

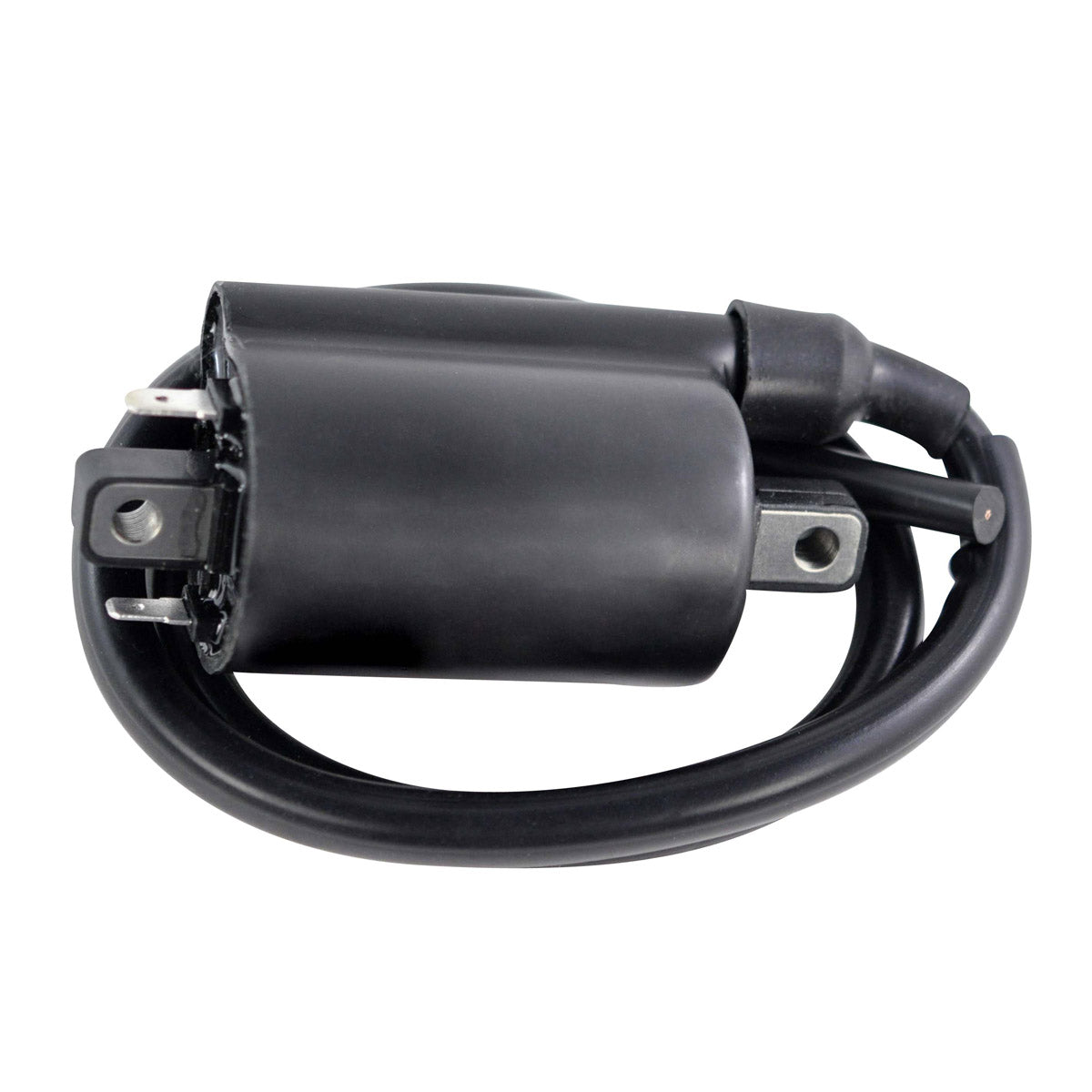

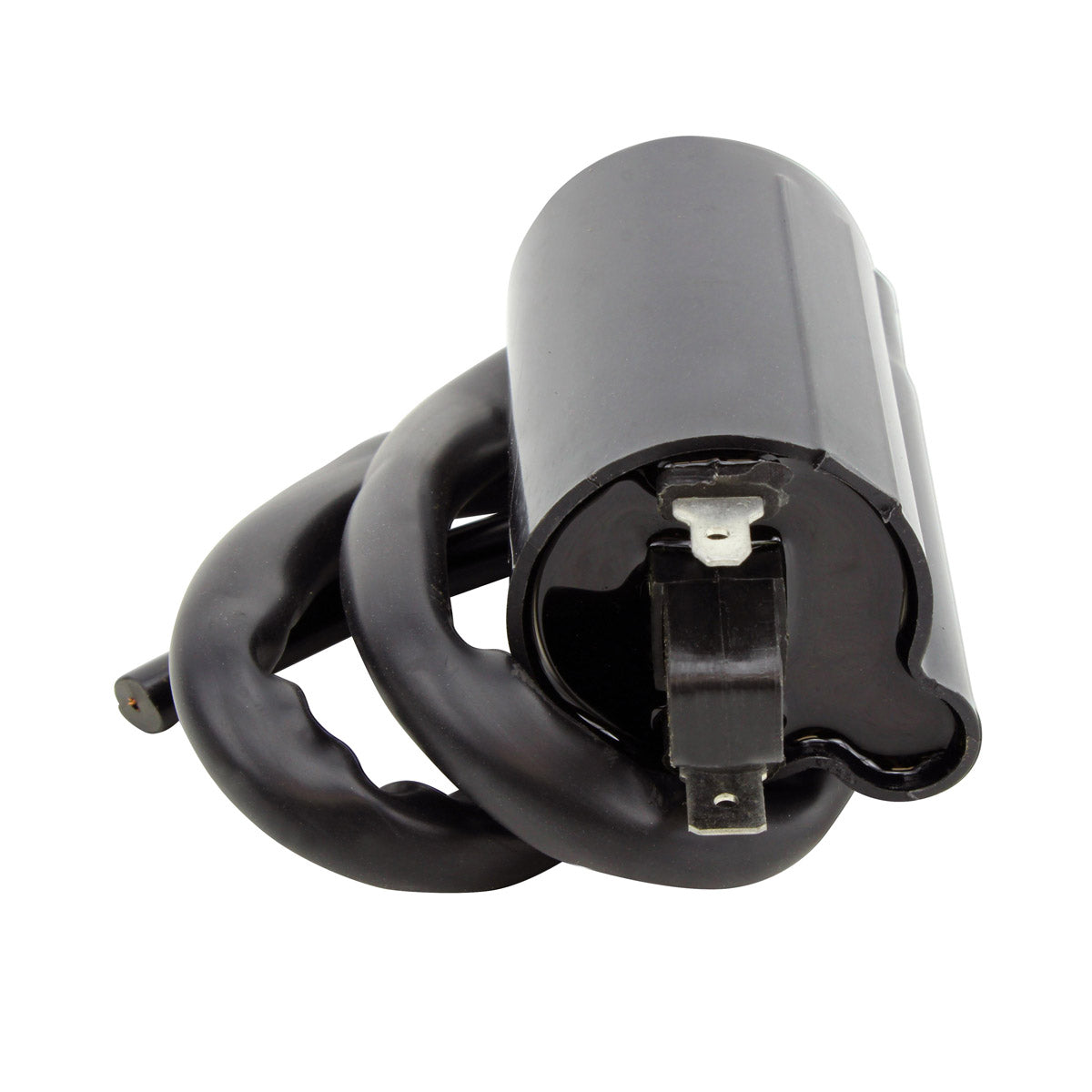

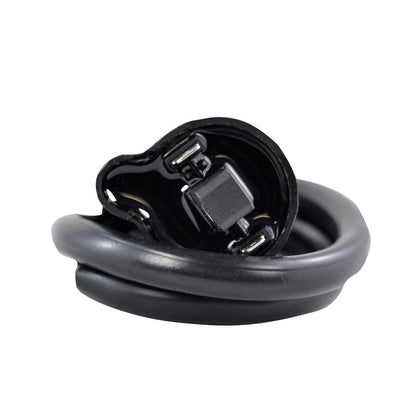

This is a brand new aftermarket external ignition coil, built as a direct replacement for the original unit fitted to a wide run of Kawasaki KLR650 and Mule utility machines and Suzuki Boulevard and Intruder cruisers. The coil takes the low voltage pulse from the ignition system and steps it up to the tens of thousands of volts the spark plug needs, so a tired or breaking down coil shows up as a weak spark long before it shows up on a meter. Every unit is tested before it is dispatched.

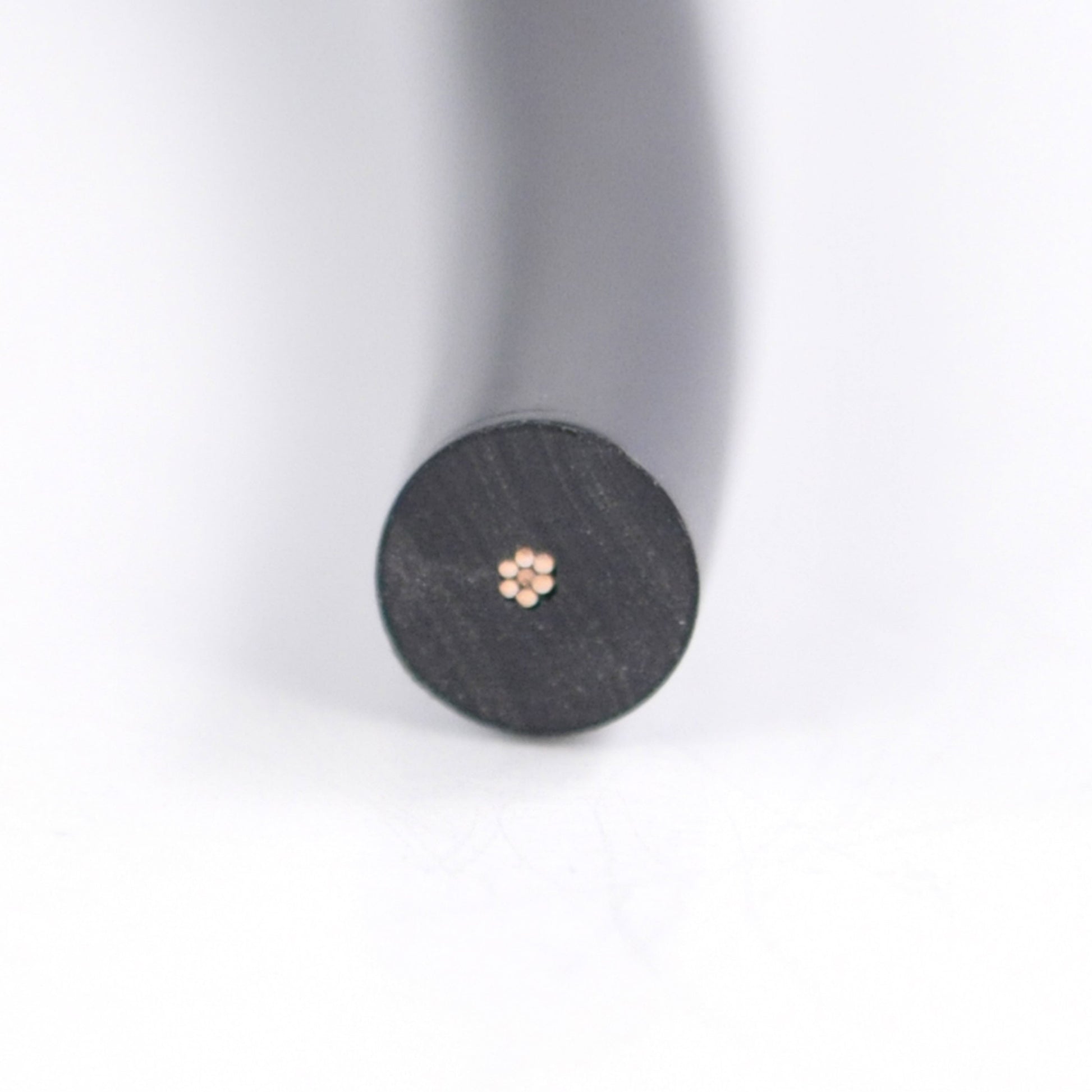

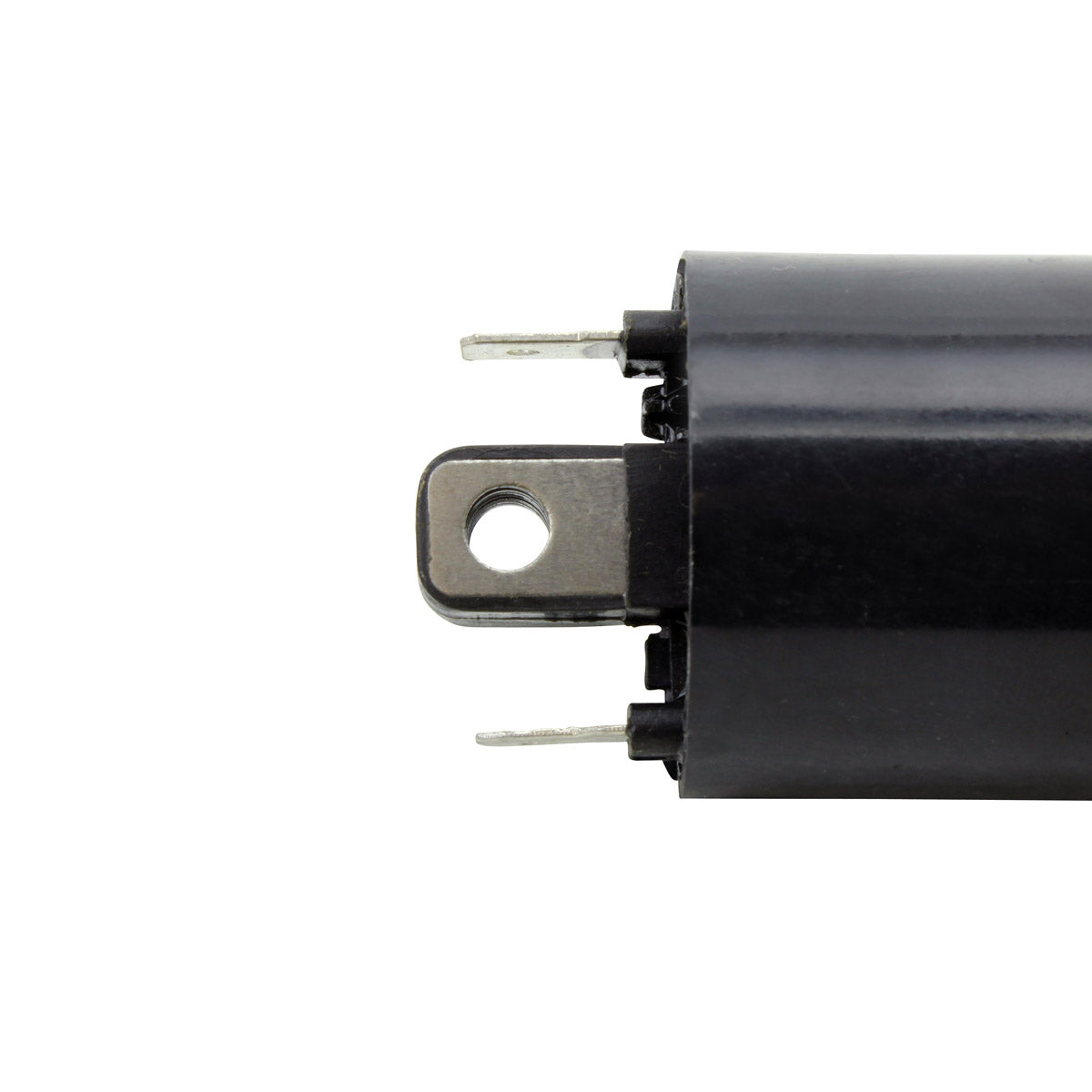

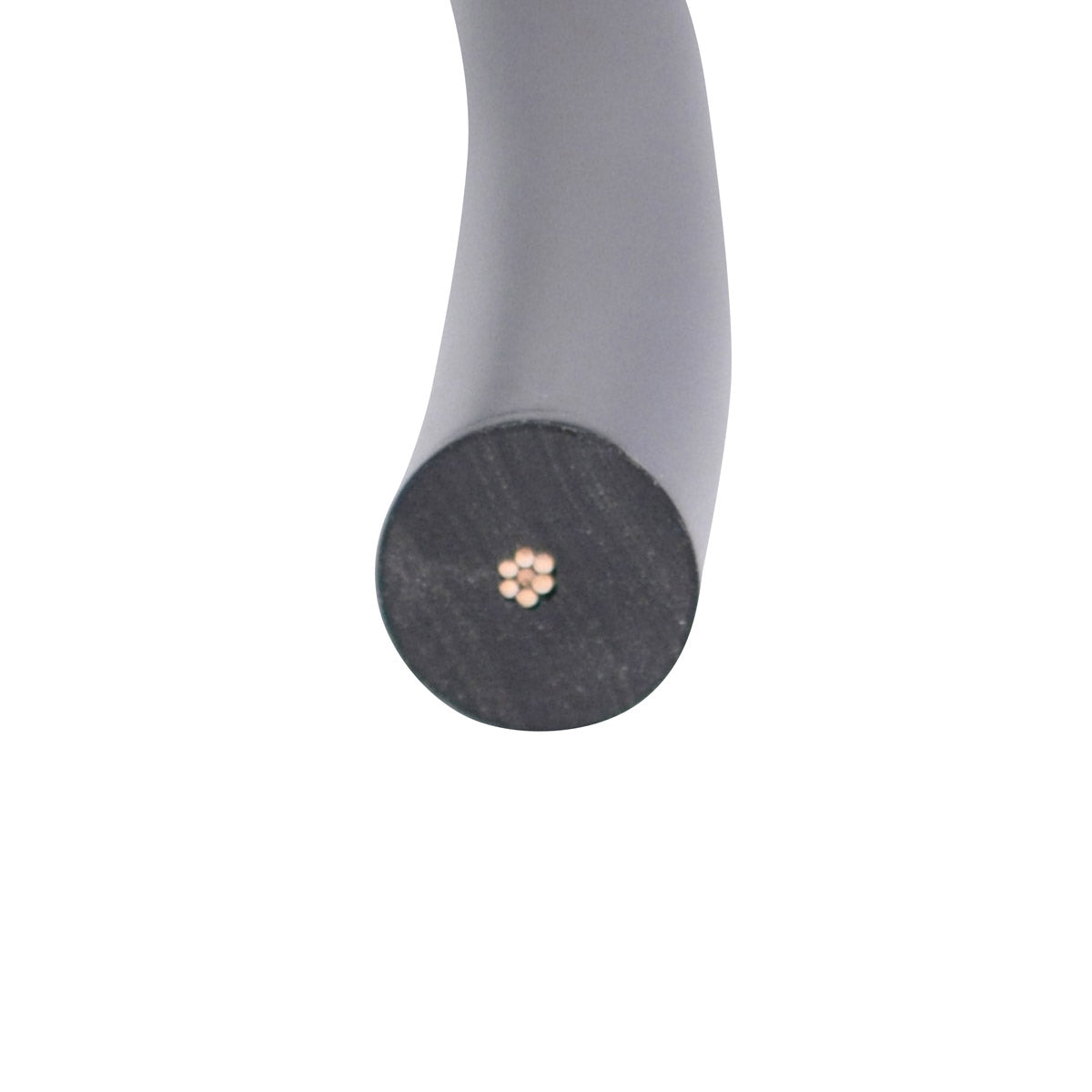

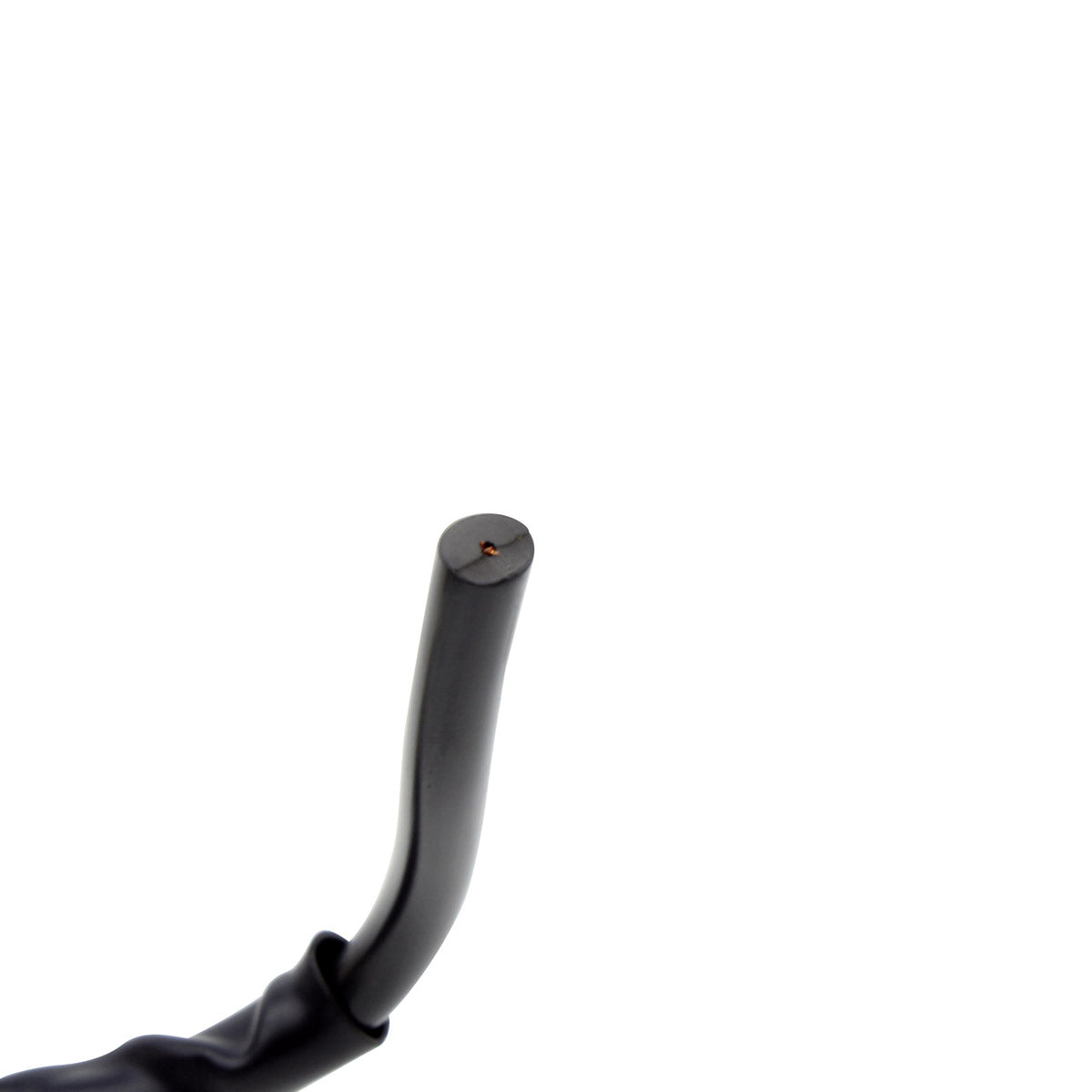

The coil measures 80 mm between the centres of its two fixation holes and carries a 515 mm wire lead, with a measured resistance of 2.5 ohms. Installation is a direct fit and becomes fully plug-and-play once your original spark plug caps are transferred across: unscrew the cap or caps from your old coil and screw them onto the new one. The caps themselves are not supplied, so keep the originals to hand when you start the job.
Key Features
- Brand new aftermarket external ignition coil
- Direct fit replacement for the original unit
- Plug-and-play once the OEM spark plug caps are refitted
- 2.5 ohm coil resistance
- 515 mm wire lead
- 80 mm between fixation hole centres
- Every unit is tested before shipping
Technical Specs
| Specification |
Detail |
| Part Number |
RM06176 |
| Component Type |
External ignition coil |
| Resistance |
2.5 ohms |
| Wire Length |
515 mm |
| Distance Between Fixation Holes |
80 mm |
| Spark Plug Caps |
Not included - re-use the OEM caps |
| Condition |
Brand new aftermarket, tested |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki KLR650 |
2001-2024 |
| Kawasaki Mule 3000 |
2001-2024 |
| Kawasaki Mule 3010 |
2001-2024 |
| Kawasaki Mule 3020 |
2001-2024 |
| Kawasaki Mule 4000 |
2001-2024 |
| Kawasaki Mule 4010 |
2001-2024 |
| Suzuki Boulevard S50 |
2001-2024 |
| Suzuki Boulevard M109R |
2001-2024 |
| Suzuki Intruder |
2001-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 33410-38A20 |
Suzuki |
| 21121-0029 |
Kawasaki |
| 21121-2092 |
Kawasaki |
Frequently Asked Questions
Will this fit without modifying my wiring?
Yes. The coil is a direct fit with 80 mm between the fixation hole centres and a 515 mm lead, so it bolts into the original position and connects to the existing harness. No cutting or drilling is needed.
What is included, and are the spark plug caps supplied?
You receive the external ignition coil. The spark plug caps are not supplied. Unscrew the cap or caps from your original coil and screw them onto the new one, which is why the swap is described as plug-and-play once the OEM caps are refitted.
How do I know my old ignition coil has failed?
Typical symptoms are hard starting when the engine is hot, misfiring under load, a spark that jumps weakly or intermittently, and cutting out that clears once the engine cools. A primary resistance reading well away from 2.5 ohms, or an open circuit, points at the coil. Rule out a fouled plug, a perished cap and a damaged lead first.
What resistance should I measure on this coil?
This coil is specified at 2.5 ohms. Measuring it cold with a multimeter is the quickest way to compare a suspect original against the replacement.
