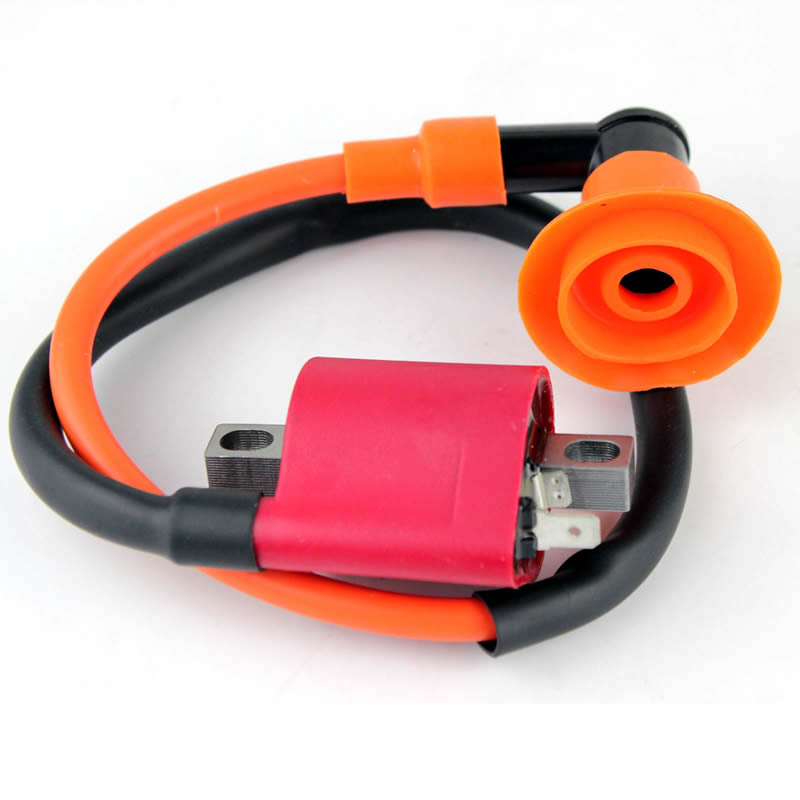

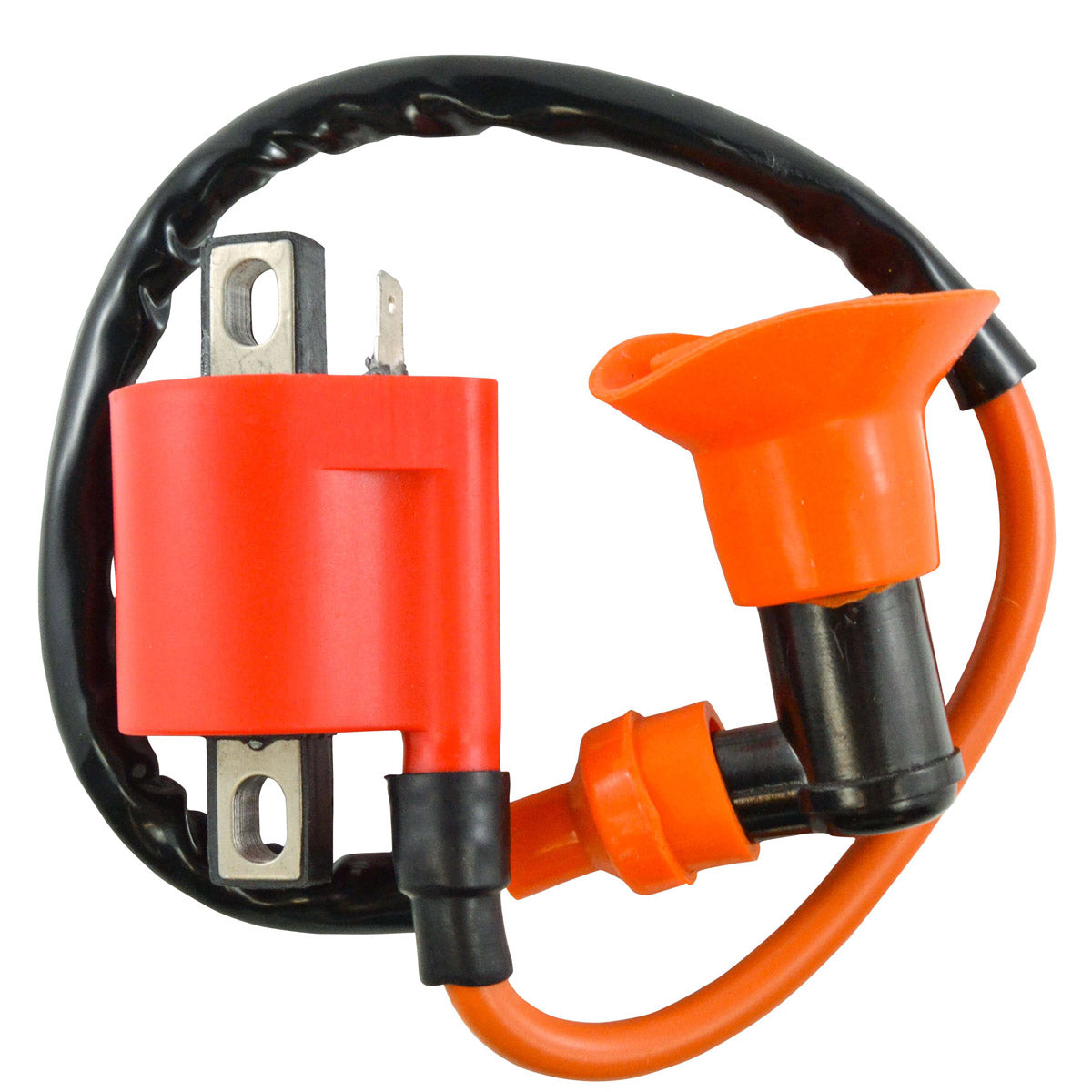

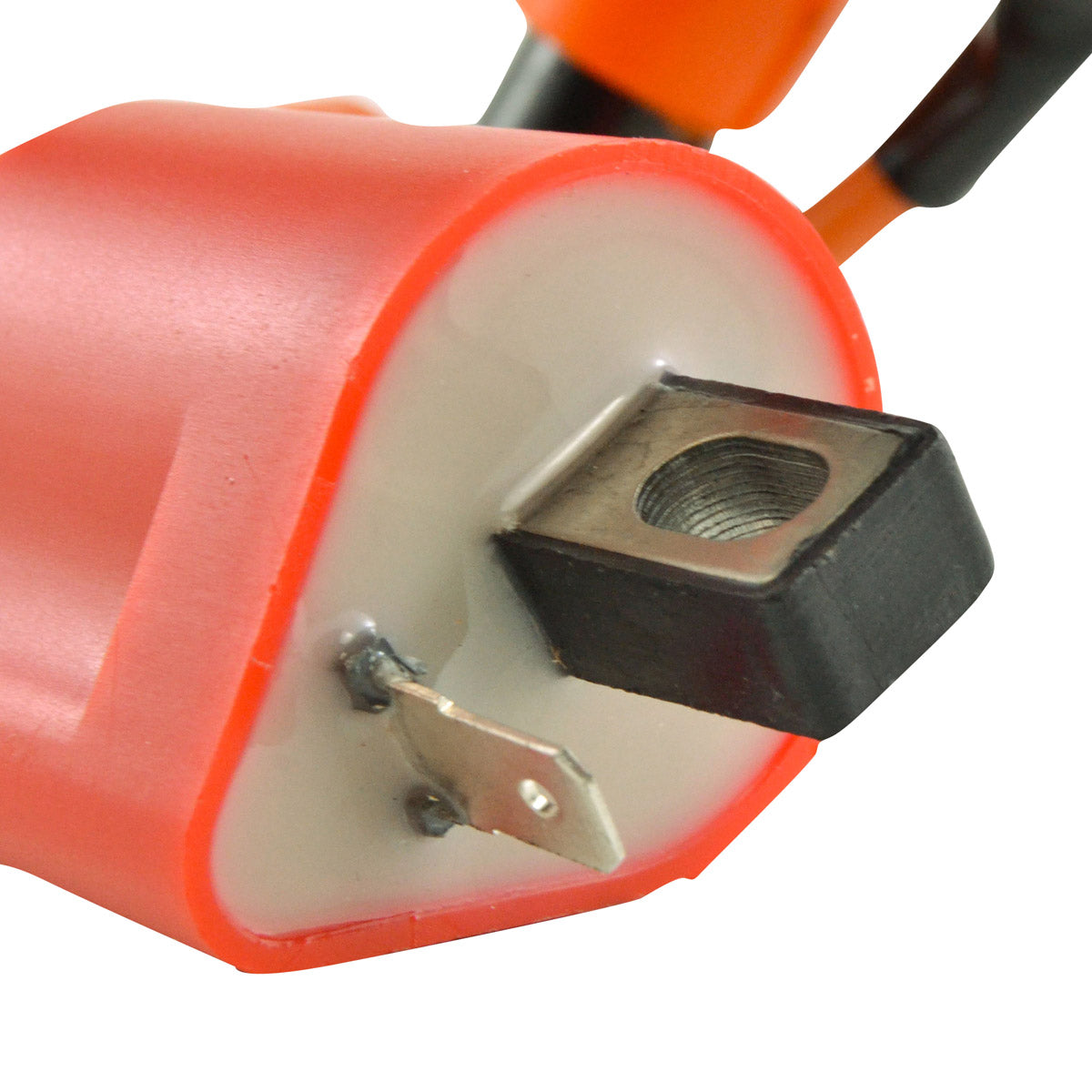

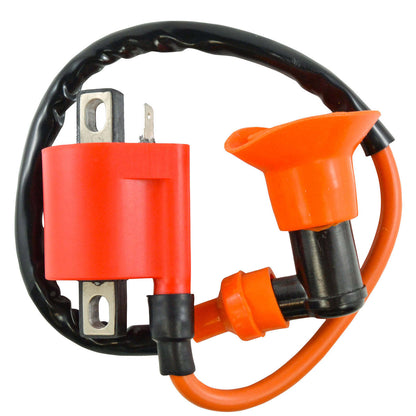

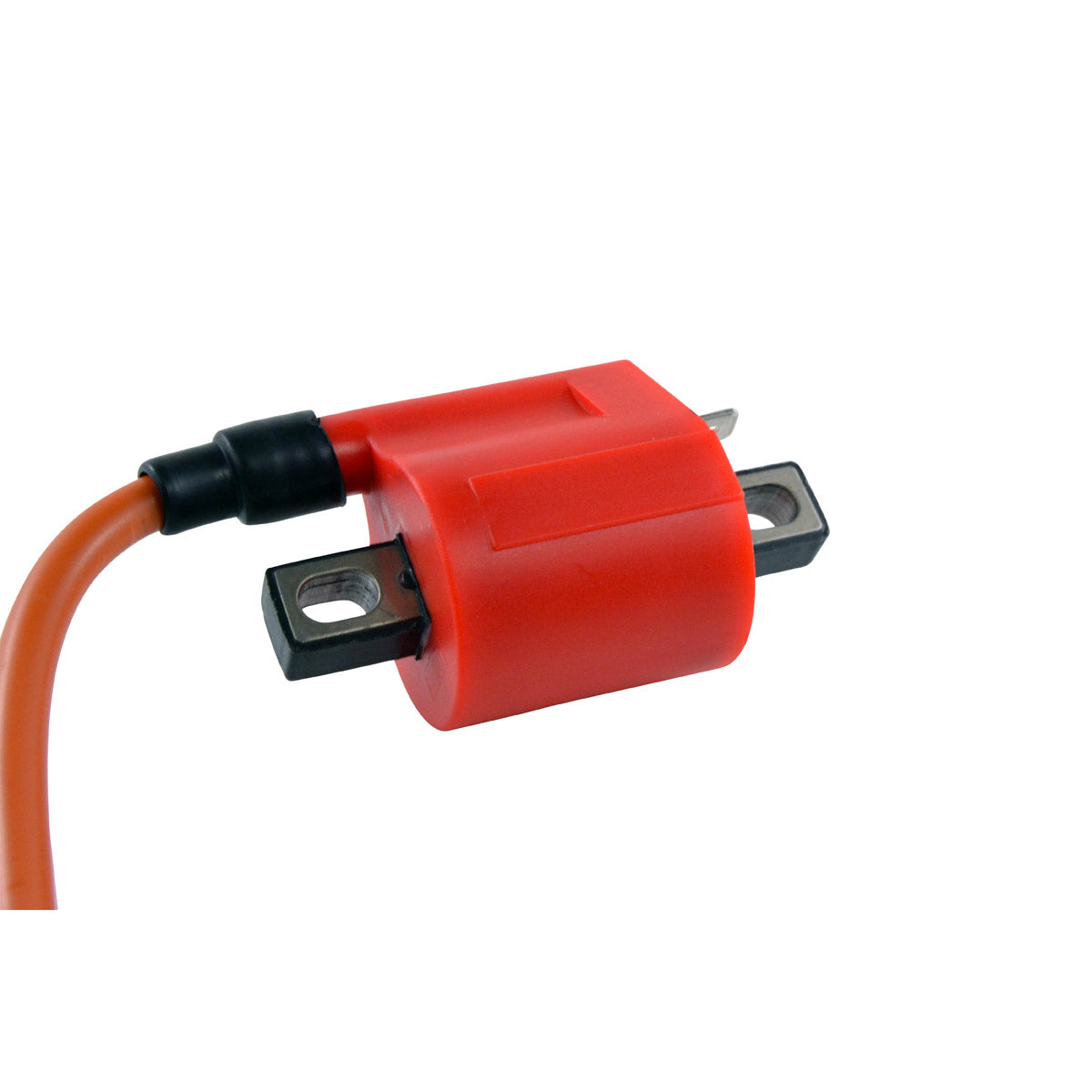

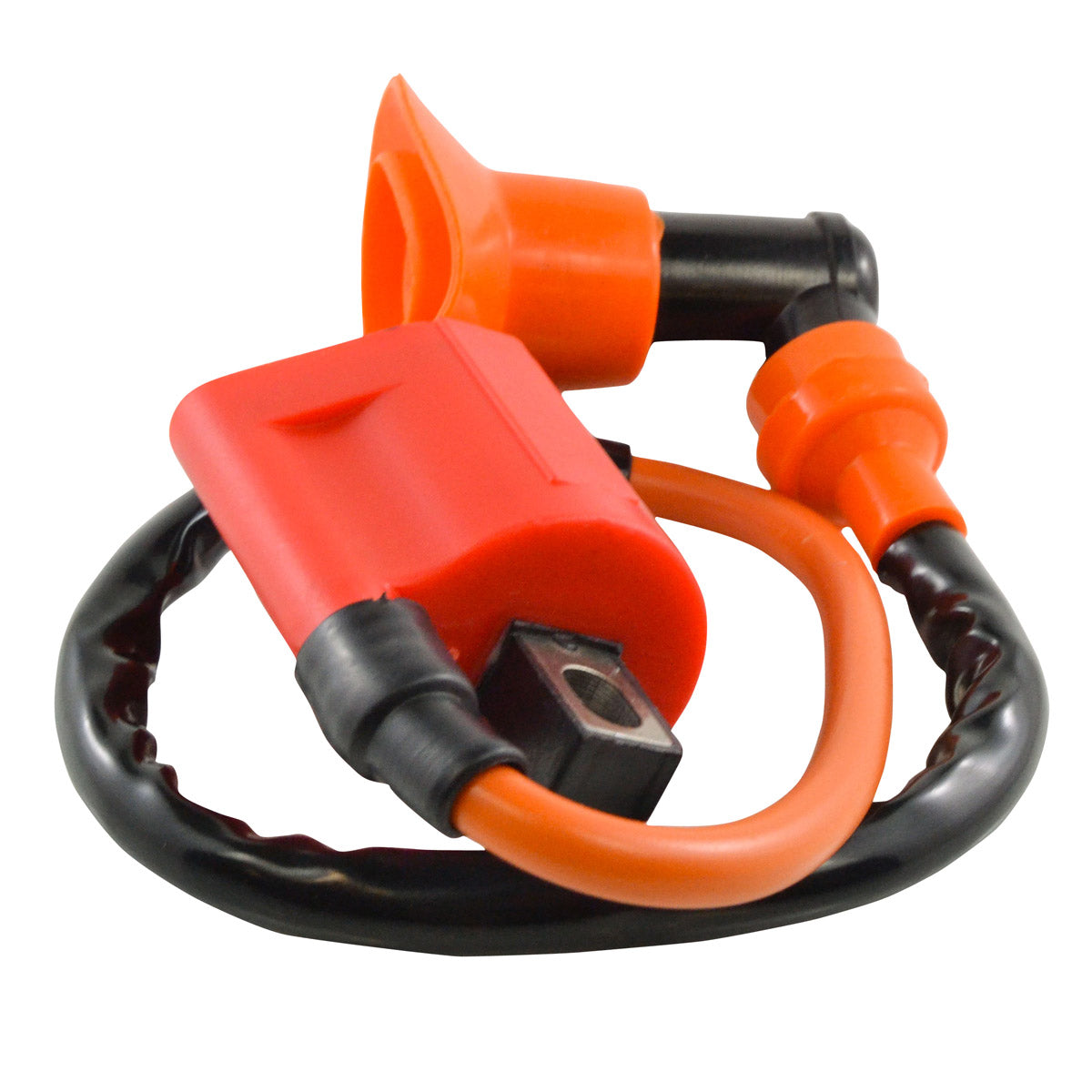

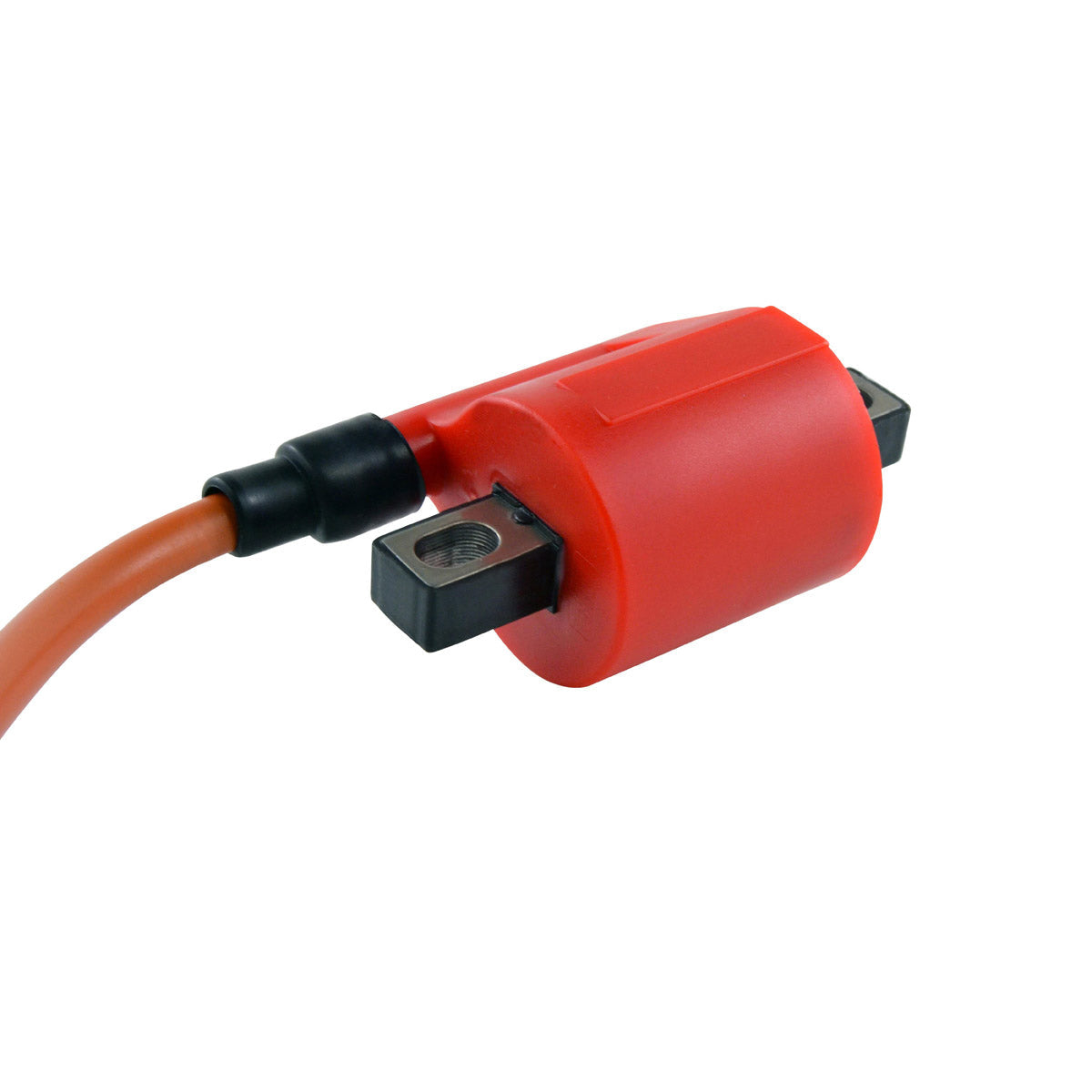

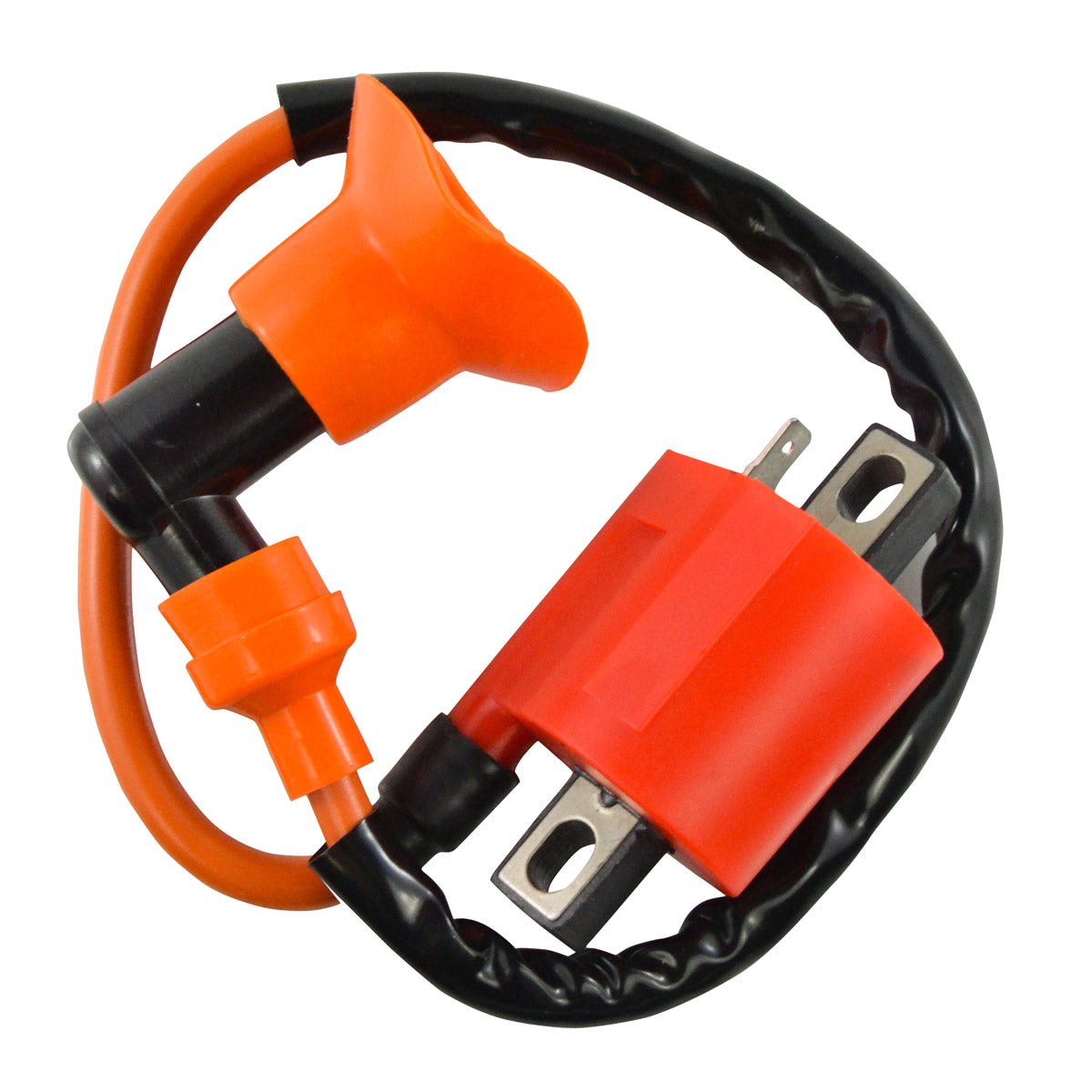

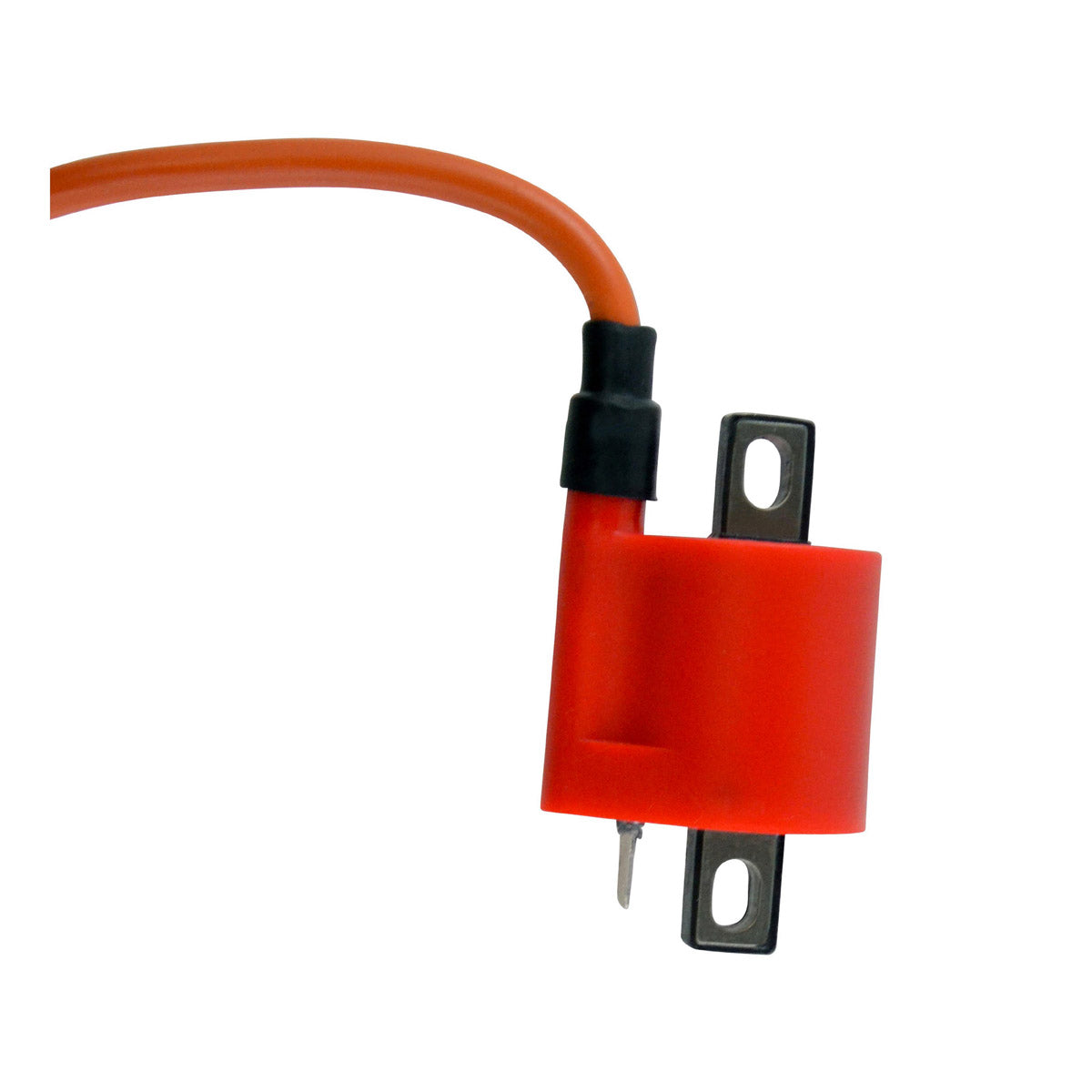

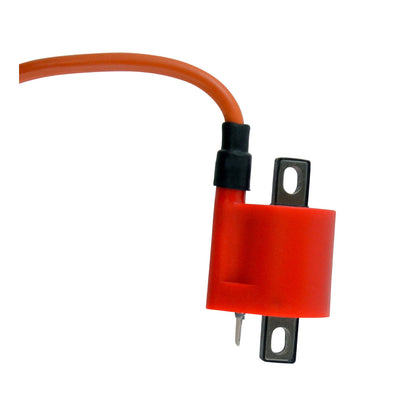

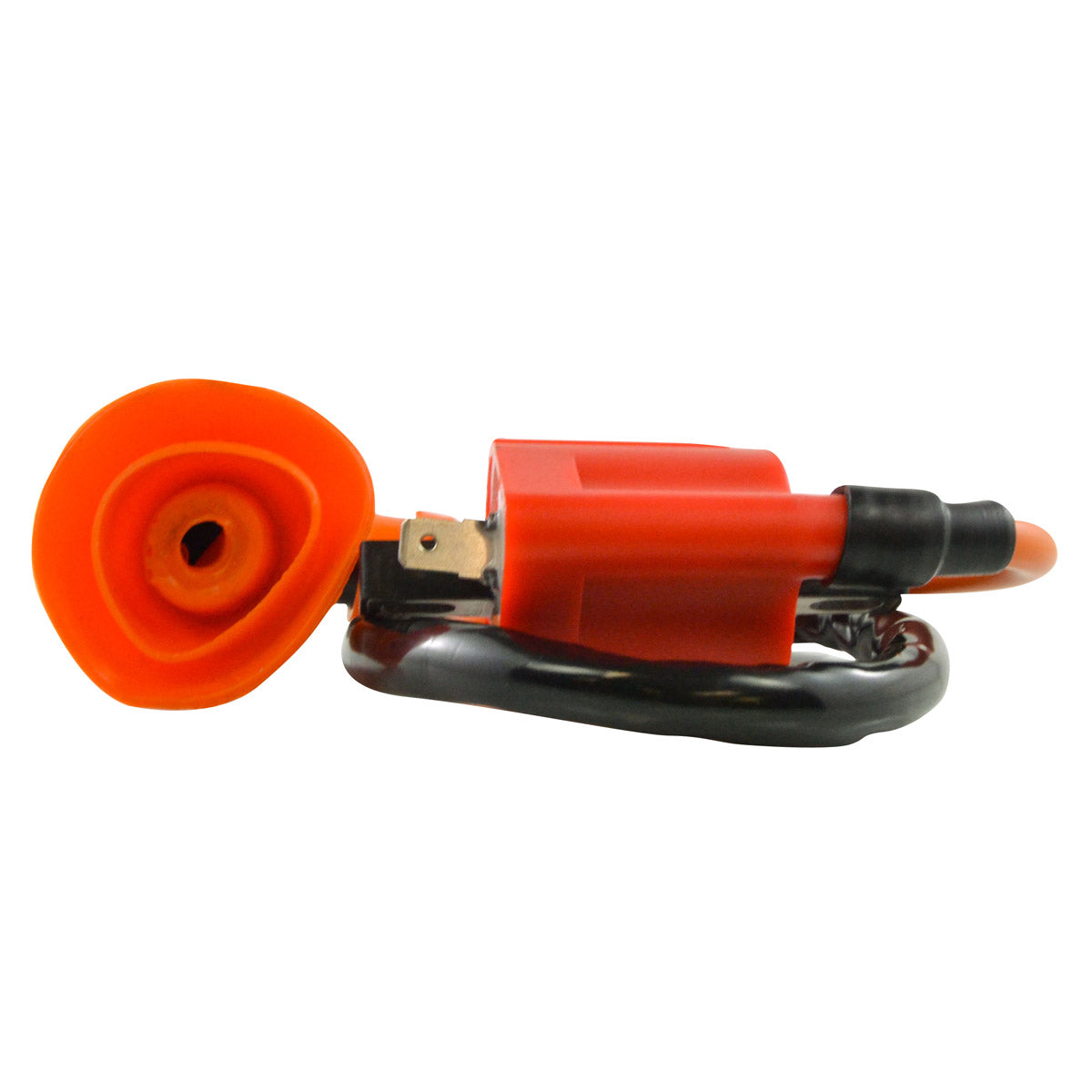

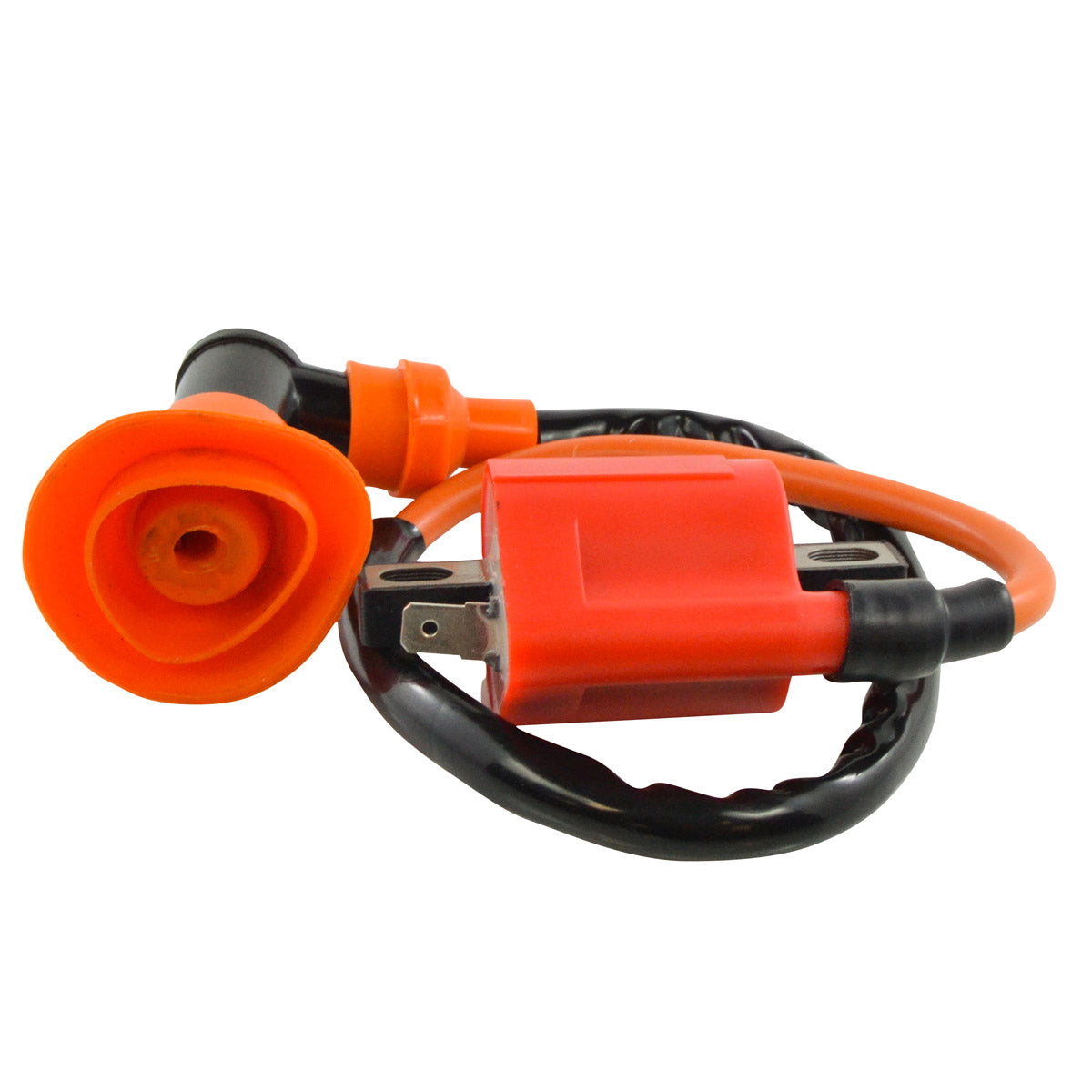

The RM06018 is a brand new external ignition coil built as a direct replacement to the original unit on the Polaris youth machines of the early 2000s - the Predator 50 and 90, the Scrambler 50 and 90, and the Sportsman 50, covering 2001 through 2006. The coil is the component that converts the low voltage pulse from the ignition system into the high voltage needed at the spark plug, and on machines of this age it is one of the most common reasons for a no-start or an intermittent misfire.

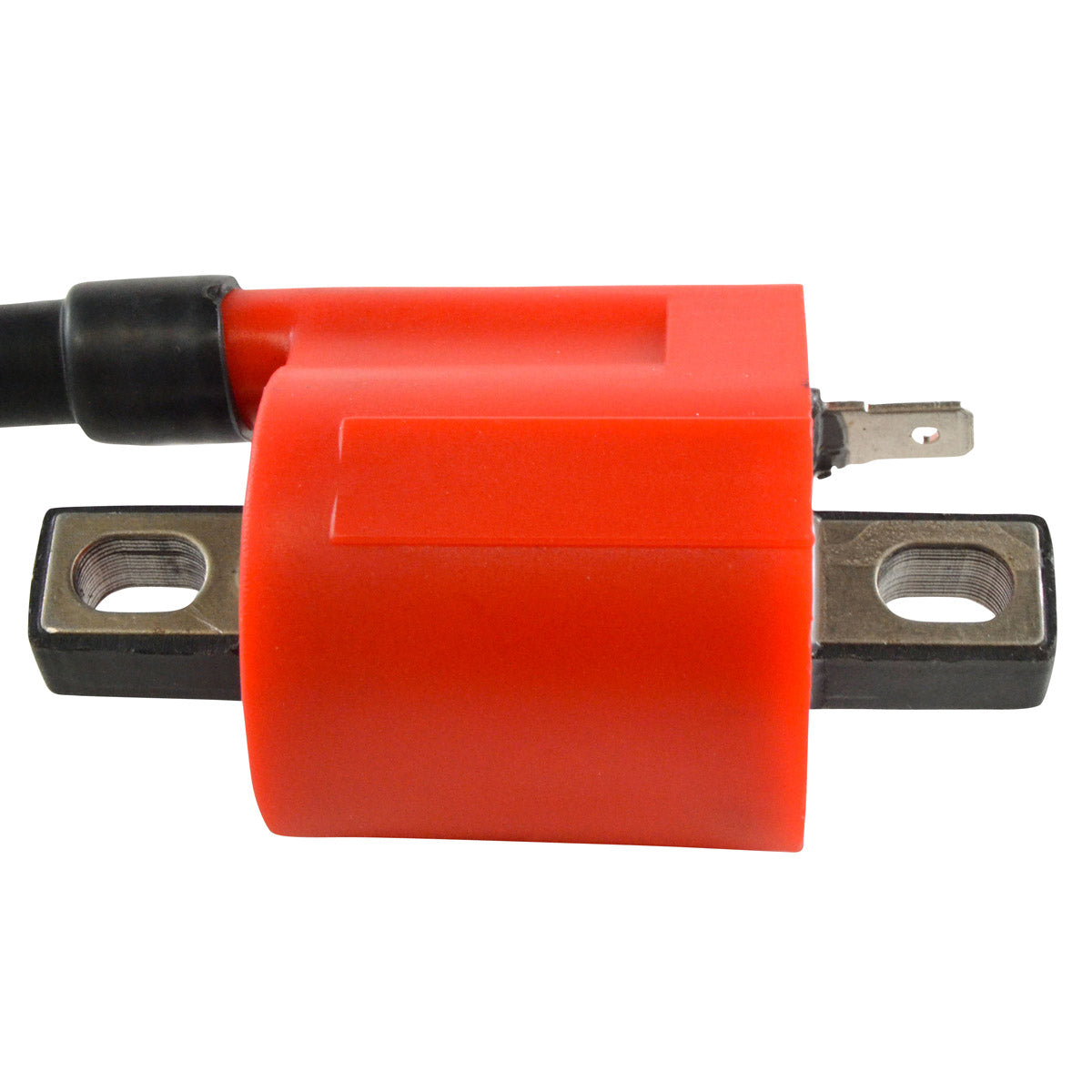

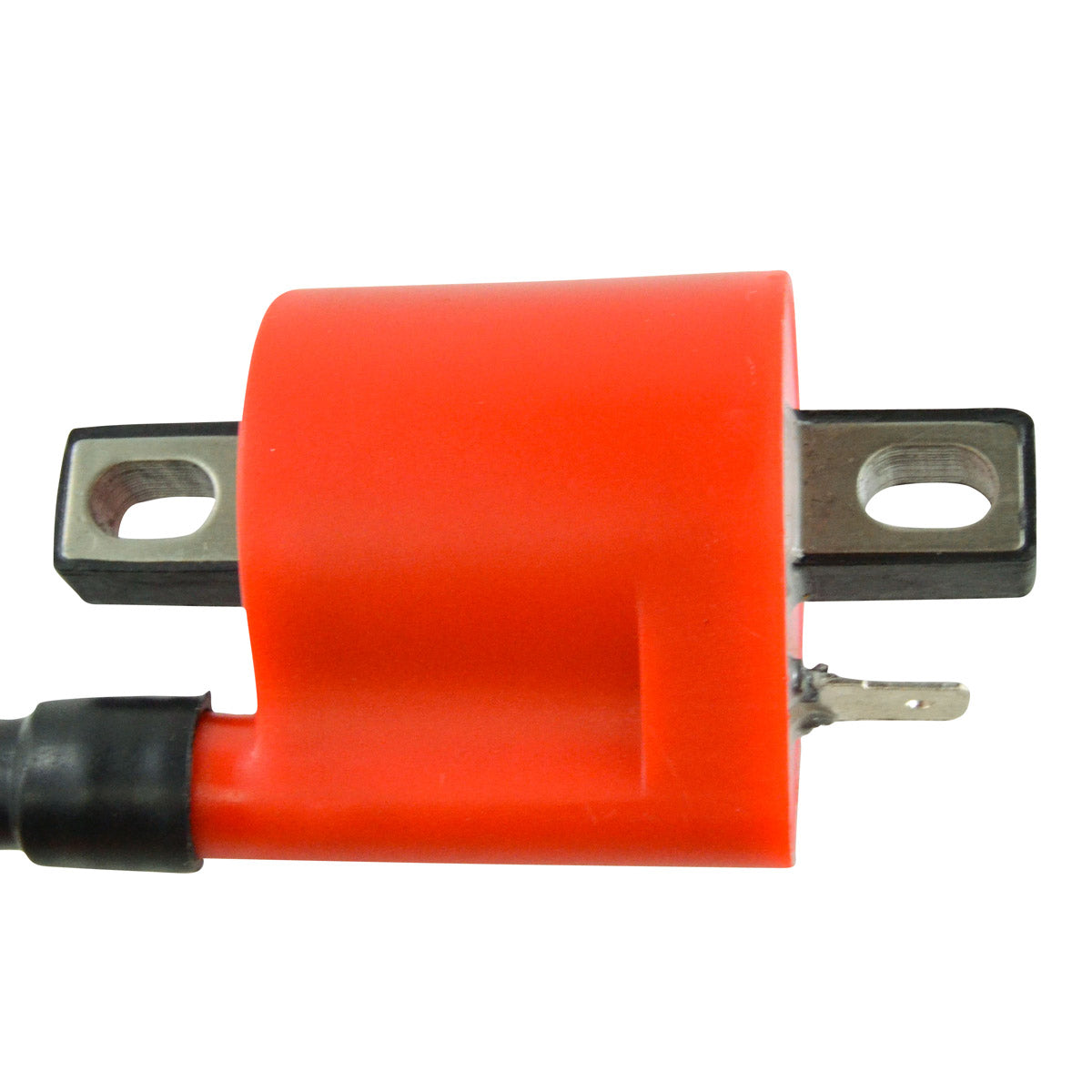

Installation is plug-and-play and direct fit. The mounting bolt pattern is 58 mm from centre hole to centre, matching the original bracket, and the high tension lead between the coil and the spark plug cap measures 455 mm so it routes exactly as the factory item did. The spark plug cap is supplied with the coil. Every unit is tested before it is despatched, so what arrives is a known good part rather than an unknown quantity from a breaker.
Key Features
- Brand new external ignition coil
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Spark plug cap included
- Tested before shipment
Technical Specs
| Specification |
Detail |
| Primary connection to ground |
0.4 ohms |
| Primary to spark plug cap |
5.40 k ohms |
| Coil resistance |
0.6 ohms |
| Bolt pattern centre hole to centre |
58 mm |
| Wire length between coil and spark plug cap |
455 mm |
| Part number |
RM06018 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Polaris Predator 50 |
2001-2006 |
| Polaris Predator 90 |
2001-2006 |
| Polaris Scrambler 50 |
2001-2006 |
| Polaris Scrambler 90 |
2001-2006 |
| Polaris Sportsman 50 |
2001-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 0450753 |
Polaris |
| 0450551 |
Polaris |
Frequently Asked Questions
Do I need to modify anything to fit this coil?
No. It is a plug-and-play, direct fit part. The bolt pattern is 58 mm centre to centre as per the original bracket and the 455 mm lead between coil and cap matches the factory routing, so the coil bolts on and connects up without alteration.
Is the spark plug cap supplied?
Yes. The coil comes complete with its spark plug cap already on the high tension lead. Nothing has to be taken off the old coil and re-used.
How do I know the coil is the problem and not the CDI or the stator?
Measure it. The primary to ground should read 0.4 ohms, the primary to spark plug cap 5.40 k ohms, and the coil resistance 0.6 ohms. An open circuit or a wildly different reading confirms a failed coil. If those readings are correct and the machine still has no spark, the fault lies further upstream in the stator, the CDI or the kill circuit.
Does this fit both the 50 cc and the 90 cc Polaris youth quads?
Yes. This coil is listed for the Predator 50 and 90, the Scrambler 50 and 90, and the Sportsman 50 from 2001 to 2006 - the same ignition coil was used across that youth model range.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
