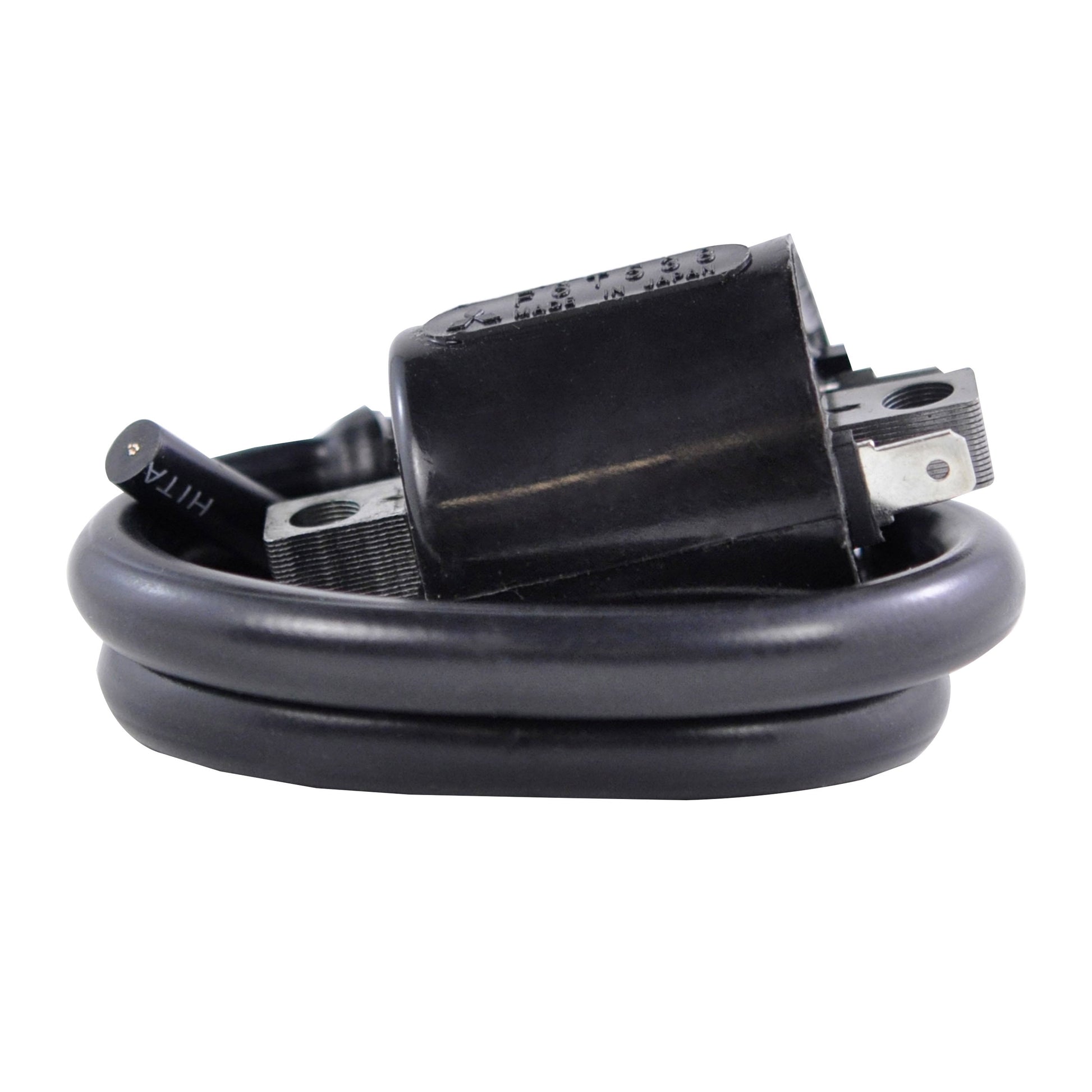

External Ignition Coil for Suzuki VStrom, Boulevard & SV650
Suzuki VStrom, Boulevard, SV650 & VZ800, 2003-2016
This external ignition coil is a direct replacement for the original unit fitted across a range of Suzuki VStrom, Boulevard, SV650 and VZ800 models, built to OEM specifications for correct fit, function and spark output.
It uses the standard 56mm bracket hole spacing and a 440mm wiring loom to reach the factory harness, giving a straightforward swap for a weak, cracked or failed original coil. As these external coils age, the potting compound and windings can break down, leading to a weak or intermittent spark that gets worse as the engine warms up.
Key Features
- Direct OEM fit across the listed Suzuki models
- 56mm bracket center-to-center mounting spacing

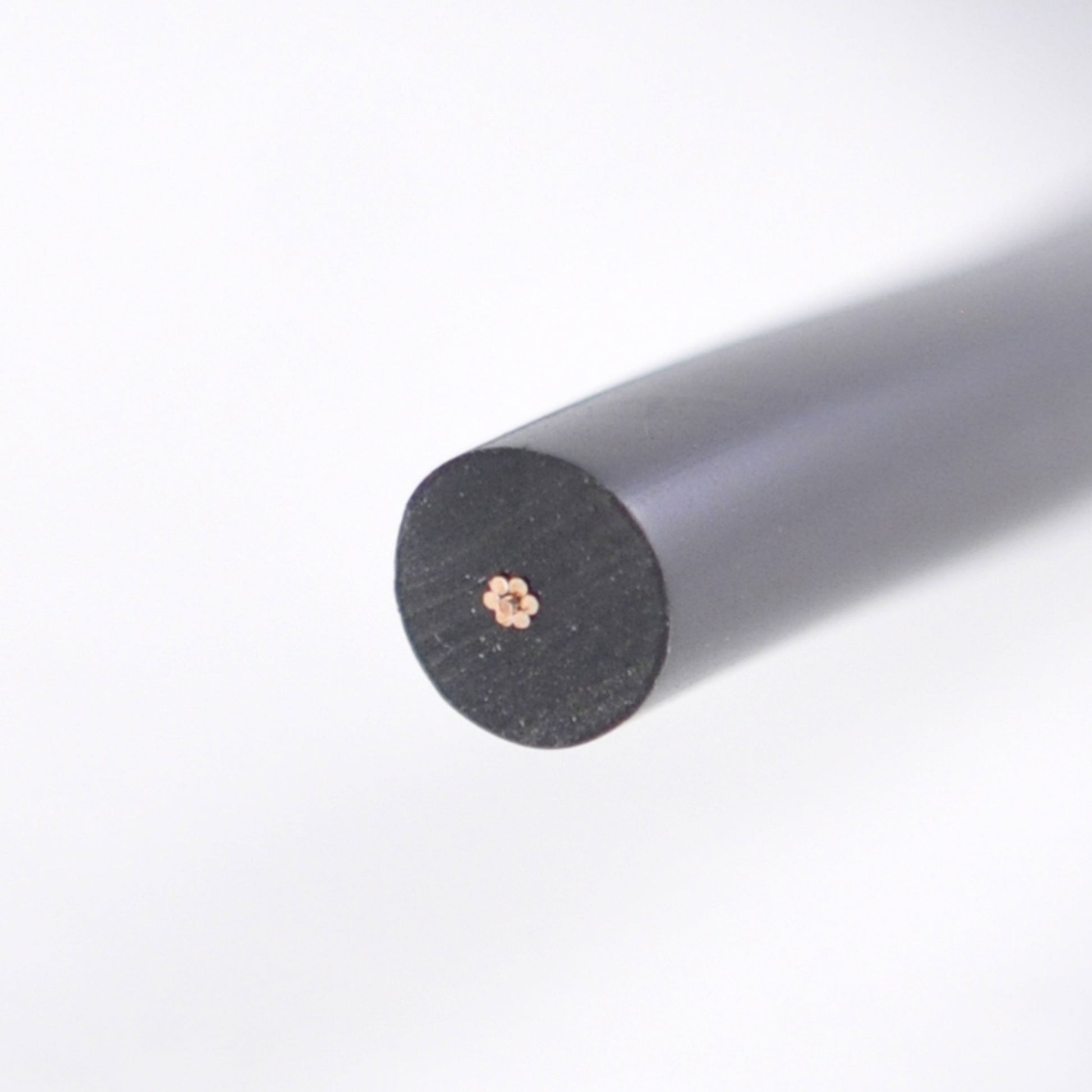

- 440mm wire length to reach the factory harness
- 3.7 ohm coil resistance
- Fits directly to the original mounting bracket
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Distance Between Fixation Holes | 56 mm |
| Wire Length | 440 mm |
| Resistance | 3.7 ohms |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Suzuki VStrom 650 | 2004-2006 |
| Suzuki VStrom 1000 | 2014-2016 |
| Suzuki Boulevard C50 | 2005-2015 |
| Suzuki Boulevard C50T | 2006-2015 |
| Suzuki Boulevard M50 | 2012 |
| Suzuki VZ 800 | 2005-2009 |
| Suzuki SV 650 & 650 S | 2003-2008 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 33420-17G00 | Suzuki |
| 33420-17GA0 | Suzuki |
| 33410-17G00 | Suzuki |
Frequently Asked Questions
Will this fit without modification?
Yes, it uses the standard 56mm bracket spacing and factory wiring connector for the listed models, so no cutting or splicing is required.
What's included?
One external ignition coil, ready to fit in place of the original unit.
How can I tell my old coil has failed?
Common symptoms include a weak or no spark, hard starting, misfiring, or the engine cutting out under load.
My model is not listed above - will this still fit?
Please check the OEM part numbers above against your original coil before ordering to confirm compatibility.
Do I need any special tools to fit this?
No special tools are needed - unbolt the original coil, disconnect the plug lead and wiring connector, and fit the replacement in the reverse order.
