Ignition Coil for Yamaha YFM 700, Suzuki GN125 & Kawasaki Ninja 1981-2024
Ignition Coil for Yamaha YFM 700, Suzuki GN125 & Kawasaki Ninja 1981-2024
SKU:RM06008
Free shipping over £150. Terms apply
Couldn't load pickup availability

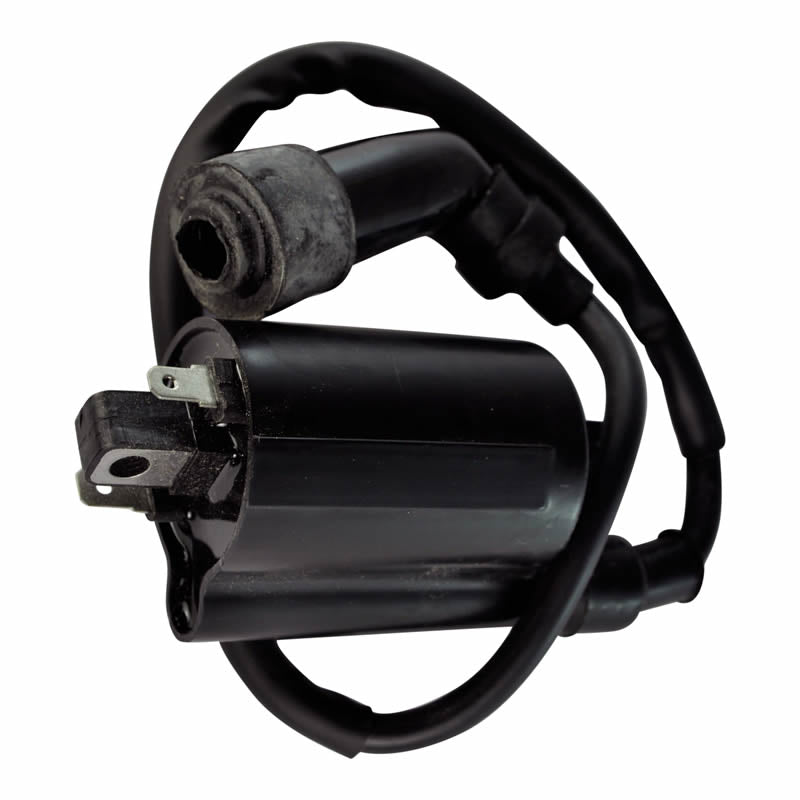

External Ignition Coil with Cap
Yamaha YFM 700 - Suzuki GN125 - Polaris Sportsman 110 - Kawasaki Ninja - Honda - 1981-2024 - RMSTATOR part RM06008

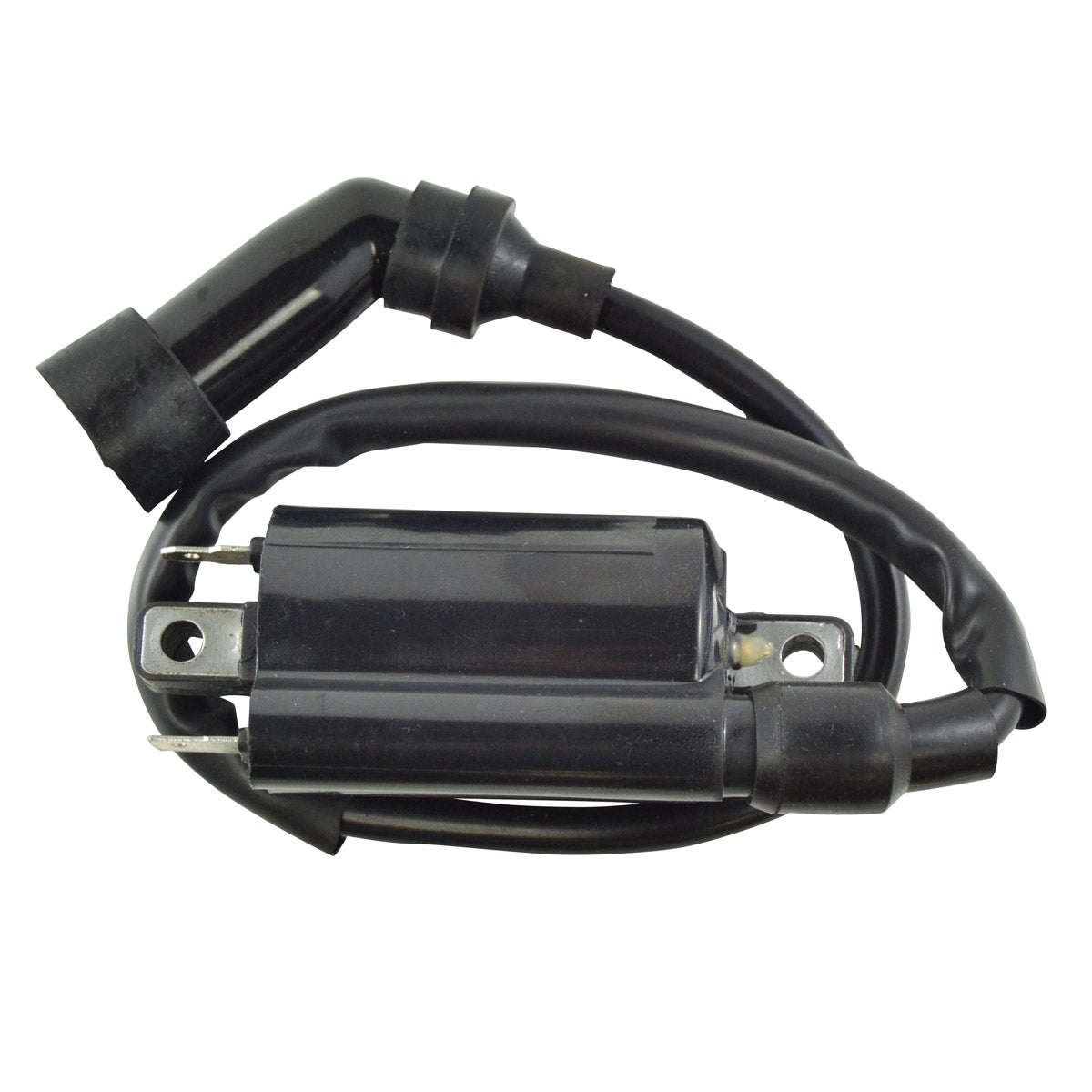

The RM06008 is a brand new aftermarket external ignition coil offered as a direct replacement to your original unit. It is one of the most widely shared coil designs in the powersports world, listed across the Yamaha YFM 700, the Suzuki GN125, the Polaris Sportsman 110, Kawasaki Ninja models and Honda applications, spanning model years from 1981 through to 2024. The coil steps the low voltage feed from the ignition system up to the high voltage the spark plug needs, and it is a component that degrades gradually rather than failing all at once.

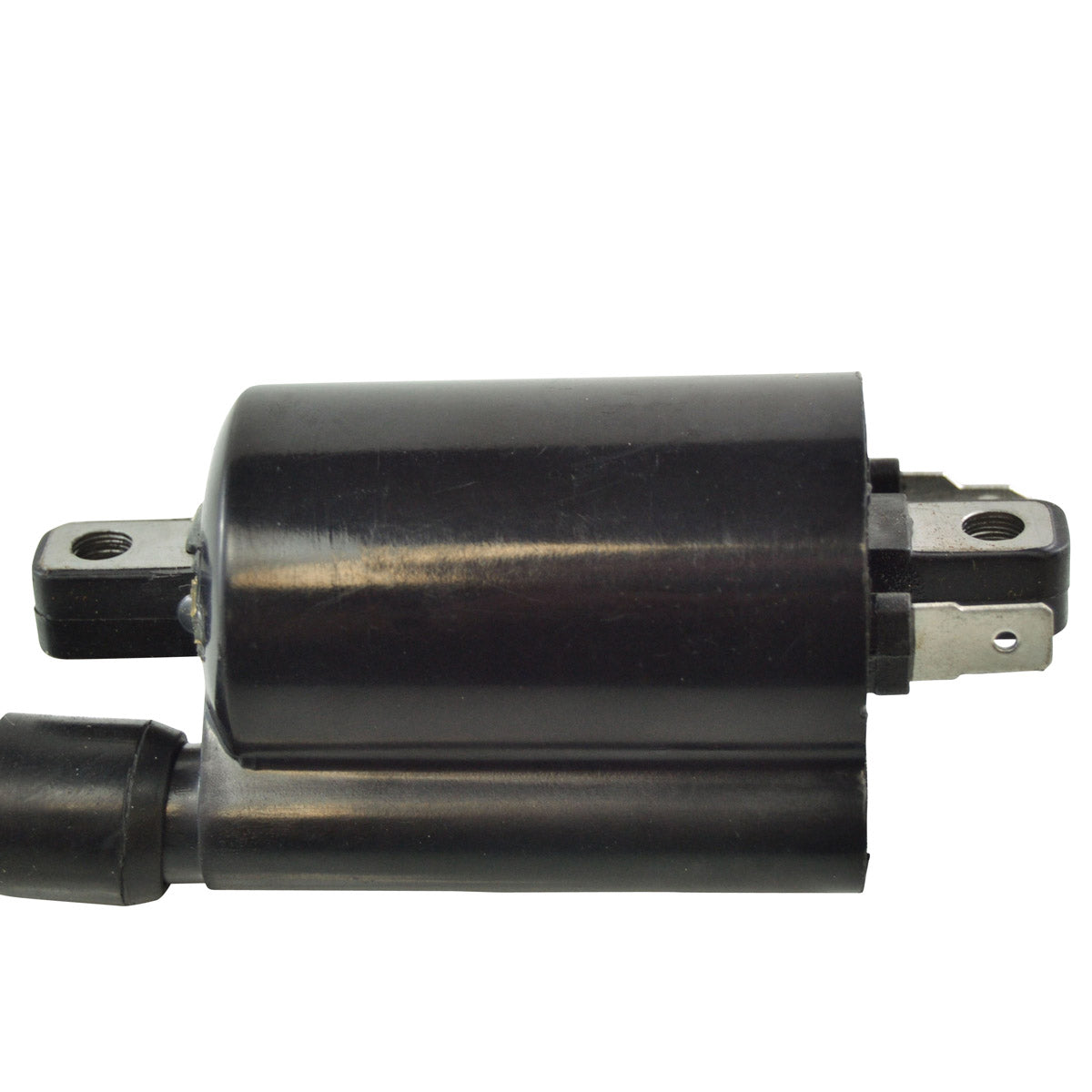

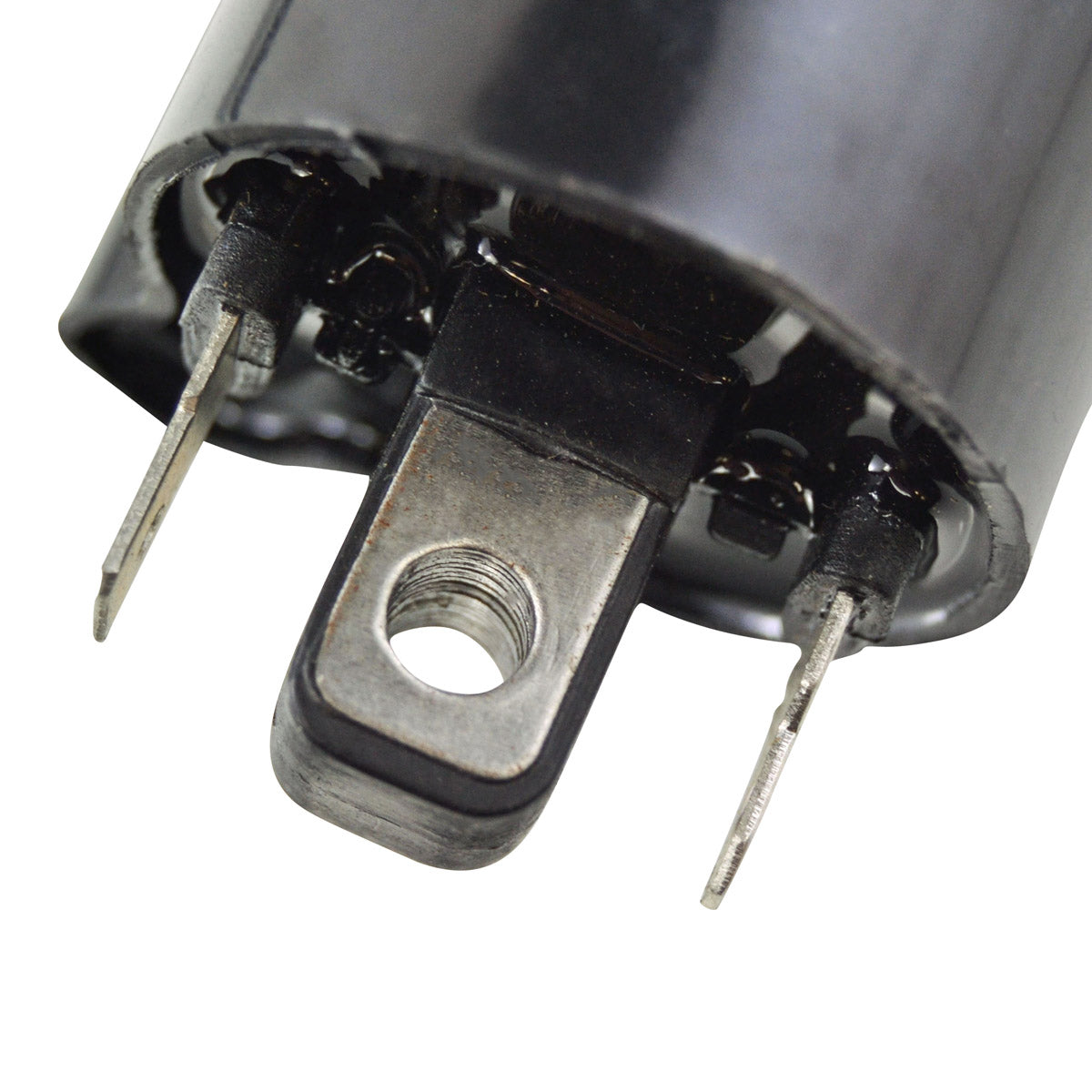

This is a plug-and-play, direct fit part built on the highest grade of lamination materials, with the spark plug cap already included. The body measures 100 mm long by 40 mm wide by 40 mm high, and it mounts on fixation holes 80 mm centre to centre - the pattern used by the original bracket. The lead runs 420 mm, long enough to route as the factory item did without extending anything. All products shipped are tested before dispatch.
Key Features
- Brand new aftermarket external ignition coil
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Spark plug cap included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Width | 40 mm |
| Length | 100 mm |
| Height | 40 mm |
| Wires length | 420 mm |
| Fixation holes centre to centre | 80 mm |
| Primary resistance | 4 ohms +/-20% |
| Secondary resistance | 14k ohms +/-20% |
| Part number | RM06008 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha YFM 700 | 1981-2024 |
| Suzuki GN125 | 1981-2024 |
| Polaris Sportsman 110 | 1981-2024 |
| Kawasaki Ninja | 1981-2024 |
| Honda | 1981-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 33410-05350 | Suzuki |
| 33410-48E00 | Suzuki |
| 33410-14F00 | Suzuki |
| 3TB-82310-00-00 | Yamaha |
| 3SX-82310-00-00 | Yamaha |
| 2UJ-82310-00-00 | Yamaha |
| 2UJ-82310-01-00 | Yamaha |
| 2UJ-82320-00-00 | Yamaha |
| 4DN-82320-00-00 | Yamaha |
| 4DN-82320-01-00 | Yamaha |
| 30500-MC7-000 | Honda |
| 30501-MA1-003 | Honda |
| 30502-MA1-003 | Honda |
| 30502-449-830 | Honda |
| 21121-1163 | Kawasaki |
| 0455029 | Polaris |
Frequently Asked Questions
Will this coil fit without modification?
Yes. It is a plug-and-play, direct fit replacement. The fixation holes are 80 mm centre to centre, matching the original mounting, and the 420 mm lead reaches the plug on the listed applications, so nothing needs drilling, extending or splicing.

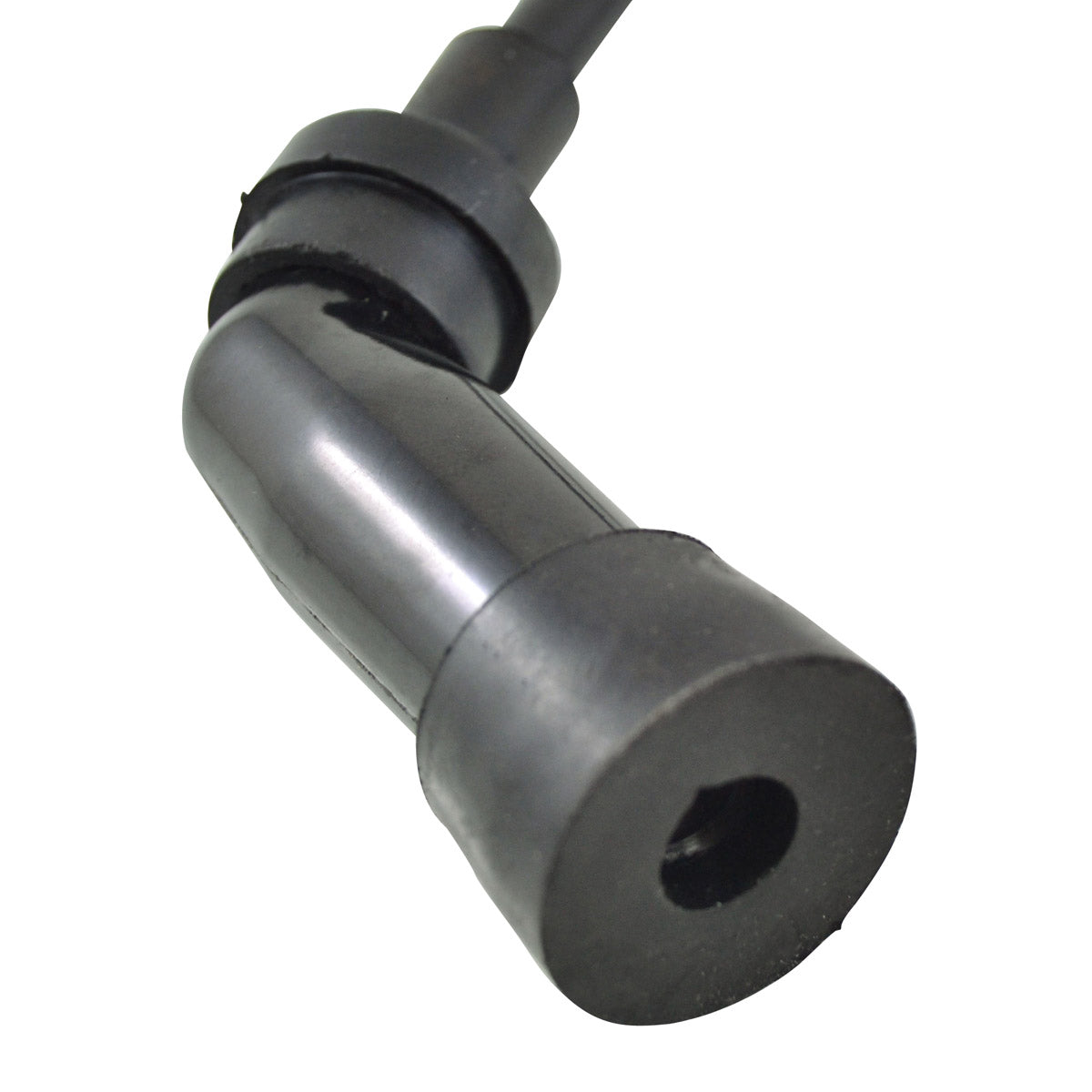

Is the spark plug cap included?
Yes. The spark plug cap is supplied with the coil, already fitted to the high tension lead.
What are the signs of a failed ignition coil?
Hard starting when cold, a misfire that comes in under load, an engine that dies once hot and starts again after cooling, and in some cases no spark at all. A multimeter gives the definitive answer: the primary should read 4 ohms and the secondary 14k ohms, both within plus or minus 20 percent. Readings that are open circuit or well outside those bands confirm the coil has failed internally.
This coil is listed for five different makes - how do I confirm it suits my machine?
Read the number stamped on the coil currently on your machine and match it against the cross reference table above. This particular coil design was shared very widely across Suzuki, Yamaha, Honda, Kawasaki and Polaris applications, so the number on your own unit is the reliable check.
