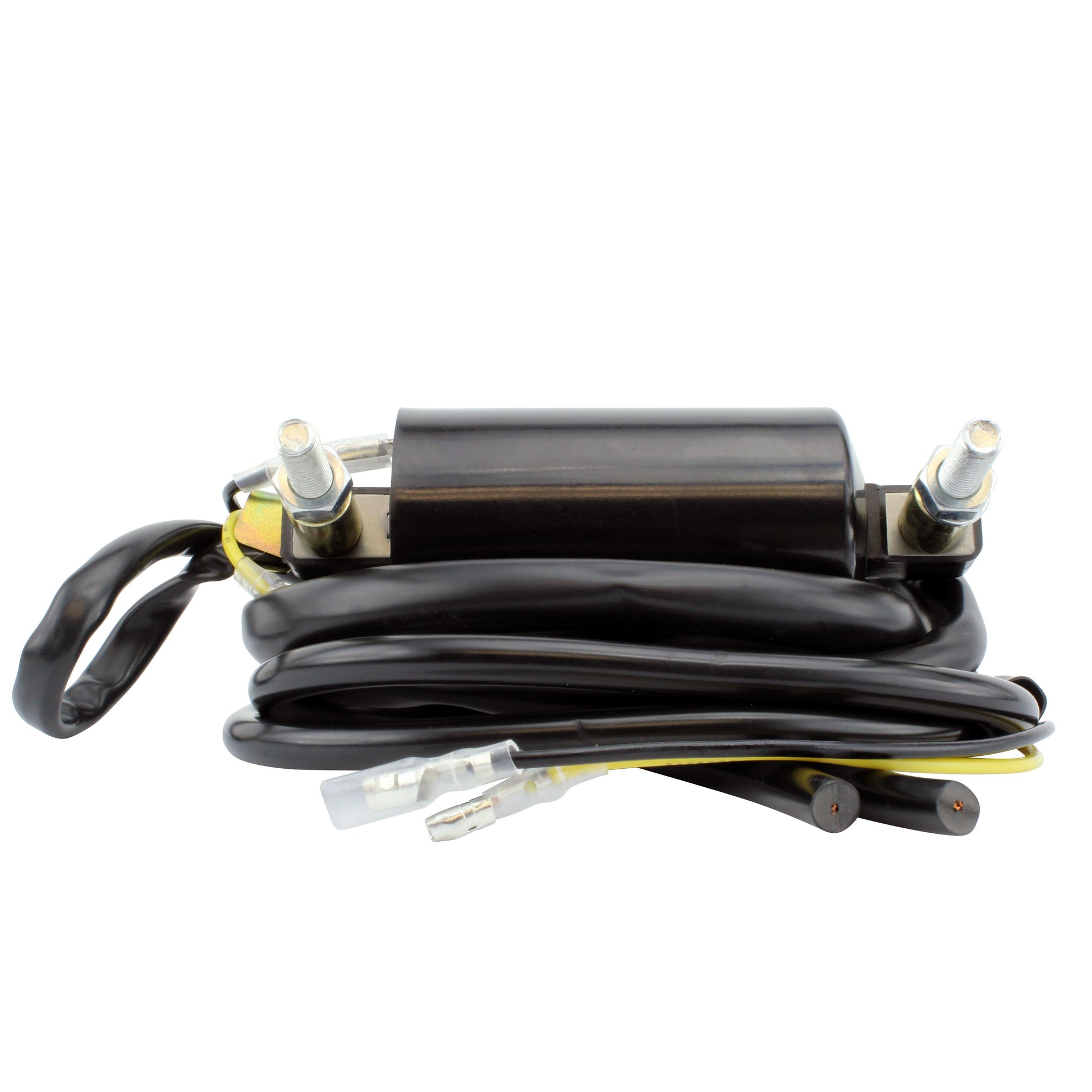

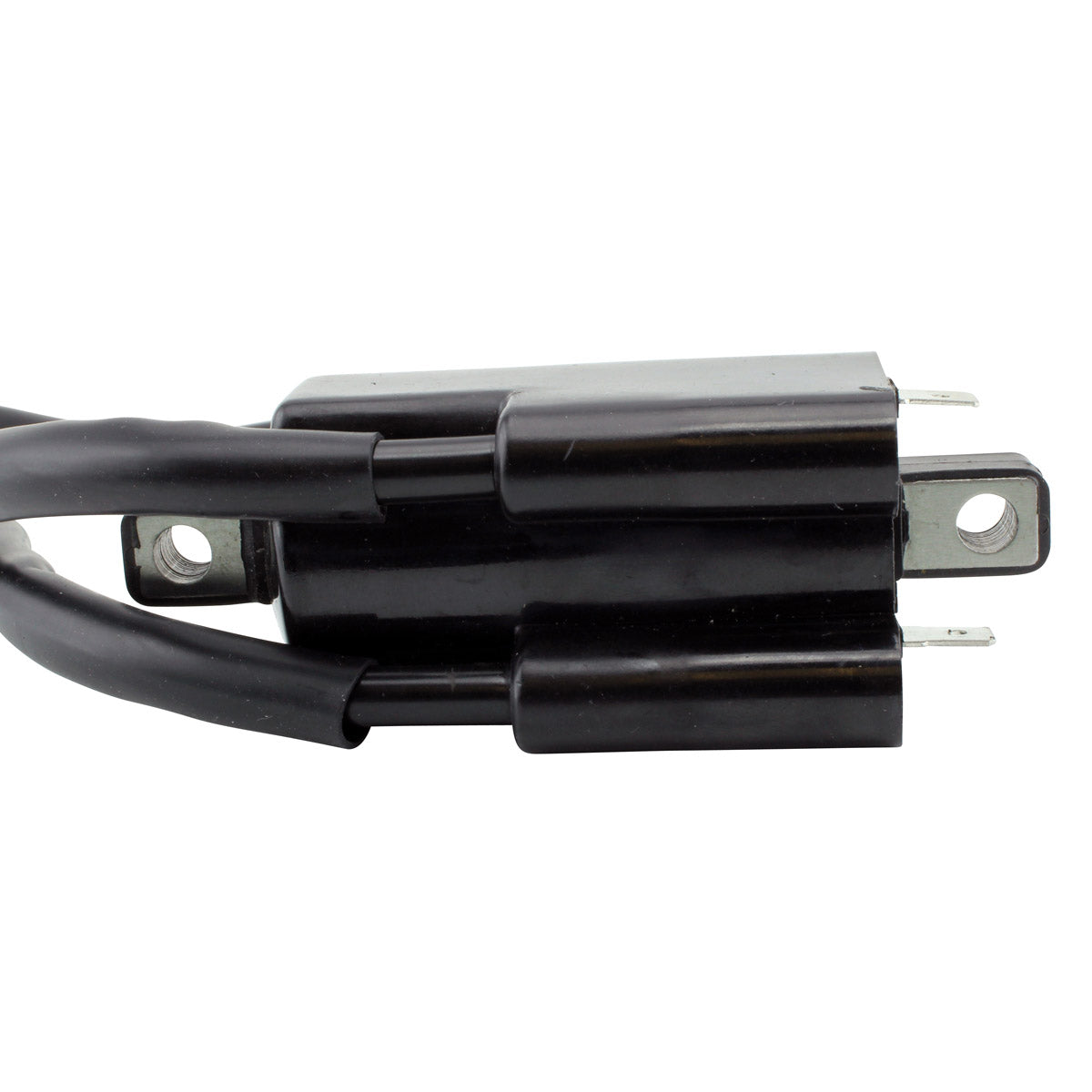

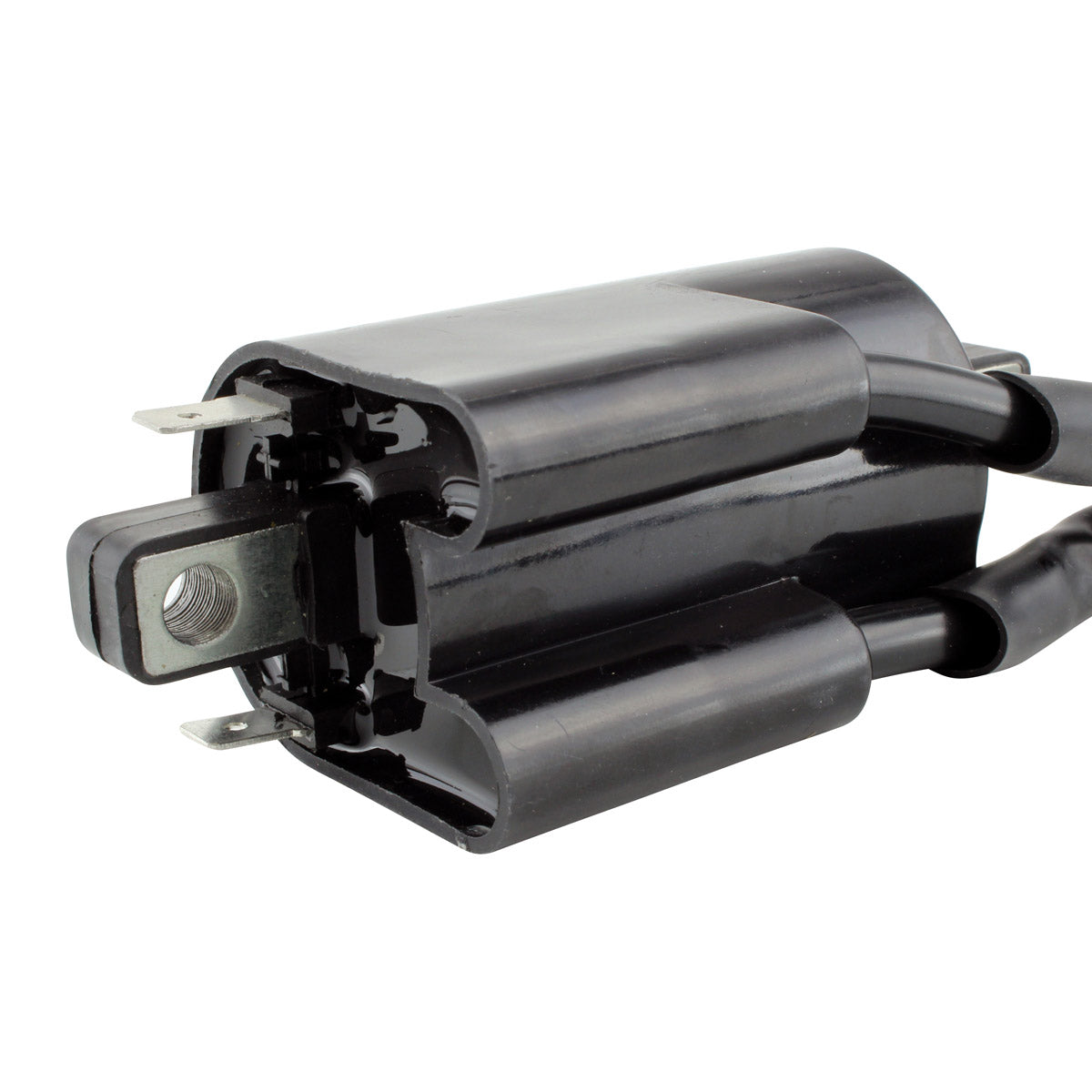

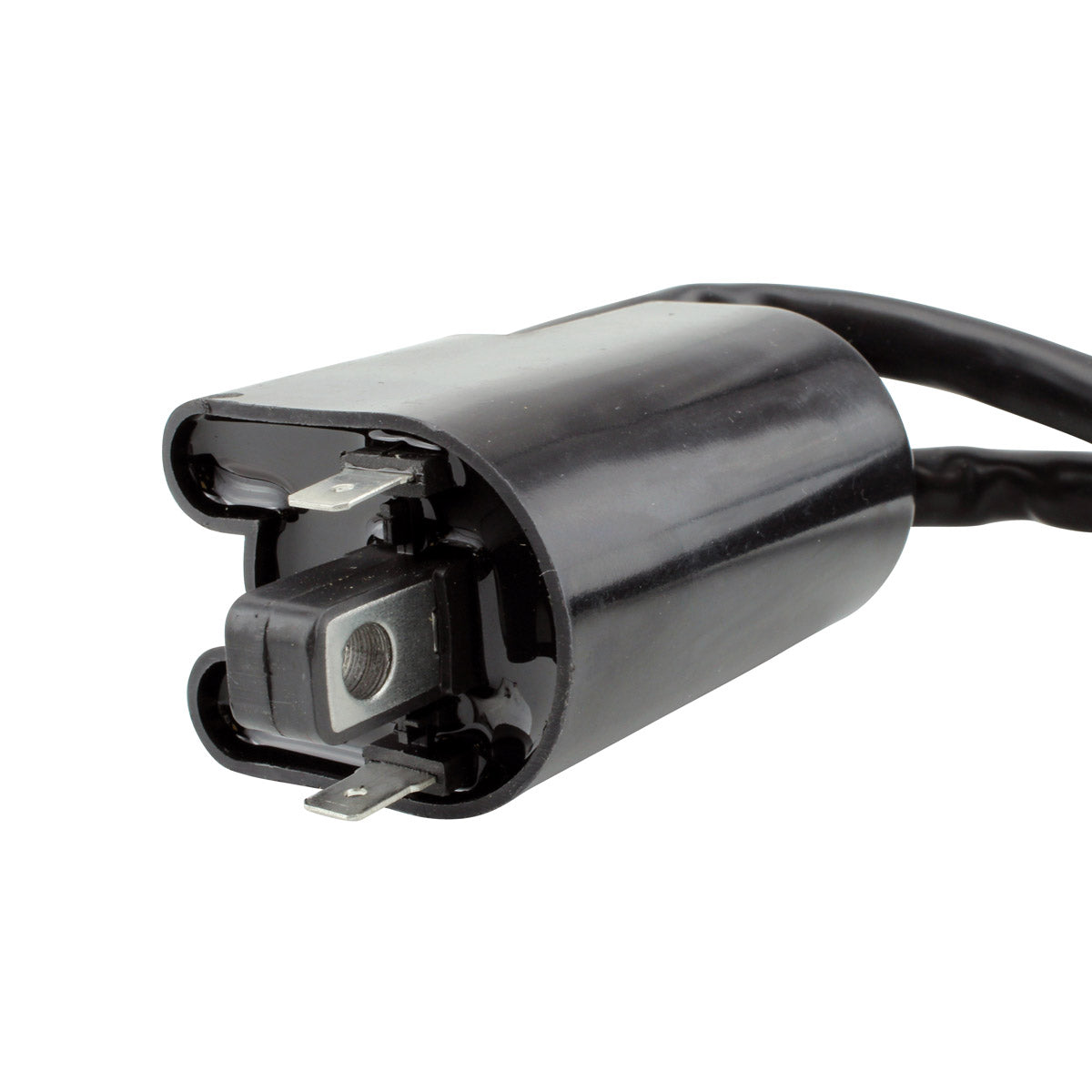

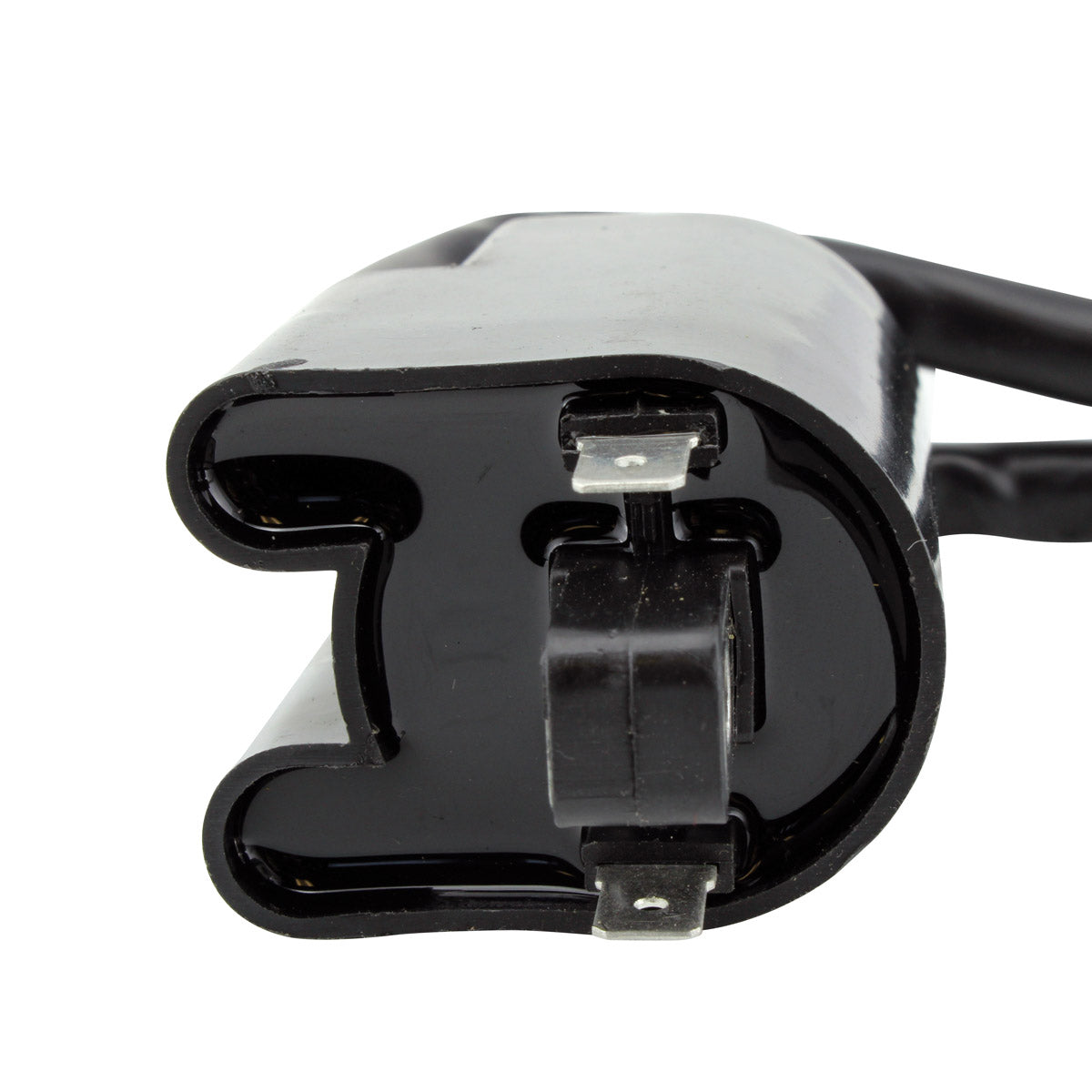

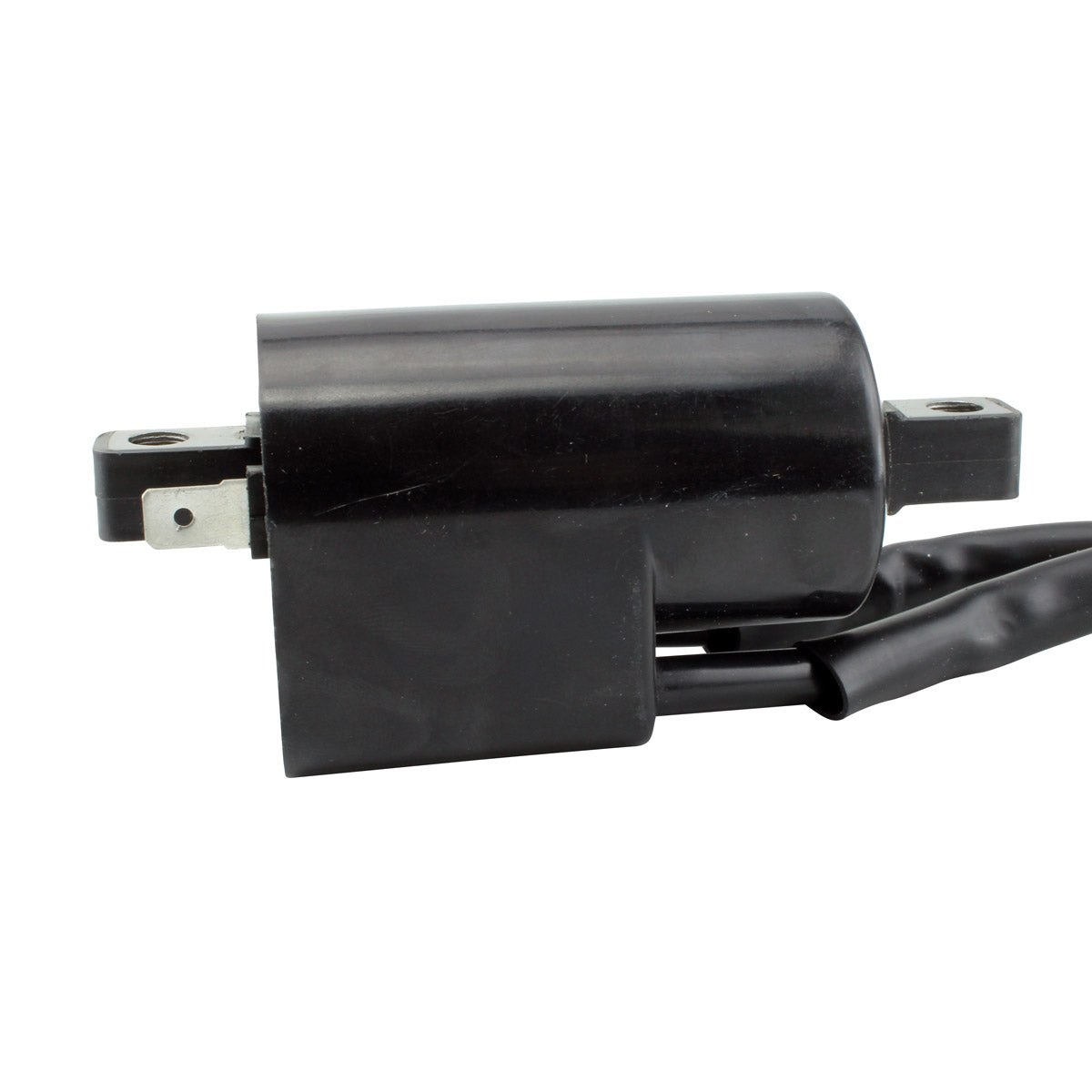

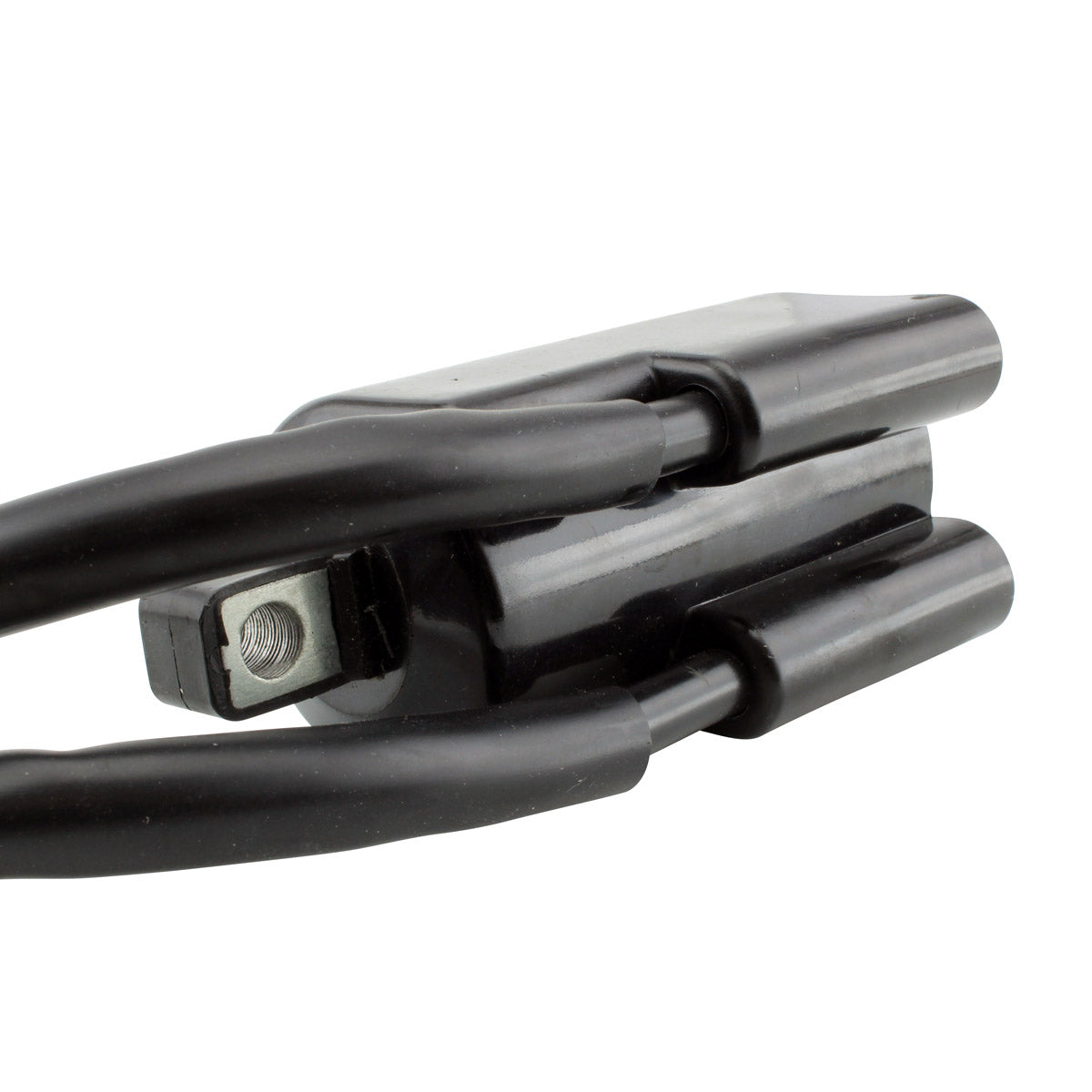

This is a brand new aftermarket external ignition coil, part number RMS060-105994, supplied as a direct replacement for the original unit fitted to the Yamaha YFZ 350, Suzuki GSF 600, GSF 1200 and RF 900, and Kawasaki KR1 across model years 1980 to 2011. The ignition coil takes the low voltage feed from the ignition system and steps it up to the high voltage the spark plug needs, so a weak or breaking down coil shows up immediately in how the engine starts and pulls.

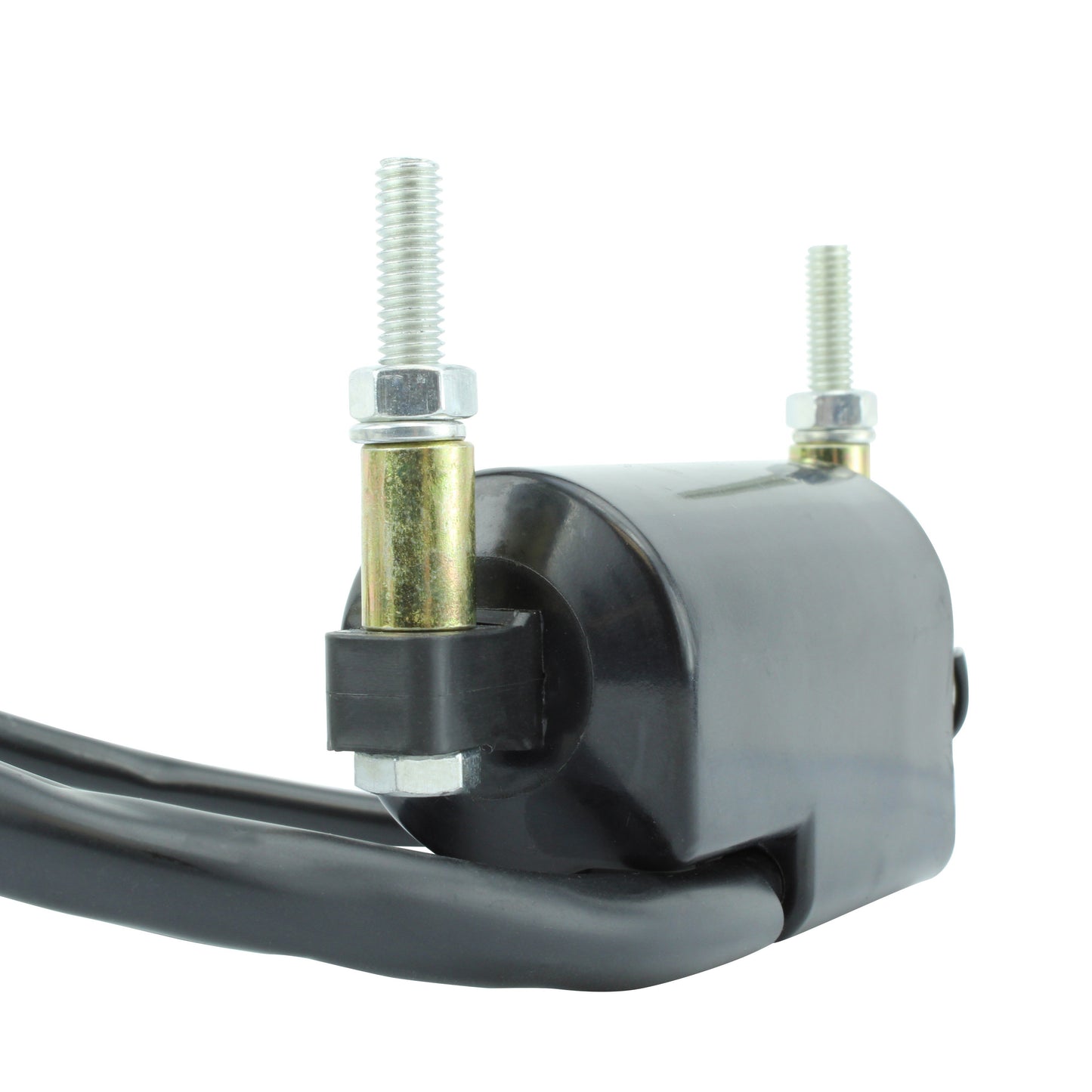

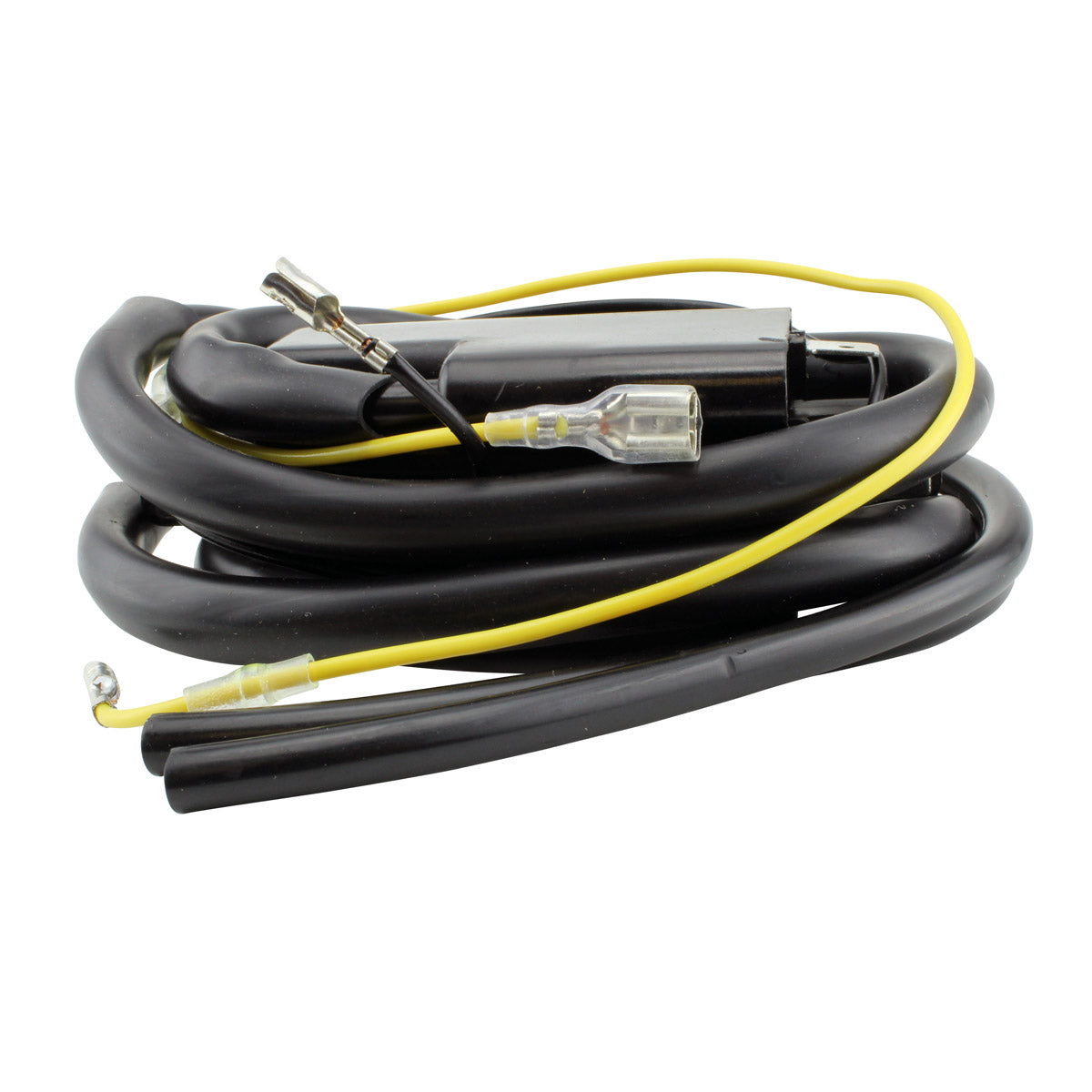

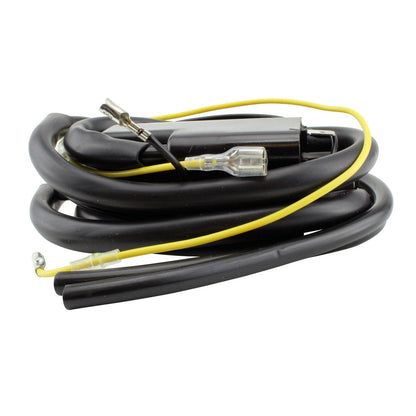

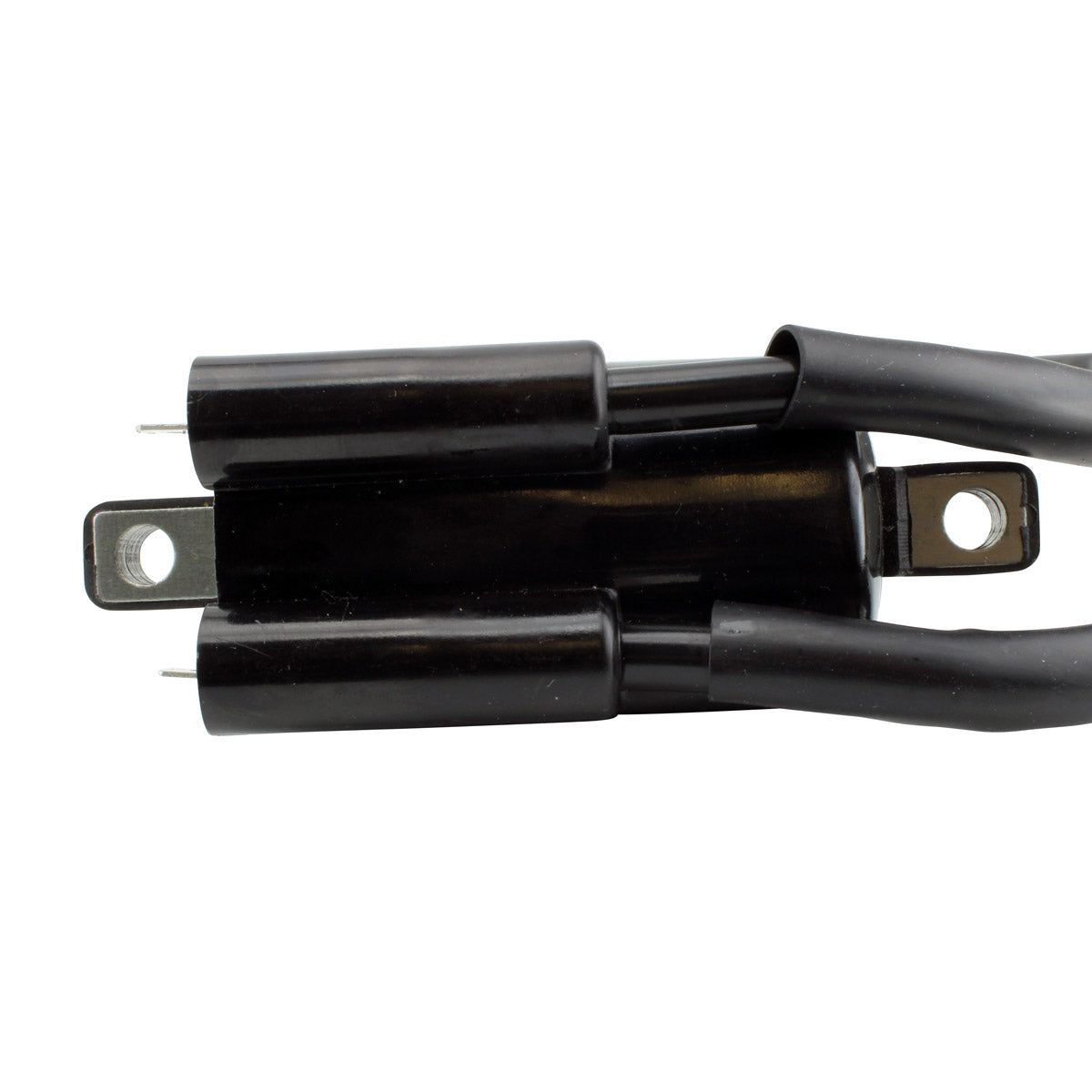

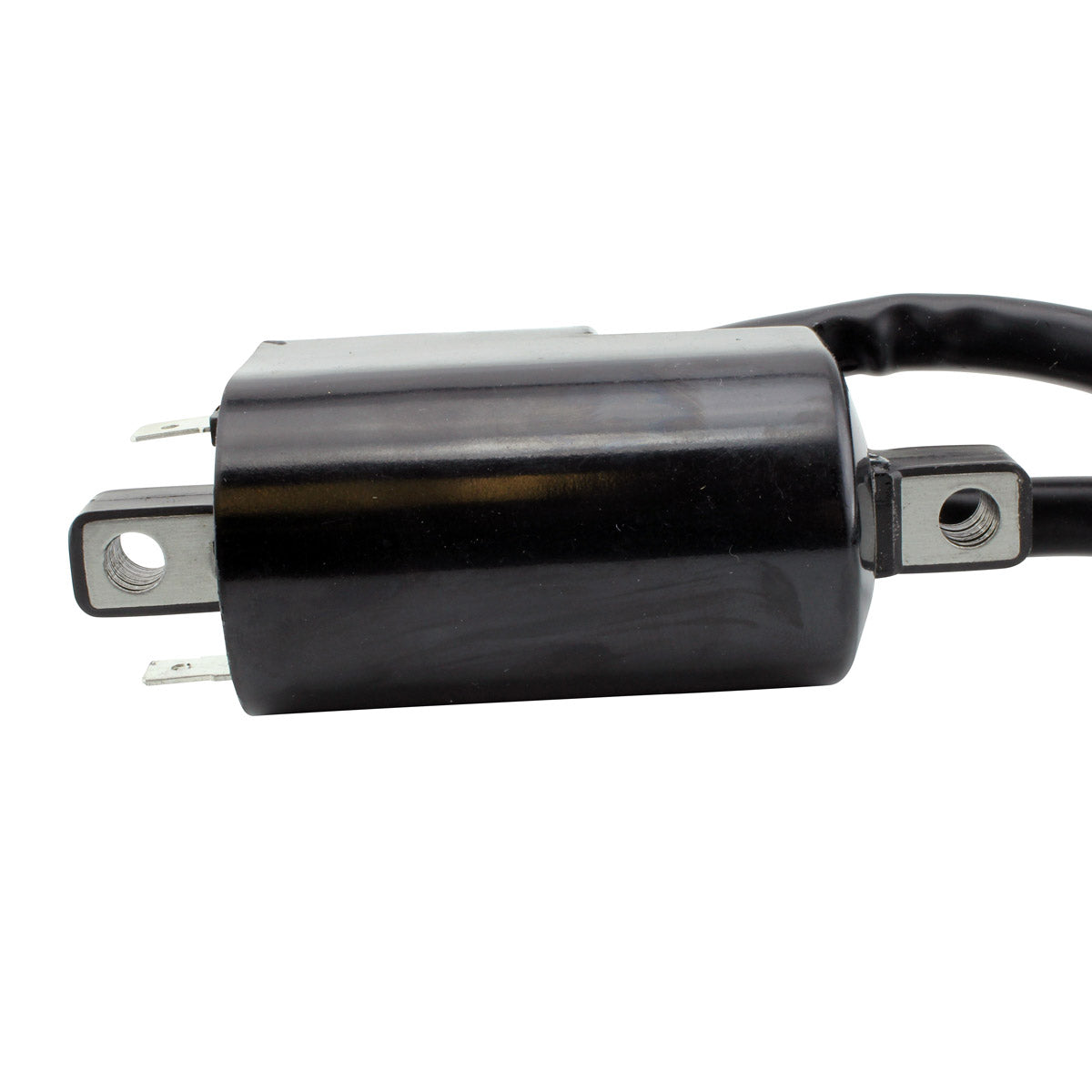

The coil measures 65 mm long, 40 mm wide and 50 mm high, with 600 mm wire leads and fixing holes 90 mm apart centre to centre, and a rated resistance of 1.7 ohms. Installation is plug-and-play and direct fit, so the original mounting points and wiring are used as they are. All products shipped are tested.
Key Features
- Brand new aftermarket external ignition coil
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Rated at 1.7 ohms resistance
- 600 mm wire leads and 90 mm centre-to-centre fixing holes
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS060-105994 |
| Width |
40 mm |
| Length |
65 mm |
| Height |
50 mm |
| Wires length |
600 mm |
| Fixation holes centre to centre |
90 mm |
| Resistance |
1.7 ohms |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha YFZ 350 |
1980-2011 |
| Suzuki GSF 600 |
1980-2011 |
| Suzuki GSF 1200 |
1980-2011 |
| Suzuki RF 900 |
1980-2011 |
| Kawasaki KR1 |
1980-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 33410-33220, 33410-03F00, 33410-10D00, 33410-21E00, 33410-21E01, 33410-26D00, 33410-26E00, 33410-26E01, 33410-32X50, 33410-48B00 |
Suzuki |
| 33420-03F00, 33420-19C00, 33420-19C01, 33420-21E00, 33420-21E01, 33420-26D00, 33420-26E00, 33420-26E01, 33420-31F00, 33420-34C00, 33420-48B00 |
Suzuki |
| 21121-1164, 21121-1175 |
Kawasaki |
| 1KT-82310-50-00, 2GU-82310-51-00, 2YK-82310-00-00, 3FV-82310-00-00, 3LC-82310-00-00, 3LC-82310-01-00, 3XC-82310-01-00 |
Yamaha |
Frequently Asked Questions
Does this need any modification to fit?
No. It is a plug-and-play, direct fit replacement for the original coil, using the same mounting holes at 90 mm centres and the original wiring.
What is included?

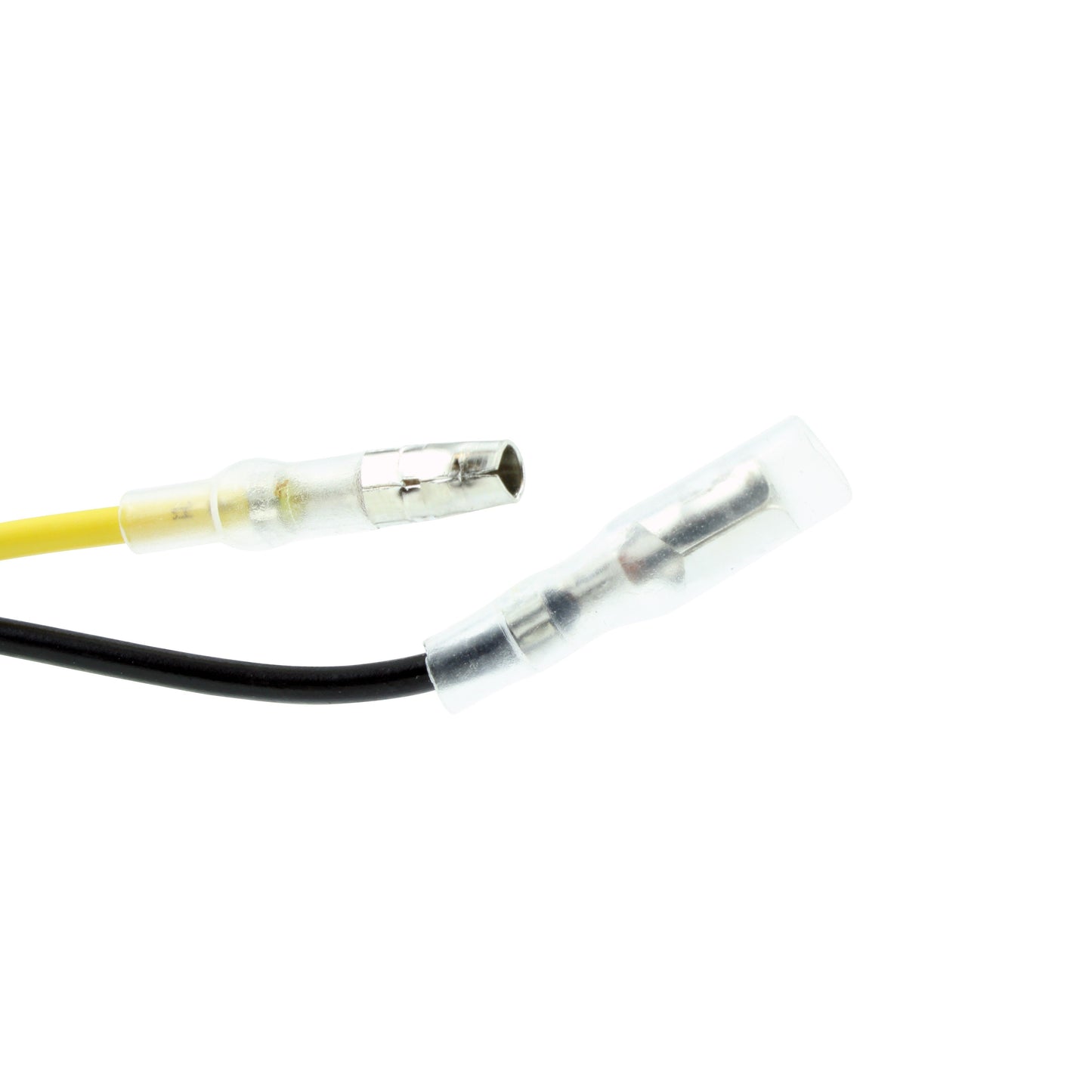

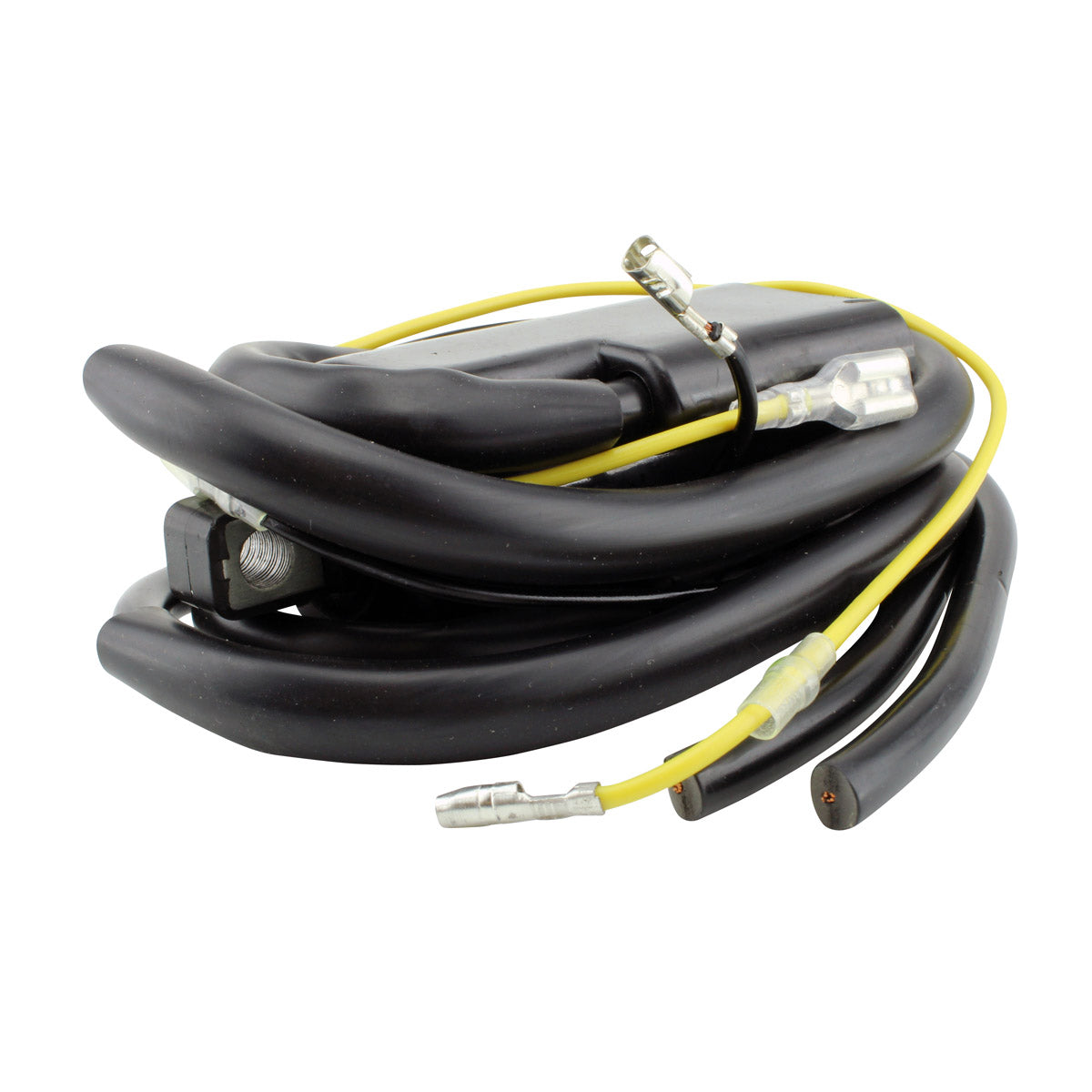

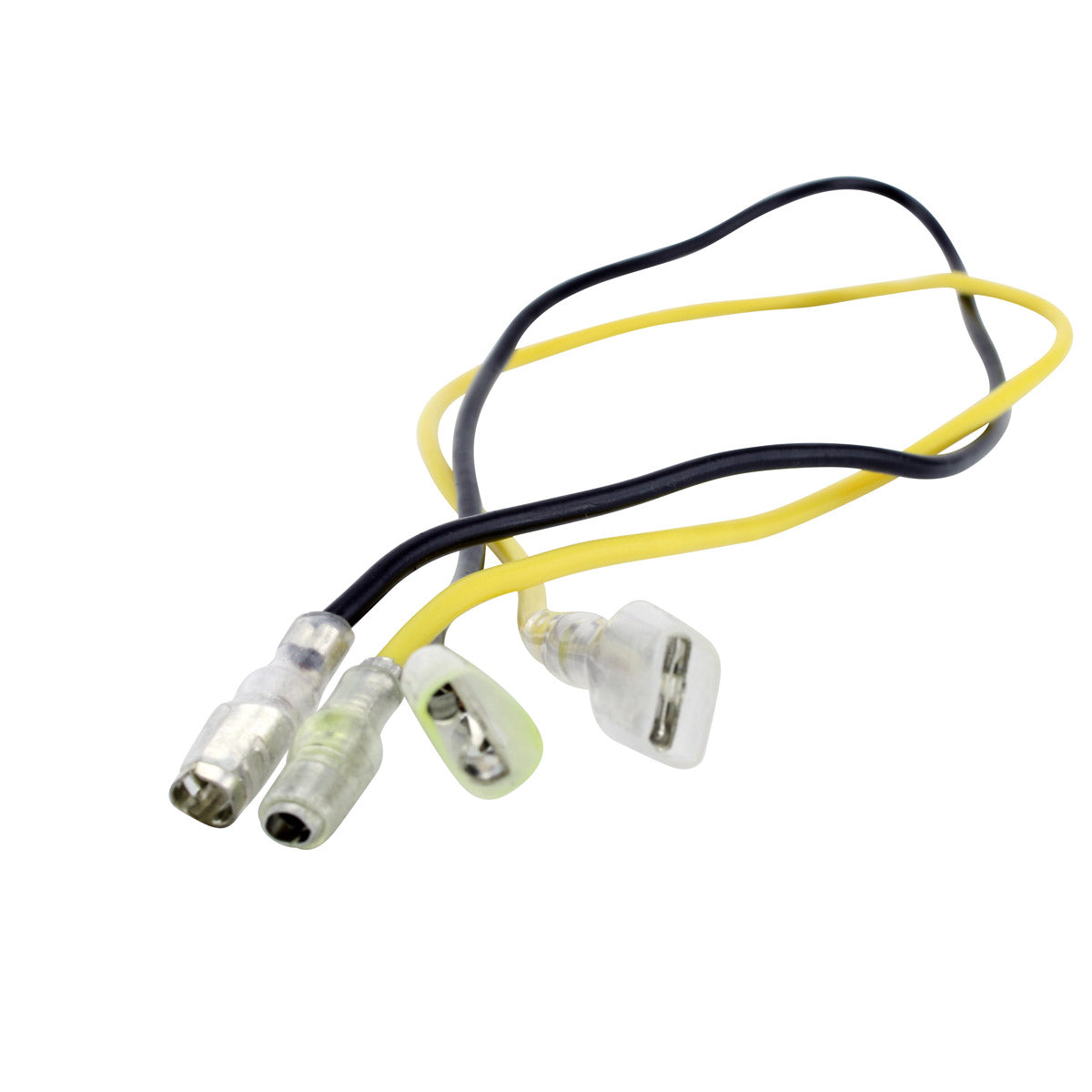

One external ignition coil with 600 mm wire leads. No additional hardware is listed for this part.
How do I know my old ignition coil has failed?
Common signs are a weak or intermittent spark, hard starting when the engine is hot, misfiring, and a coil whose measured resistance has drifted well away from the rated 1.7 ohms.
How do I confirm this is the correct coil?
Check the number stamped on your original coil against the cross reference table above, then compare the physical size - 65 mm long, 40 mm wide, 50 mm high - and the 90 mm centre-to-centre fixing holes.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
