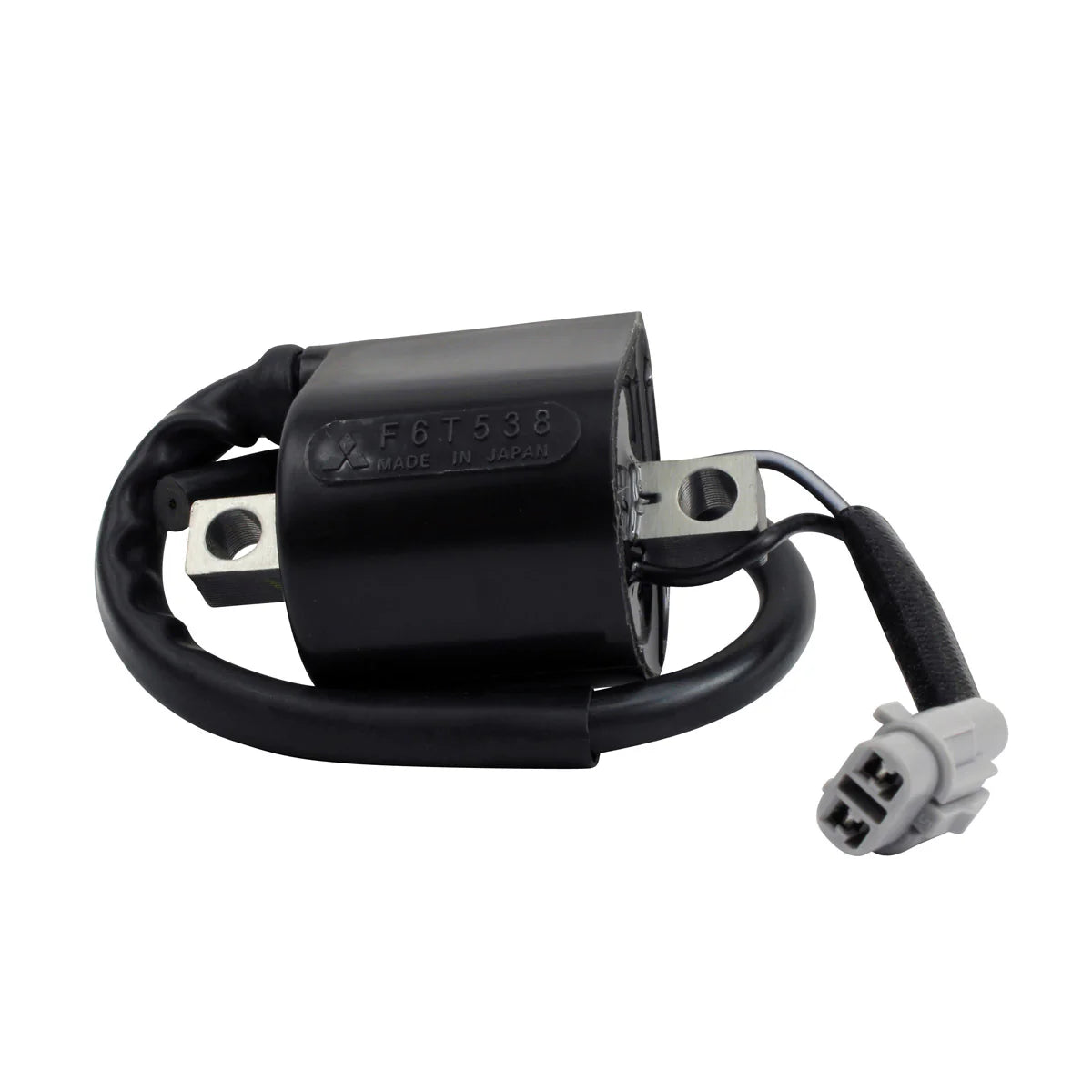

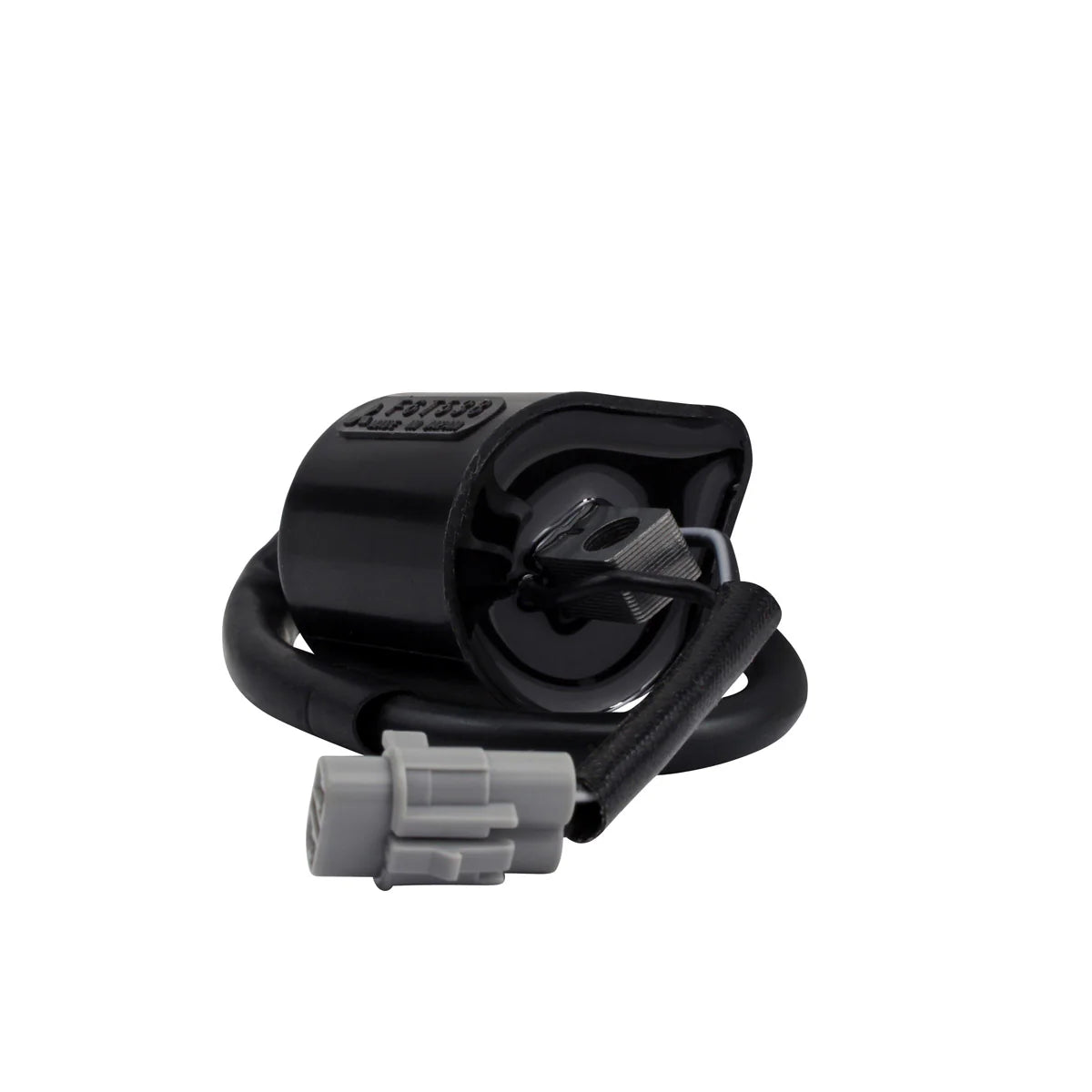

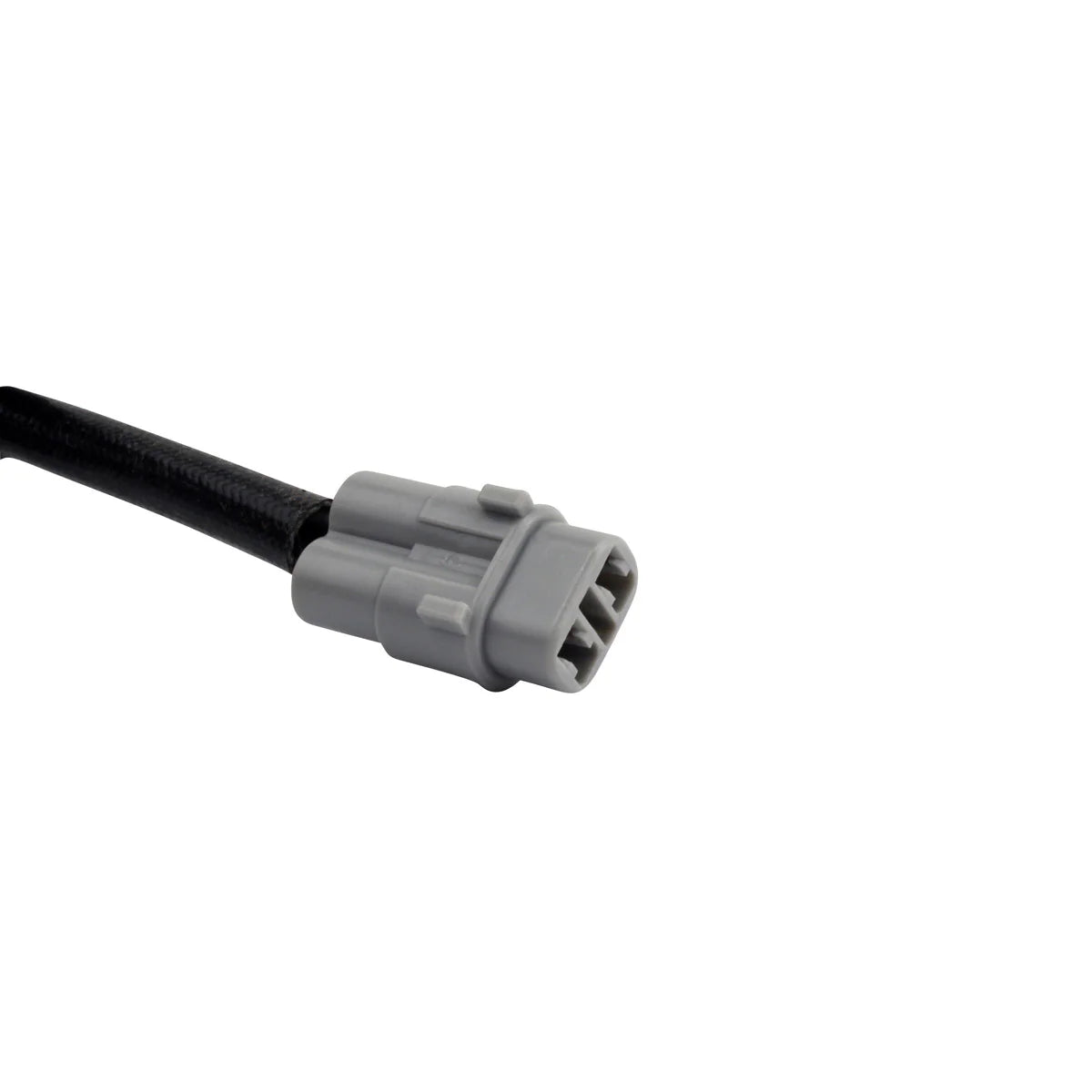

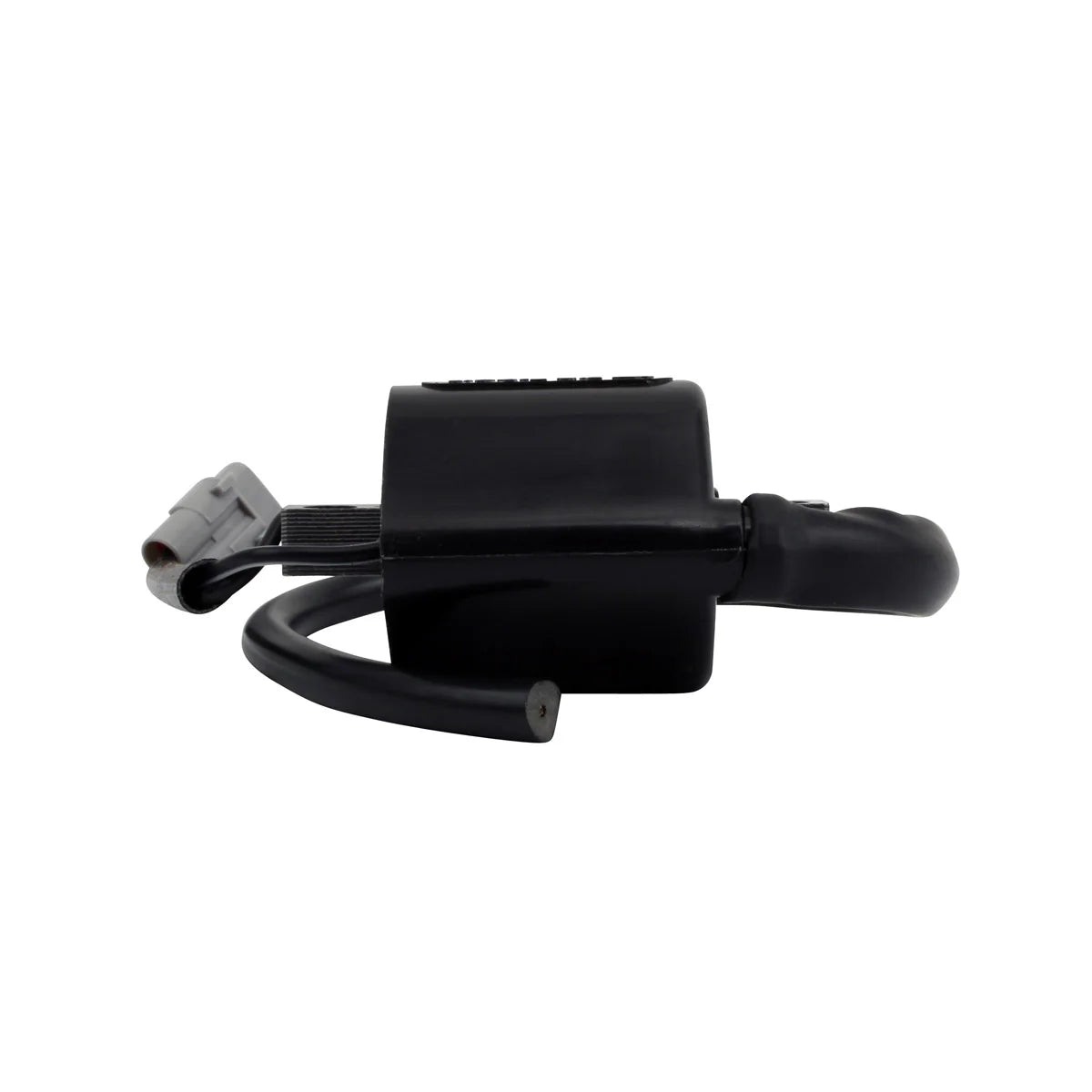

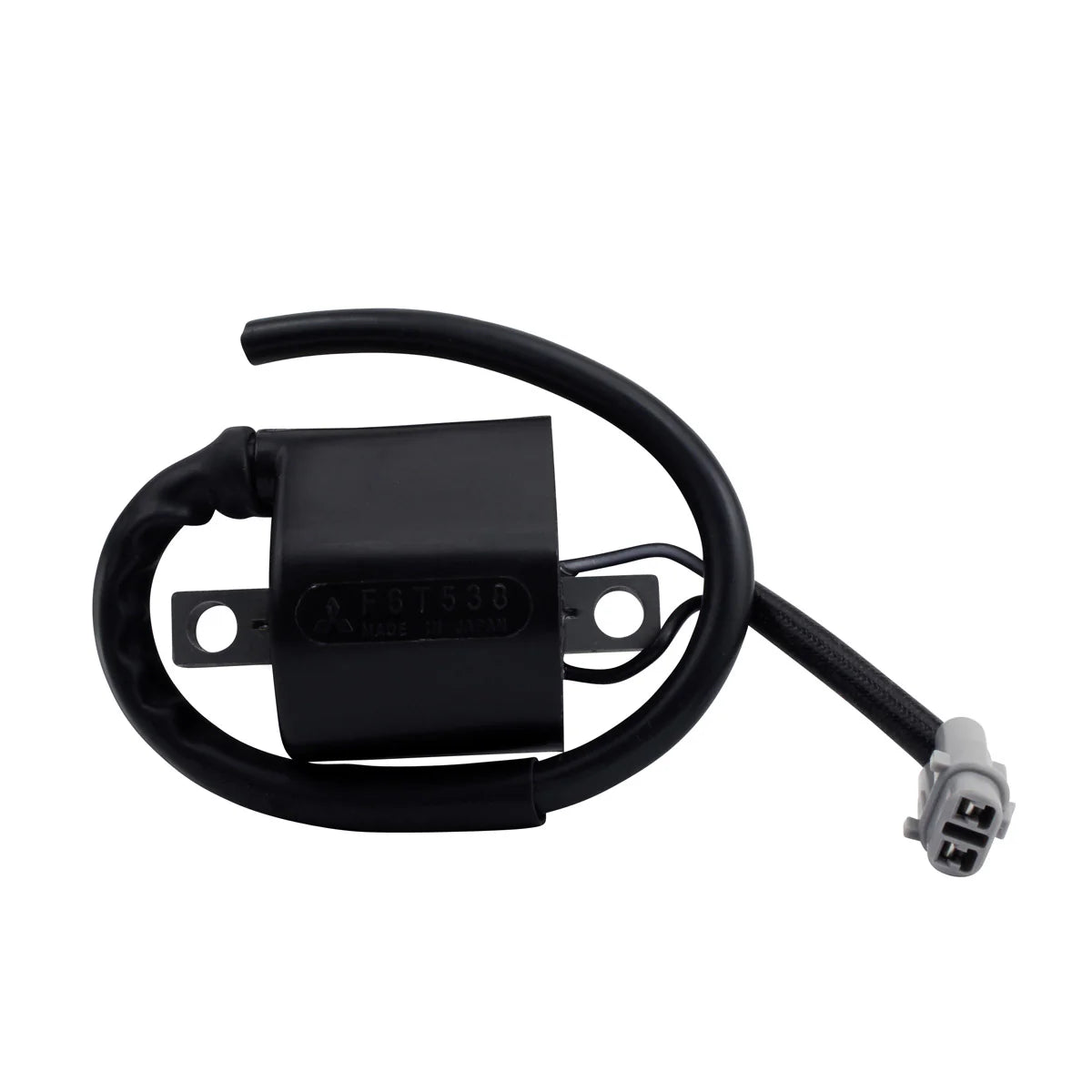

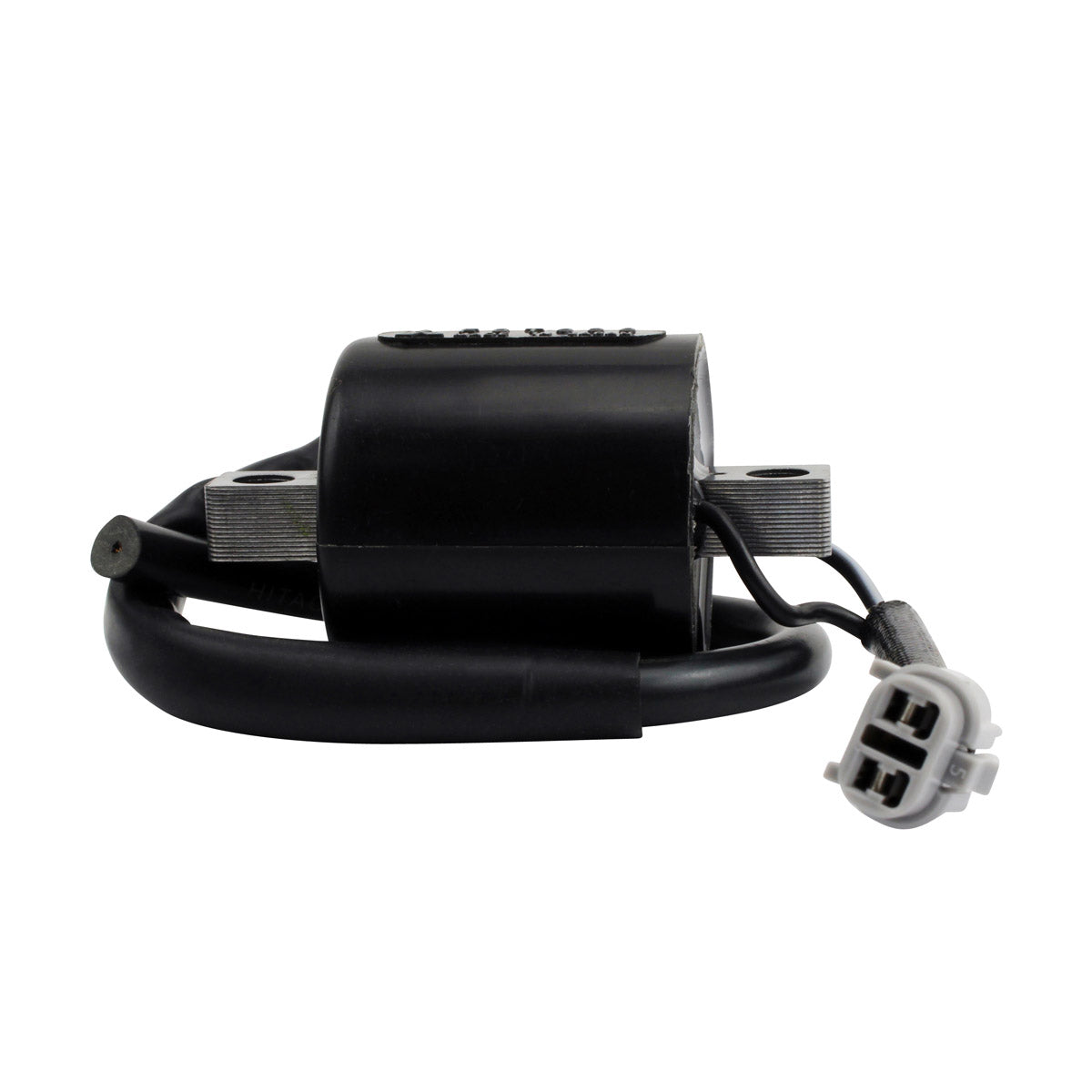

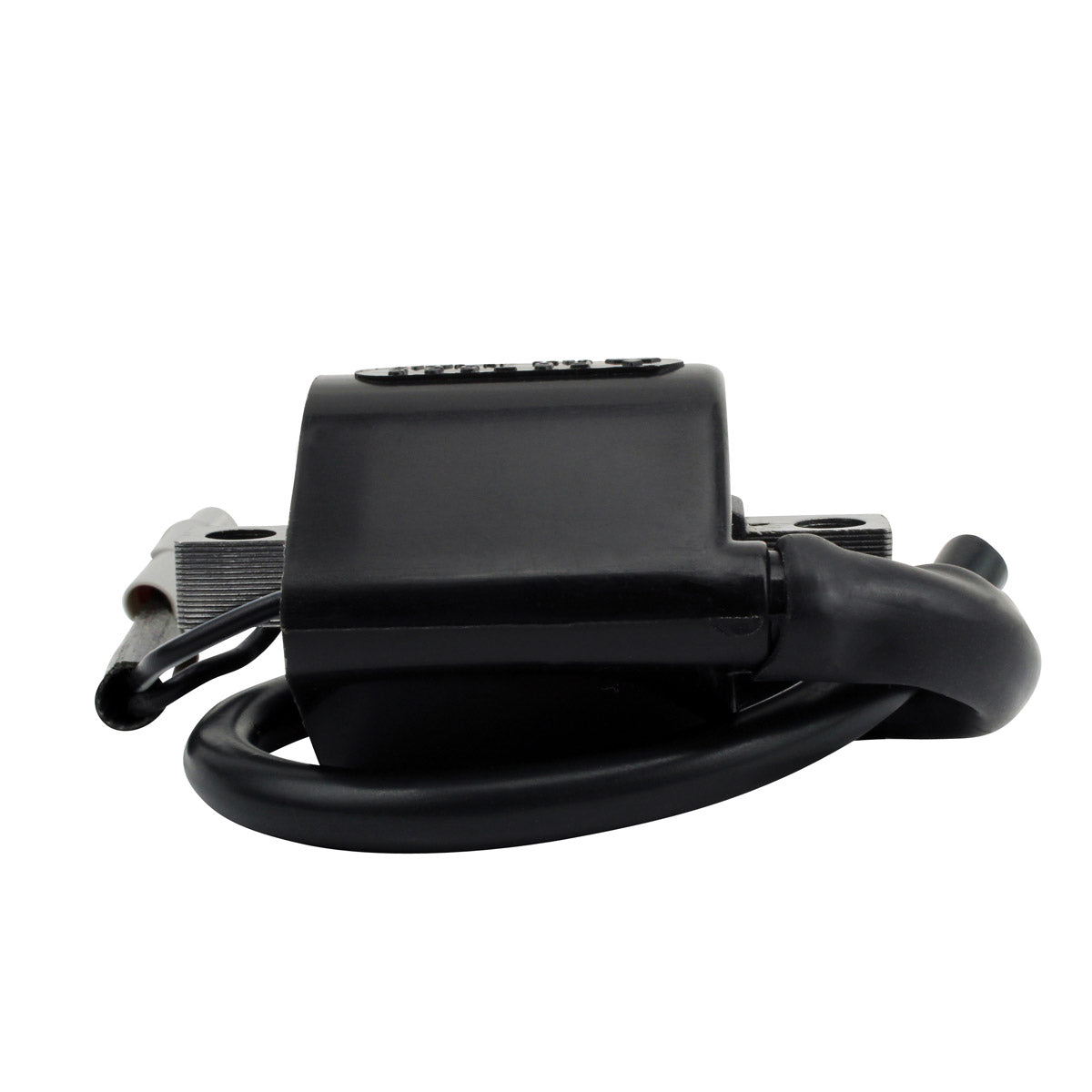

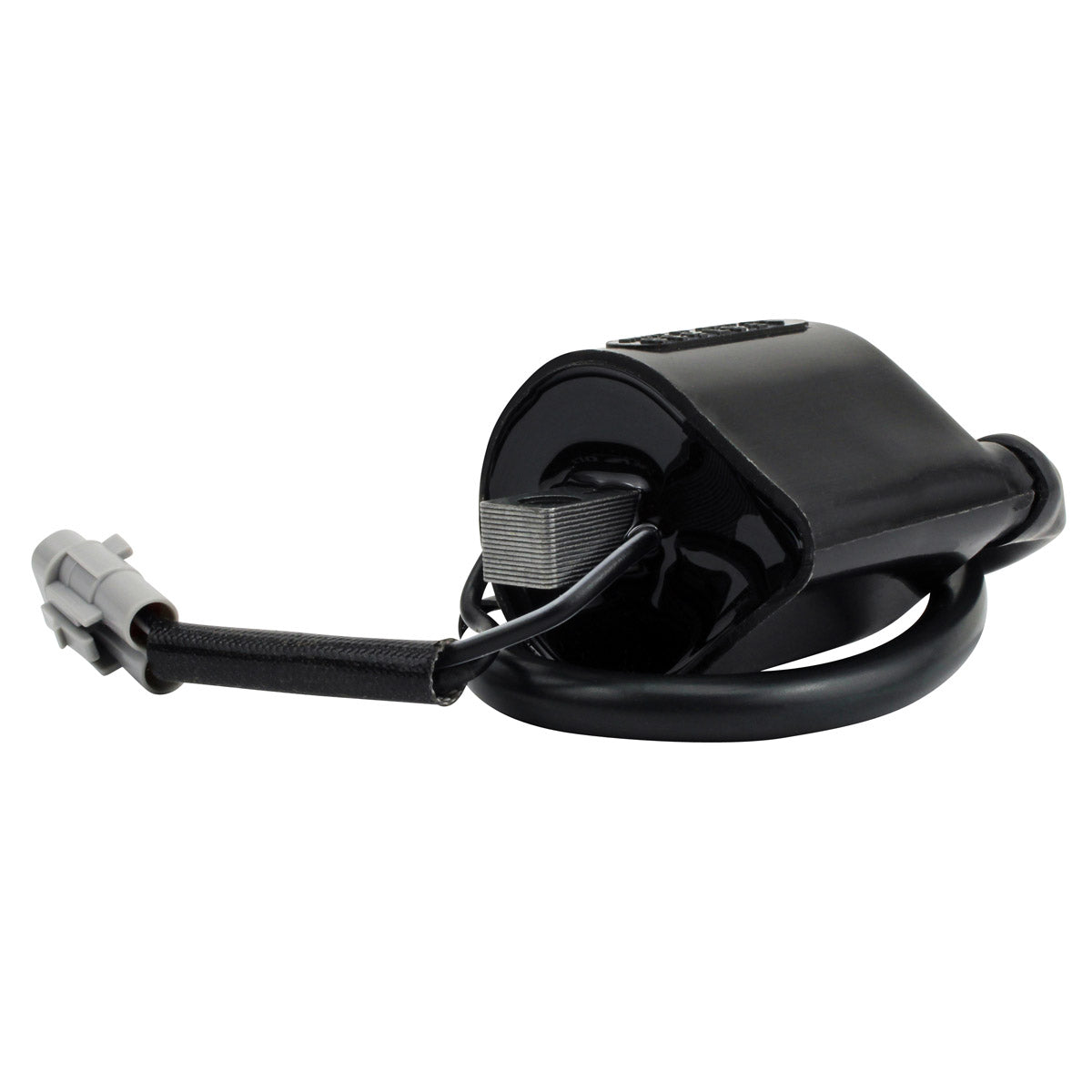

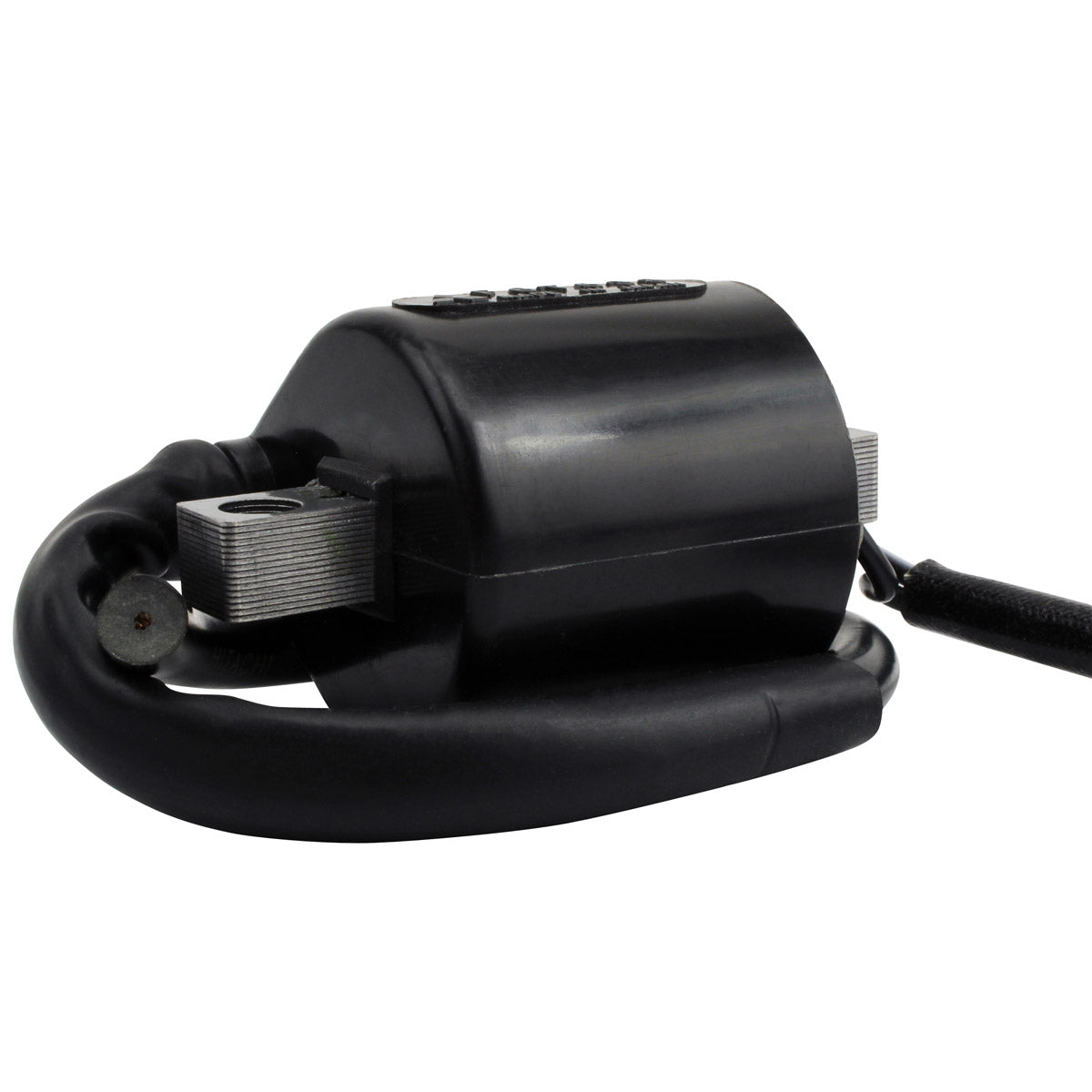

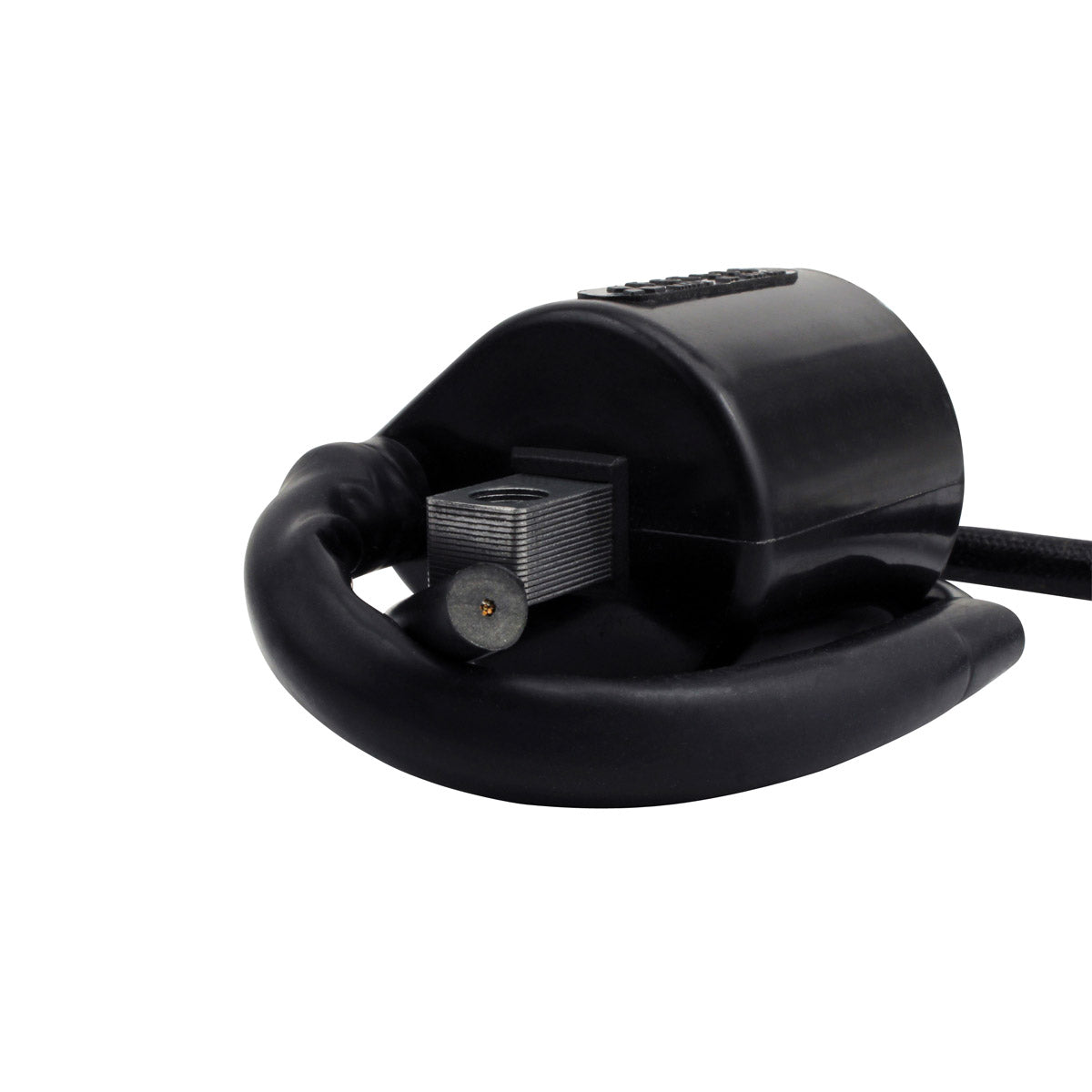

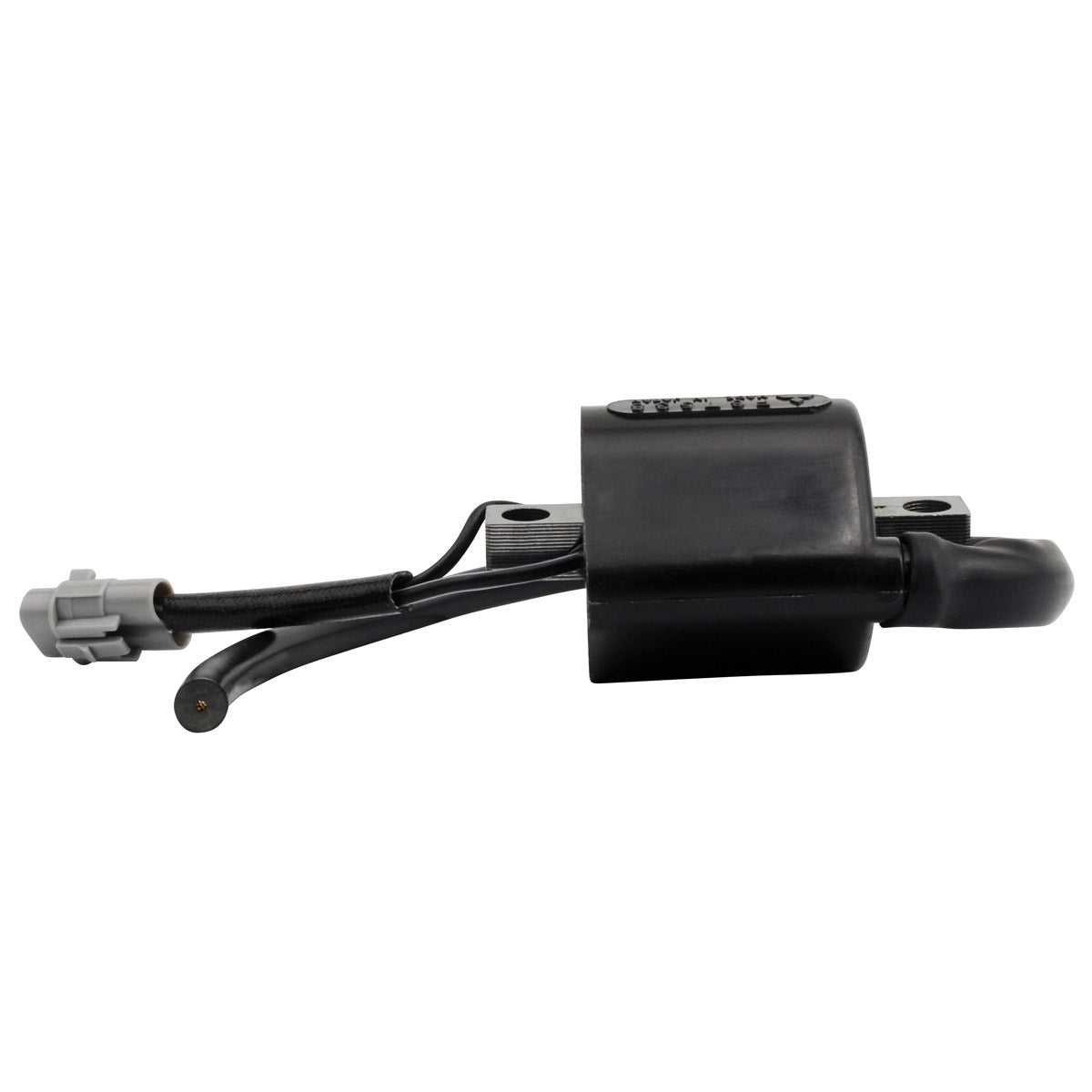

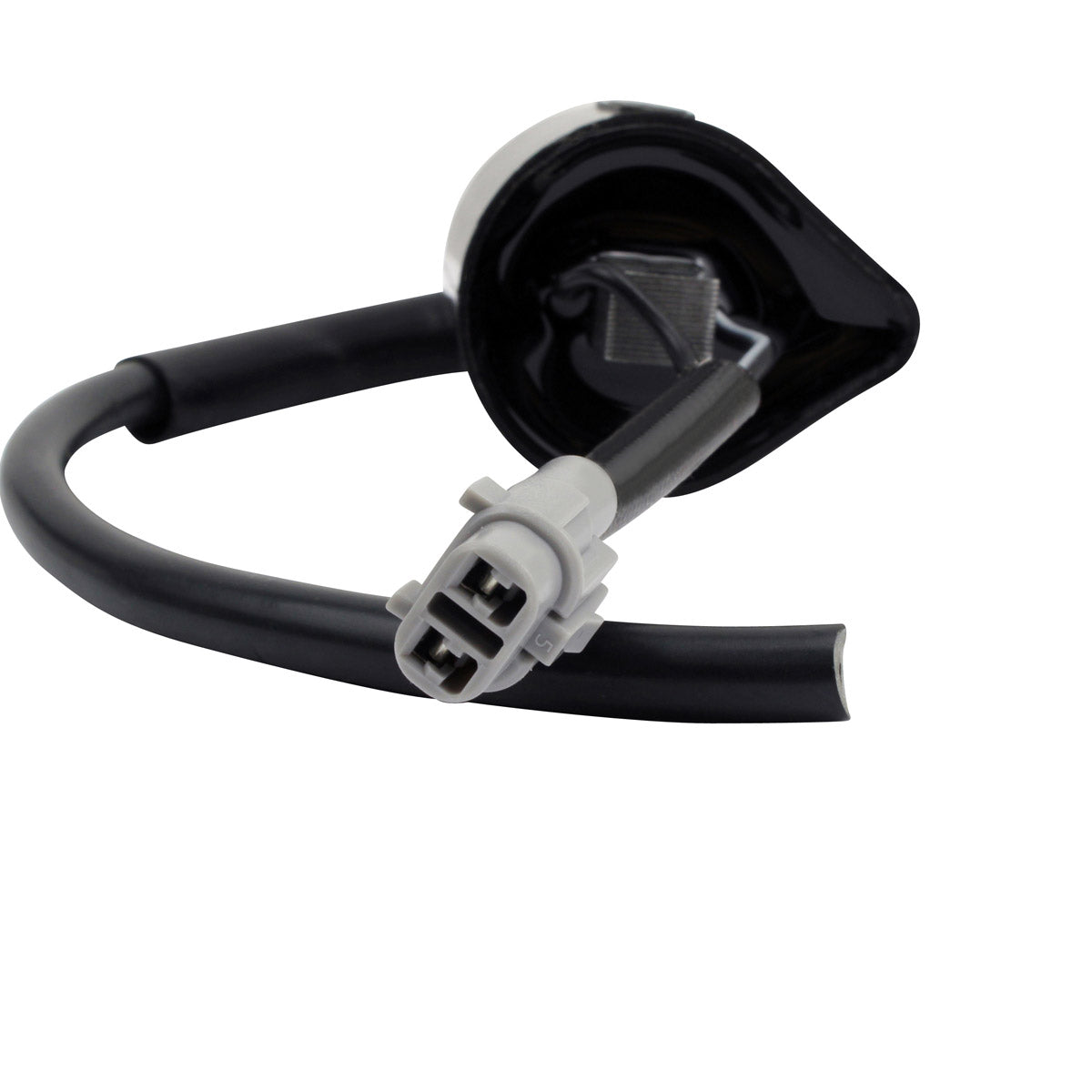

This is a brand new aftermarket external ignition coil for the Yamaha YZ 125 and YZ 125X built between 2005 and 2022. It is a direct replacement for the original Yamaha unit, using the same mounting points and the same connections, so no cutting, splicing or bracket modification is needed. Every coil is tested before it is shipped.
The external ignition coil takes the low voltage feed from the ignition system and steps it up to the high voltage needed to jump the spark plug gap. When a coil starts to break down you typically get a weak or intermittent spark, hard starting, a misfire under load, or a bike that cuts out once everything is hot. This unit is wound to the same primary and secondary resistance figures as the original, both listed in the specification table below, so spark energy stays where Yamaha intended it. If the yellow wire is not applicable to your particular model it can simply be removed.
Key Features
- Brand new aftermarket external ignition coil
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Primary resistance 0.7 ohms, secondary resistance 7k ohms
- Wire lengths of 210 mm and 100 mm as per the original
- Yellow wire can be removed where it does not apply to your model
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part Number |
RMS060-108721 |
| Width |
44 mm |
| Length |
66 mm |
| Height |
35 mm |
| Wire Lengths |
210 mm and 100 mm |
| Fixation Holes, Centre to Centre |
55 mm |
| Primary Resistance |
0.7 ohms |
| Secondary Resistance |
7k ohms |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha YZ 125 |
2005-2022 |
| Yamaha YZ 125X |
2005-2022 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 1C3-82320-04-00 |
Yamaha |
| 1C3-82320-03-00 |
Yamaha |
| 1C3-82320-02-00 |
Yamaha |
| 1C3-82320-01-00 |
Yamaha |
| 1C3-82320-00-00 |
Yamaha |
Frequently Asked Questions
Does this coil fit without modification?
Yes. It is built as a direct replacement for the original Yamaha unit, with the same 55 mm fixation hole spacing and the same wire lengths of 210 mm and 100 mm, so it mounts and connects exactly like the coil you are taking off.
What is included?
You receive the external ignition coil itself, tested before dispatch. No spark plug, plug cap or wiring loom is supplied with it, so reuse the ones already on the machine unless they are damaged.
How do I tell whether my old ignition coil has failed?
Typical symptoms are a weak or intermittent spark, hard starting, a misfire that appears under load, or a bike that runs until it warms up and then cuts out. Measuring the coil is the reliable check: compare your readings against the 0.7 ohms primary and 7k ohms secondary figures given above, and a reading far outside those values, or an open circuit, points to a failed coil.
My coil harness has no yellow wire - is that a problem?
No. The yellow wire is not used on every YZ 125 variant. Where it does not apply to your model it can simply be removed, and the coil will work normally on the remaining connections.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
