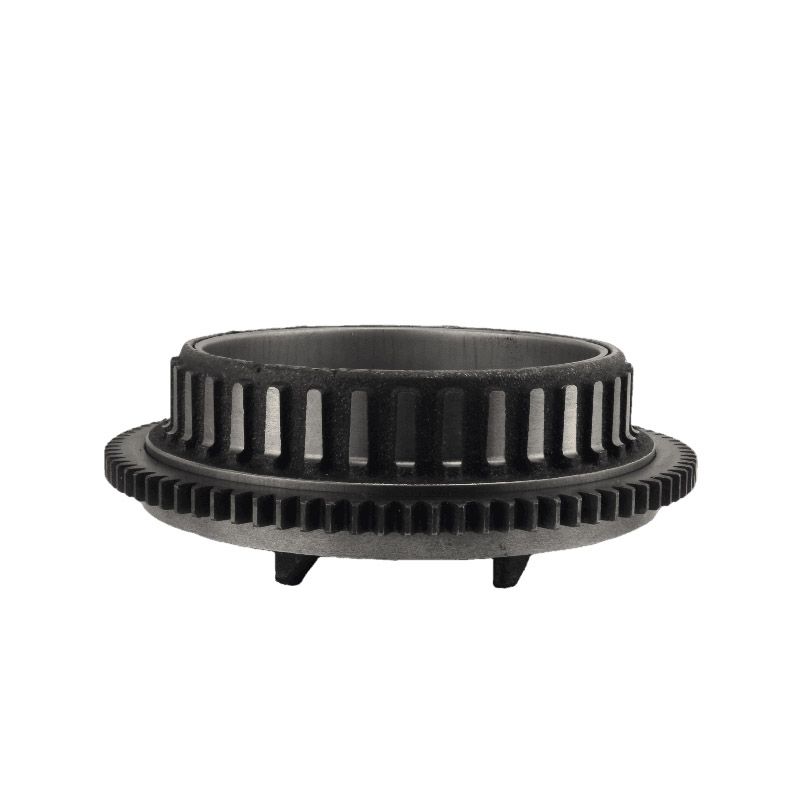

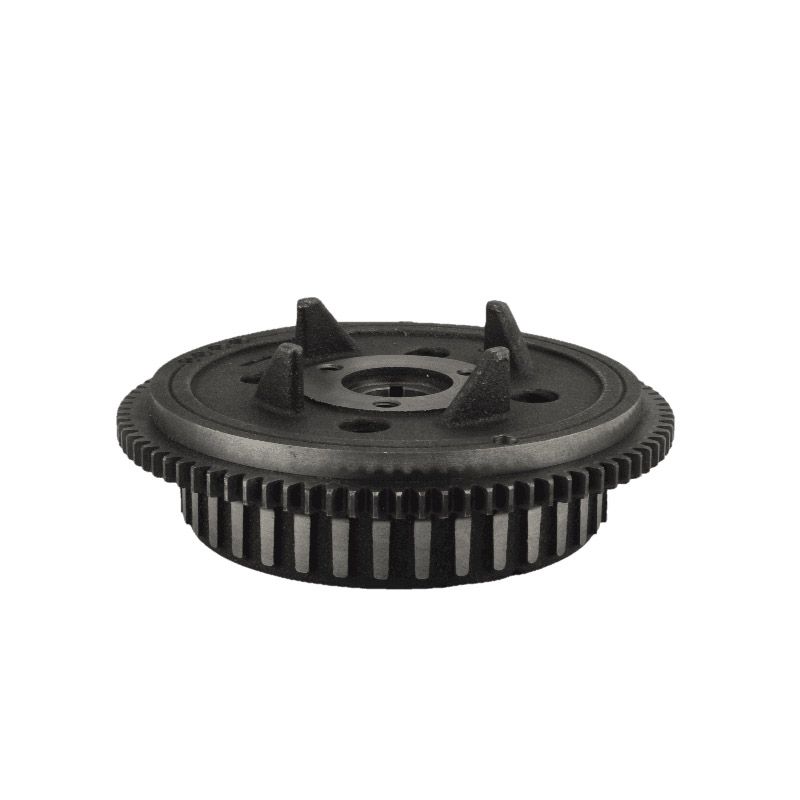

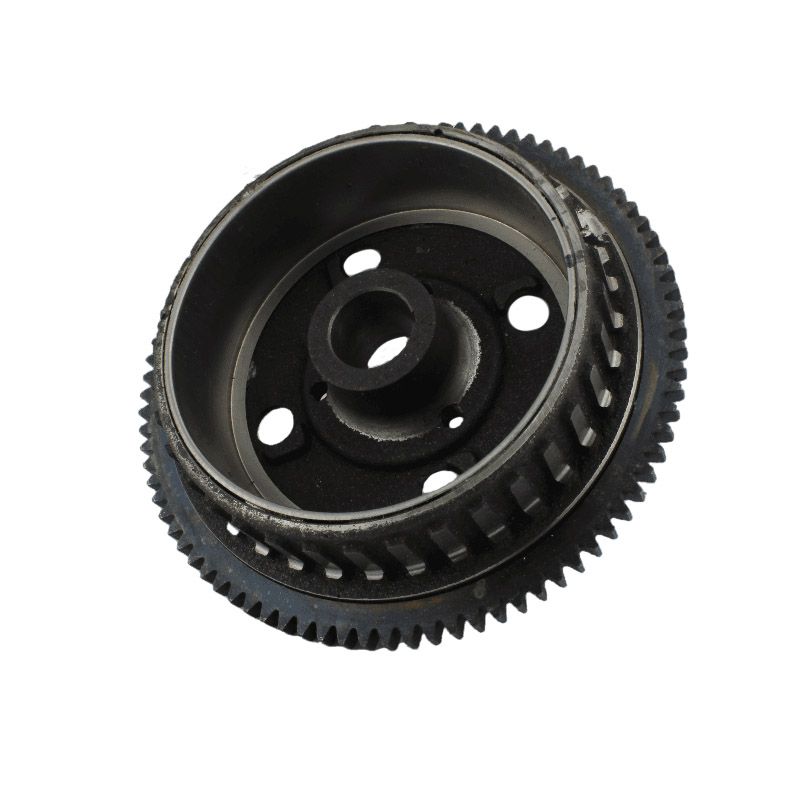

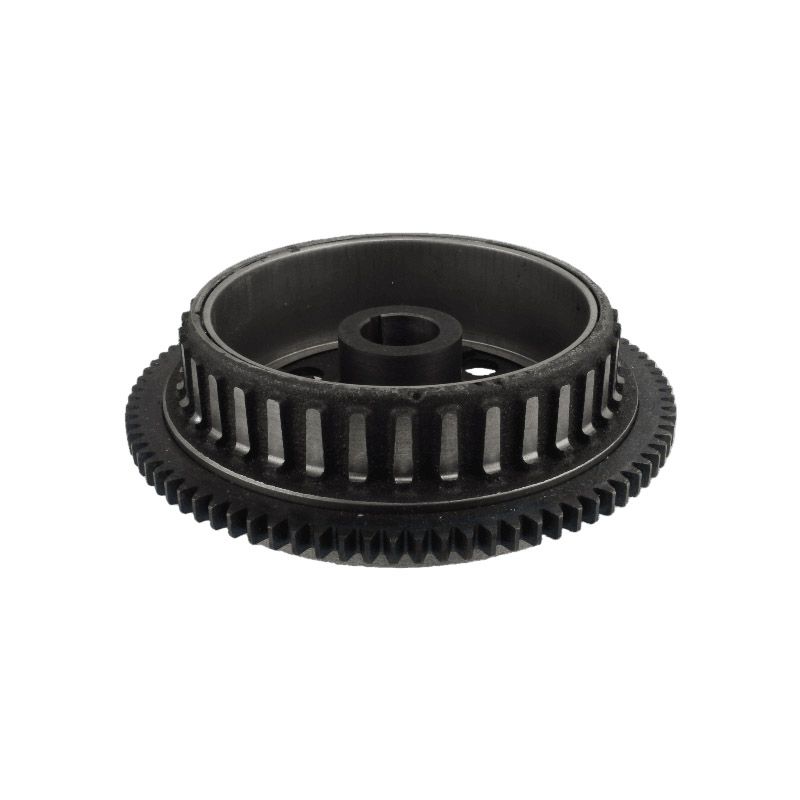

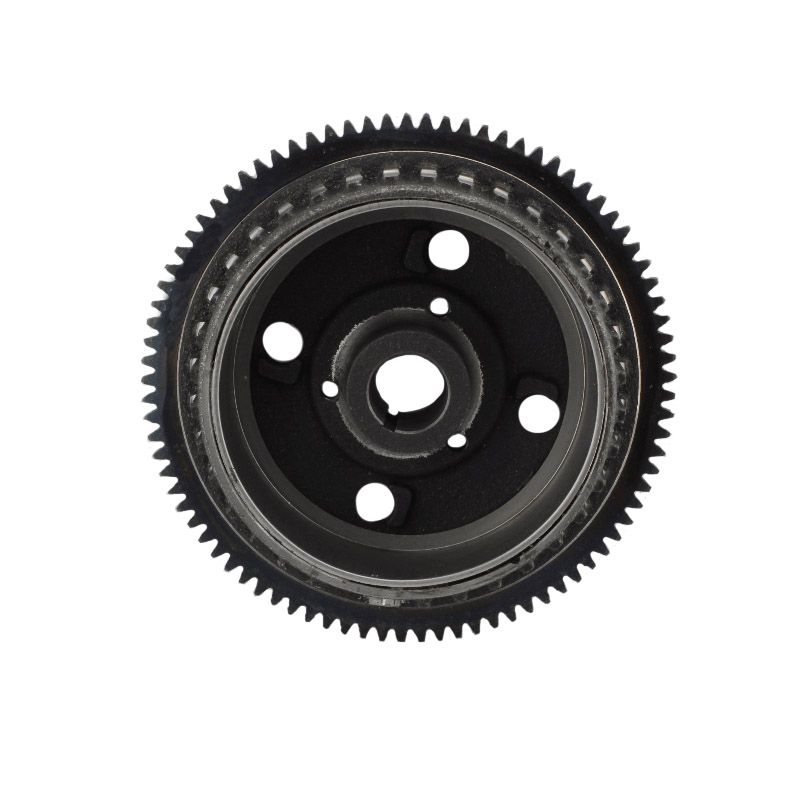

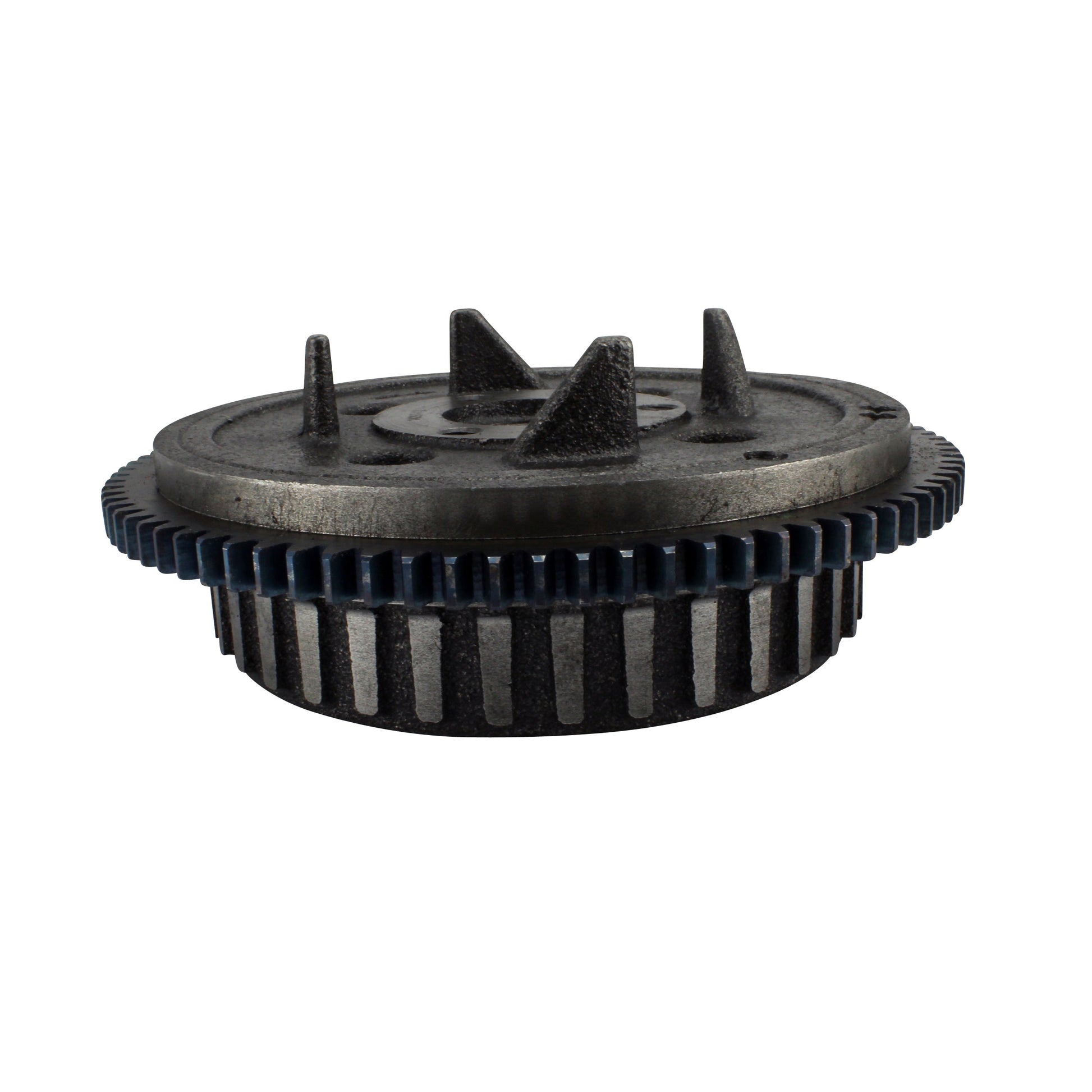

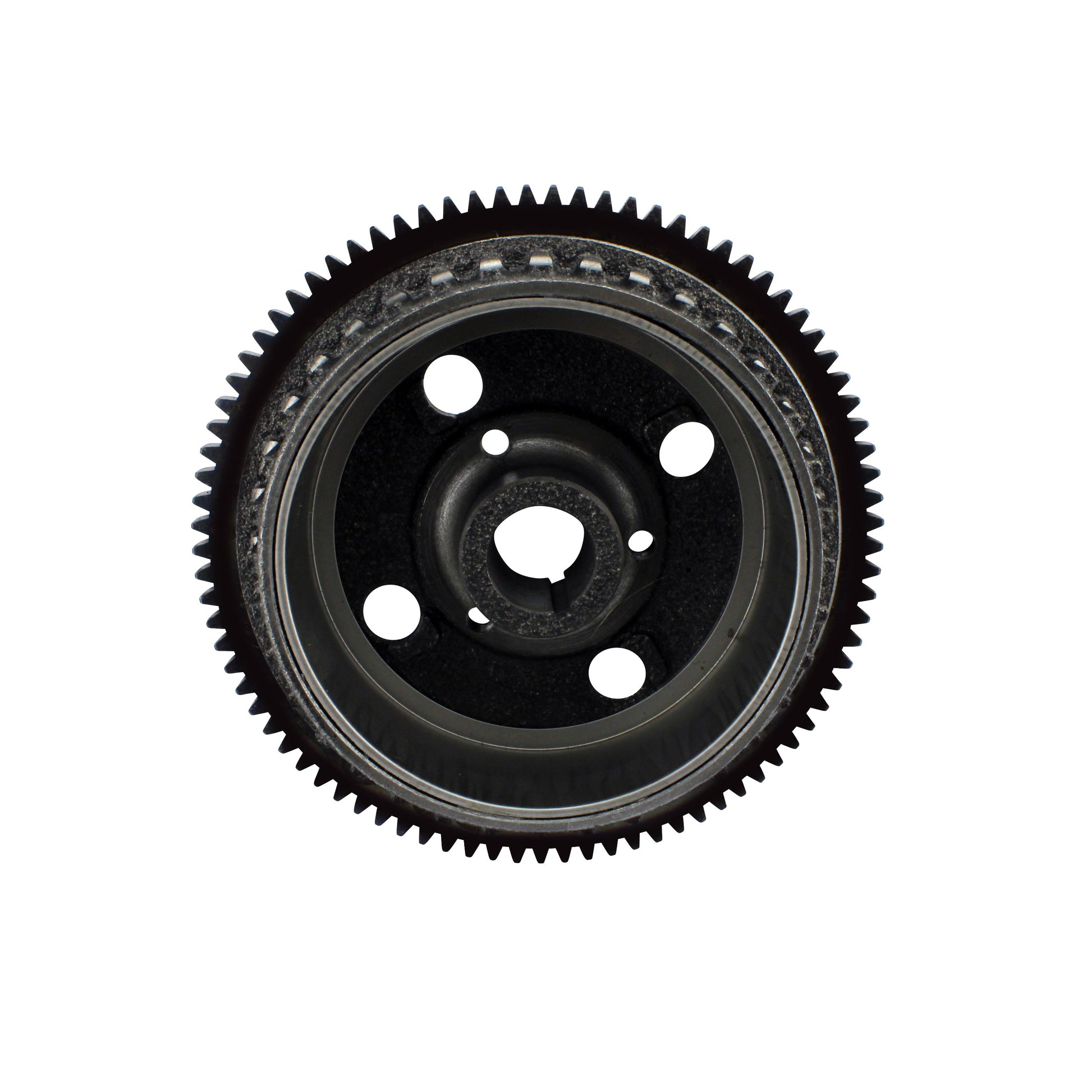

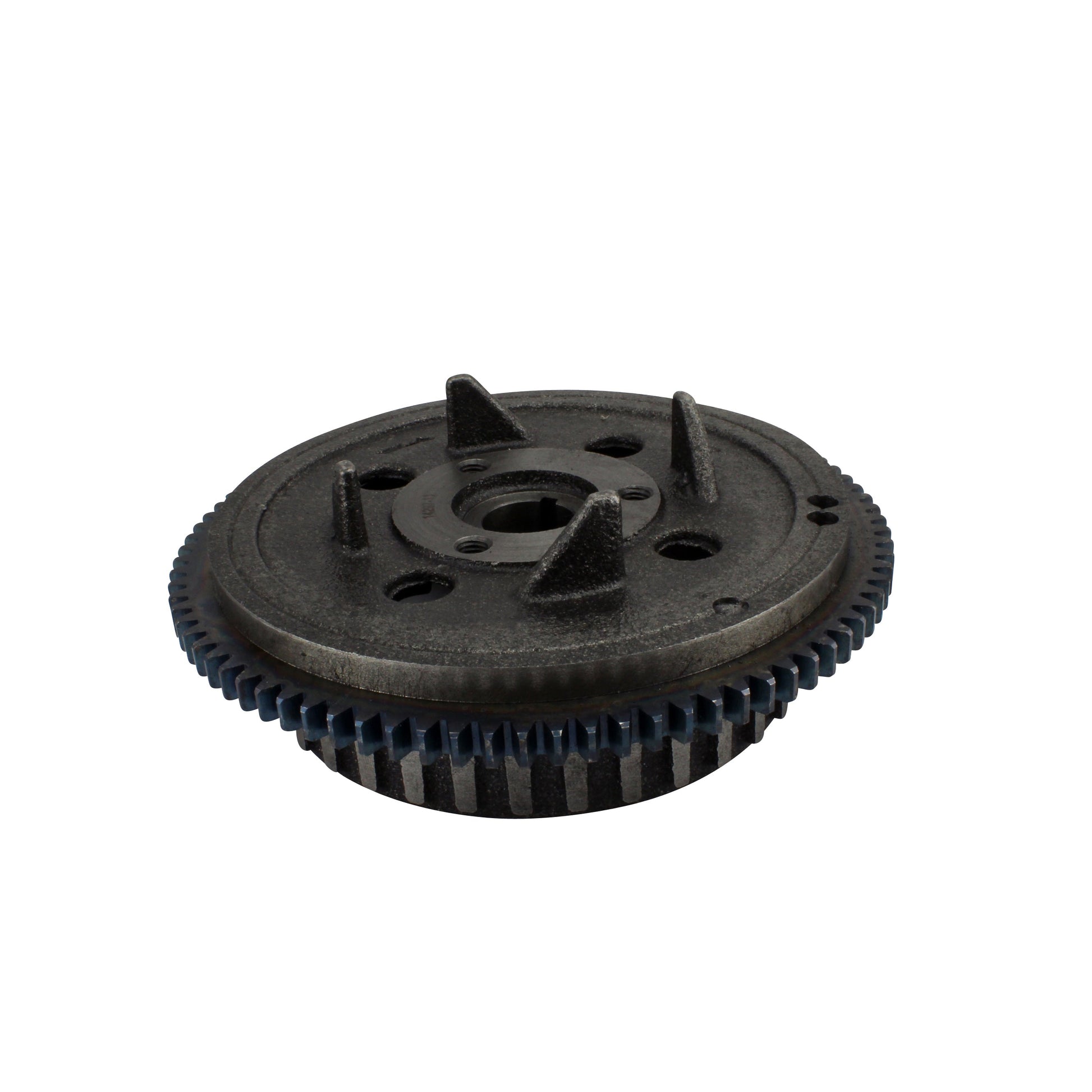

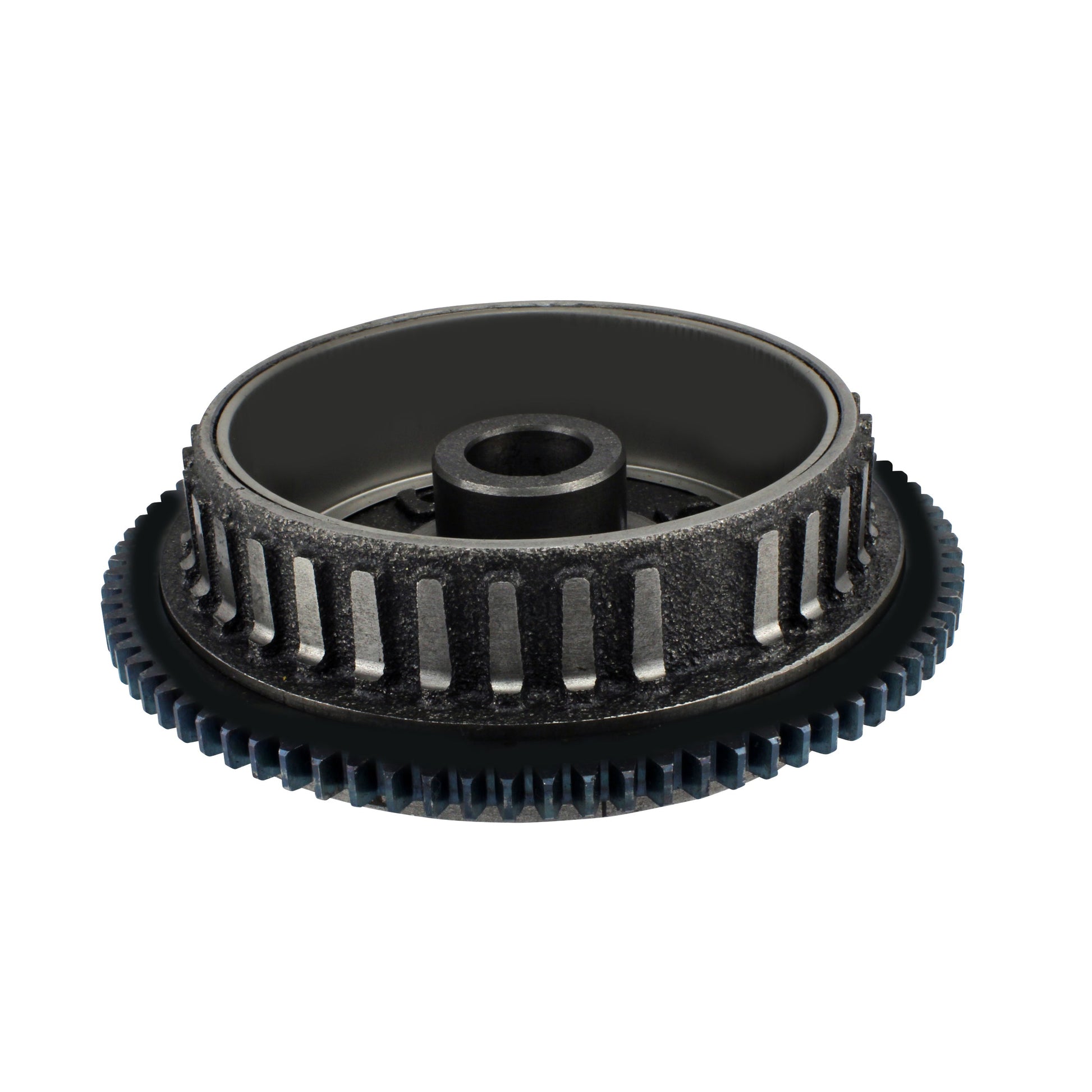

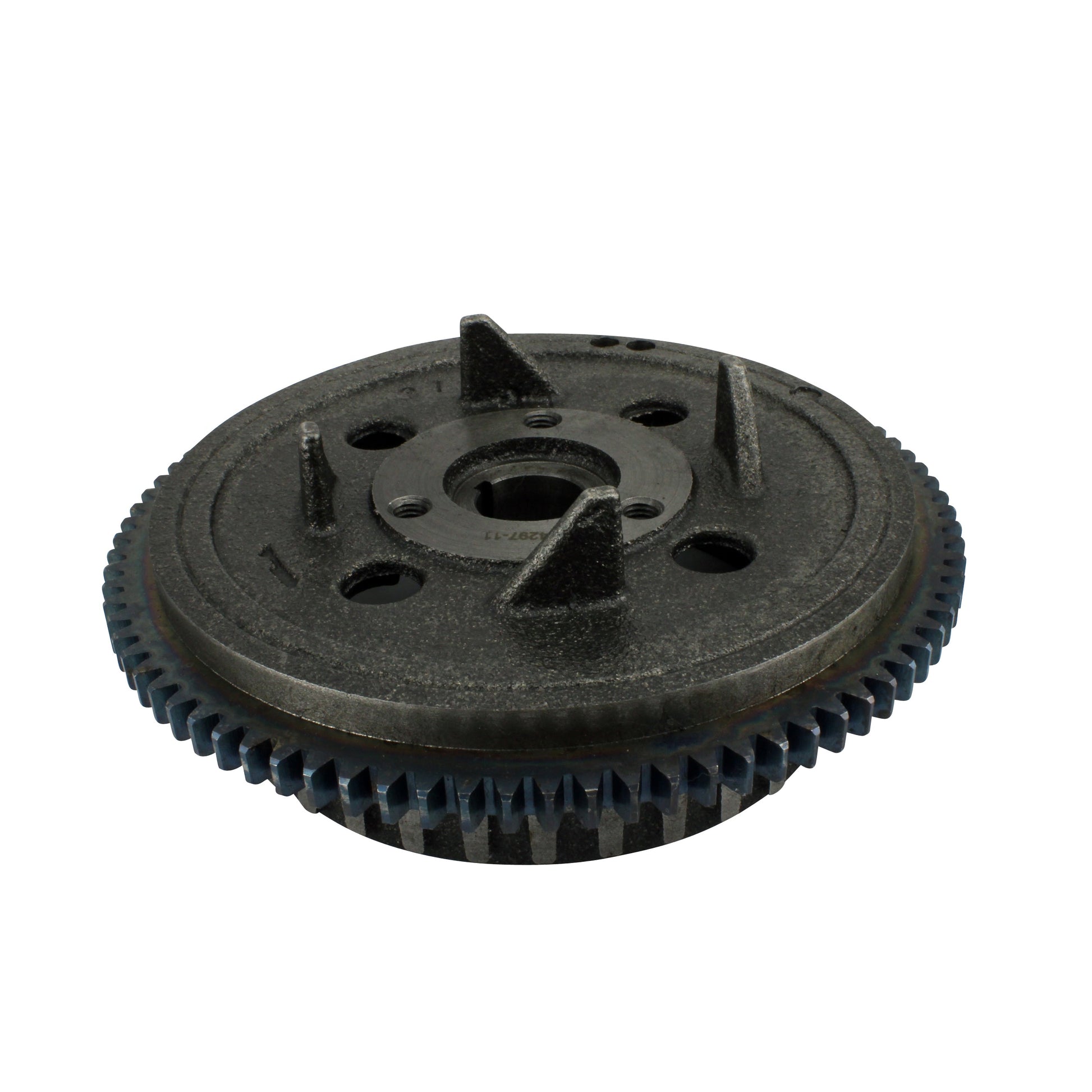

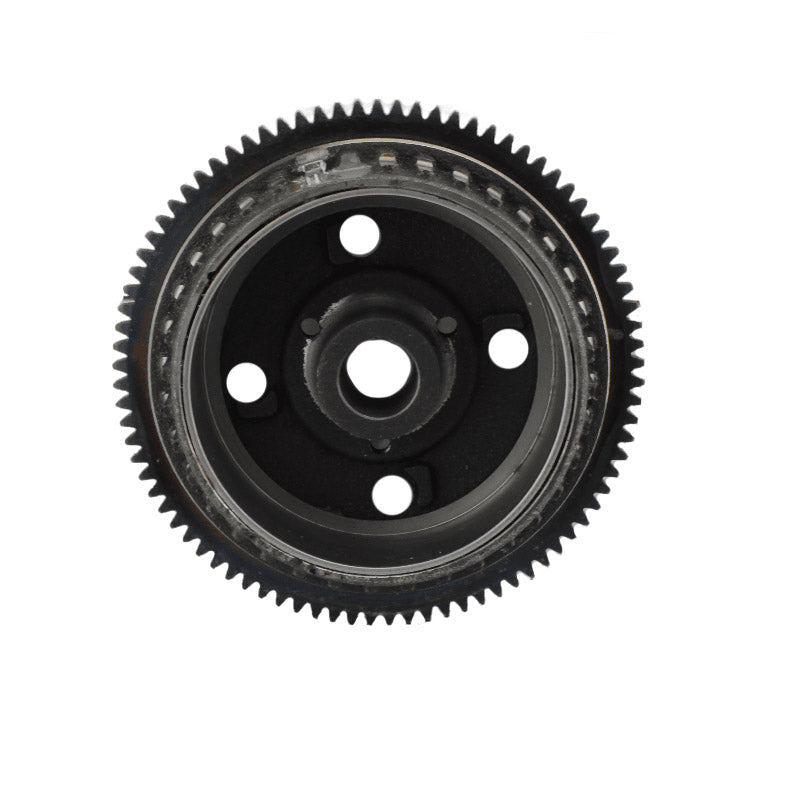

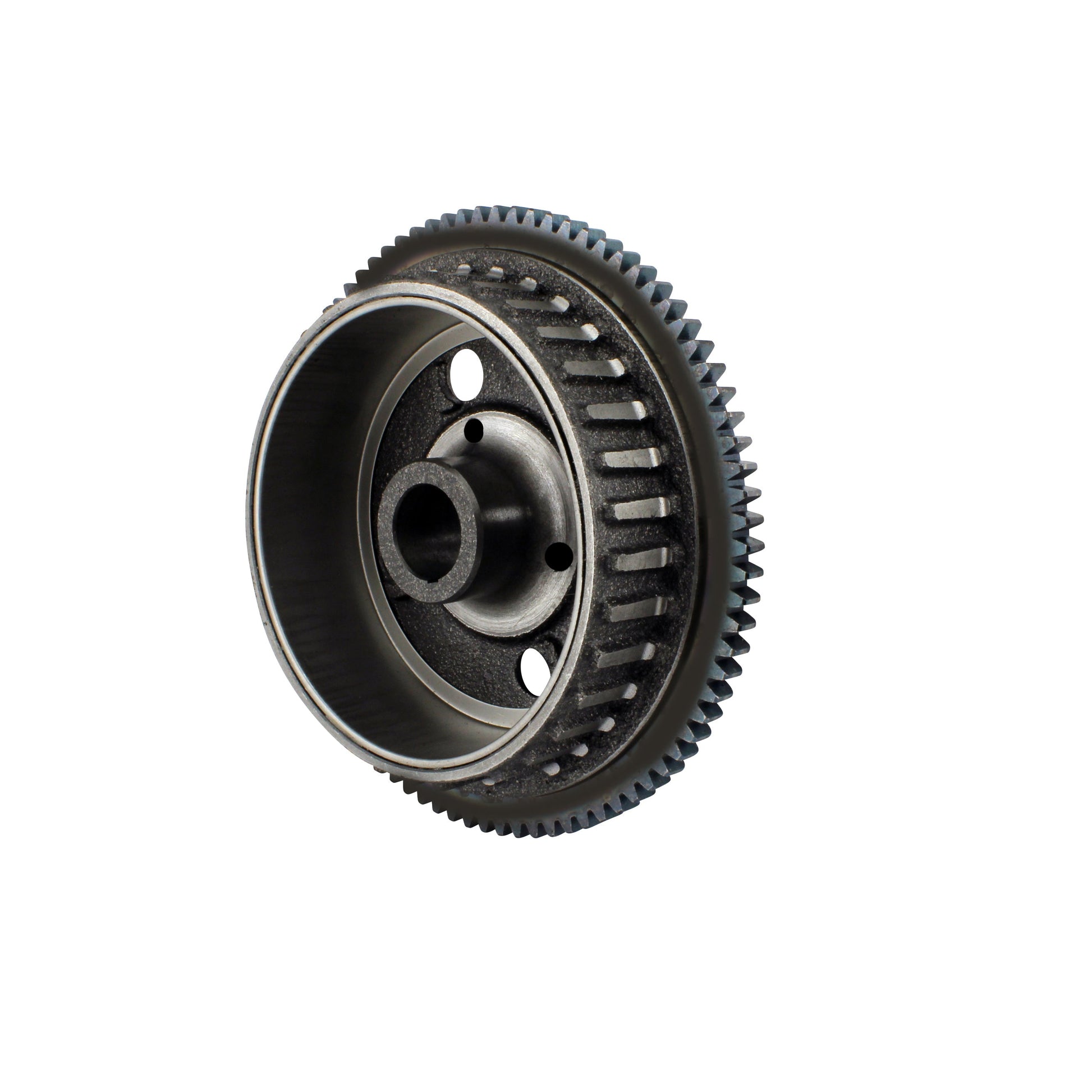

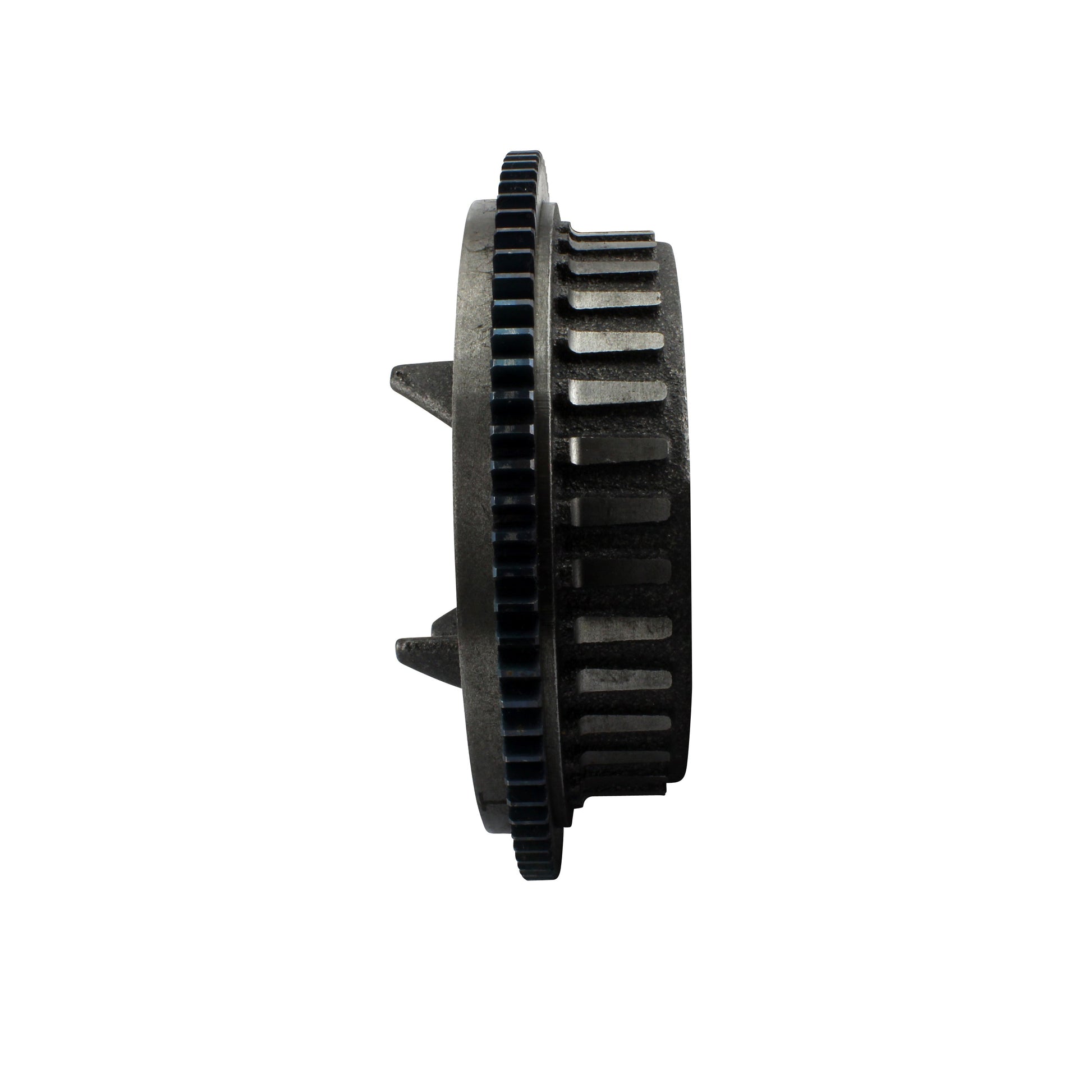

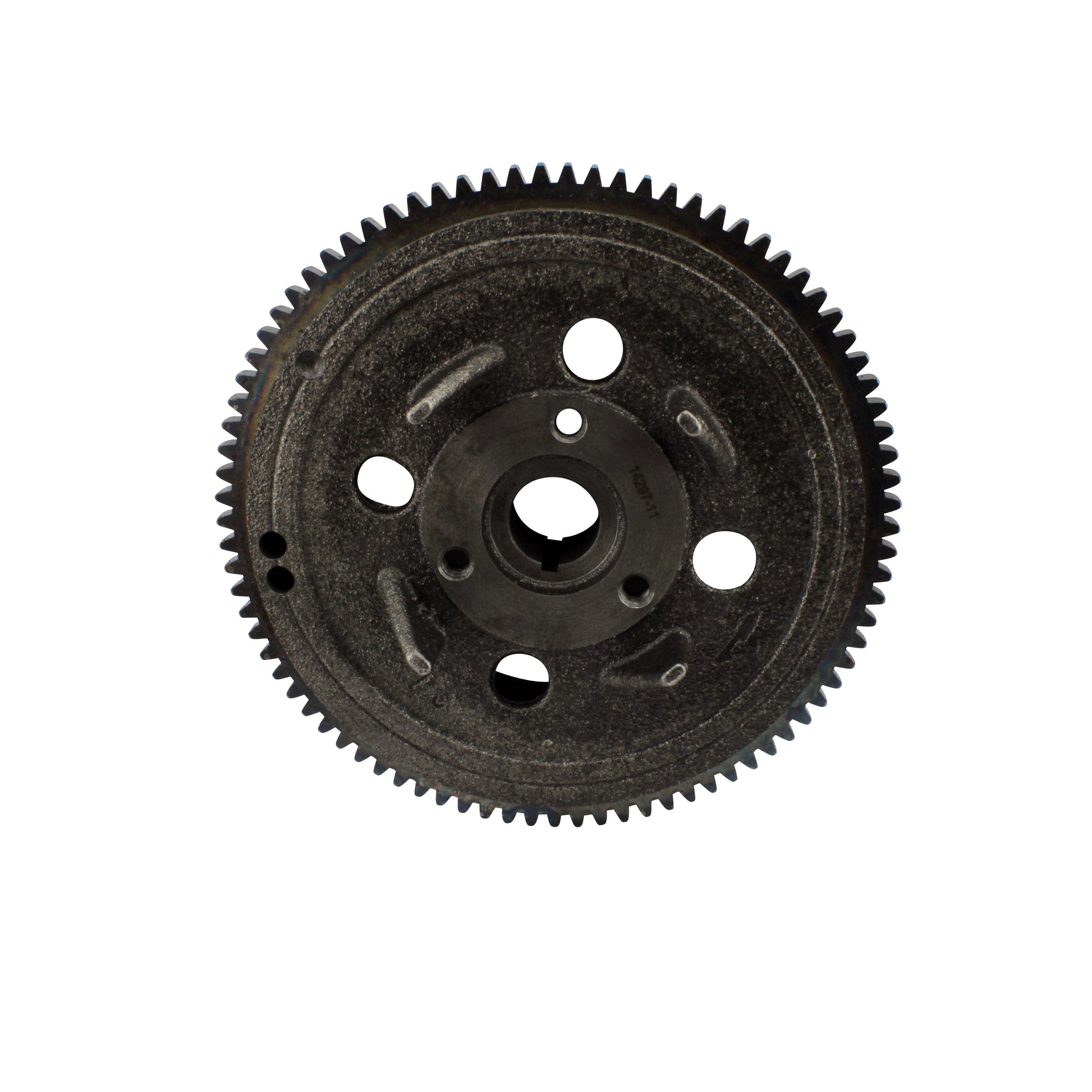

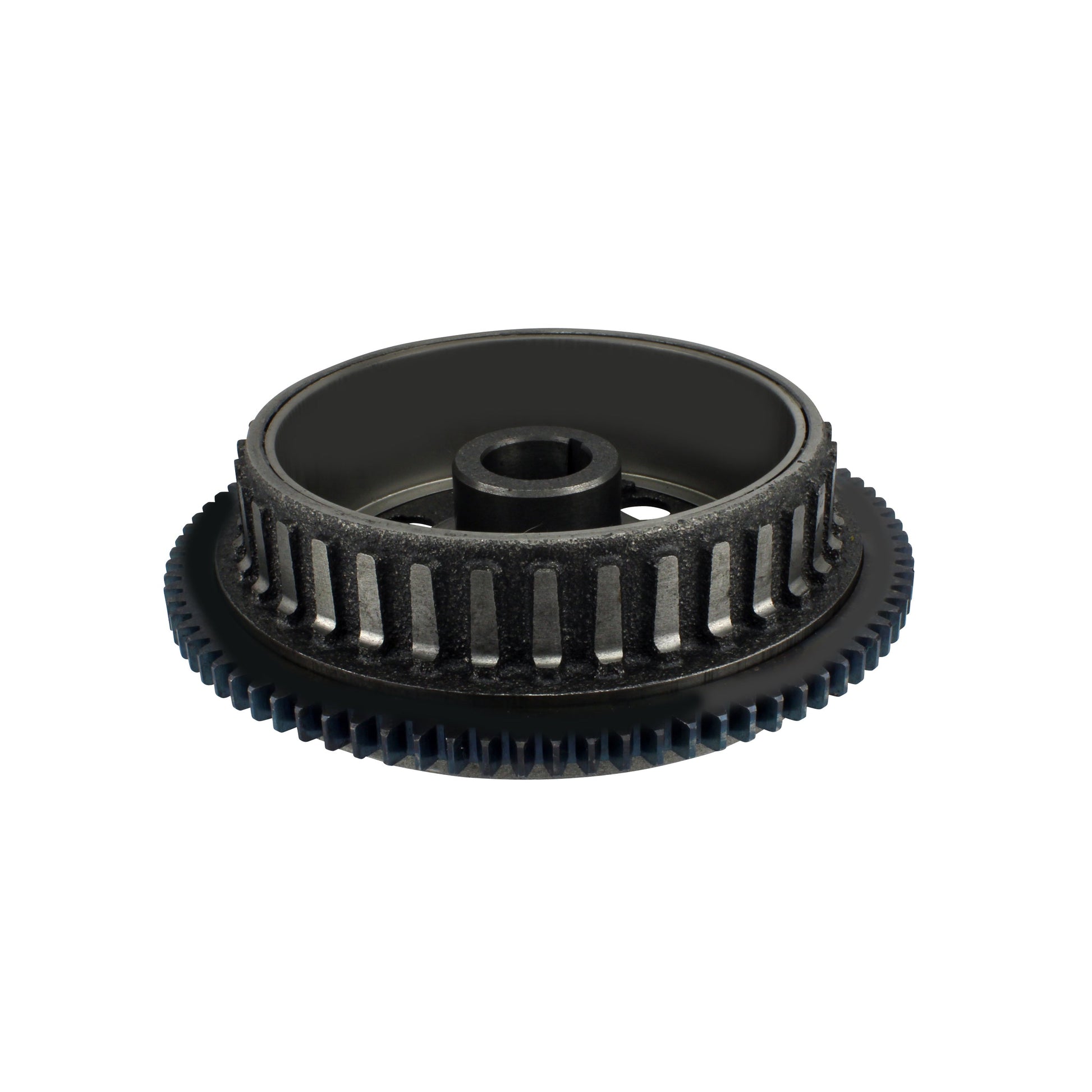

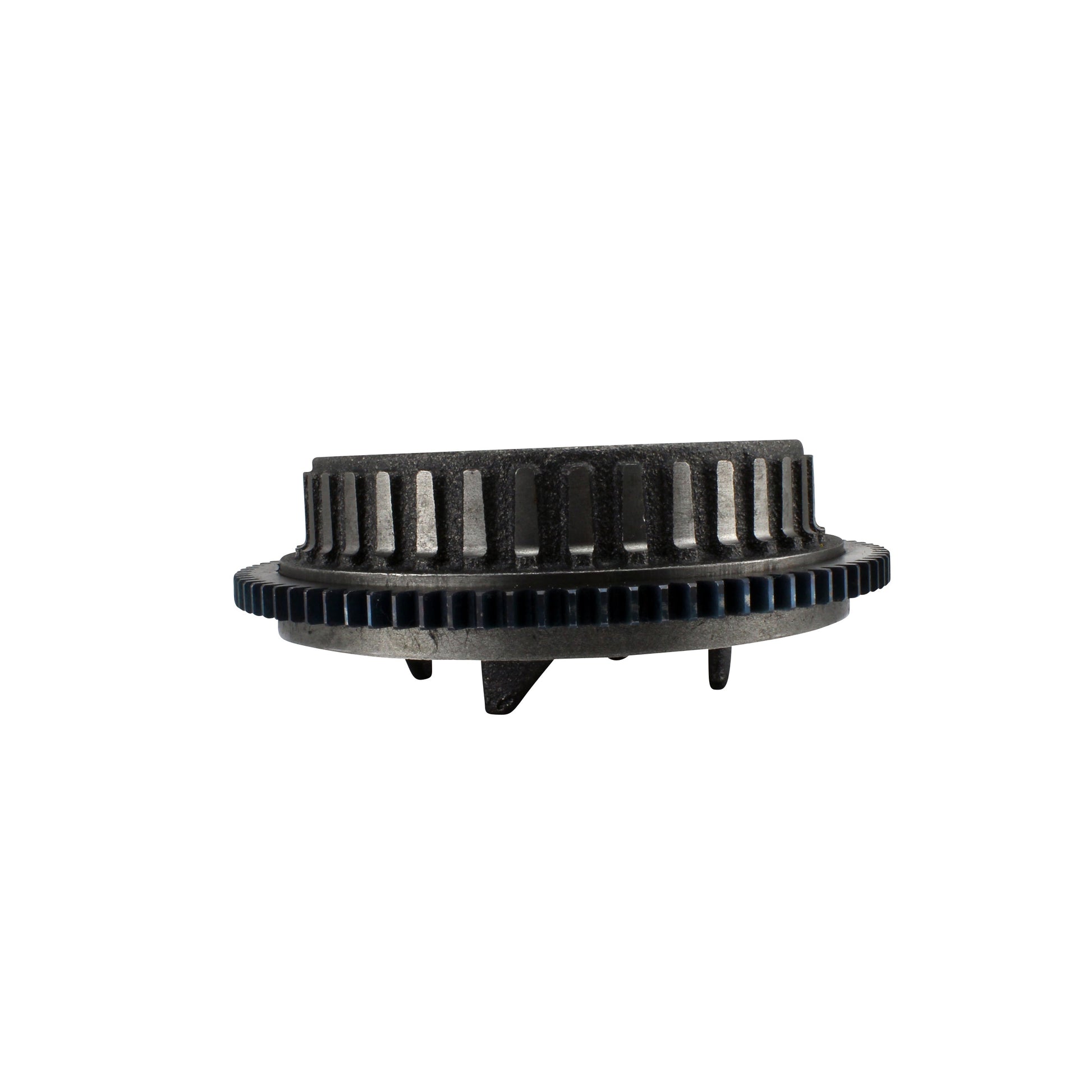

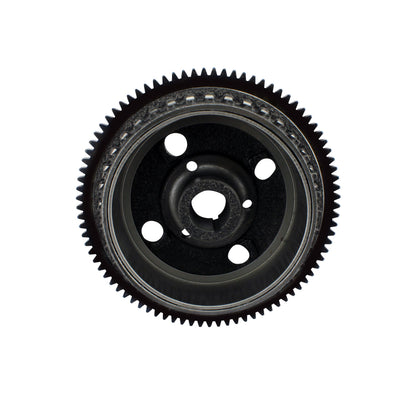

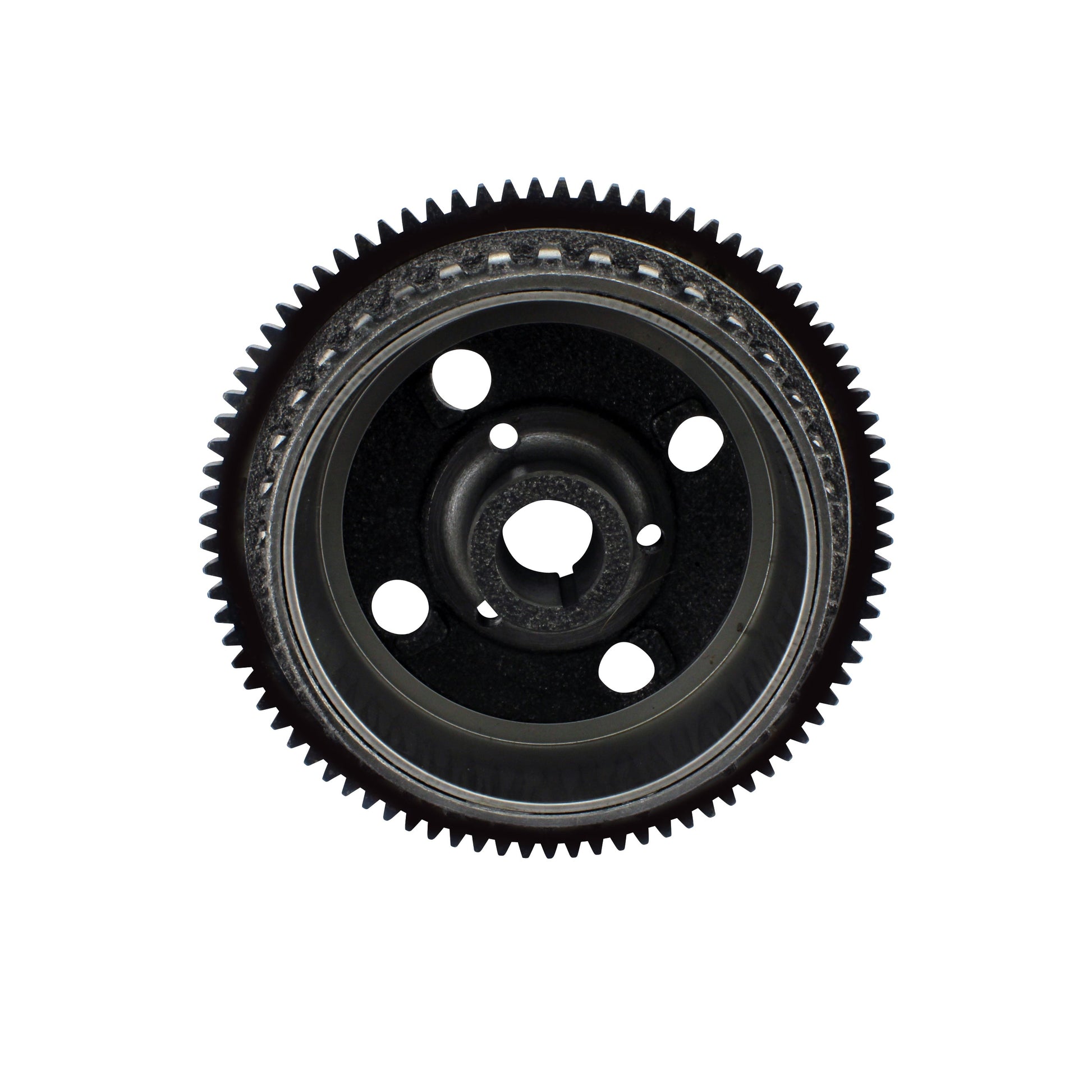

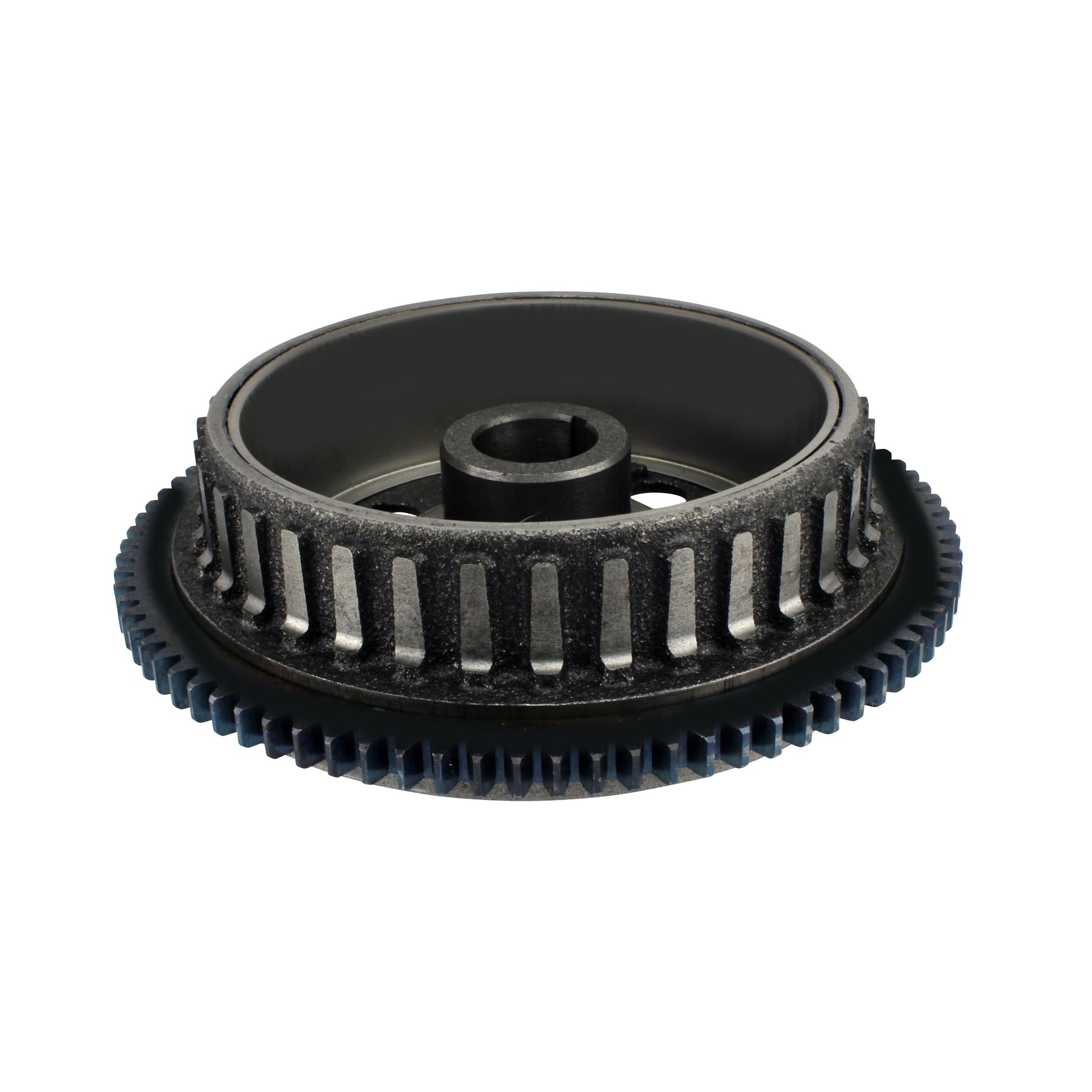

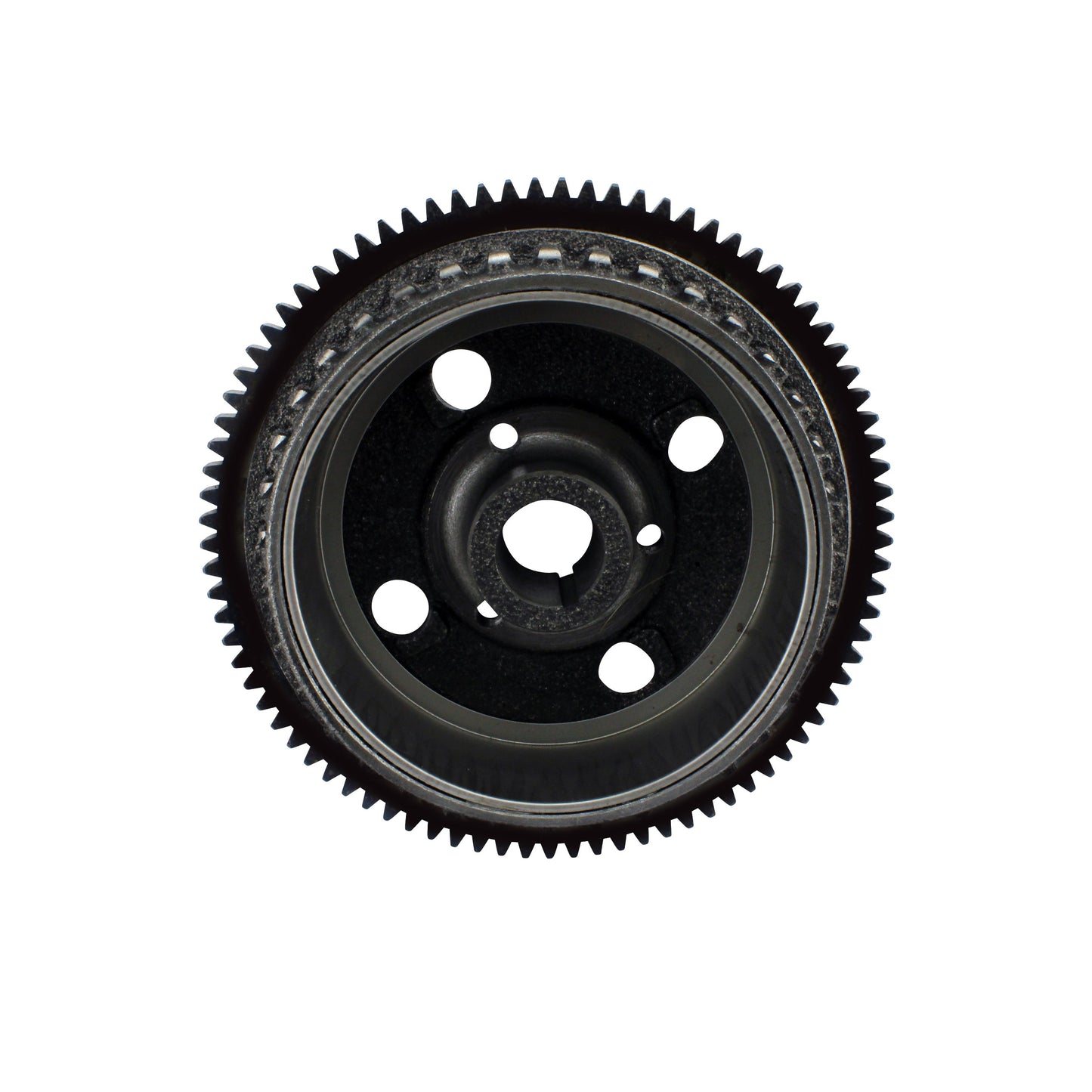

This is a heavy-duty replacement magneto flywheel rotor for the Polaris 500cc ATV and UTV range. It is built to answer the magnet detachment problem these machines are known for, where a magnet works loose inside the flywheel and destroys the stator behind it.
RMSTATOR bond the magnets with a high-temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment, and then cap the assembly in steel so that engine oil cannot degrade the bond and any loose magnet is held inside a protective sleeve. Please note the compatibility restriction before ordering: this part only fits OEM number 3089905 with FF95 and/or 5820K stamping on the flywheel.
Key Features
- High-temperature epoxy stronger than OEM
- Eliminates the possibility of magnet detachment
- Steel capping prevents oil degradation of the bond
- Protective sleeve contains any loose magnet
- Direct replacement for the original flywheel rotor
- Fits OEM 3089905 flywheels stamped FF95 and/or 5820K
Technical Specs
| Specification |
Detail |
| Exterior diameter |
175 mm |
| Interior diameter |
25 mm |
| Interior centre housing diameter |
25 mm |
| Exterior centre housing diameter |
39 mm |
| Thickness, exterior |
45 mm |
| Thickness, interior |
39 mm |
| Flywheel stamping required |
FF95 and/or 5820K |
Vehicle Fitment Guide
| Make & Model |
Years |
| Polaris Ranger 500 EFI 4x4 |
2006-2013 |
| Polaris Sportsman 500 |
2006-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3089905 |
Polaris |
Frequently Asked Questions
Will it fit my machine without modification?
It is a direct replacement for the original rotor on the models listed above, provided your machine uses OEM part 3089905. Check the stamping on the face of your existing flywheel first: this part only fits units stamped FF95 and/or 5820K.
What is included?
The flywheel rotor itself. No additional items are listed in the packaging details for this part.
How do I know the original flywheel has failed?
Magnet detachment is the failure to look for. It usually announces itself as a knock or grinding noise from the stator cover, metal debris inside the cover, chewed or scored stator windings, or a charging system that stops working without warning. If a magnet has moved, the flywheel needs replacing - a stator fitted behind a failing flywheel will simply be destroyed again.
Should I replace the stator at the same time?
If a magnet has come loose it will normally have damaged the stator windings, so inspect the stator carefully while the cover is off. The flywheel is sold on its own here and does not include a stator.
