Stator Cover Gasket for Aprilia ETV 1000 Caponord, RST 1000 Futura & RSV 1000 1998-2009
Stator Cover Gasket for Aprilia ETV 1000 Caponord, RST 1000 Futura & RSV 1000 1998-2009
SKU:RMS050-106899
Free shipping over £150. Terms apply
Couldn't load pickup availability
Stator Crankcase Cover Gasket for Aprilia
ETV 1000 Caponord, RST 1000 Futura, RSV 1000 / S / Tuono, SL 1000 Falco · 1998-2009 · Part RMS050-106899

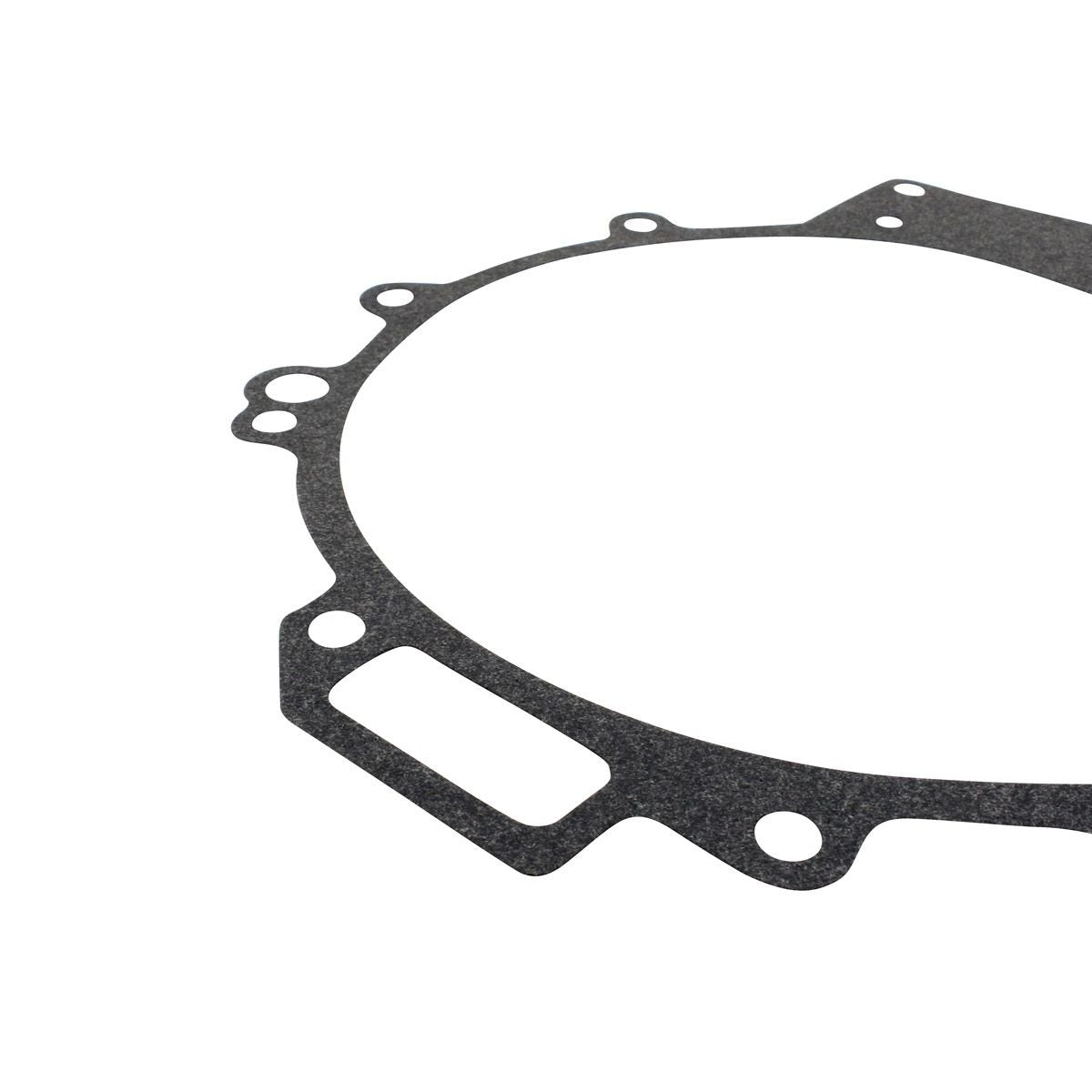

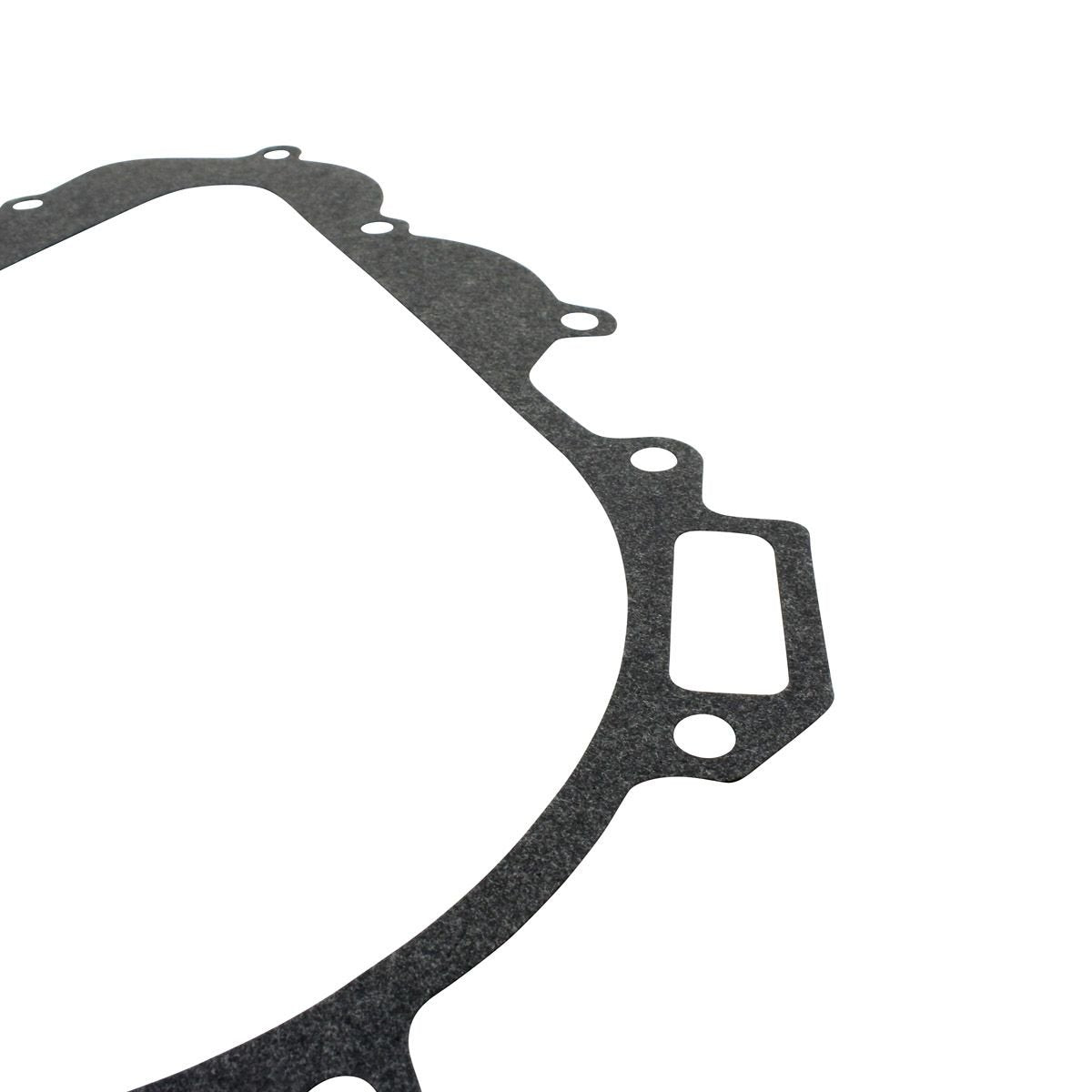

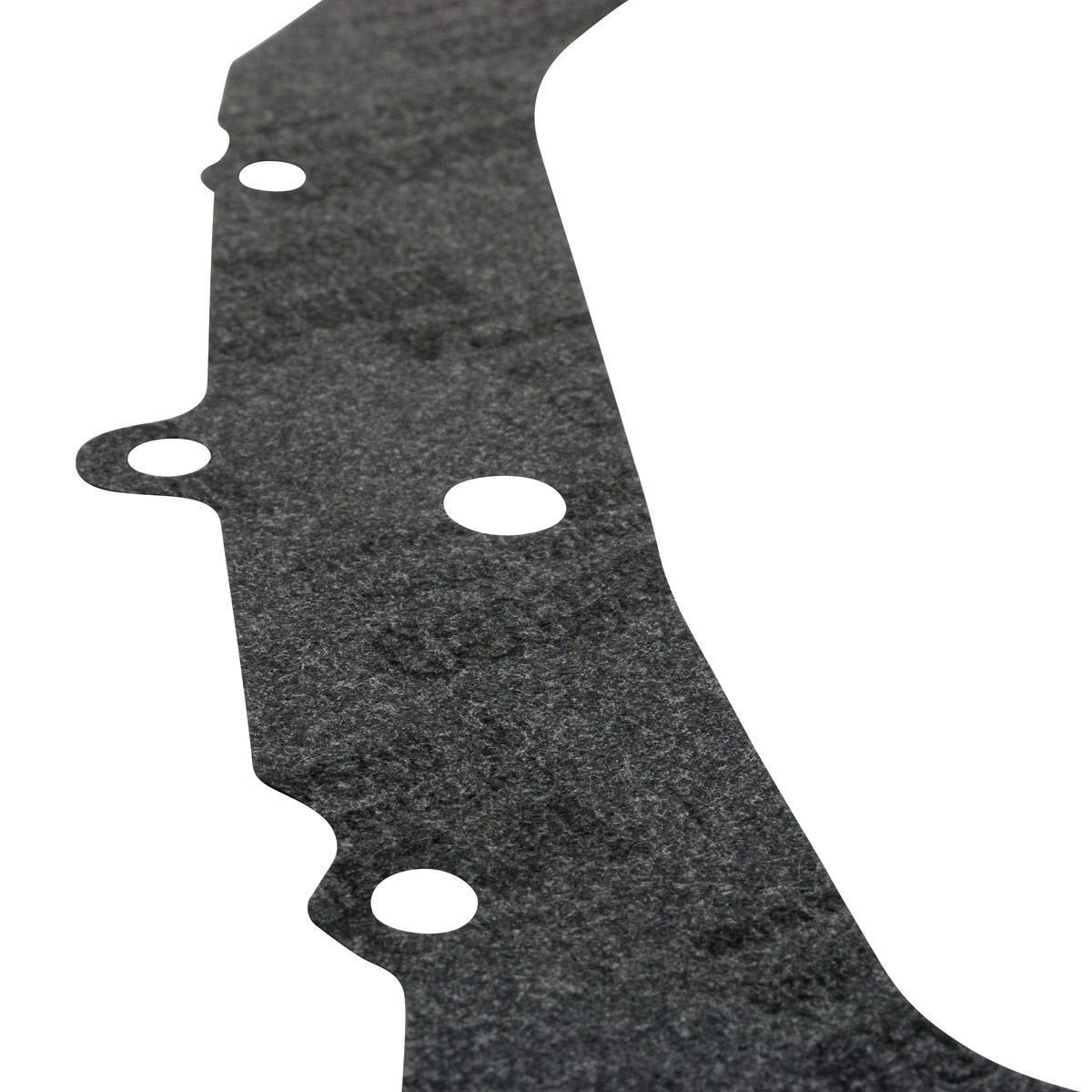

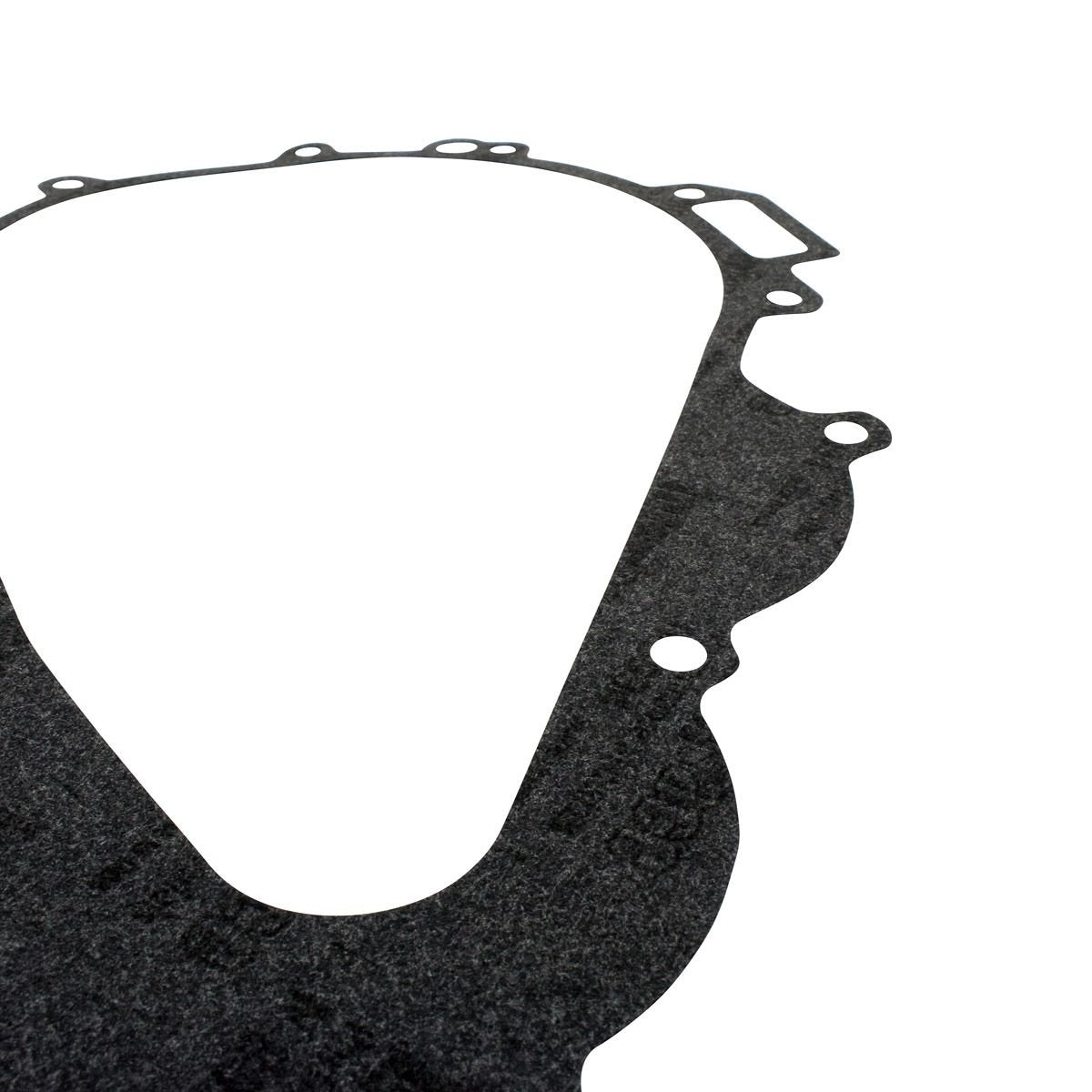

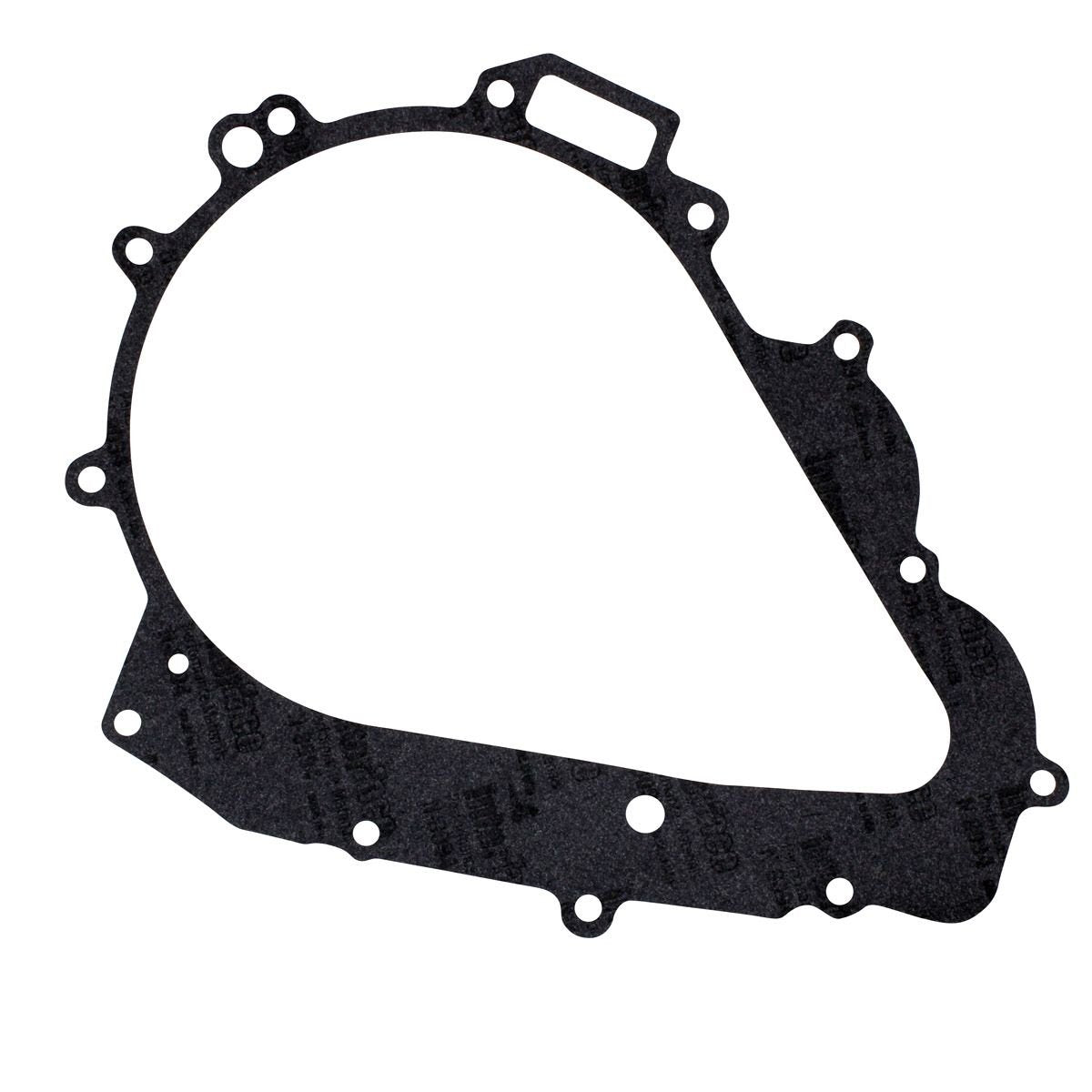

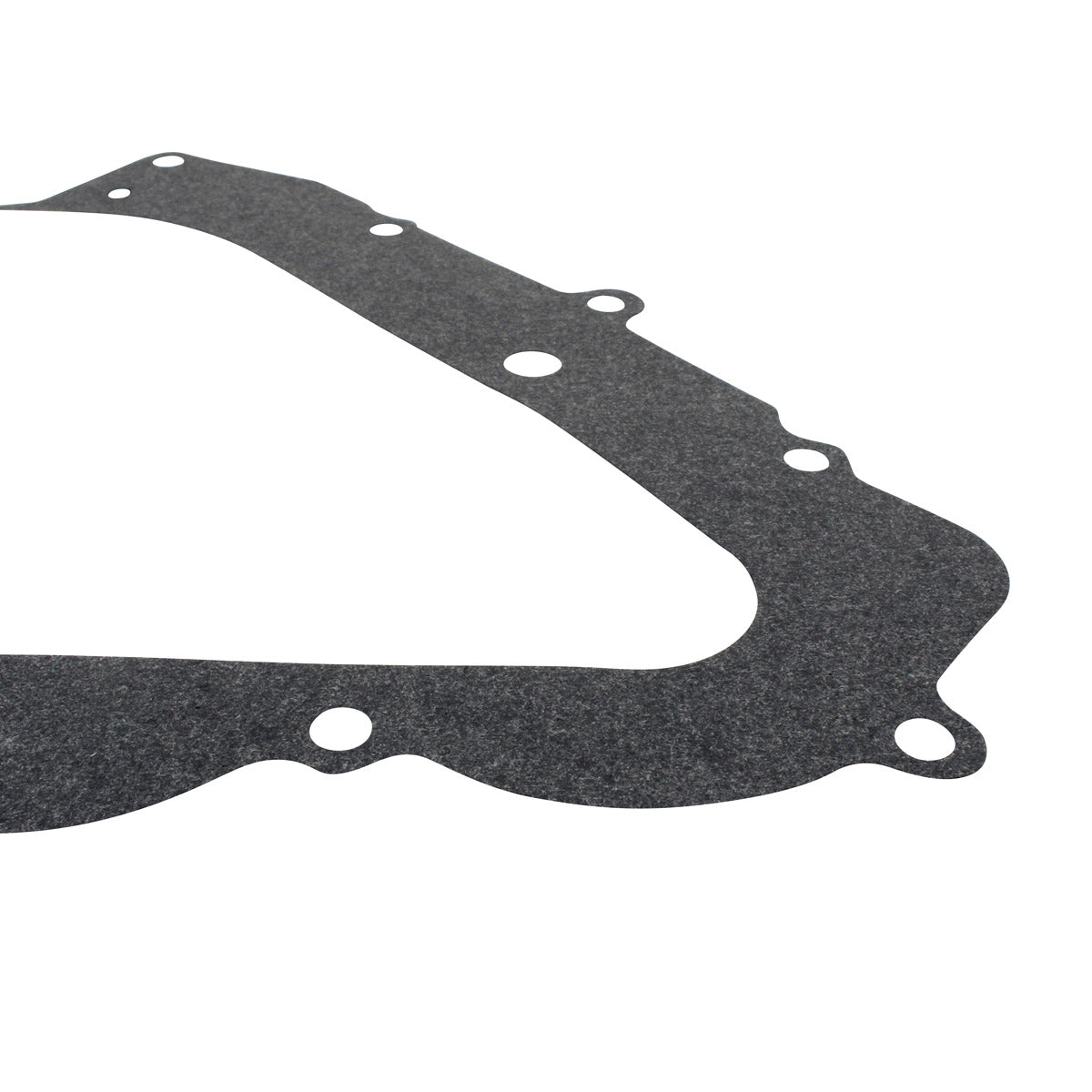

This is a brand new stator crankcase cover gasket for the Aprilia 1000 cc V-twin range, covering the ETV 1000 Caponord, RST 1000 Futura, RSV 1000 in standard, S and Tuono forms, and the SL 1000 Falco. The gasket seals the joint between the crankcase and the stator cover on the left-hand side of the engine. It keeps engine oil in and road water, salt and grit out of the charging system, and it is destroyed the moment the cover is unbolted.
Any job that involves the stator, the pick-up coil or the flywheel means removing that cover, and the cover cannot be refitted reliably on the old gasket. A gasket that has been compressed once has already taken its permanent set, and reusing it is the usual reason an Aprilia starts weeping oil down the left-hand crankcase within a few hundred miles of a stator change. This replacement is cut to the original outline and bolt hole pattern so the cover pulls down flat and evenly without sealant. All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Key Features
- Brand new stator crankcase cover gasket
- Direct replacement for the original Aprilia gasket
- Cut to the OEM outline and bolt hole pattern
- Covers the full Aprilia 1000 V-twin range from 1998 to 2009
- Required whenever the stator cover is removed
- Product photographs show the actual item supplied
- Replaces Aprilia part number AP0650341
Technical Specs
| Specification | Detail |
|---|---|
| Part type | Stator crankcase cover gasket |
| Part number | RMS050-106899 |
| OEM reference | AP0650341 |
| Condition | Brand new aftermarket |
| Fitment type | Ride specific - direct fit |
| Sold as | One gasket |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Aprilia ETV 1000 Caponord | 1998-2009 |
| Aprilia RST 1000 Futura | 1998-2009 |
| Aprilia RSV 1000 | 1998-2009 |
| Aprilia RSV 1000 S | 1998-2009 |
| Aprilia RSV 1000 Tuono | 1998-2009 |
| Aprilia SL 1000 Falco | 1998-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| AP0650341 | Aprilia |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a ride specific, direct fit gasket cut to the original Aprilia profile for the models listed above. No trimming, drilling or sealant is required. Check part number AP0650341 against your parts list before ordering.
What is included?
One brand new stator crankcase cover gasket. Cover bolts, the stator and any other engine components are not included.
How do I know the old gasket has failed?
Look for an oil film or drips along the lower edge of the stator cover, oil creeping down the left-hand side of the crankcase, or a gasket that has split, hardened or torn when the cover was last removed. On these Aprilia V-twins a weeping stator cover is often mistaken for a leaking sump, so clean the area and re-check after a ride to find the true source.
Can I reuse the original gasket if it looks intact?
It is not advisable. The gasket takes a permanent set once the cover has been torqued down, so even one that comes off in a single piece will not seal to the same standard a second time. Fitting a new gasket at the same time as any stator or flywheel work is the only dependable way to keep the joint oil tight.
