Stator for Suzuki Katana GS 650, GS 750, GS 850 & GS 1000 1979-1983
Stator for Suzuki Katana GS 650, GS 750, GS 850 & GS 1000 1979-1983
SKU:RM01081
Free shipping over £150. Terms apply
Couldn't load pickup availability

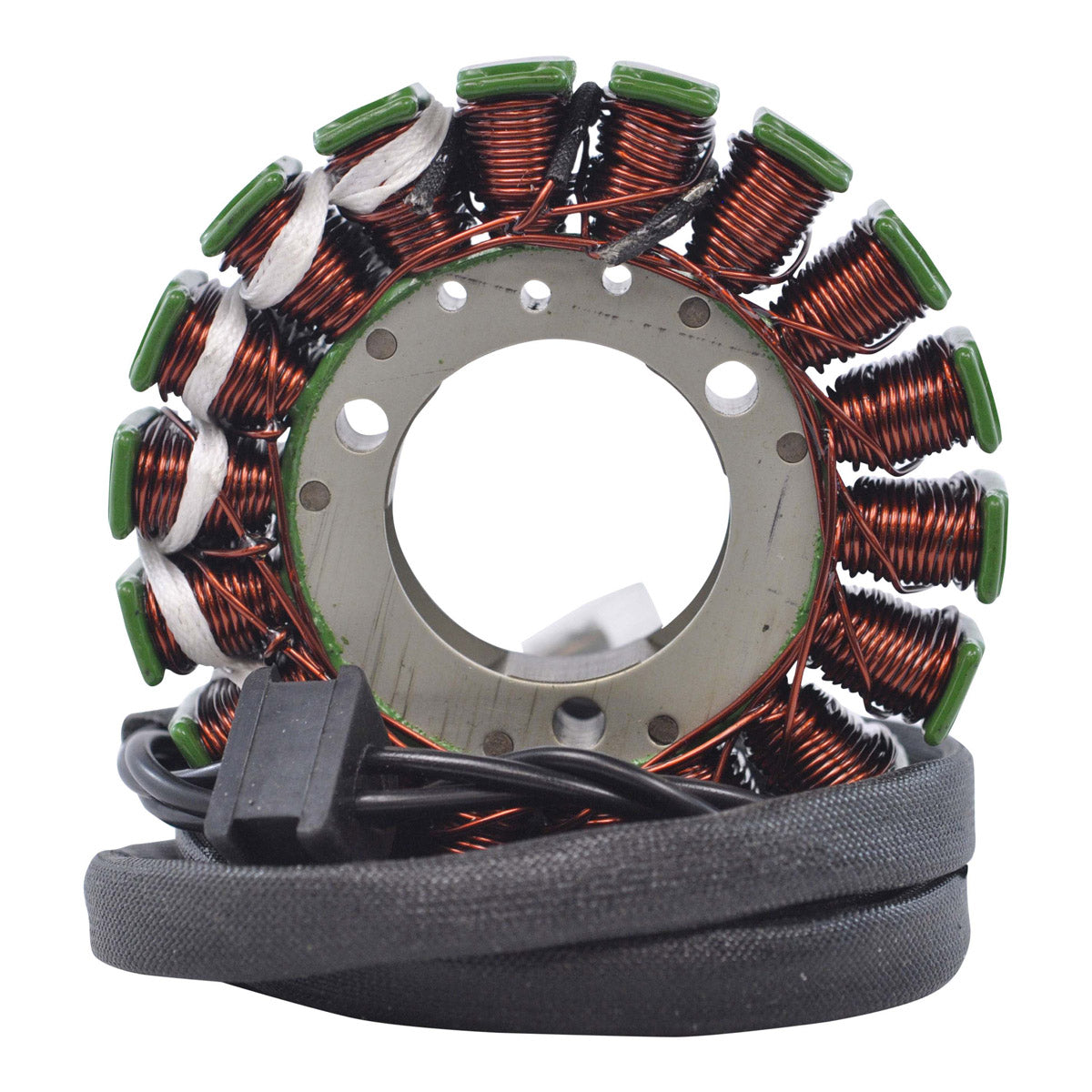

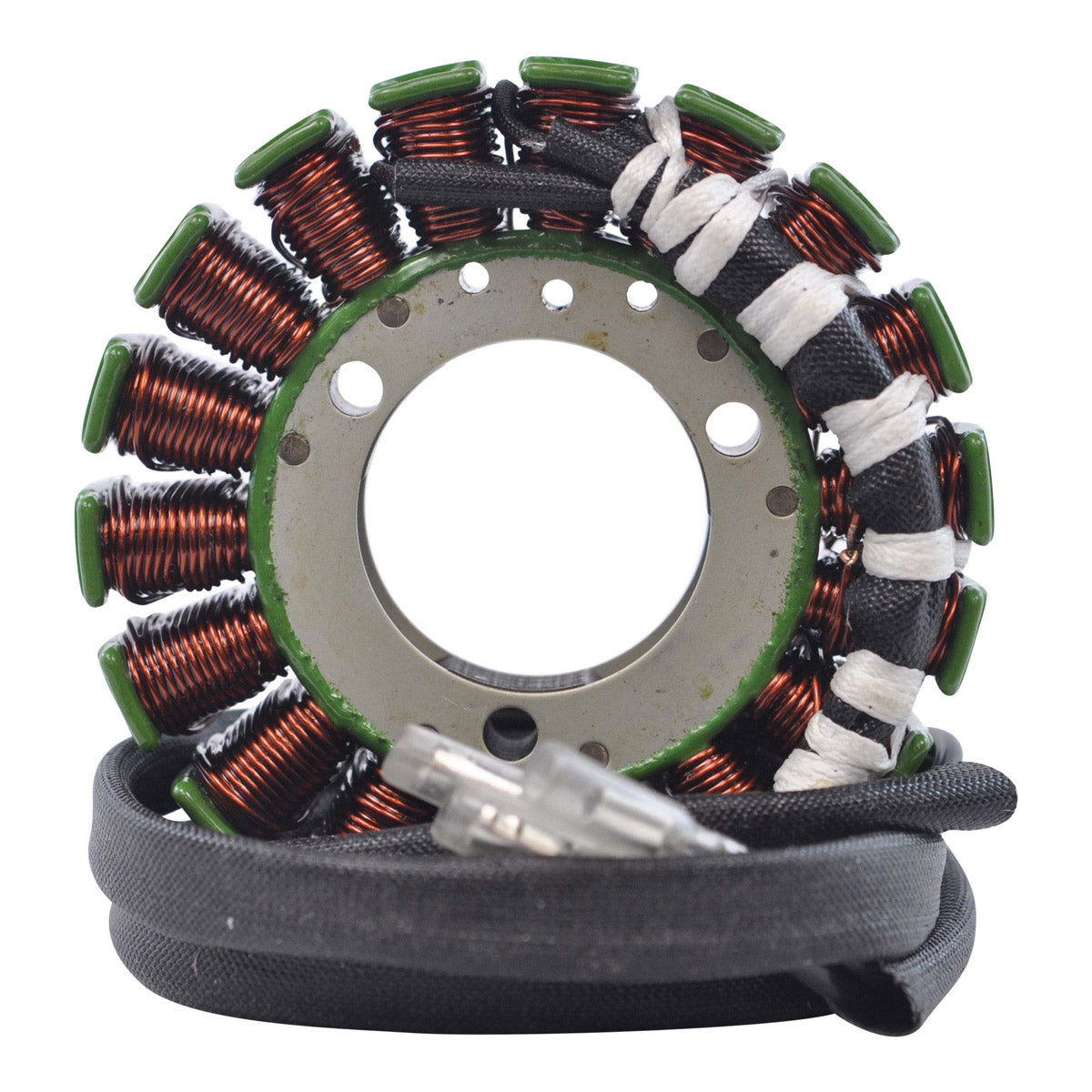

Generator Stator for Suzuki Katana GS
Fits Suzuki Katana GS 650, GS 750, GS 850, GS 1000 and GR 650 1979-1983 - RMSTATOR part RM01081
A brand new RMSTATOR generator stator for the air-cooled Suzuki Katana GS range and the GR 650. It is a direct replacement for the original unit, plug-and-play, a direct fit and easy to install, with the connector and rubber grommet supplied so the joint can be made up cleanly.
The windings are the highest grade copper, rated to resist 200 degrees Celsius, on the highest grade lamination materials - the combination that keeps output stable once the engine is up to temperature. All products shipped are tested. A three-wire, three-pin output with a 300 mm tail from the stator to the grommet and a 620 mm run from the grommet to the plug means the harness reaches without stretching or splicing.
Key Features
- Brand new stator, direct replacement for the original Suzuki unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

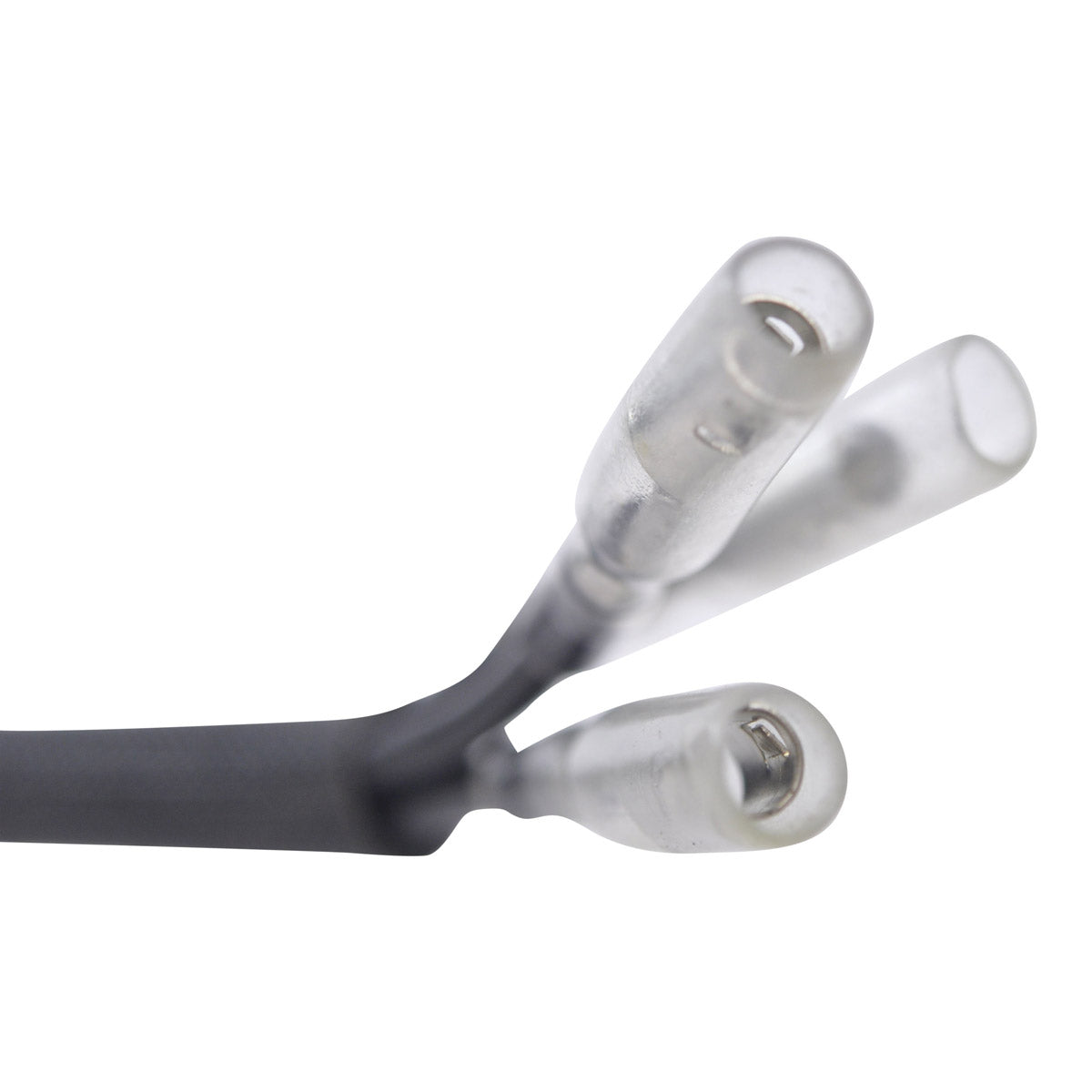

- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 35 mm |
| Exterior diameter | 93 mm |
| Thickness | 18 mm |
| Wire length, stator to grommet | 300 mm |
| Wire length, grommet to plug | 620 mm |
| Number of wires | 3 |
| Number of plugs | 3 |
| Number of pins | 3 |
| Alternator resistance, White between each White | 0.9 ohms +/-20% |
| Alternator, White to ground | O.L. on display |
| Winding temperature rating | 200 degrees Celsius |
| RMSTATOR part number | RM01081 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Suzuki Katana GS 650 | 1979-1983 |
| Suzuki Katana GS 750 | 1979-1983 |
| Suzuki Katana GS 850 | 1979-1983 |
| Suzuki Katana GS 1000 | 1979-1983 |
| Suzuki GR 650 | 1979-1983 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31401-45110 | Suzuki |
| 31401-45111 | Suzuki |
| 31401-45120 | Suzuki |
| 31401-49530 | Suzuki |
| 31401-49531 | Suzuki |
| 31401-15500 | Suzuki |
| 31400-45110 | Suzuki |
| 31400-45111 | Suzuki |
| 31400-49530 | Suzuki |
| 31400-49531 | Suzuki |
| 31400-49532 | Suzuki |
| 31400-49610 | Suzuki |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct replacement for the original Suzuki unit - plug-and-play, direct fit and easy to install. The connector and rubber grommet are supplied so the harness can be made up exactly as it left the factory.
What is included in the box?

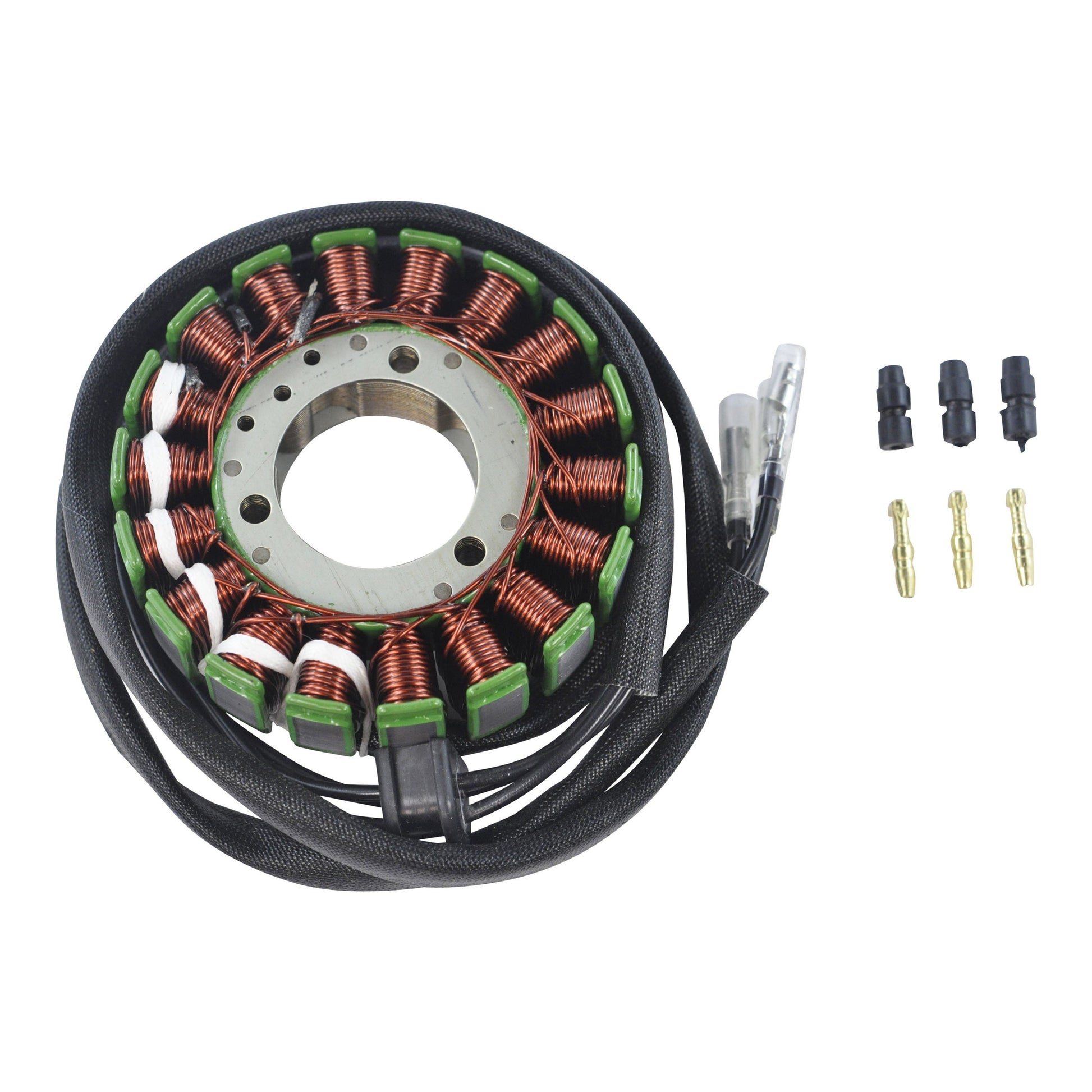

The generator stator, the connector and the rubber grommet.
How can I confirm my old stator has failed?
Measure across the three White alternator wires with a multimeter. Each pair should read 0.9 ohms +/-20%, and any White wire measured to ground should show O.L. on the display. A shorted or open winding will not charge the battery and confirms the stator needs replacing.
There are a lot of OEM numbers listed - which one matters?
Suzuki used several part numbers across this range and the numbers were superseded over the production run. Read the number stamped or printed on your original stator and look for it in the cross reference table above; if it appears there, this unit is the correct replacement.
