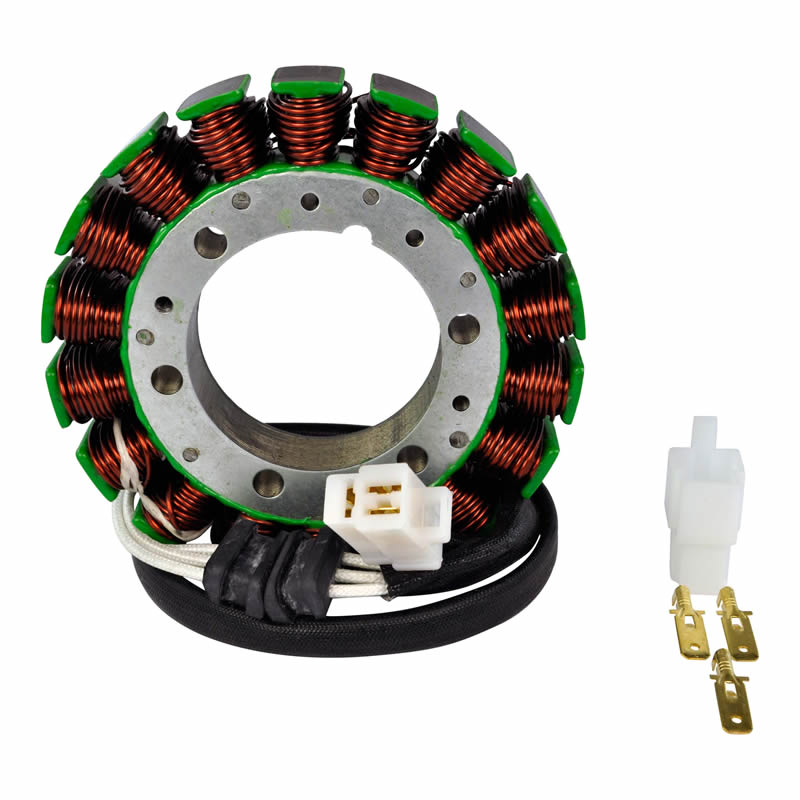

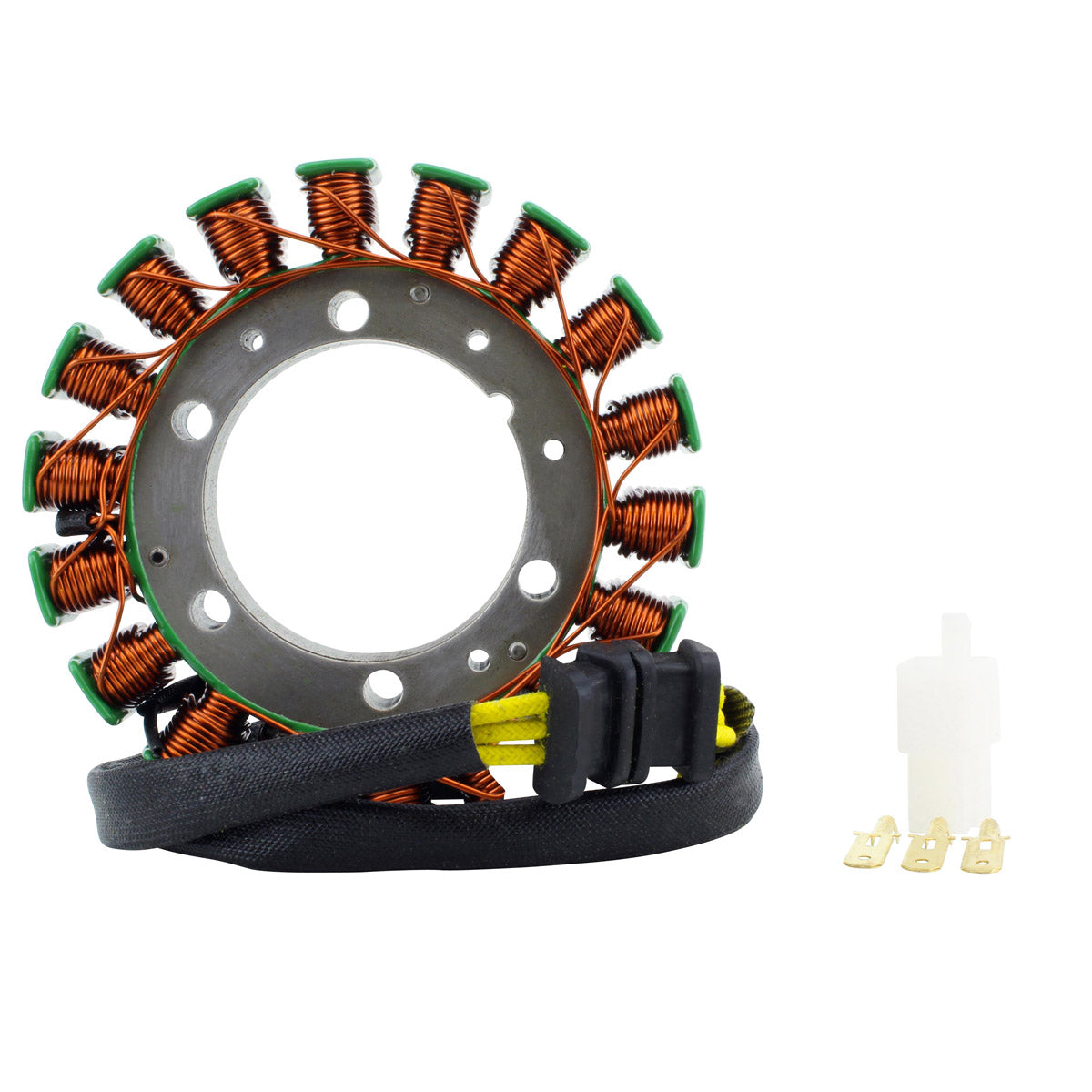

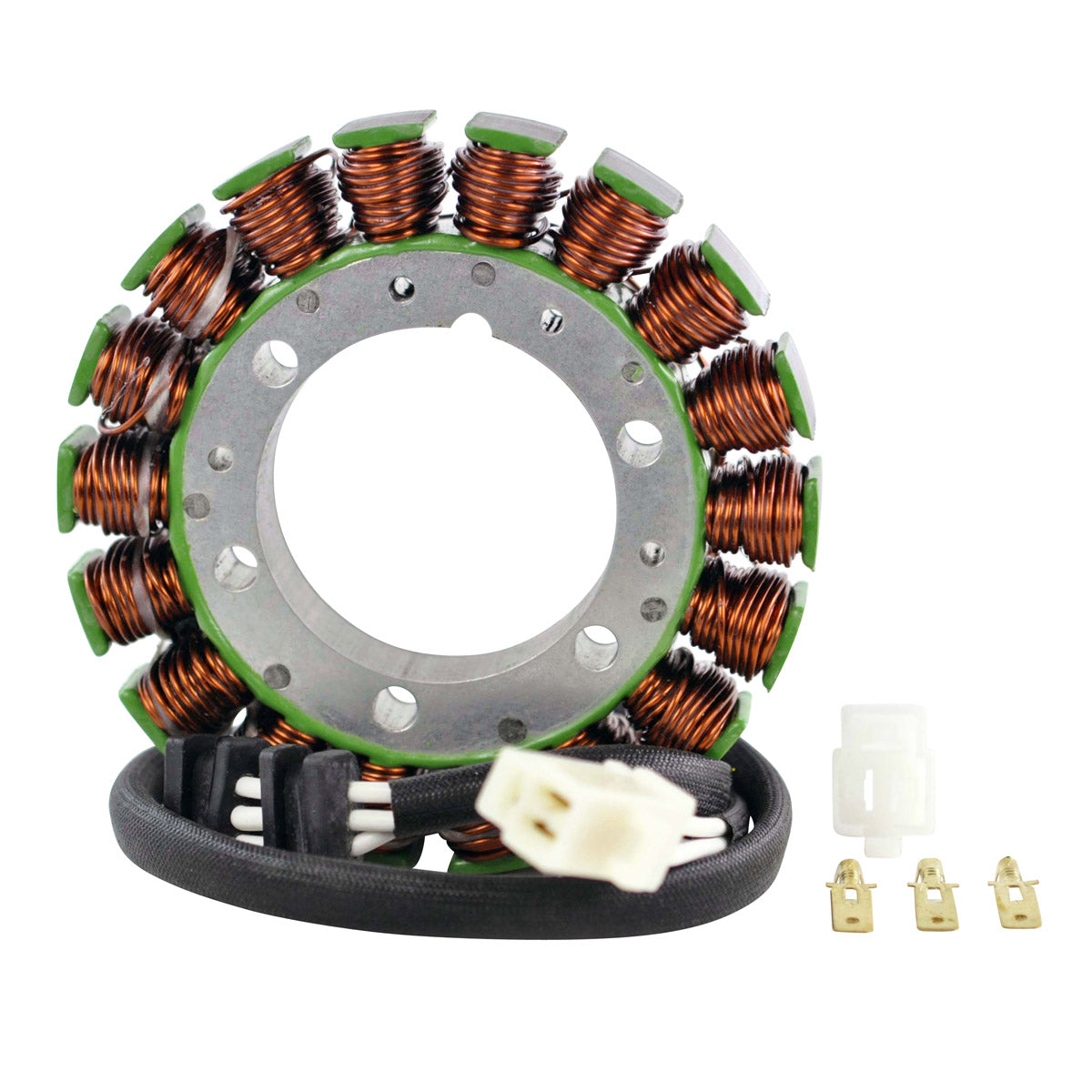

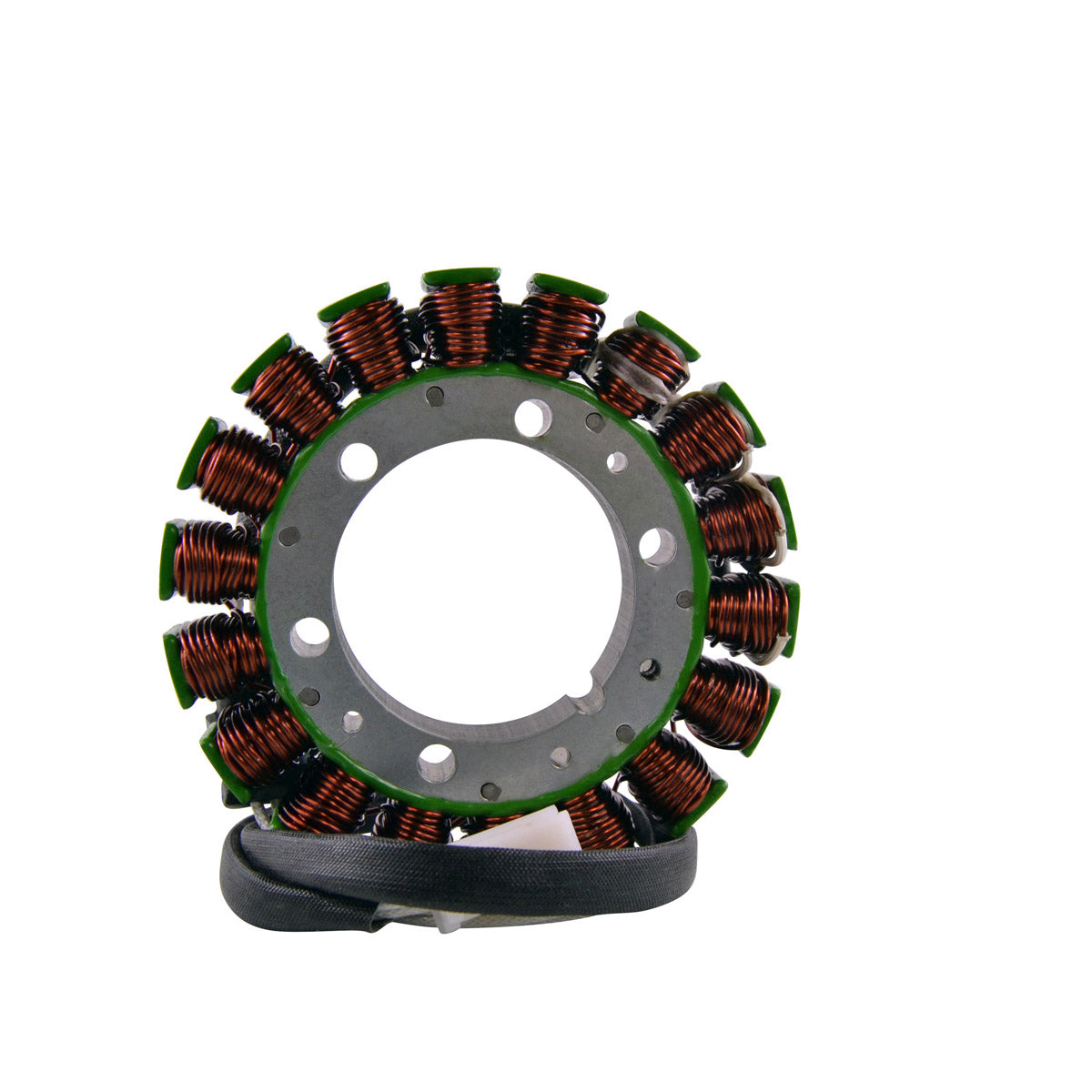

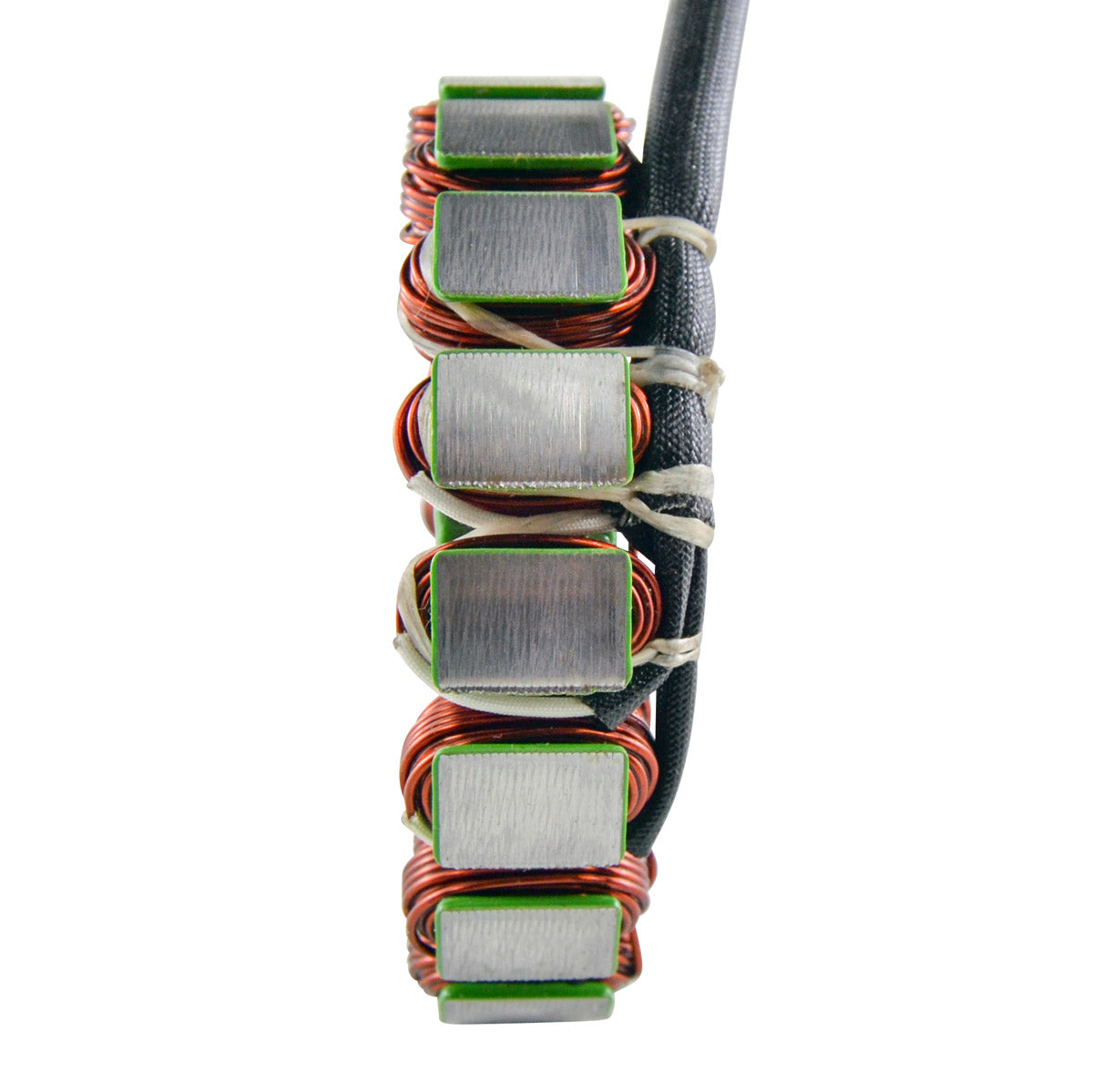

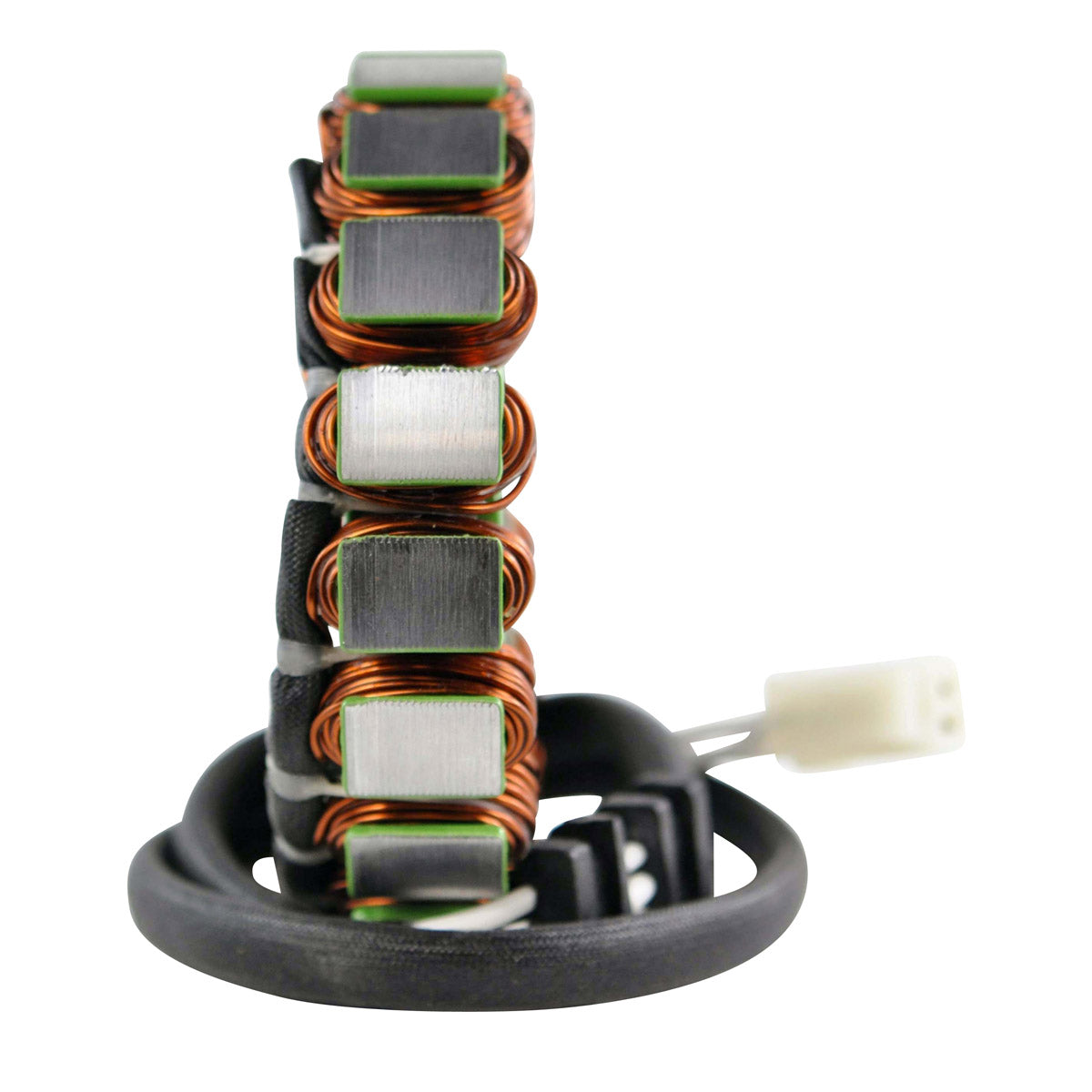

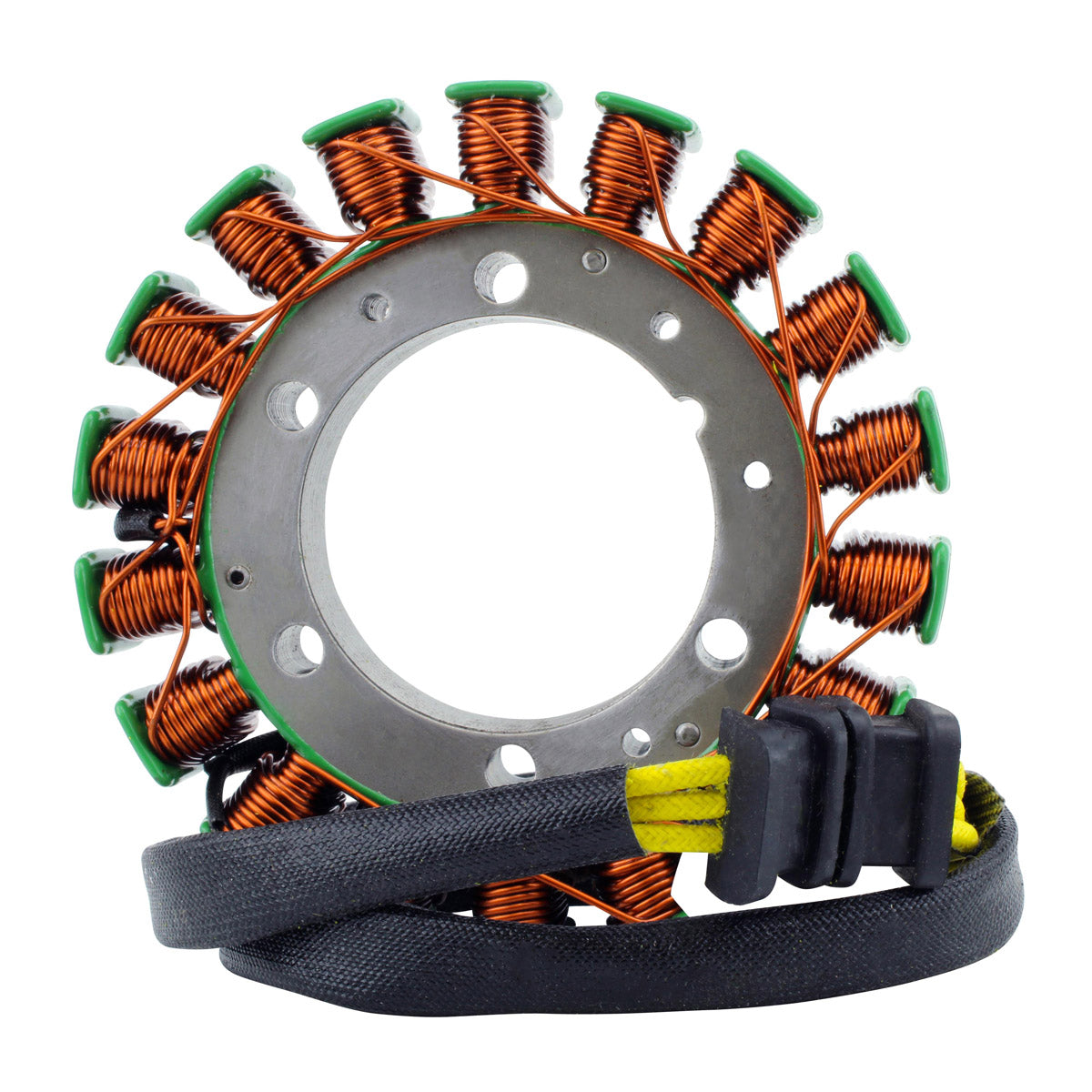

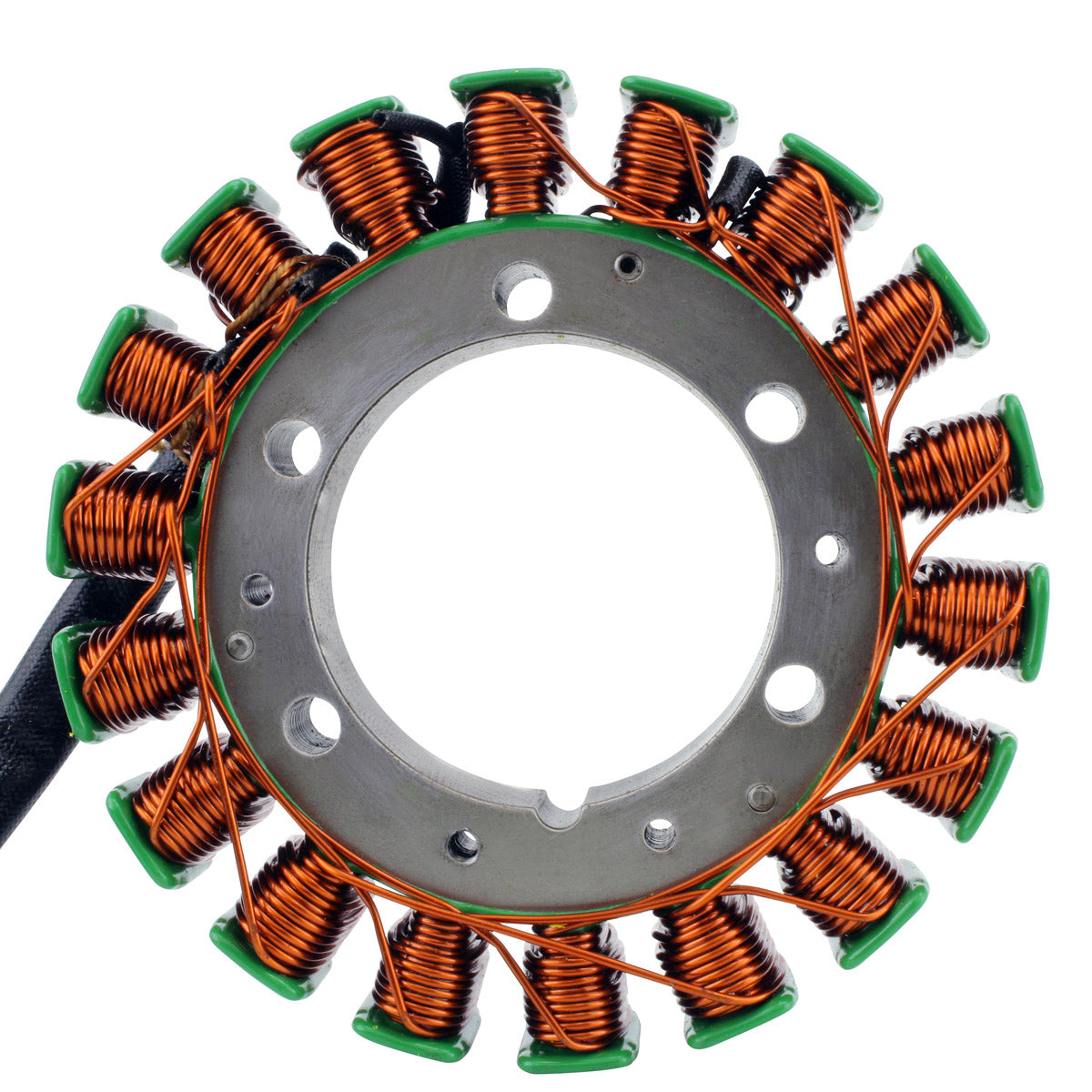

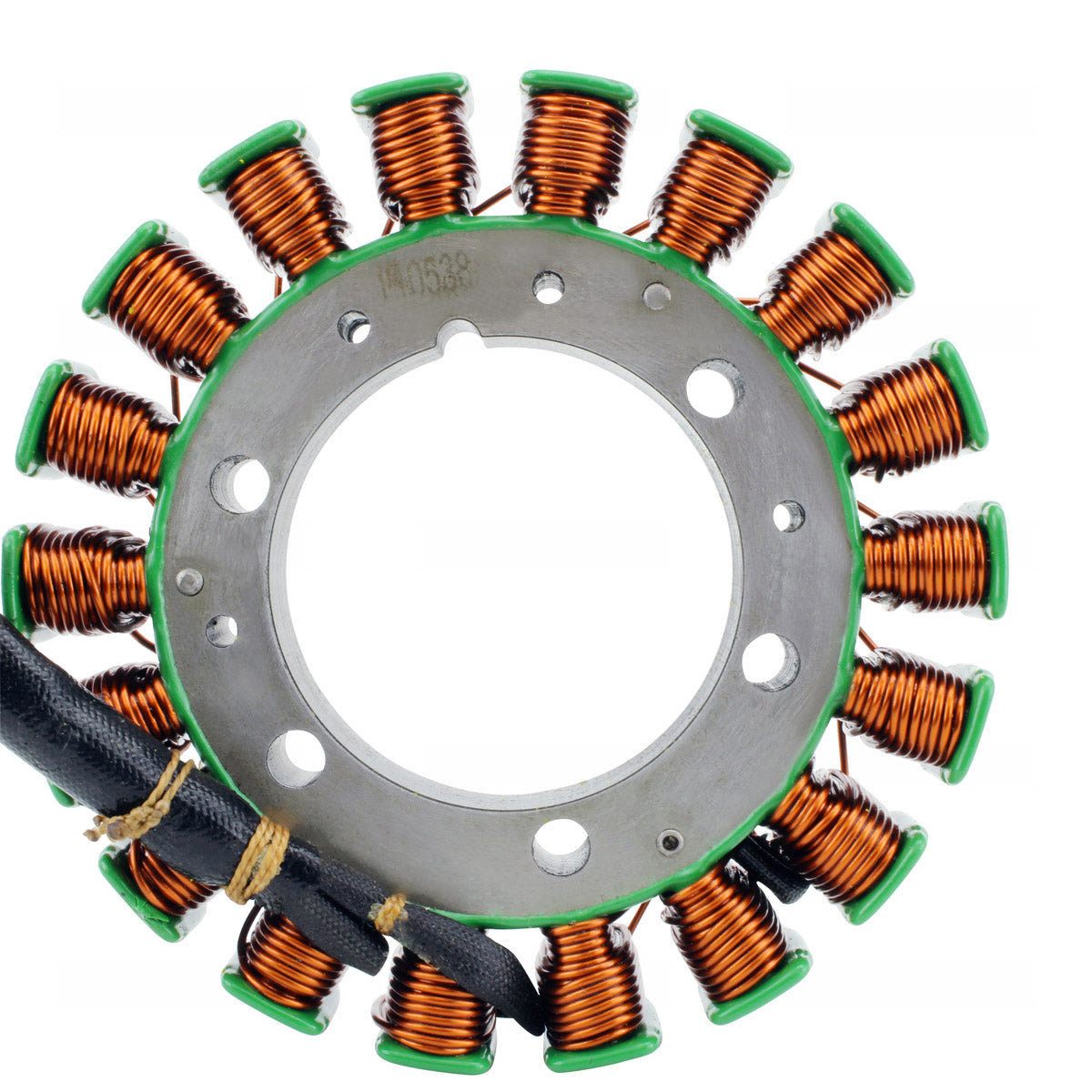

This is a brand new generator stator (RMSTATOR part RM01073) built as a direct replacement for the original charging stator fitted to the Kawasaki KLF 400 Bayou from 1993 to 1999. In RMSTATOR's own words: "Brand new stator. Direct replacement to your original unit. Plug-and-play, direct fit, easy installation." The three-wire, single-plug layout and the 410 mm harness lead match the factory item, so the machine's wiring does not need to be cut or spliced.
It is wound with the highest grade copper on the highest grade lamination materials, and the windings are resistant to 200 degrees Celsius. RMSTATOR also include the opposite connector for the main harness side, noting that "we know these are often melted/corroded/defective" on machines of this age - a genuinely useful inclusion, because a burnt harness plug will destroy a new stator just as quickly as it destroyed the old one. All products shipped are tested.
Key Features
- Brand new stator - direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

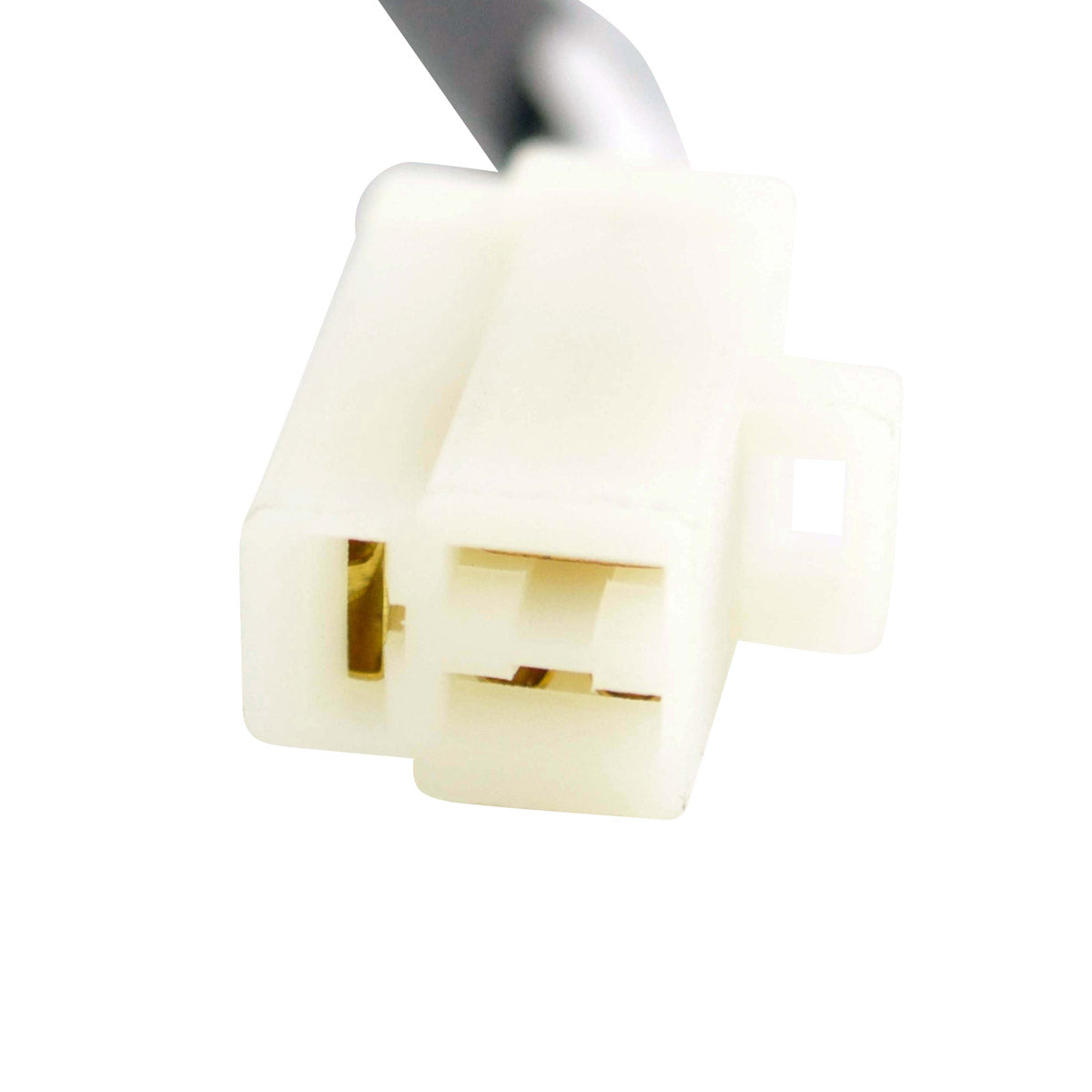

- Connector included
- Rubber grommet included

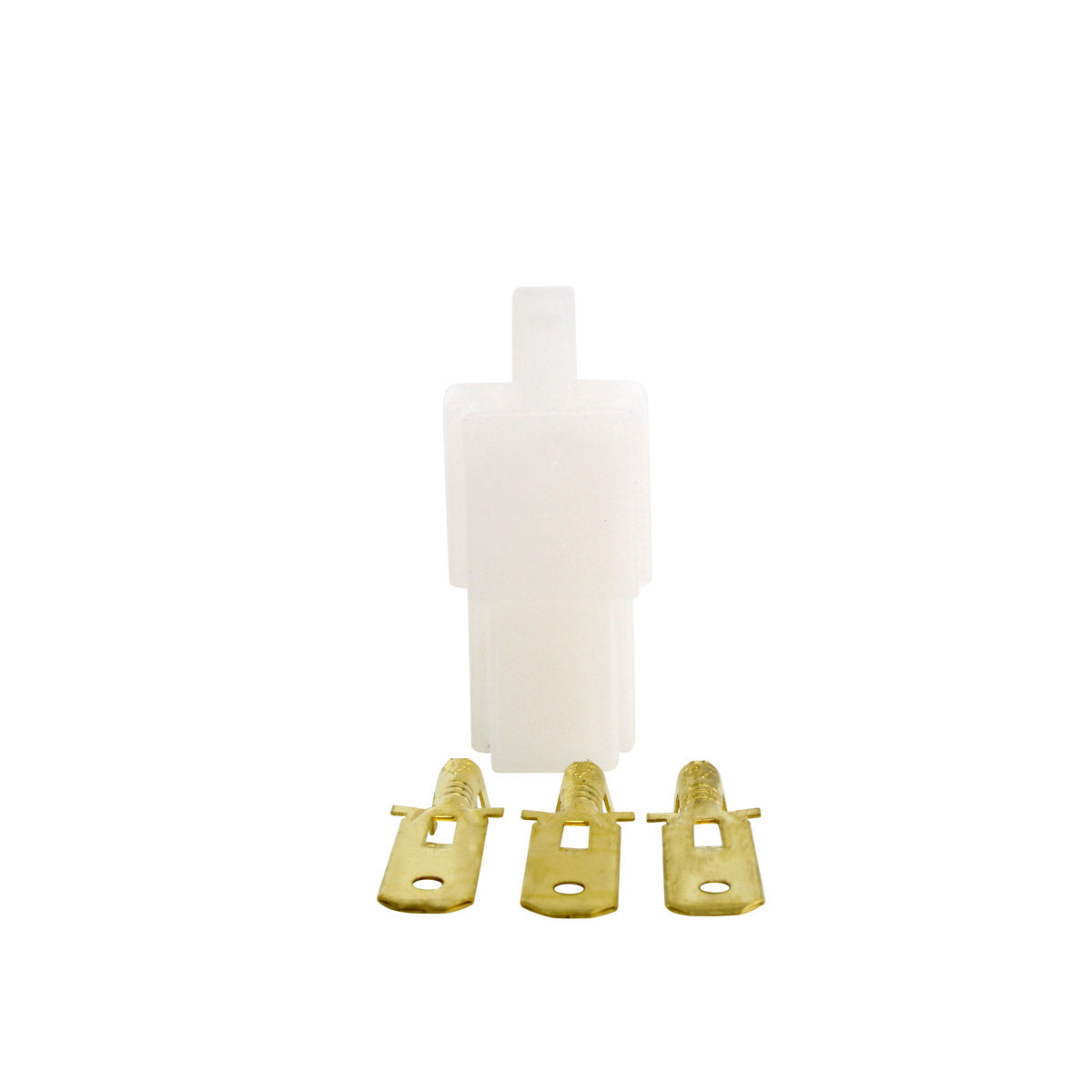

- Opposite connector (main harness side) included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM01073 |
| Interior diameter |
53 mm |
| Exterior diameter |
114 mm |
| Thickness |
18 mm |
| Wire length - stator to grommet |
100 mm |
| Wire length - grommet to plug |
410 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator resistance (White to White) |
0.4 ohms +/-20% |
| Copper winding temperature resistance |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Kawasaki KLF 400 Bayou |
1993-1999 |
| Kawasaki KLF400 |
1993-1999 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 21003-1243 |
Kawasaki |
Frequently Asked Questions
Will this fit without modifying my wiring?
Yes. It is a plug-and-play, direct fit replacement with the same single 3-pin plug and the same 410 mm lead as the original, so no cutting or splicing is required.
What is included in the box?

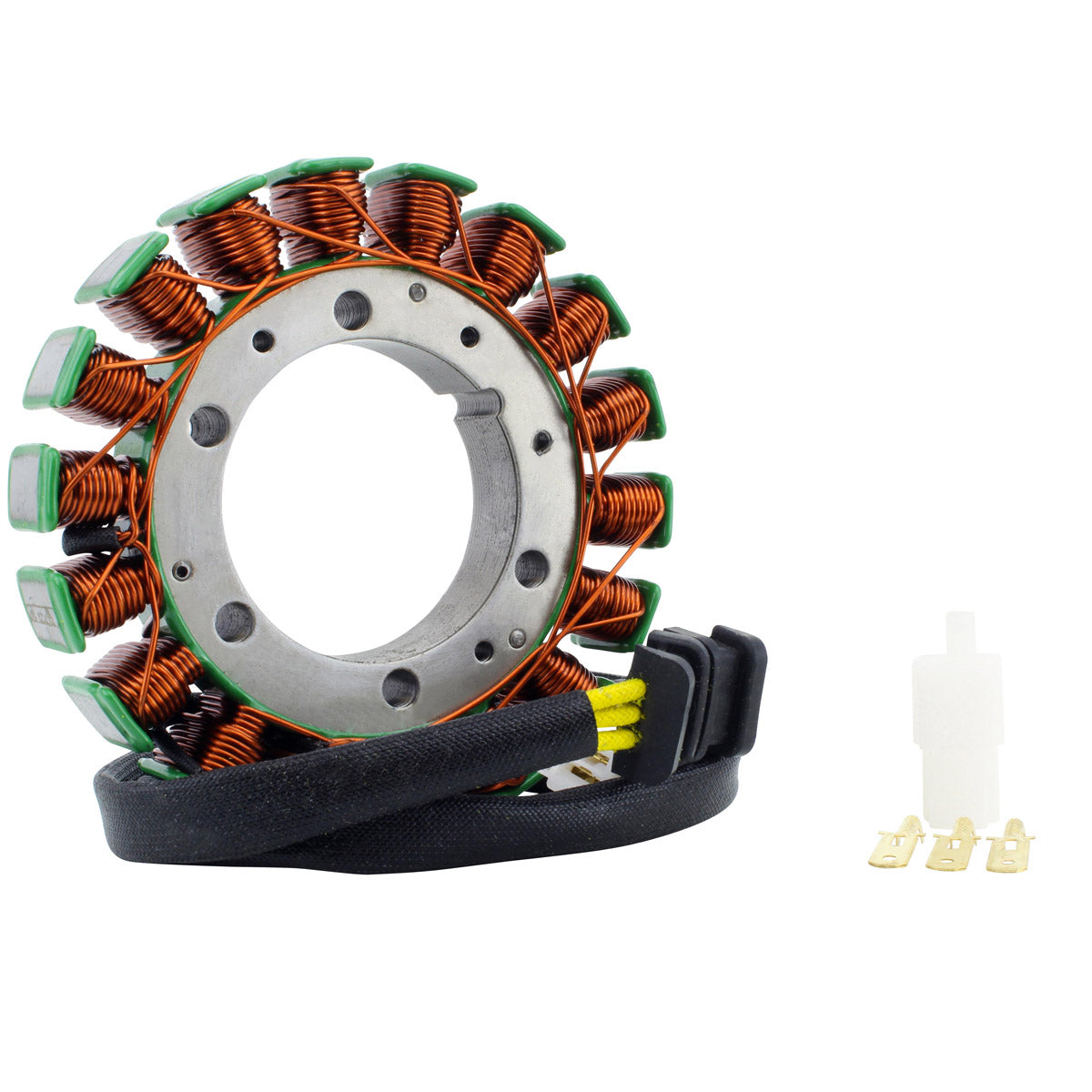

The stator unit, the connector, the rubber grommet, and the opposite connector for the main harness side.
How do I know my old stator has failed?
Measure between the three white wires with the engine off - each pair should read about 0.4 ohms, within plus or minus 20 percent - then check from any white wire to the stator body, which must read open circuit. A winding that reads open, dead short, or shows continuity to the body has failed. A battery that keeps going flat and charging voltage that never rises with engine speed are the usual symptoms.
Why is a second connector supplied?

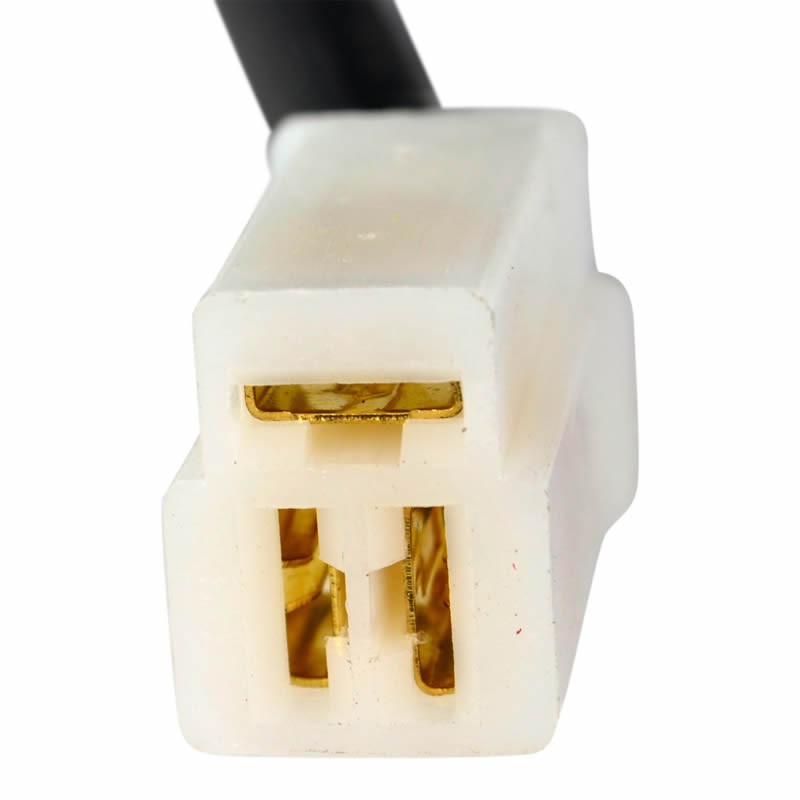

RMSTATOR include the opposite connector for the main harness side because on these machines the original plug is often melted, corroded or otherwise defective. Replacing both halves at the same time means the new stator is not fed through a damaged connection.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
