Generator Stator - Arctic Cat 650 V-Twin FIS 4x4
Part RM01269 - Arctic Cat 650 V-2 FIS and 650 V-Twin FIS Auto 4x4, 2004-2006 - OEM reference 3201-182

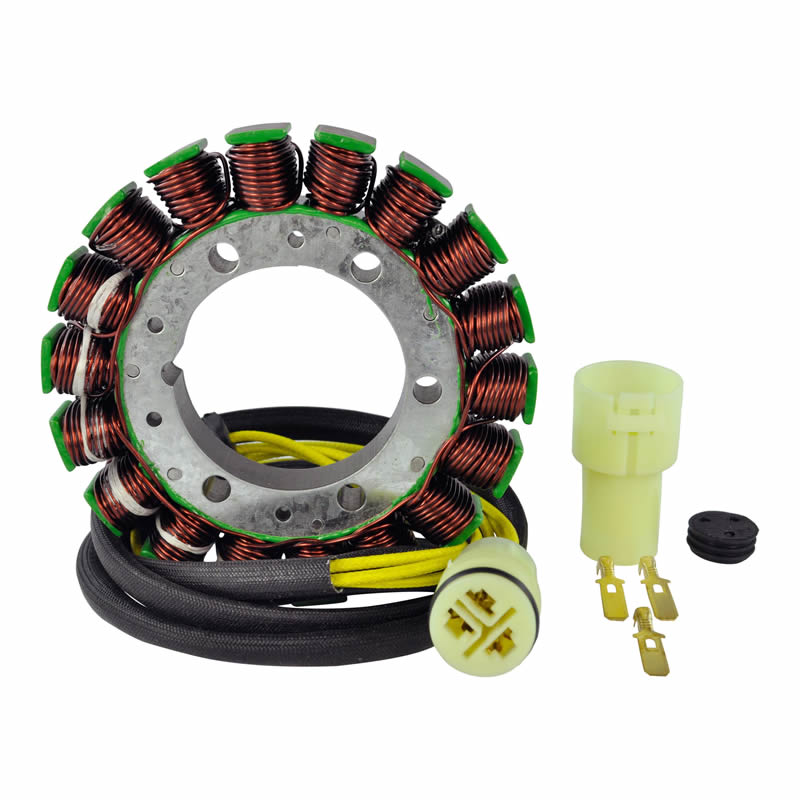

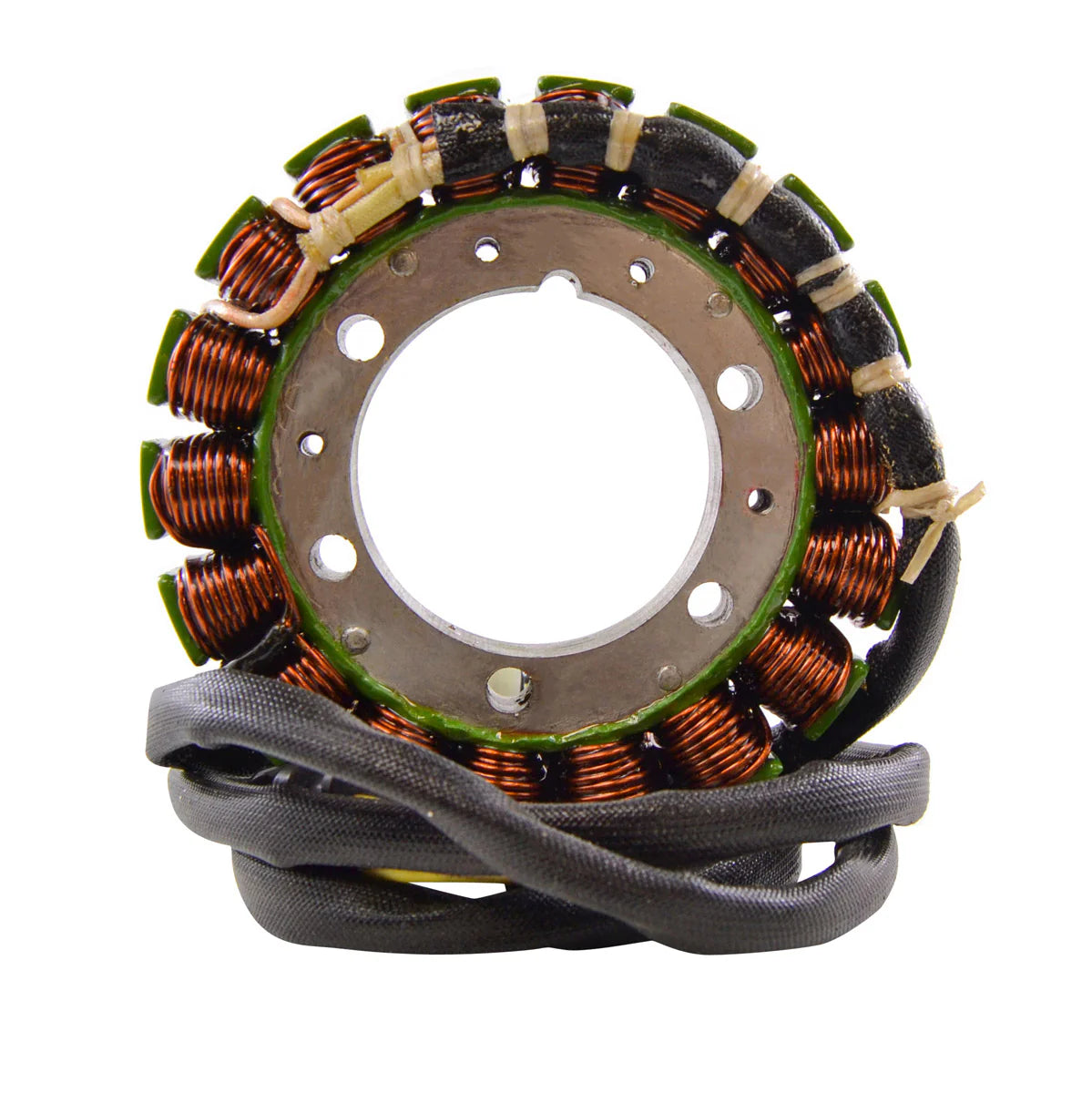

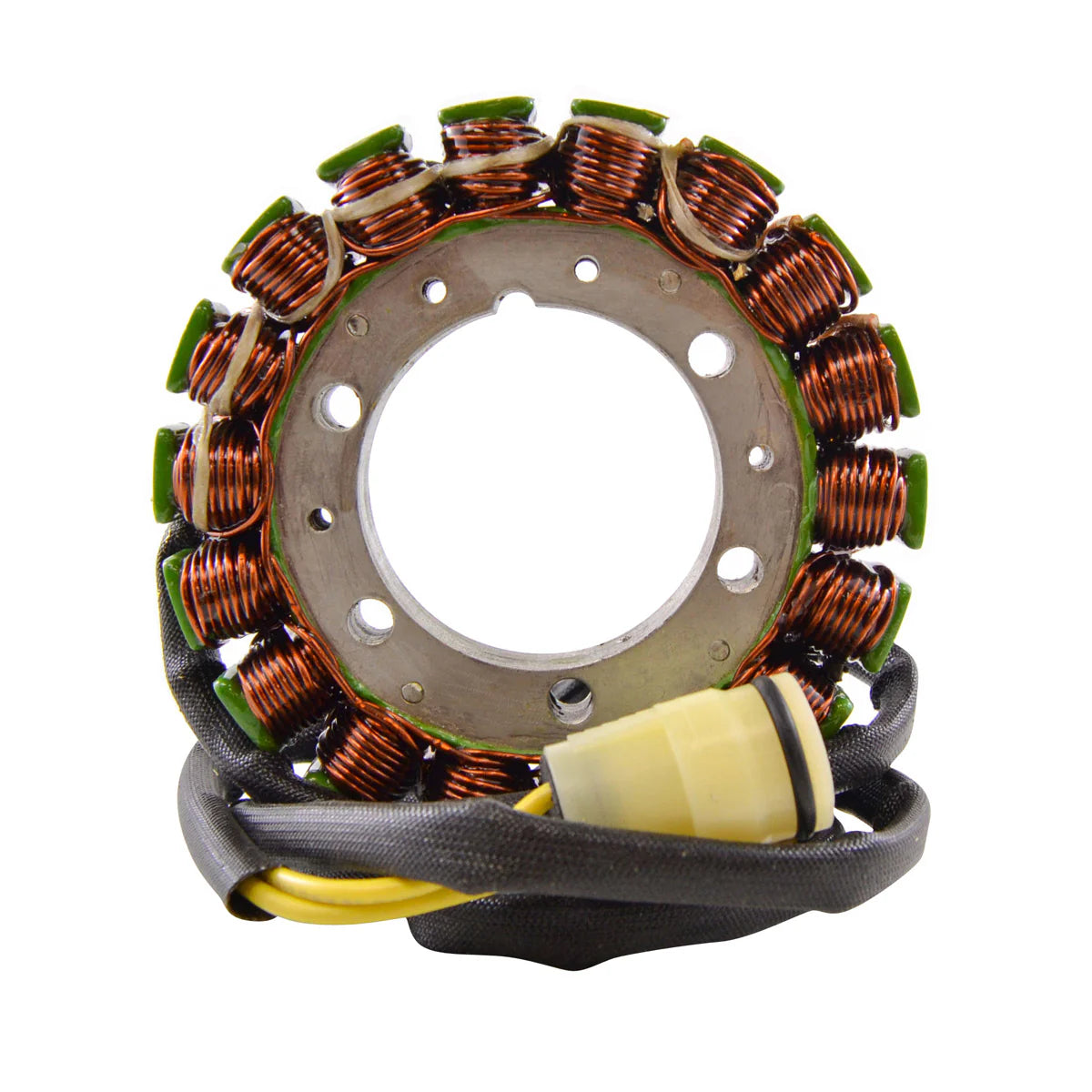

The RM01269 is a brand new aftermarket generator stator for the Arctic Cat 650 V-2 FIS and 650 V-Twin FIS Auto 4x4 built between 2004 and 2006. It is a direct replacement for the original charging coil and cross references to Arctic Cat part number 3201-182.

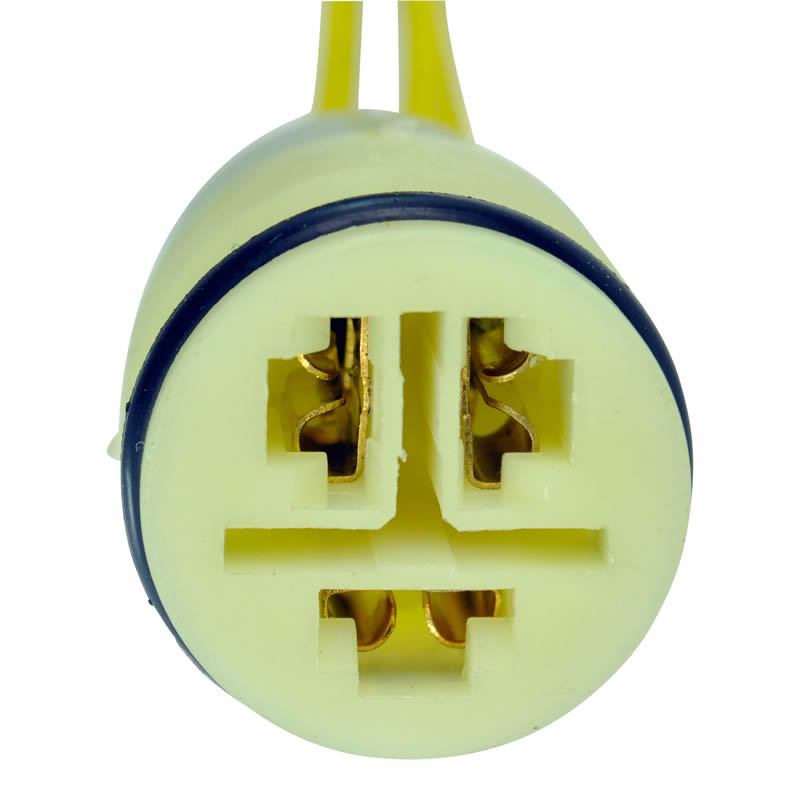

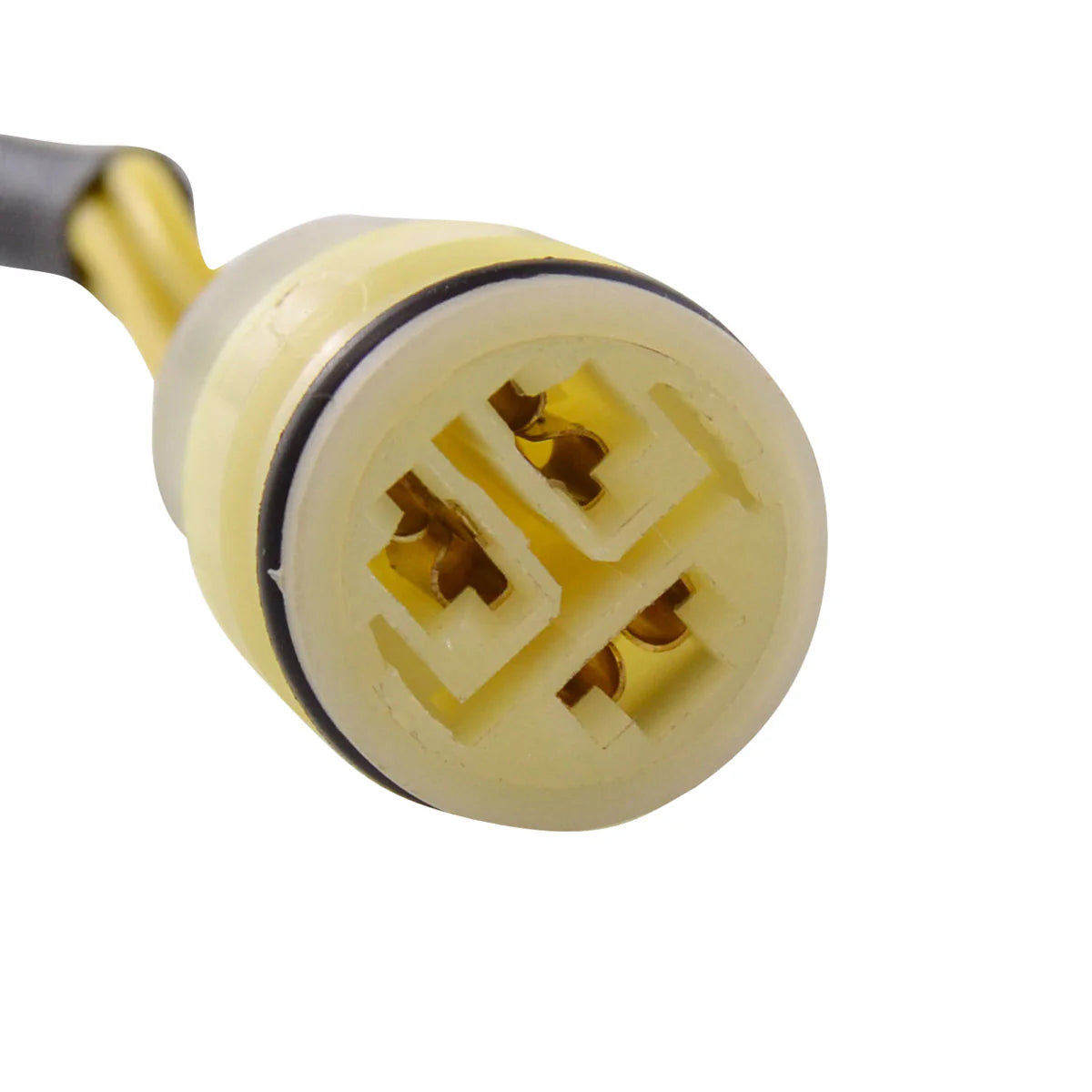

Installation is plug-and-play and direct fit, using the standard mounting points and the original single three-pin connector, so no cutting, drilling or splicing is needed. The stator is built on the highest grade lamination material and wound with the highest grade copper, resistant to 200 degrees Celsius, and carries a long 935 mm harness from the grommet to the plug. The connector and the rubber grommet are included, along with the opposite connector for the main harness side, since the original is frequently melted, corroded or defective and is a major cause of repeat electrical faults. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket generator stator
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation

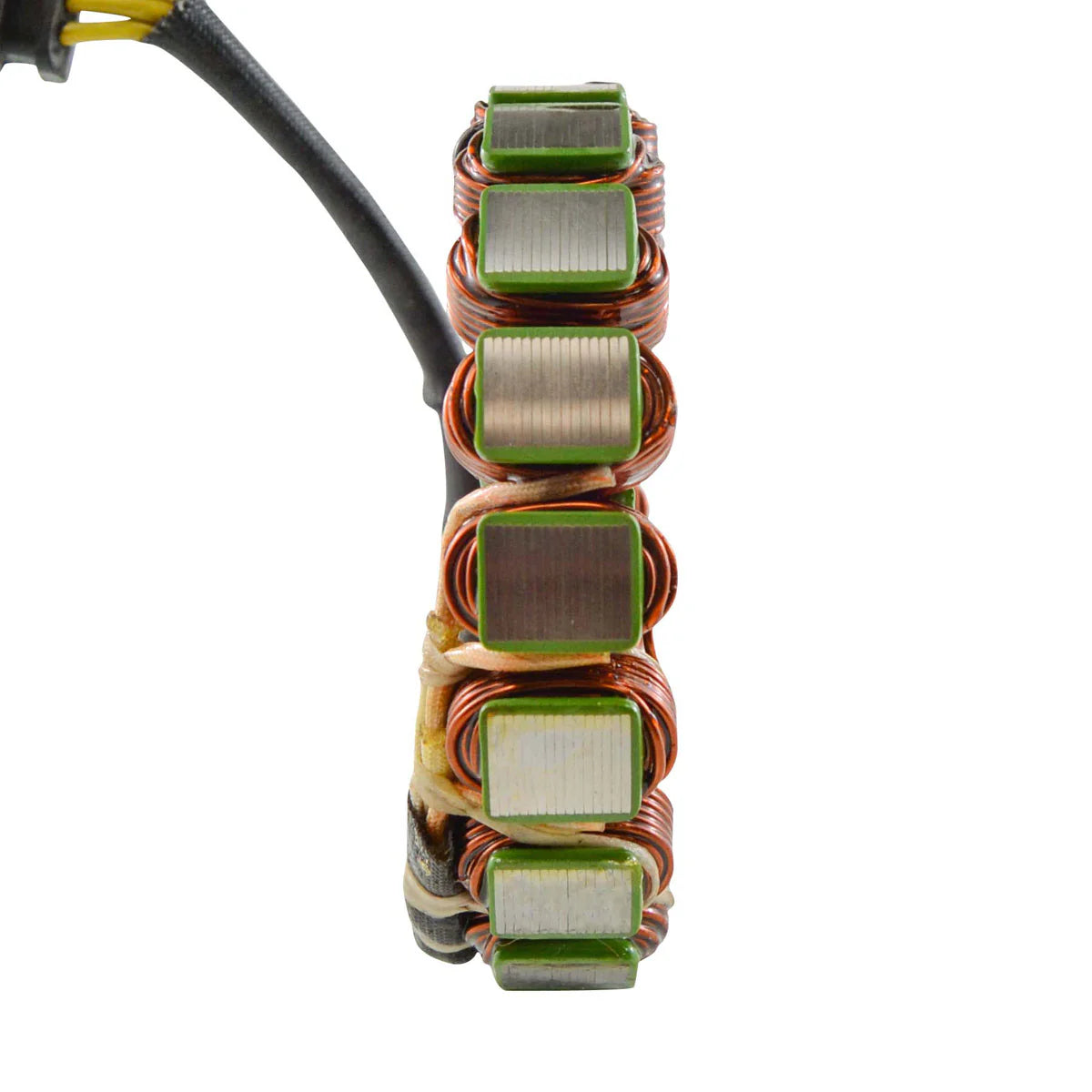

- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector and rubber grommet included
- Opposite connector for the main harness side also included
- Long 935 mm harness from grommet to plug
- Every unit tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01269 |
| Interior diameter | 54 mm |
| Exterior diameter | 115 mm |
| Thickness | 15 mm |
| Wire length, stator to grommet | 130 mm |
| Wire length, grommet to plug | 935 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Wire-to-wire resistance, Yellow between each Yellow | 0.4 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Arctic Cat 650 V-2 FIS | 2004-2006 |
| Arctic Cat 650 V-Twin FIS Auto 4x4 | 2004-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 3201-182 | Arctic Cat |
Frequently Asked Questions
Does this stator require modification to fit?
No. The RM01269 is a direct replacement for the original unit on the Arctic Cat 650 V-2 FIS and 650 V-Twin FIS Auto 4x4 from 2004 to 2006. It is plug-and-play, uses the standard mounting points and connects to the existing harness, so no cutting or splicing is required.
What is included in the box?
You receive the generator stator, the connector, the rubber grommet and an opposite connector for the main harness side.
How do I test my old stator?
Unplug the stator and measure across the three Yellow wires with a multimeter. A healthy winding reads about 0.4 ohms between each pair of Yellow wires, within 20 percent. Then check each Yellow wire to ground, which should show no continuity. An open circuit between phases, a short to ground, or a battery that will not charge while the engine runs all point to a failed stator.
Is the harness long enough to route as standard?
Yes. The RM01269 has 130 mm of wire from the stator to the grommet and a further 935 mm from the grommet to the plug, matching the original routing on the 650 V-Twin so the loom can be clipped back in its factory path without extending or shortening it.
