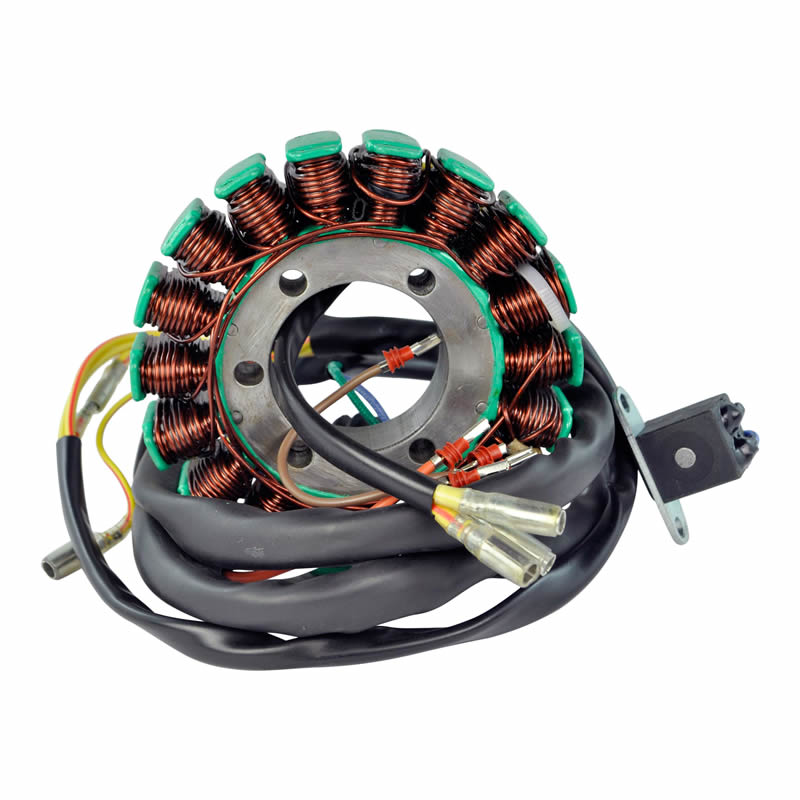

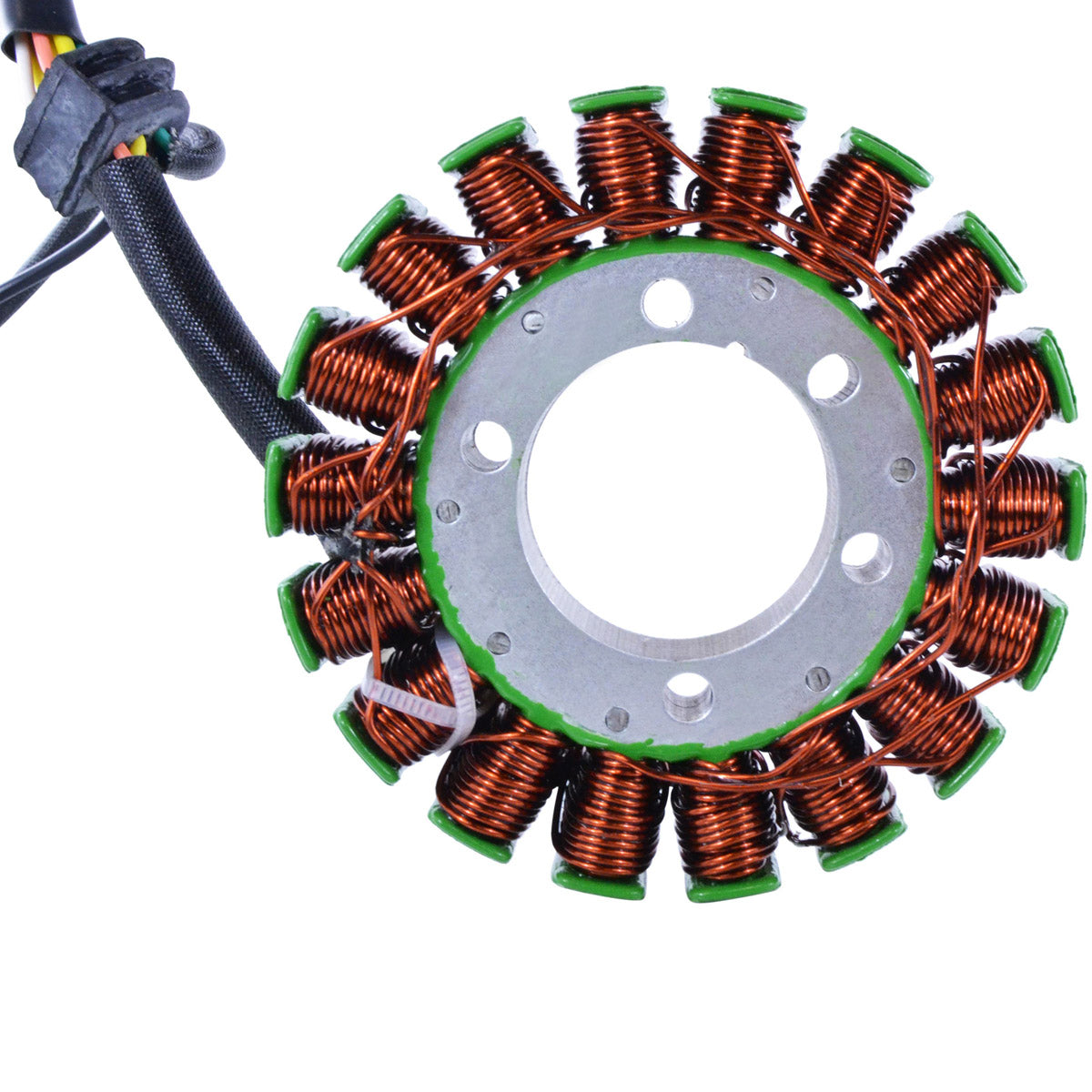

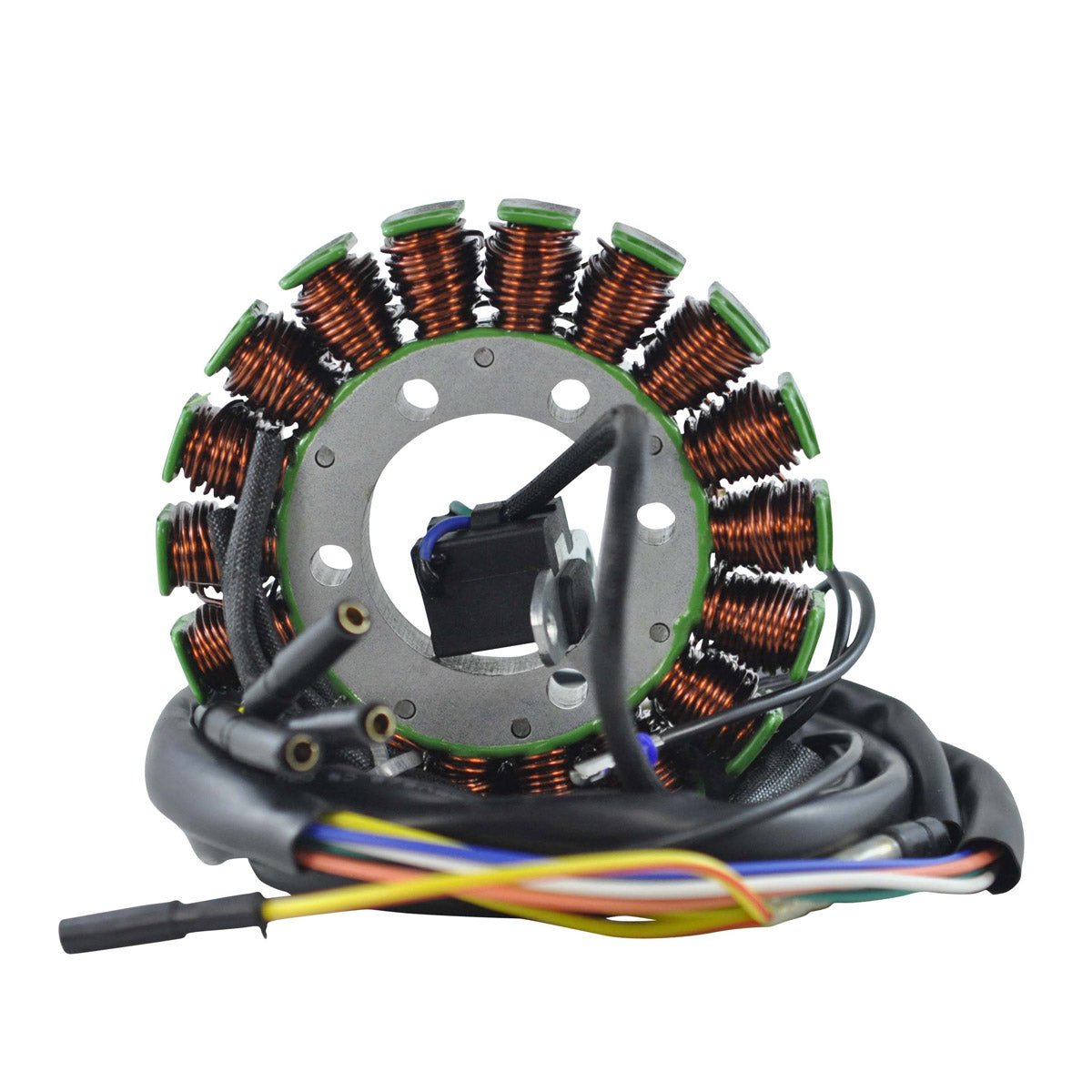

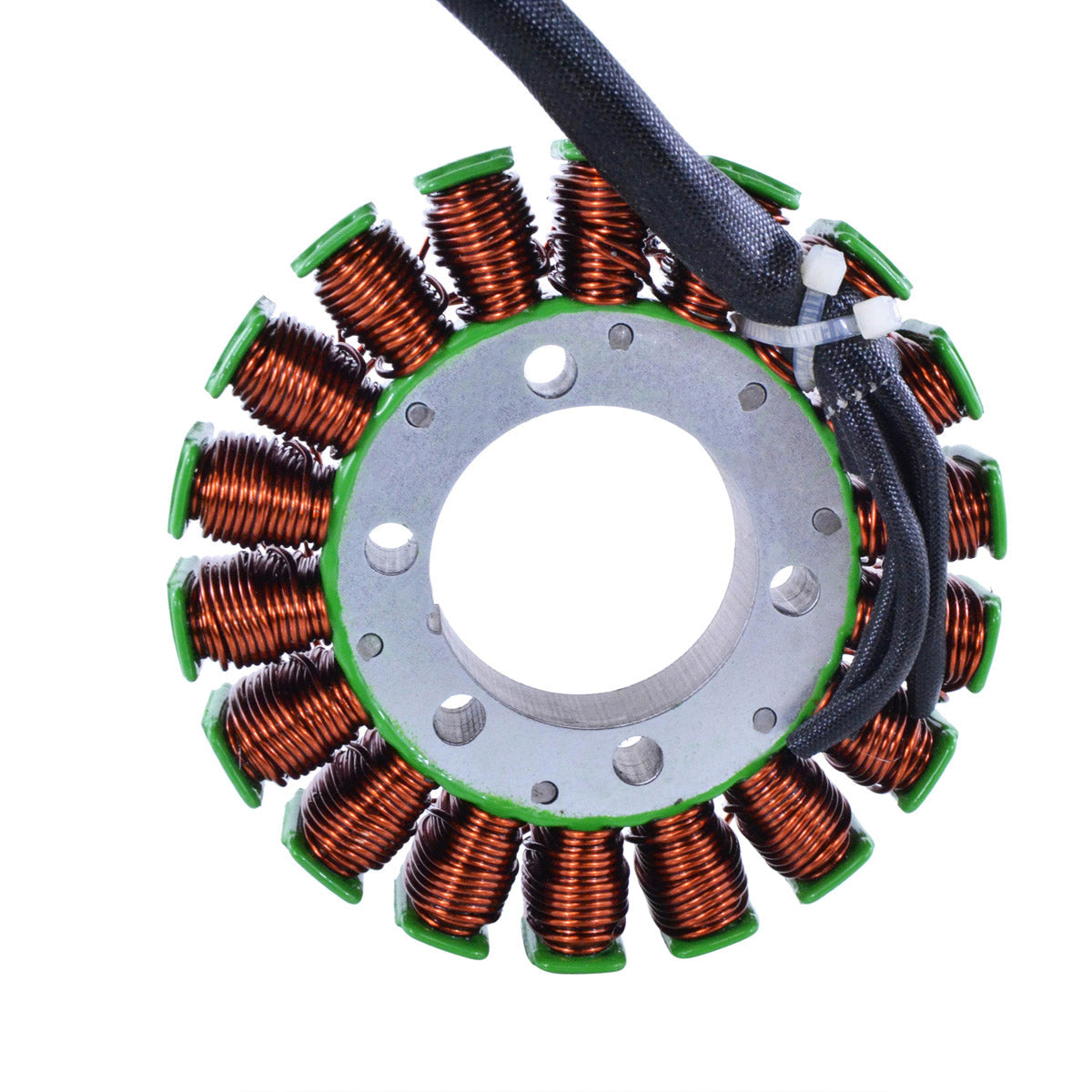

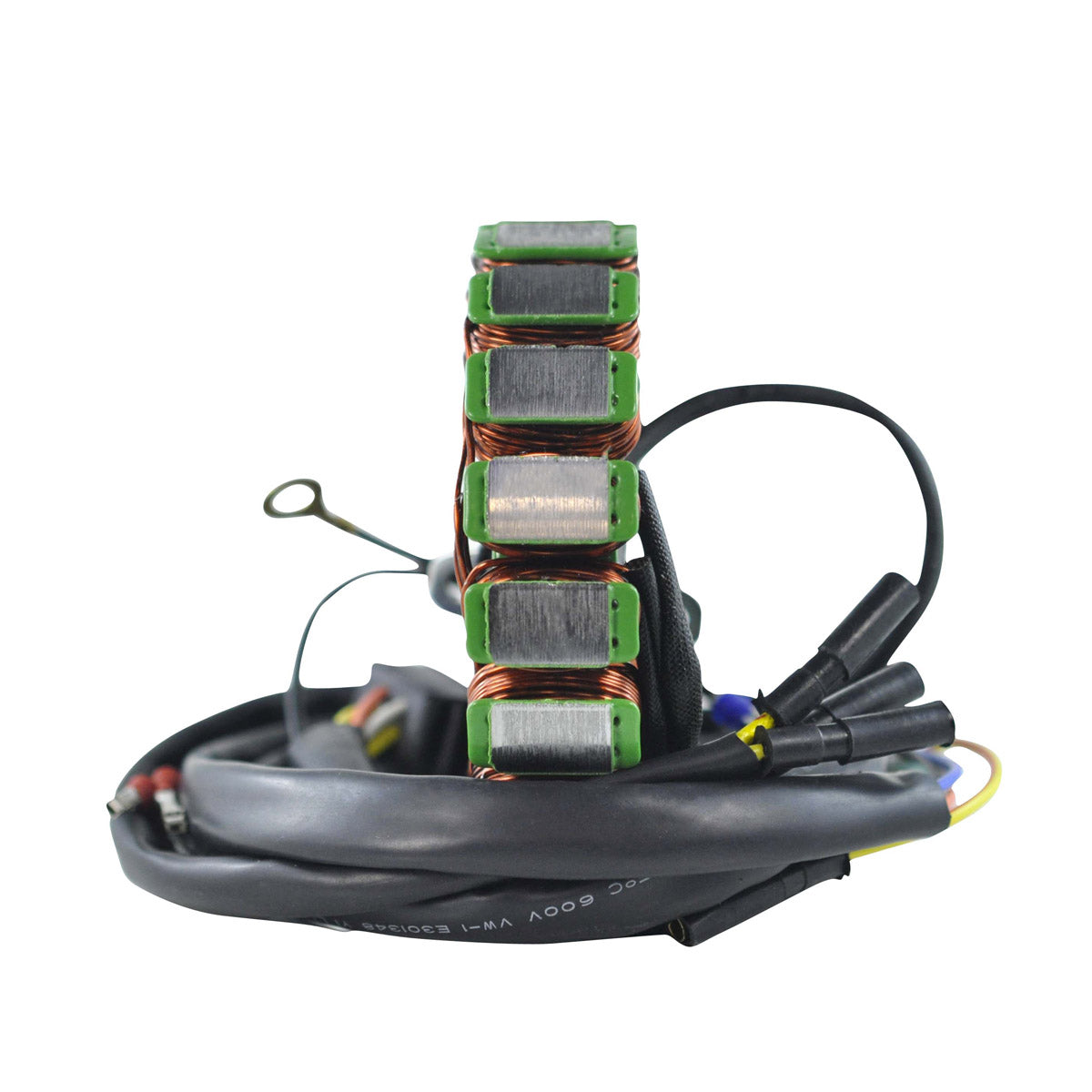

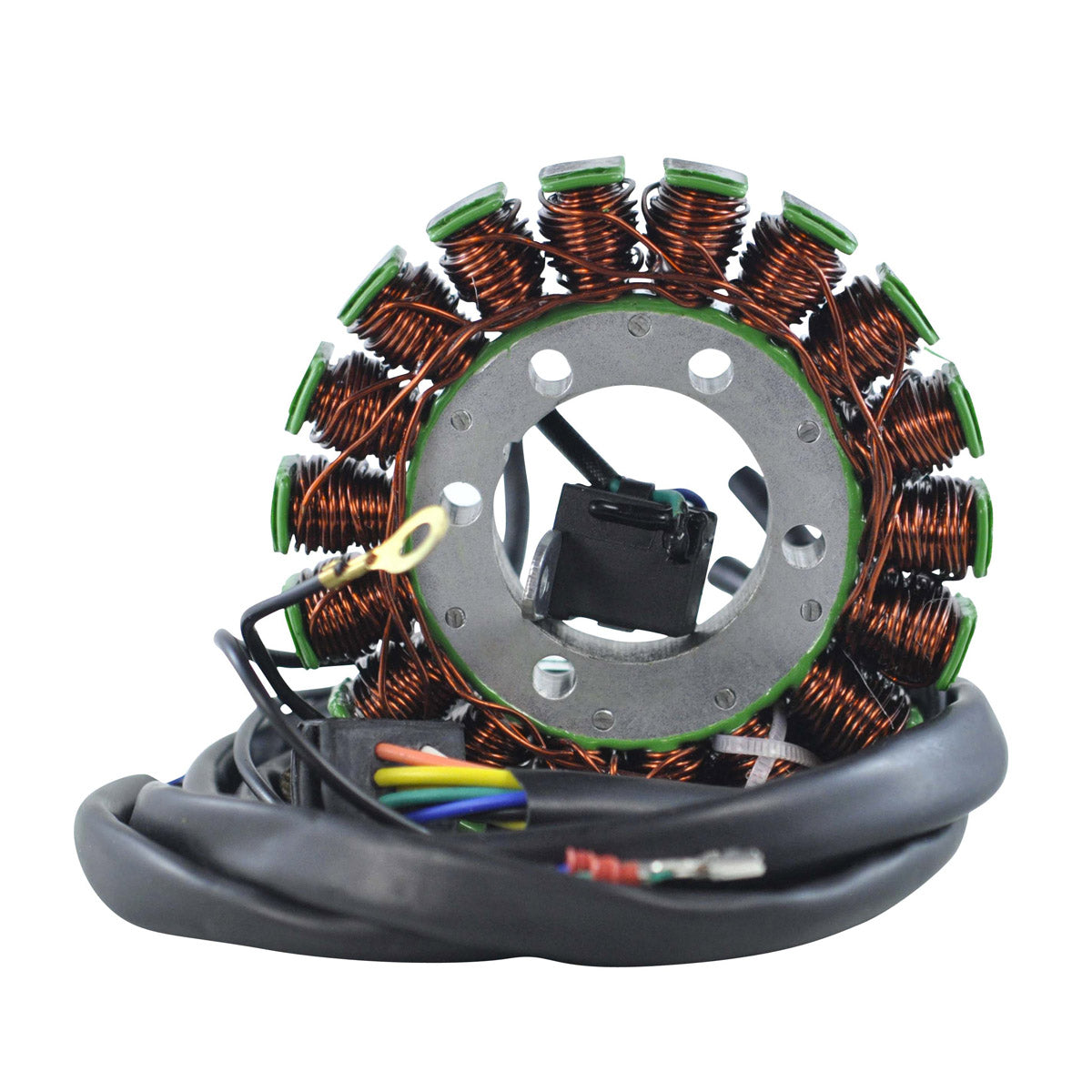

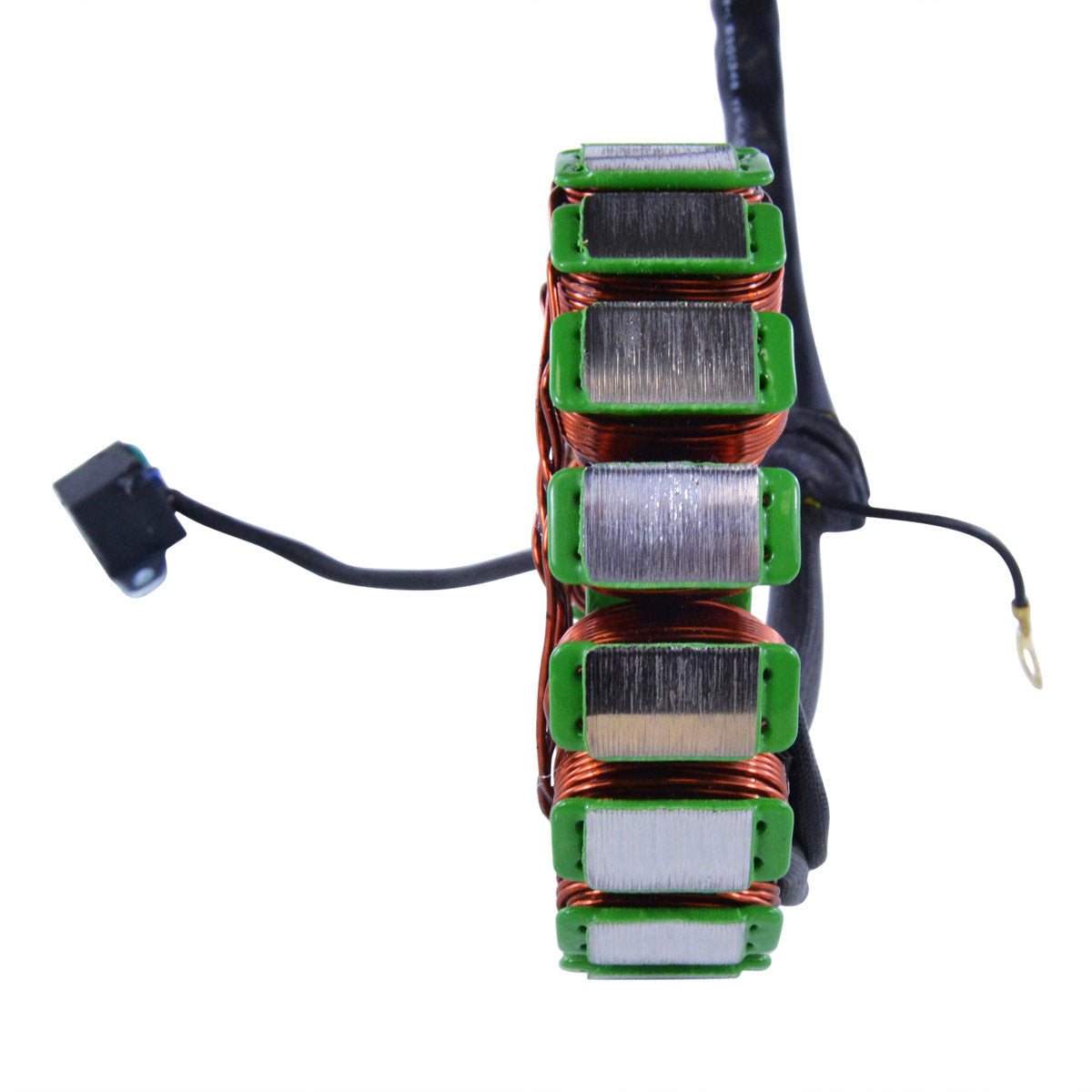

This is a brand new aftermarket generator stator for the Polaris Sportsman 600 built in 2004 and 2005 and the carburettor Sportsman 700 built between 2004 and 2006. It is supplied as RMSTATOR part RM01330 and is a direct replacement for your original unit, fitting the factory mounting points and following the same loom routing.
The assembly is built on the highest grade lamination materials and wound with the highest grade copper, resistant to 200 degrees Celsius, and the pick-up pulsar coil is supplied already fitted along with the connector and the rubber grommet. Please note that the factory 16-pin connector is not included, so the original one is reused. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator
- Direct replacement for the original unit
- Highest grade lamination materials
- Highest grade copper winding, resistant to 200 degrees Celsius

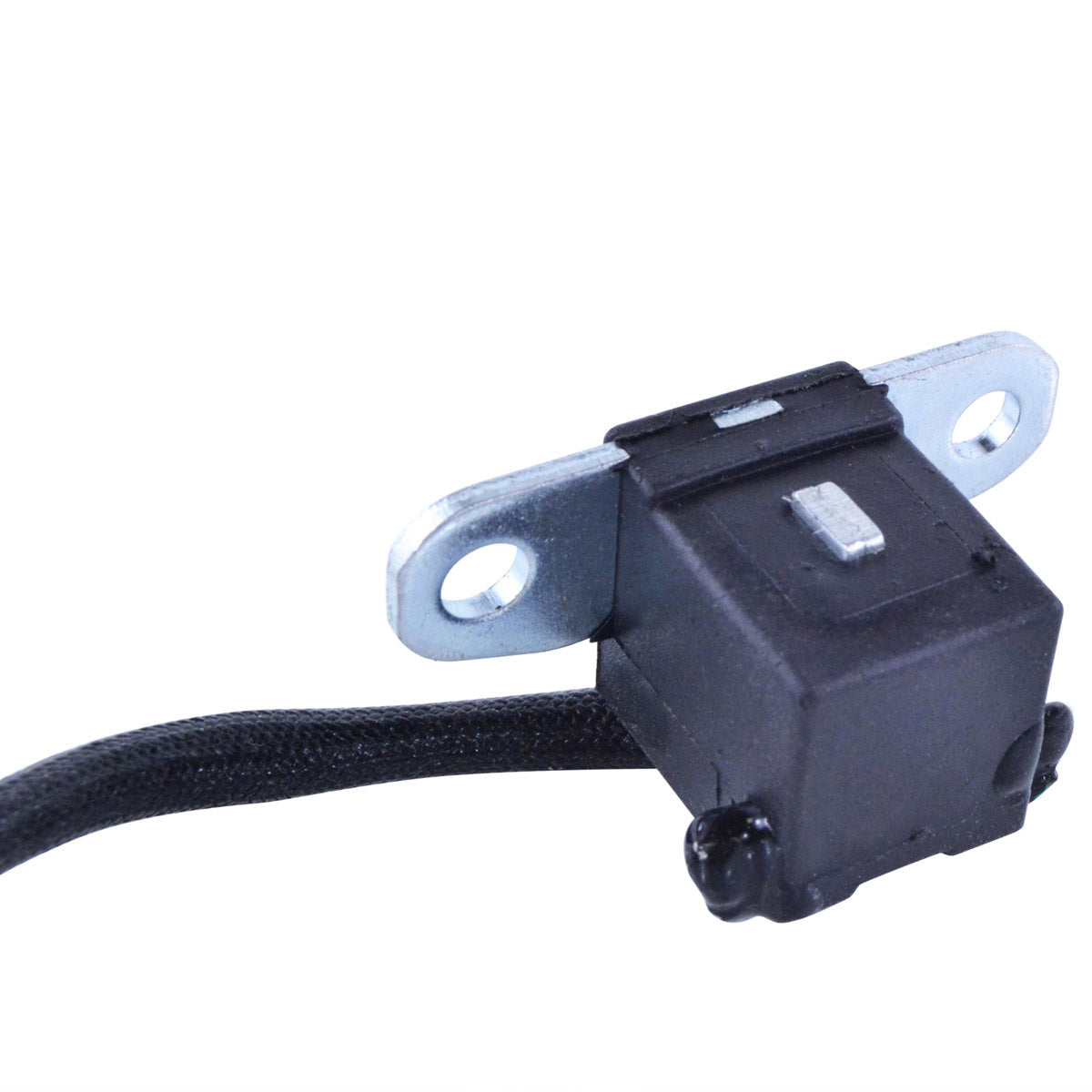

- Pick-up pulsar coil included

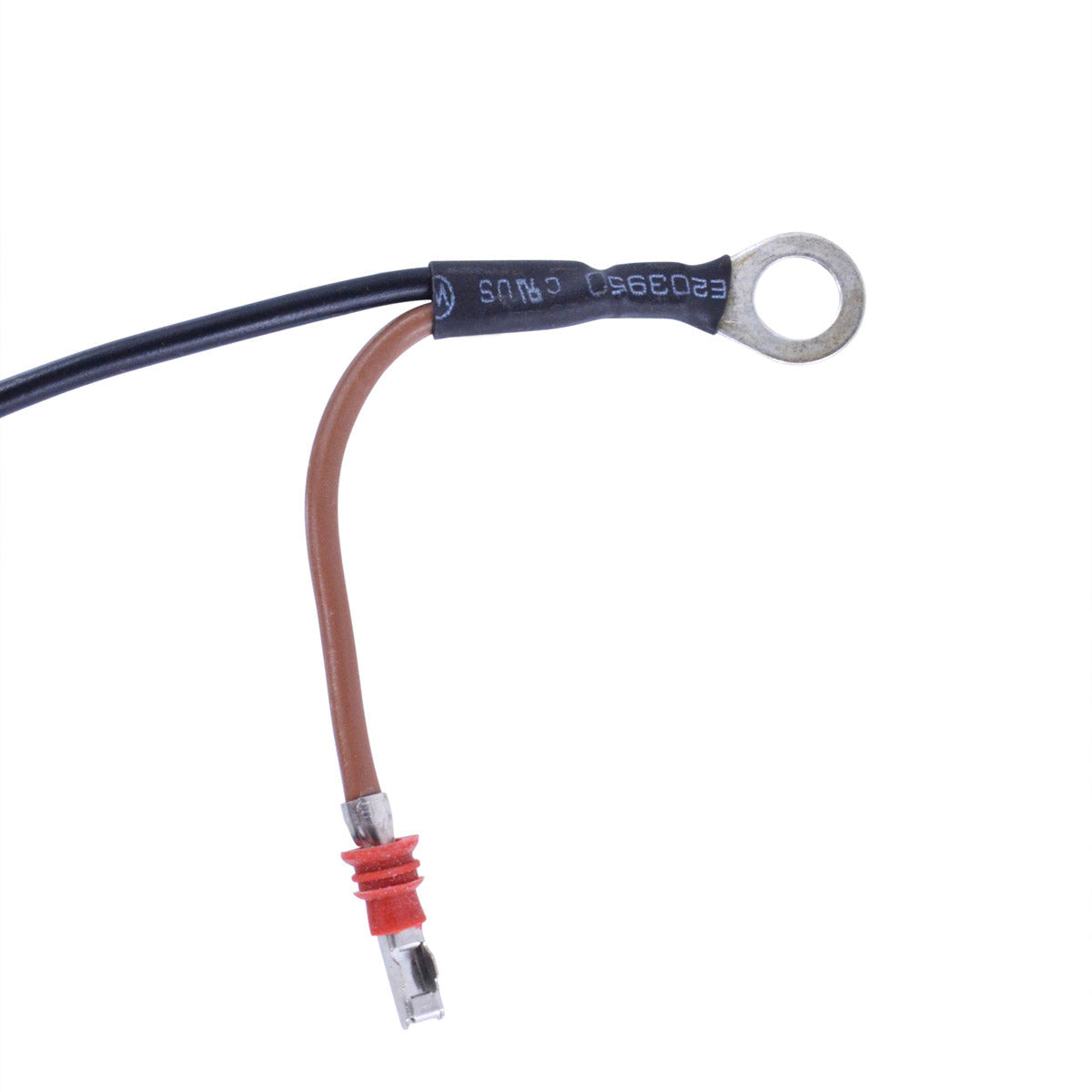

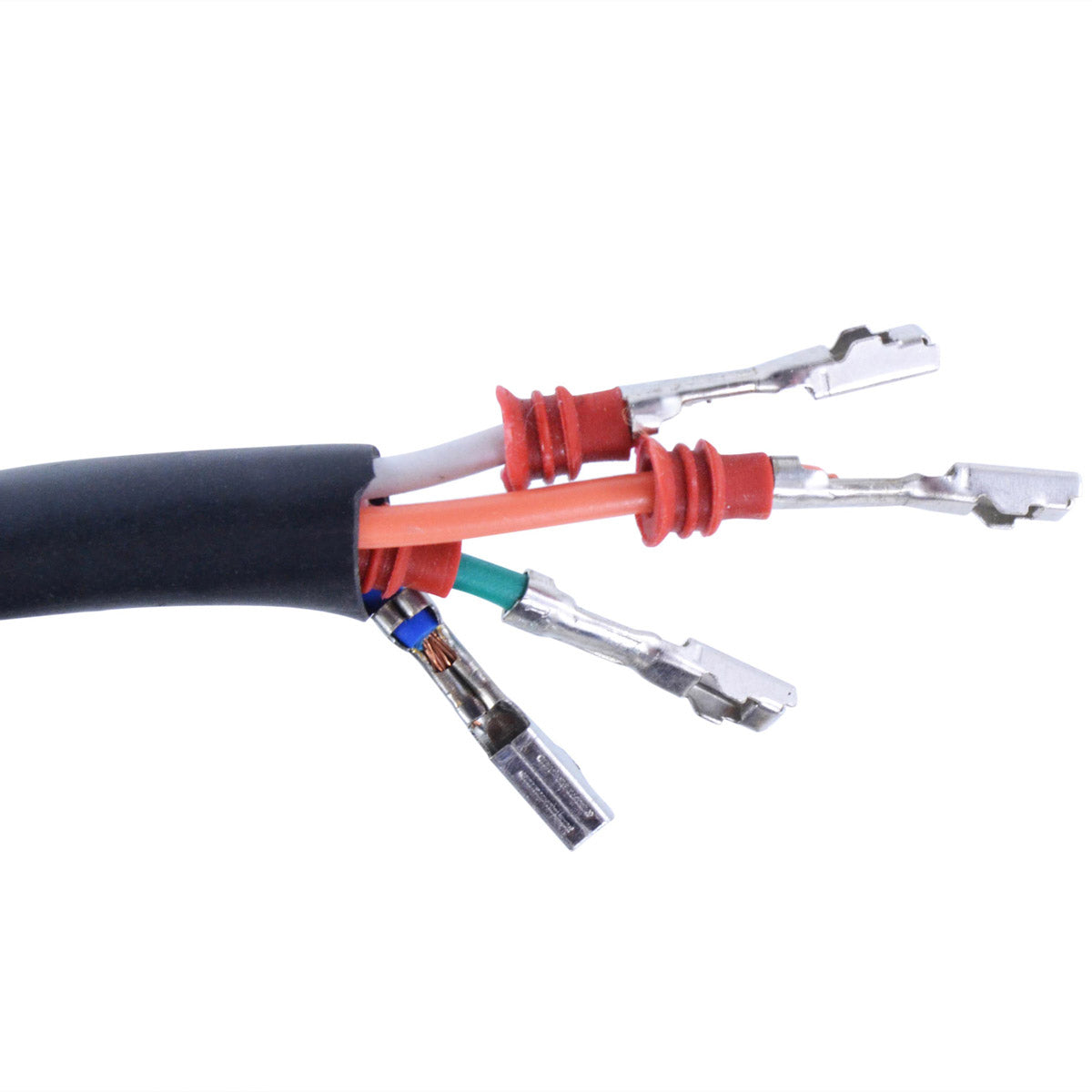

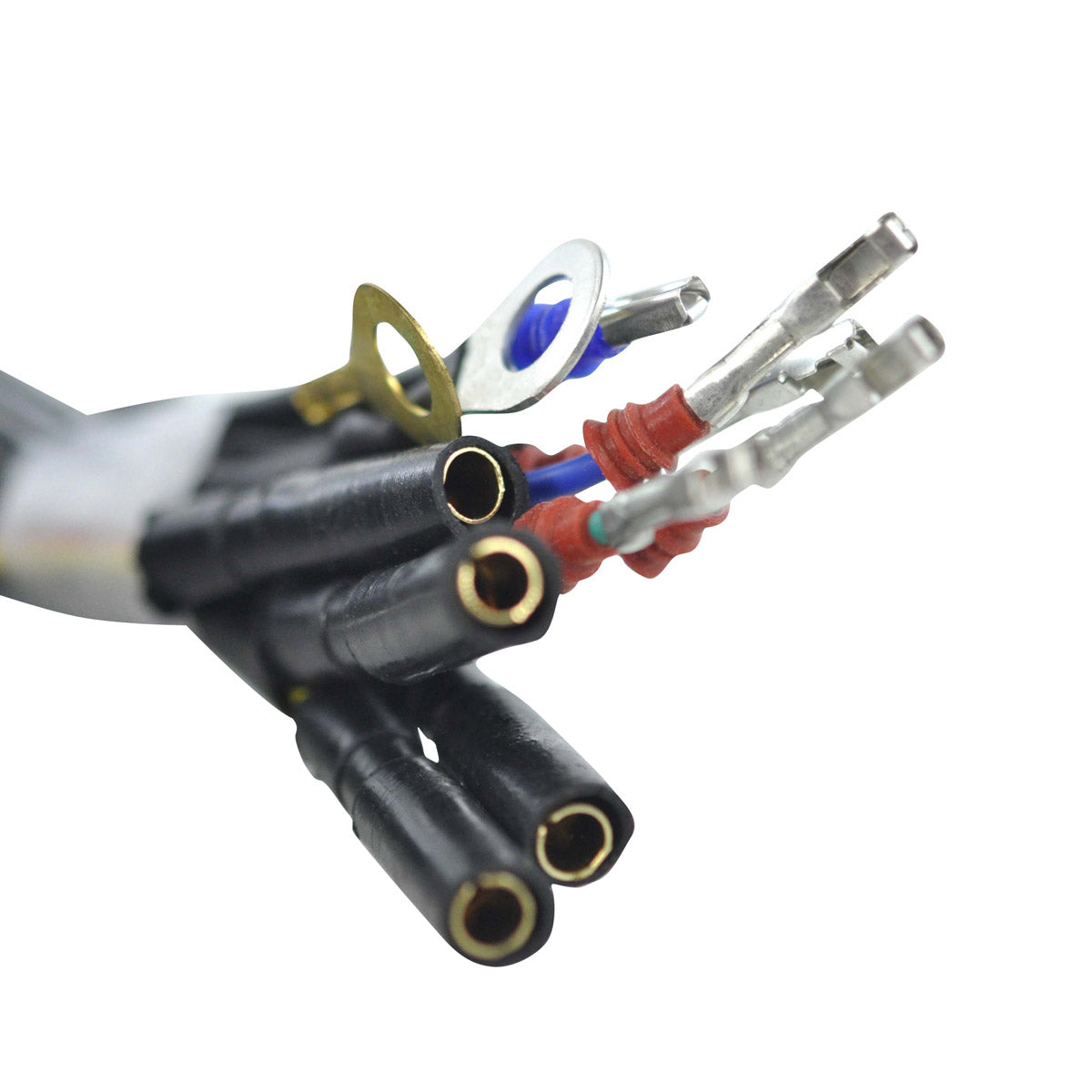

- Connector included

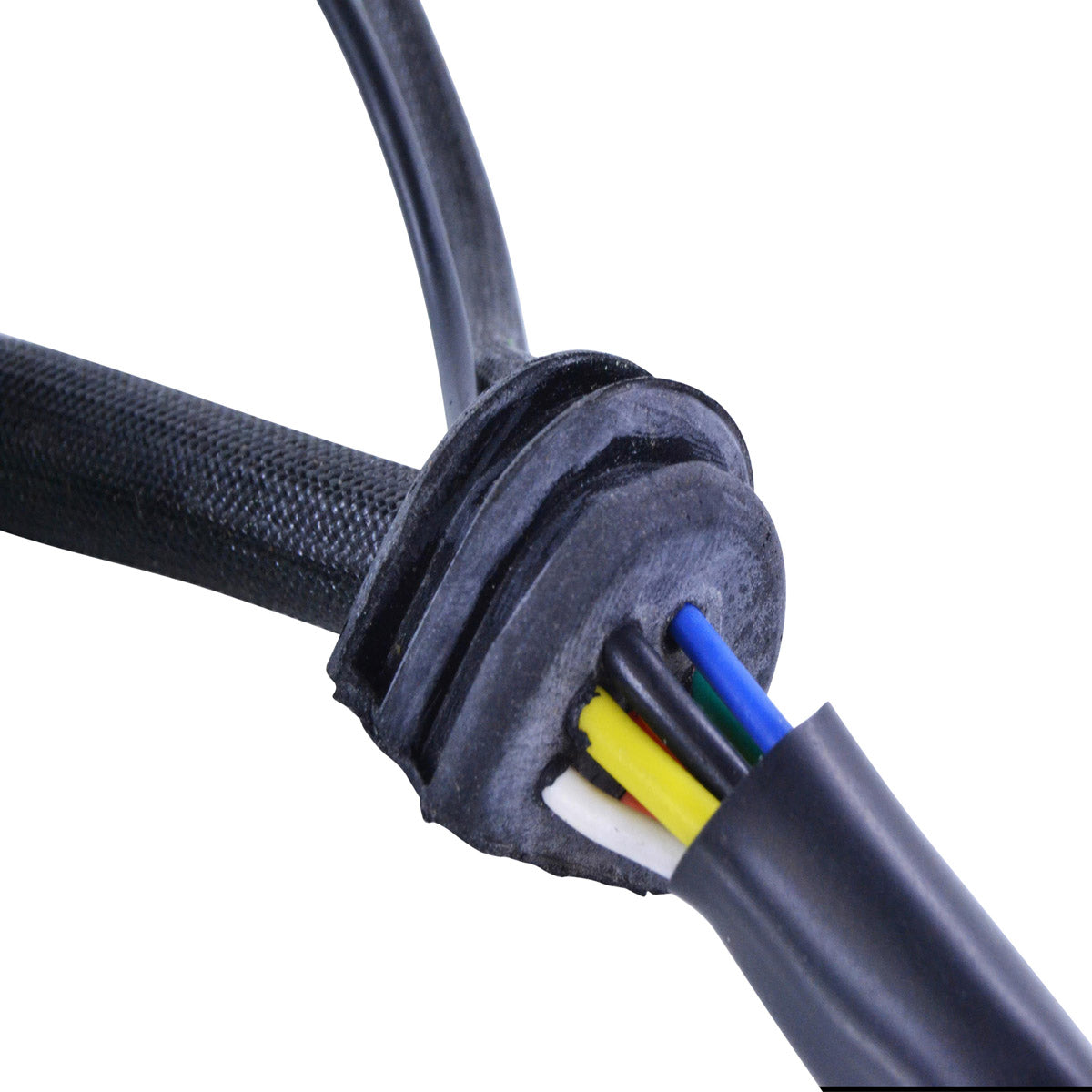

- Rubber grommet included
- Does not include the factory 16-pin connector
- All units are tested before shipping
Technical Specs
| Specification |
Detail |
| Interior diameter |
40 mm |
| Exterior diameter |
107 mm |
| Thickness |
18 mm |
| Length of wires, stator to grommet |
75 mm |
| Length of wires, grommet to plug |
900 mm, 950 mm and 1200 mm |
| Length of pick-up coil wire |
200 mm |
| Number of wires |
8 |
| Number of pins |
11 |

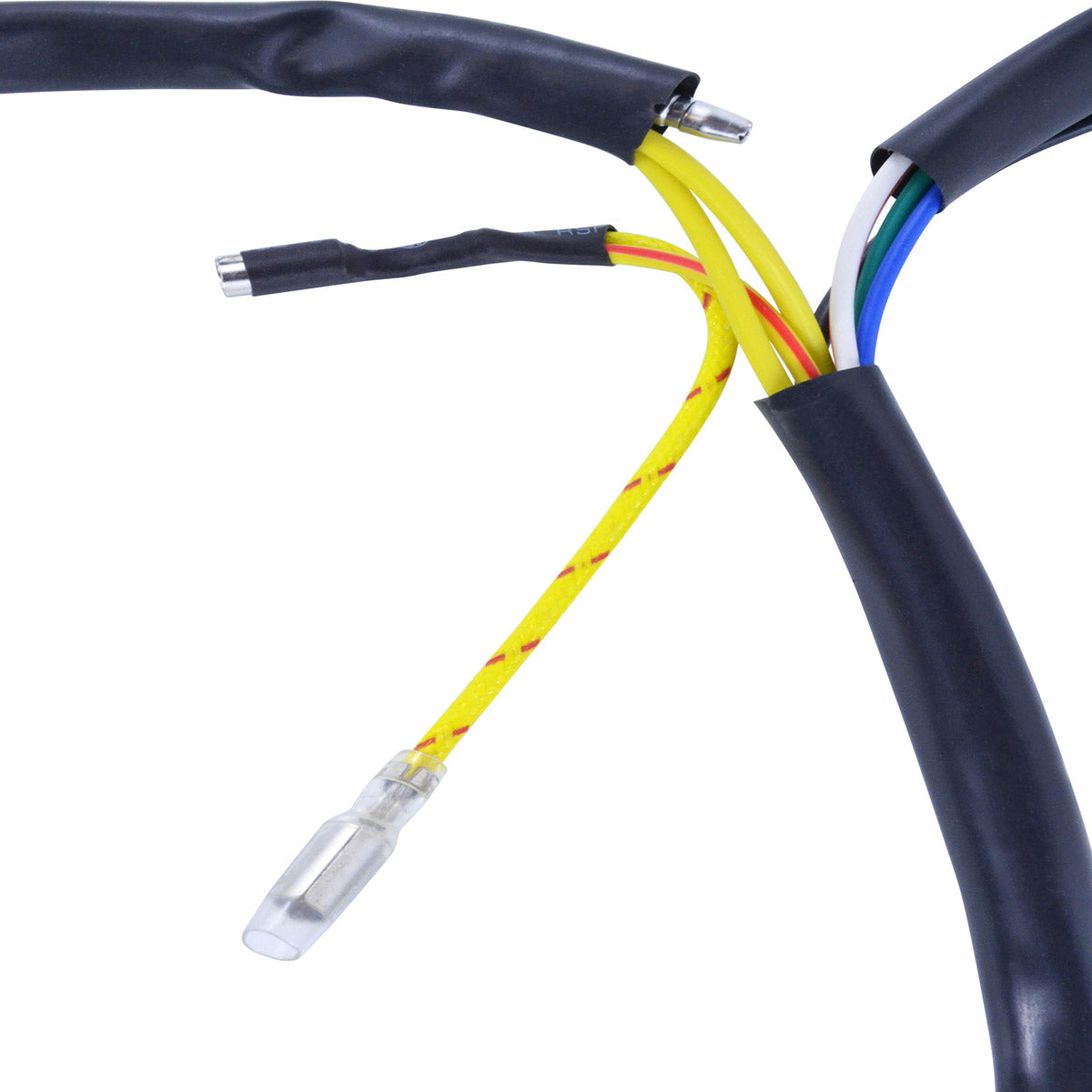

| Alternator resistance, yellow/red to yellow |
0.4 ohms plus or minus 20% |
| Pick-up resistance, blue to green |
200 ohms plus or minus 20% |
| Source resistance, red to white |
0.3 ohms plus or minus 20% |
| Copper winding temperature rating |
200 degrees Celsius |
| Part number |
RM01330 |
Vehicle Fitment Guide
| Make & Model |
Years |
| Polaris Sportsman 600 |
2004-2005 |
| Polaris Sportsman 700 Carb |
2004-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4010901 |
Polaris |
Frequently Asked Questions
Does this stator fit without modification?
Yes. It is a direct replacement for the original unit on the Sportsman 600 and the carburettor Sportsman 700, using the factory mounting points and the original loom routing, so no cutting, splicing or drilling is needed.
What is included?
The stator, the pick-up pulsar coil, the connector and the rubber grommet. The factory 16-pin connector is not supplied, so the one on your machine is reused.
How can I tell my old stator has failed?
Measure it cold with a multimeter. Expect 0.4 ohms plus or minus 20% yellow/red to yellow on the charging winding and 200 ohms plus or minus 20% blue to green on the pick-up. A winding that reads open circuit, or that shows continuity to the stator body, has failed.
Does it fit the fuel-injected Sportsman 700?
This part is listed for the carburettor Sportsman 700 of 2004 to 2006 and the Sportsman 600 of 2004 to 2005. Check the number on your original unit against Polaris 4010901 before ordering.
