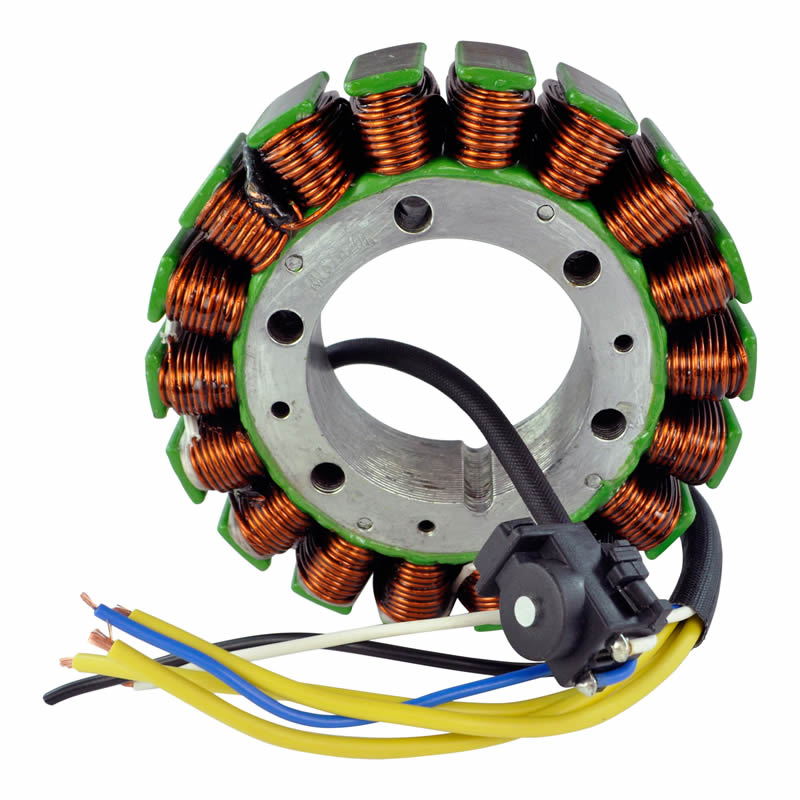

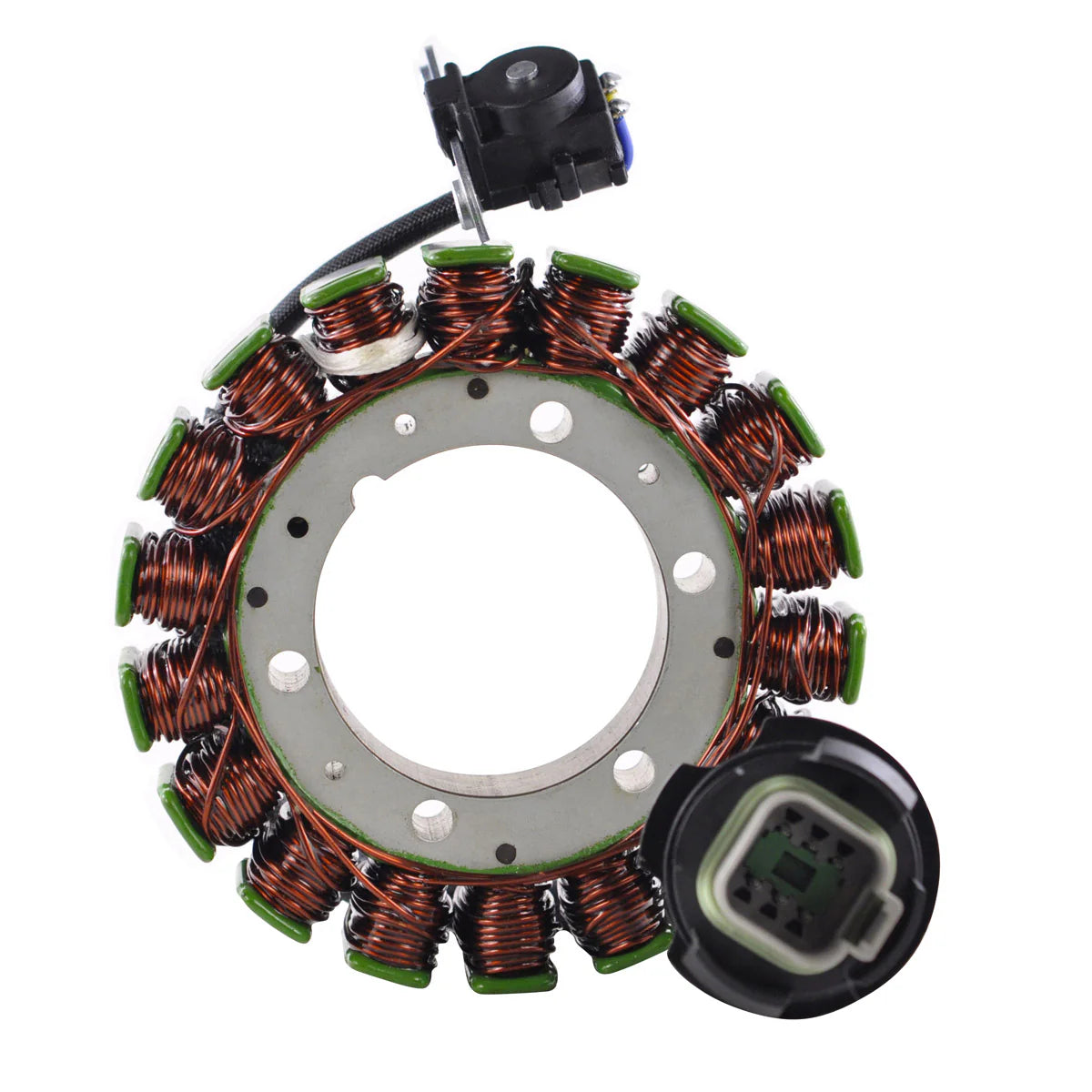

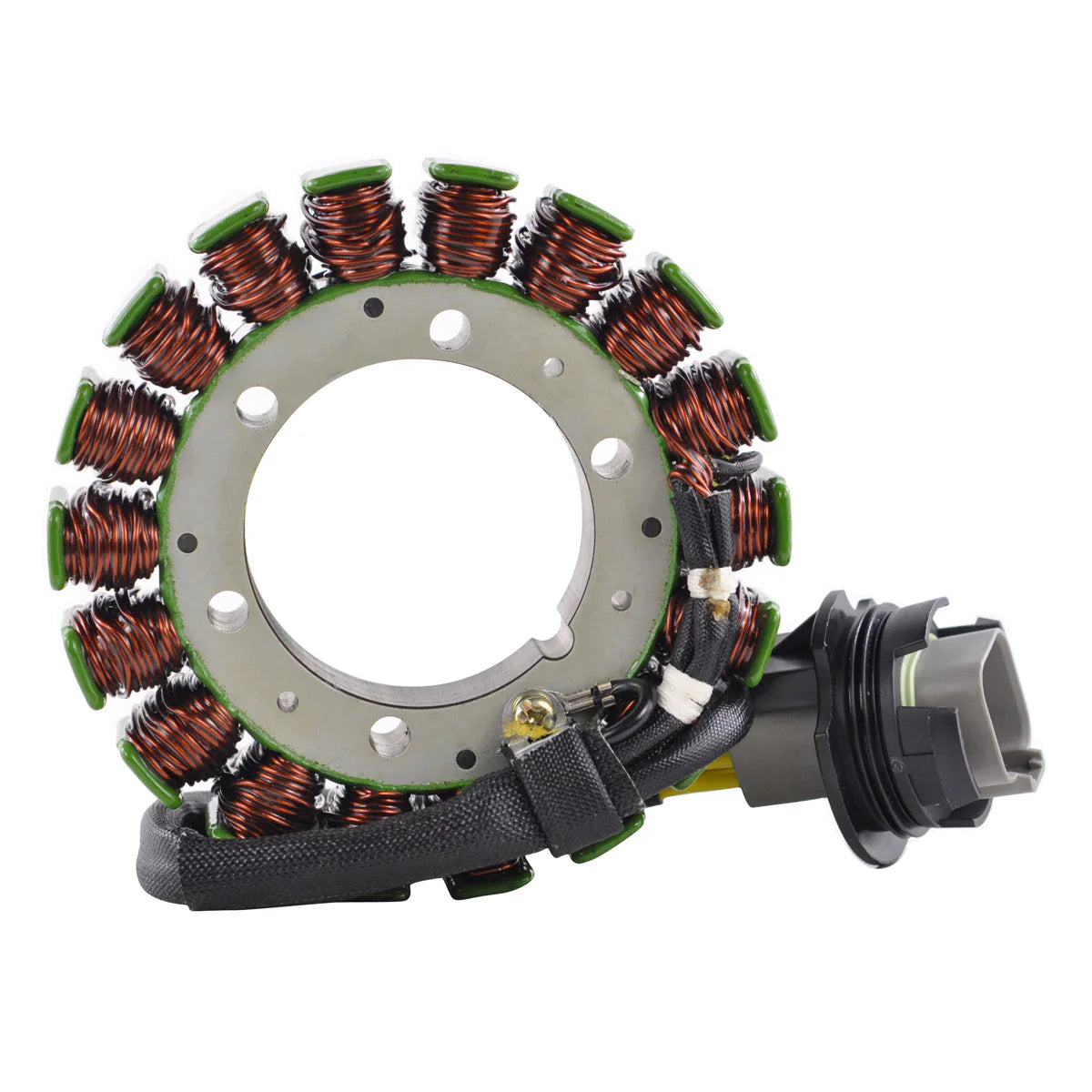

Generator Stator for Can-Am Traxter 500 650 cc - RM01338
Traxter, Traxter XT, Traxter Max and Traxter XL - 1999 to 2005 - OEM Repl. 420296321
RM01338 is a brand new aftermarket generator stator built as a direct replacement for the original unit fitted to Can-Am Traxter 500 and 650 cc utility quads produced between 1999 and 2005, covering the Traxter, Traxter XT, Traxter Max and Traxter XL. It is a plug-and-play, direct-fit part, so it mounts in the original position and joins the existing loom through the supplied connector without cutting, splicing or any other modification to the machine.
The pickup pulsar coil is integrated into this assembly, so the charging output and the ignition trigger side of the magneto are both renewed in a single job rather than left as a second failure waiting to happen. Construction uses the highest grade lamination materials with highest grade copper windings rated to 200 degrees Celsius - winding insulation breaking down under heat soak is the usual reason an original stator shorts a phase to ground and stops charging. Every unit is tested before it is shipped, and the resistance figures published below let you confirm the part is healthy with nothing more than a multimeter.
Key Features
- Brand new aftermarket stator, not a rewound or reconditioned core
- Direct replacement for the original unit - plug-and-play, direct fit
- Integrated pickup pulsar coil supplied as part of the assembly
- Connector included, ready to plug straight into the machine
- Highest grade lamination materials
- Highest grade copper windings rated to 200 degrees Celsius

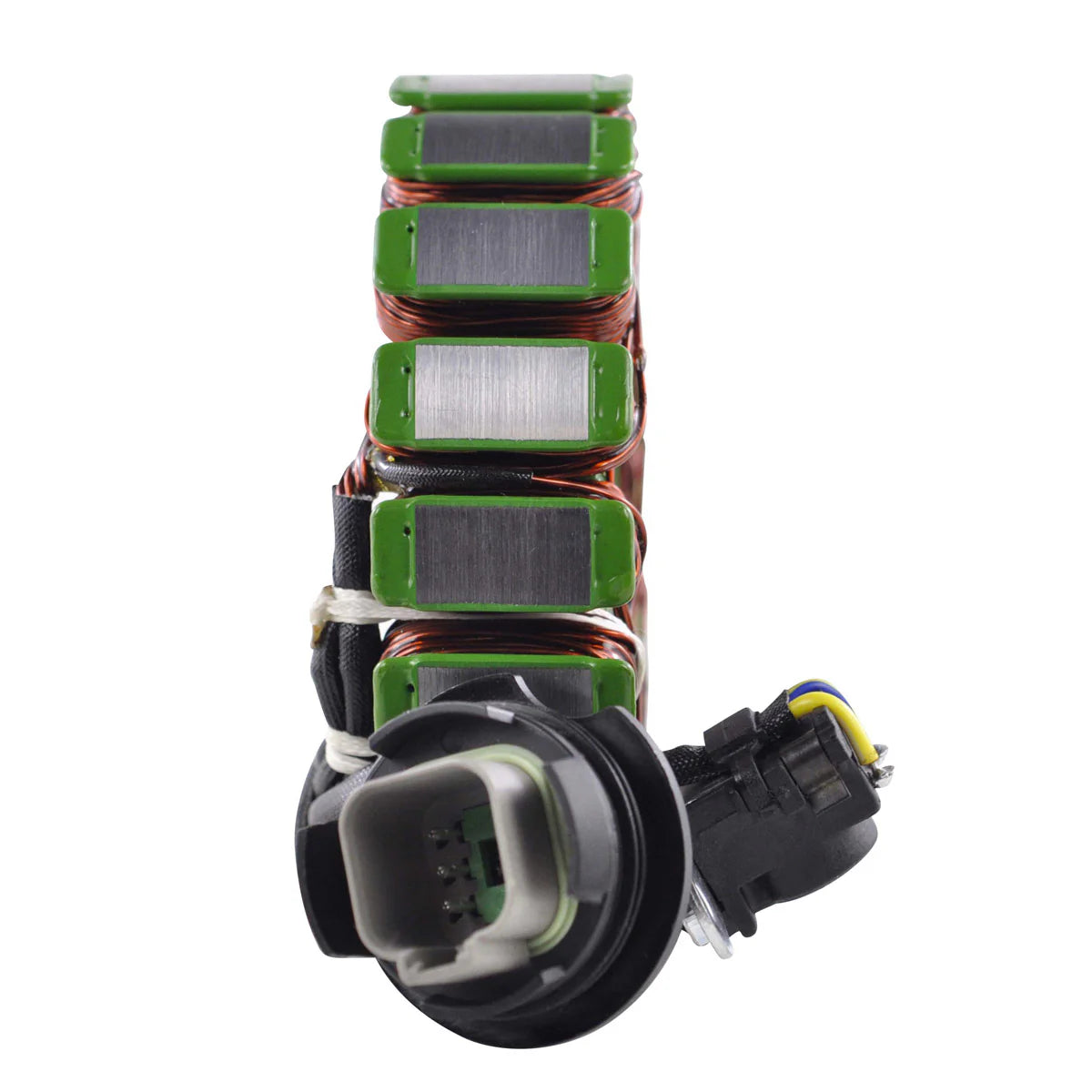

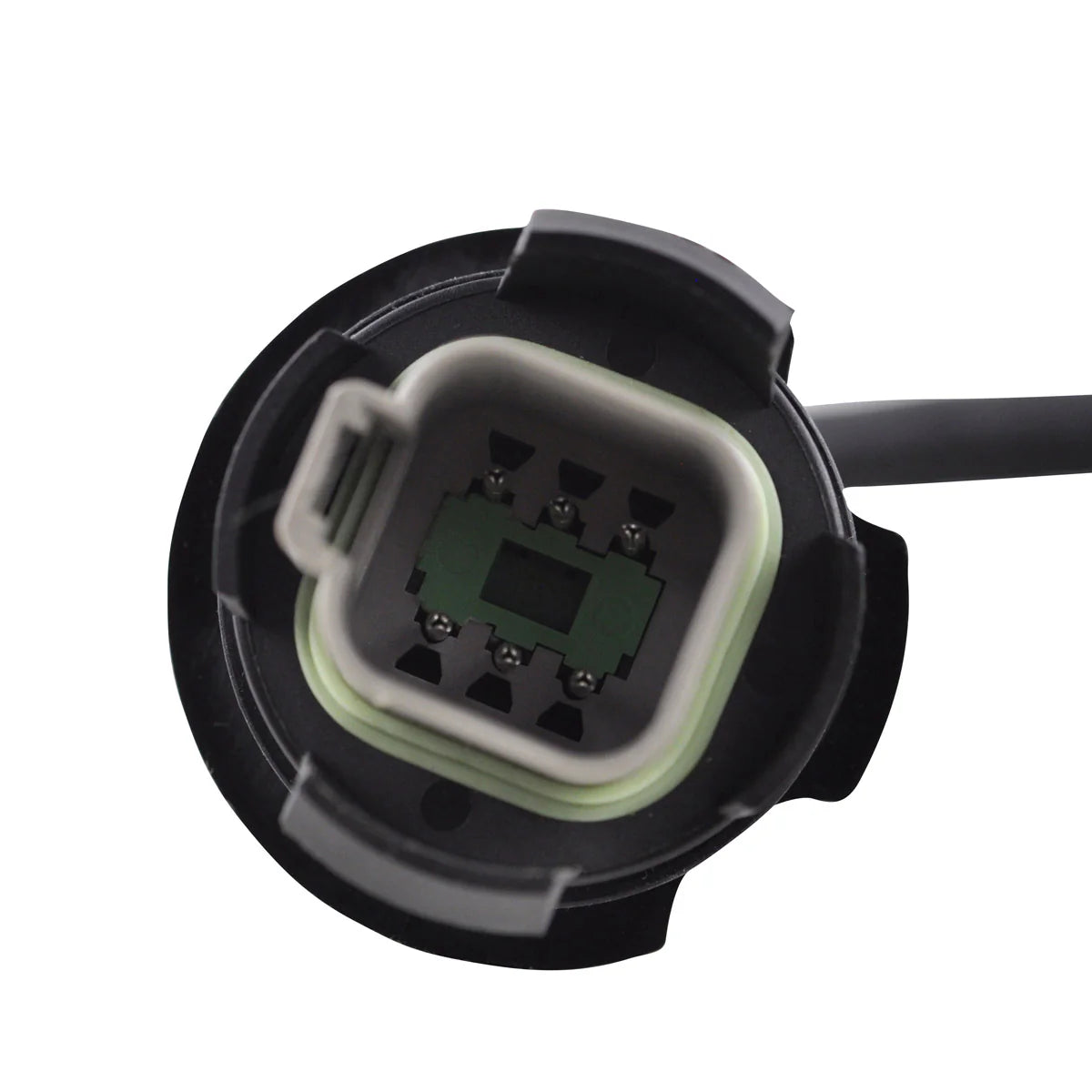

- Six wires terminating in a single six-pin plug
- Every unit is tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 53 mm |
| Exterior diameter | 115 mm |
| Thickness | 24 mm |
| Length, stator to plug | 183 mm |
| Pickup coil wire to stator | 70 mm |
| Number of wires | 6 |
| Number of plugs | 1 |
| Number of pins | 6 |
| Alternator resistance (yellow to yellow) | 0.4 ohms +/-20% |
| Pickup resistance (blue to white) | 245 ohms +/-20% |
| Black to ground | O.L. on display |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Can-Am Traxter 500 / 650 cc | 1999 - 2005 |
| Can-Am Traxter XT 500 / 650 cc | 1999 - 2005 |
| Can-Am Traxter Max 500 / 650 cc | 1999 - 2005 |
| Can-Am Traxter XL 500 / 650 cc | 1999 - 2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 420296321 | Can-Am / Bombardier |
| RM01338 | RMSTATOR (this part) |
Frequently Asked Questions
Does this need any modification to fit?
No. It is a direct replacement for the original unit and is designed as a plug-and-play, direct fit. The stator mounts in the standard position and the supplied six-pin connector mates with the machine's existing harness, so there is no cutting or splicing required.
What is included in the box?
The stator assembly, the pickup pulsar coil and the connector. Because the pickup coil is part of the assembly, you are not left reusing an original trigger coil of unknown condition.
How do I confirm my old stator has failed?
Measure it cold with a multimeter. Alternator output should read roughly 0.4 ohms between each pair of yellow wires and the pickup should read around 245 ohms from blue to white, both within 20 per cent. Any yellow wire showing continuity to ground, or an open circuit reading where a resistance is expected, indicates a failed winding.
Will it fit the Traxter Max and XL as well as the standard model?
Yes. The same stator covers the Traxter, Traxter XT, Traxter Max and Traxter XL in 500 and 650 cc form for the 1999 to 2005 model years. Cross-check the OEM number 420296321 against the part you are removing if you are unsure of your machine's exact specification.
