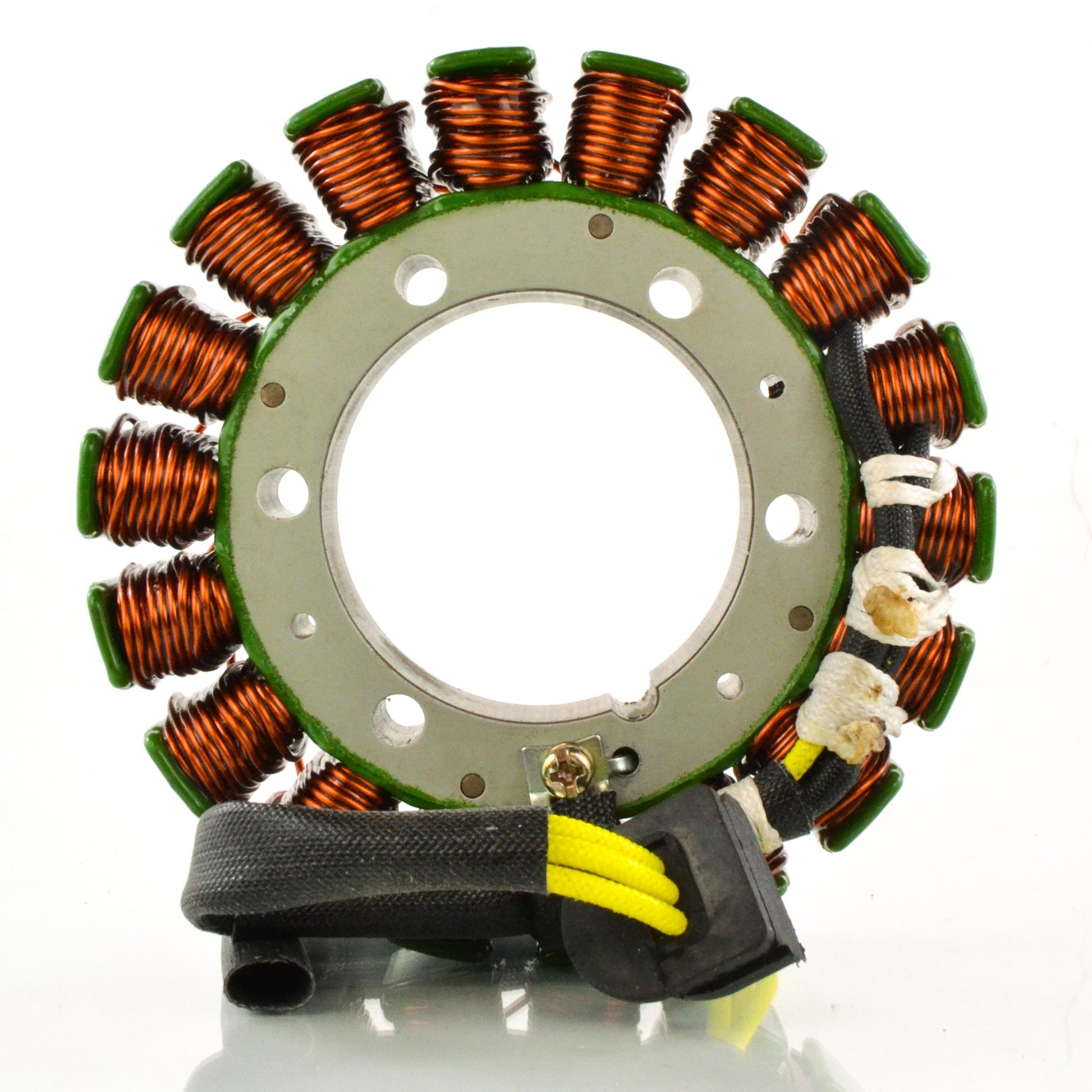

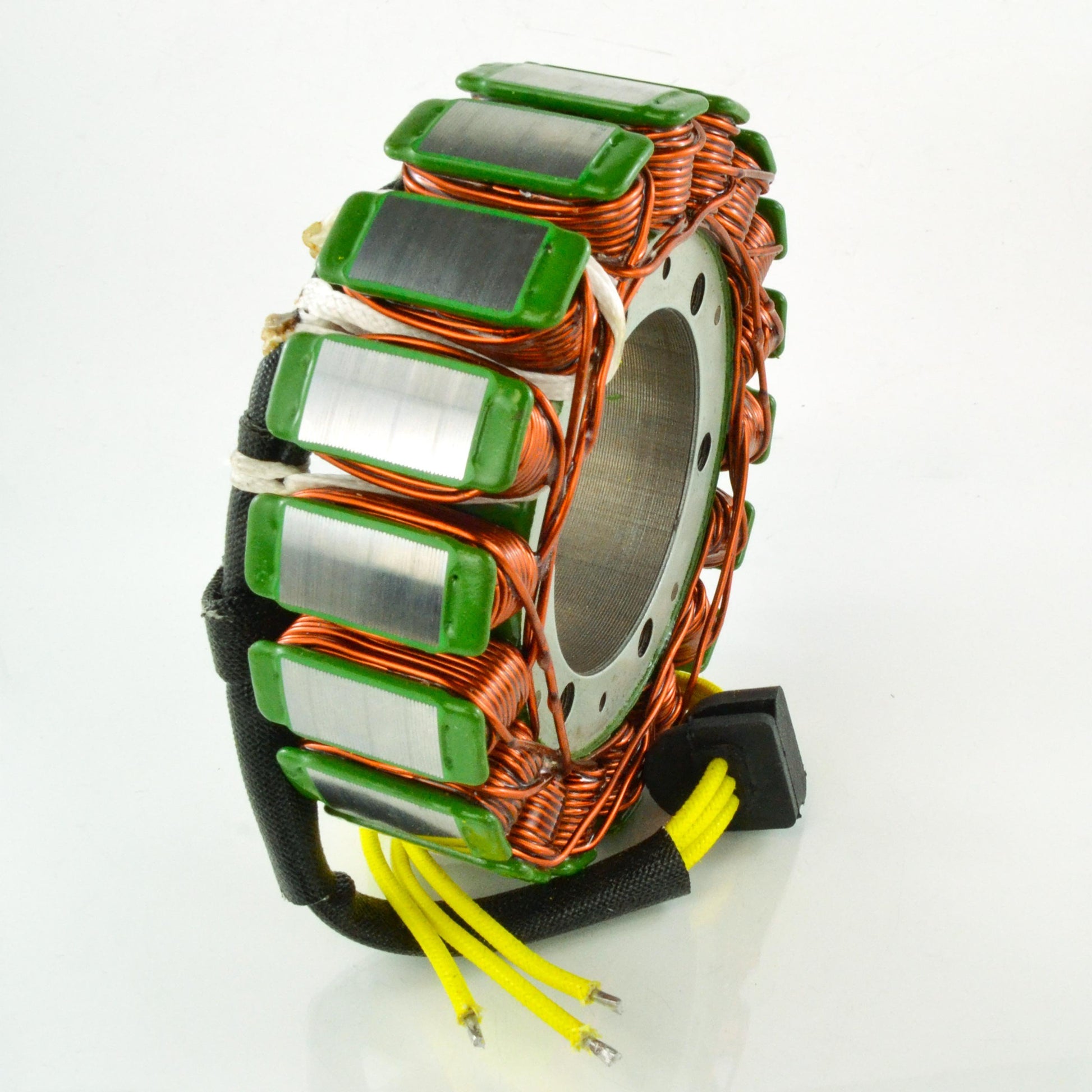

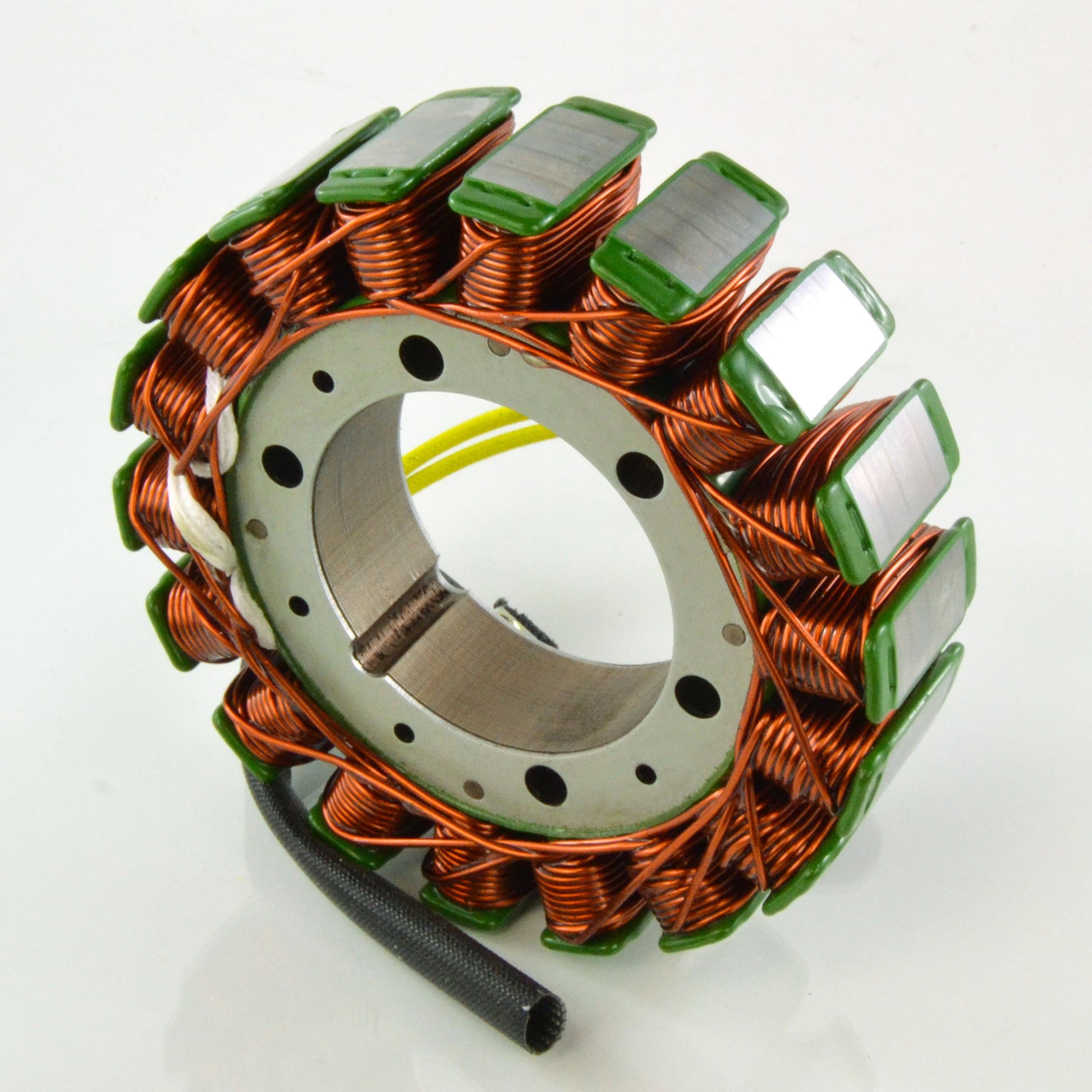

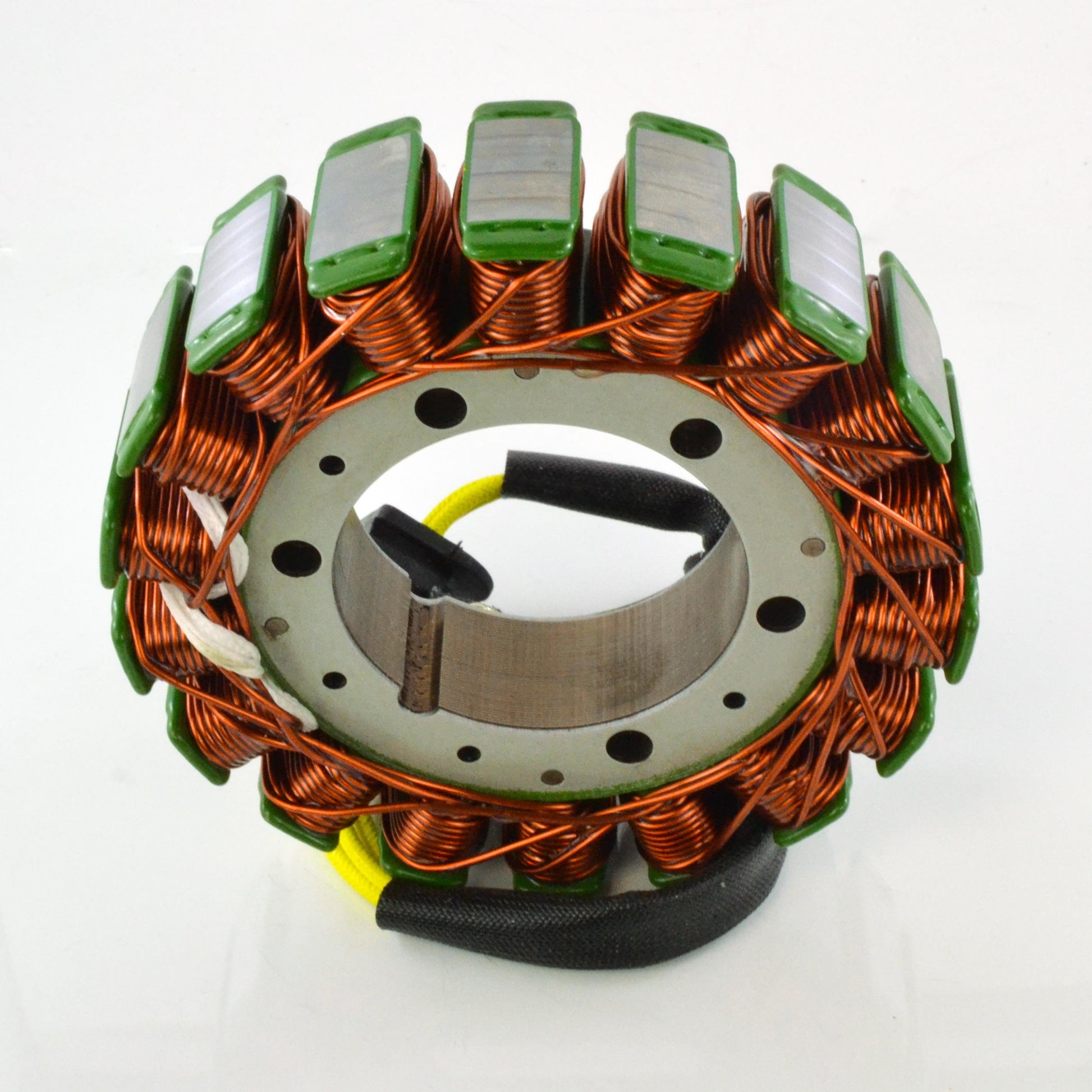

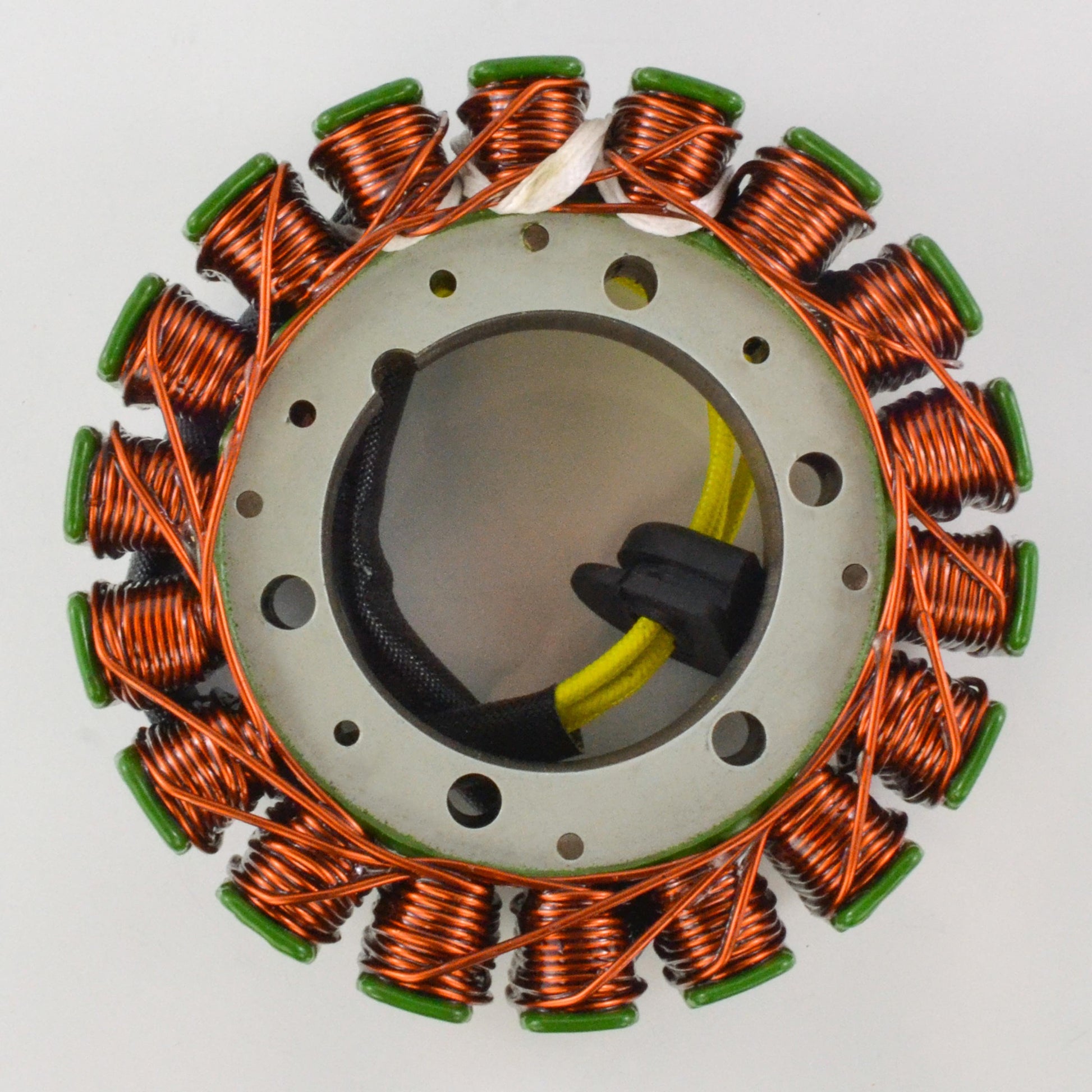

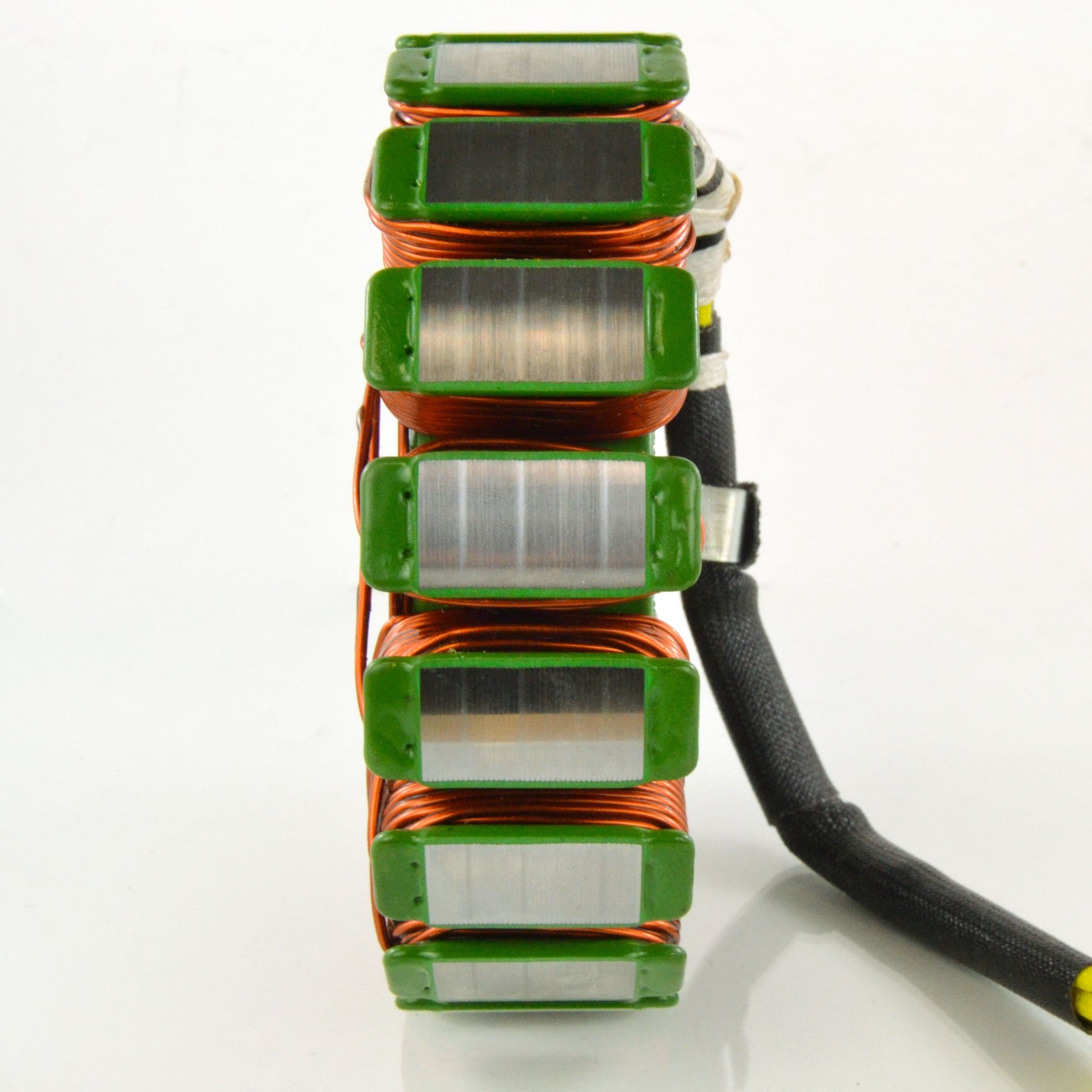

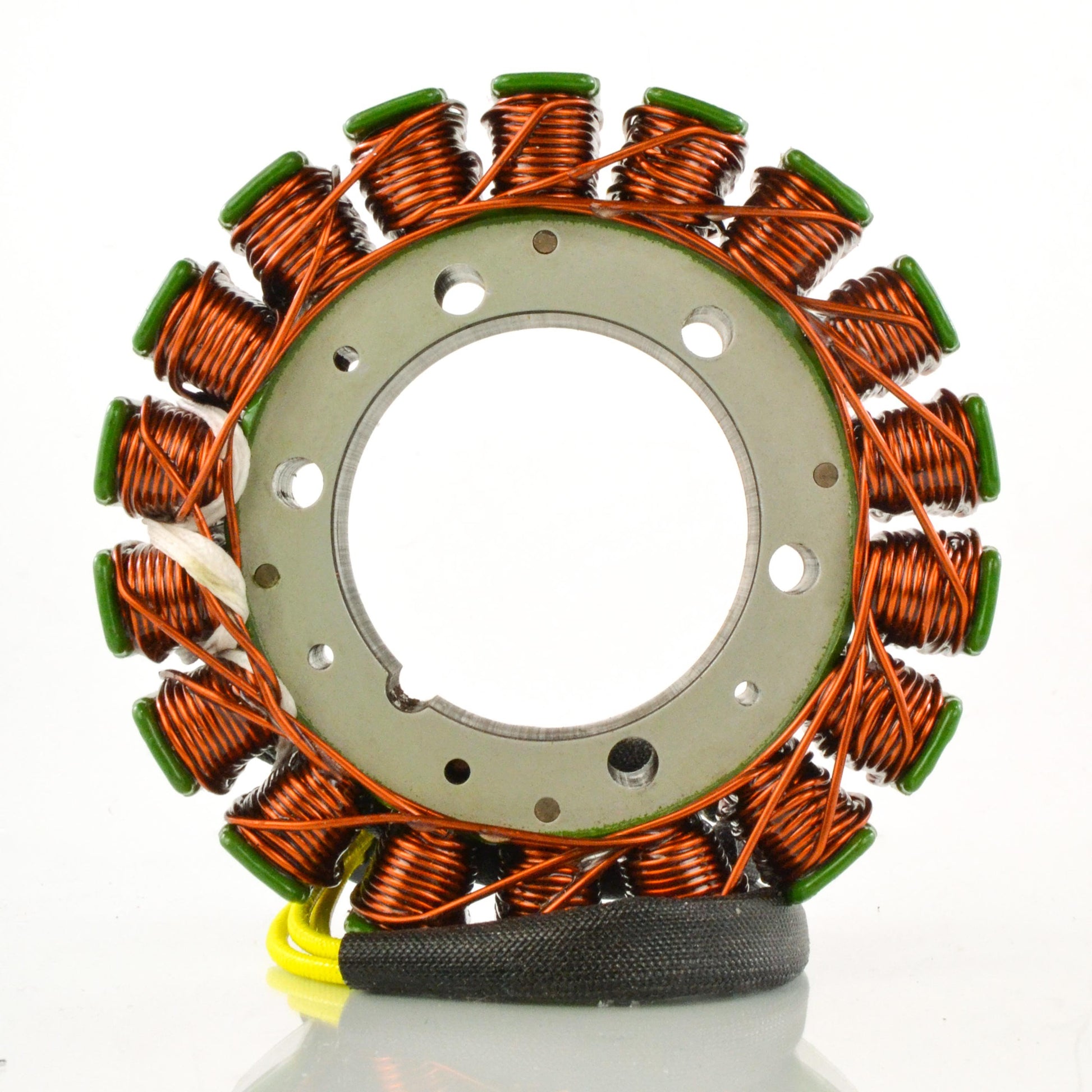

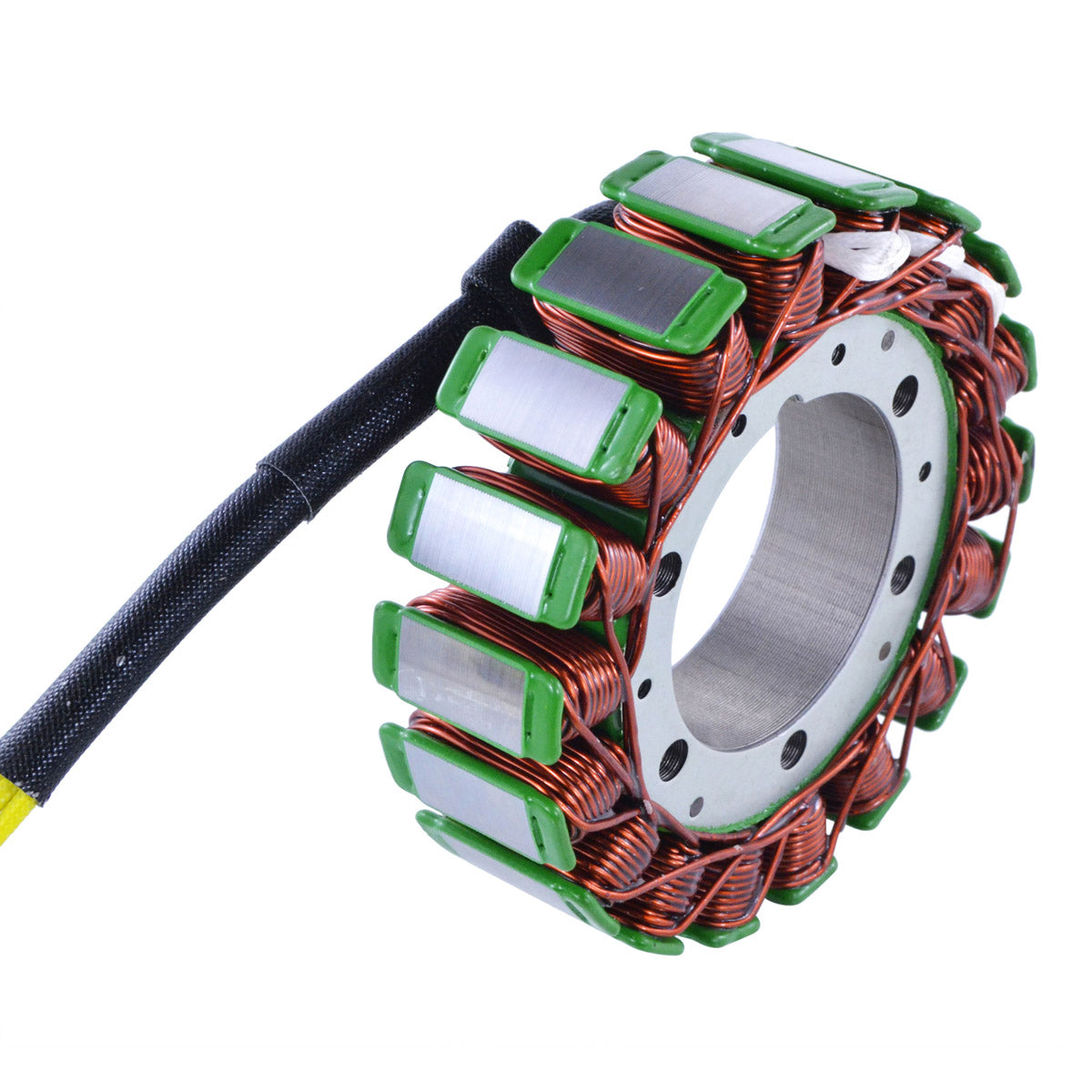

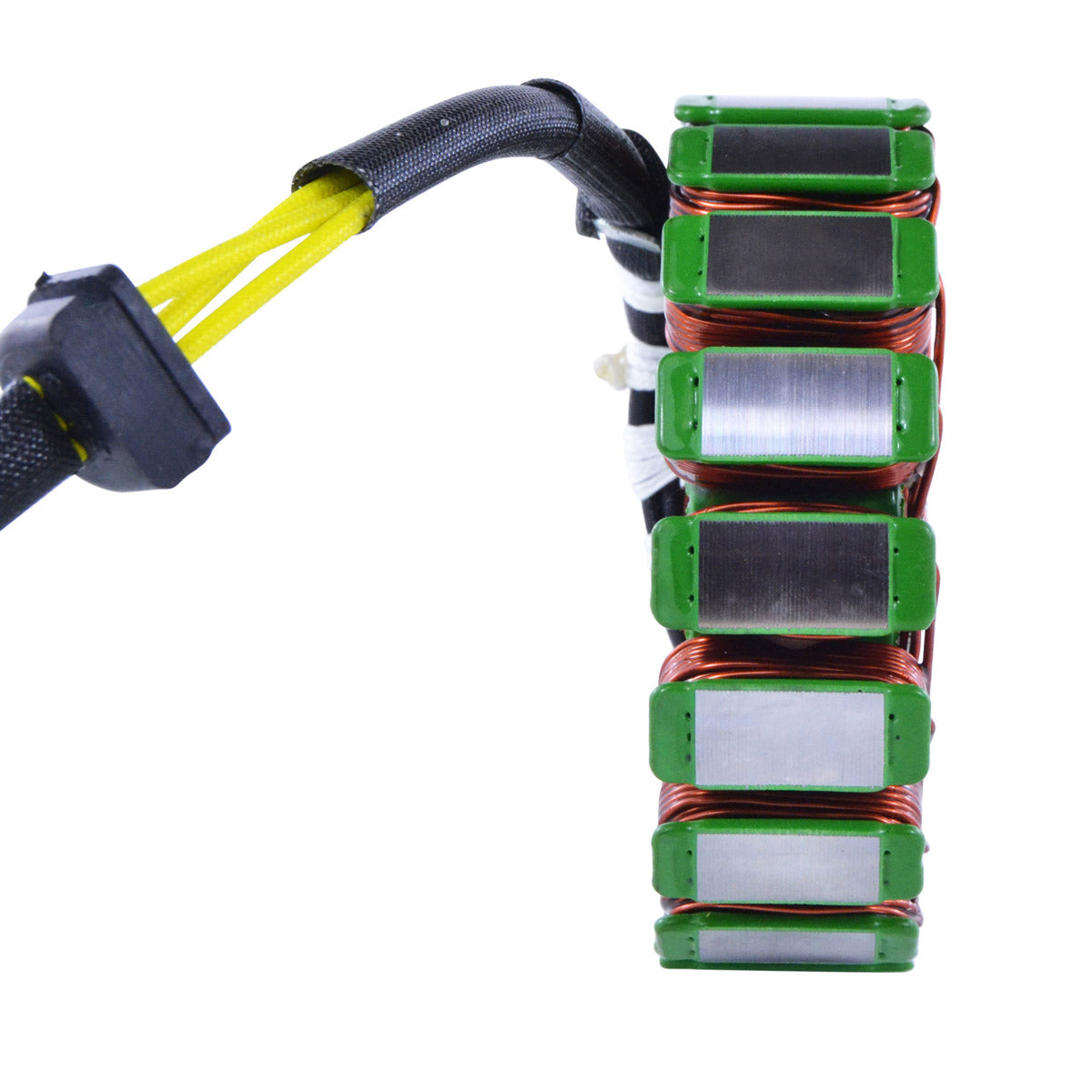

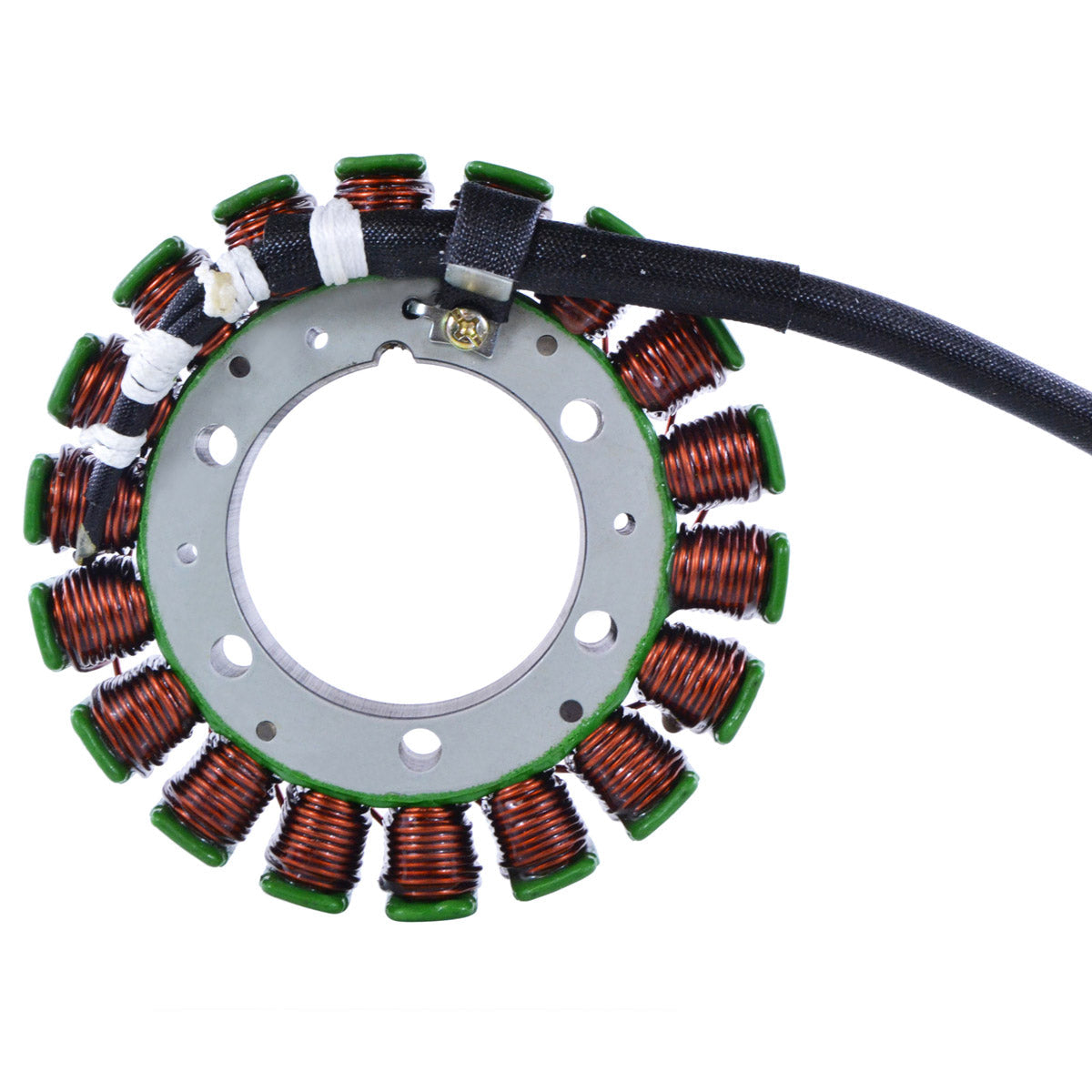

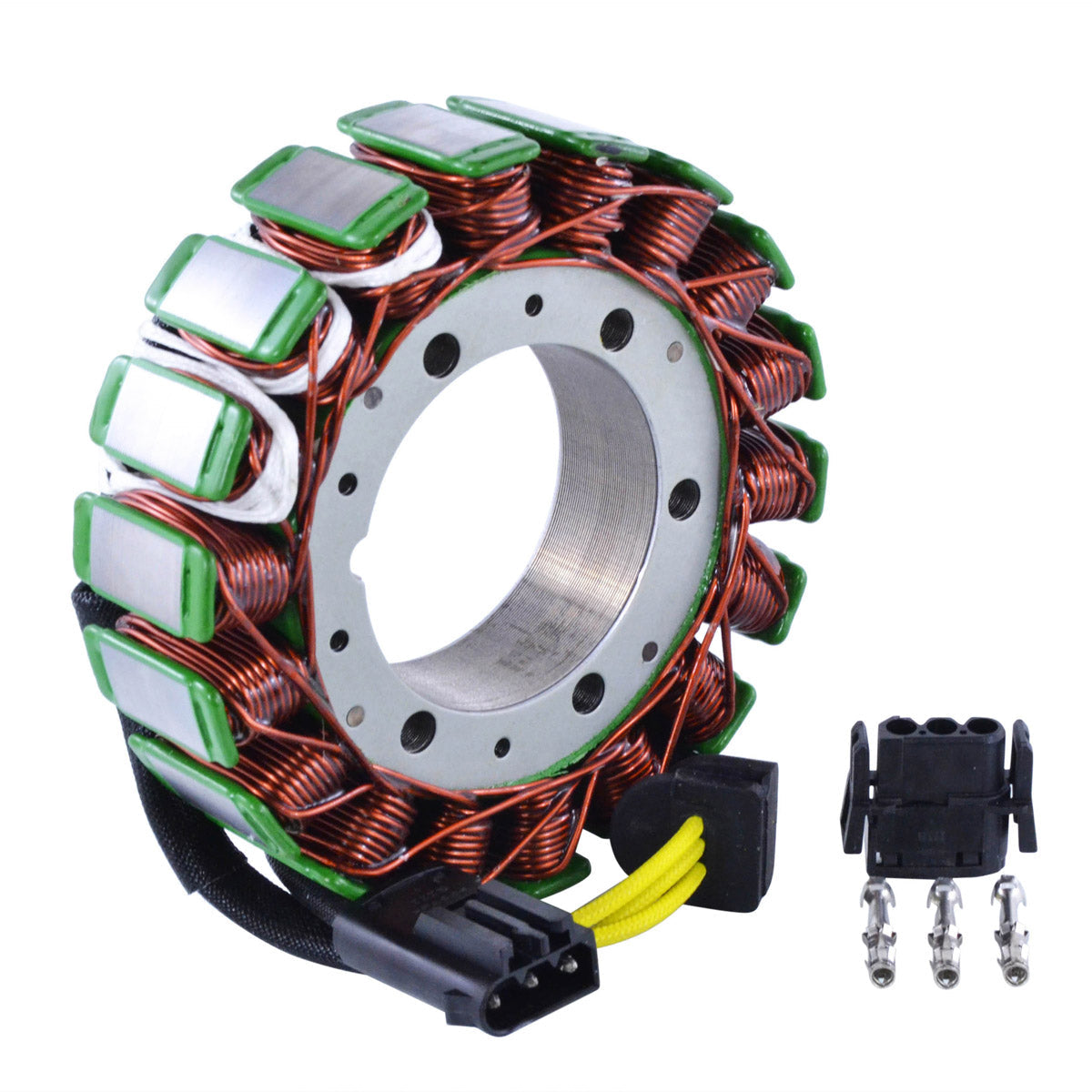

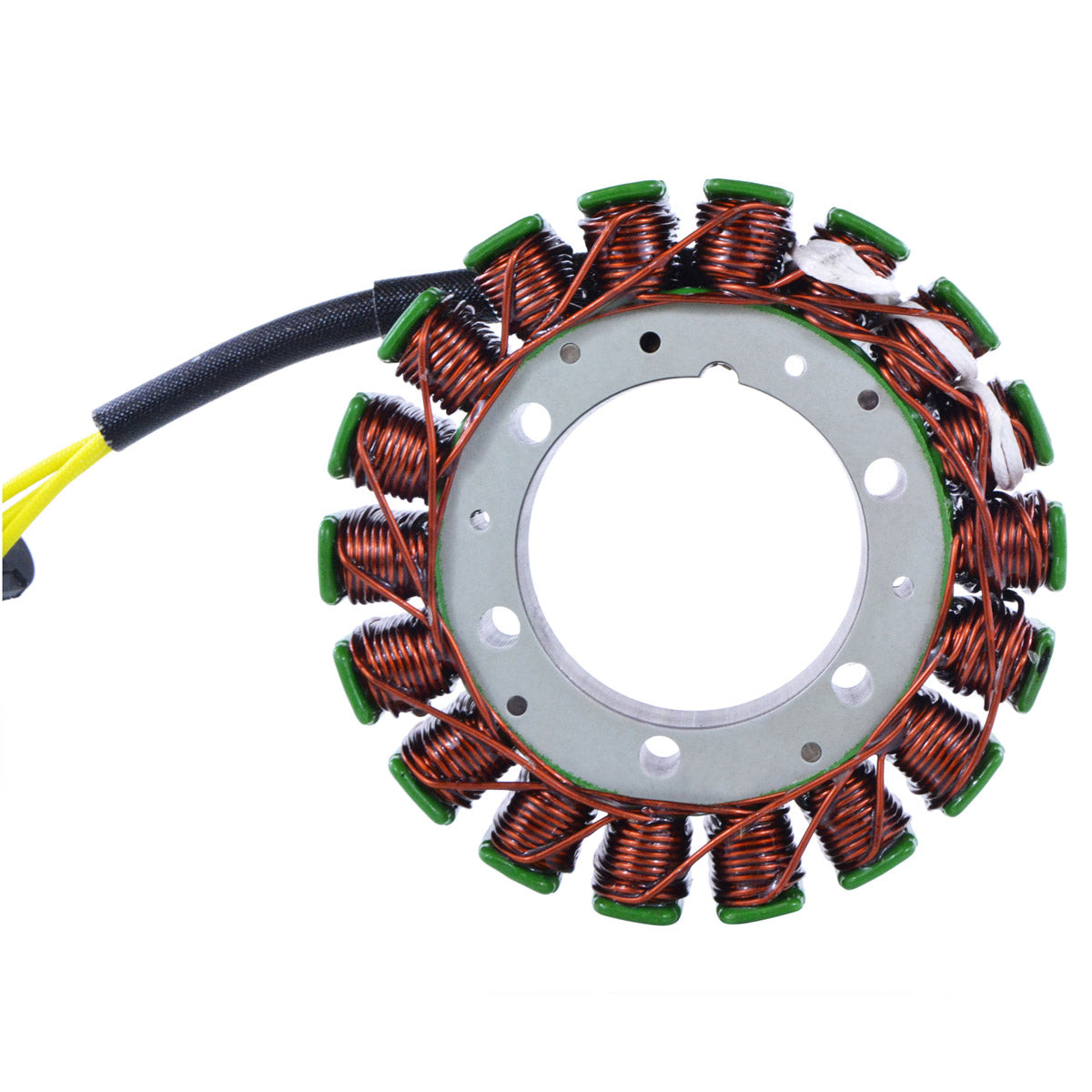

This is a brand new aftermarket generator stator for the BMW F 650 CS and F 650 GS built between 1999 and 2007, and the G 650 X built between 2006 and 2009. It is a direct replacement for the original unit and is plug-and-play, fitting the original position and mating with the factory loom without cutting, splicing or modification. Part number RMS010-103235.

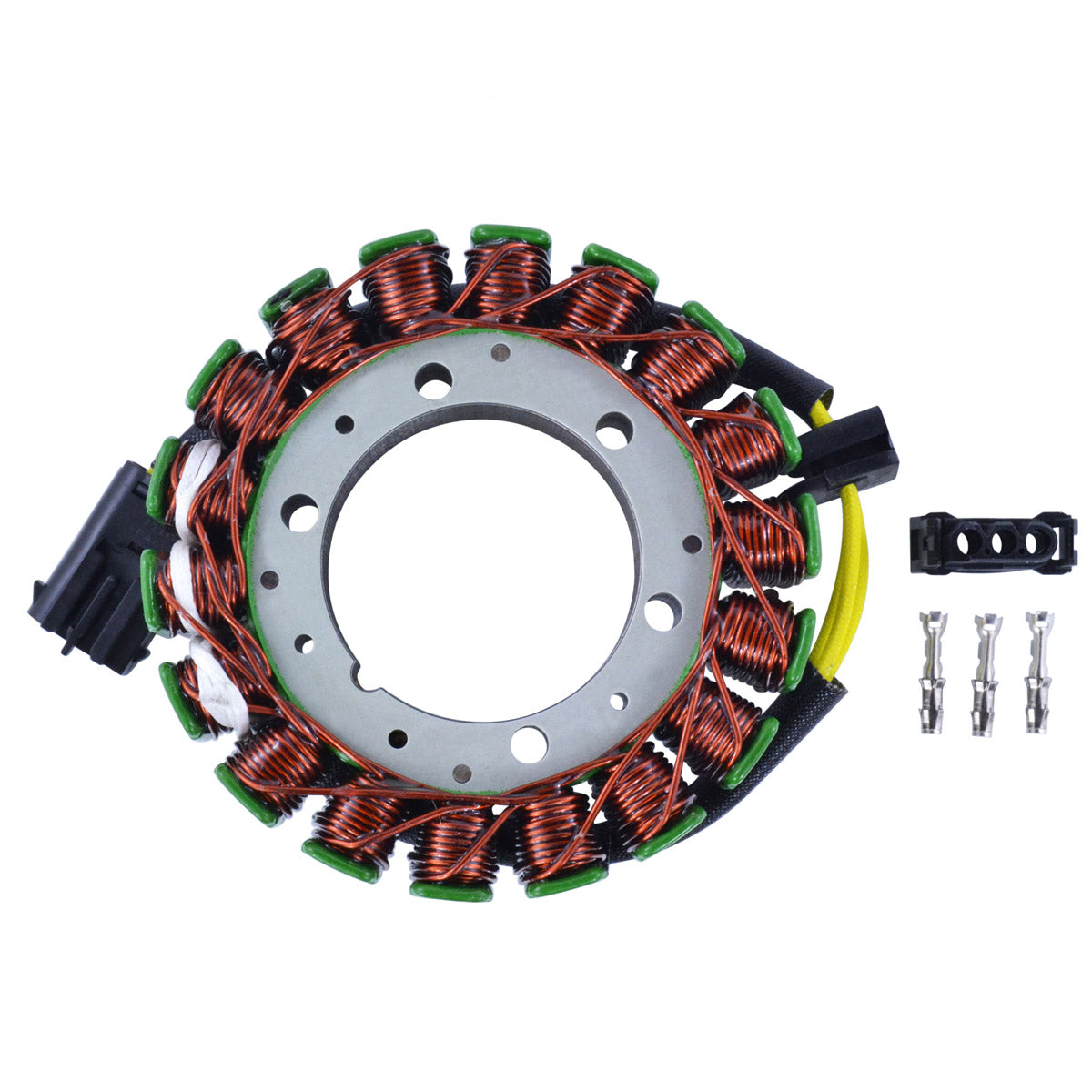

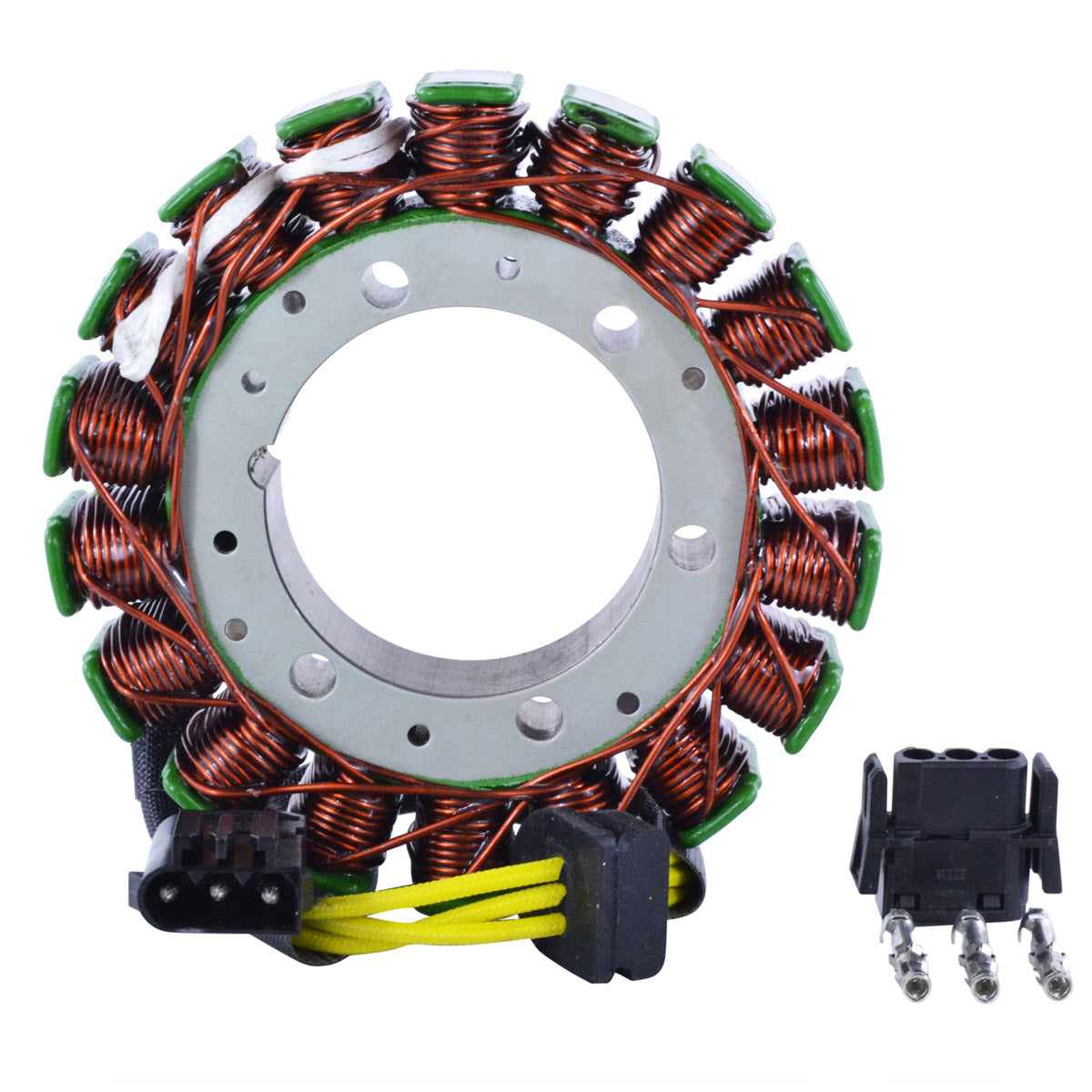

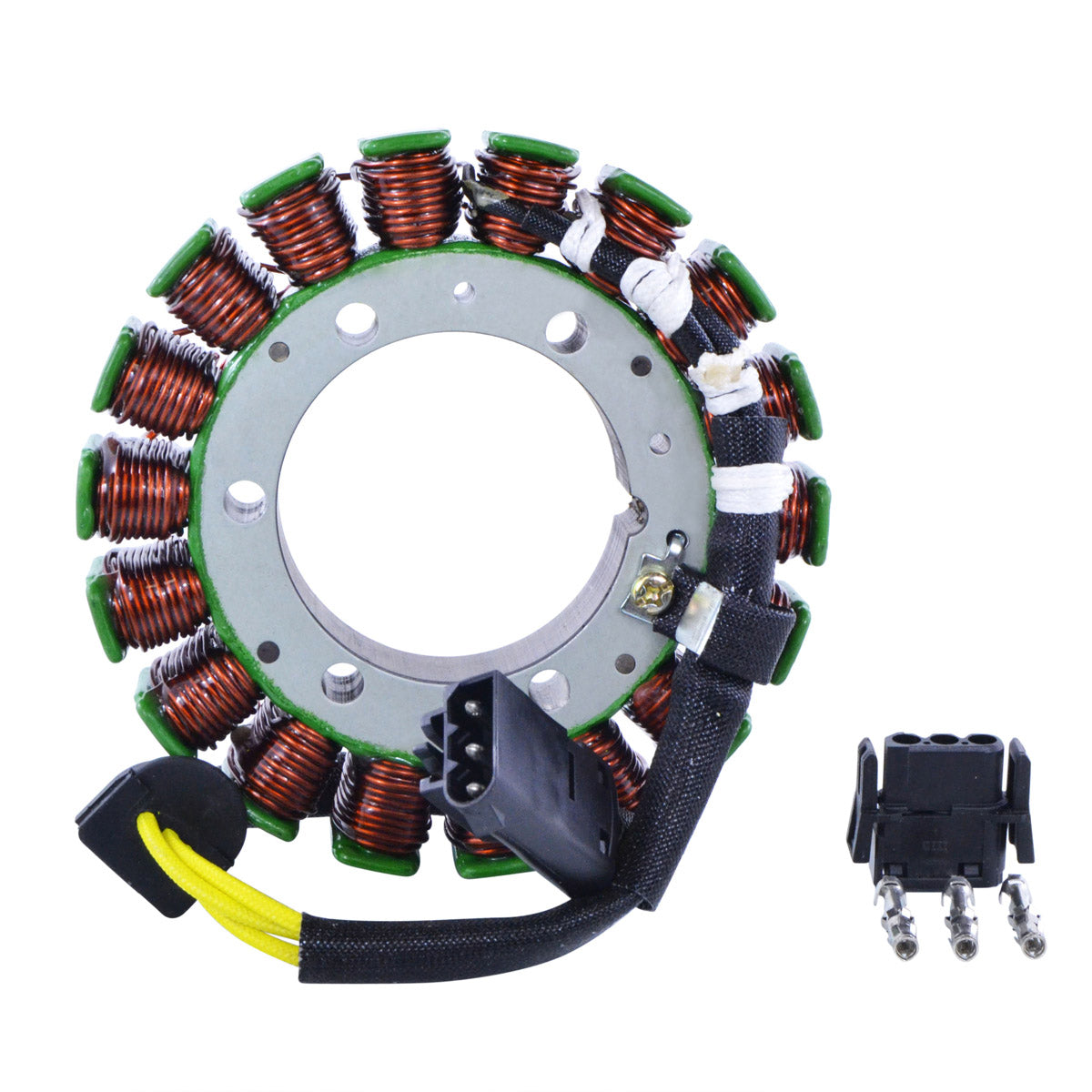

The core uses the highest grade lamination materials and the windings are the highest grade copper, rated to resist 200 degrees Celsius. The connector and rubber grommet are supplied already fitted, and the opposite connector for the main harness side is included in the box because the original is frequently melted, corroded or defective and is a common cause of recurring electrical faults. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a rewind or a refurbished core
- Direct replacement for the original unit - no modification required
- Plug-and-play, direct fit, straightforward installation
- Highest grade lamination materials used in the core
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector and rubber grommet included and already fitted

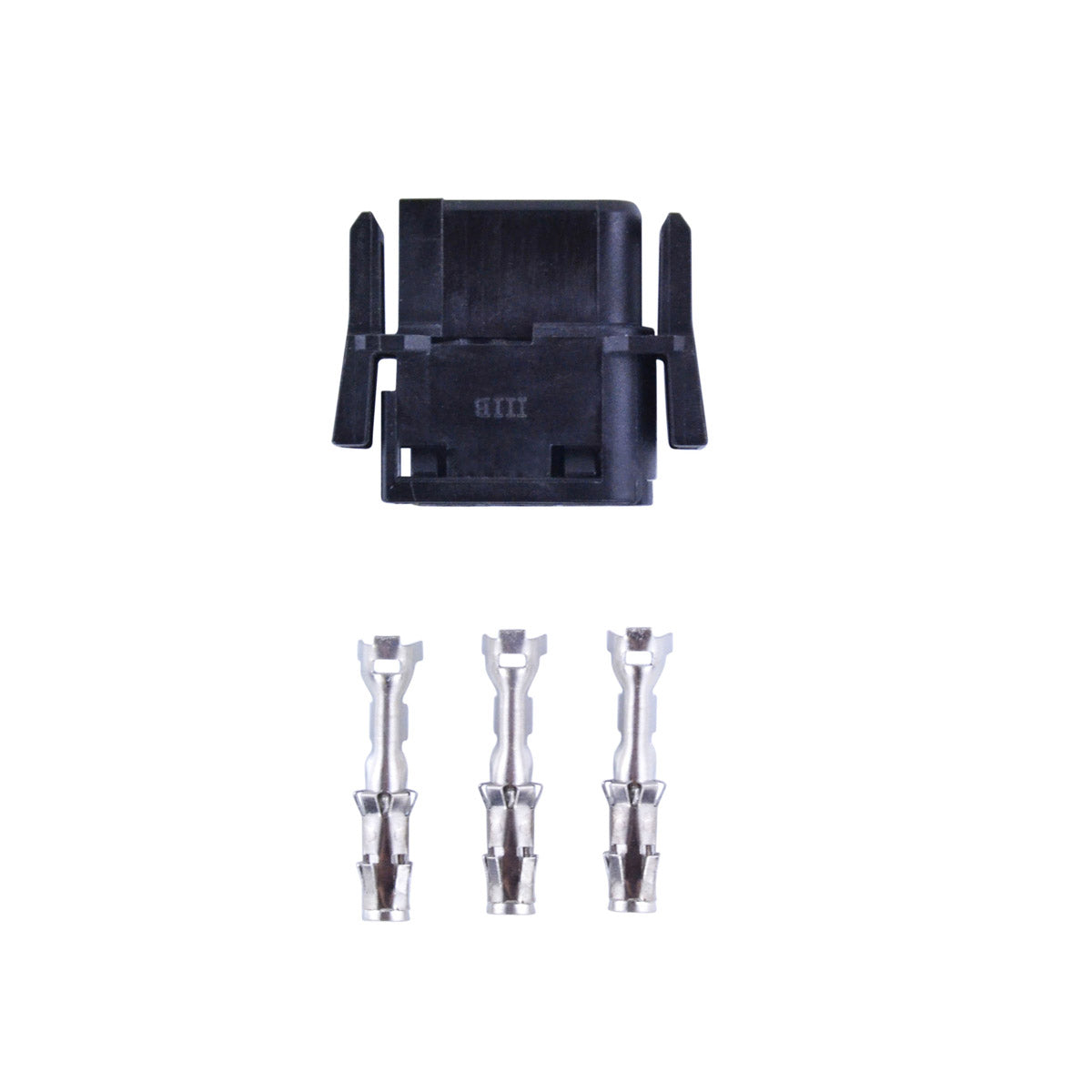

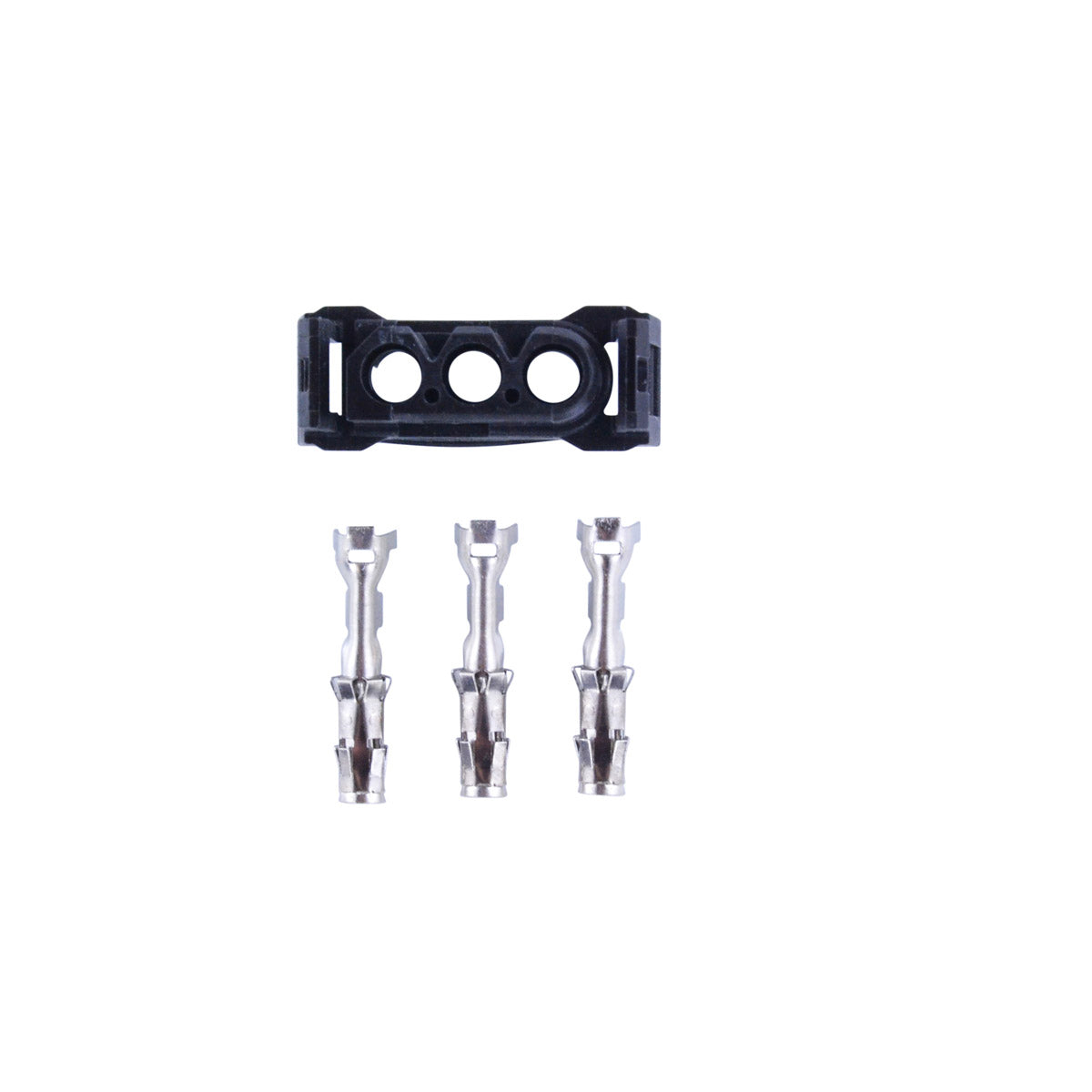

- Opposite connector for the main harness side included
- Every unit is tested before shipping
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-103235 |
| Interior diameter |
54 mm |
| Exterior diameter |
115 mm |
| Thickness |
24 mm |
| Length of wires, stator to grommet |
180 mm |
| Length of wires, grommet to plug |
114 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Wire-to-wire resistance, yellow between yellow |
0.4 ohms +-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| BMW F 650 CS |
1999-2007 |
| BMW F 650 GS |
1999-2007 |
| BMW G 650 X |
2006-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 12 11 7 687 776 |
BMW |
| 12 31 7 699 394 |
BMW |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct, plug-and-play replacement for the original BMW stator. It uses the original mounting points and the supplied connector mates with the factory loom, so no cutting, splicing or rewiring is required. Check the number on your original unit against 12 11 7 687 776 or 12 31 7 699 394 before ordering.
What is included in the box?

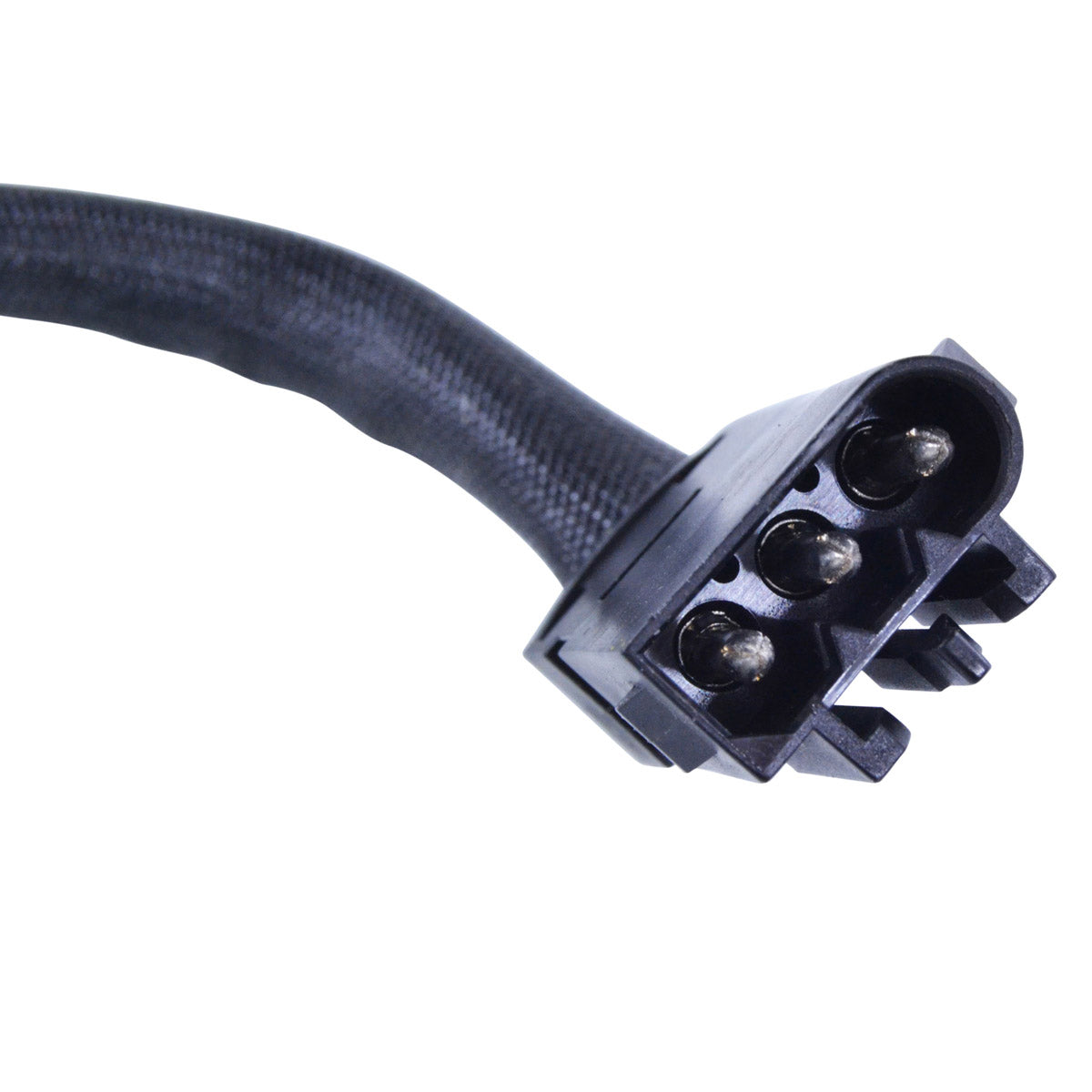

The stator with its connector and rubber grommet already fitted, plus the opposite connector for the main harness side. Fitting that second connector at the same time removes a well known repeat-failure point on these machines.
How do I tell whether my old stator has failed?

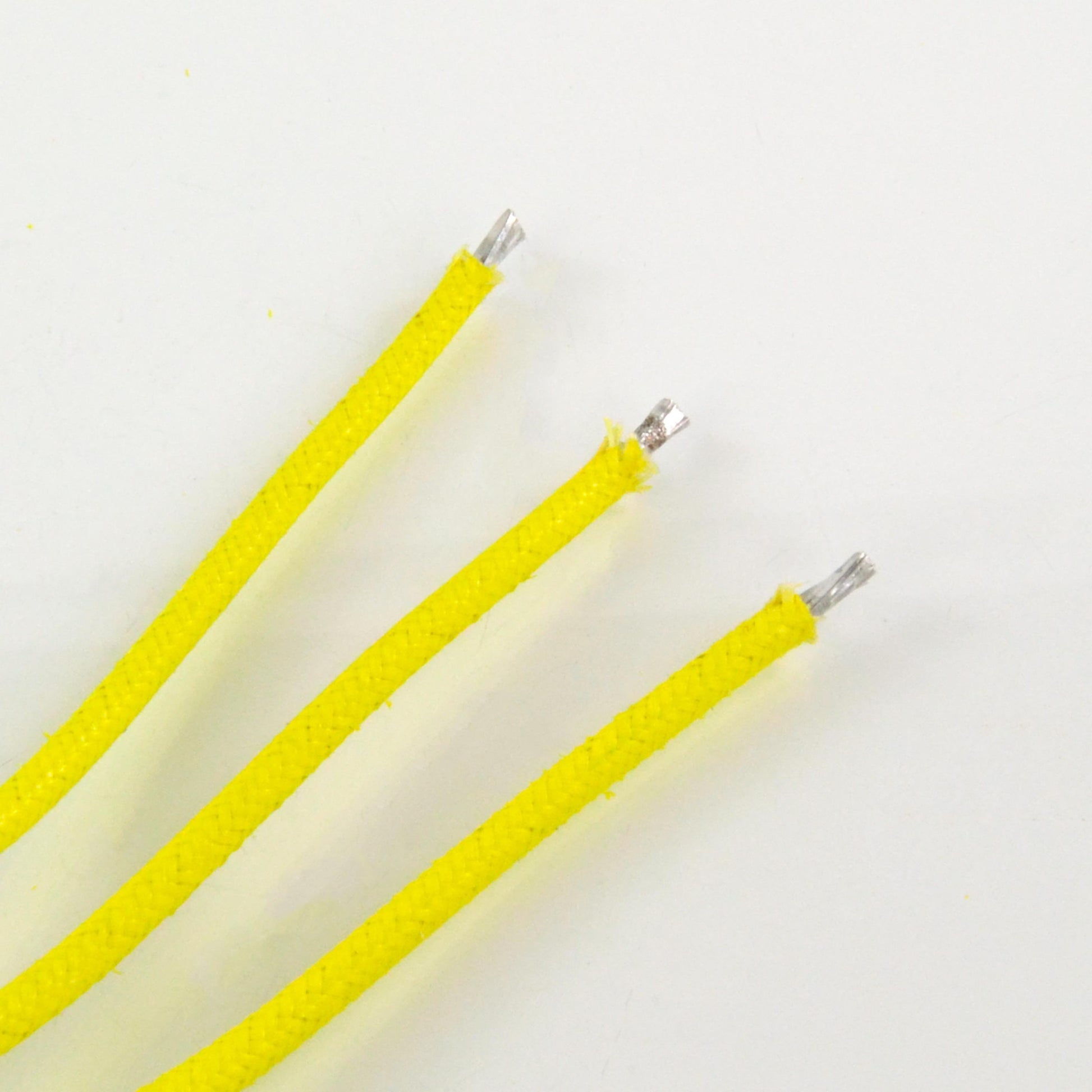

Watch for a battery that will not stay charged, dim or flickering lights, and charging voltage that stays at battery level as revs rise. With a multimeter, resistance between any two of the three yellow wires should read approximately 0.4 ohms with a 20 percent tolerance. Open circuit, short circuit, a value well outside that range, or continuity between a yellow wire and the stator body all point to a failed stator.
Why is the grommet-to-plug wire so short on this part?

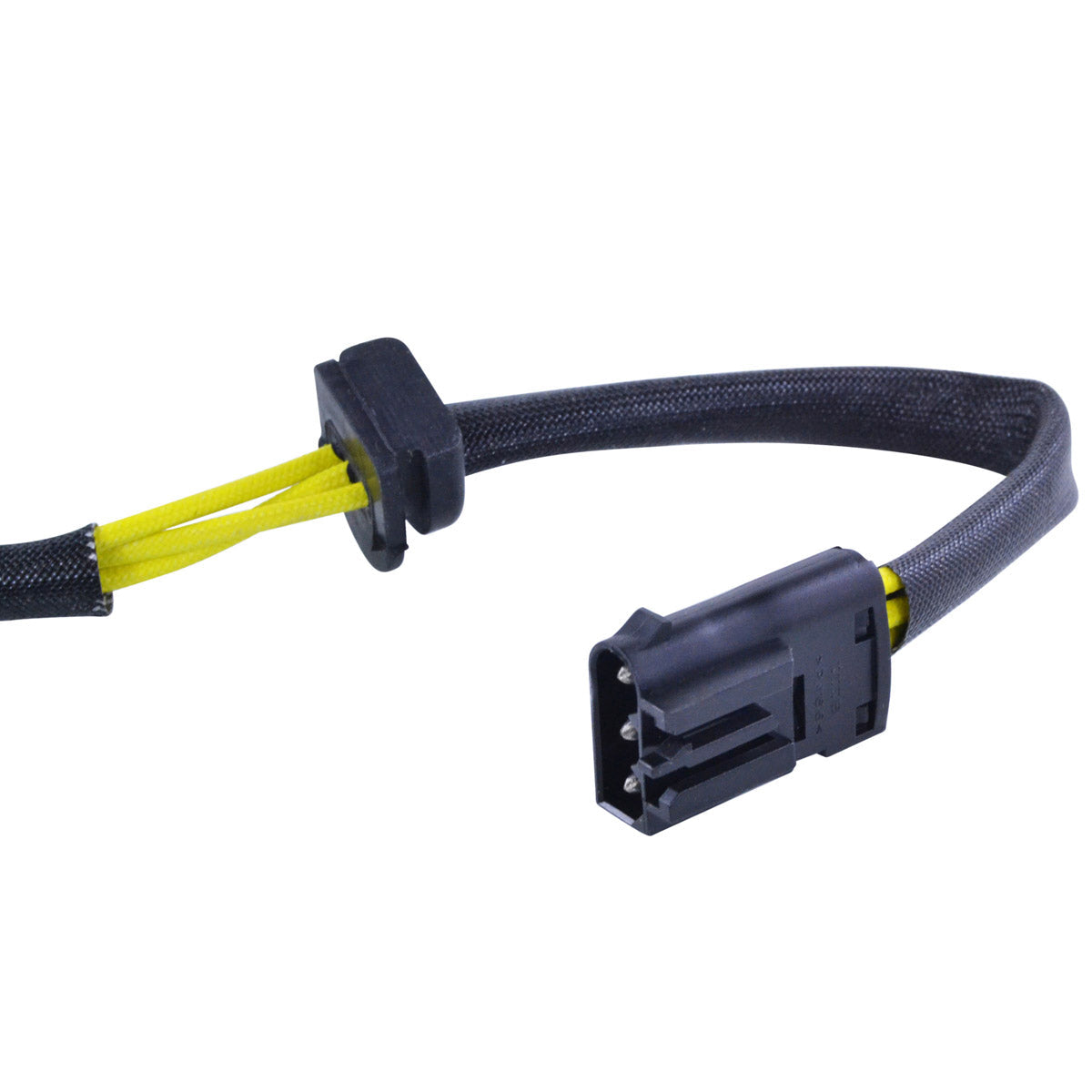

On this application the plug sits close to the engine case, so the lead from the grommet to the connector measures only 114 mm, with 180 mm from the stator to the grommet. That is correct for the original routing - the harness does not need to be extended or rerouted to fit it.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
