Stator for BMW F650GS, F700GS, F800GS, F800GT, F800R & F800ST 2005-2018
Stator for BMW F650GS, F700GS, F800GS, F800GT, F800R & F800ST 2005-2018
SKU:RMS010-103250
Free shipping over £150. Terms apply
Couldn't load pickup availability

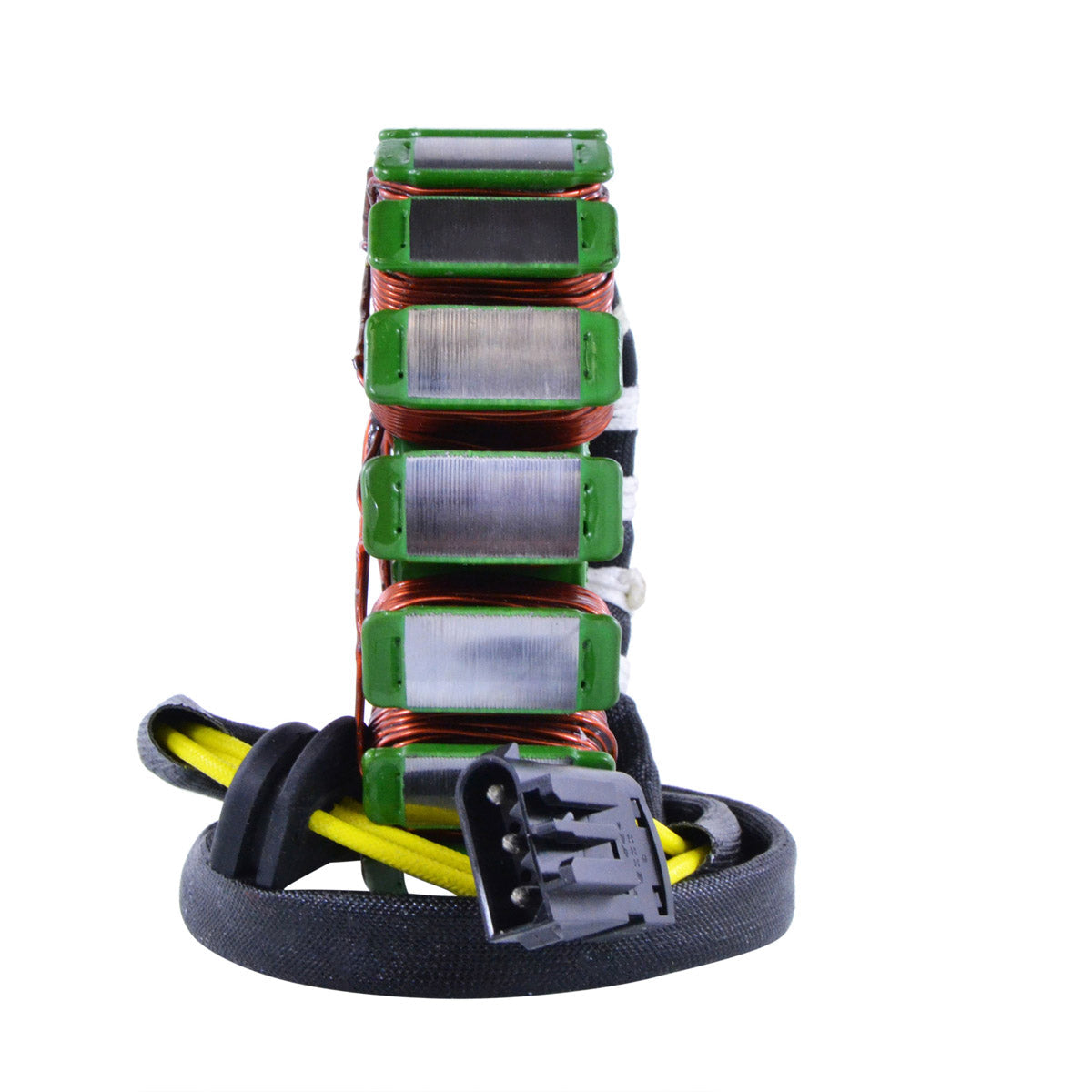

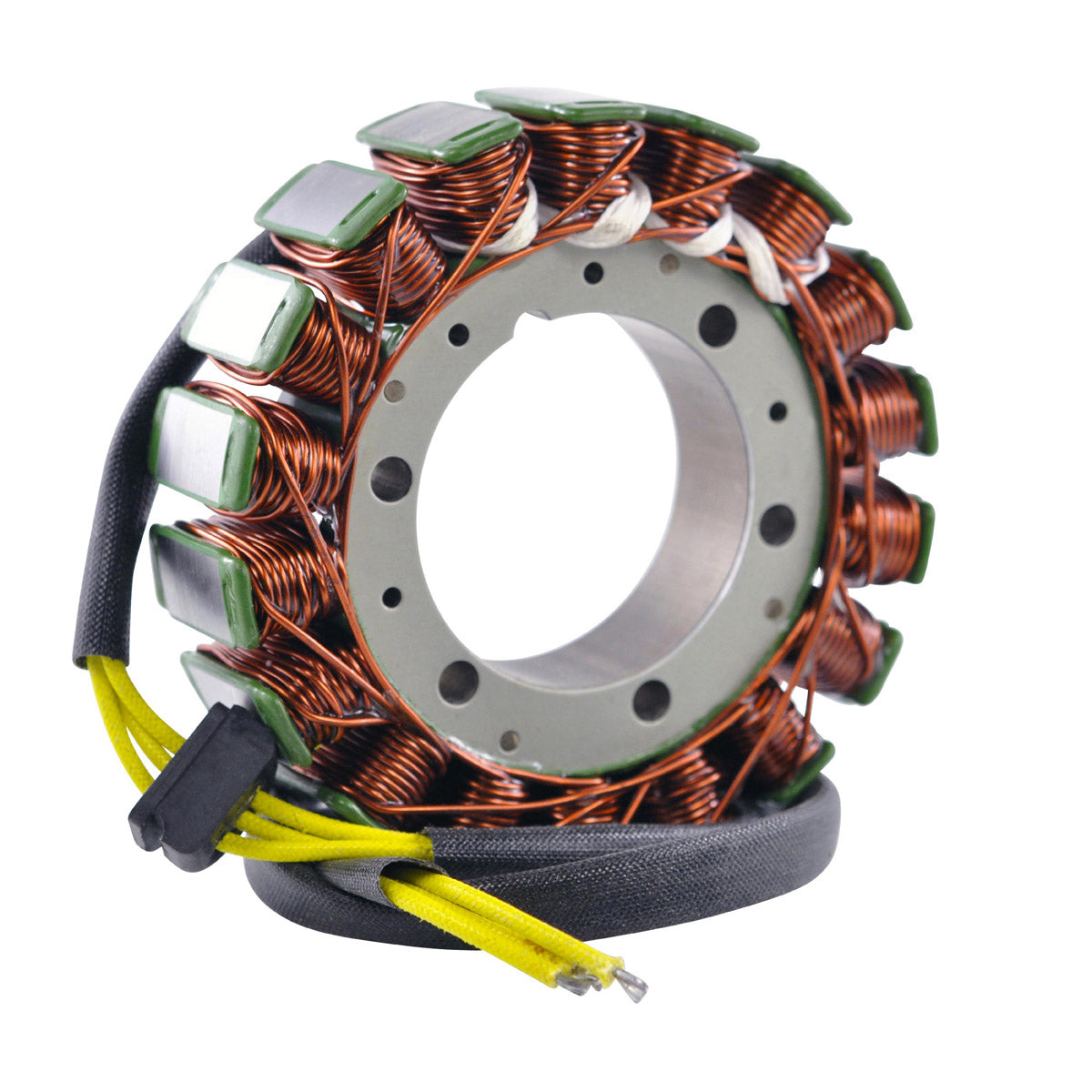

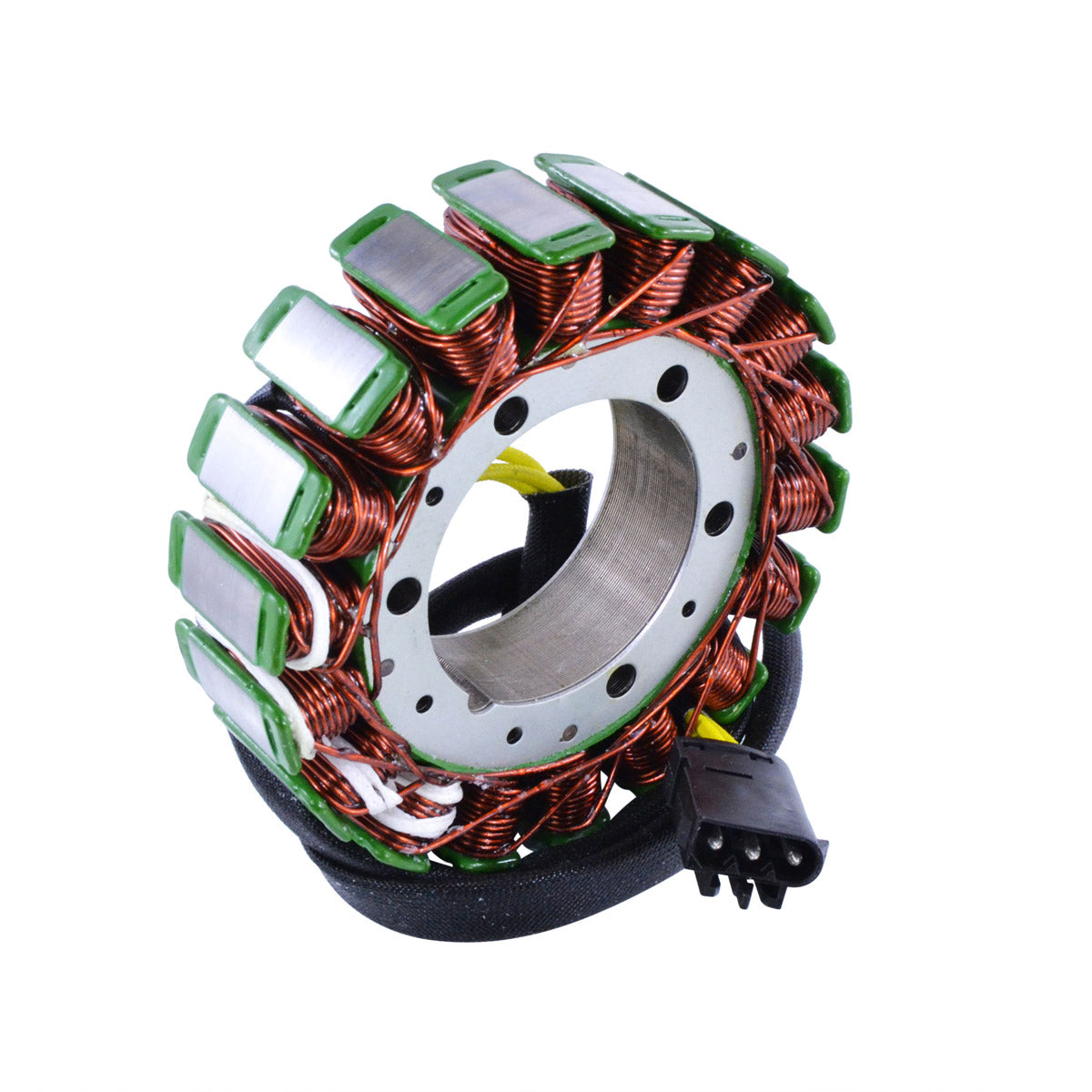

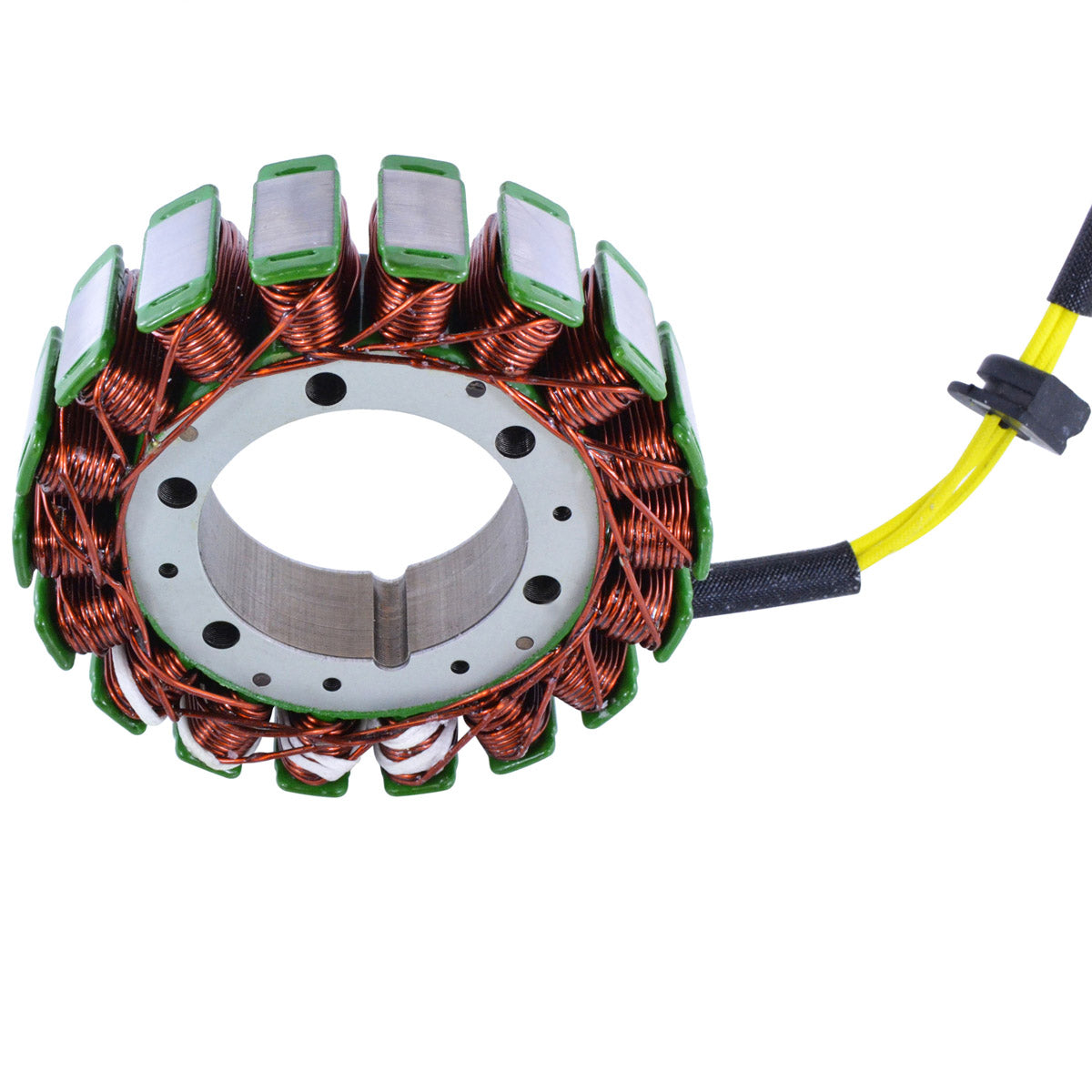

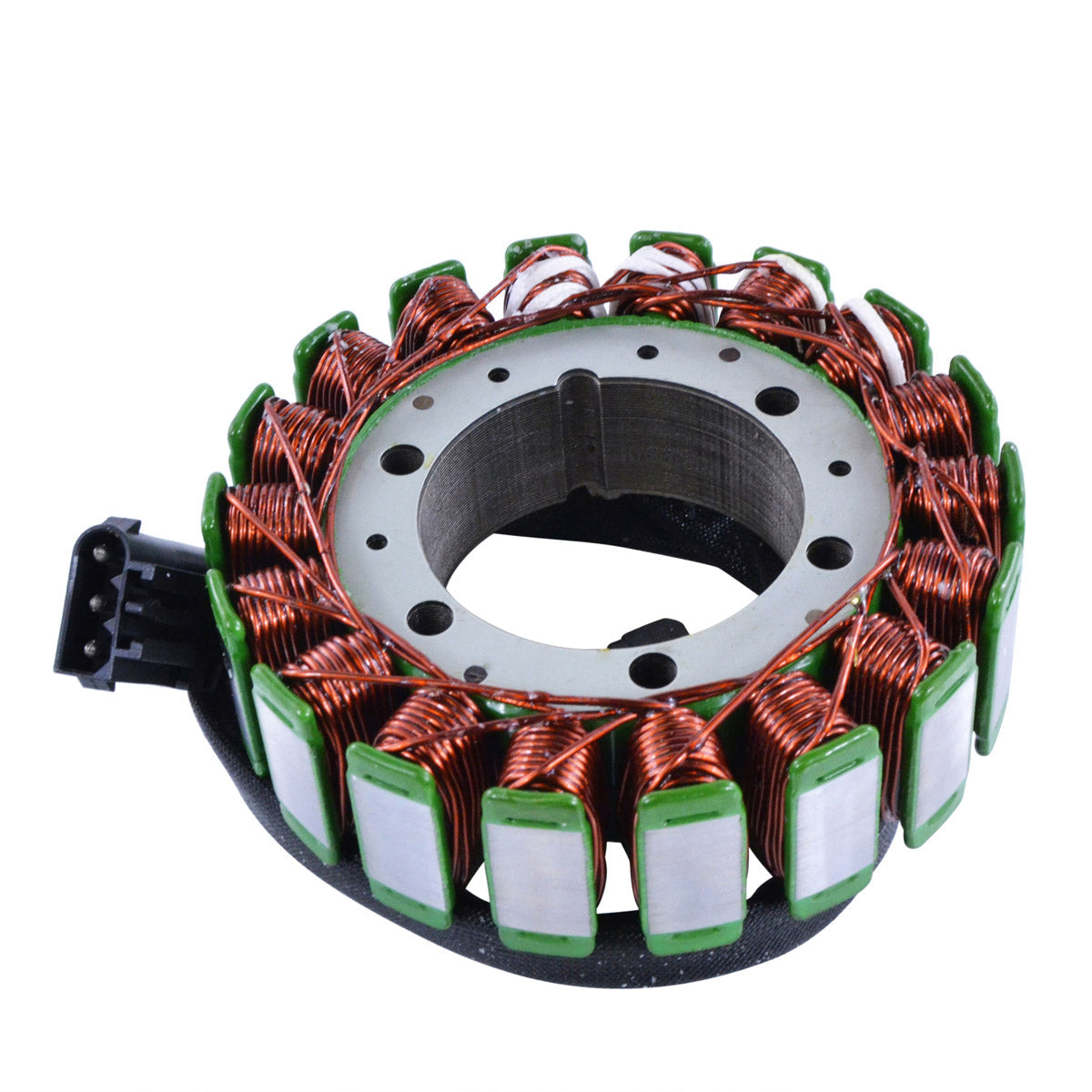

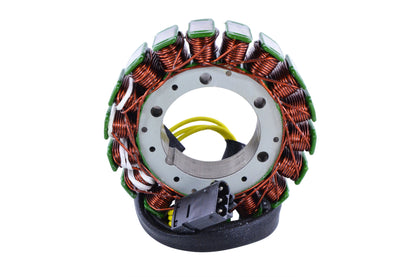

Generator Stator for BMW F650GS, F700GS and F800 Twins
F650GS, F700GS, F800GS, F800GT, F800R and F800ST, 2005-2018

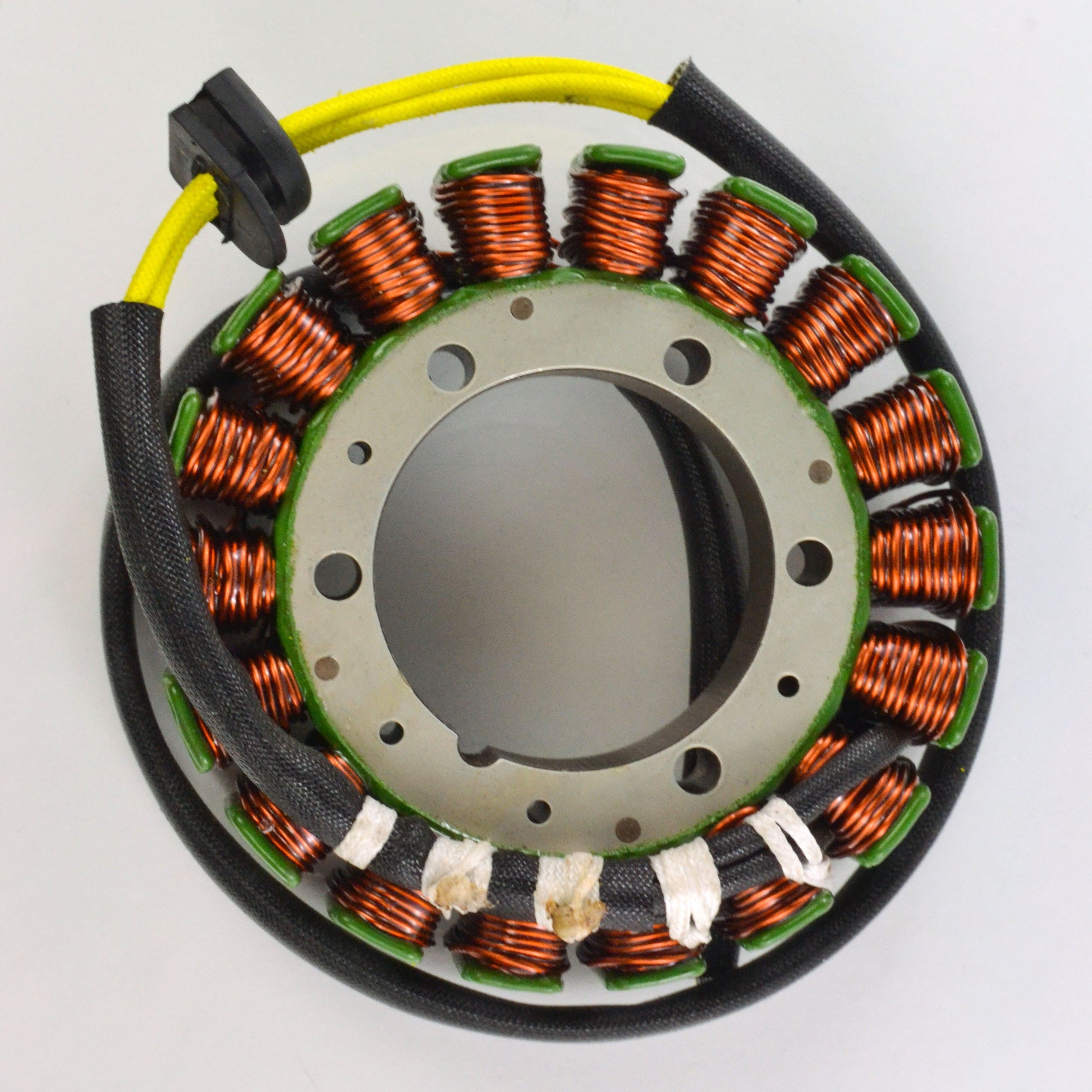

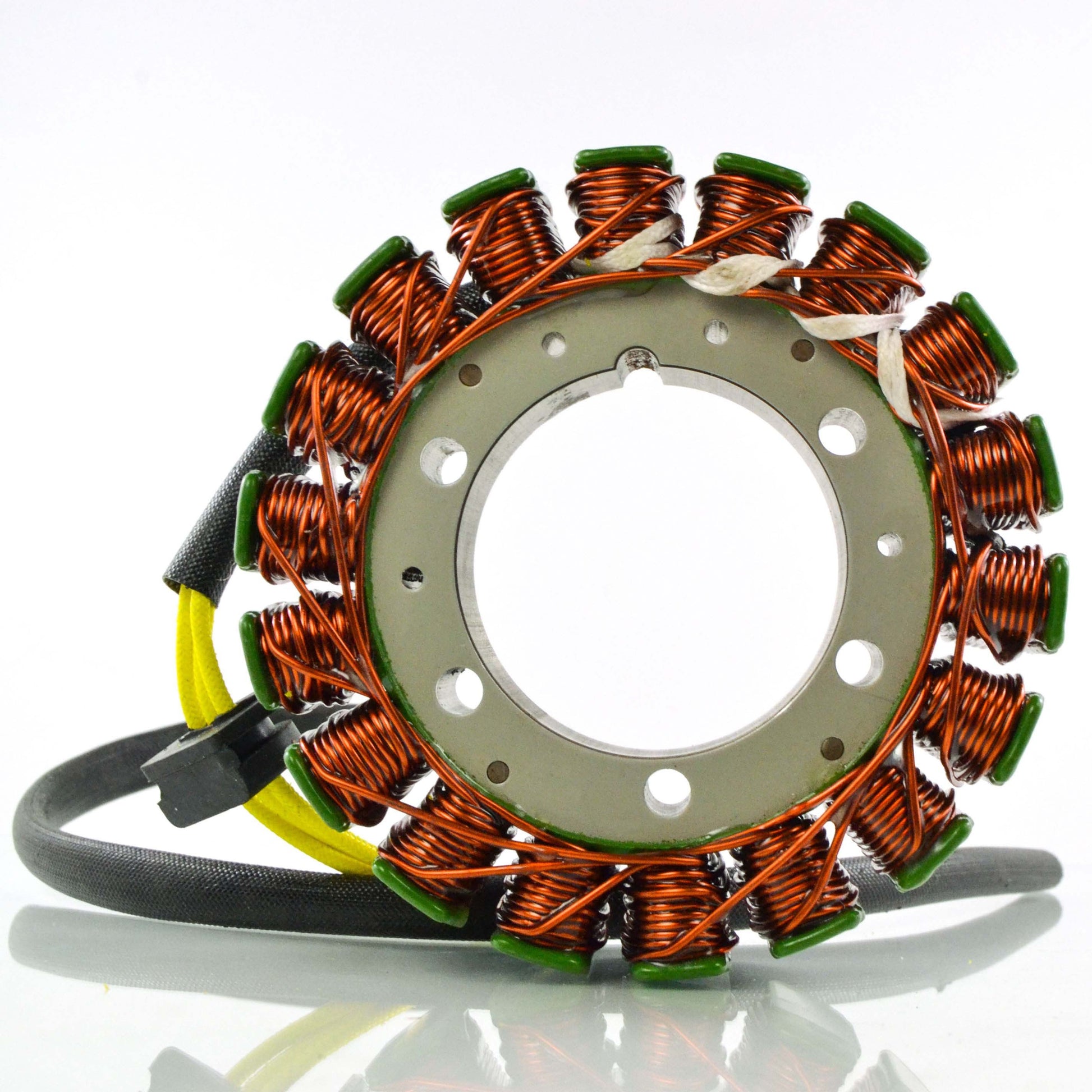

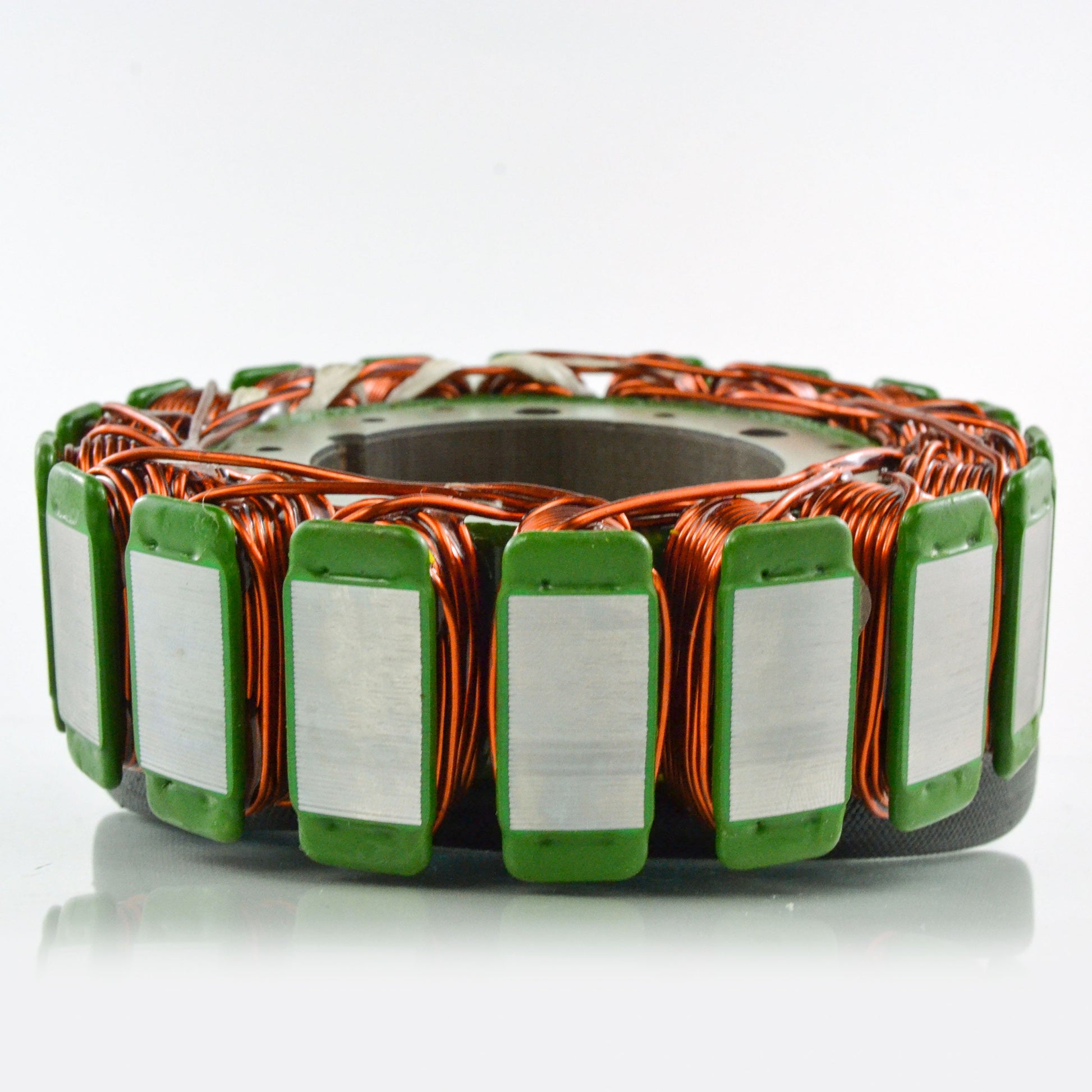

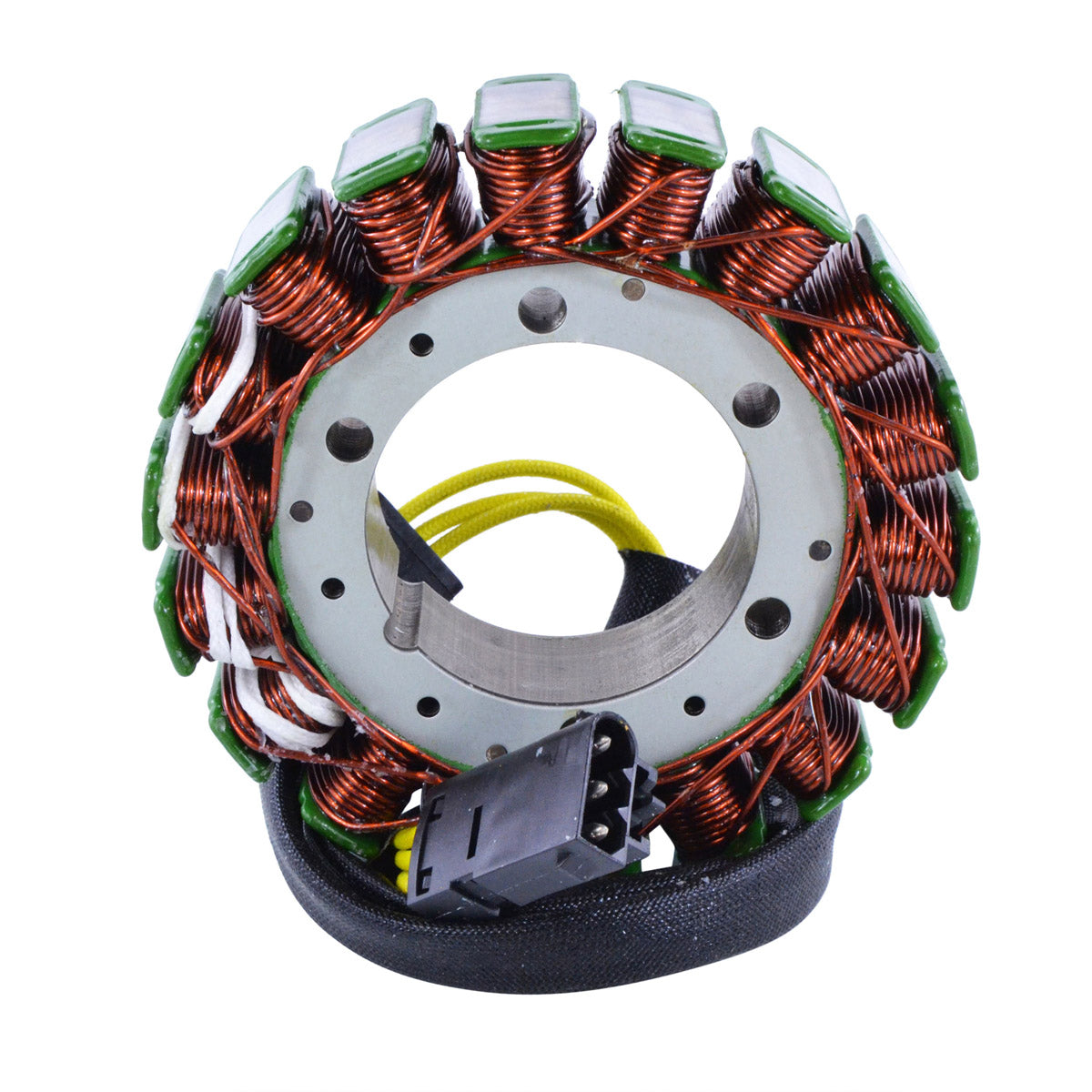

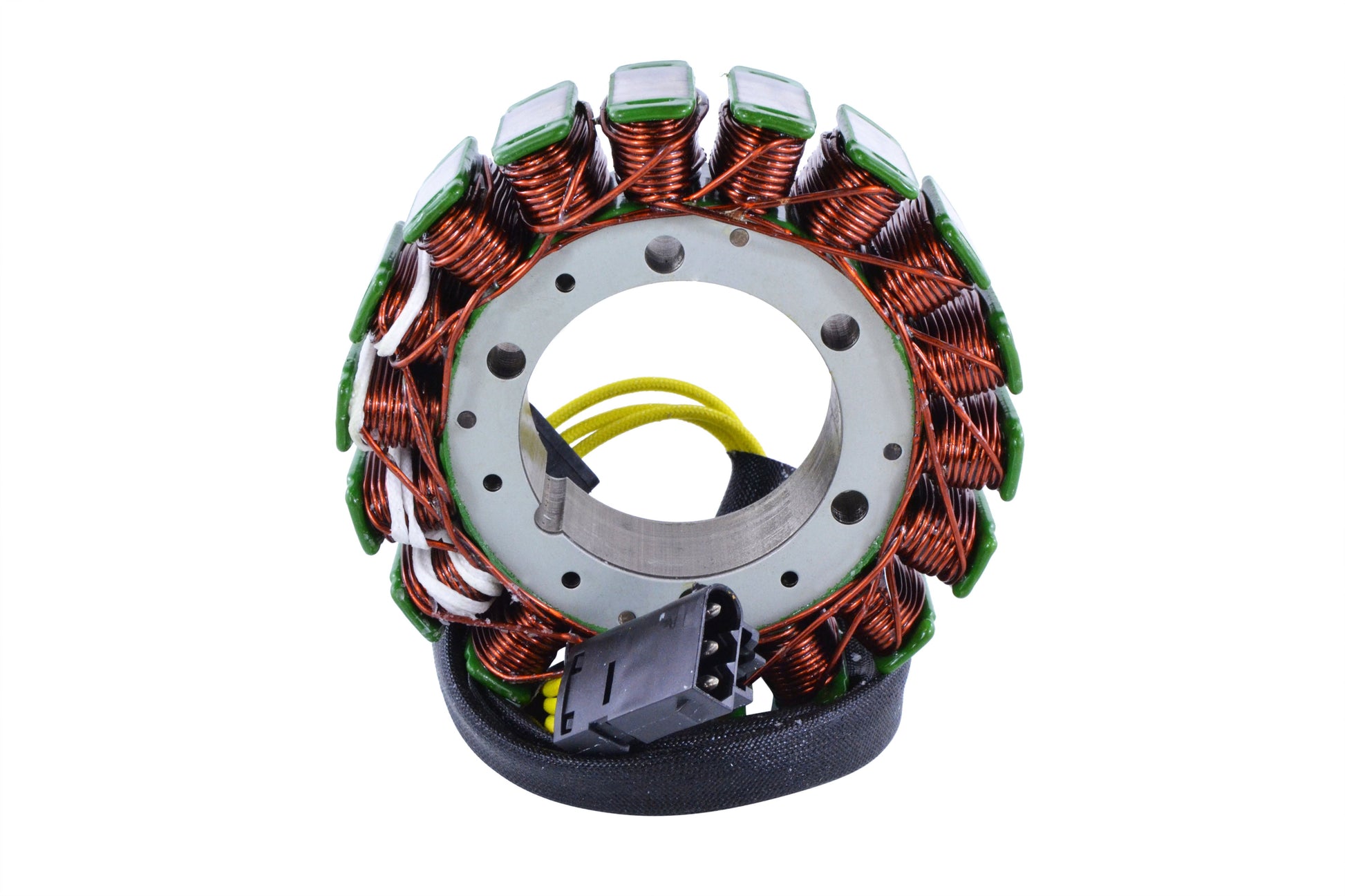

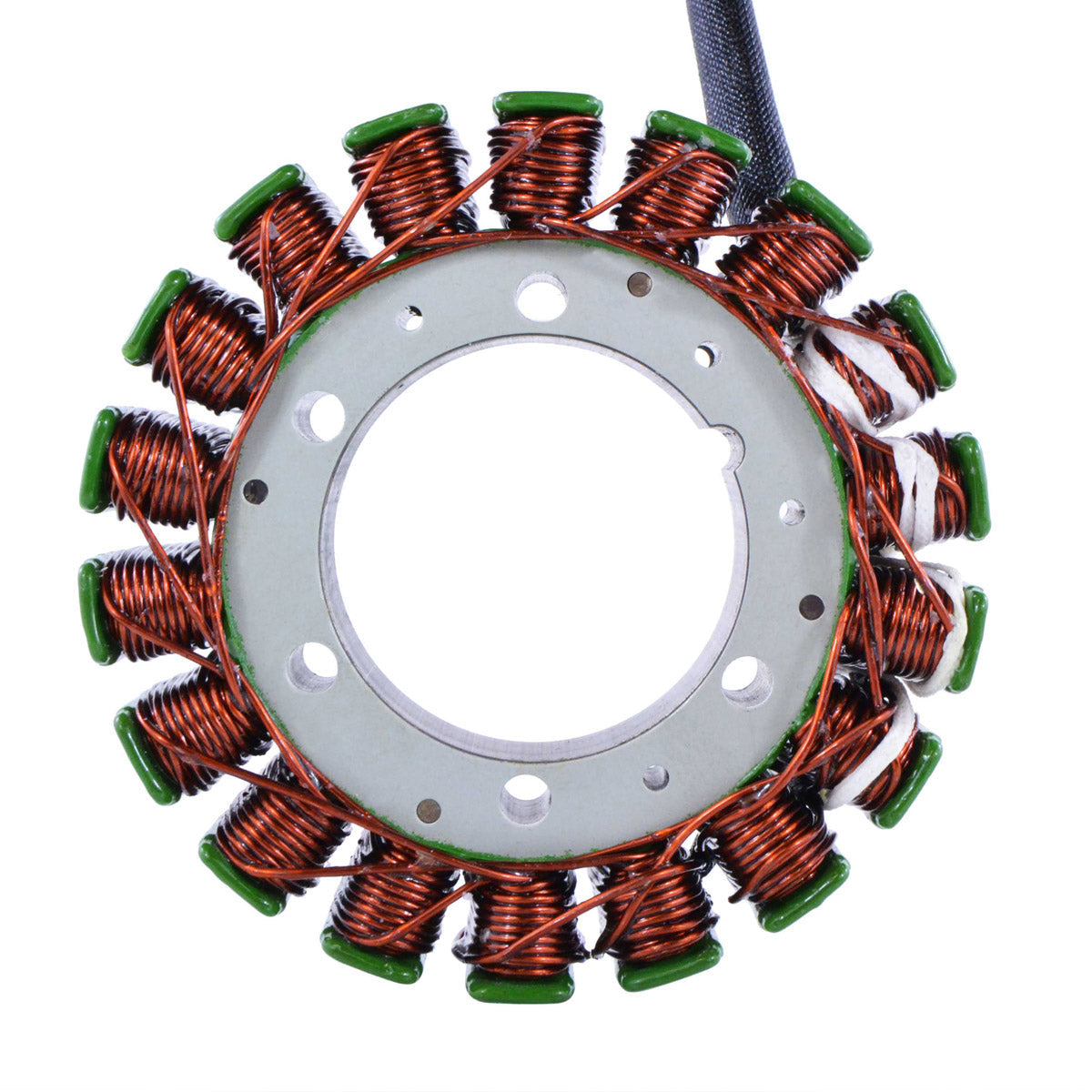

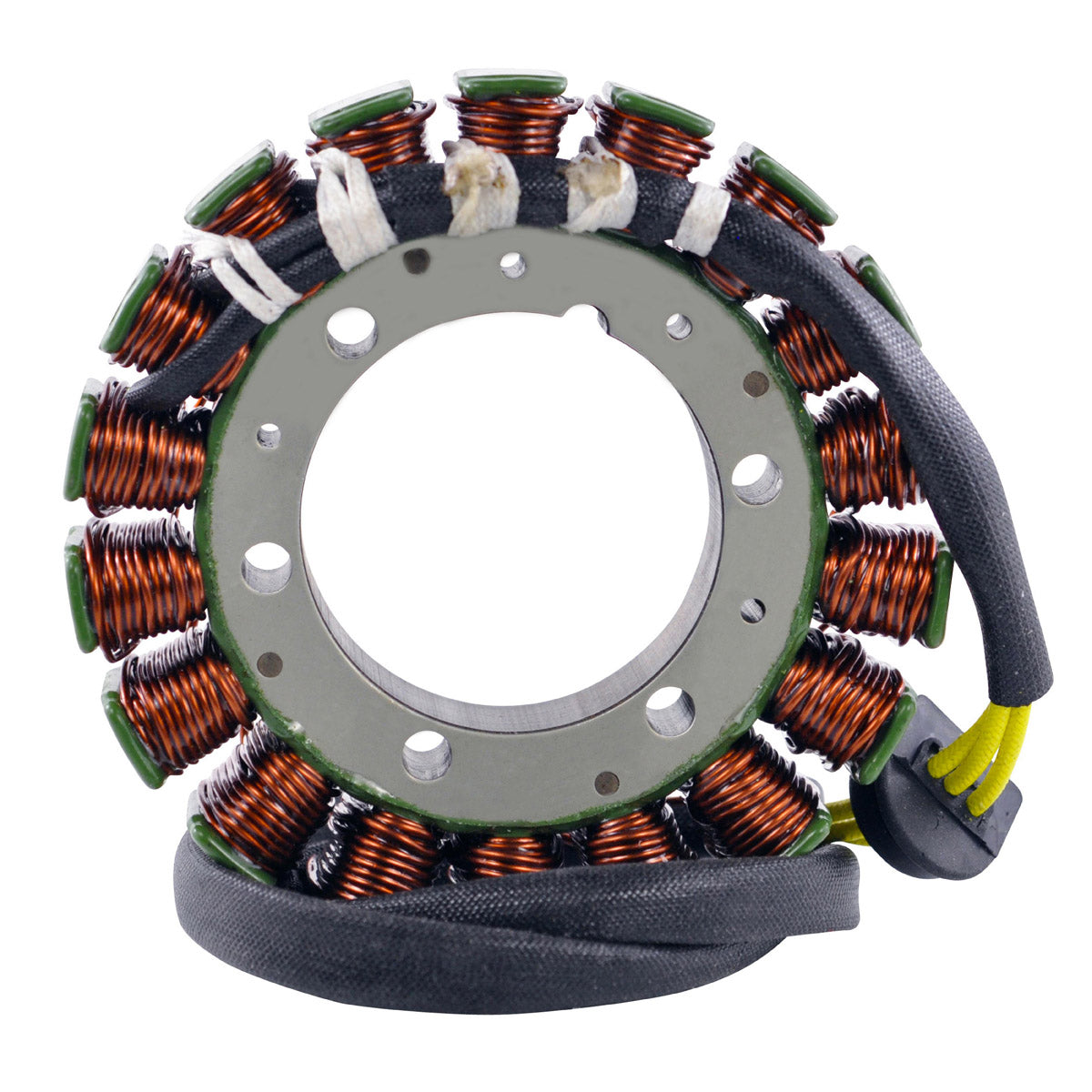

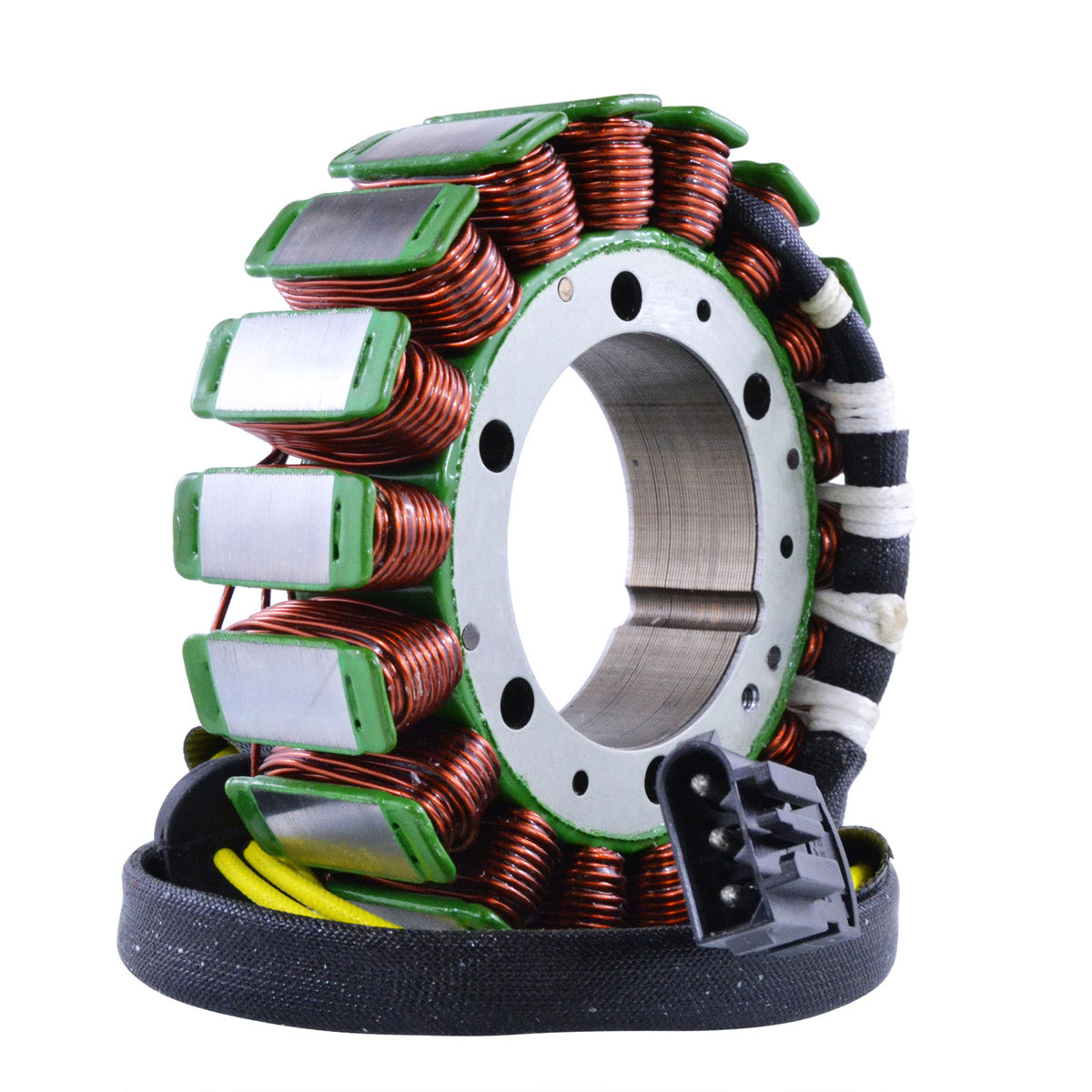

This is a brand new aftermarket generator stator covering the BMW parallel twin range built between 2005 and 2018 - the F650GS, F700GS, F800GS, F800GT, F800R and F800ST. It is a direct replacement for the original unit and is plug-and-play, mounting in the original position and connecting to the factory loom with no cutting, splicing or modification. Part number RMS010-103250, replacing BMW OEM number 12 31 8 524 422.
The core is built from the highest grade lamination materials and wound with the highest grade copper, rated to resist 200 degrees Celsius. The connector and rubber grommet are included and already fitted. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a rewind or a refurbished core
- Direct replacement for BMW OEM part 12 31 8 524 422
- Plug-and-play, direct fit, straightforward installation
- Highest grade lamination materials used in the core
- Highest grade copper windings, resistant to 200 degrees Celsius

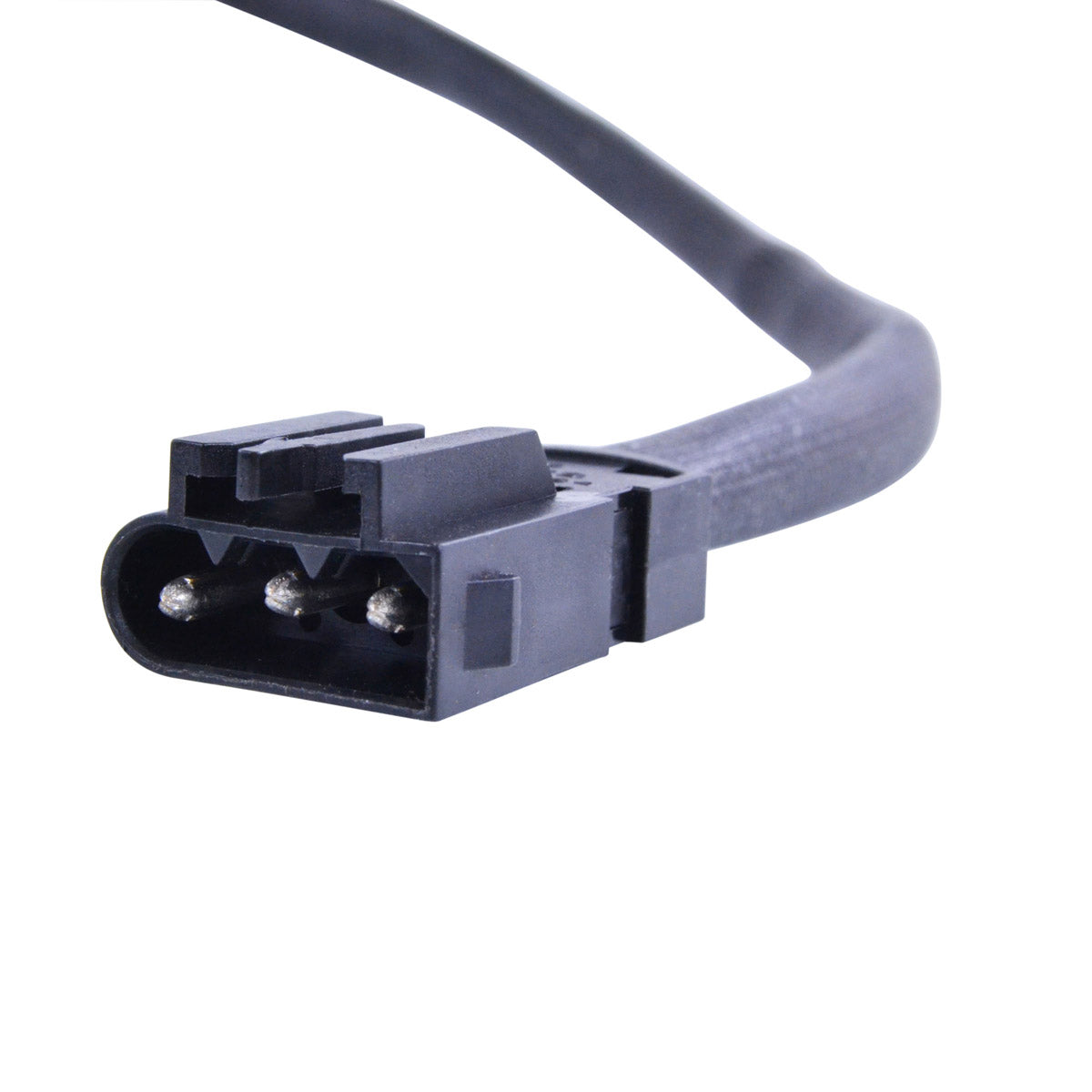

- Connector included and already fitted
- Rubber grommet included
- Every unit is tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-103250 |
| Interior diameter | 53 mm |
| Exterior diameter | 115 mm |
| Thickness | 24 mm |
| Length of wires, stator to grommet | 123 mm |
| Length of wires, grommet to plug | 508 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance, yellow between yellow | 0.4 ohms +-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| BMW F650GS | 2005-2018 |
| BMW F700GS | 2005-2018 |
| BMW F800GS | 2005-2018 |
| BMW F800GT | 2005-2018 |
| BMW F800R | 2005-2018 |
| BMW F800ST | 2005-2018 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 12 31 8 524 422 | BMW |
| 12 31 7 690 427 | BMW |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct, plug-and-play replacement for the original stator. It uses the original mounting points and the supplied connector mates with the factory loom, so no cutting, splicing or rewiring is needed. Confirm the number on your original unit matches 12 31 8 524 422 or 12 31 7 690 427 before ordering.
What is included in the box?
The stator complete with its connector and rubber grommet. Three wires exit the unit into a single three-pin plug, with 123 mm from the stator to the grommet and 508 mm from the grommet to the plug.
How do I tell whether my old stator has failed?
Typical symptoms are a battery that will not hold charge, dim or flickering lights, and charging voltage that does not climb above battery voltage with engine speed. Measured with a multimeter, resistance between any two of the three yellow wires should be approximately 0.4 ohms with a 20 percent tolerance. Open circuit, short circuit, a reading well outside that figure, or continuity between a yellow wire and the stator body all indicate a failed stator.
Does one stator cover the whole F650GS to F800ST range?
Yes. The 2005 to 2018 BMW parallel twins share the same charging system across the F650GS, F700GS, F800GS, F800GT, F800R and F800ST, all cross referenced to the same BMW numbers listed above. Matching that OEM number is the most reliable fitment check for your particular year.
