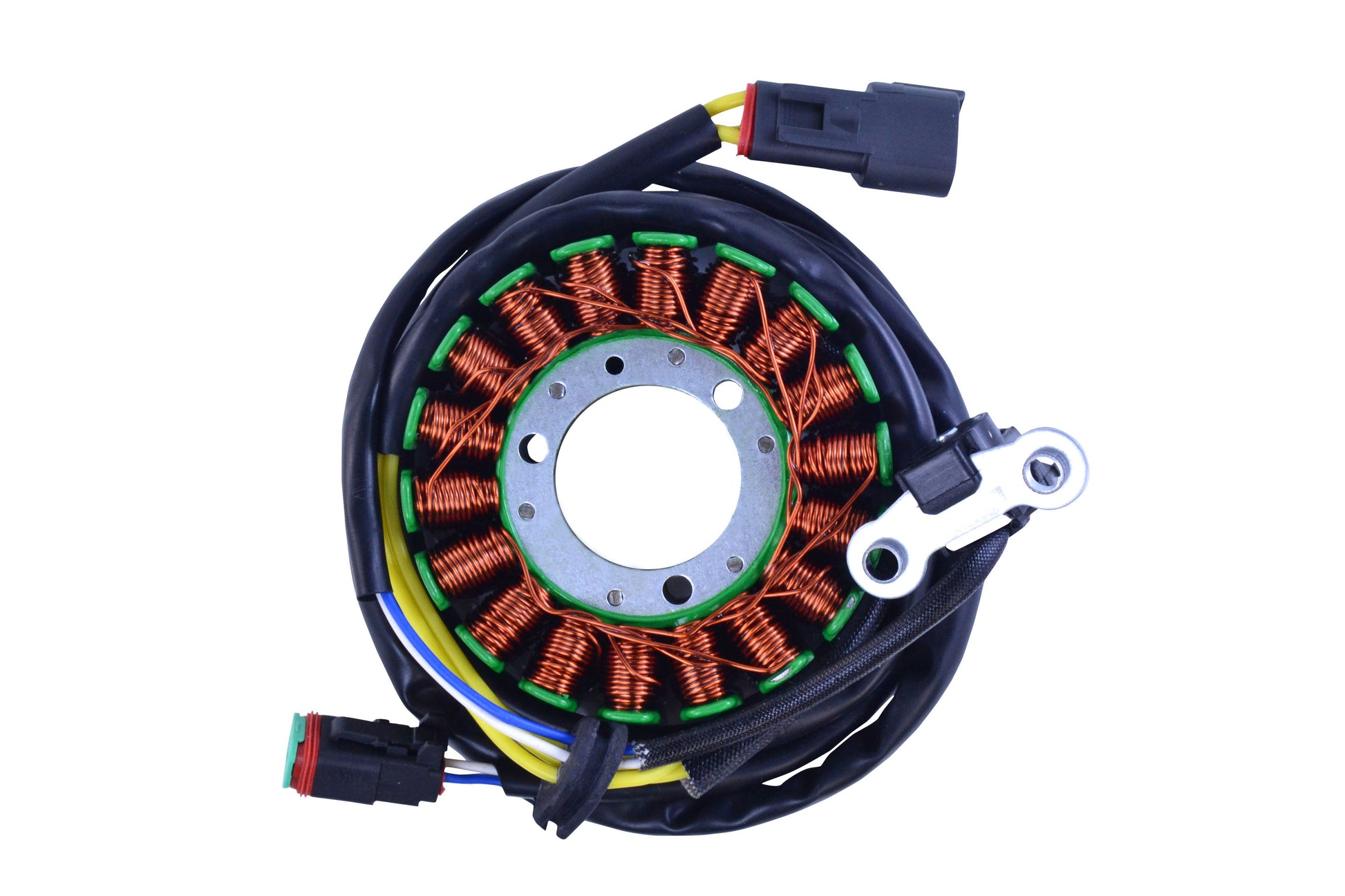

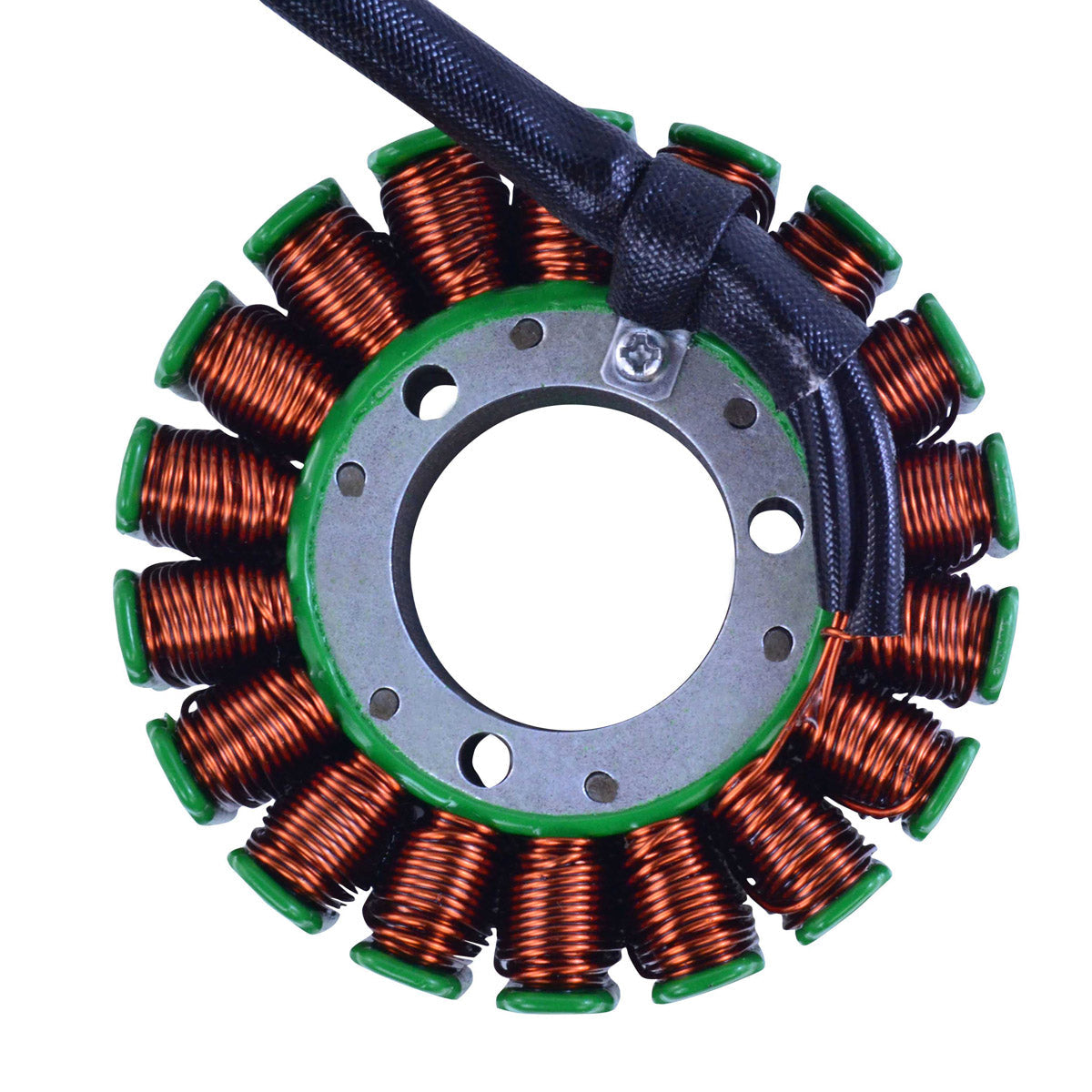

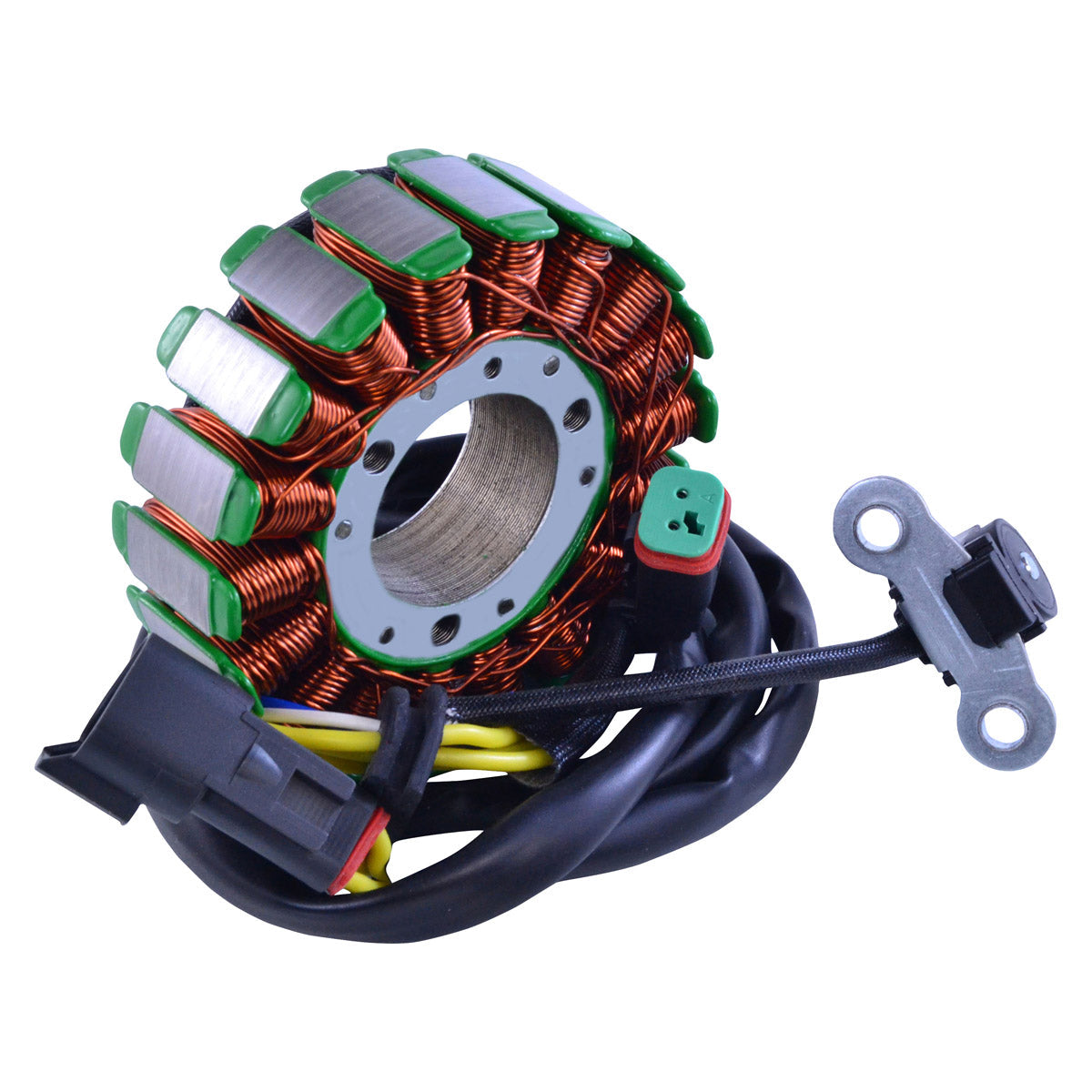

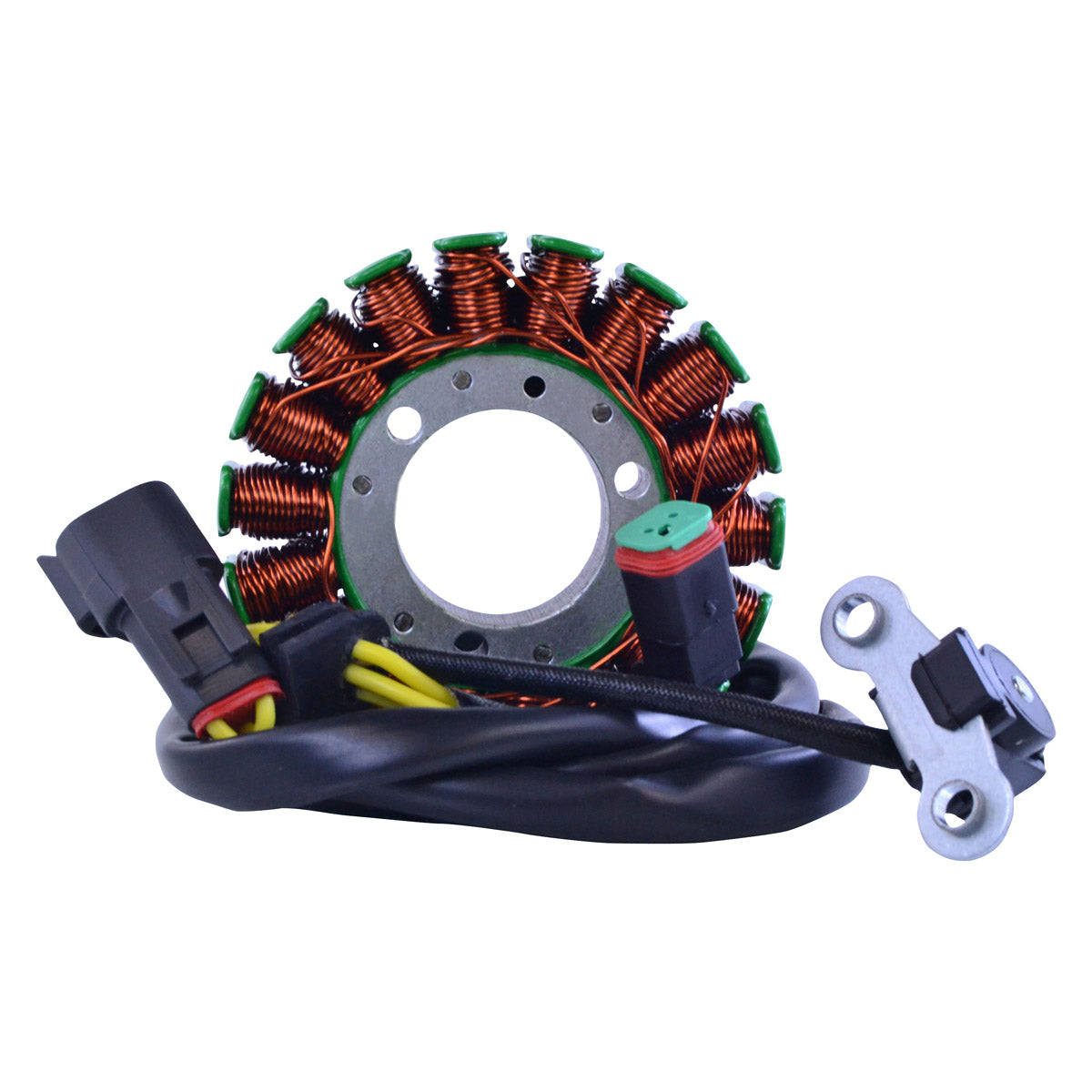

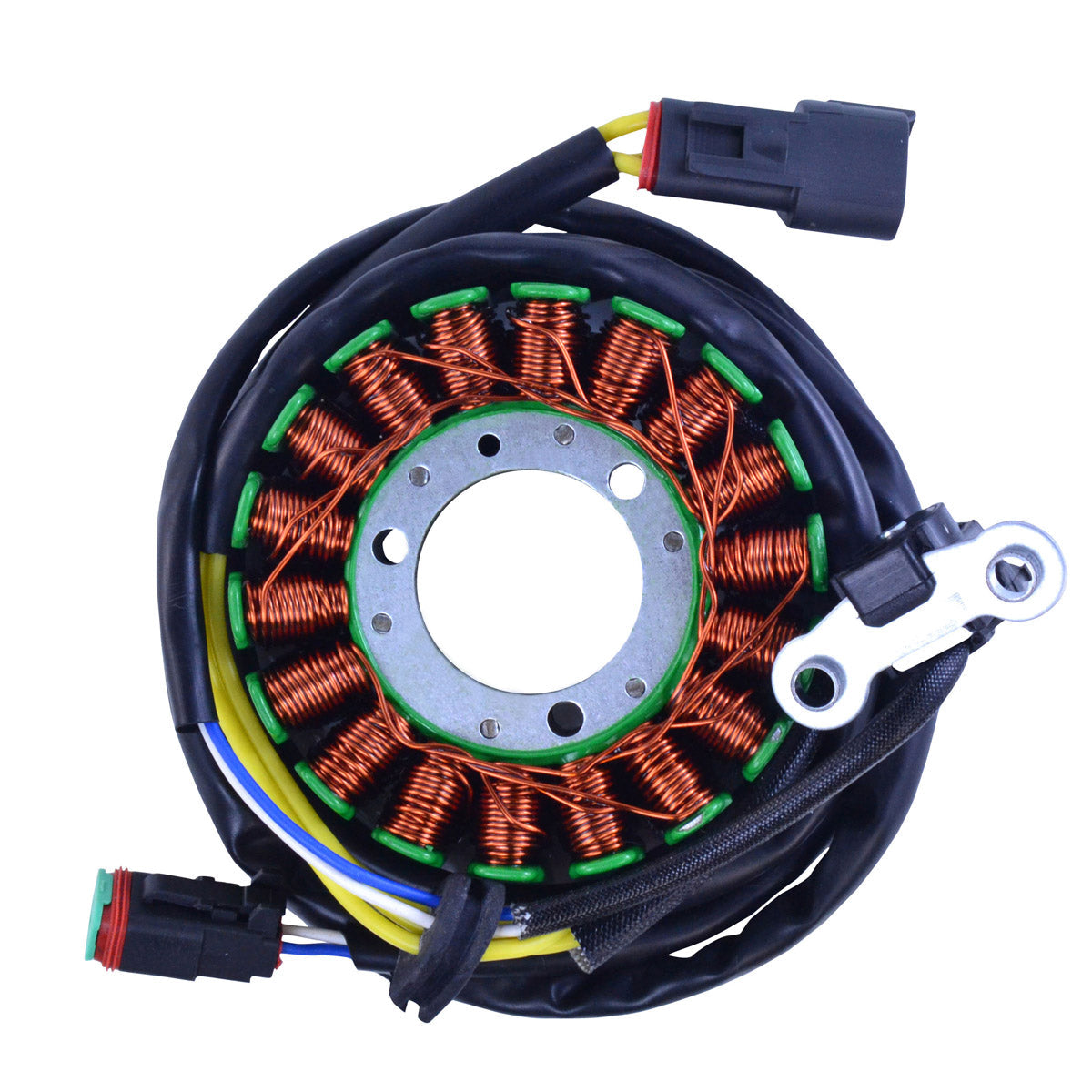

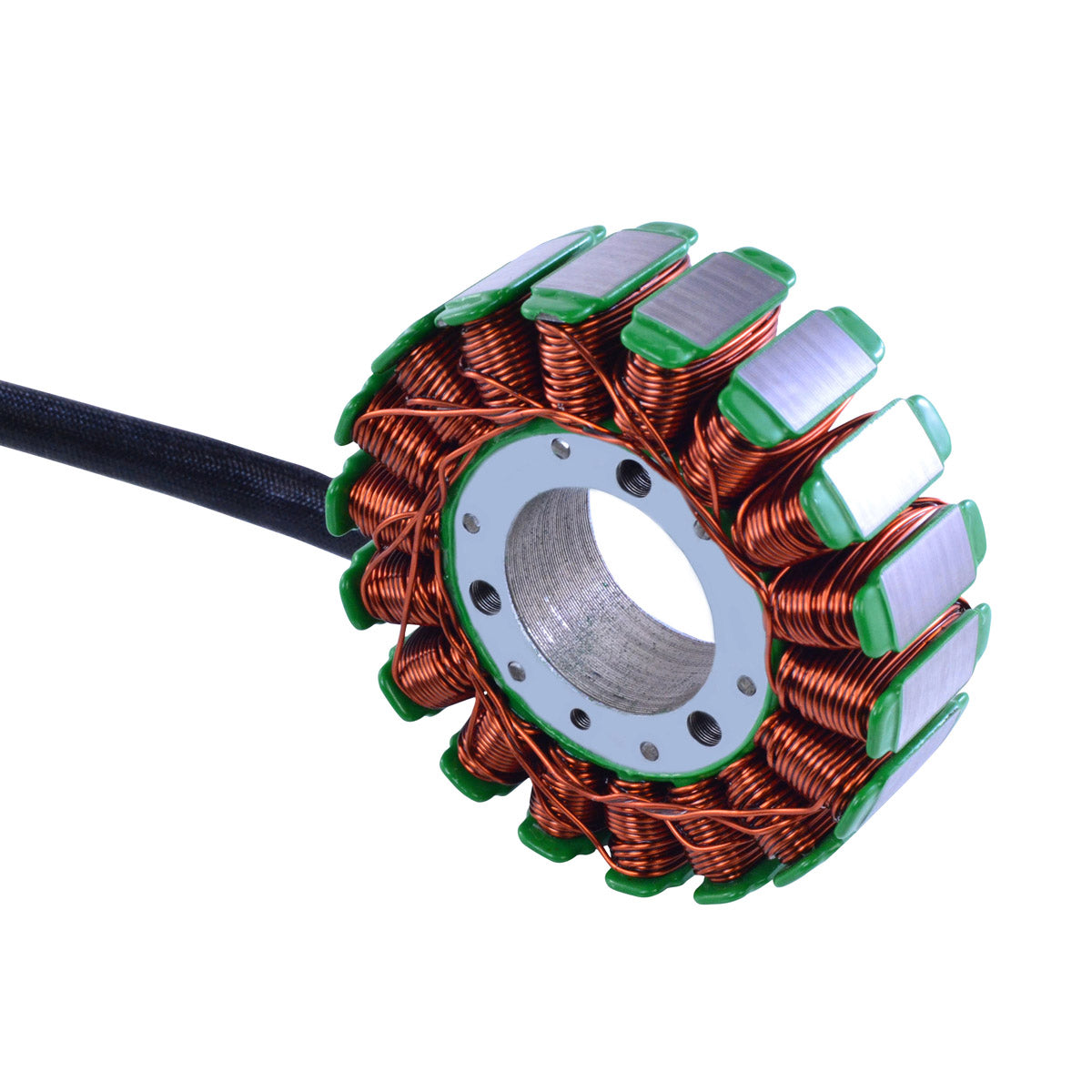

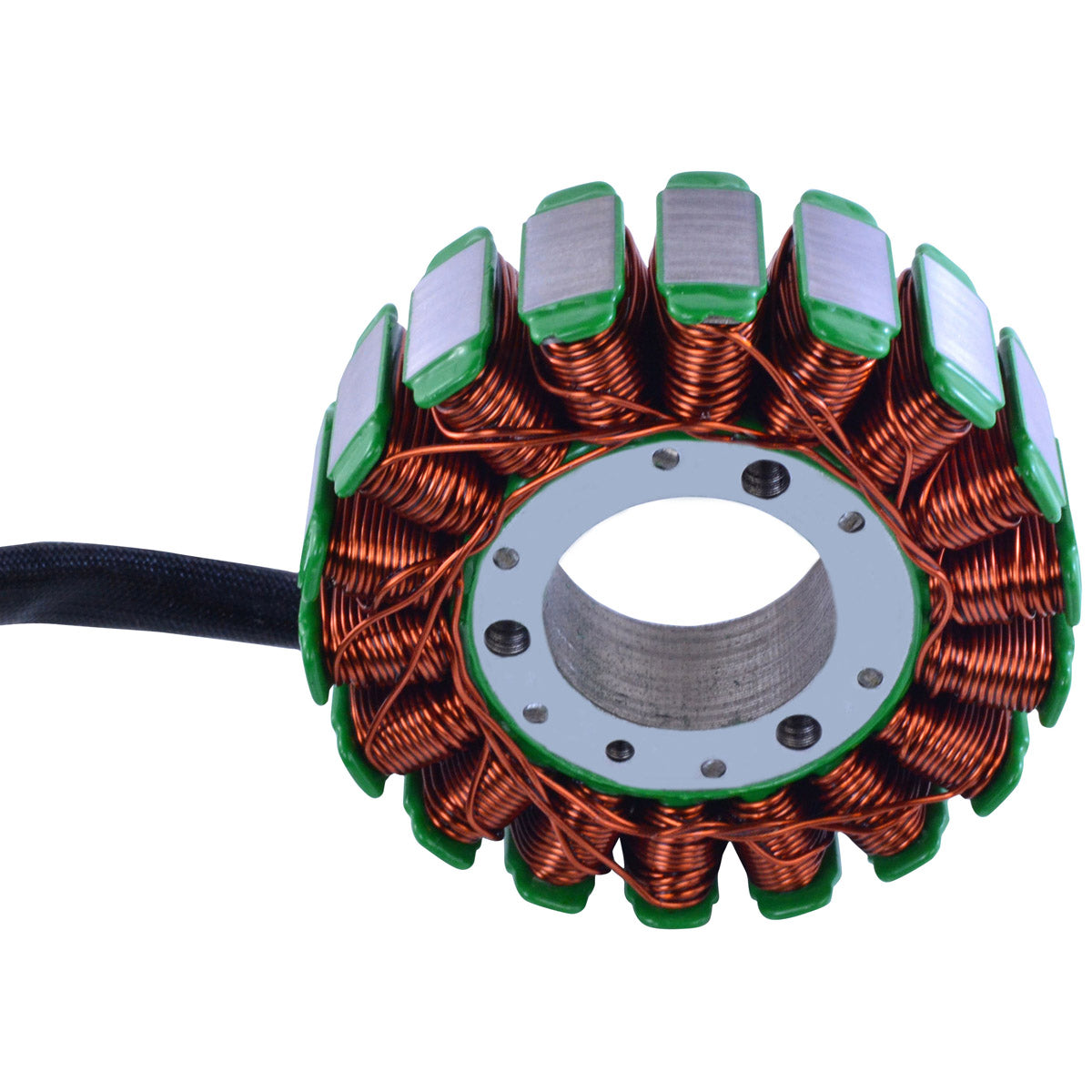

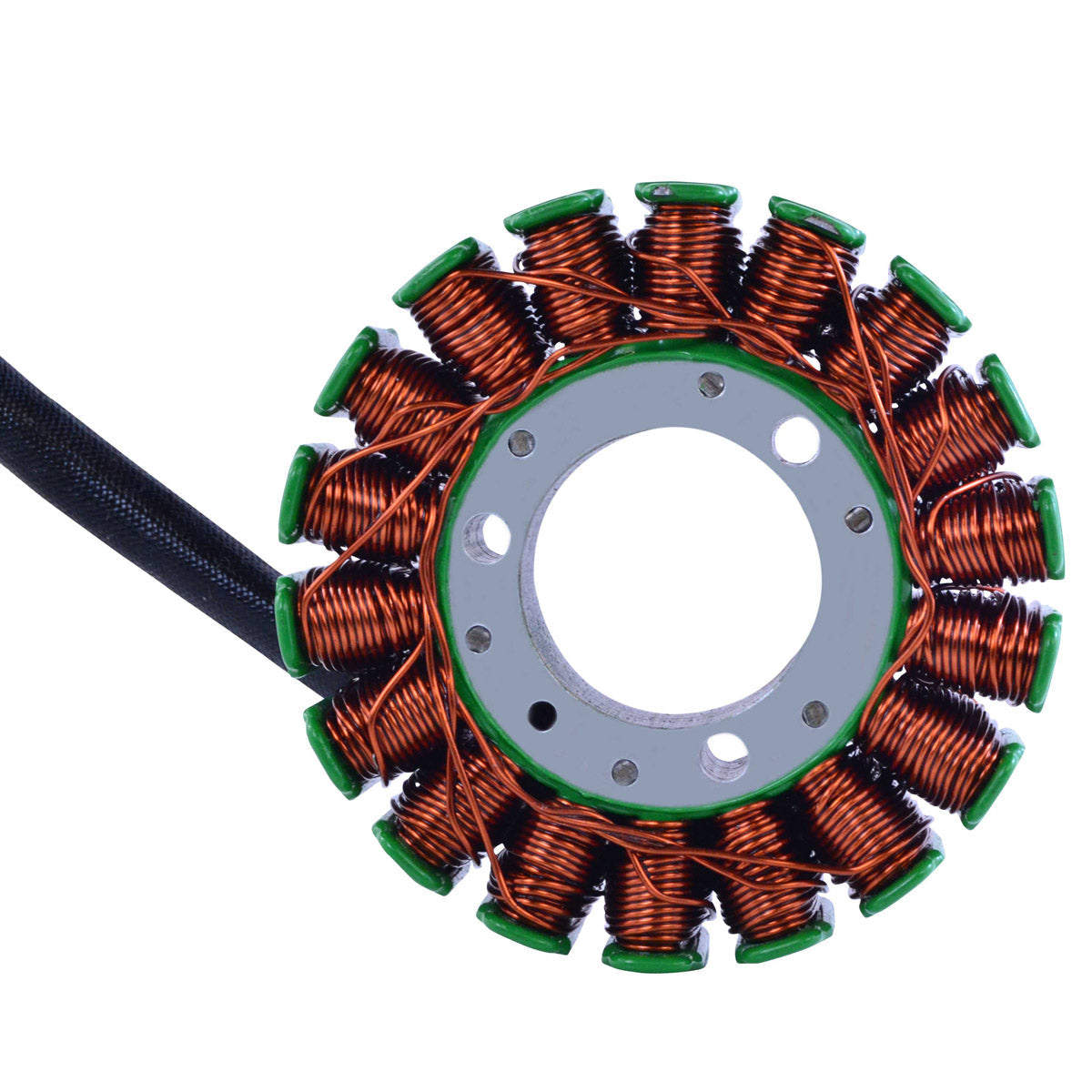

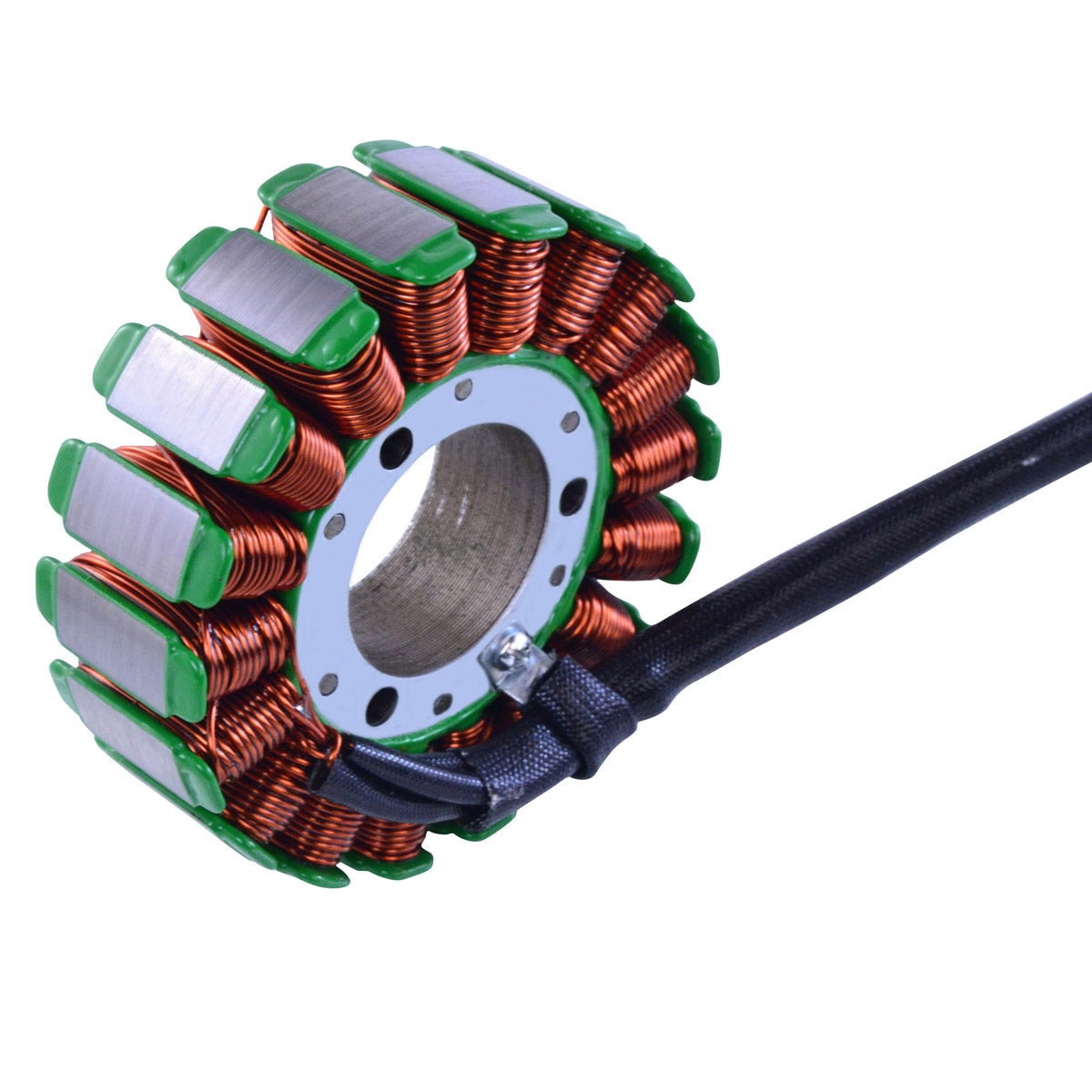

This is a brand new aftermarket stator, supplied complete with its pick up pulsar coil, built as a direct replacement for the original charging unit fitted to the Can-Am DS 450 from 2008 to 2015. It replaces OEM part number 420296323. The unit is plug-and-play, a direct fit, and easy to install, so the loom and the engine cases stay as they are.

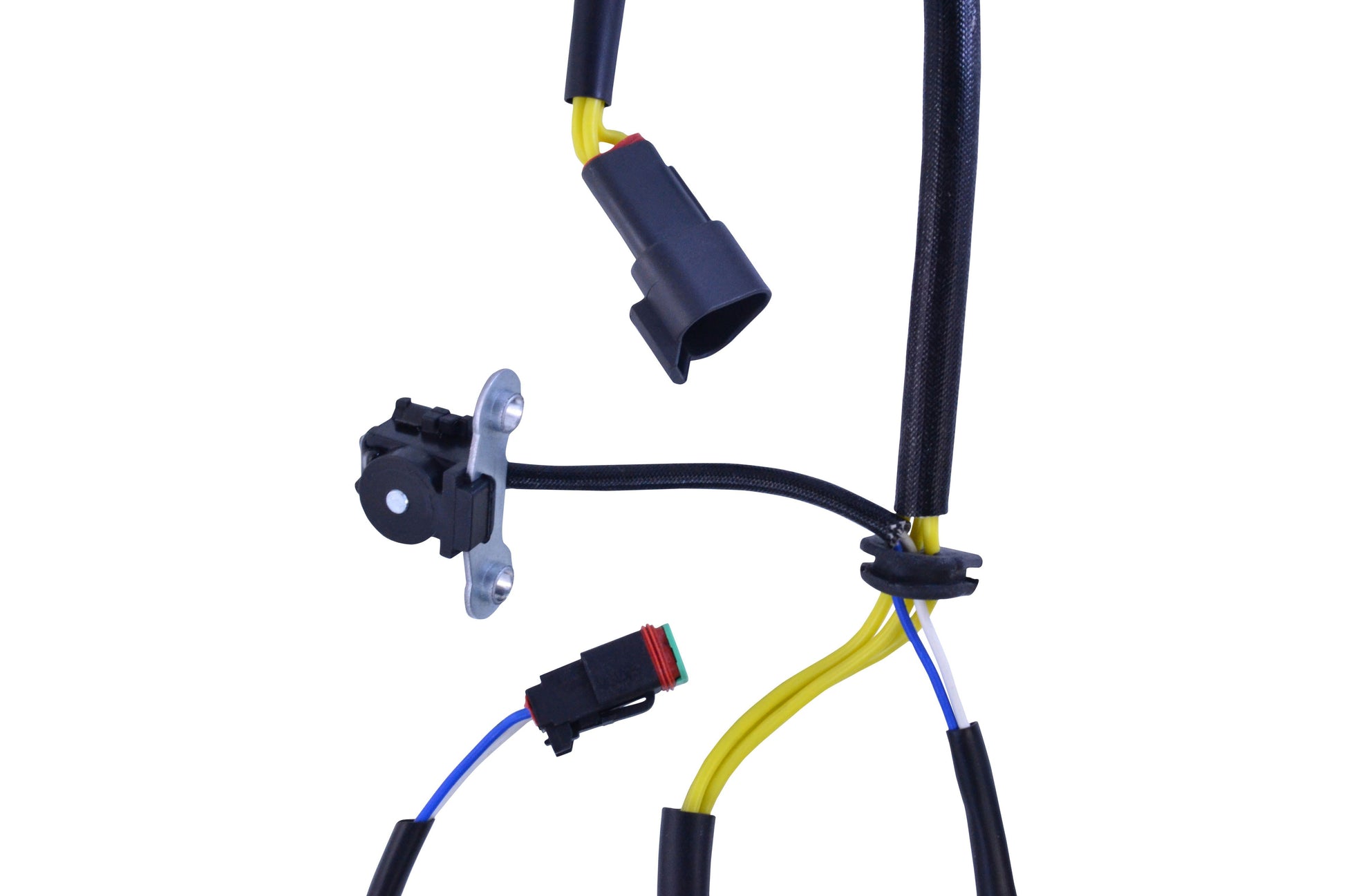

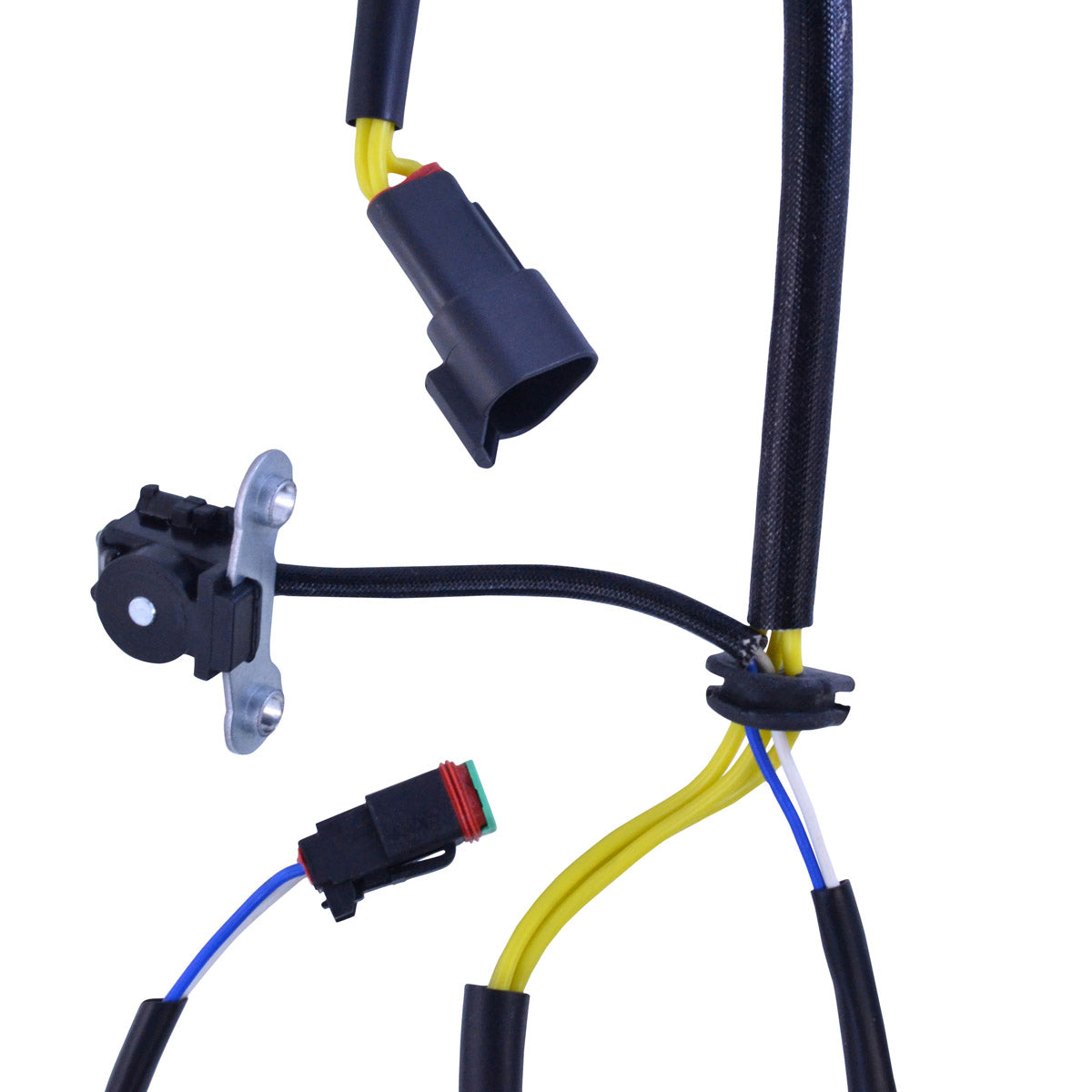

Construction uses the highest grade lamination materials and the highest grade copper windings, resistant to 200 degrees Celsius. The pick up pulsar coil, a connector and a rubber grommet are all included in the box. Note the two different lead lengths from the grommet to the plugs, 931 mm and 420 mm, which match the routing on the original harness. All products shipped are tested. Our part number for this stator is RMS010-104851.
Key Features
- Brand new aftermarket generator stator, not a rewound or repaired unit
- Direct replacement for OEM 420296323
- Plug-and-play, direct fit, easy installation

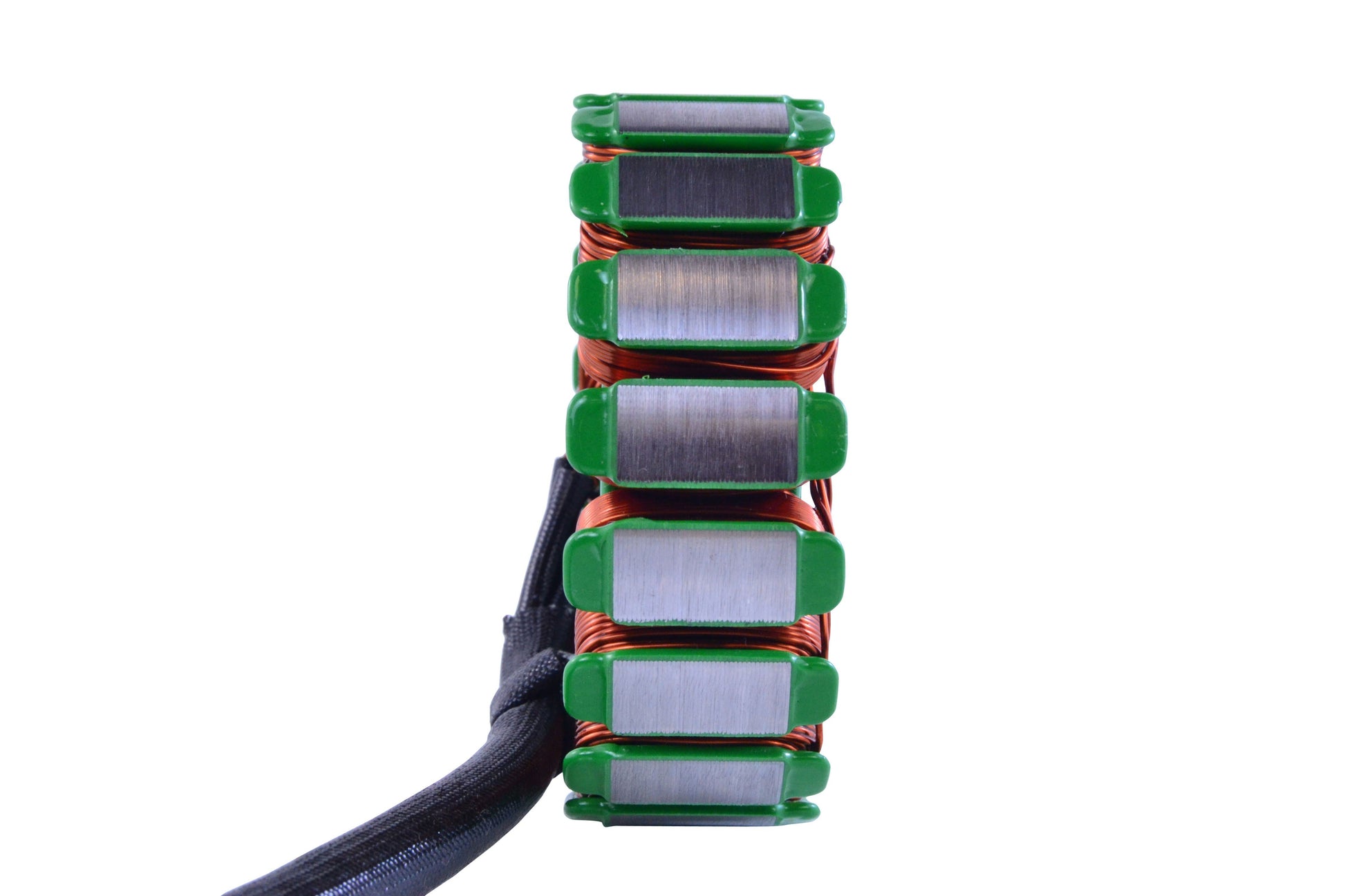

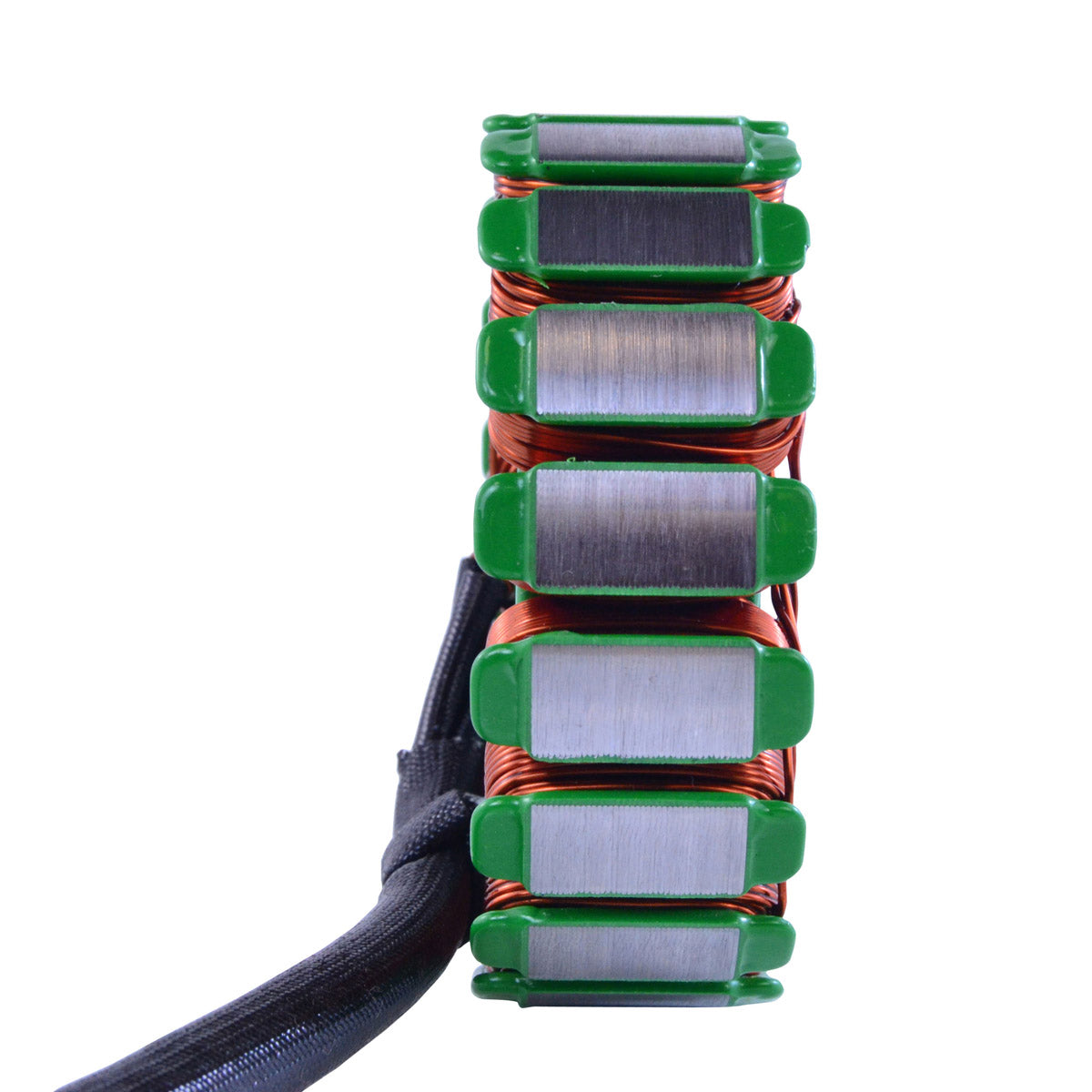

- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

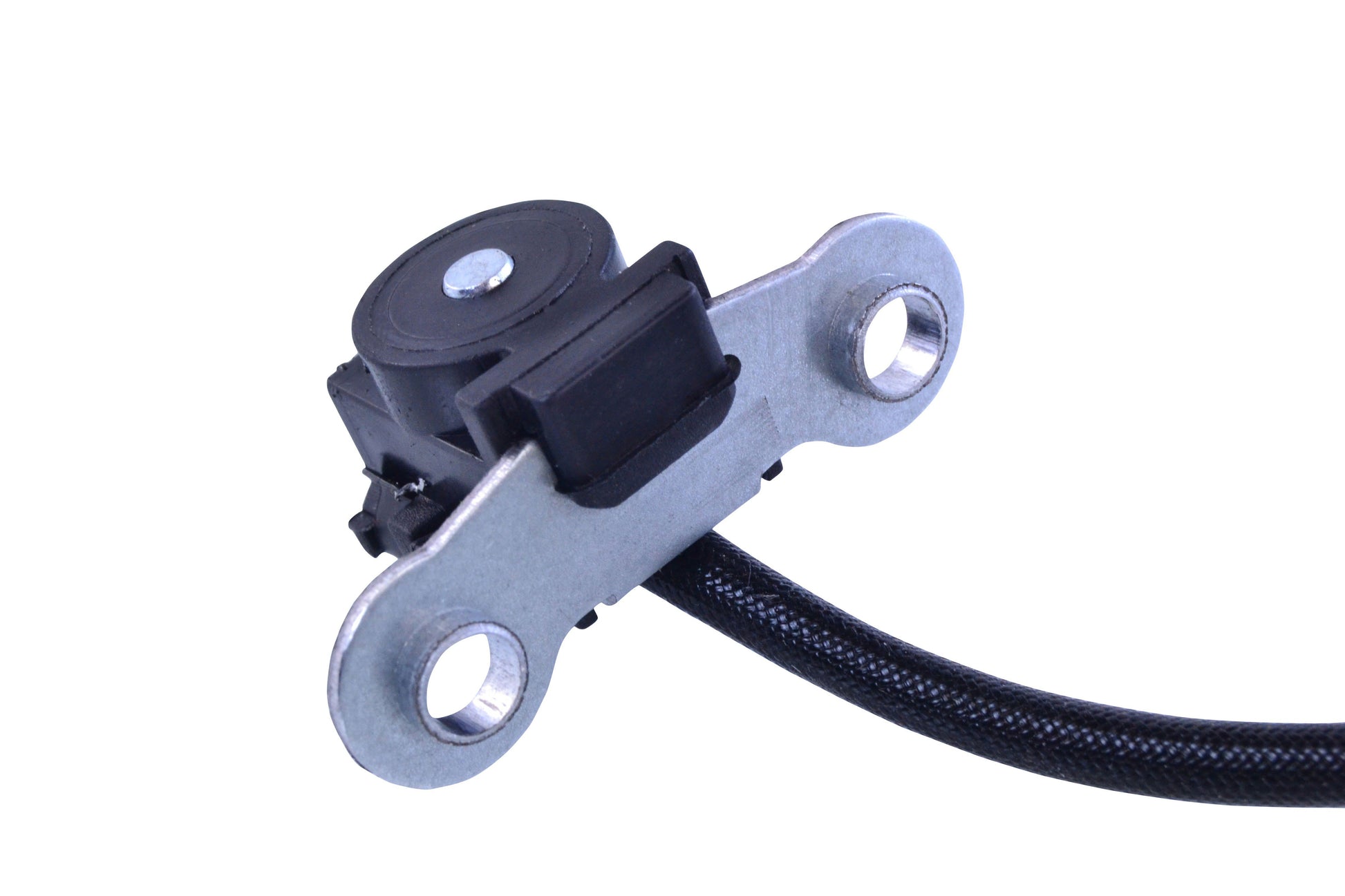

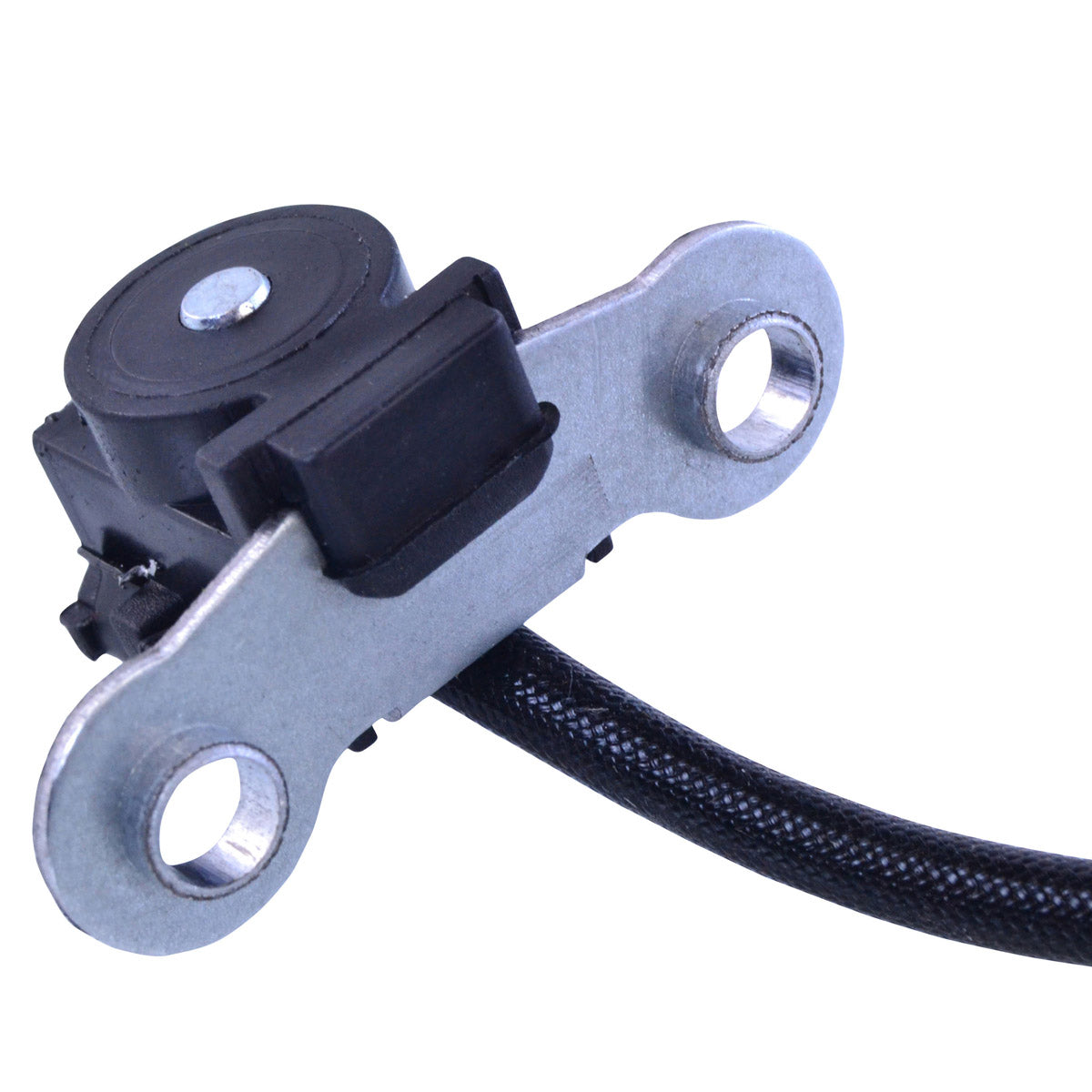

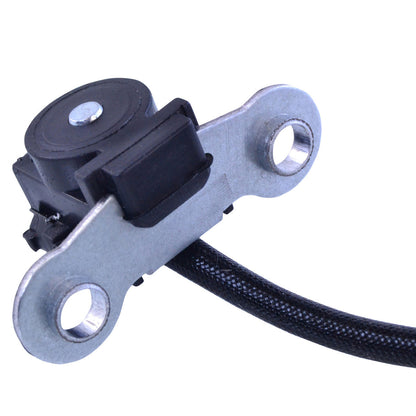

- Pick up pulsar coil included

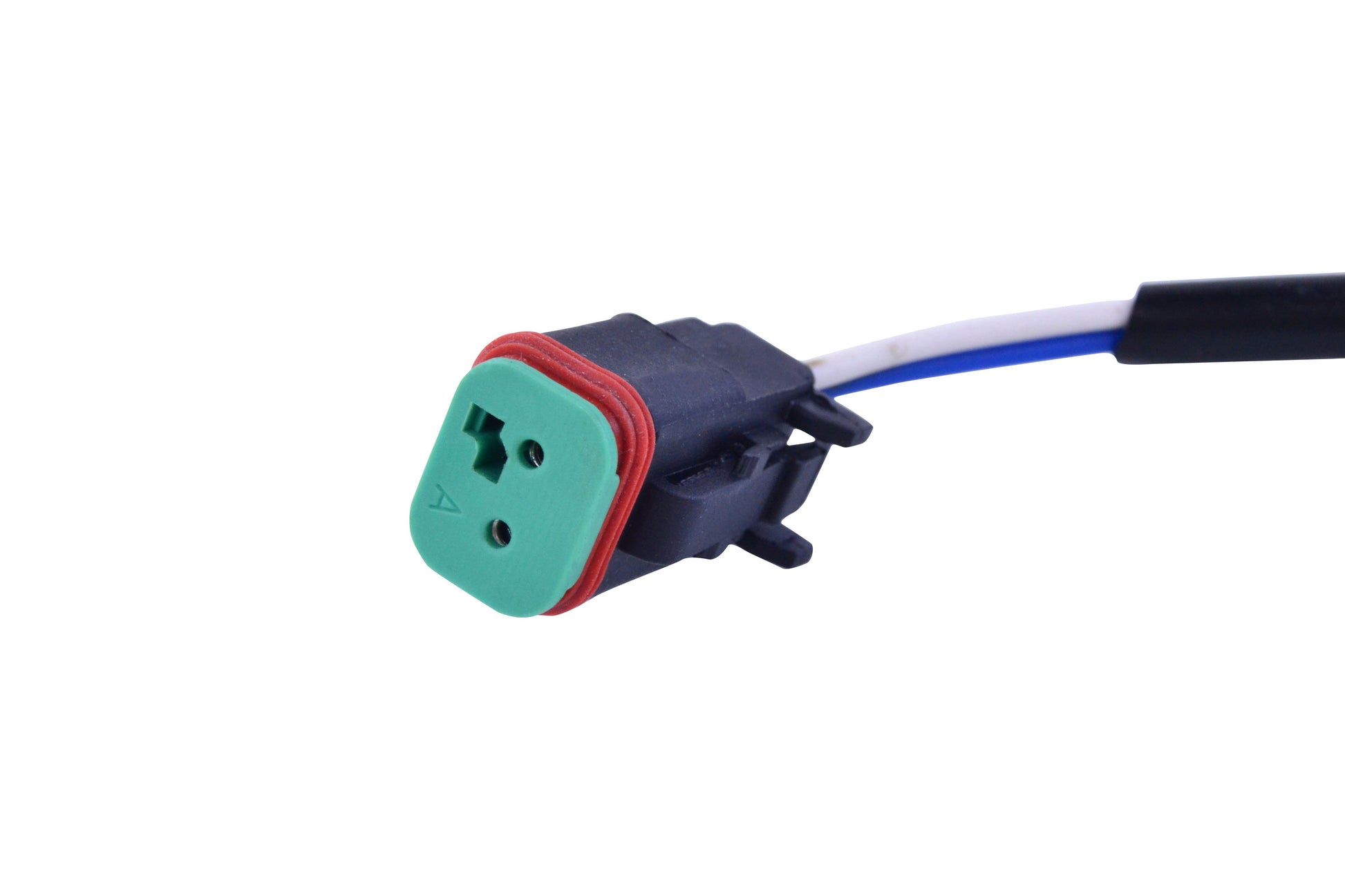

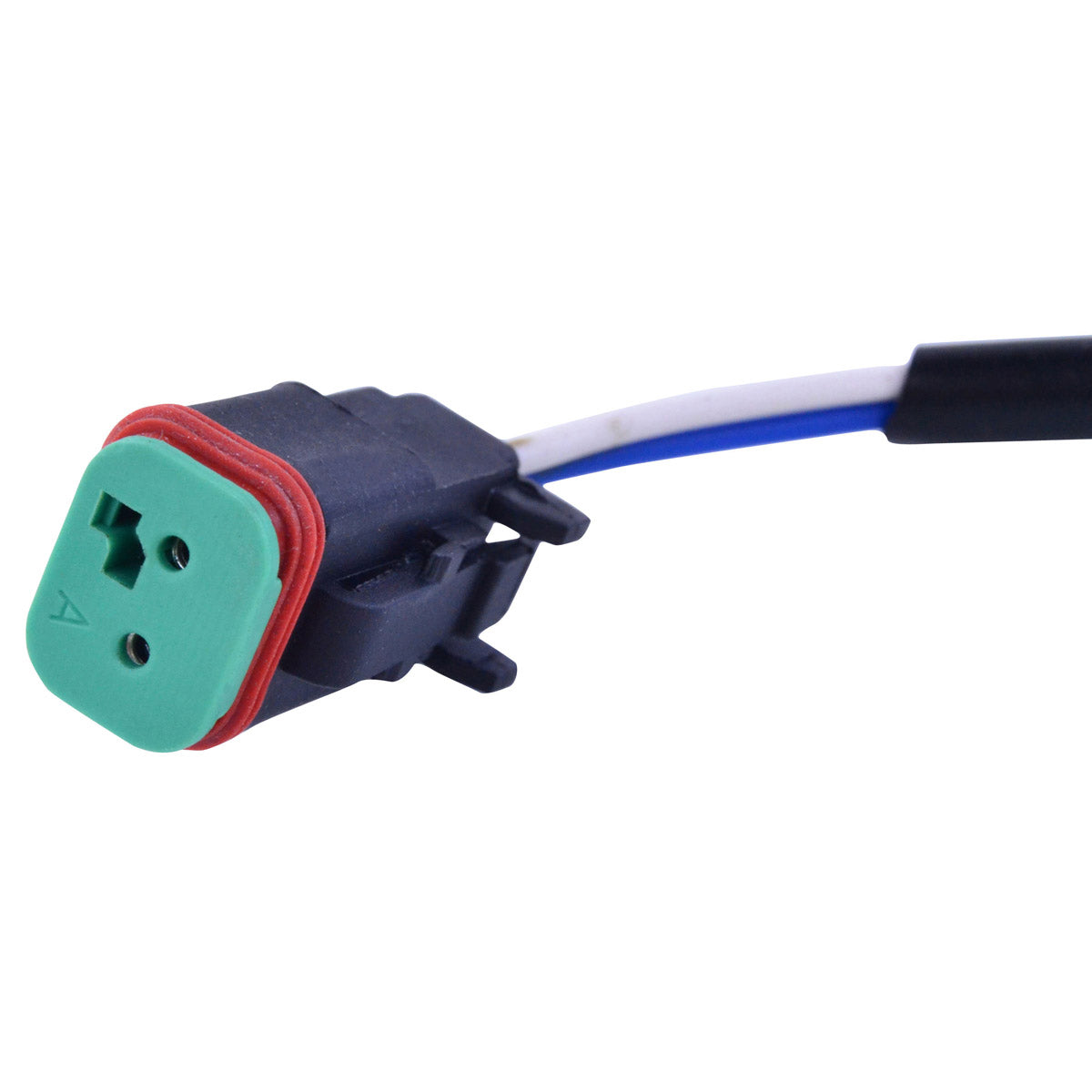

- Connector and rubber grommet included
- 18 poles, five wires, two plugs, five pins
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-104851 |
| Interior diameter |
35 mm |
| Exterior diameter |
93 mm |
| Thickness |
22 mm |
| Length of wires, stator to grommet |
150 mm |
| Length of wires, grommet to plug |
931 mm and 420 mm |
| Length of pick up coil wire to grommet |
60 mm |
| Number of wires |
5 |
| Number of plugs |
2 |
| Number of pins |
5 |
| Number of poles |
18 |
| Alternator resistance, Yellow to Yellow |
0.4 ohms +/- 20% |
| Pick up coil resistance, Blue to White |
250 ohms +/- 20% |
| Alternator to ground |
O.L |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Can-Am DS 450 |
2008-2015 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 420296323 |
Can-Am |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a plug-and-play direct fit on the Can-Am DS 450 from 2008 to 2015 and needs no cutting, splicing or modification of the harness.
What is included?
The generator stator, the pick up pulsar coil, a connector and a rubber grommet.
How can I tell that my old stator has failed?
With the stator unplugged, measure Yellow to Yellow on the alternator side: it should read 0.4 ohms, plus or minus 20%. Blue to White on the pick up coil should read 250 ohms, plus or minus 20%. From any alternator wire to ground the meter should read O.L, an open circuit. Continuity to ground, or a reading far outside those figures, means the winding has broken down.
Why are the two output leads different lengths?
The DS 450 routes its alternator and pick up connections to two different points on the machine, so the leads leave the grommet at 931 mm and 420 mm to reach them without strain. Both are cut to the original routing, so no extension or shortening is needed.
