Generator Stator for Ducati - Direct Replacement Charging Coil
Superbike, Hypermotard, Monster, S2R, S4R, S4RS, Multistrada, SportClassic and SuperSport 1999-2011

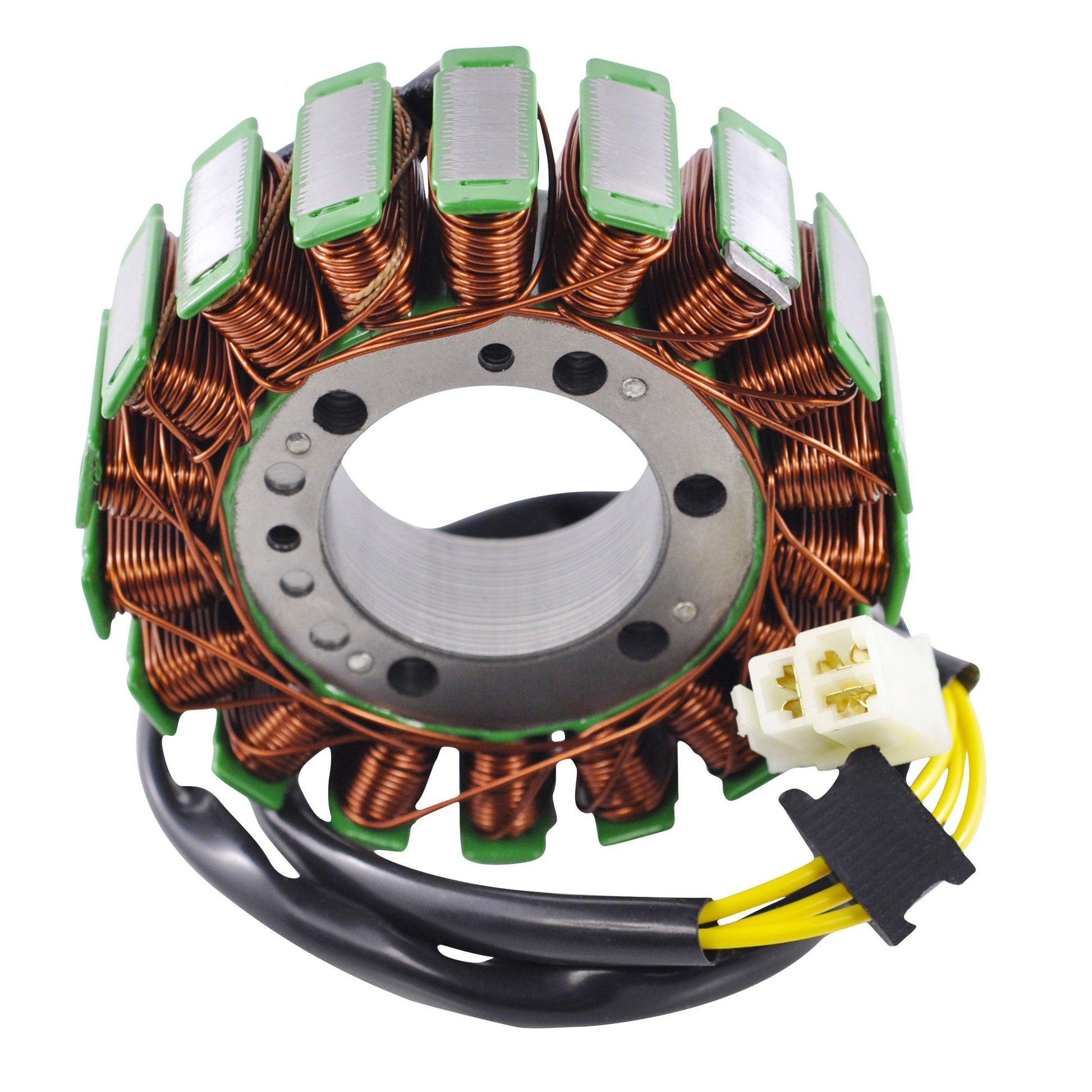

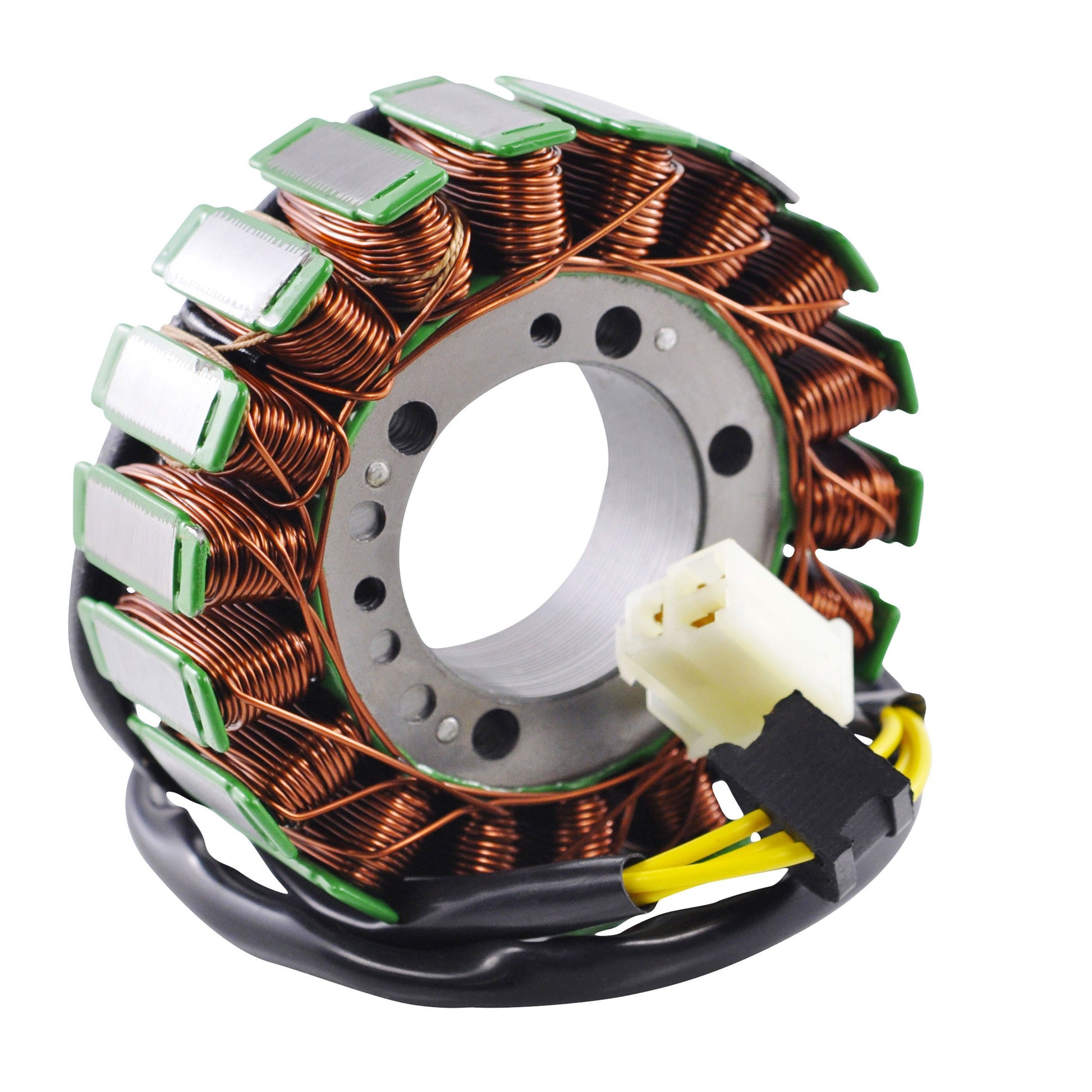

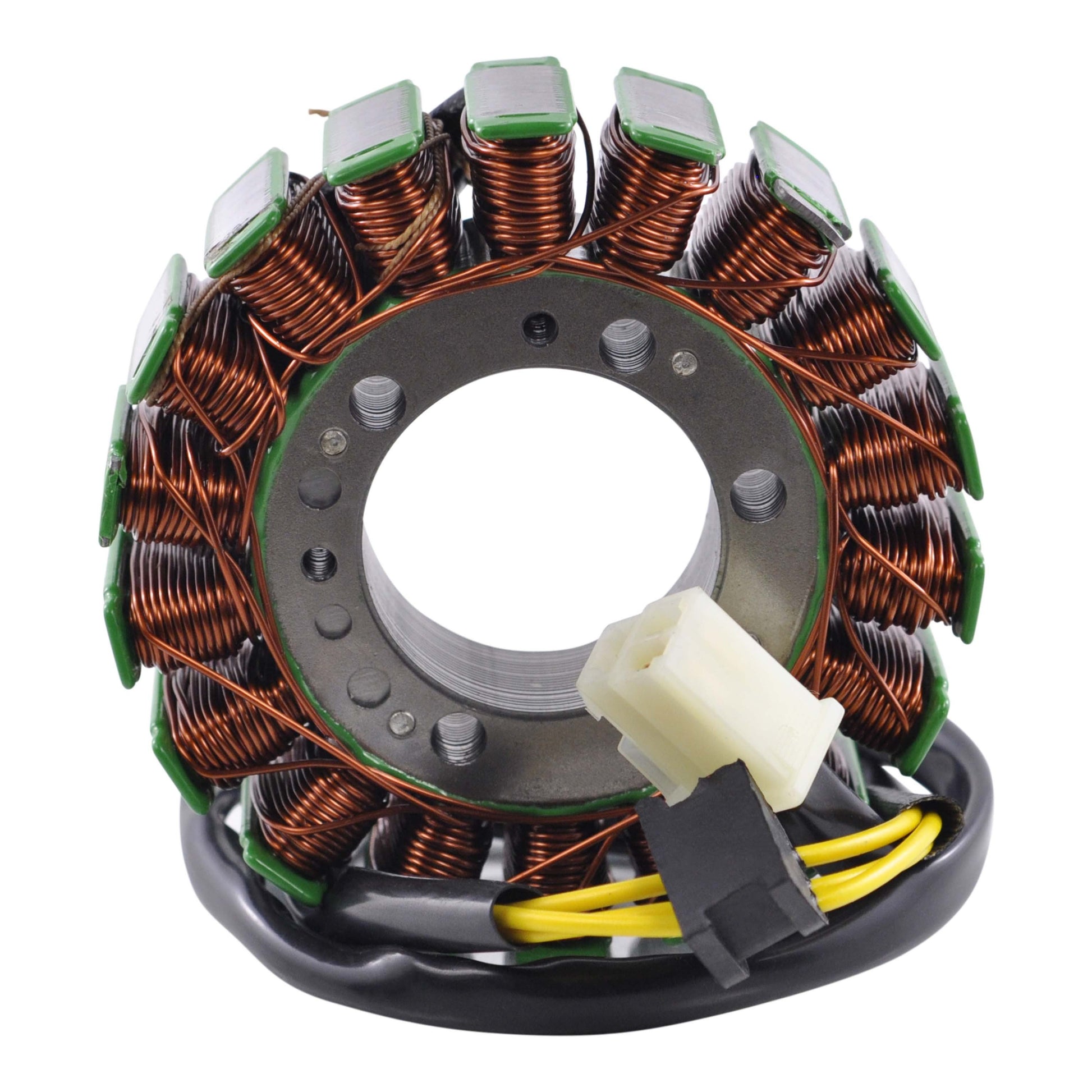

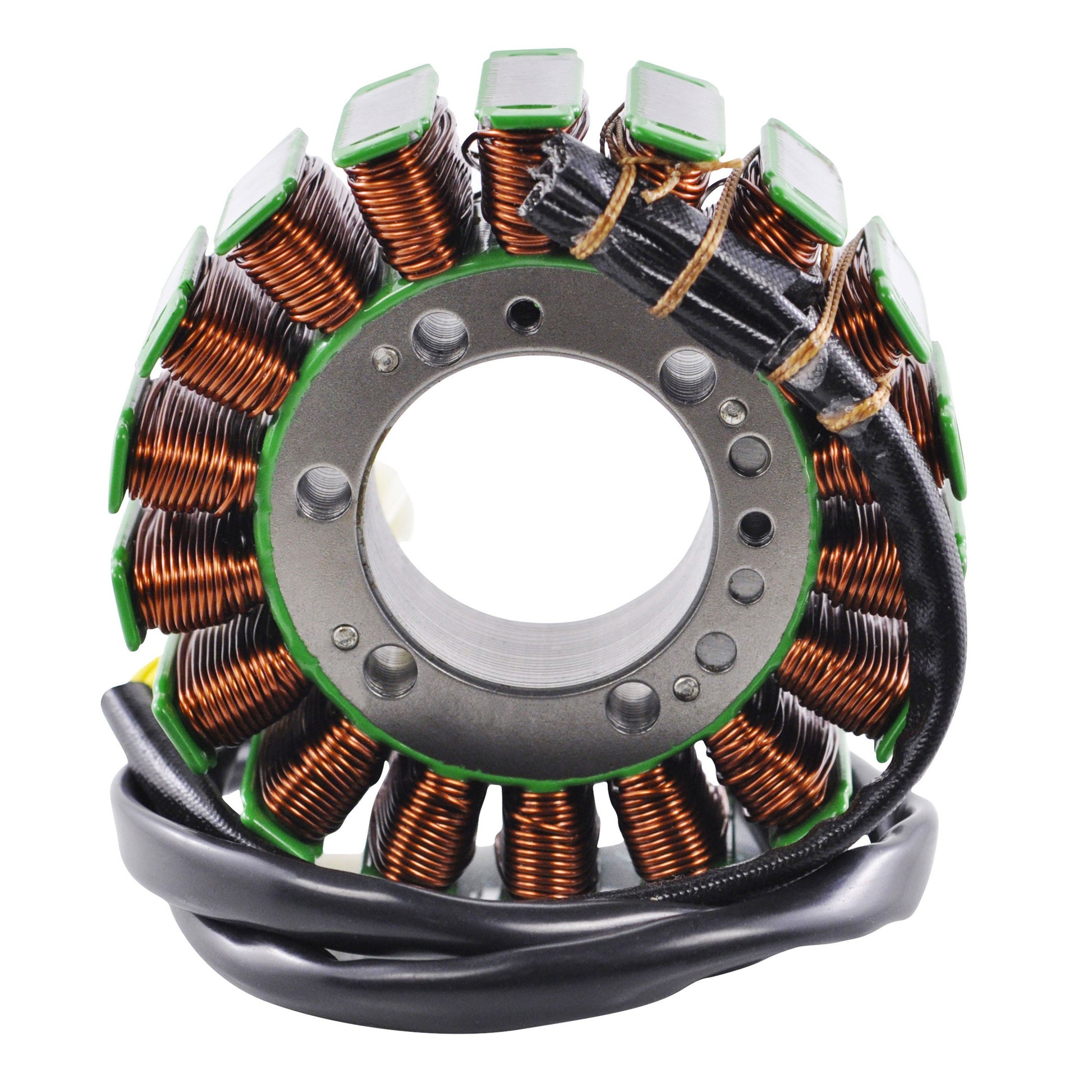

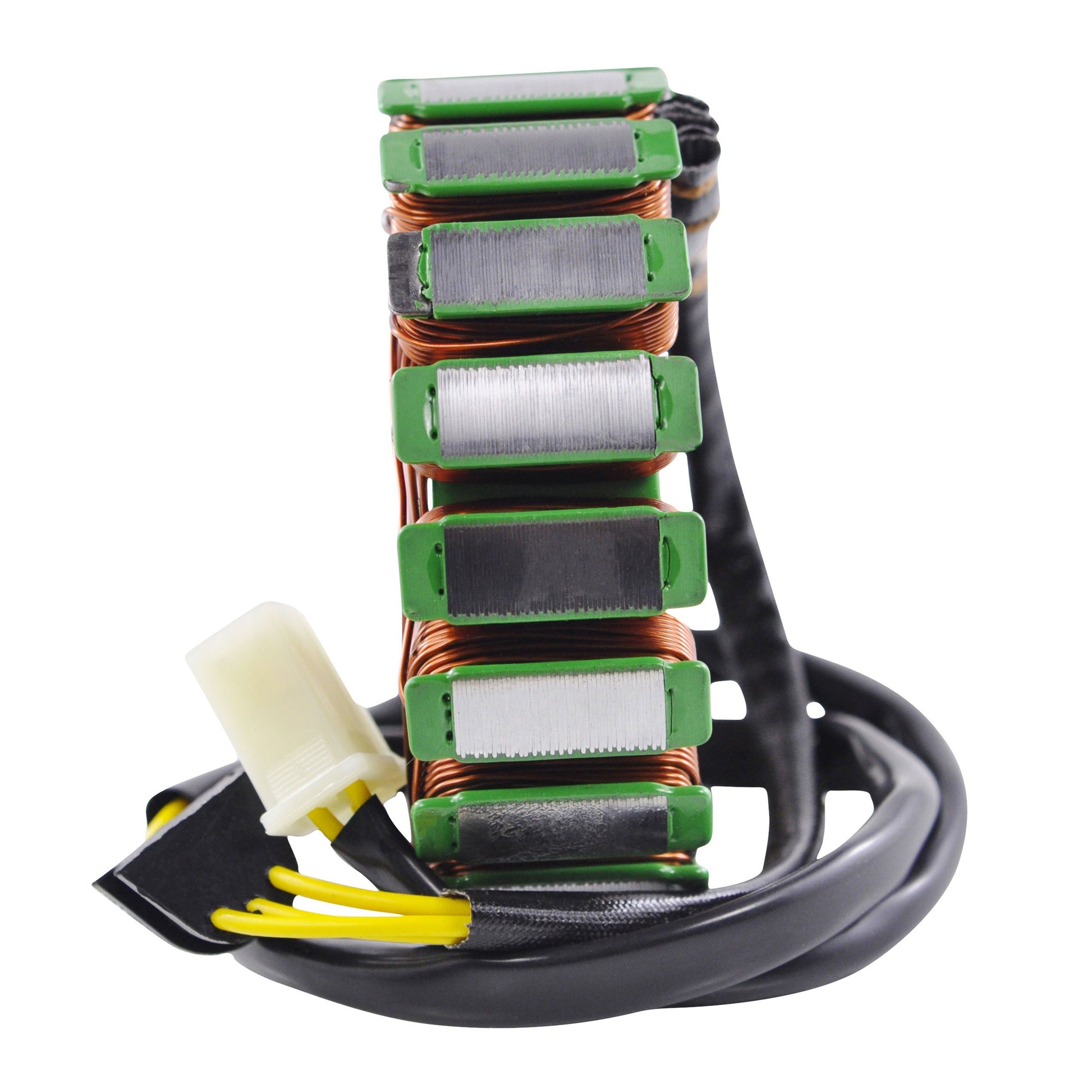

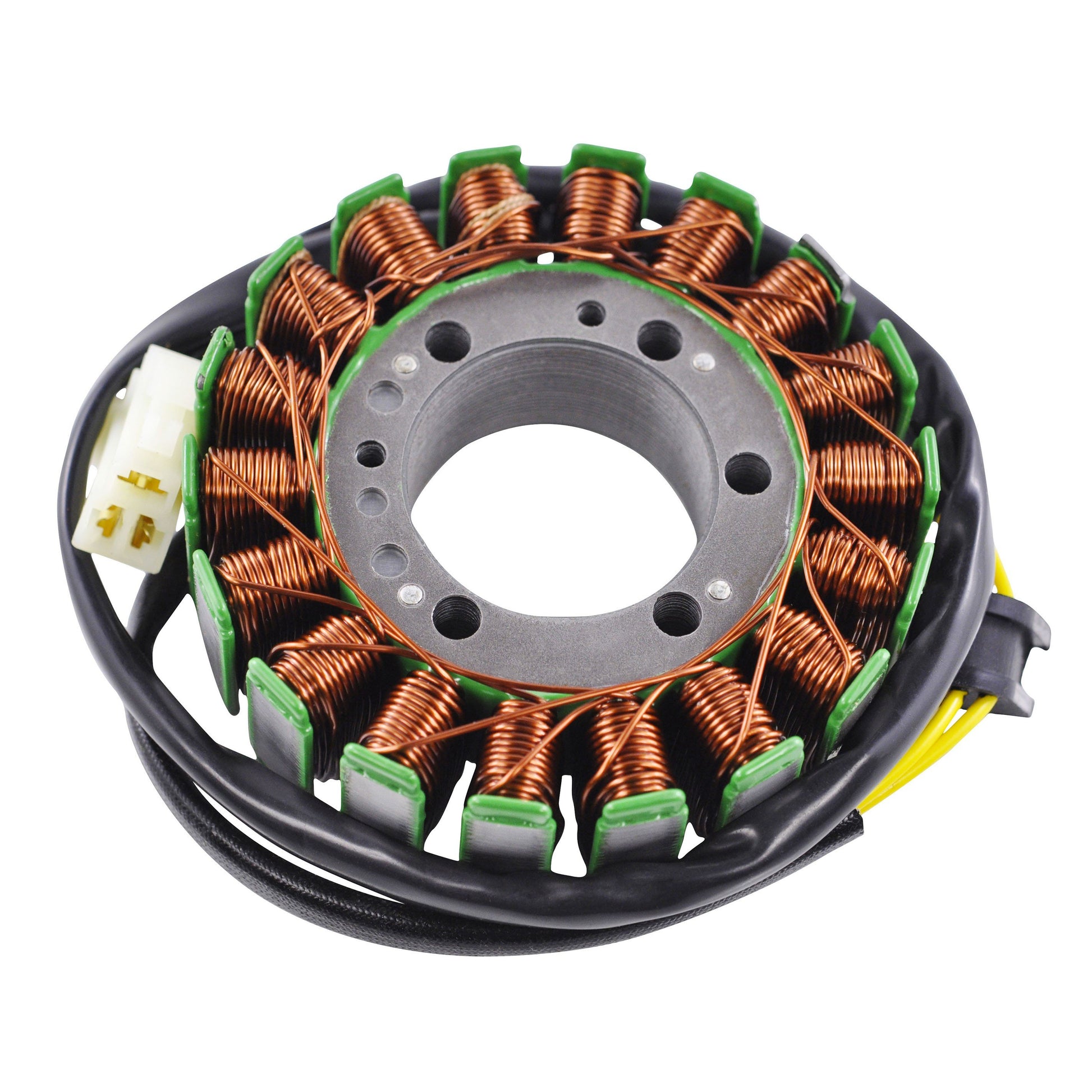

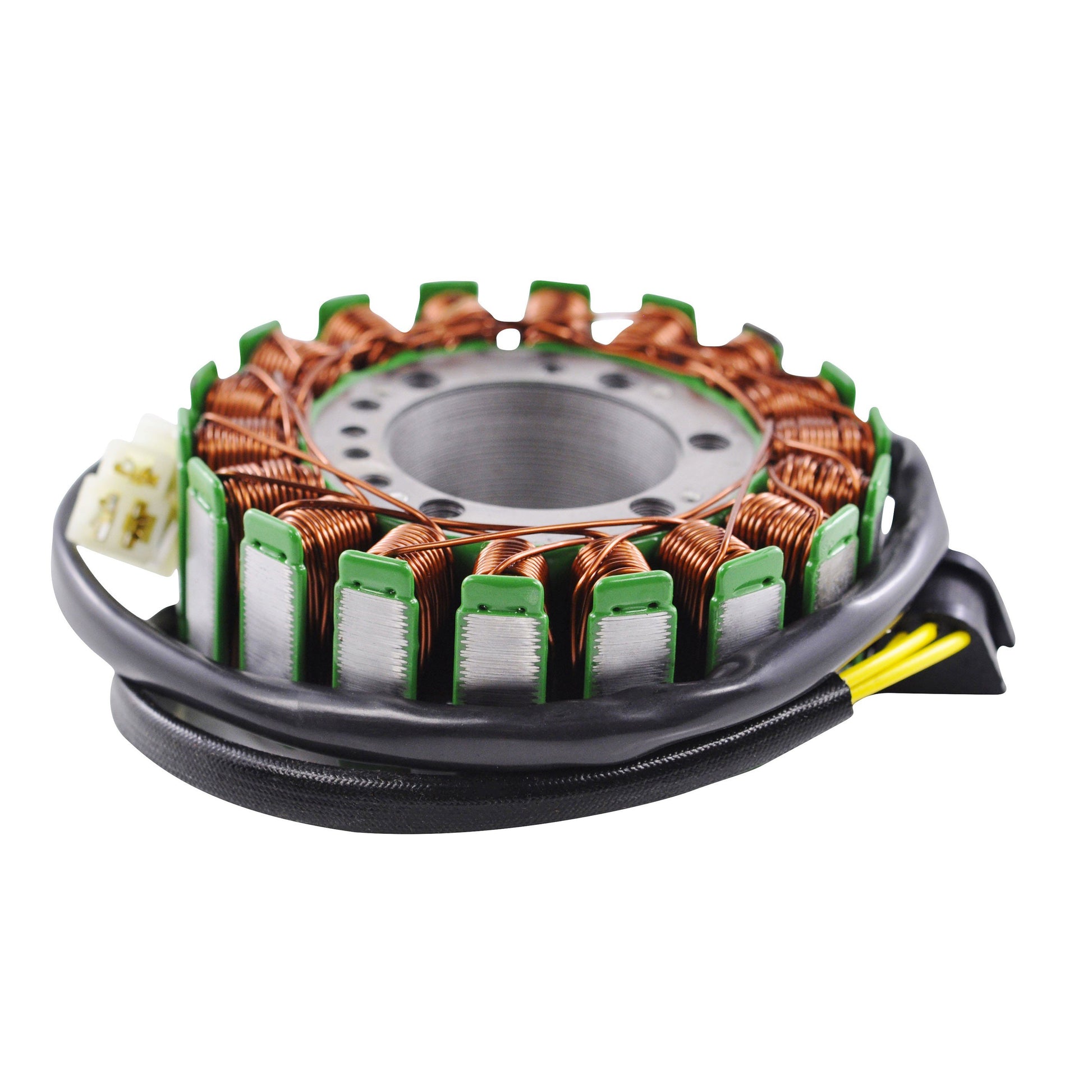

This is a brand new aftermarket generator stator built as a direct replacement for the original unit fitted to a wide range of Ducati models built between 1999 and 2011. It is a plug-and-play, direct-fit part, so it mounts in the original position, uses the original mounting points and connects to the existing loom without cutting, splicing or modification. Part number RMS010-103795.

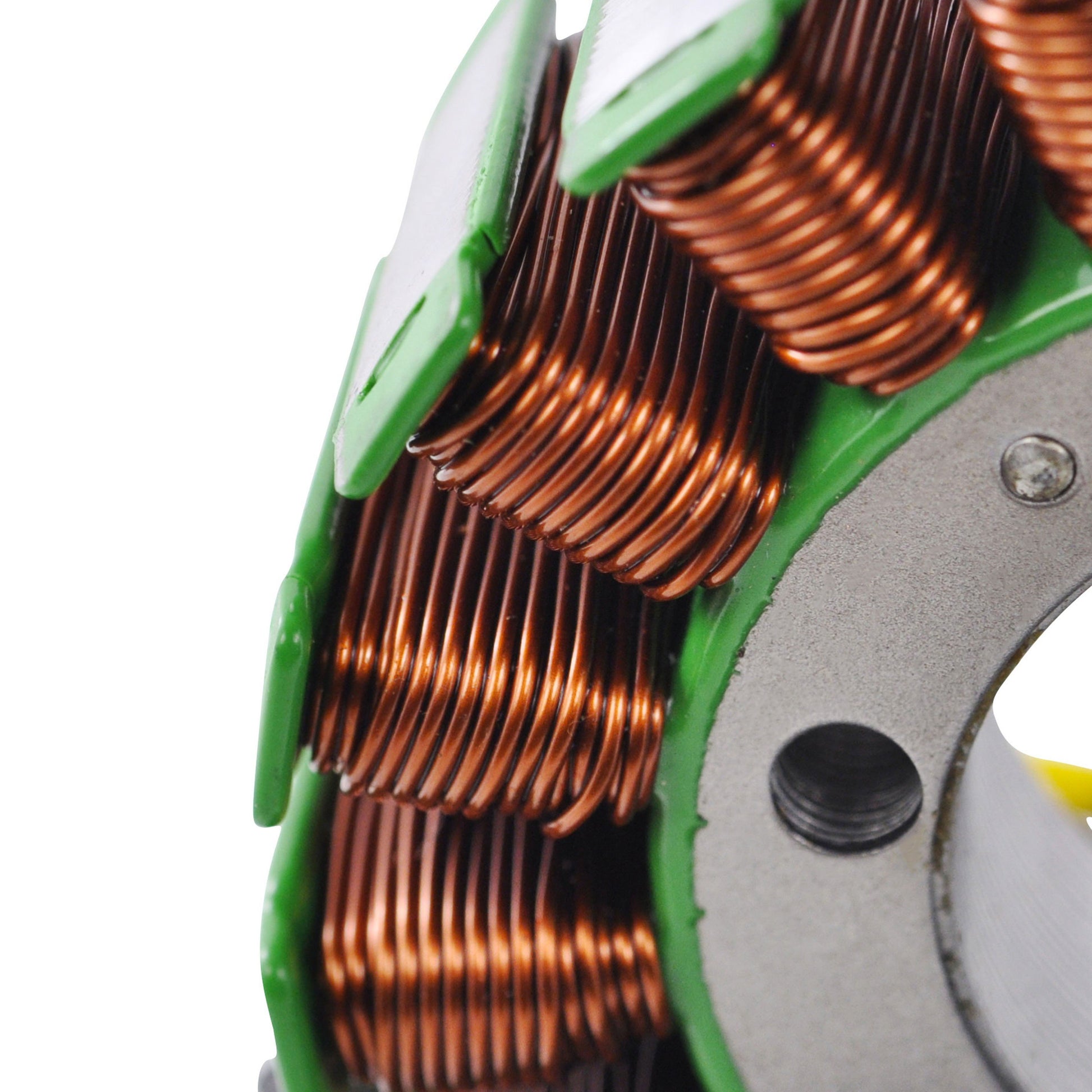

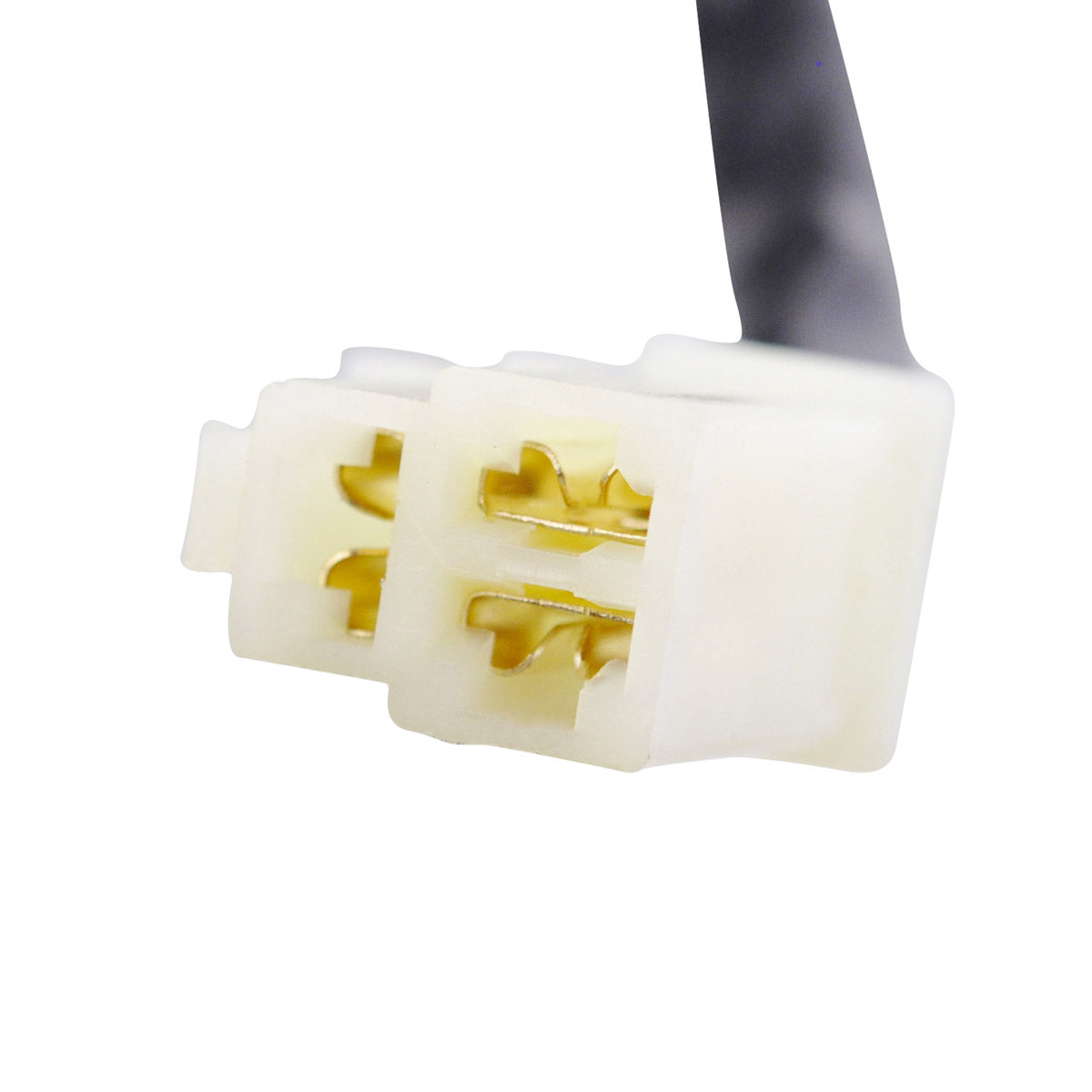

The stator is wound with the highest grade copper windings, rated to withstand 200 degrees Celsius, and uses the highest grade lamination materials in the core. A connector and rubber grommet are supplied fitted. The matching opposite connector for the main harness side is also included in the box, because the original harness-side connector is frequently found melted, corroded or otherwise defective and is a major cause of repeat electrical faults on these machines. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket stator, not a rewind or a refurbished core
- Direct replacement for the original unit - no modification required
- Plug-and-play, direct fit, straightforward installation
- Highest grade lamination materials used in the core
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector and rubber grommet included and already fitted
- Opposite connector for the main harness side included
- Every unit is tested before shipping
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-103795 |
| Interior diameter | 42 mm |
| Exterior diameter | 104 mm |
| Thickness | 26 mm |
| Wire length, stator to grommet | 152 mm |
| Wire length, grommet to plug | 609 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Wire-to-wire resistance, yellow to yellow | 0.4 ohms +-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Ducati Superbike | 1999-2011 |
| Ducati Hypermotard | 1999-2011 |
| Ducati Monster | 1999-2011 |
| Ducati S2R | 1999-2011 |
| Ducati S4R | 1999-2011 |
| Ducati S4RS | 1999-2011 |
| Ducati Multistrada | 1999-2011 |
| Ducati SportClassic | 1999-2011 |
| Ducati SuperSport | 1999-2011 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 264.4.014.3B | Ducati |
| 264.4.014.2B | Ducati |
| 264.4.022.1A | Ducati |
| 26420471A | Ducati |
Frequently Asked Questions
Will this fit without modification?
Yes. This stator is a direct replacement for the original unit and is plug-and-play. It uses the original mounting points and the supplied connector matches the factory loom, so no cutting, splicing or modification is needed. Check the OEM number stamped or labelled on your original stator against the cross reference table above before ordering.
What is included in the box?
You receive the stator with its connector and rubber grommet already fitted, plus the opposite connector for the main harness side. That harness-side connector is included because the original is often melted, corroded or defective and is a common cause of repeat electrical problems.
How do I tell whether my old stator has failed?
The usual symptoms are a battery that will not stay charged, dim or flickering lights, and a charging voltage that does not rise above battery voltage with the engine running. A resistance check across the three yellow wires should read approximately 0.4 ohms with a 20 percent tolerance. A reading that is open circuit, short circuit, or well outside that figure, or any continuity between a yellow wire and the stator body, indicates a failed stator.
Which Ducati models does this stator cover?
It covers a broad span of the 1999 to 2011 Ducati range, including Superbike, Hypermotard, Monster, S2R, S4R, S4RS, Multistrada, SportClassic and SuperSport models. Because the range is wide, the safest way to confirm fitment is to match the OEM part number on your existing unit to one of the numbers listed above.
