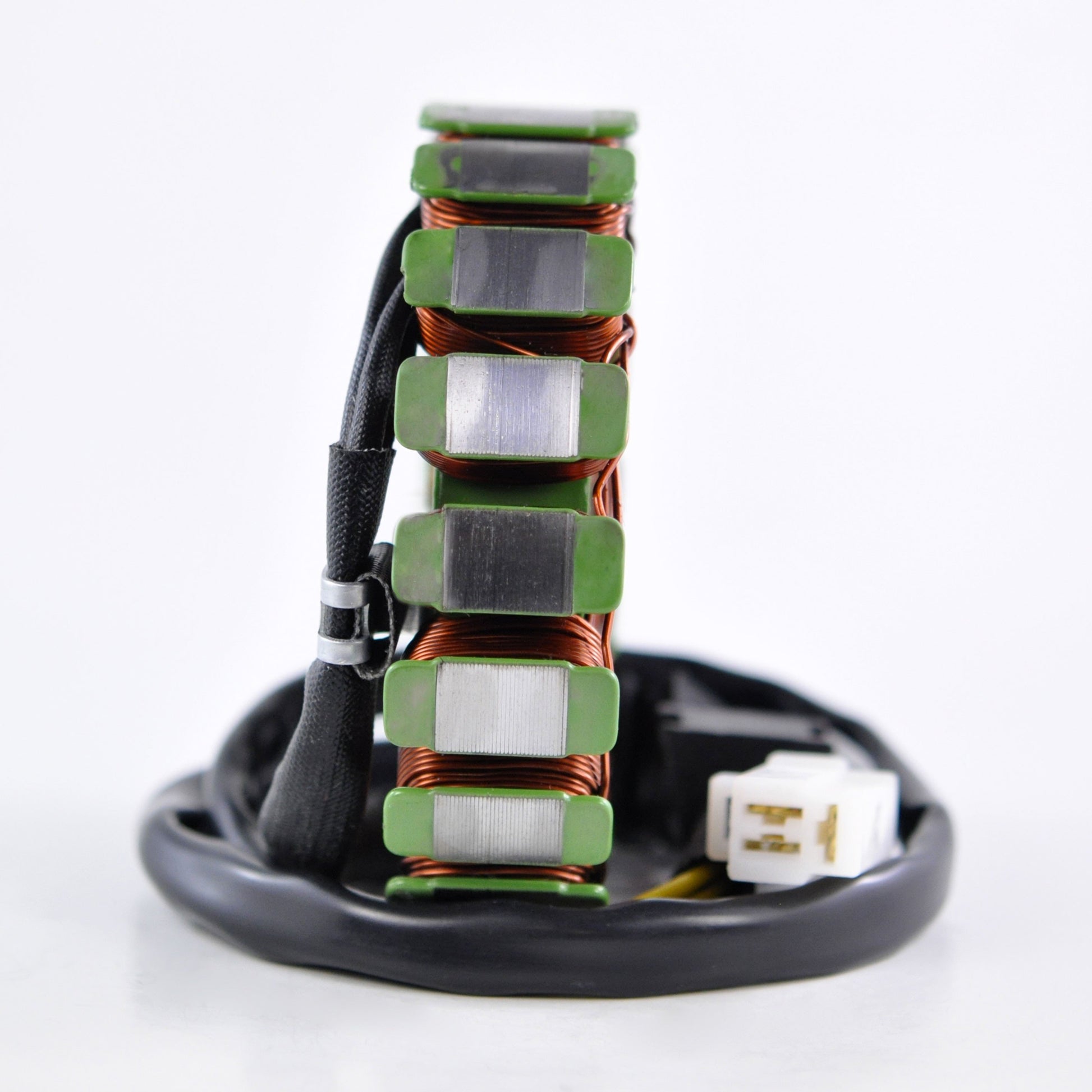

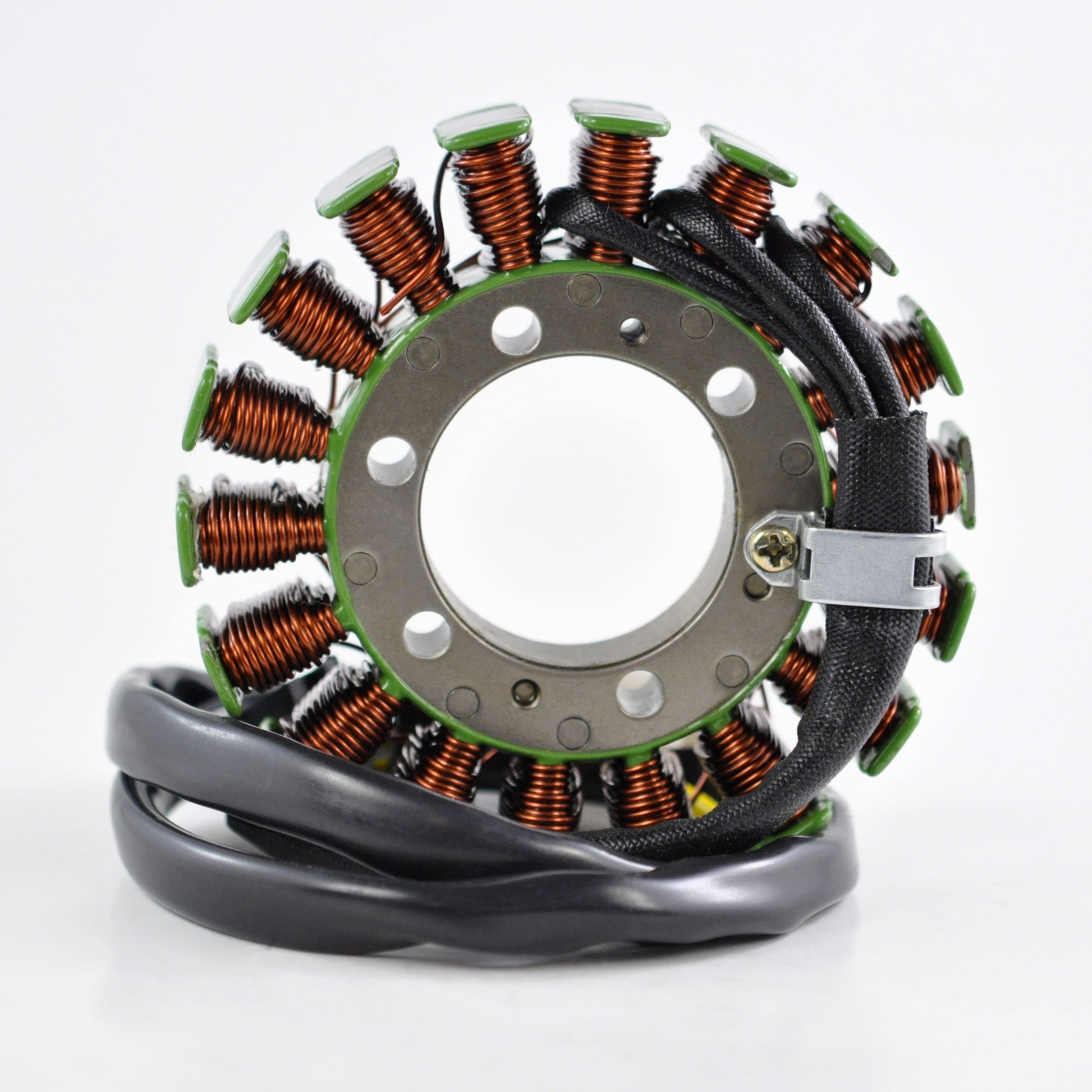

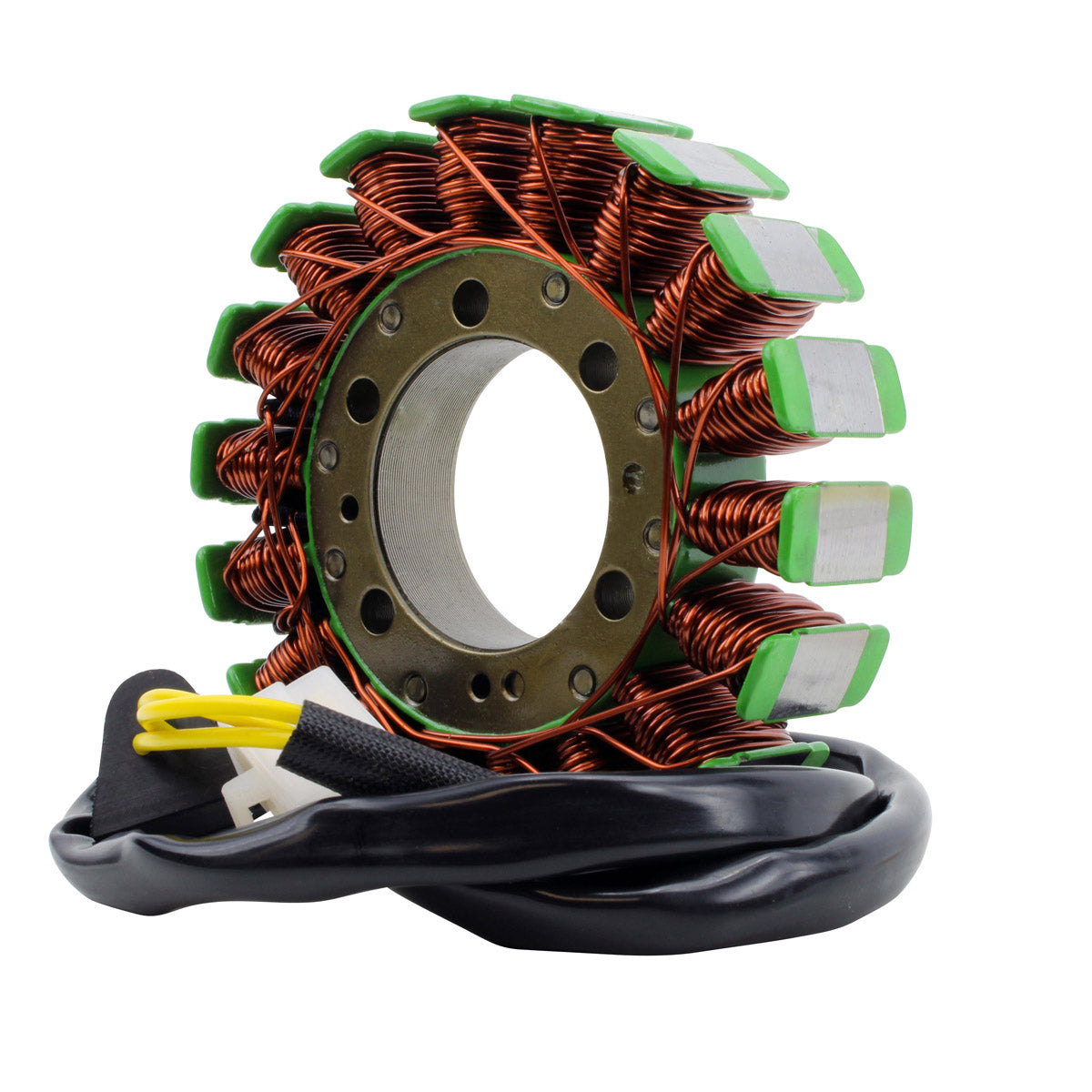

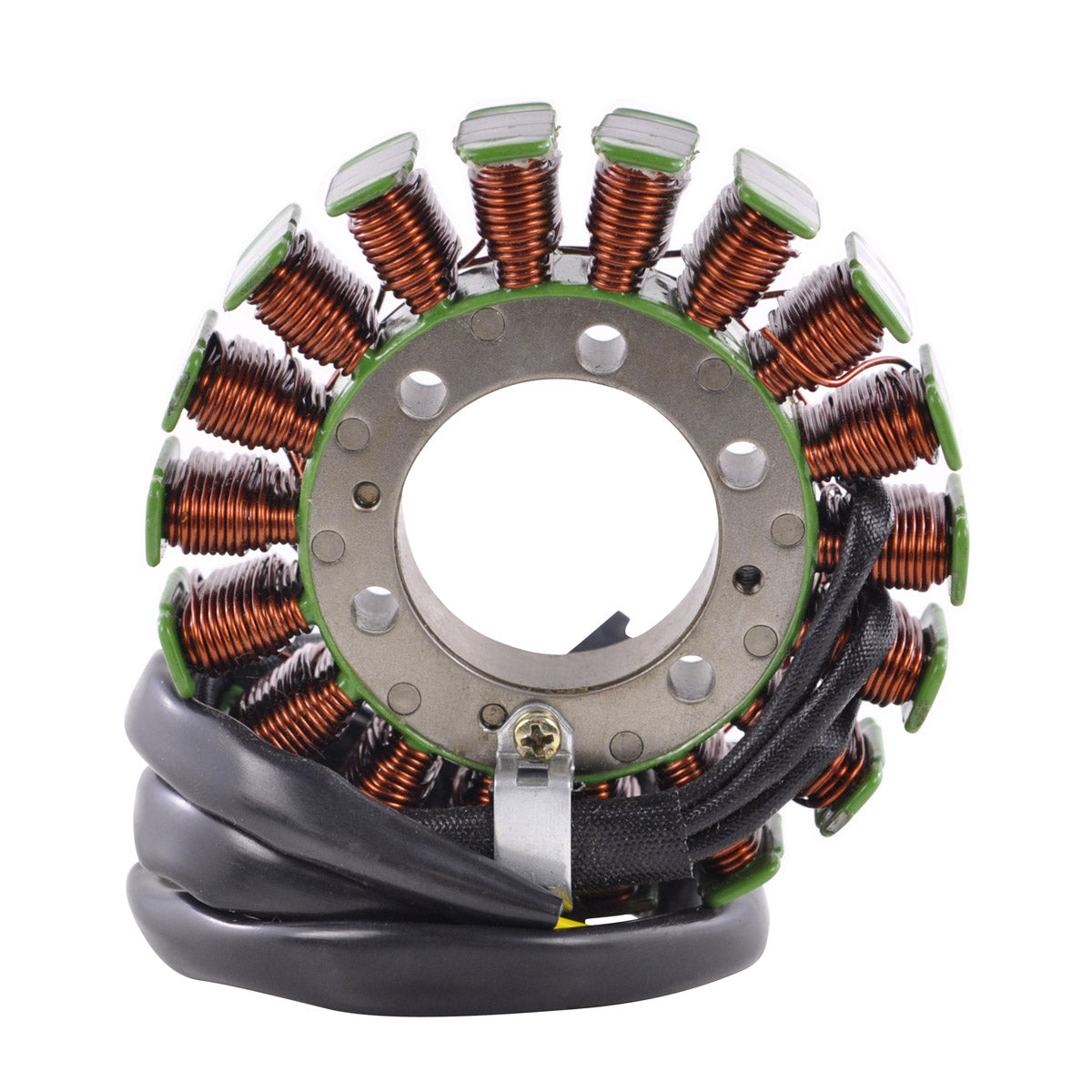

A brand new aftermarket generator stator covering the Honda CB 600 and the CBR 600 F, F2 and F3 across the 1991 to 2006 span. It is supplied as a direct replacement for the original charging unit and fits plug-and-play on the standard mounting points and the standard three-pin connector, so there is no rewiring, no splicing and no modification to the machine.
These middleweight fours are ridden hard and often carry years of accumulated heat cycles through the generator cover, which is what eventually breaks a stator down. This unit is built on highest grade lamination materials and wound with highest grade copper windings rated to resist 200 degrees Celsius. It matches the original at 107 mm outer diameter, 42 mm bore and 18 mm thick, with a 580 mm run from the grommet to the plug. Two rubber grommets are supplied rather than one, and the opposite connector for the main harness side is included as well, since that plug is frequently melted, corroded or defective by the time a stator gives up and is a major cause of repeat electrical problems. All products shipped are tested.
Key Features
- Brand new aftermarket stator - direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

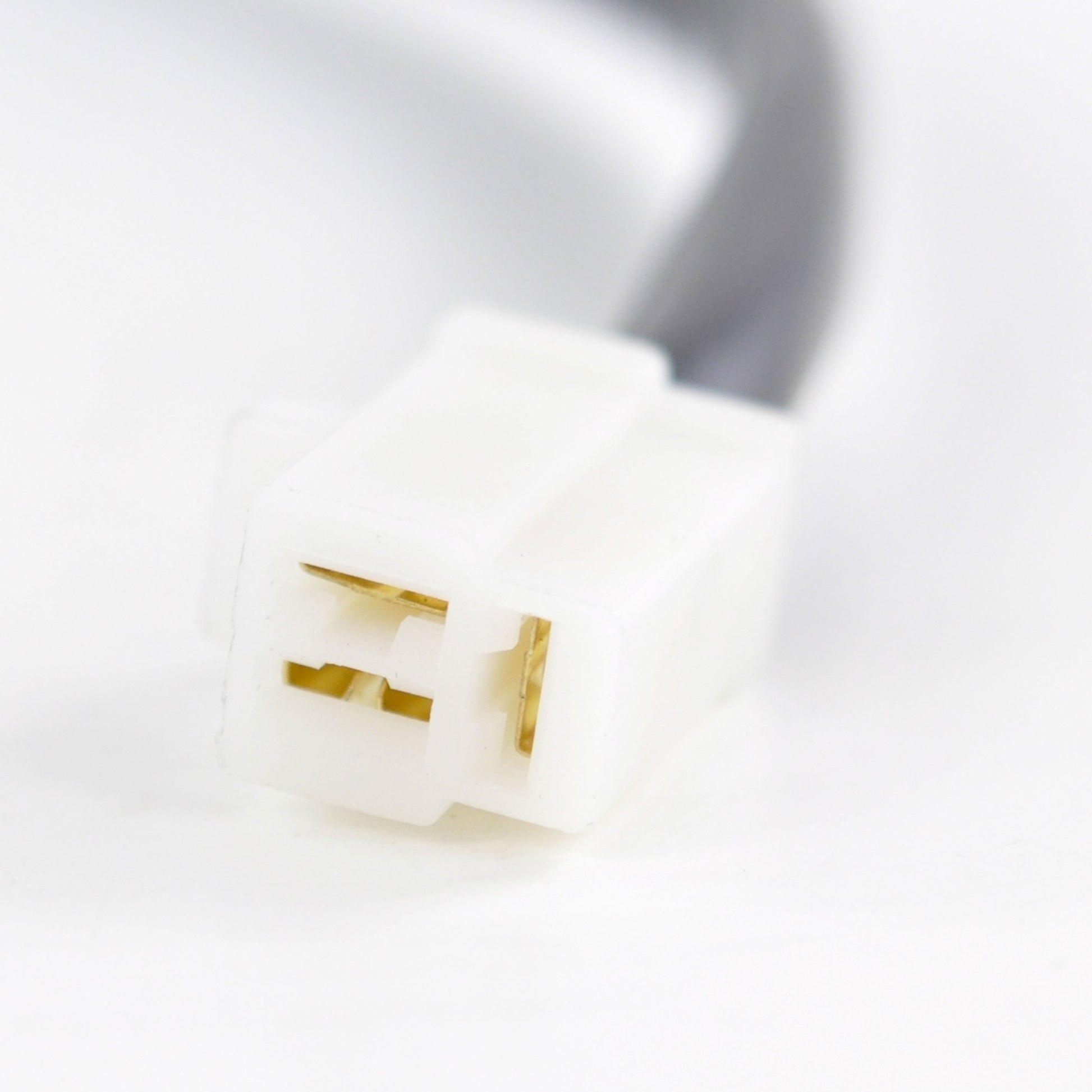

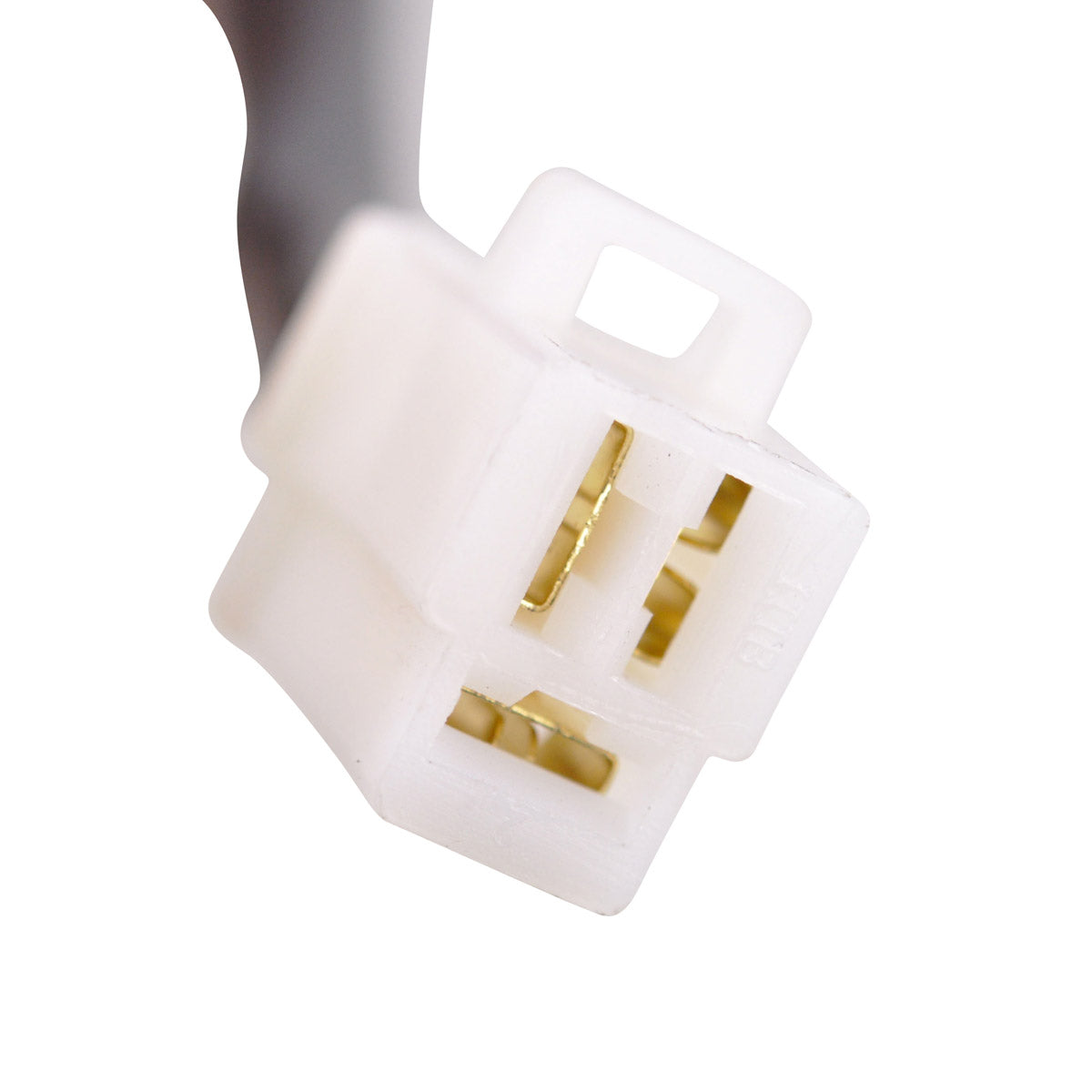

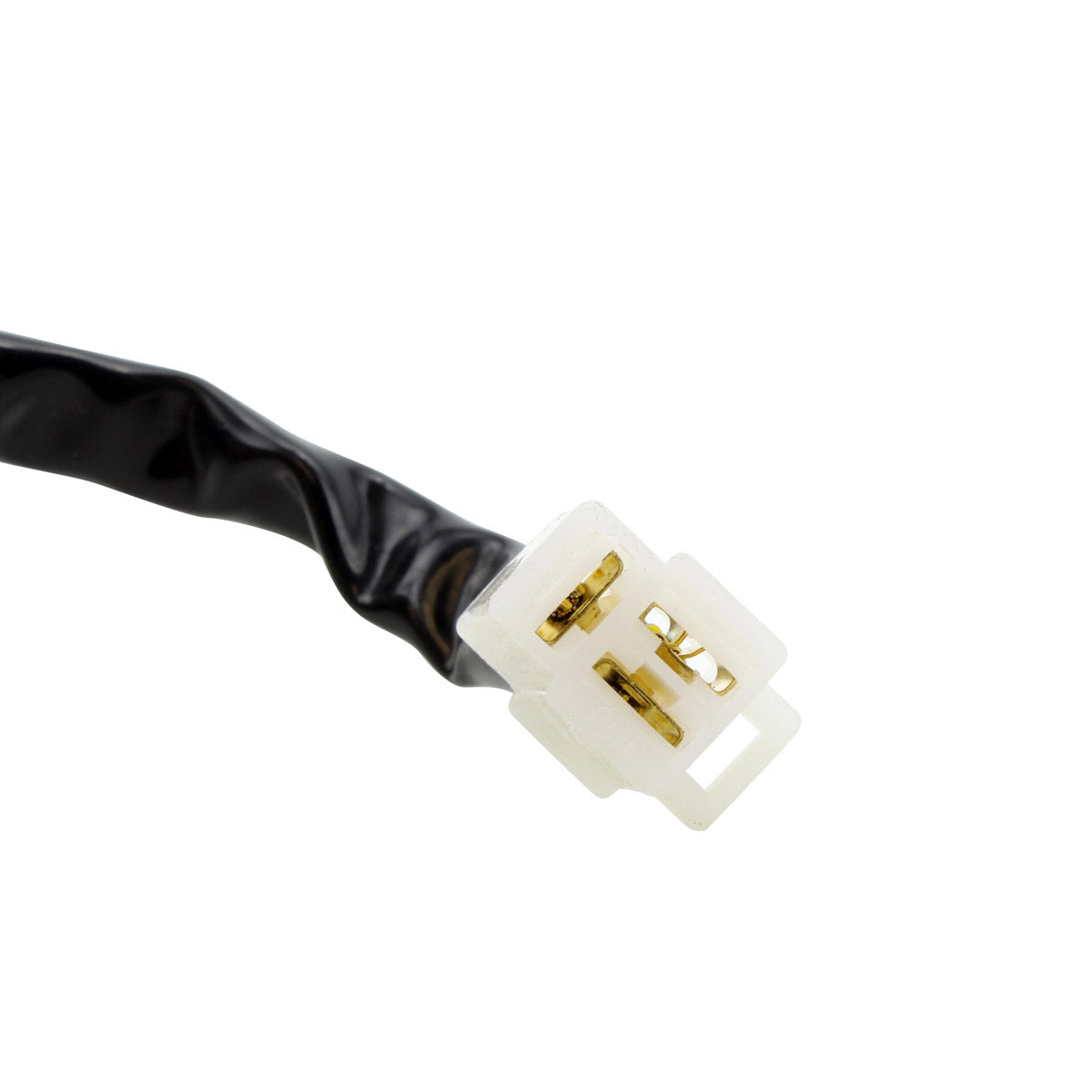

- Connector included
- Two rubber grommets included

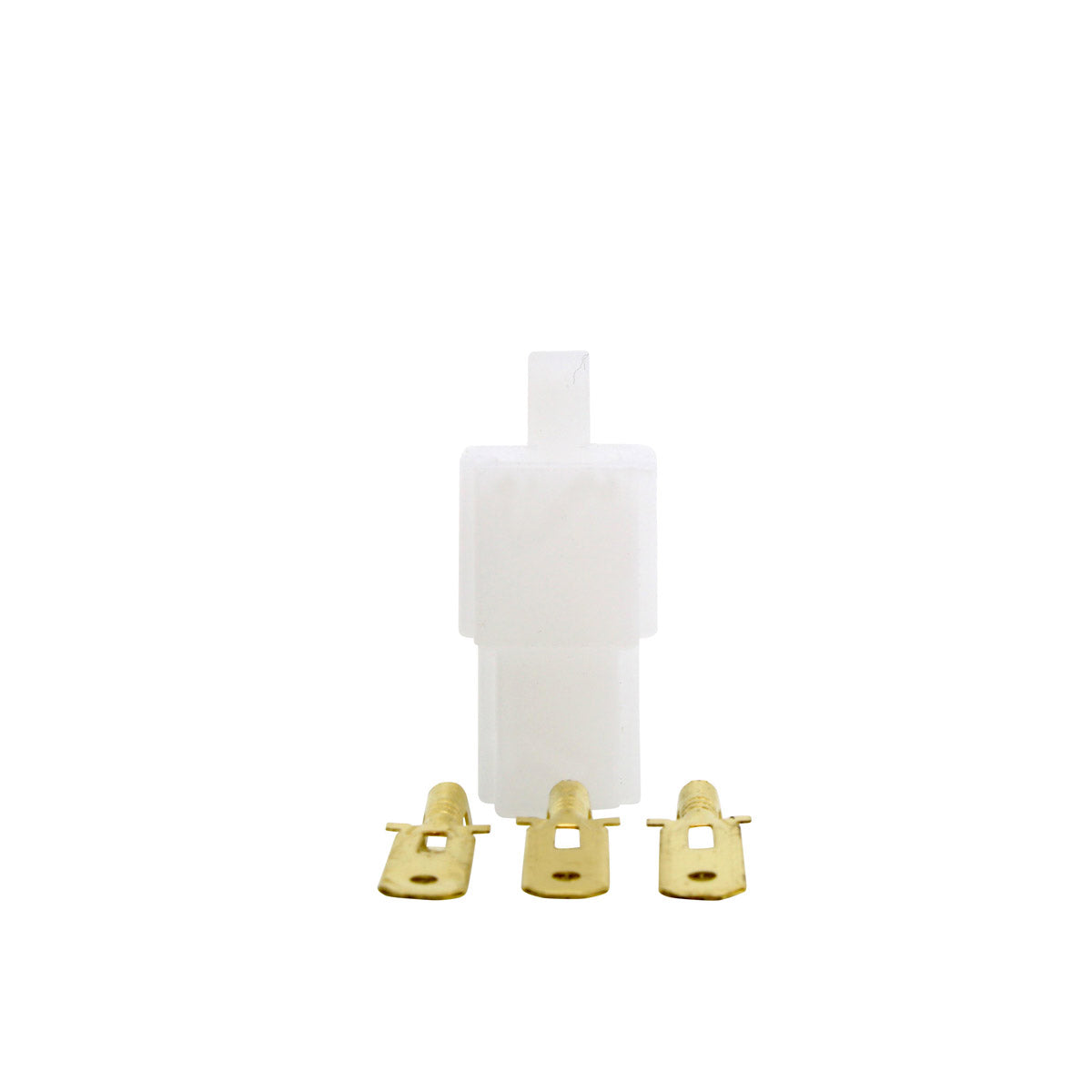

- Opposite connector for the main harness side included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM01590 |
| Interior diameter |
42 mm |
| Exterior diameter |
107 mm |
| Thickness |
18 mm |
| Wire length, stator to grommet |
110 mm |
| Wire length, grommet to plug |
580 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Wire to wire resistance, Yellow to Yellow |
0.5 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Honda CB 600 |
1991-2006 |
| Honda CBR 600 F |
1991-2006 |
| Honda CBR 600 F2 |
1991-2006 |
| Honda CBR 600 F3 |
1991-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-MV9-671 |
Honda |
| 31120-MBZ-611 |
Honda |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original unit, plug-and-play on the standard mounts and the standard three-pin connector. Because this part spans several models and fifteen model years, the reliable check is to match the number on your existing stator against 31120-MV9-671 or 31120-MBZ-611.
What is included?

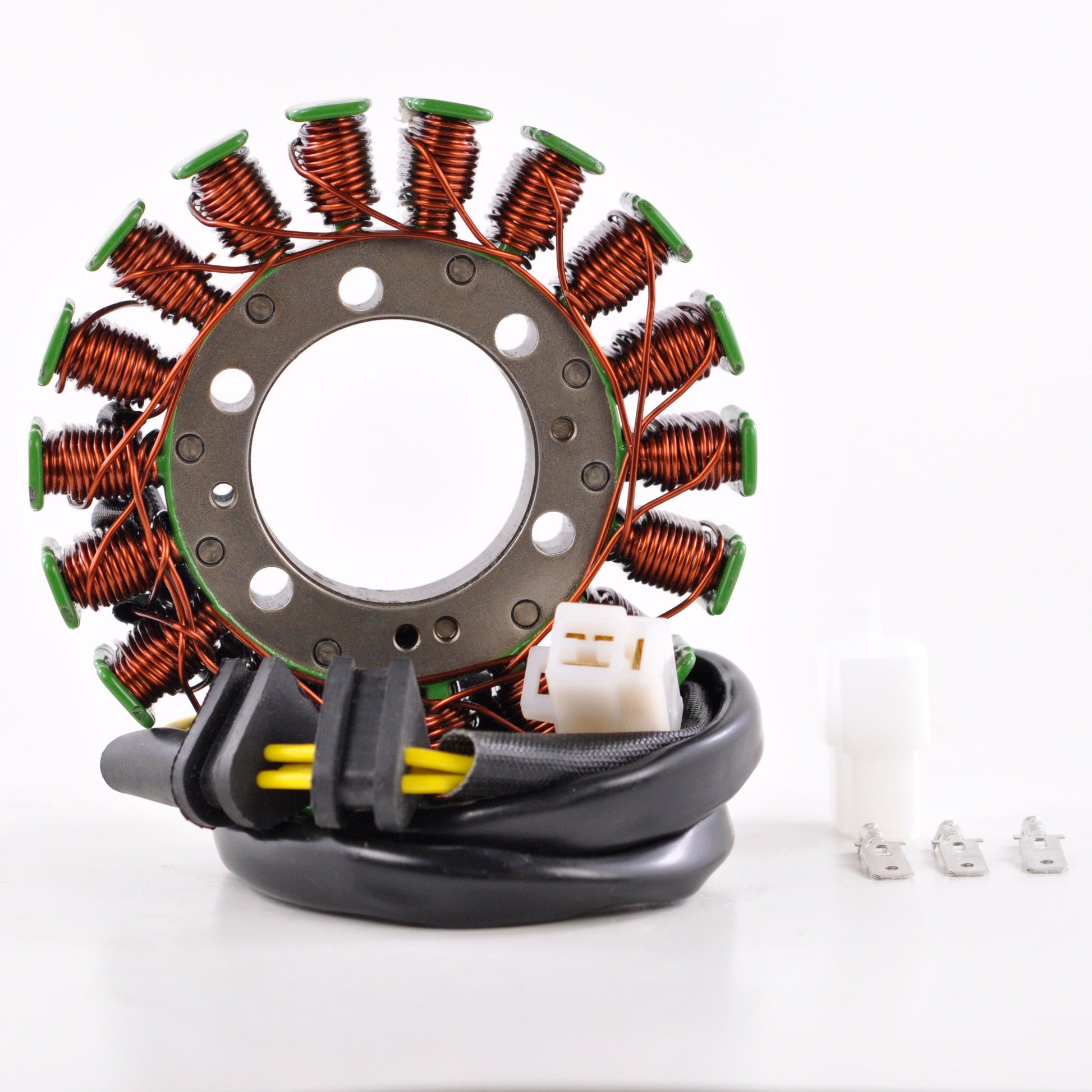

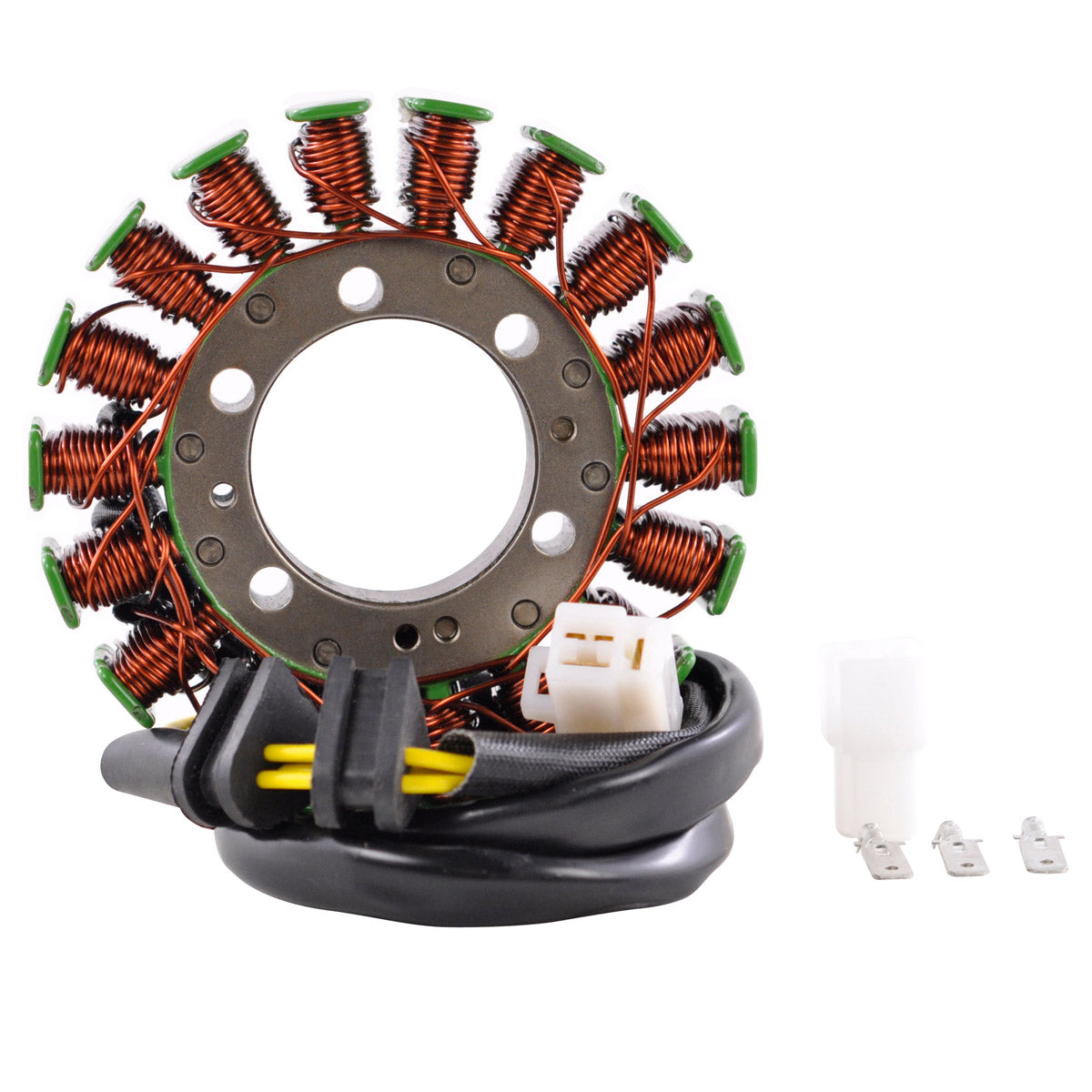

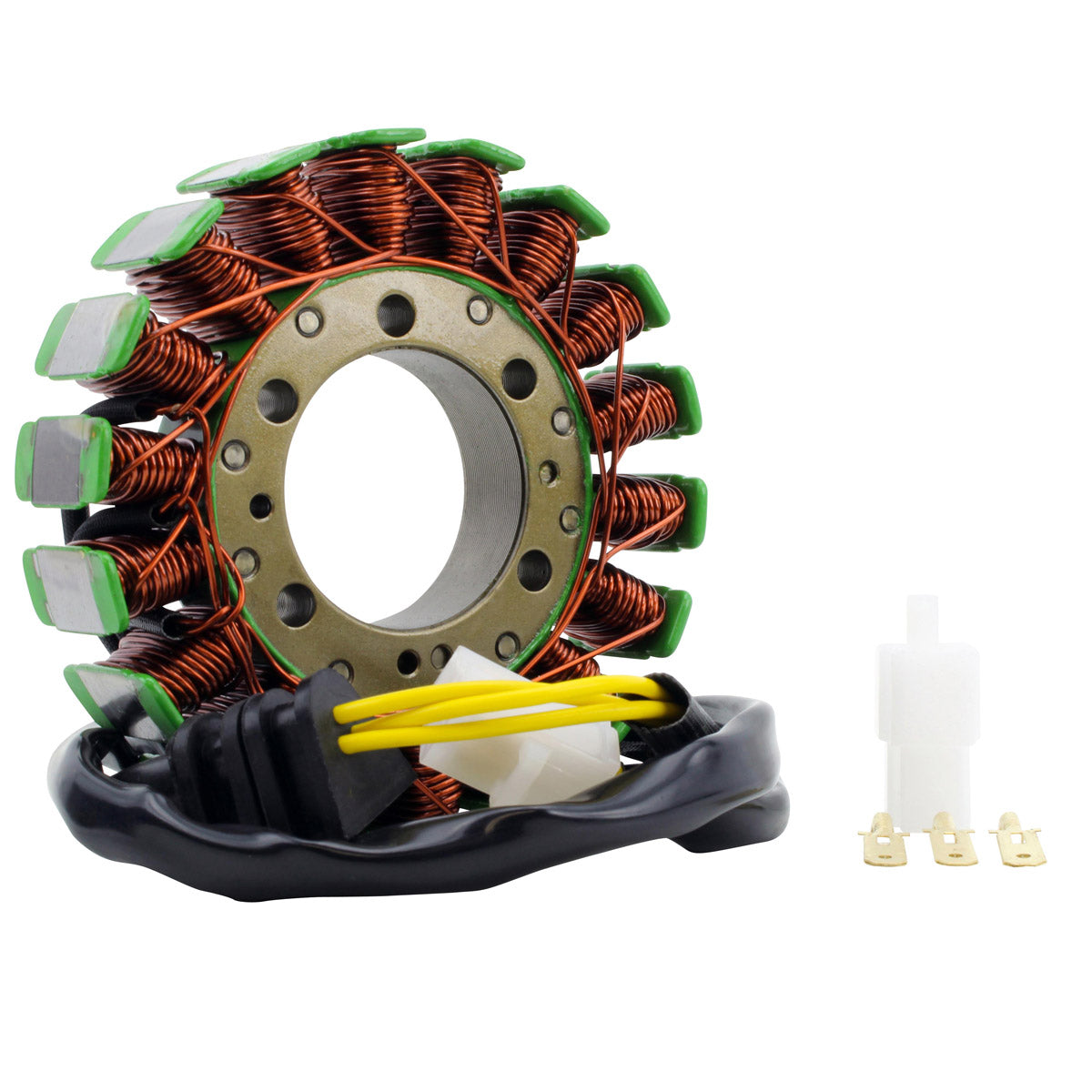

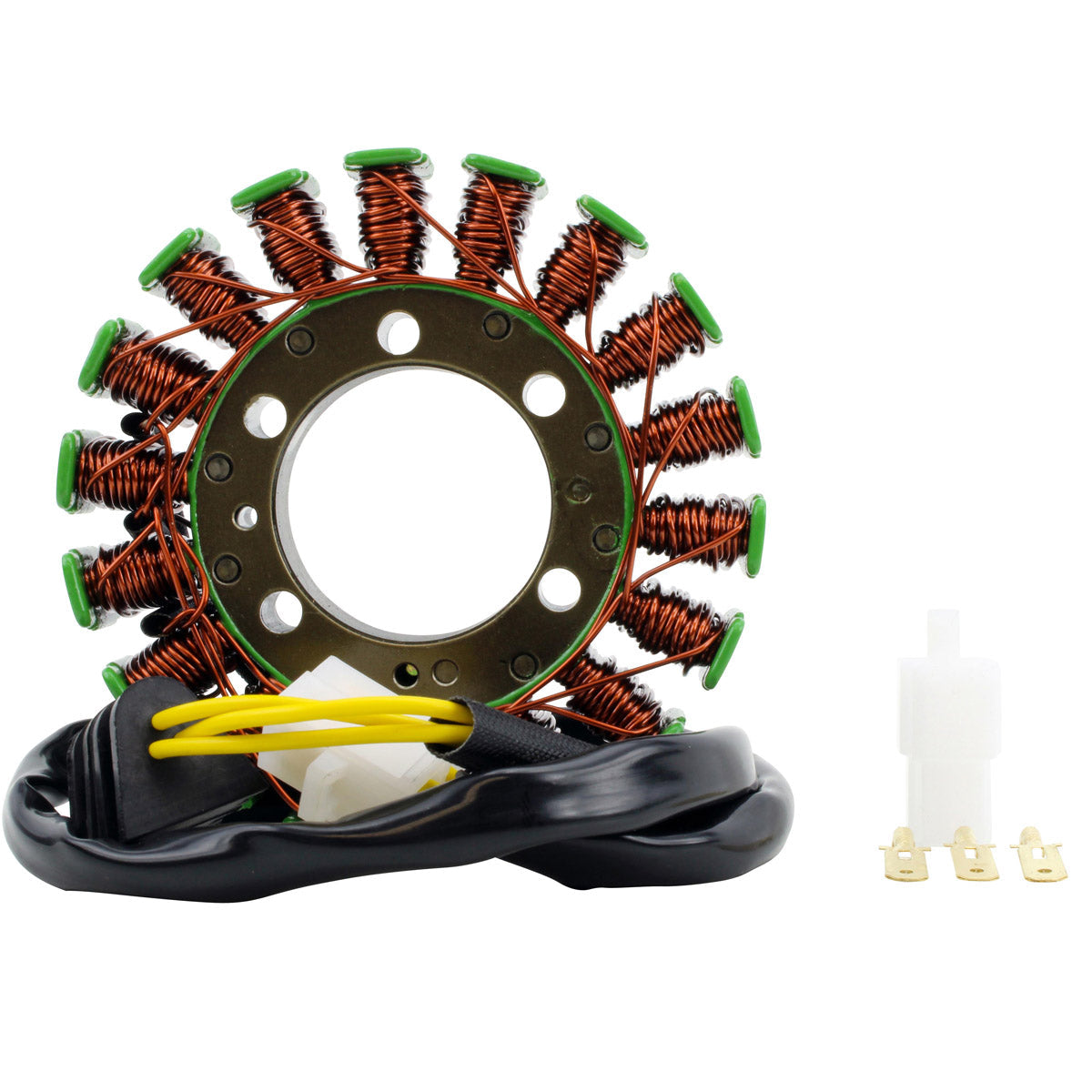

The stator with its connector, two rubber grommets, and the opposite connector for the main harness side. All products shipped are tested.
How do I know my stator has failed?
Unplug the connector and measure between each pair of the three yellow wires. Each pair should read about 0.5 ohms, plus or minus 20 per cent, and the readings should be consistent with each other. A pair reading open circuit, a set of very uneven readings, or continuity between a yellow wire and the stator body all mean the winding has failed.
Why are two grommets supplied?
Two rubber grommets are included with this part so the harness can be sealed correctly where it leaves the engine case. Perished or missing grommets let oil weep and let the loom chafe, so fitting fresh ones with the stator is worth doing while the cover is off.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
