Stator for Victory Hammer, Vegas, Kingpin & Jackpot 2005-2007 - Replaces 4011061
Stator for Victory Hammer, Vegas, Kingpin & Jackpot 2005-2007 - Replaces 4011061
SKU:RM01601
Free shipping over £150. Terms apply
Couldn't load pickup availability
Victory Generator Stator - RM01601
Hammer, Vegas, Kingpin, Jackpot, Ness and 8 Ball - 2005-2007 - OEM replacement 4011061

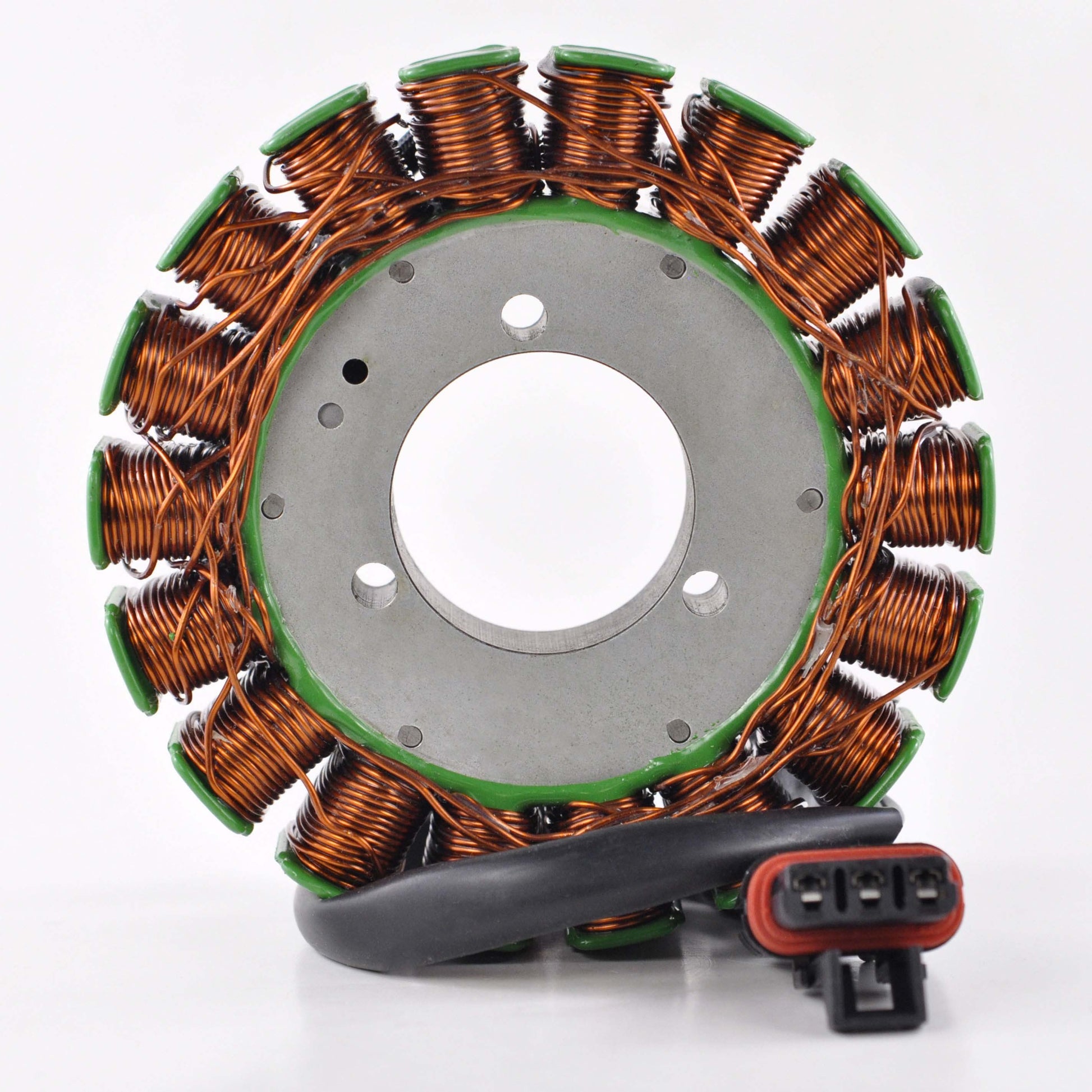

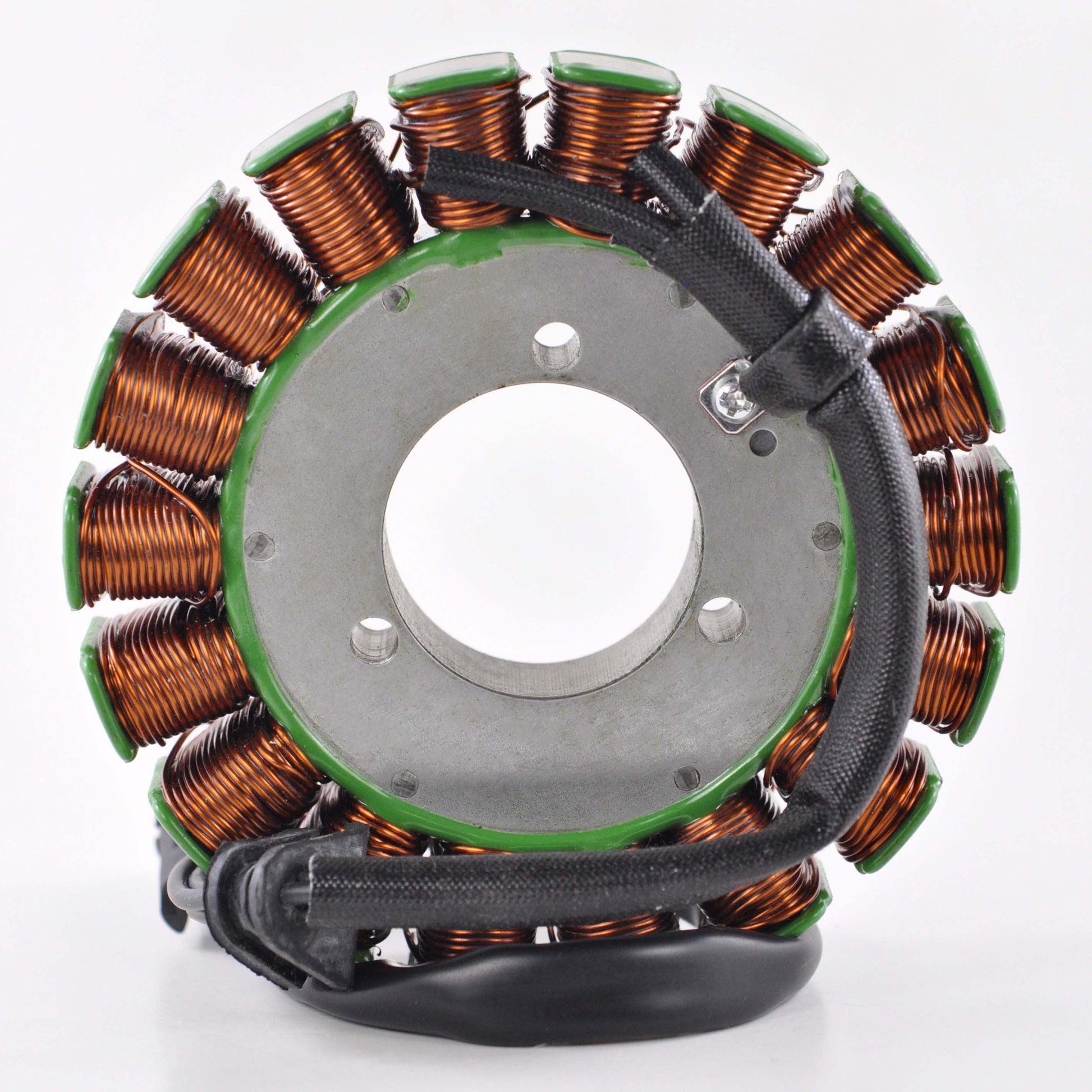

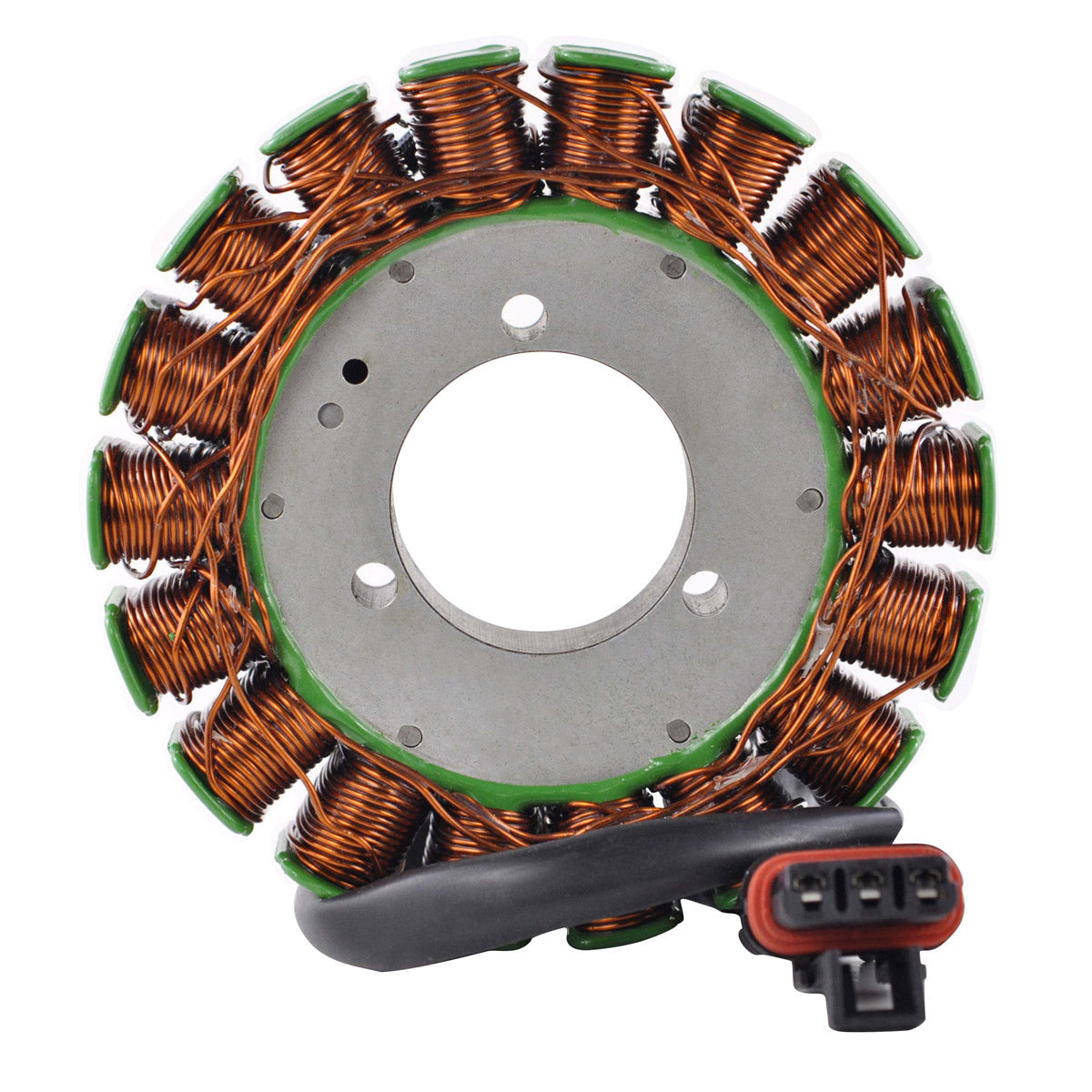

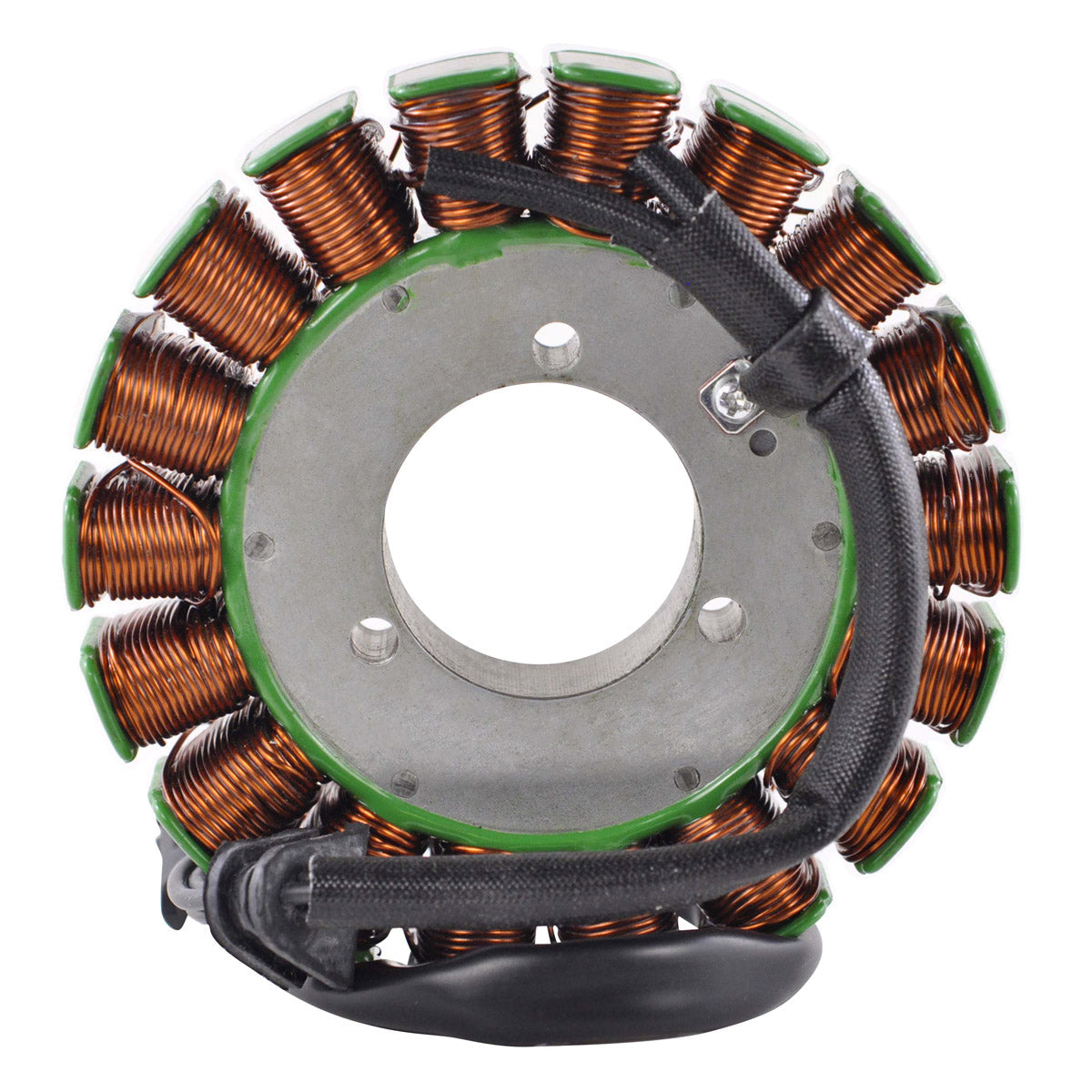

This is a brand new aftermarket generator stator supplied as a direct replacement for the original charging unit on Victory motorcycles. It is a plug-and-play, direct fit assembly built to the original 42 mm interior diameter, 126 mm exterior diameter and 24 mm thickness, with the original 125 mm lead from the stator to the grommet and 245 mm run from the grommet to the plug. It therefore mounts in the standard stator cover and the harness follows the original route to the original connector position, with no modification required.
The stator is built on highest grade lamination materials and wound with highest grade copper windings that are resistant to 200 degrees Celsius. On a large air-cooled V-twin the stator lives in a hot, oil-filled environment and the insulation temperature rating is the main factor in how long a replacement survives. The connector and the rubber grommet are both included so the case seals correctly on refitting, and every unit is tested before it is shipped.
Key Features
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included

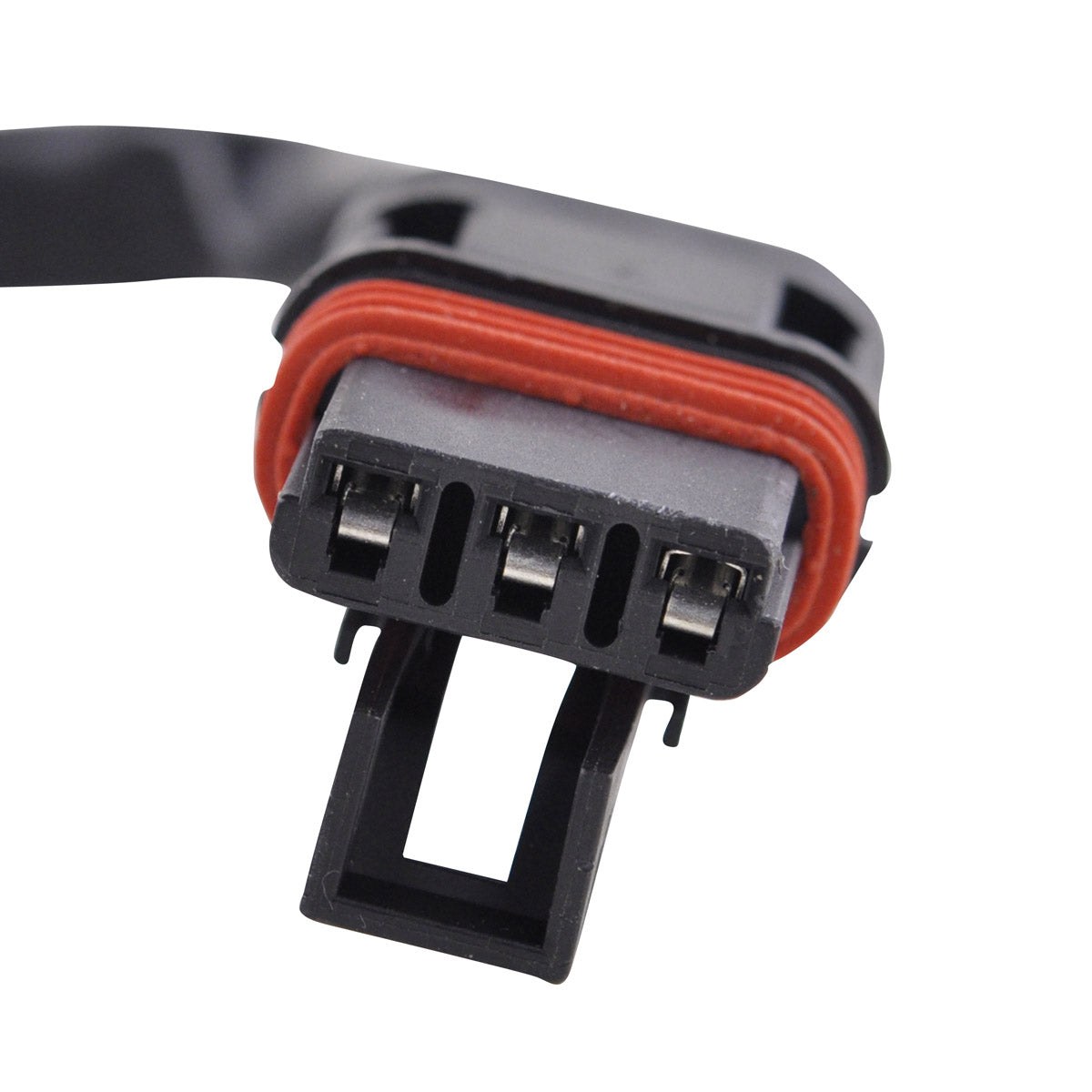

- Three wires, one plug, three pins
- Built to the original dimensions and wire lengths
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 42 mm |
| Exterior diameter | 126 mm |

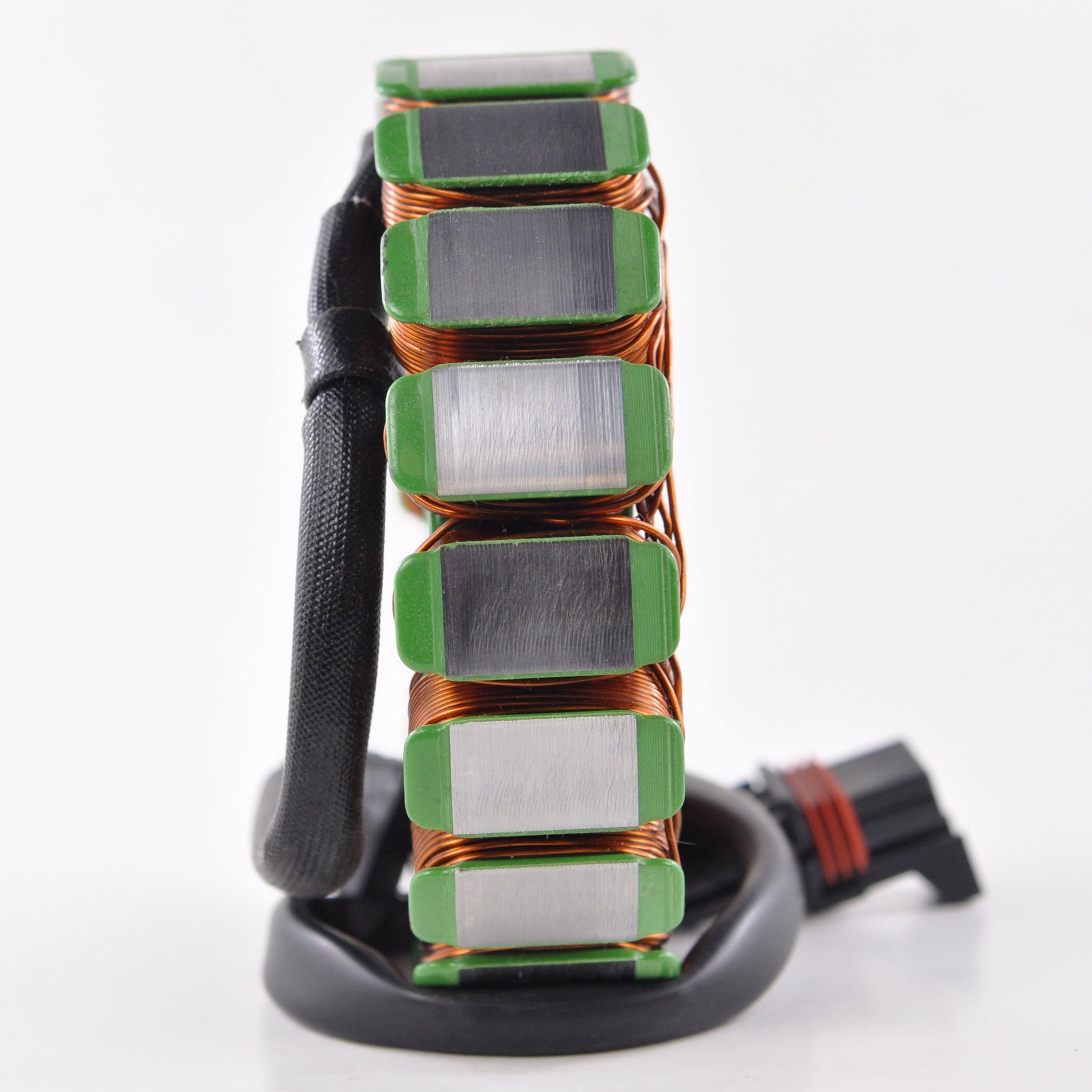

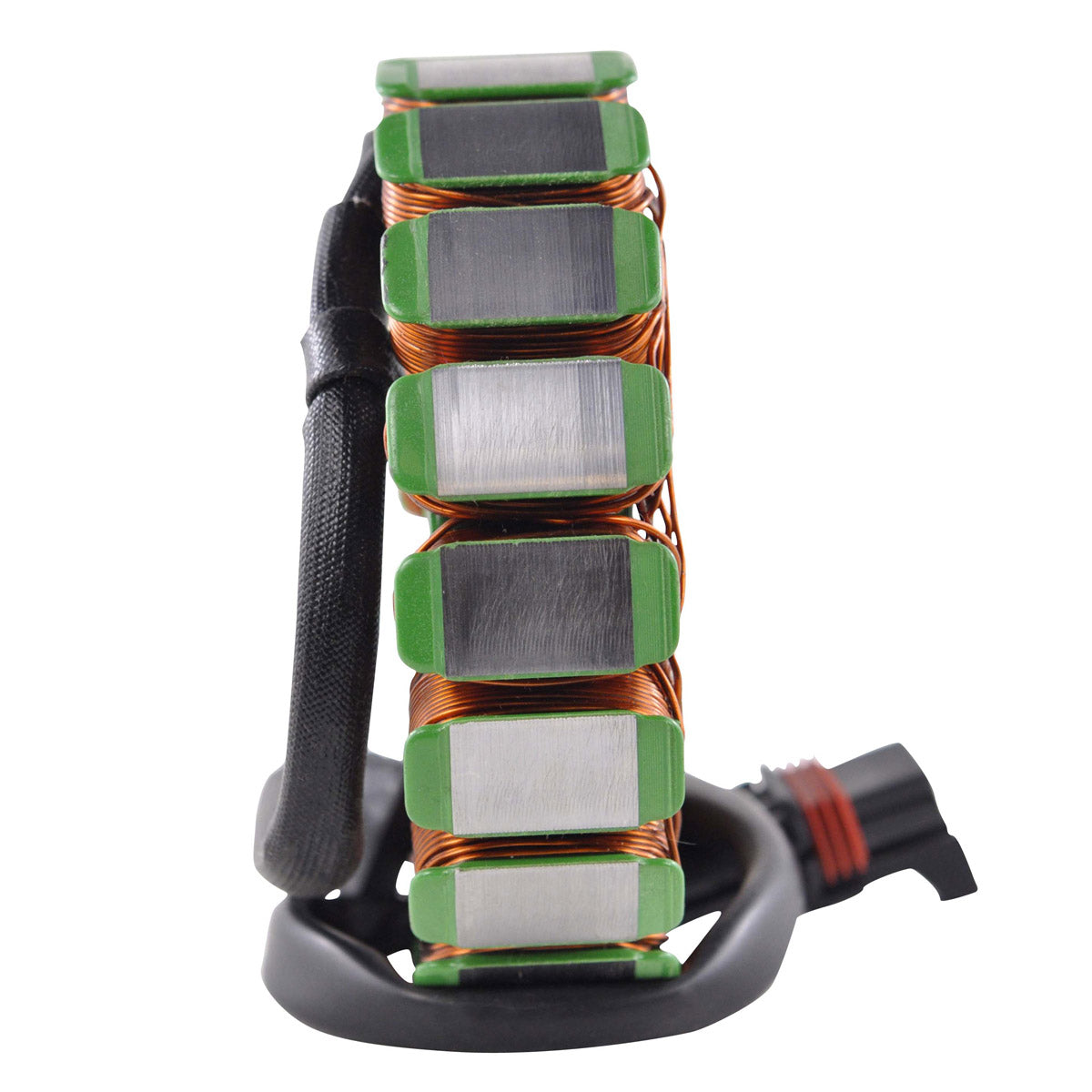

| Thickness | 24 mm |
| Wire length, stator to grommet | 125 mm |
| Wire length, grommet to plug | 245 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Wire-to-wire resistance | Black to Black = 0.5 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
| Part reference | RM01601 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Victory Hammer | 2005-2007 |
| Victory Vegas | 2005-2007 |
| Victory Kingpin | 2005-2007 |
| Victory Jackpot | 2005-2007 |
| Victory Ness | 2005-2007 |
| Victory 8 Ball | 2005-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 4011061 | Victory |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct, plug-and-play replacement built to the original dimensions, wire lengths and three-pin plug, so it mounts in the standard cover and connects to the untouched loom. No cutting, splicing or drilling is needed.
What is included?
The generator stator with the connector and the rubber grommet included, so the wiring exit seals correctly when the new unit is fitted. Every unit is tested before shipment.
How do I confirm that my old stator has failed?
Disconnect the plug and measure between each pair of black wires. Every combination should read 0.5 ohms +/- 20%. An open circuit, a reading well outside that band, or continuity between any black wire and the stator core or engine case confirms a failed stator. Persistent flat batteries and a charging voltage that does not rise with engine speed indicate the same fault.
How do I check this is the right stator for my machine?
Compare the OEM number on your original unit against 4011061, and check the physical size: this stator measures 126 mm across the outside, 42 mm across the inside and 24 mm thick. If both the part number and the dimensions match, it is the correct replacement.
