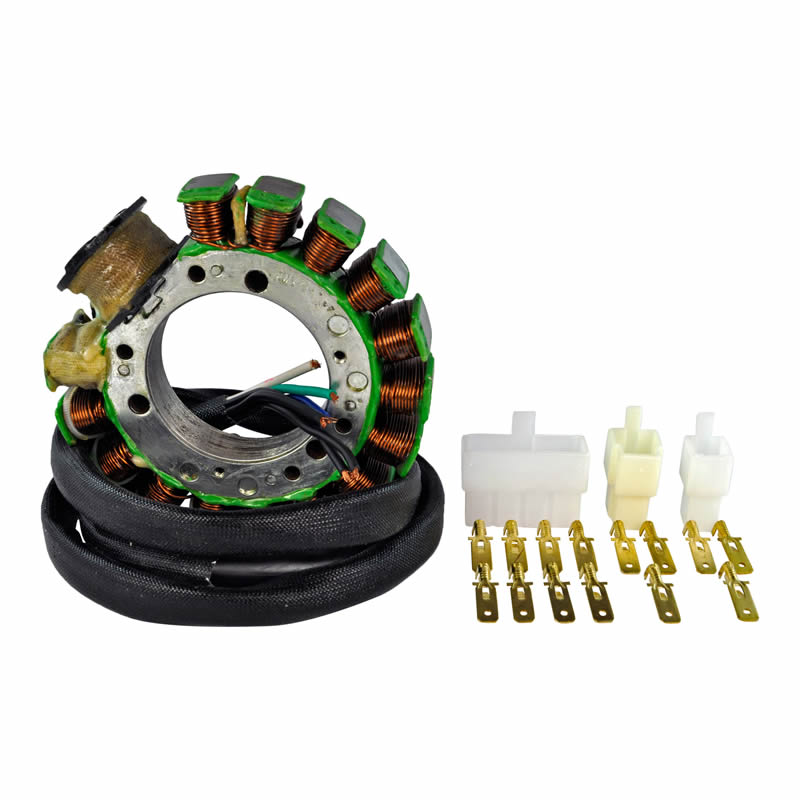

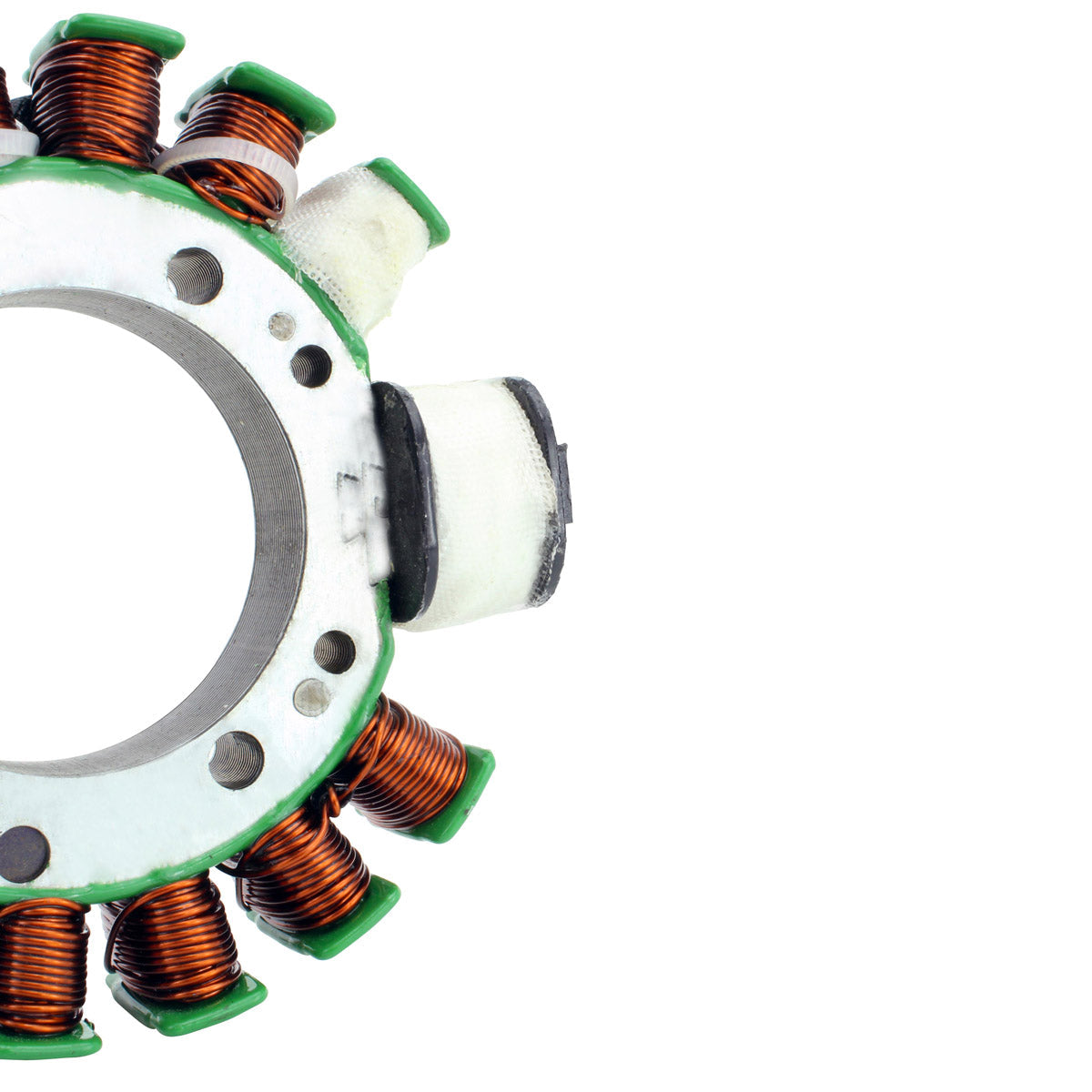

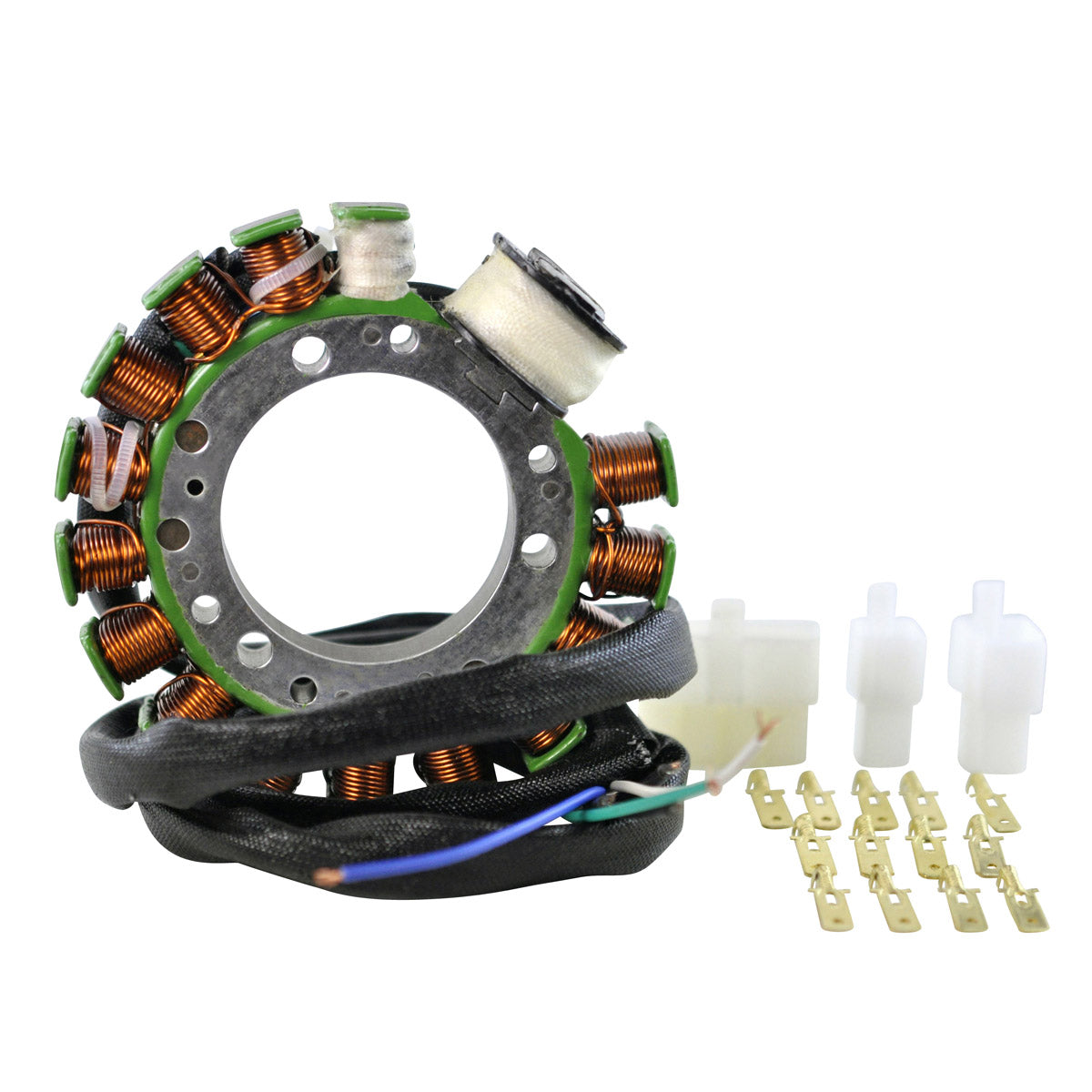

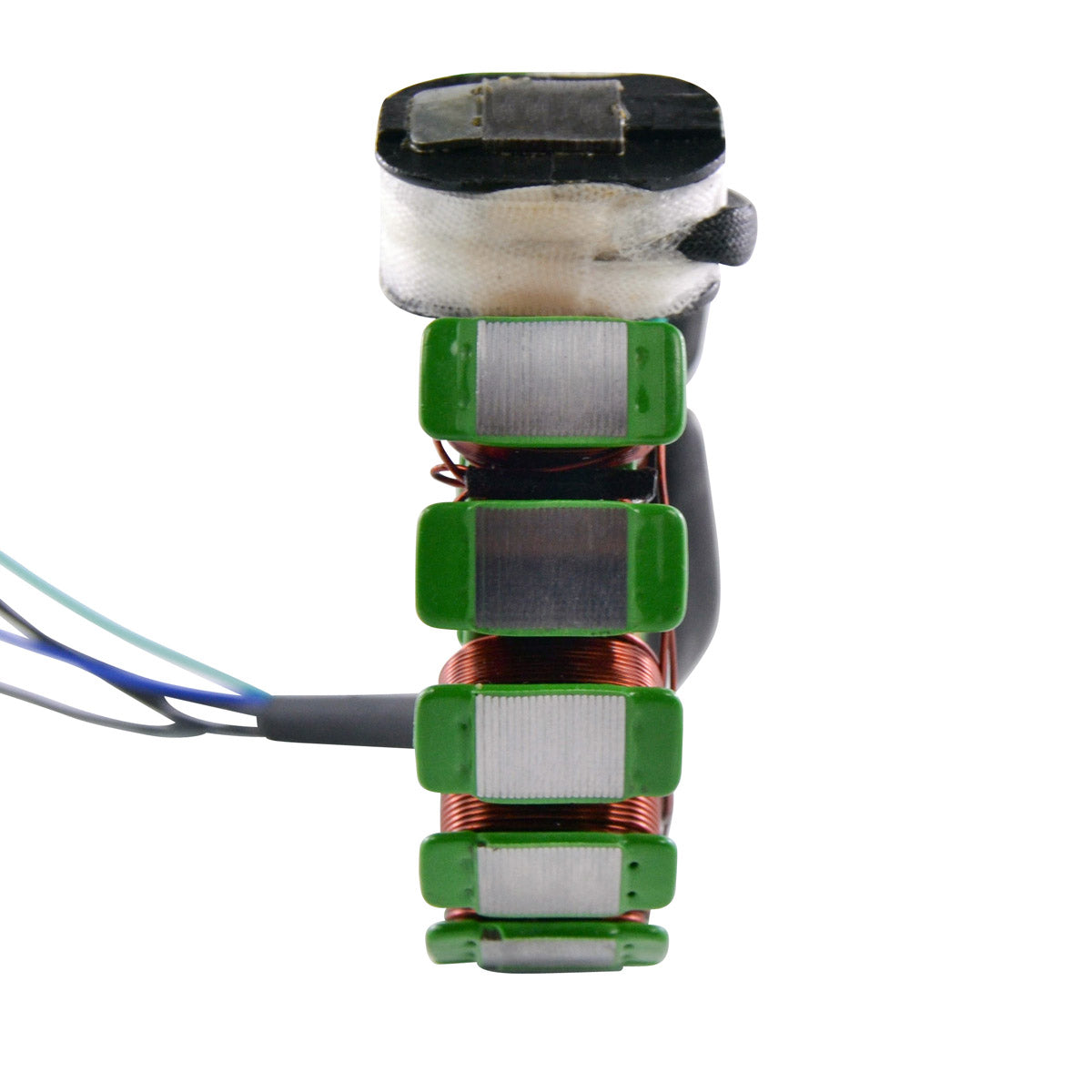

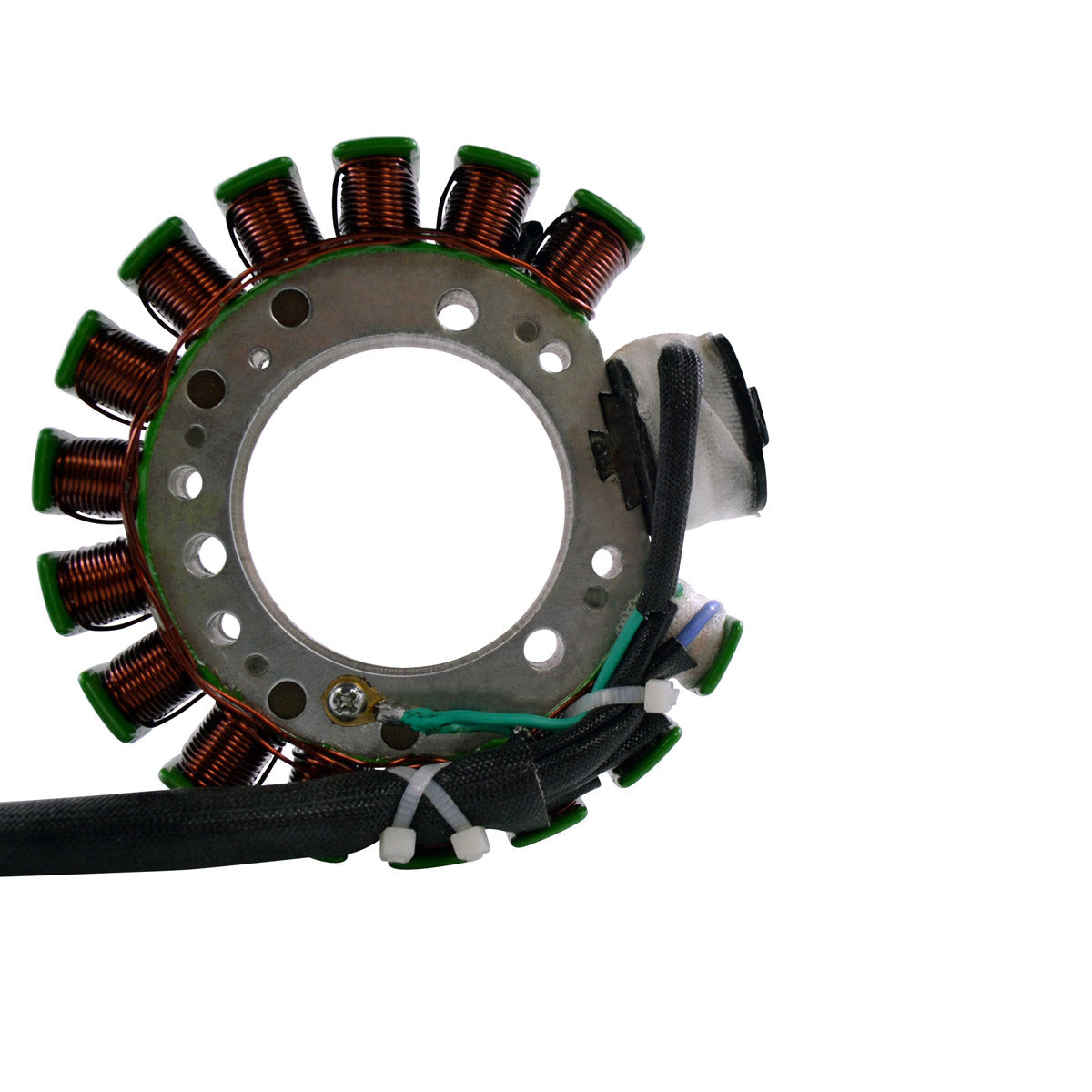

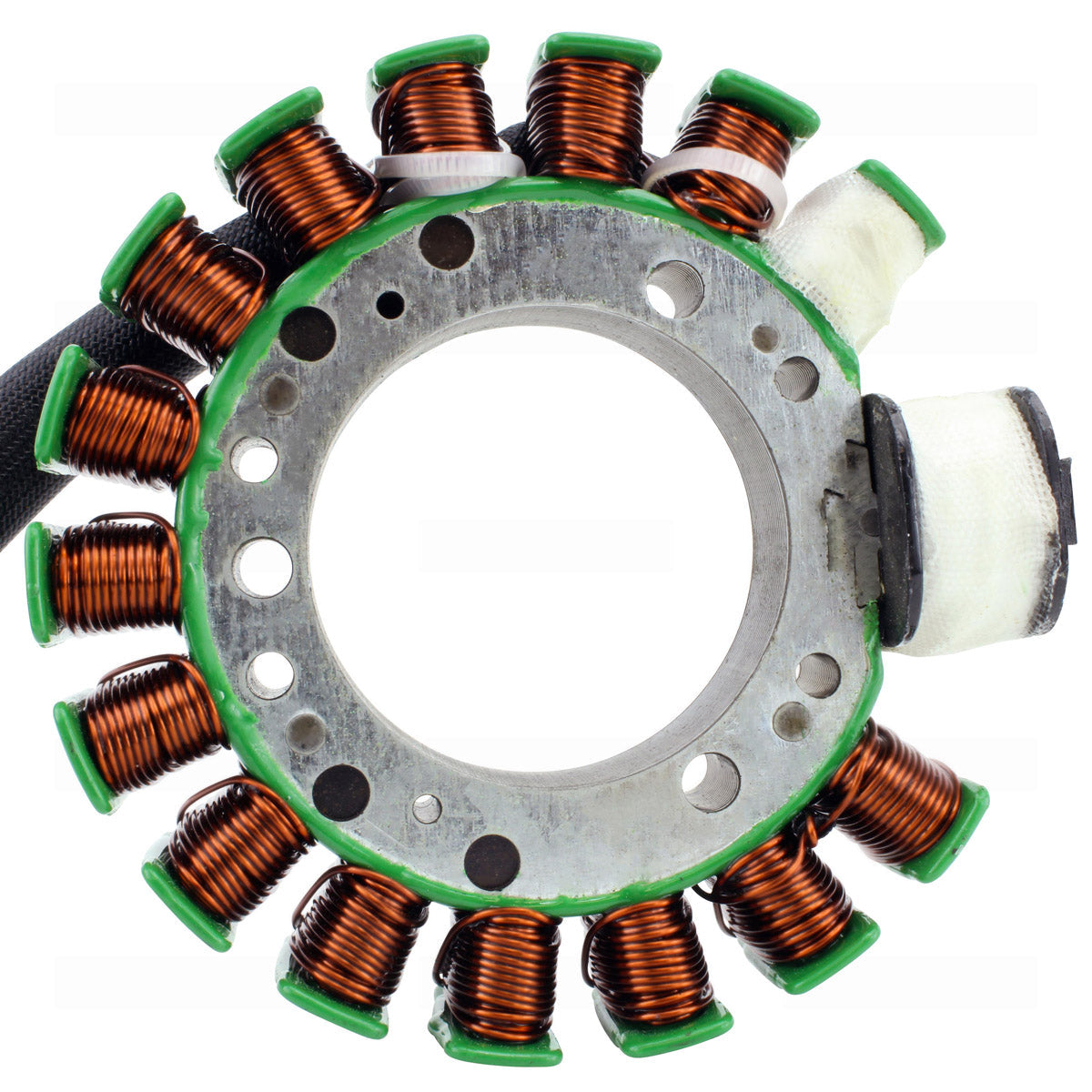

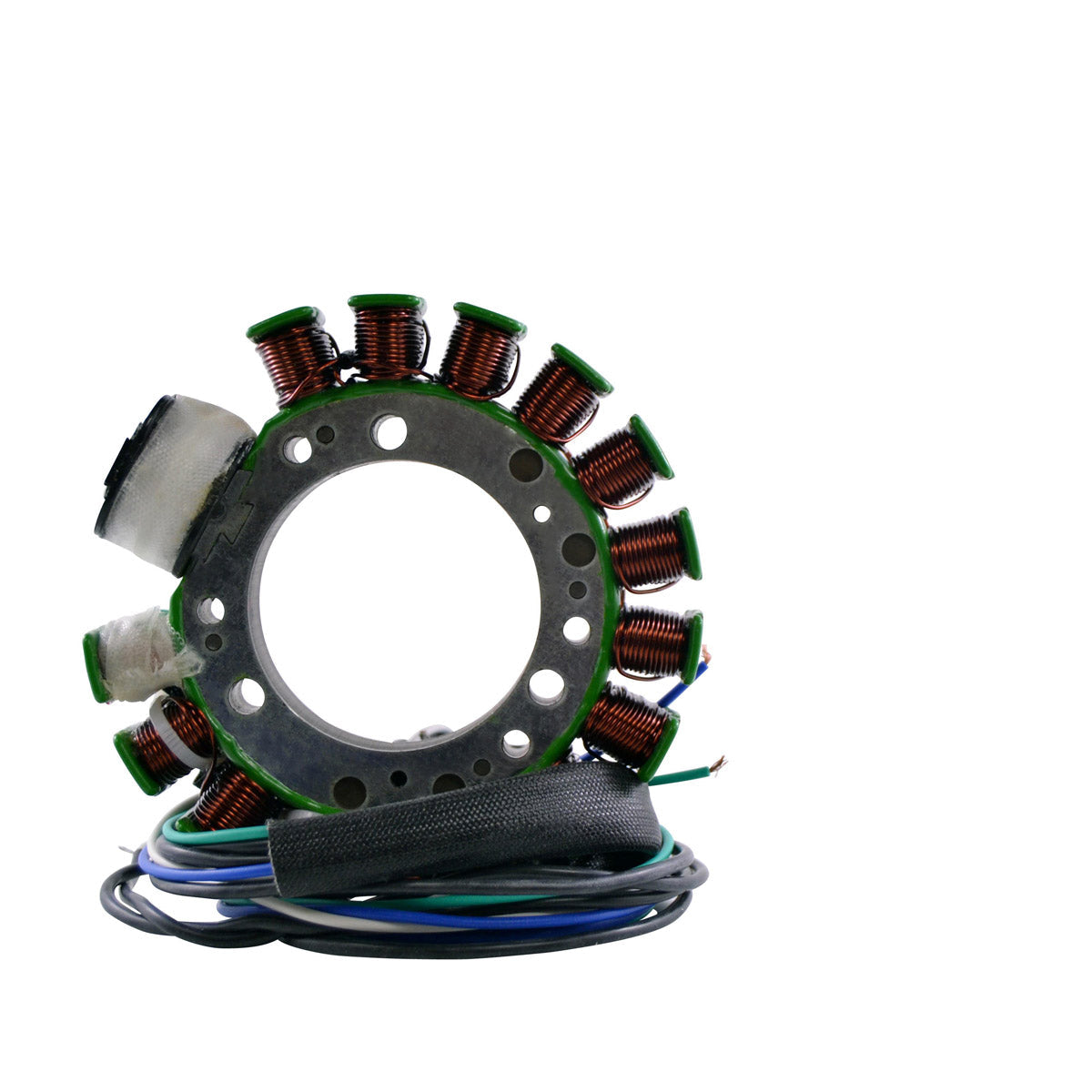

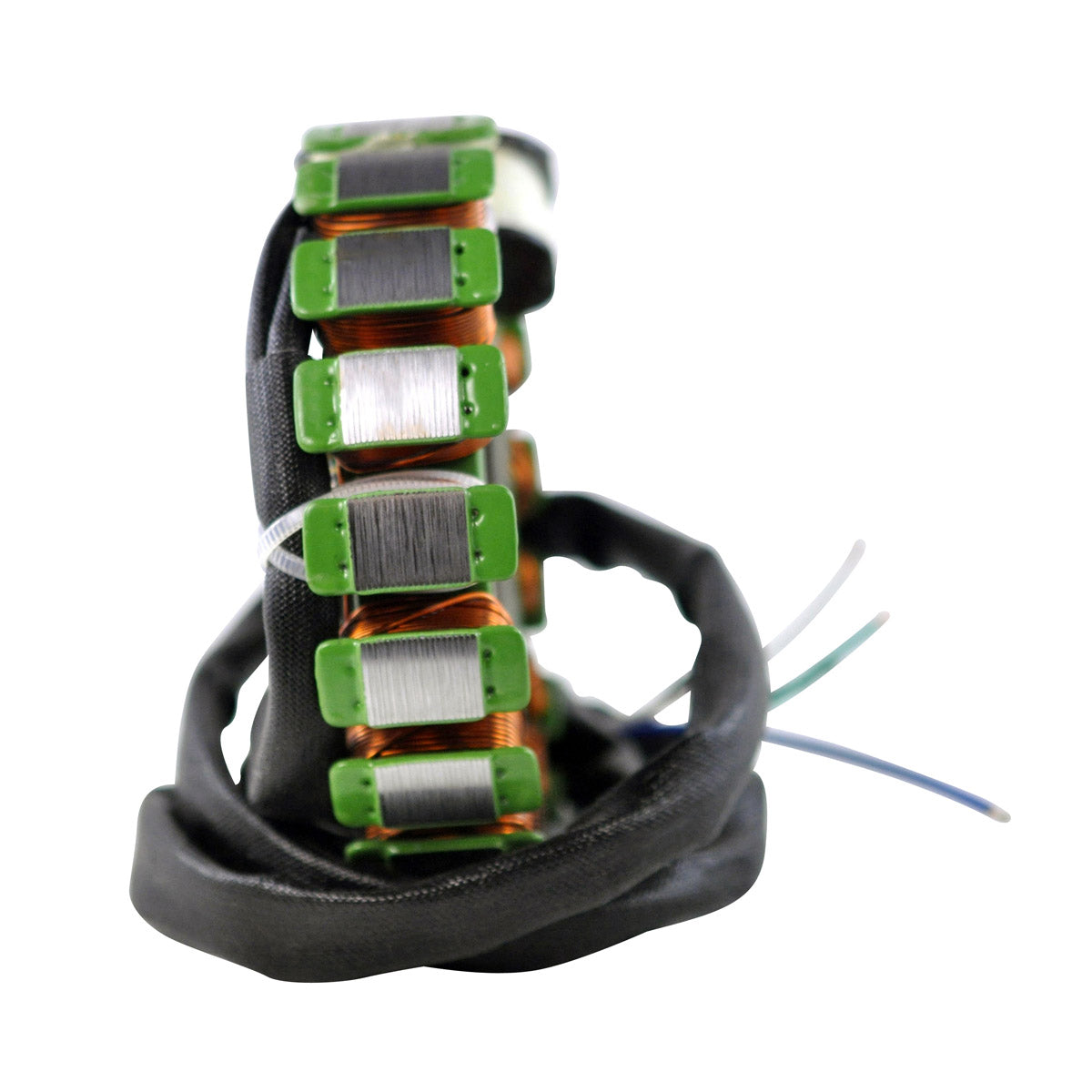

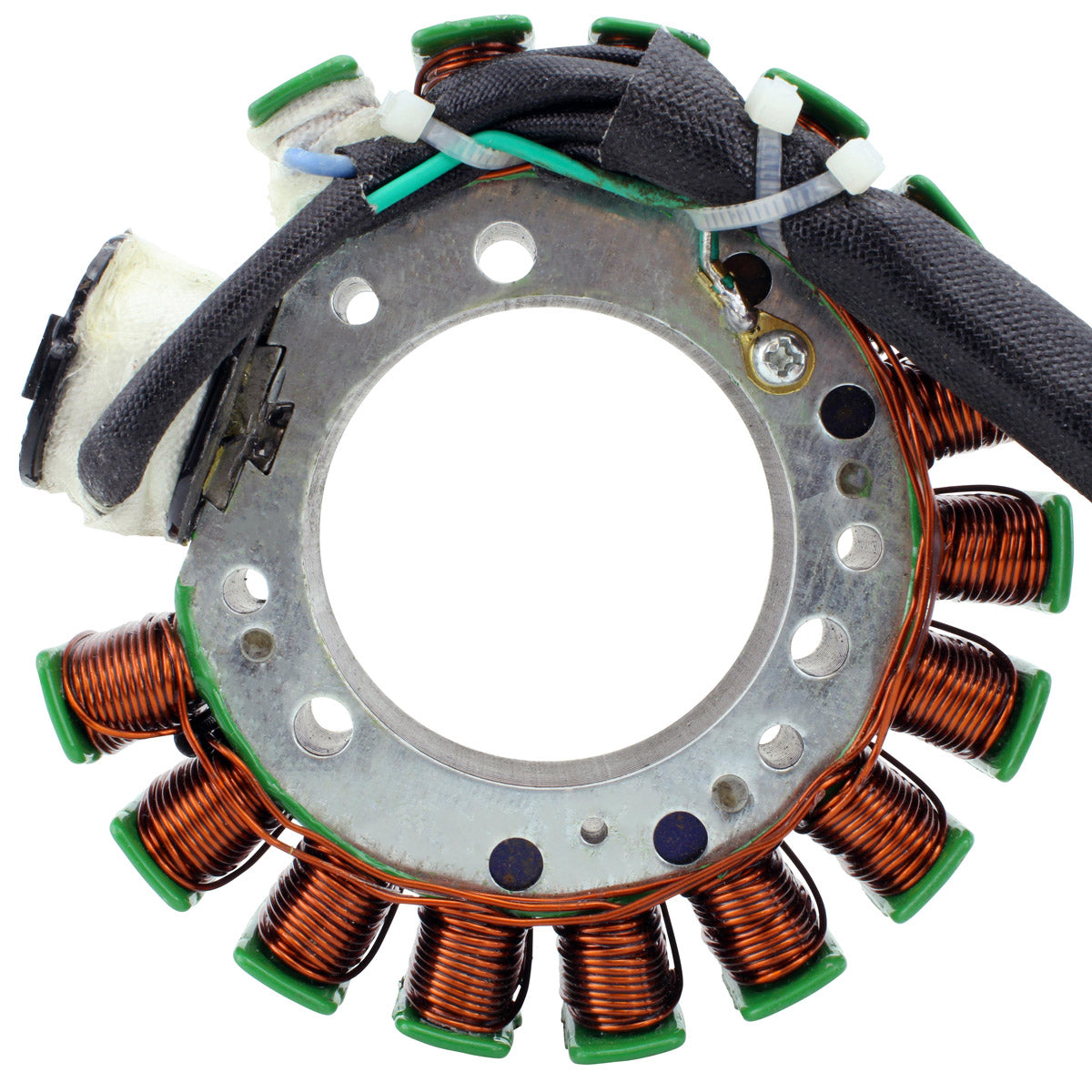

This is a brand new replacement stator for the Honda CX 500, built by RMSTATOR as a direct replacement for the original charging coil assembly. Re-install your original grommet together with the new connector supplied and the unit becomes a plug-and-play fit - no cutting of the loom, no modification to the engine cover and no re-routing of the harness.
The stator is wound using the highest grade of lamination materials and the highest grade of copper winding, rated to resist 200 degrees Celsius, so it holds up to the heat inside a running engine far better than a tired original. Every unit is bench tested before it leaves the warehouse. An opposite connector for the main harness side is packed in the box as well, because that half of the joint is very often melted, corroded or defective by the time the stator itself fails, and a damaged harness plug is a common cause of repeat electrical faults.
Key Features
- Brand new stator, direct replacement for the original Honda unit
- Highest grade lamination materials
- Highest grade copper winding, resistant to 200 degrees Celsius
- New connector supplied - re-install your original grommet

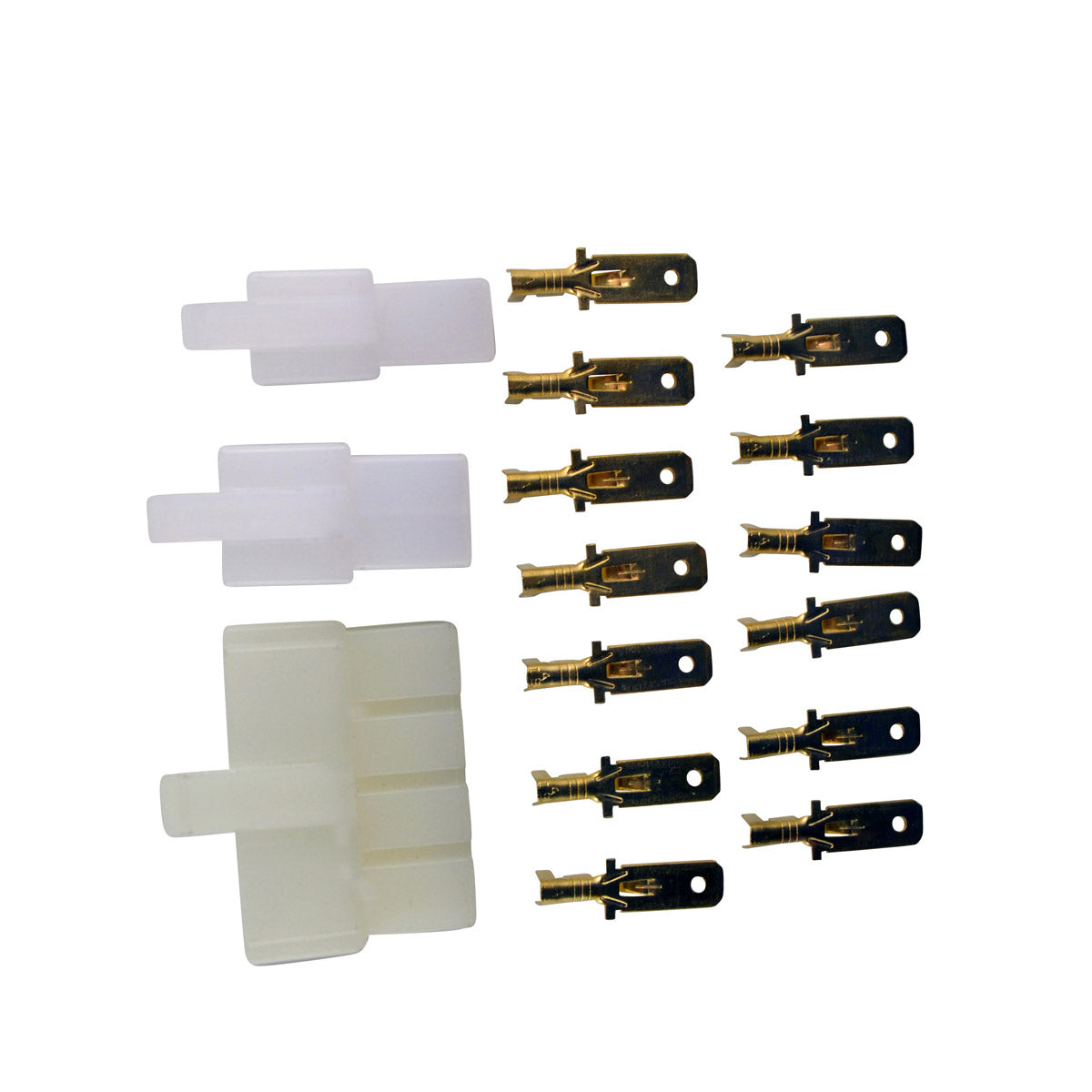

- Opposite connector for the main harness side included

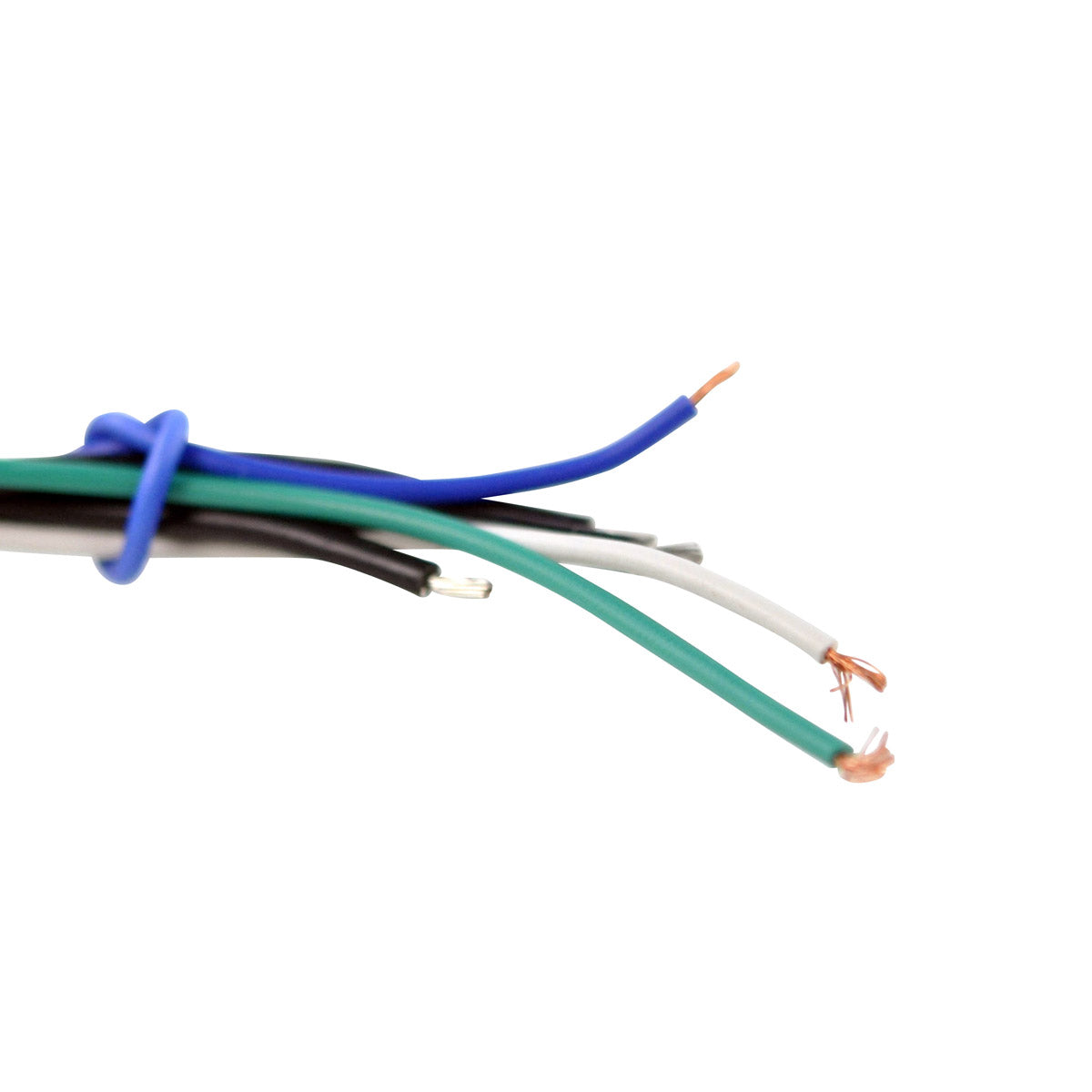

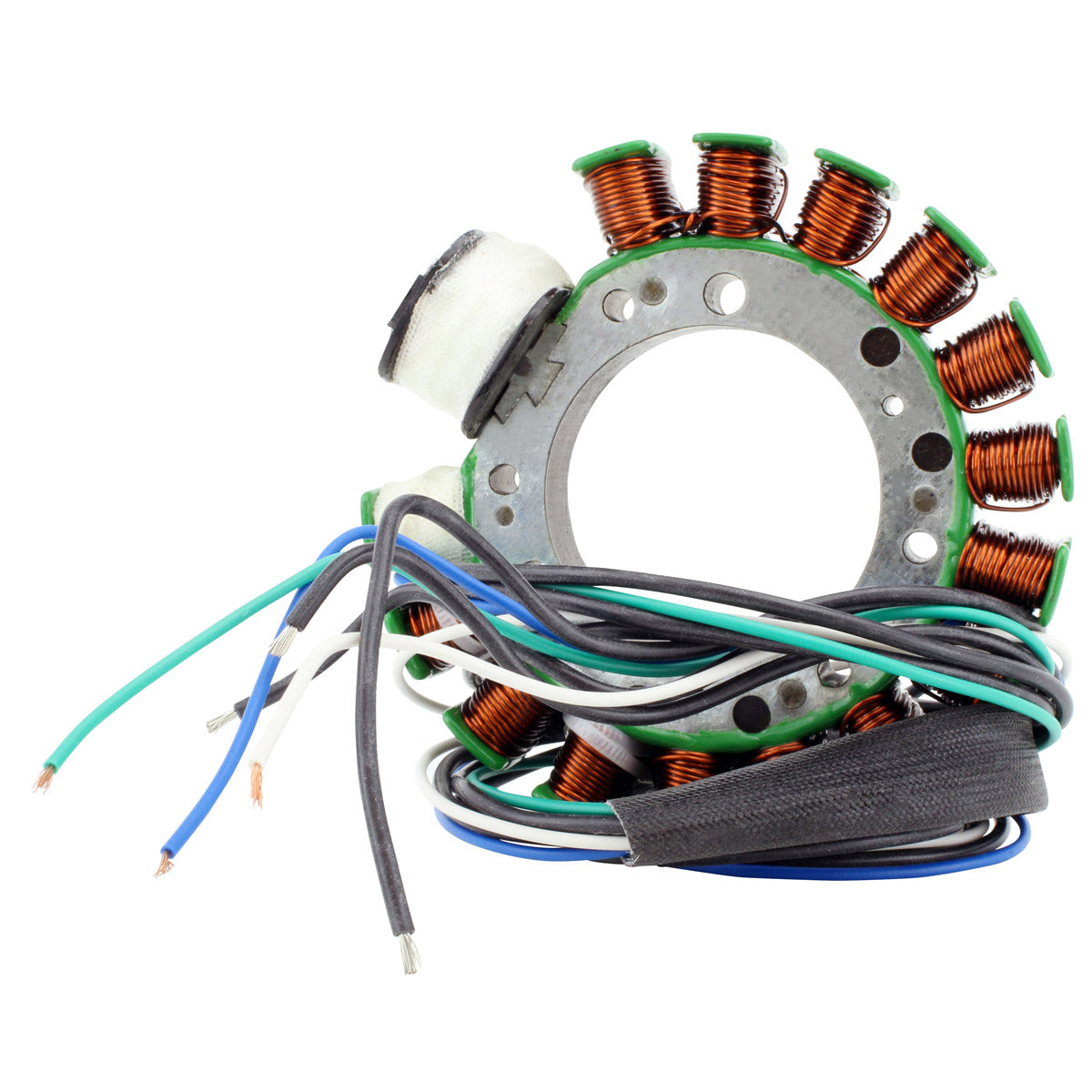

- Six wires and six terminals, 875 mm harness
- Every unit tested before shipment
Technical Specs
| Specification |
Detail |
| Interior diameter |
53 mm |
| Exterior diameter |
115 mm |
| Thickness |
16 mm |
| Wire length, stator to terminals |
875 mm |
| Number of wires |
6 |
| Number of terminals |
6 |
| Alternator resistance, each Black |
0.9 ohms +/-20% |
| Alternator, Black to ground |
O.L. on display |
| Source 1, White to Blue |
9 ohms +/-20% |
| Source 2, Blue to Green |
300 ohms +/-20% |
| Winding temperature rating |
200 degrees Celsius |
| RMSTATOR part number |
RM01055 |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda CX 500 |
1978-1981 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31100-415-005 |
Honda |
| 31120-415-005 |
Honda |
Frequently Asked Questions
Will this stator fit my Honda CX 500 without modification?
Yes. It is a direct replacement for the original unit on the Honda CX 500 built between 1978 and 1981. Re-install your original grommet together with the new connector supplied and the stator plugs straight in - there is no cutting, drilling or re-routing involved.
What is included in the box?
The stator assembly, a new connector, and an opposite connector for the main harness side.
How can I tell whether my old stator has failed?
Check it with a multimeter. On this unit each Black alternator wire should read 0.9 ohms +/-20% to the others, White to Blue should read 9 ohms +/-20% and Blue to Green should read 300 ohms +/-20%. Any alternator wire measured to ground should show O.L. on the display. A winding that reads short to ground, open circuit, or well outside these figures has failed.
Why is a second connector supplied?
The connector on the main harness side is very often melted or corroded by the time a stator gives up, and a damaged plug there will overheat and take a new stator with it. The opposite connector is included so both halves of the joint can be renewed at the same time.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
