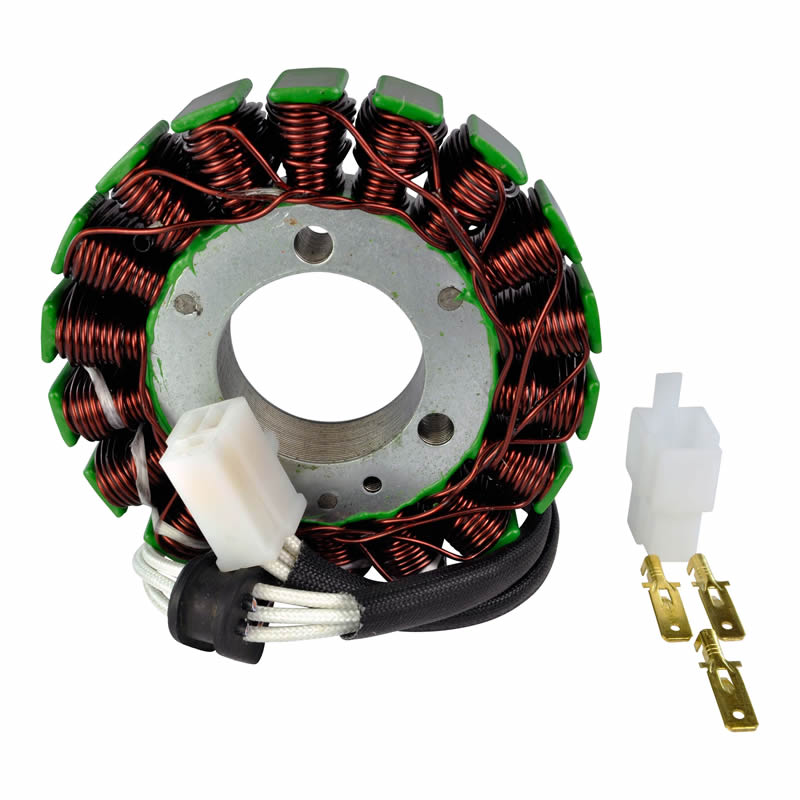

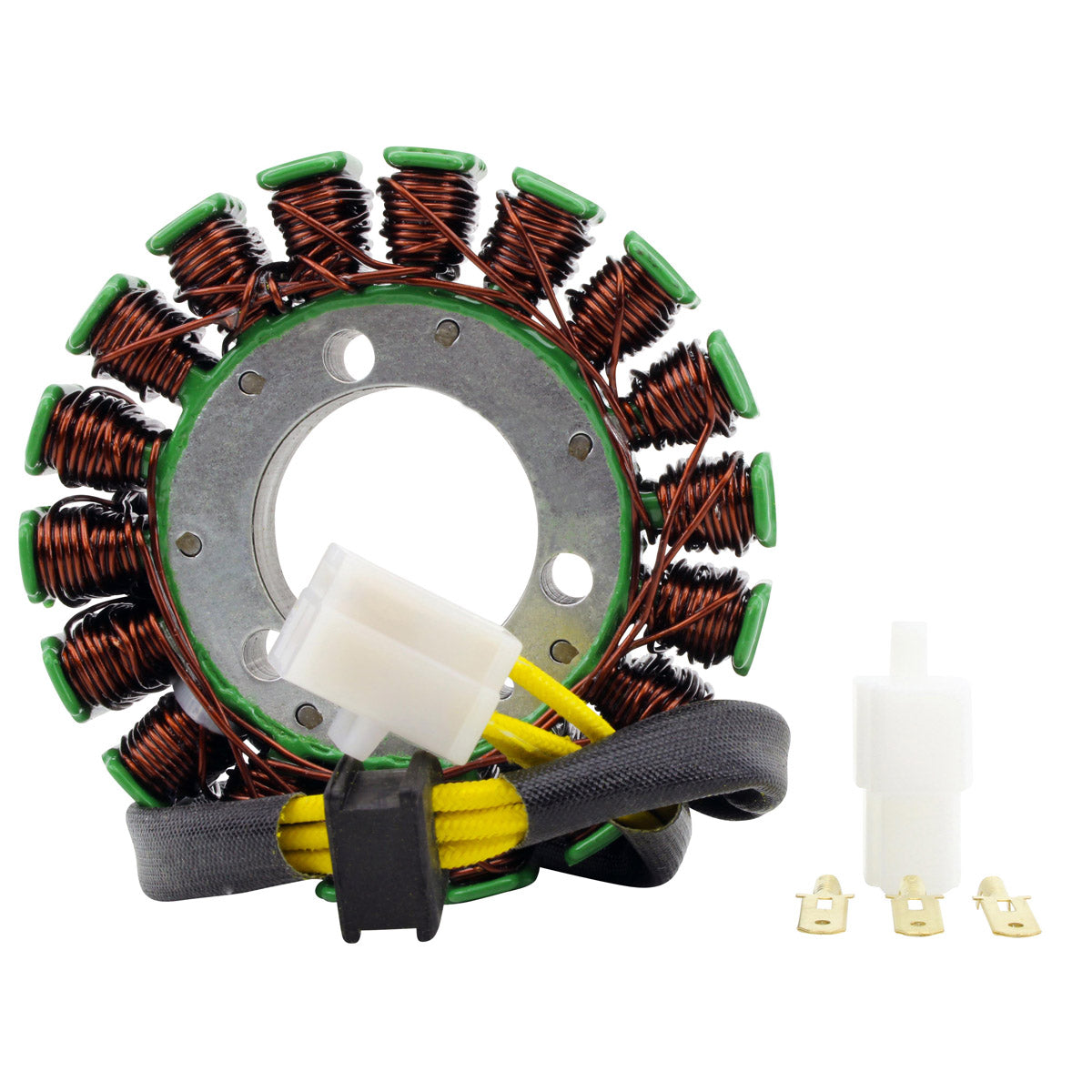

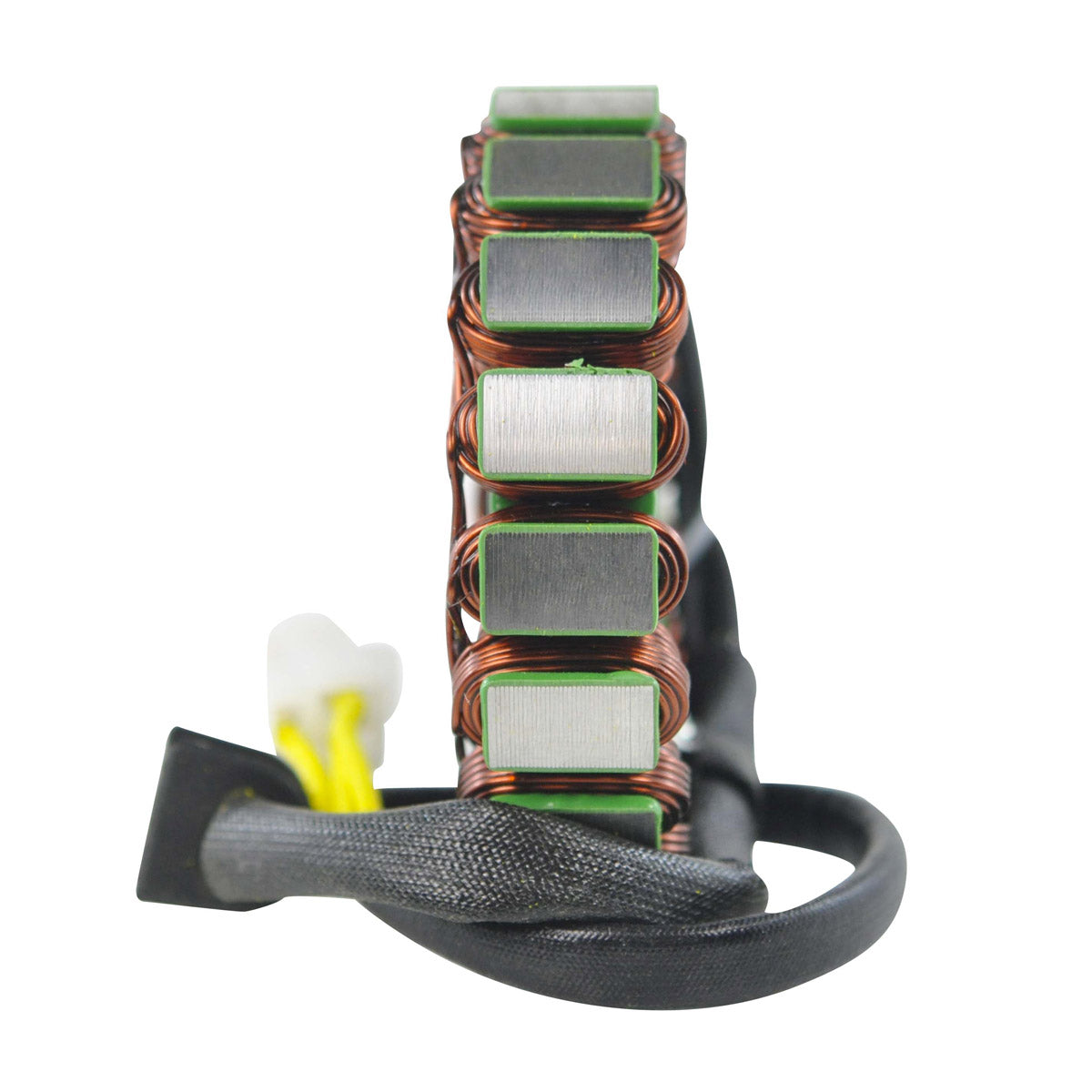

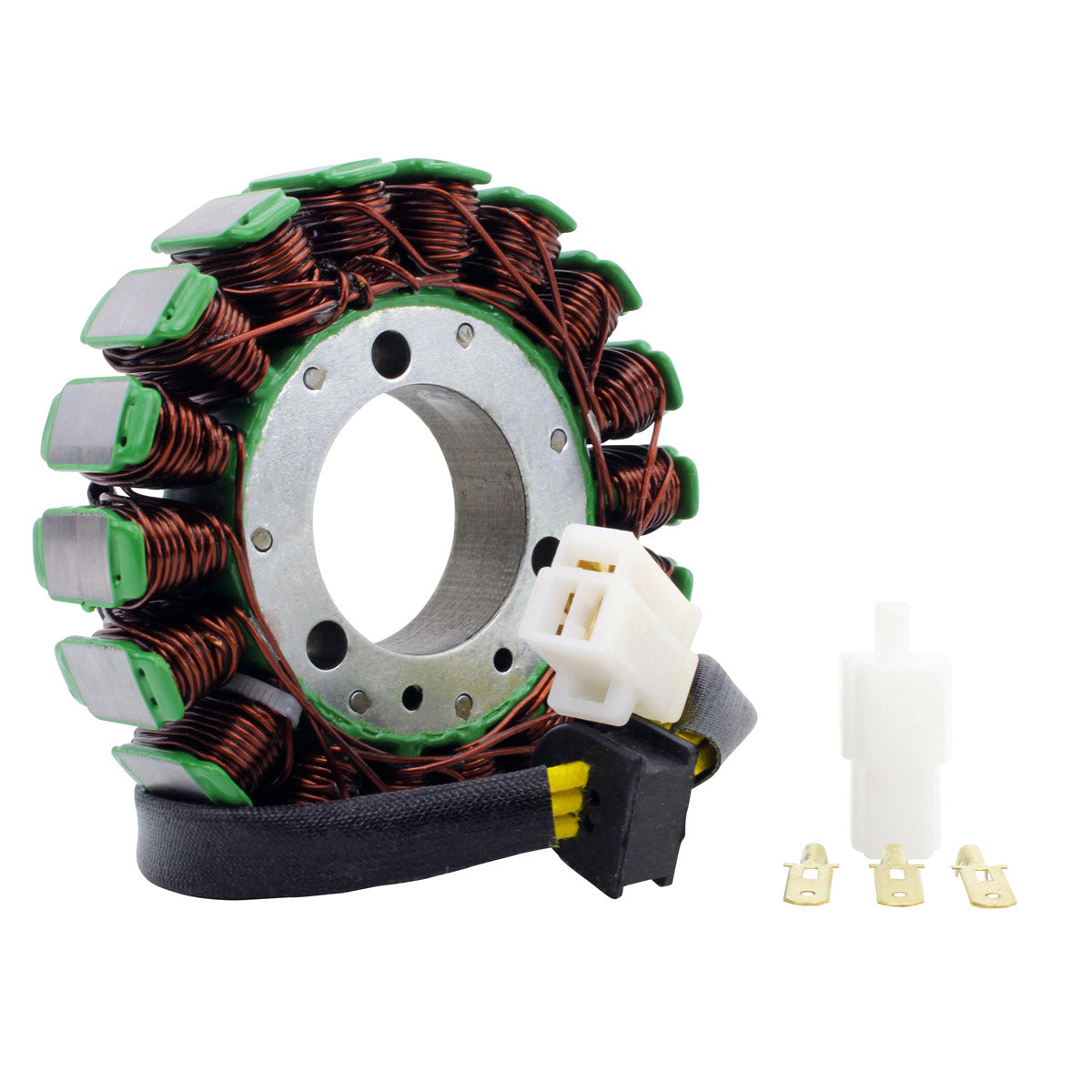

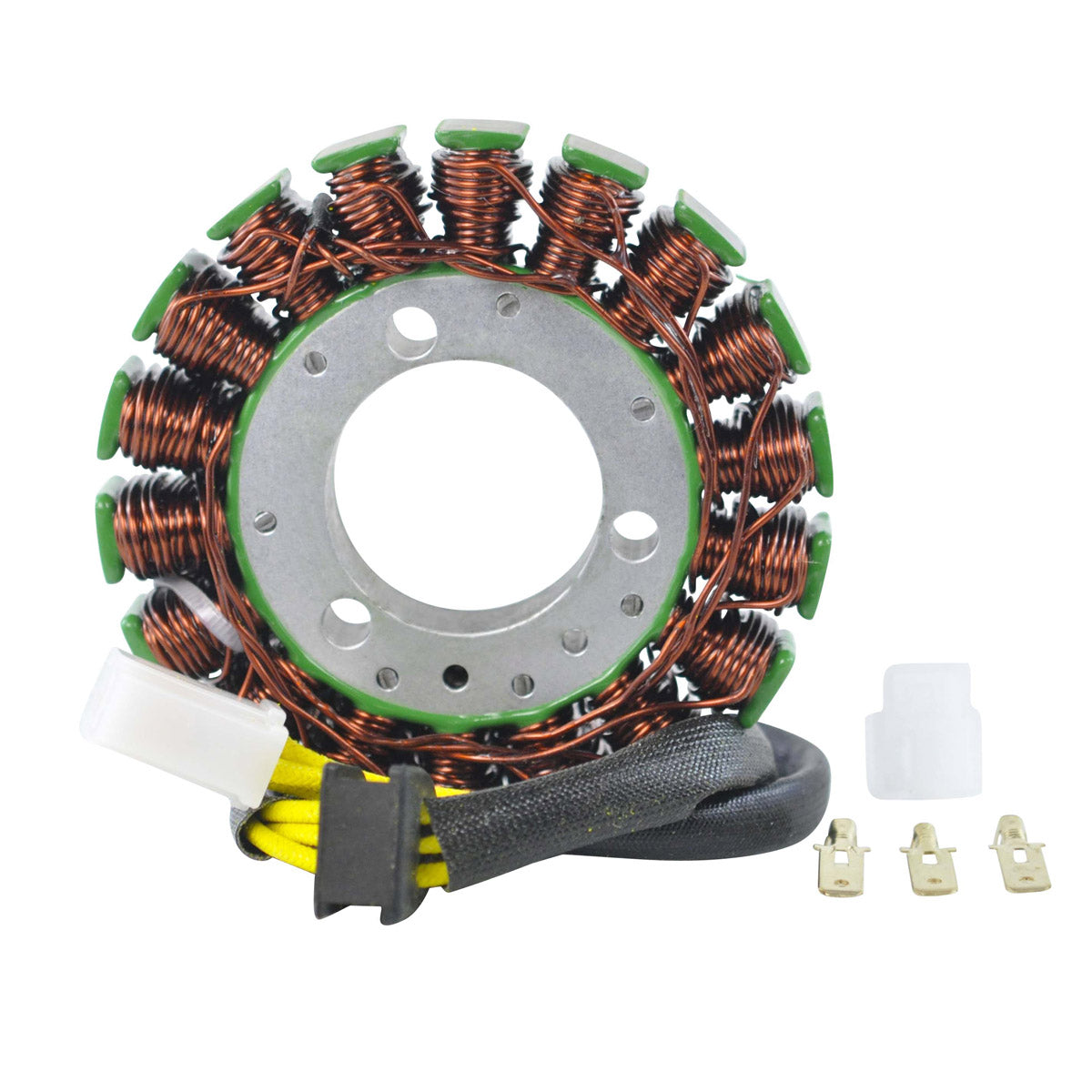

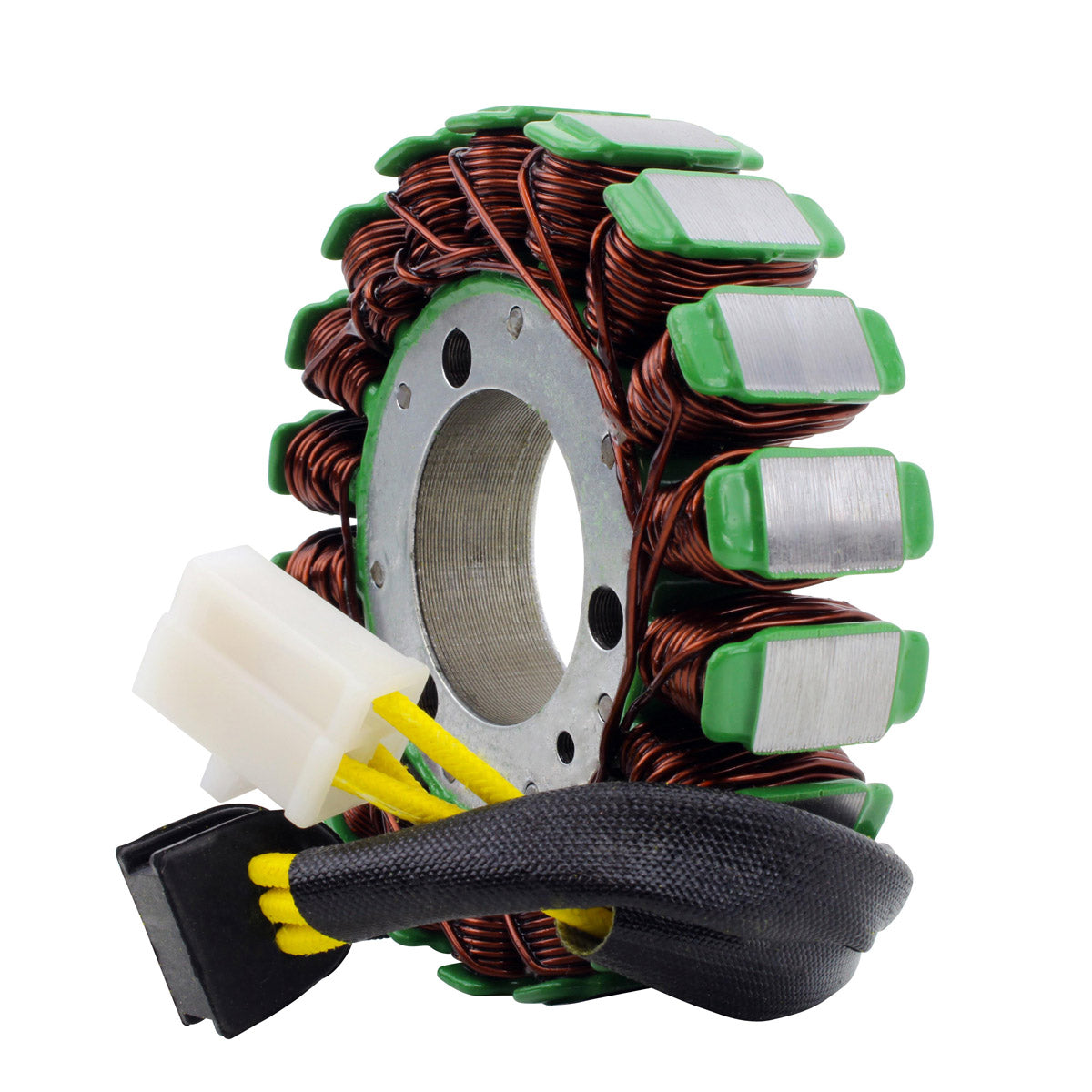

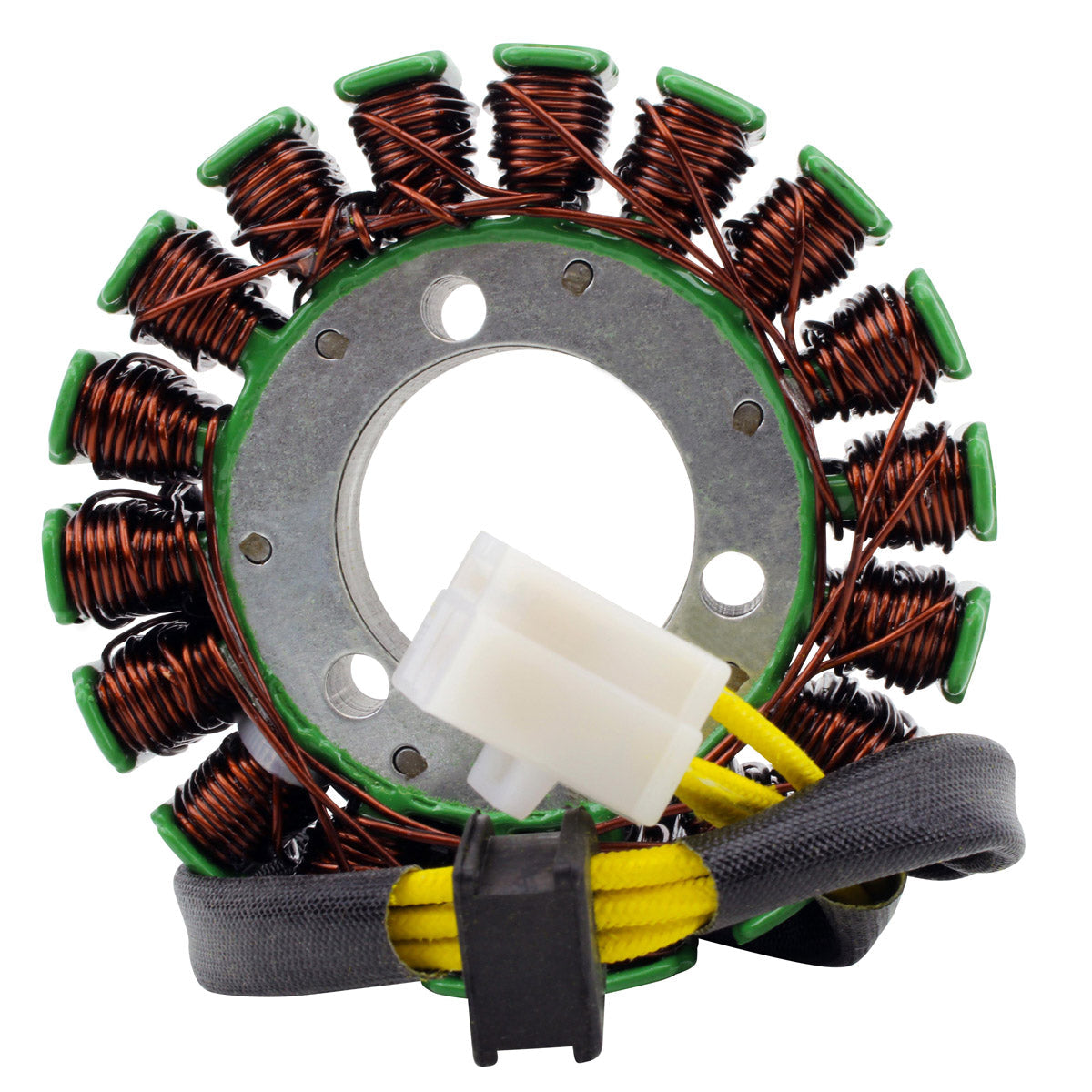

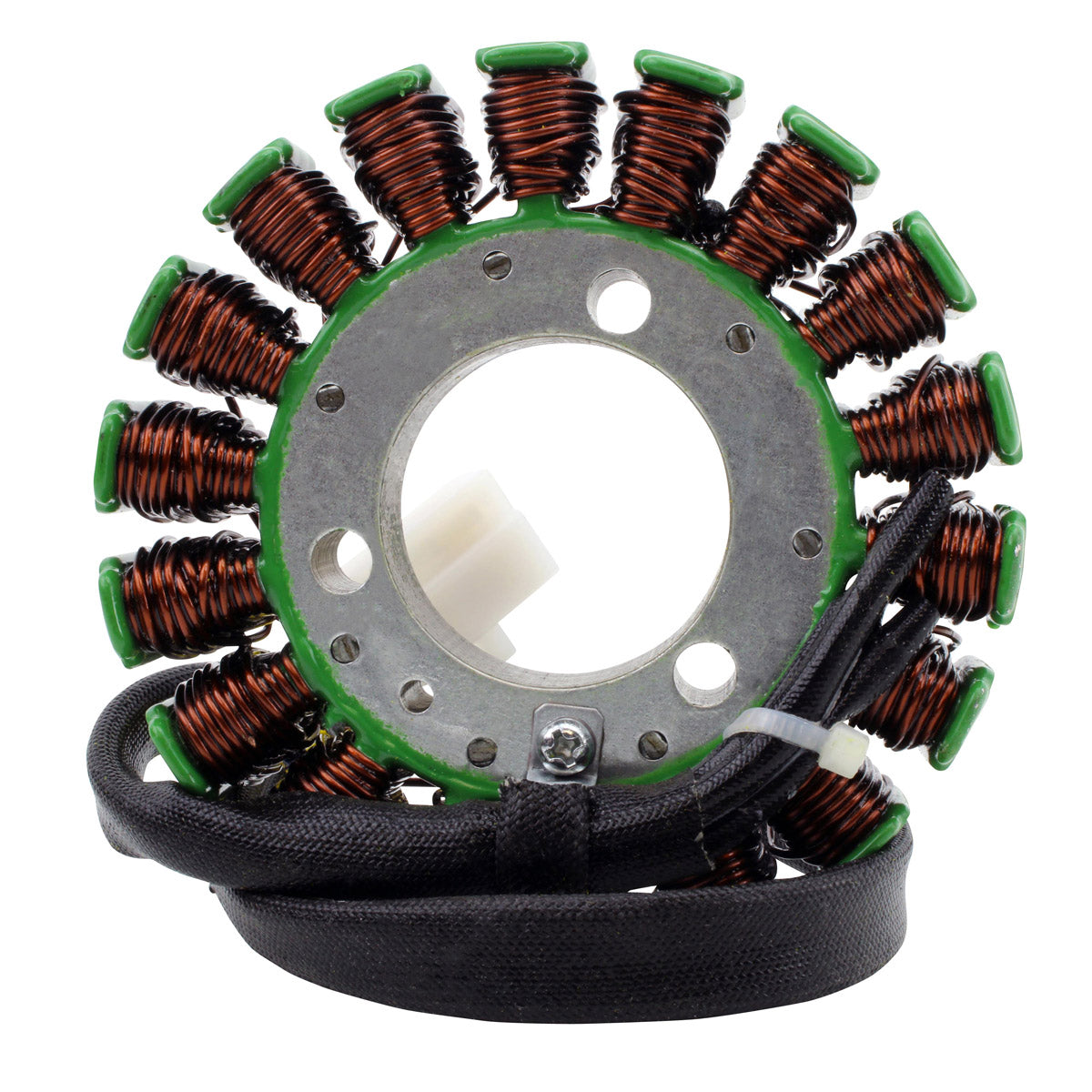

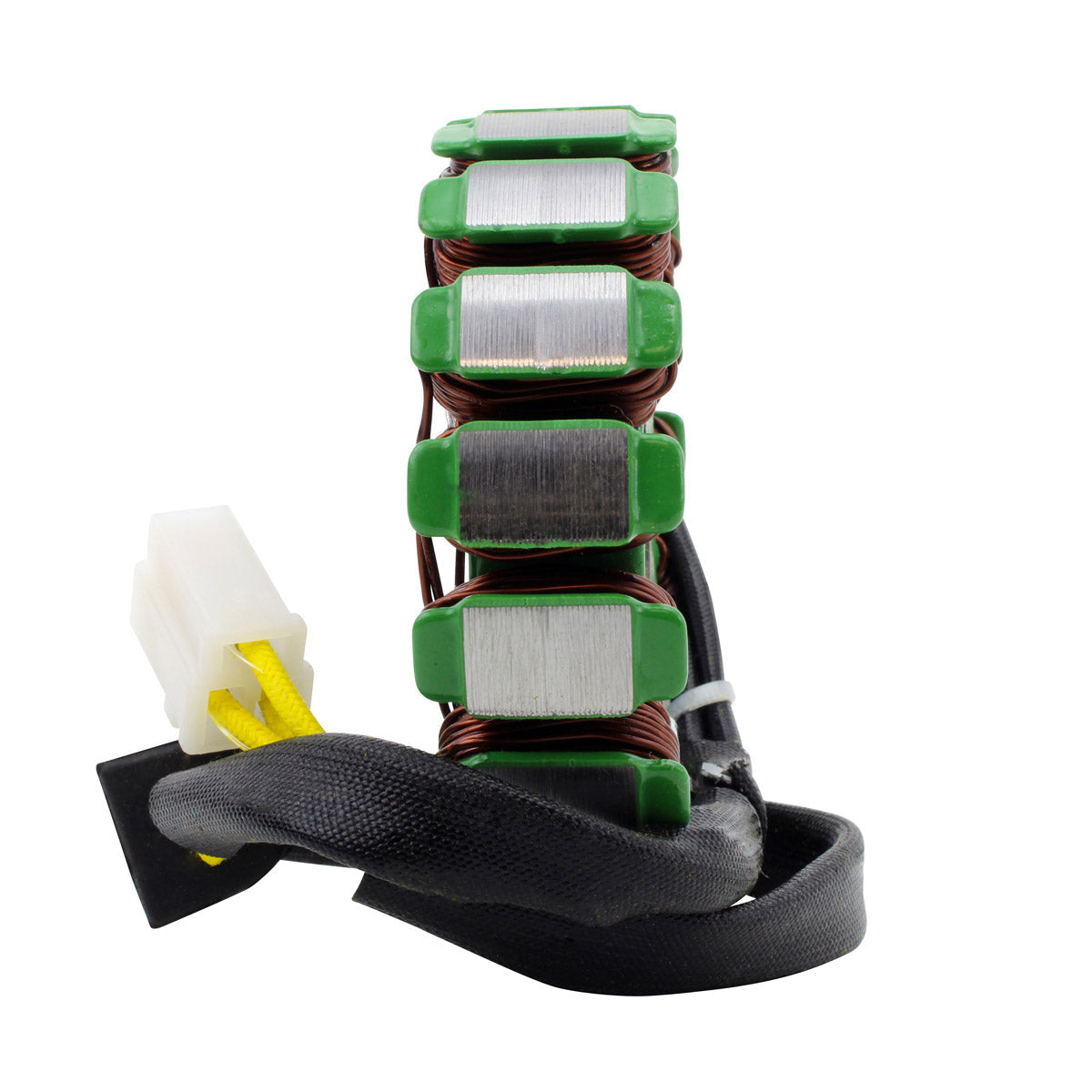

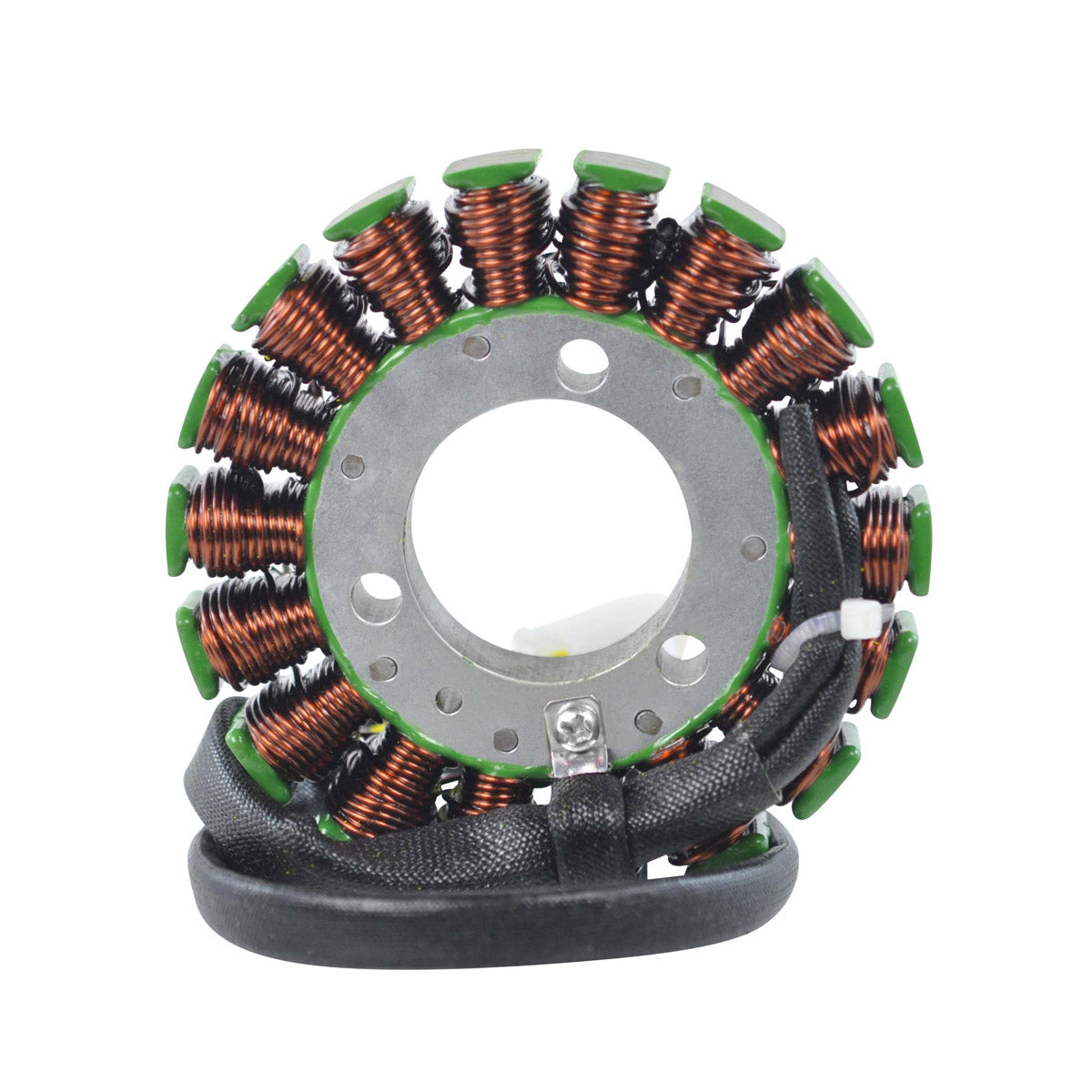

This is a brand new aftermarket stator built as a direct replacement for the original charging unit fitted to the Suzuki GSXR 600 and GSXR 750 between 2000 and 2003. It is a plug-and-play, direct fit part, so the original wiring loom and mounting points are used exactly as they were and no cutting, splicing or modification of the harness is required to put the bike back on the road.
The stator is wound with the highest grade copper and built on the highest grade lamination materials, with insulation rated to withstand 200 degrees Celsius. That temperature rating matters on a GSXR, because the stator sits inside the engine case where it is bathed in hot oil and asked to keep the battery charged during long periods at high revs. A worn or failing stator normally shows itself as a battery that will not hold charge, dimming lights at idle, a bike that runs progressively worse on a long ride, or an alternator output reading that falls well below the resistance figures in the table below. The connector and the rubber grommet are supplied with the unit, and every part is bench tested before it leaves the warehouse.
Key Features
- Brand new aftermarket stator
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

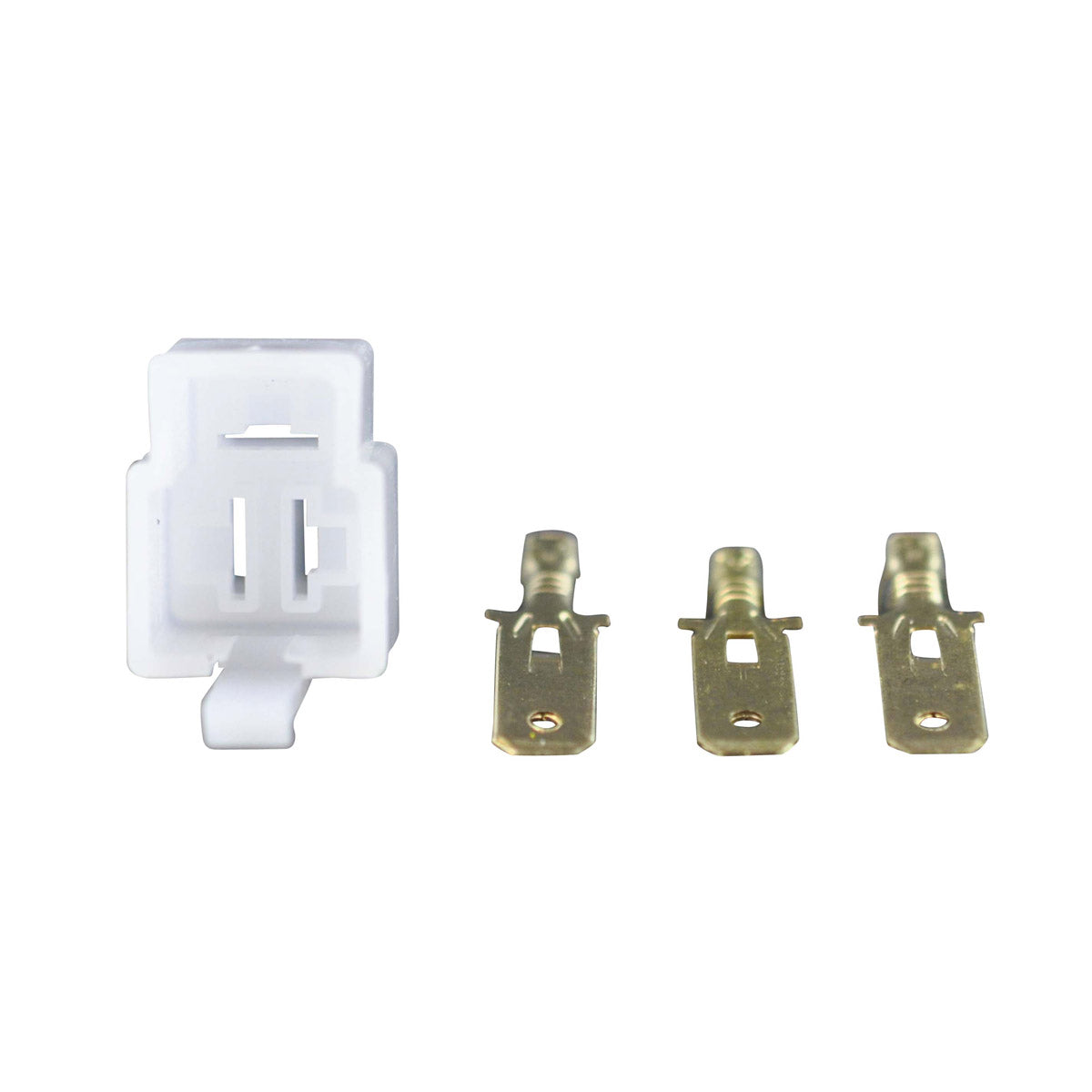

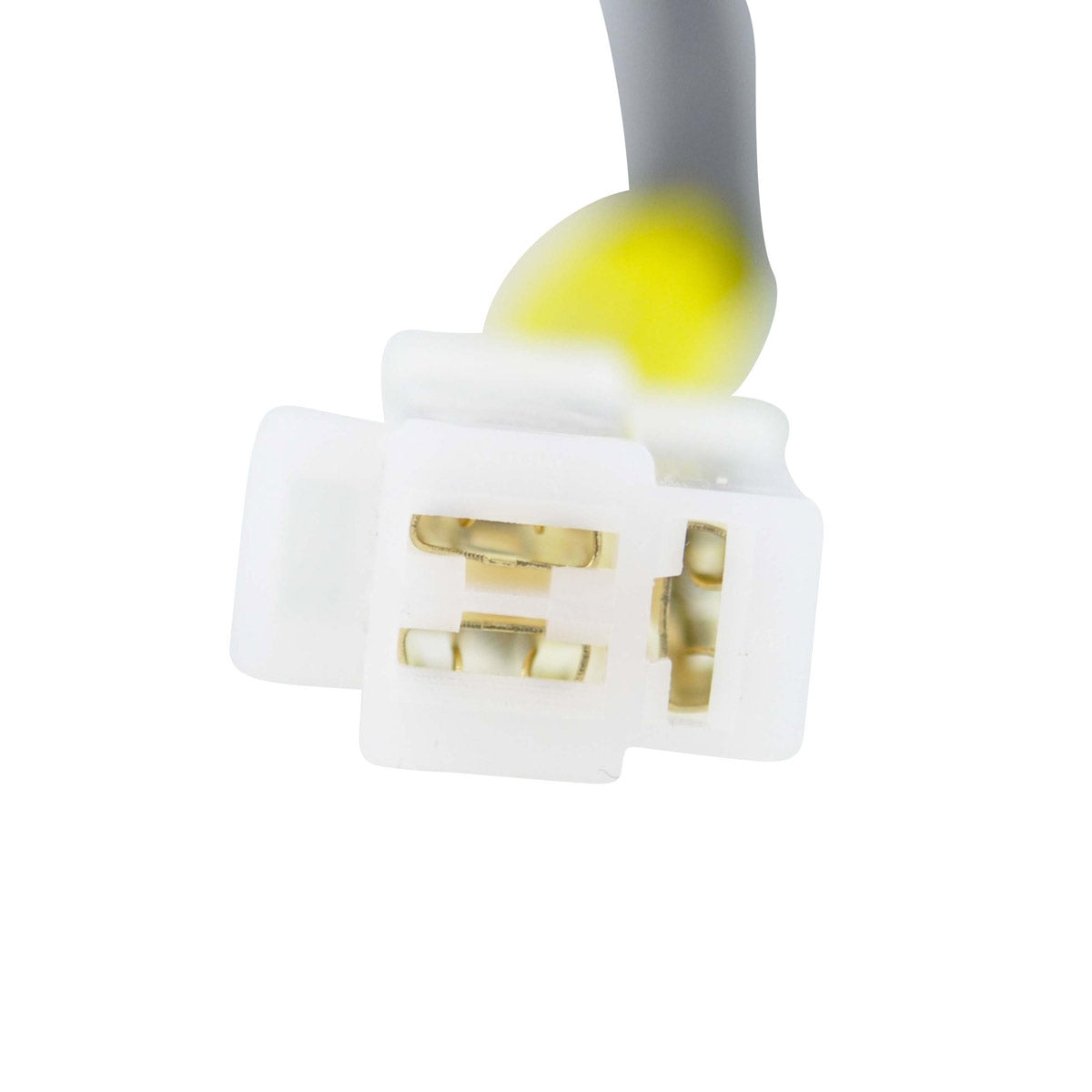

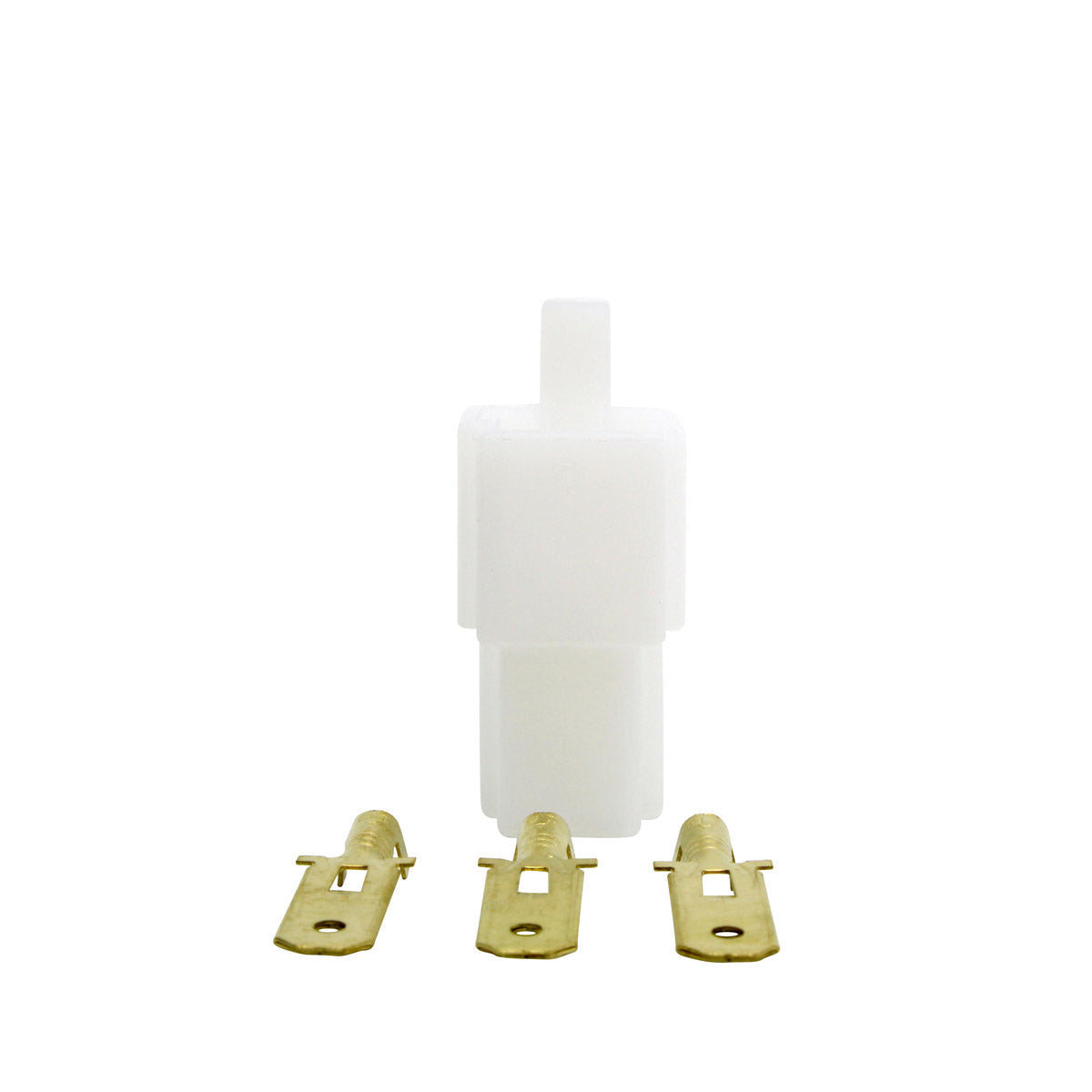

- Connector included
- Rubber grommet included
- All products are tested before shipment
Technical Specs
| Specification |
Detail |
| Interior diameter |
38 mm |
| Exterior diameter |
102 mm |
| Thickness |
18 mm |
| Length of wires, clamp to grommet |
130 mm |
| Length of wires, grommet to connector |
170 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator resistance, Yellow to Yellow |
0.6 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Suzuki GSXR 600 |
2000-2003 |
| Suzuki GSXR 750 |
2000-2003 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31401-35F00 |
Suzuki |
| 31401-35F10 |
Suzuki |
Frequently Asked Questions
Will this fit without modifying my wiring?
Yes. This is a plug-and-play, direct fit replacement for the original unit, so it uses the standard three-pin connector and the factory mounting holes. No cutting or splicing of the loom is needed.
What is included in the box?
The stator itself, the connector and the rubber grommet. Every unit is tested before it is shipped.
How do I know my old stator has failed?
Measure the resistance between the two yellow alternator wires with the connector unplugged. A healthy unit reads around 0.6 ohms, plus or minus 20 per cent. An open circuit, a short to the engine case, or a reading well outside that range points to a failed stator. A battery that will not stay charged and lights that dim badly at idle are the usual symptoms.
Is this the same part for both the GSXR 600 and the GSXR 750?
Yes. Suzuki used the same charging stator across the GSXR 600 and GSXR 750 for the 2000 to 2003 model years, under OEM numbers 31401-35F00 and 31401-35F10. Check the number stamped on your original unit if you are unsure.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
