Starter Generator for Yamaha G16-G22 Golf Carts 1996-2007
Starter Generator for Yamaha G16-G22 Golf Carts 1996-2007
SKU:420-44001
Free shipping over £150. Terms apply
Couldn't load pickup availability

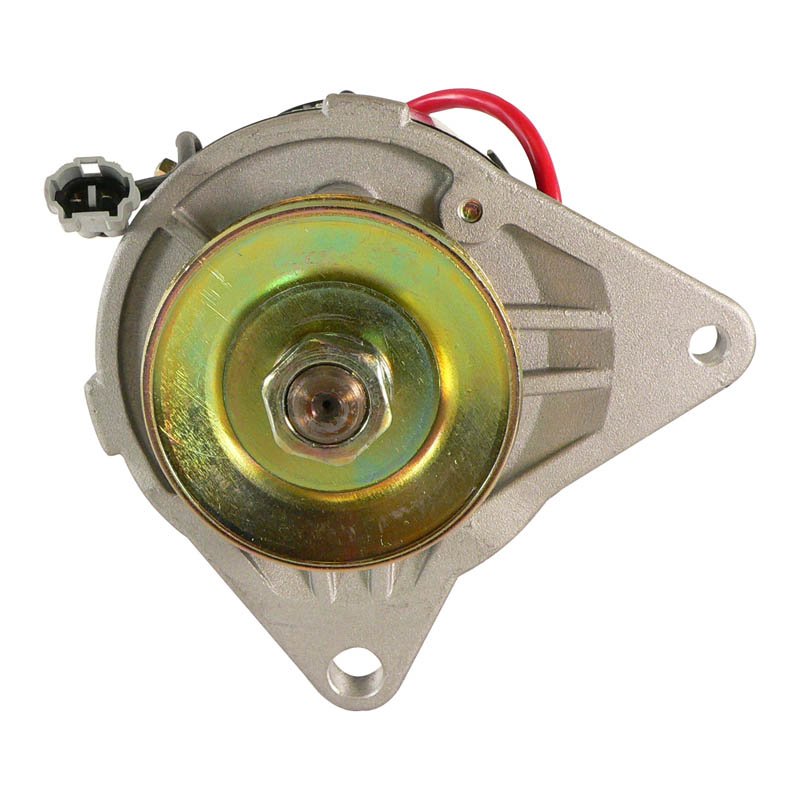

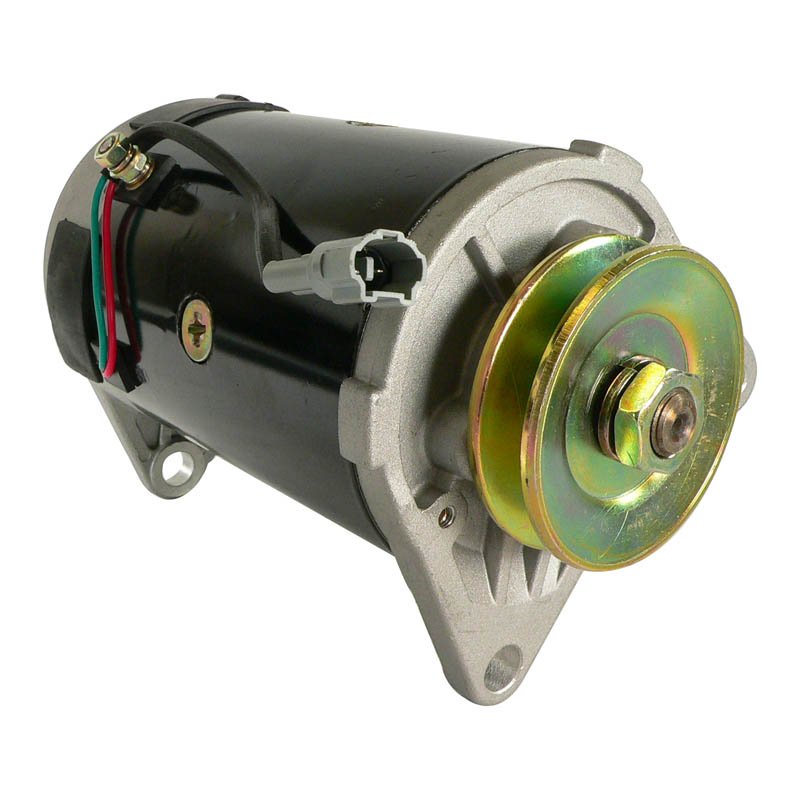

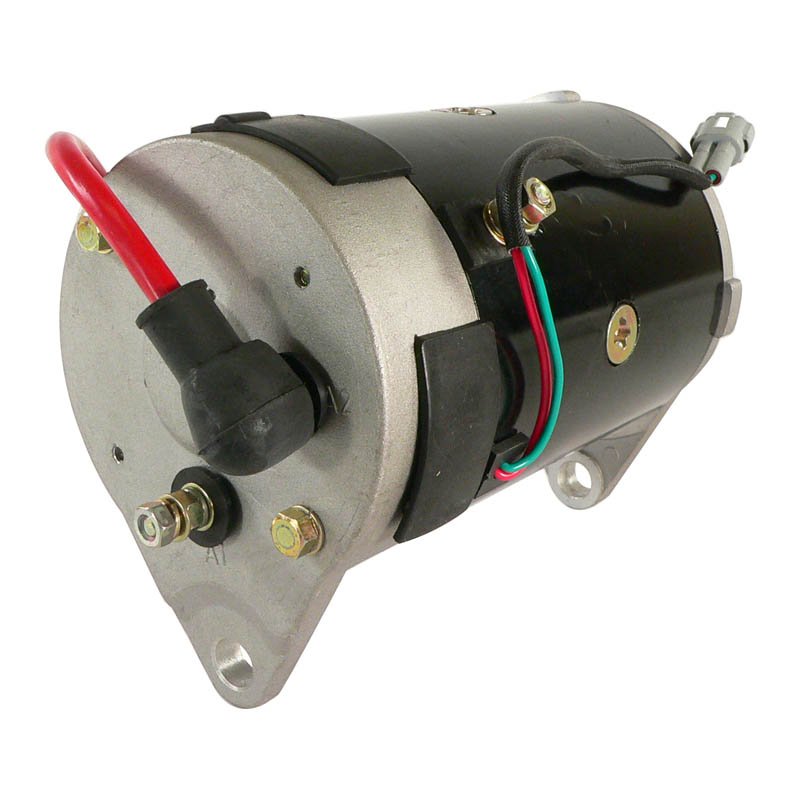

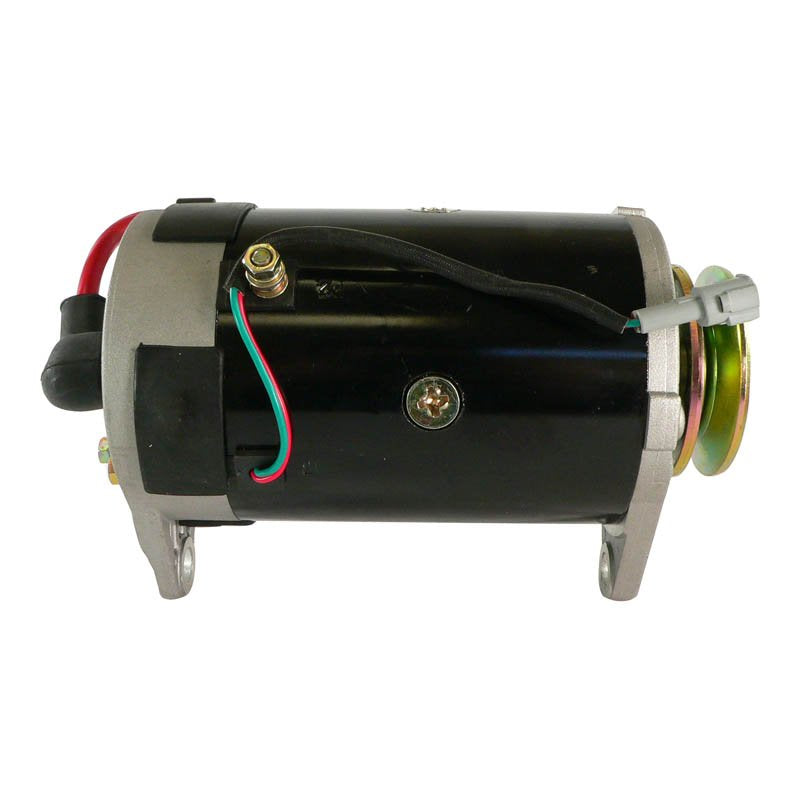

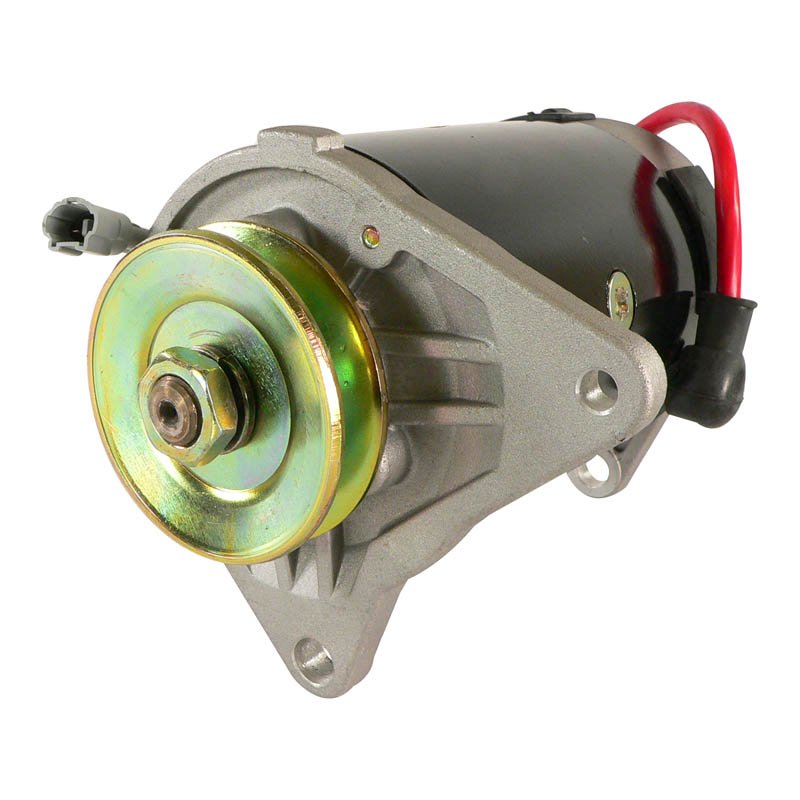

Starter Generator for Yamaha Golf Carts
G16 to G22 and G22A G-Max, 1996-2007
This starter generator is built for Yamaha petrol golf carts from the G16 through to the G22 and G22A G-Max, covering 1996 to 2007. It is manufactured to OEM specifications for a direct, fit-and-function replacement of the original Hitachi-built unit, and every unit is assembled and bench-tested before dispatch so it is ready to install and run.
It is a 12-volt, 15-amp unit with reversible rotation, an EF fan and an external regulator (ER) type, connecting via a 4-stud, 2-wire hook-up matching the original equipment unit. As a combined starter generator it both cranks the engine and charges the battery once running, so a correctly rated replacement like this one keeps both functions working reliably.
Key Features
- 12-volt starter generator
- 15-amp output
- Bi-directional / reversible rotation
- EF fan type
- 4-stud, 2-wire hook-up
- Replaces the original Hitachi unit
- Direct OEM fit and finish, no modification needed
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 15A |
| Rotation | BI (reversible) |
| Fan Type | EF |
| Regulator | ER |
| Connection | 4-Stud, 2-Wire Hook-up |
| Terminals | 5 x M6-1.0 |
| Overall Length | 221.4 mm (8.717 in) |
| Outer Diameter | 113 mm (4.449 in) |
| Shaft Outer Diameter | 17 mm (0.669 in) |
| Shaft Type | Threaded with keyway |
| Weight | 9.15 kg (20.12 lb) |
| Lester Number | 15422 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Yamaha Golf Cart G16 | 1996-1999 |
| Yamaha Golf Cart G16 to G22 | 1996-2003 |
| Yamaha G22A G-Max | 2003-2007 |
| John Deere Gator (starter generator applications) | Not specified - confirm against your OEM part number |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| JN6-H1100-00-00, JN6-H1100-01-00, JN6-H1100-02-00 | Yamaha |
| GSB107-01E, GSB107-04A, GSB107-04C, GSB107-06, GSB107-06E, GSB107-06F, GSB107-06G, SG-803 | Hitachi |
| AM135707 | John Deere |
| 15422 | Lester |
| 420-44001 | J&N / DB Electrical |
Frequently Asked Questions
Will this fit without modification?
Yes, this starter generator is built to OEM dimensions and mounting points for a direct fit with no modification required.
What's included?
One complete starter generator unit, ready to install.
How do I know my old unit has failed?
Common signs include a discharged or slowly charging battery, difficulty starting, or unusual noise from the unit.
What does the 4-stud, 2-wire hook-up mean?
It describes the electrical connection layout on the unit - four mounting/connection studs plus a 2-wire hook-up, matching the original Yamaha golf cart wiring.
Is this a starter, a generator, or both?
It is a combined starter generator, a single unit that cranks the engine to start it and then switches to charging the battery once the engine is running, as used on this Yamaha golf cart range.
How do I check it is right for my cart?
Compare the number on your original unit with the Yamaha JN6-H1100 and Hitachi GSB107 references listed above before ordering.
