Generator Stator for Can-Am Spyder Roadster 990 - RM01379
Spyder GS, Spyder RS and Spyder RS-S Roadster 990, 2008-2013

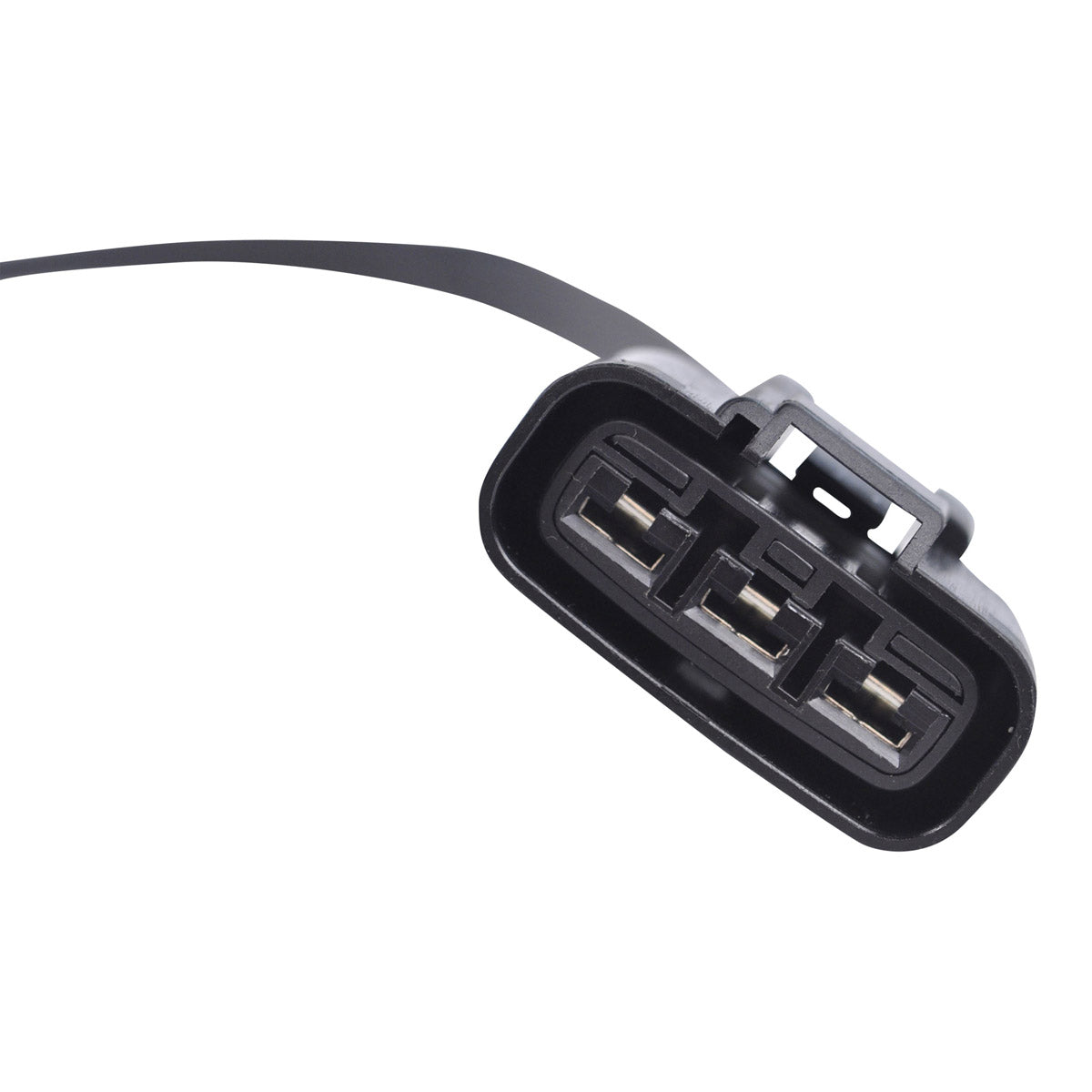

This is a brand new generator stator for the Can-Am Spyder Roadster 990, supplied as a direct replacement for the original charging system stator. It is plug-and-play and direct fit: the 115 mm outer diameter, the 140 mm lead from the stator to the grommet and the 780 mm run from the grommet to a single three-pin plug all follow the factory part, so the unit goes back into the standard routing with no drilling, cutting or harness modification.

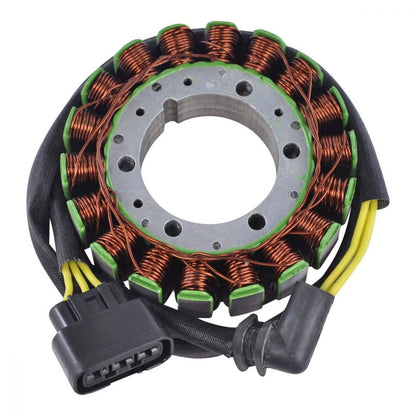

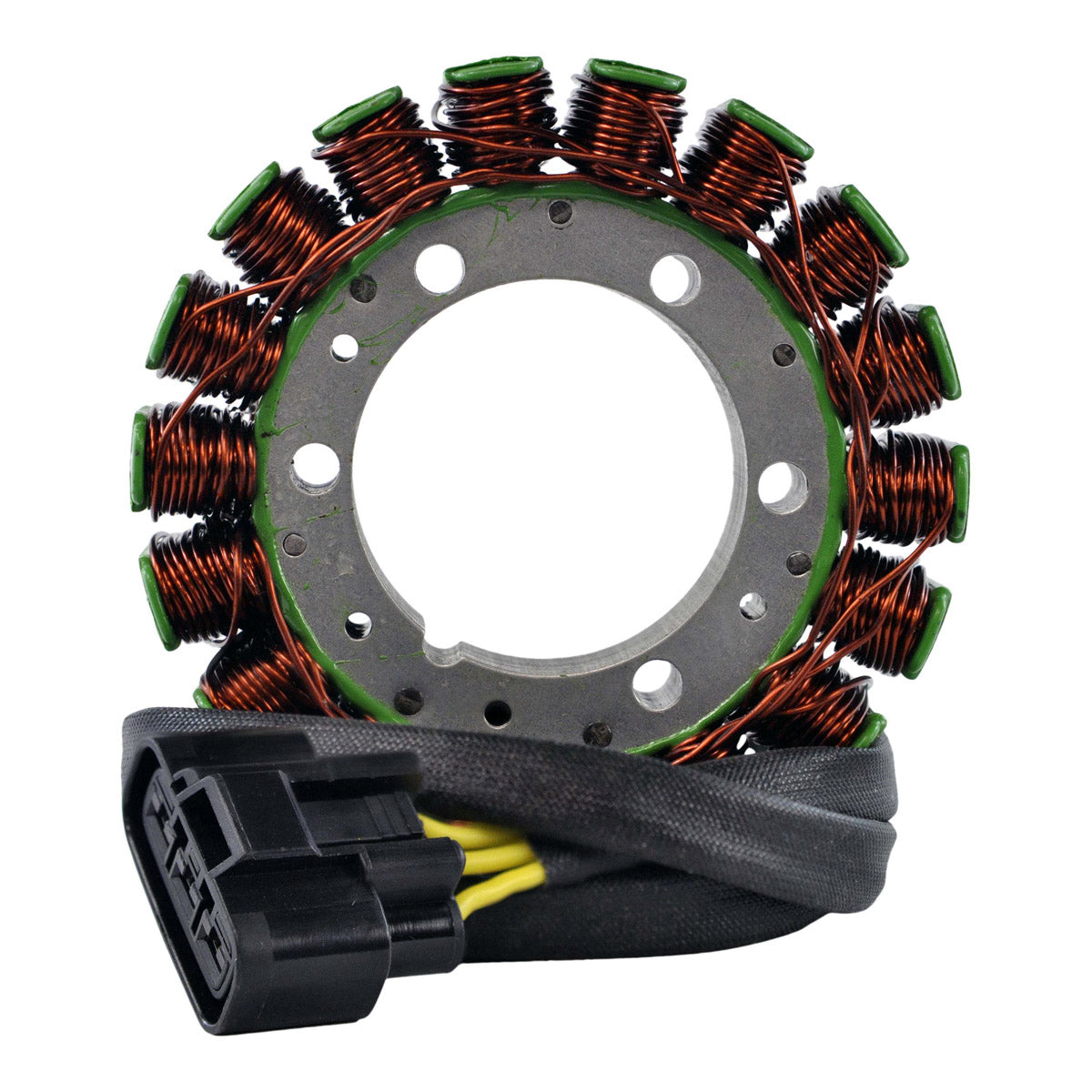

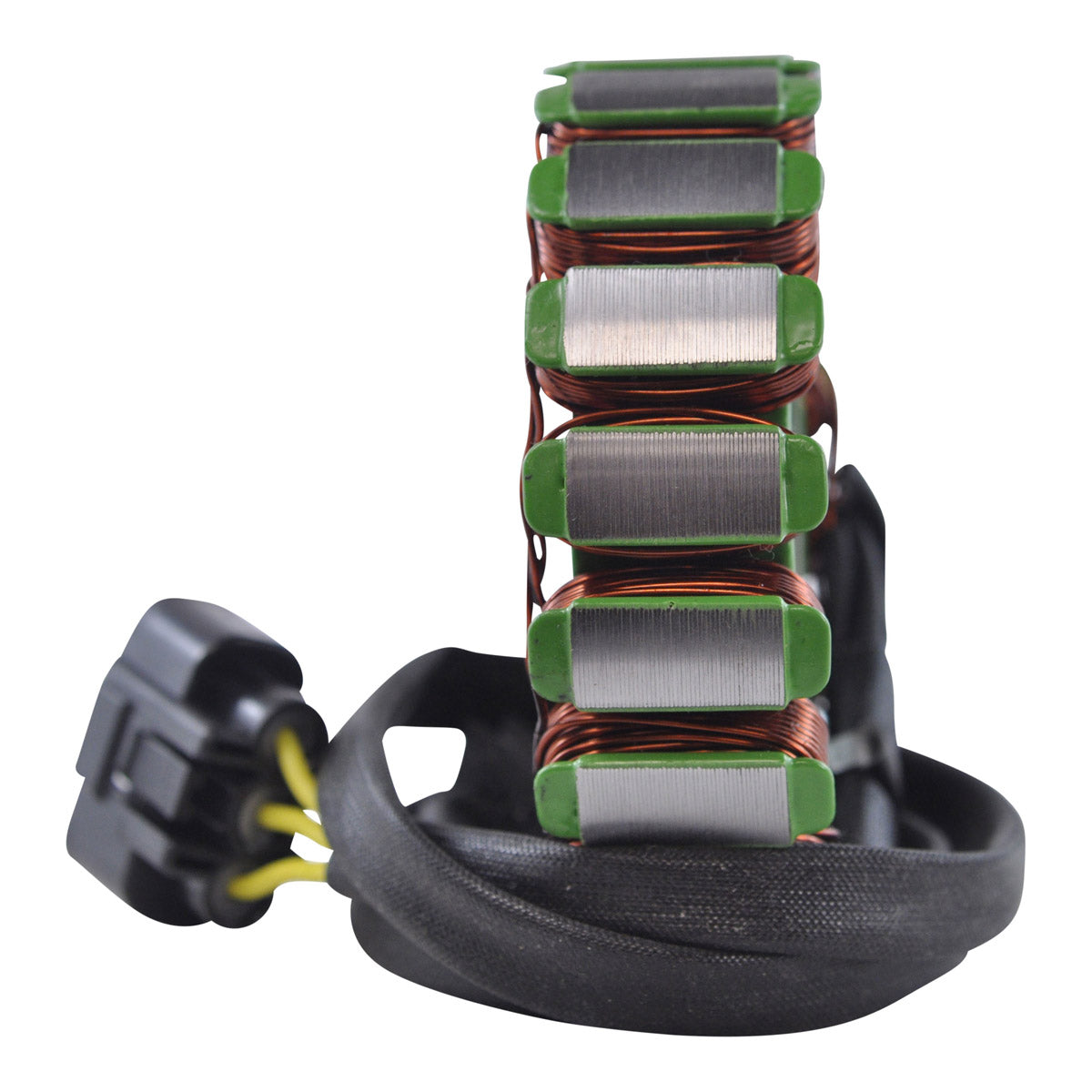

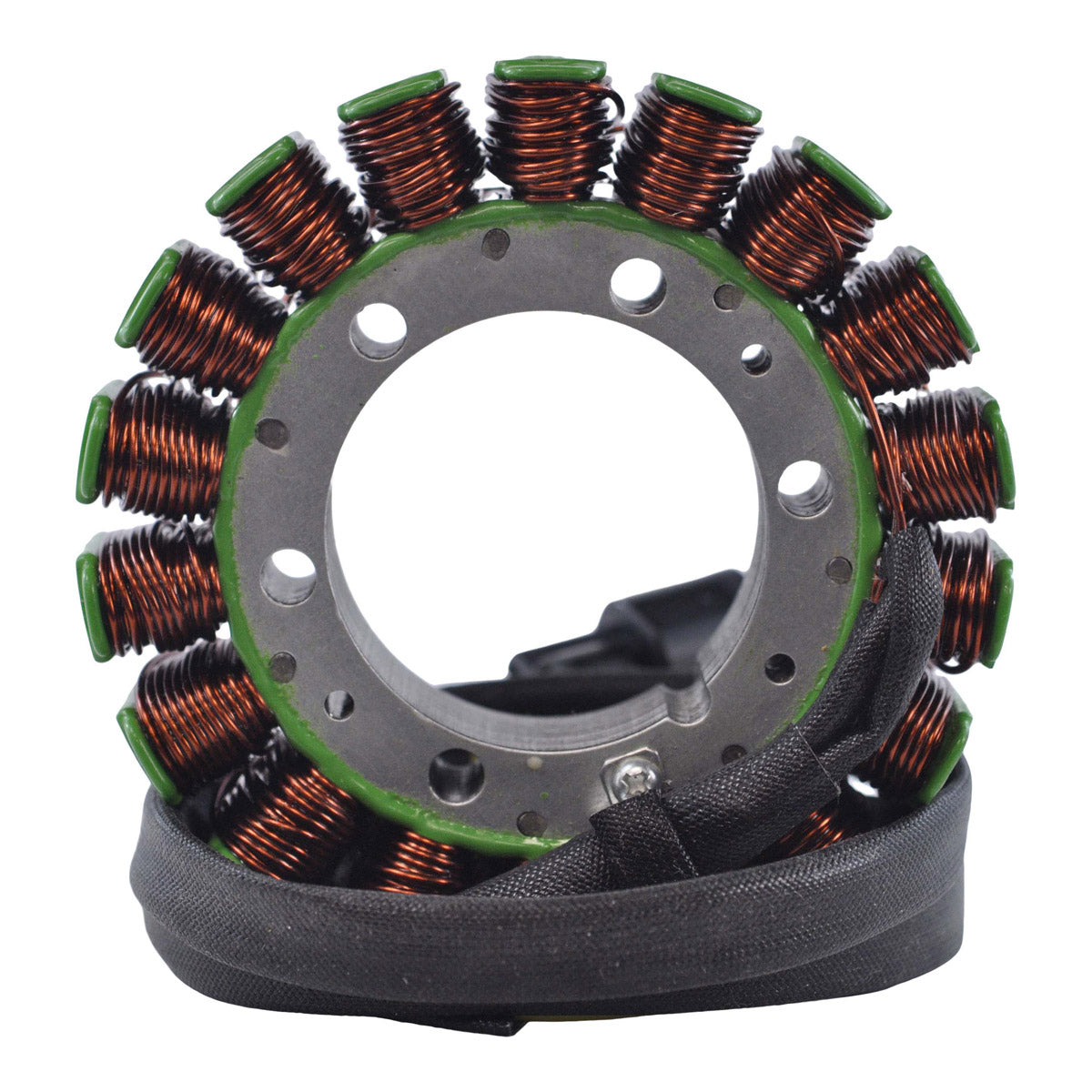

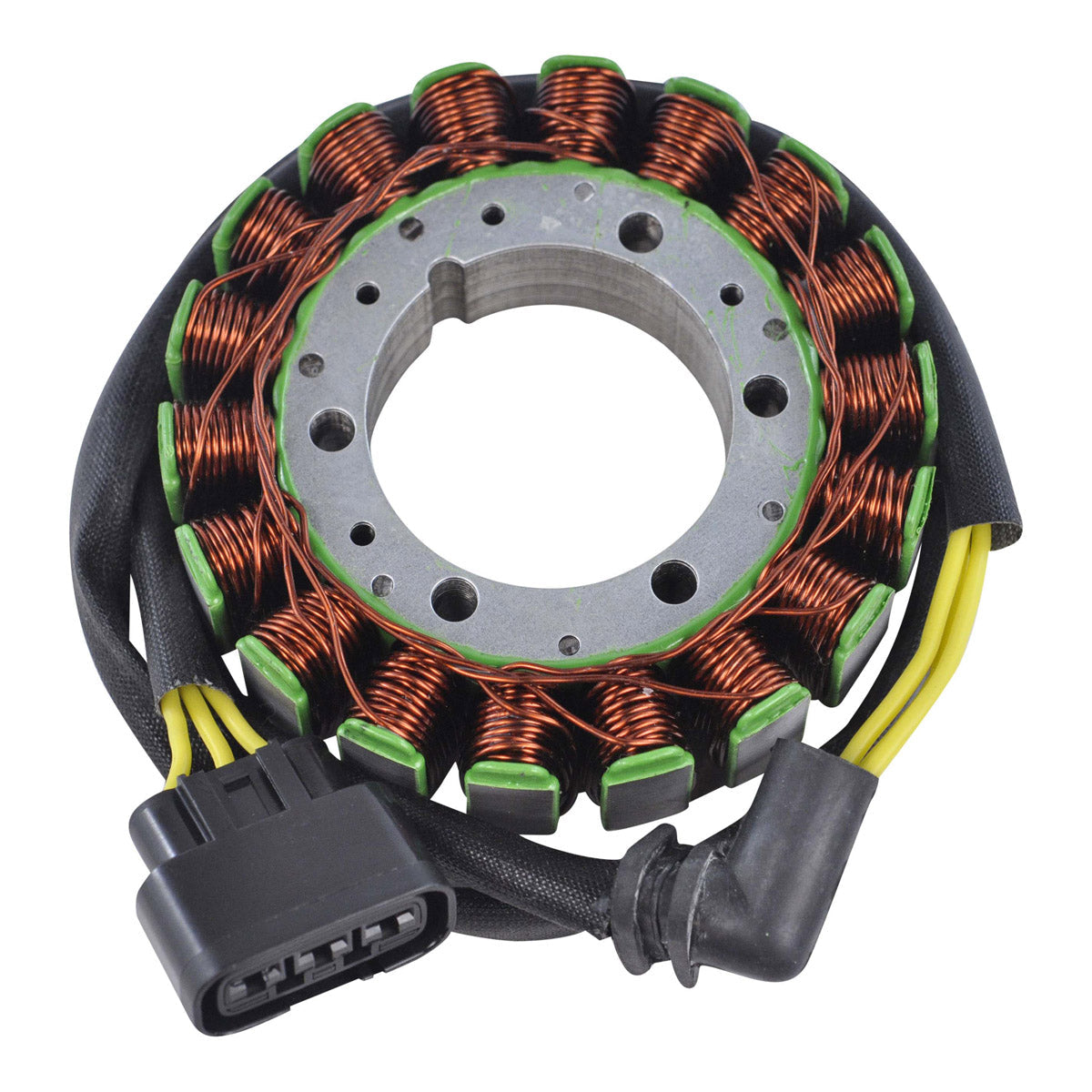

A Spyder asks a great deal of its charging circuit - three-wheel machines carry more lighting, more electronics and, in many cases, more accessories than a comparable motorcycle - so the winding matters. This stator uses the highest grade of lamination material and the highest grade of copper winding, resistant to 200 degrees Celsius, with the connector and rubber grommet supplied so the loom can be sealed properly on reassembly. Every unit is tested before it is shipped, and the product photographs show the actual part, so it can be compared directly against the original before fitting.
Key Features
- Brand new generator stator
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 54 mm |
| Exterior diameter | 115 mm |
| Width | 25 mm |
| Harness length, stator to grommet | 140 mm |
| Harness length, grommet to plug | 780 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of terminals | 3 |
| Alternator resistance, yellow to yellow | 0.5 ohms +/- 20% |
| Copper winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Can-Am Spyder GS Roadster 990 | 2008-2013 |
| Can-Am Spyder RS Roadster 990 | 2008-2013 |
| Can-Am Spyder RS-S Roadster 990 | 2008-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 420685502 | Can-Am |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a plug-and-play, direct fit replacement for the original unit. The mounting dimensions, the lead lengths and the single three-pin connector match the factory part, so no drilling, cutting or rewiring is required.
What is included?
The stator, the connector and the rubber grommet - everything needed to plug the unit back into the standard loom and seal the harness where it leaves the engine case.
How can I tell that the old stator has failed?
The common signs are a battery that will not hold charge, lights that dim or brighten oddly with engine speed, and a machine that runs only until the battery is exhausted. Test it with a meter: this stator should read about 0.5 ohms between each pair of yellow output wires, and any yellow wire to ground should read open circuit. A shorted or open winding, or continuity to ground, confirms the failure.
How do I make sure this is the right stator for my Spyder?
Check the OEM number on your original unit against 420685502, and compare the physical part in the photographs with what is on your machine - 115 mm across the outside, 54 mm bore, 25 mm wide, three wires to one plug. If anything looks different, ask us before ordering.
