Regulator Rectifier for Honda CBR 1000 RR Hurricane 2008-2009
Regulator Rectifier for Honda CBR 1000 RR Hurricane 2008-2009
SKU:RM01568
Free shipping over £150. Terms apply
Couldn't load pickup availability

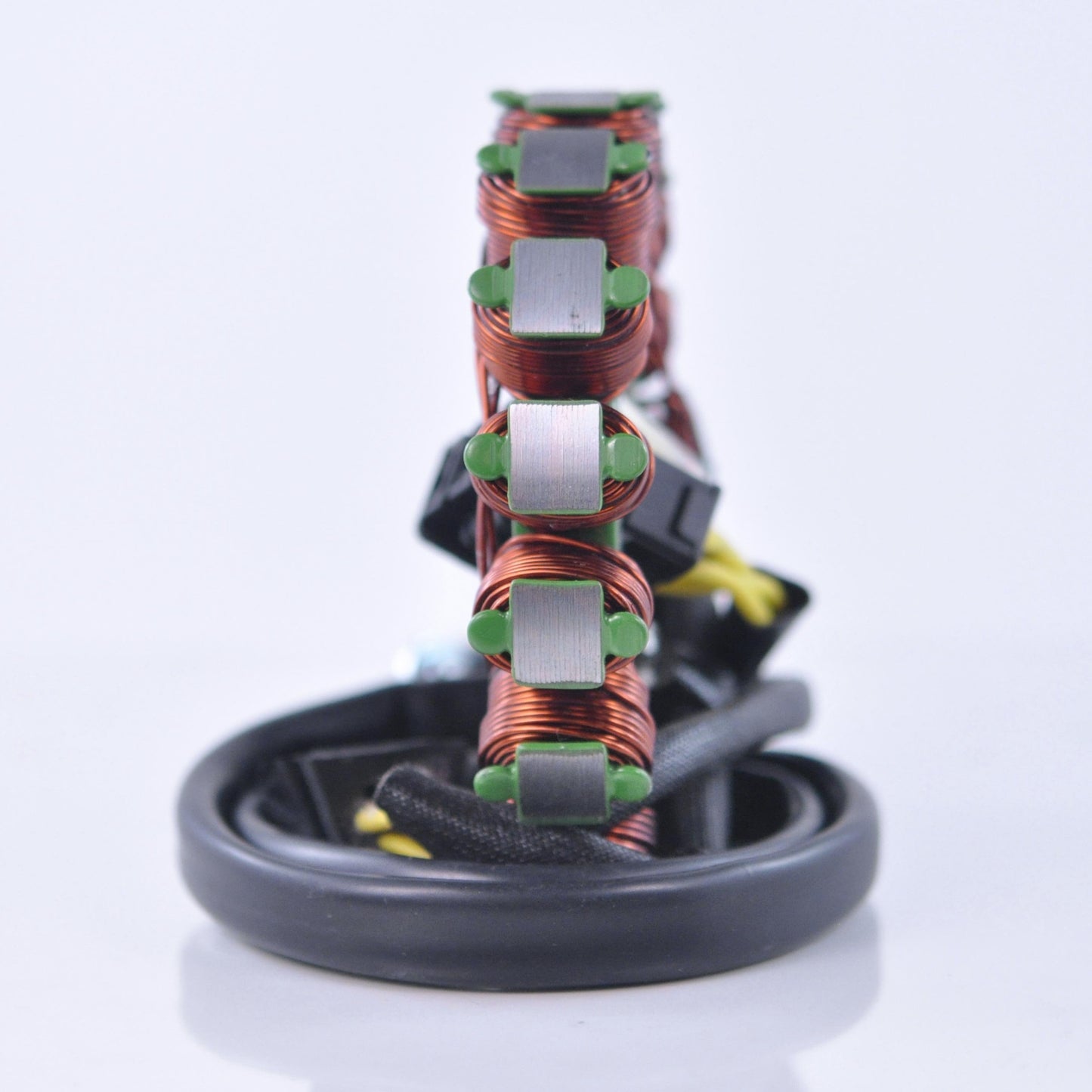

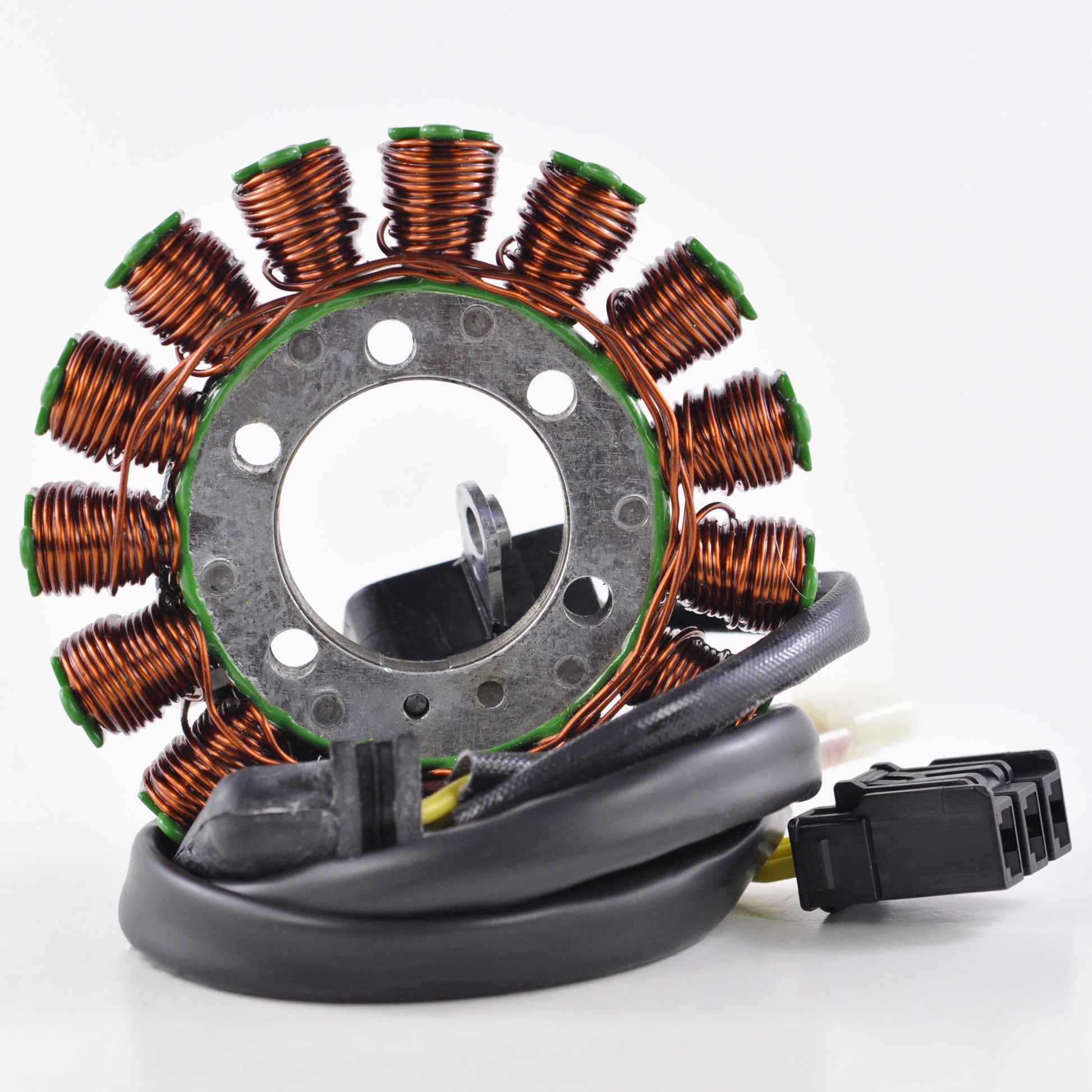

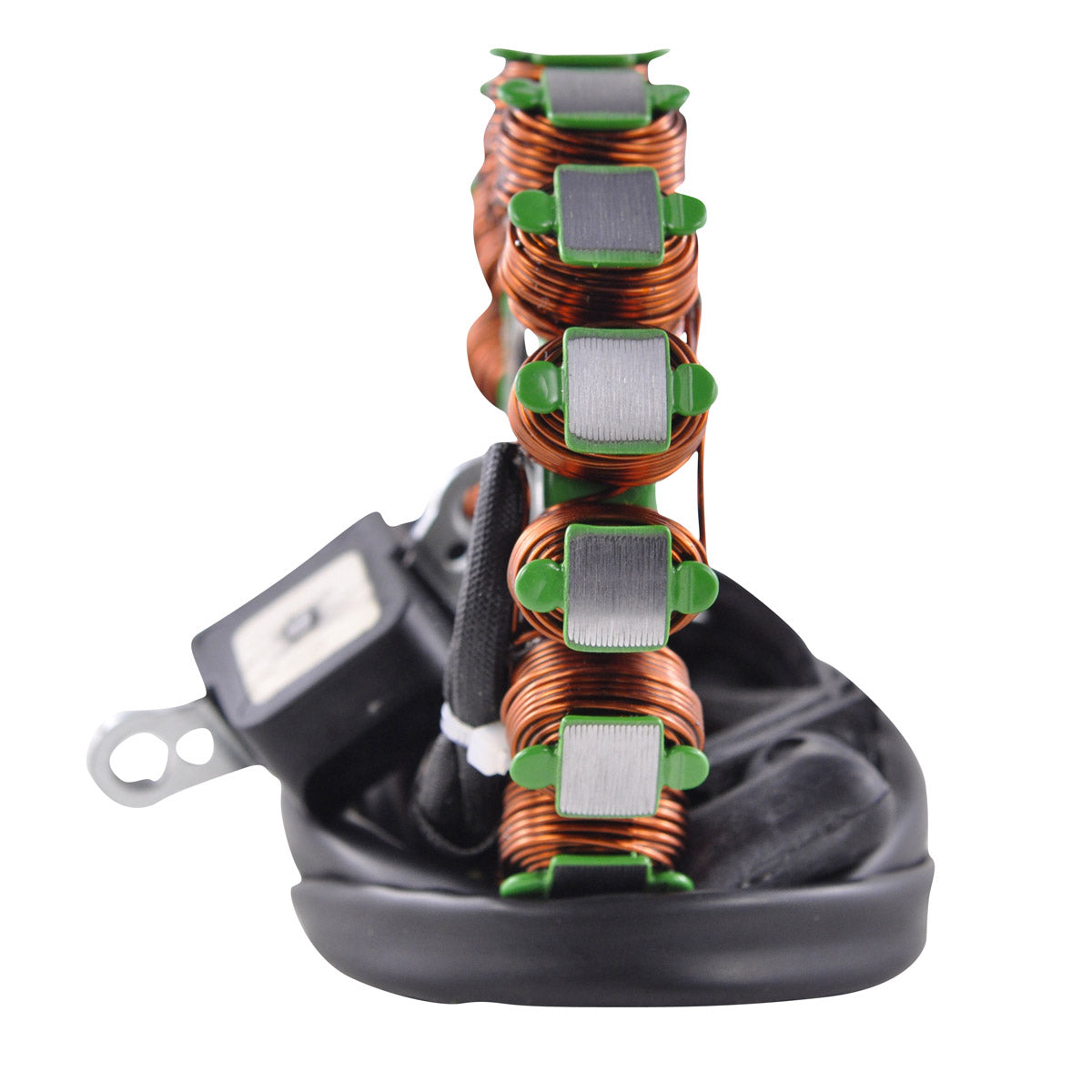

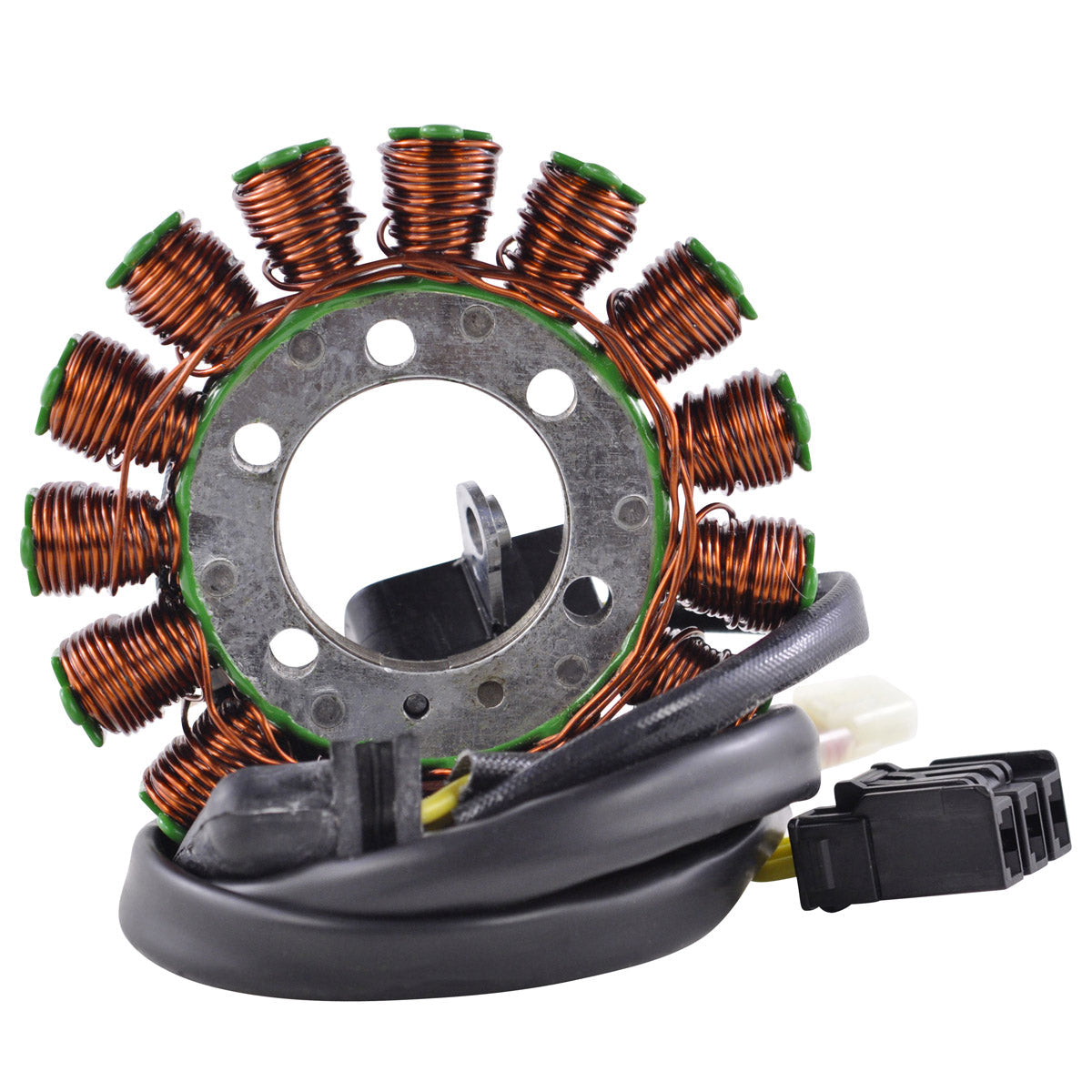

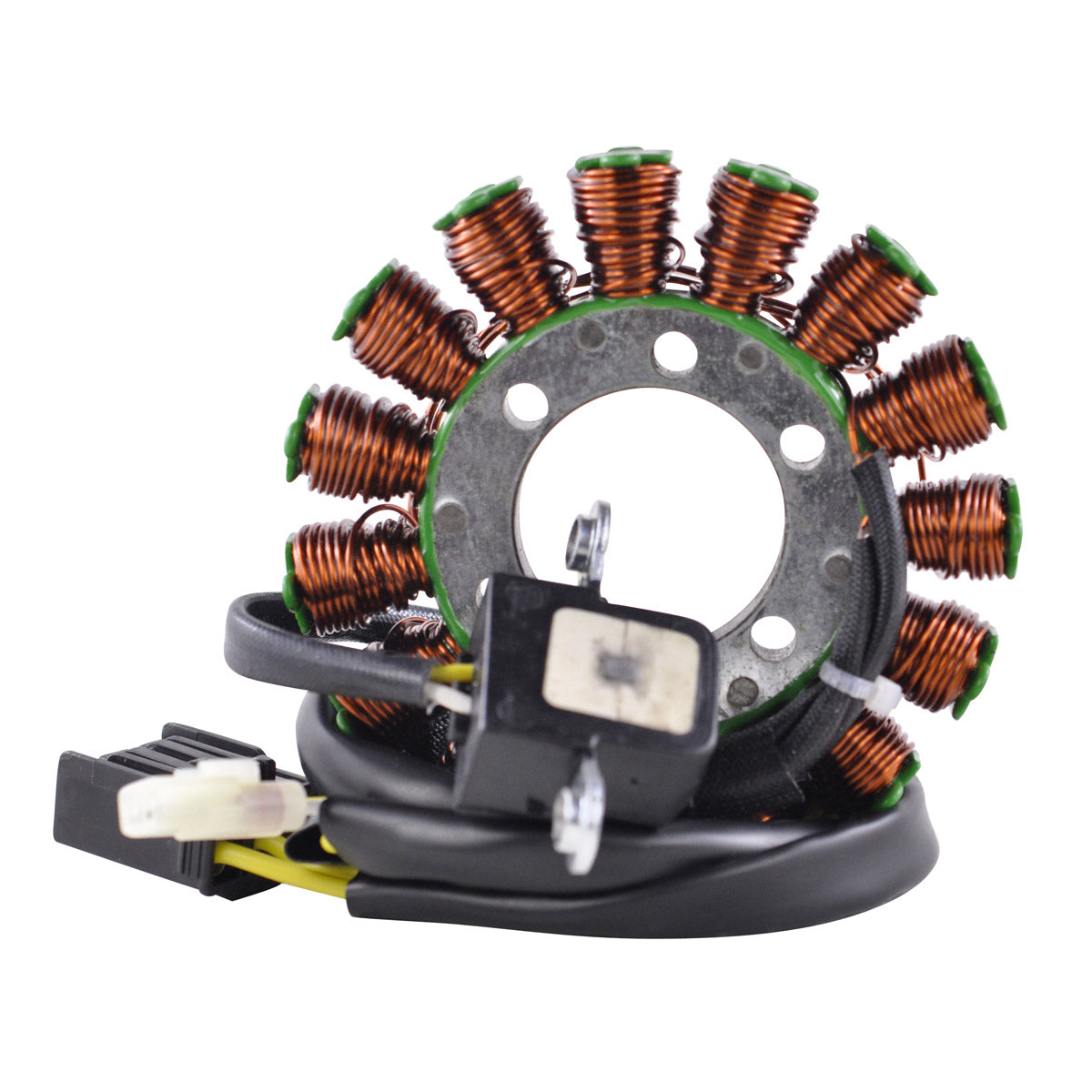

Generator Stator RM01568 for Honda CBR 1000 RR Hurricane

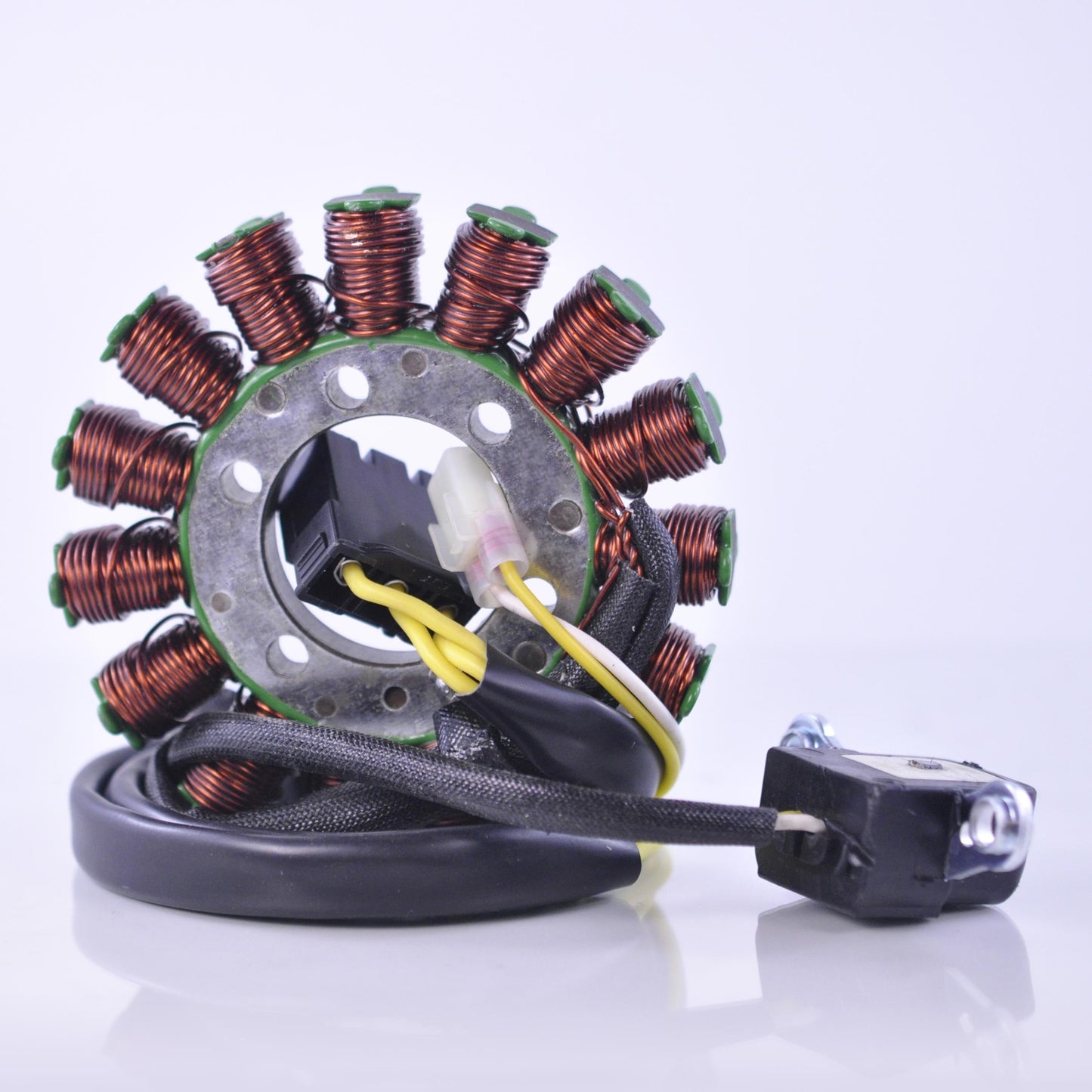

Honda CBR 1000 RR Hurricane 2008-2009 - pickup pulsar coil, connector and grommet included
The RM01568 is a brand new aftermarket generator stator built as a direct replacement for the original unit fitted to the Honda CBR 1000 RR Hurricane from 2008 to 2009. It is a plug-and-play, direct fit part that uses the original mounting points and connectors, so installation is straightforward for anyone comfortable removing the stator cover.
The stator is the part of the charging system that generates the alternating current the regulator rectifier converts into charging voltage for the battery. This unit is wound with the highest grade copper windings, rated to resist 200 degrees Celsius, on the highest grade lamination materials, which is exactly where original stators tend to fail after years of heat cycling. The pick up pulsar coil, the connector and the rubber grommet are all supplied with the stator, and every product shipped is tested.
Key Features
- Brand new aftermarket stator
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick up pulsar coil included

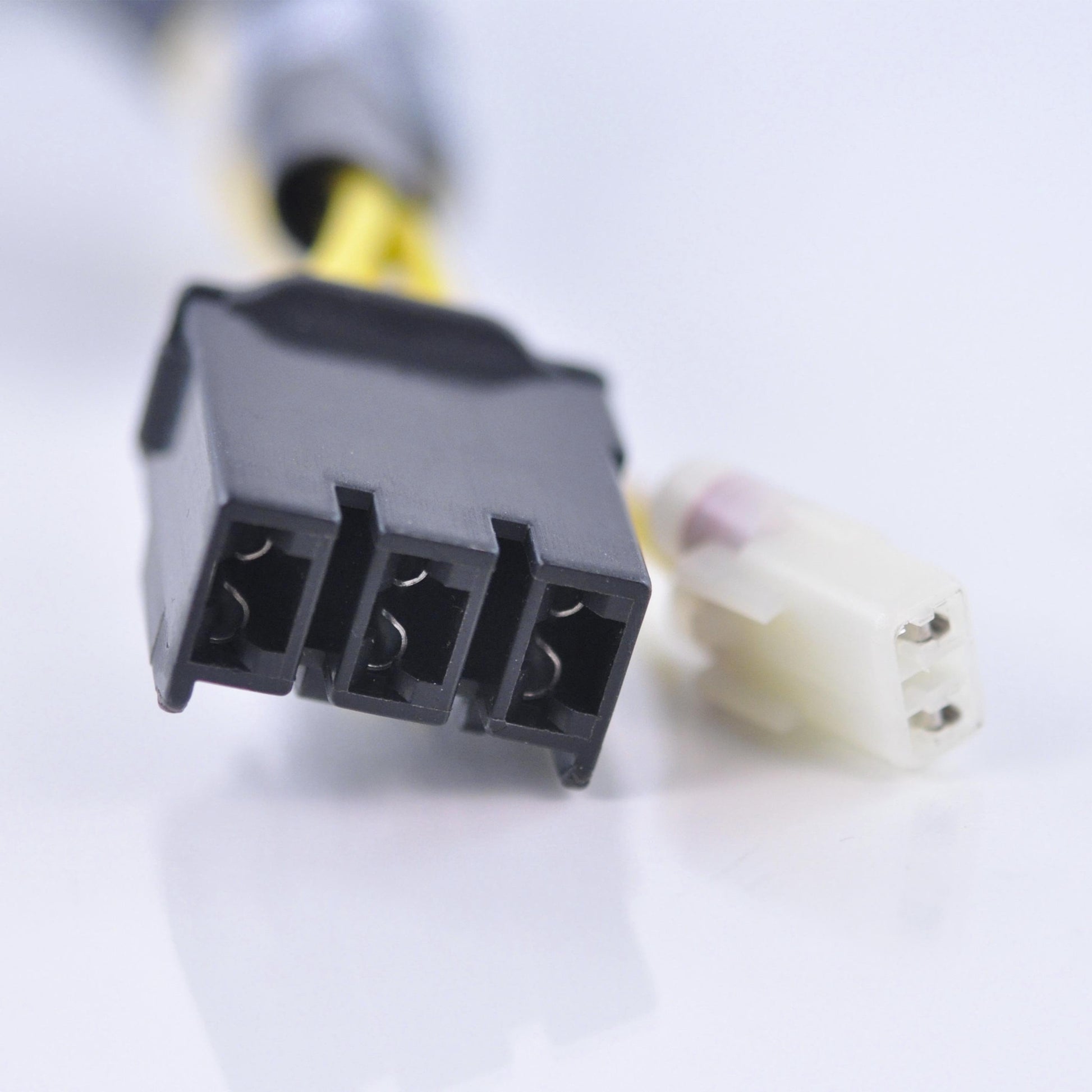

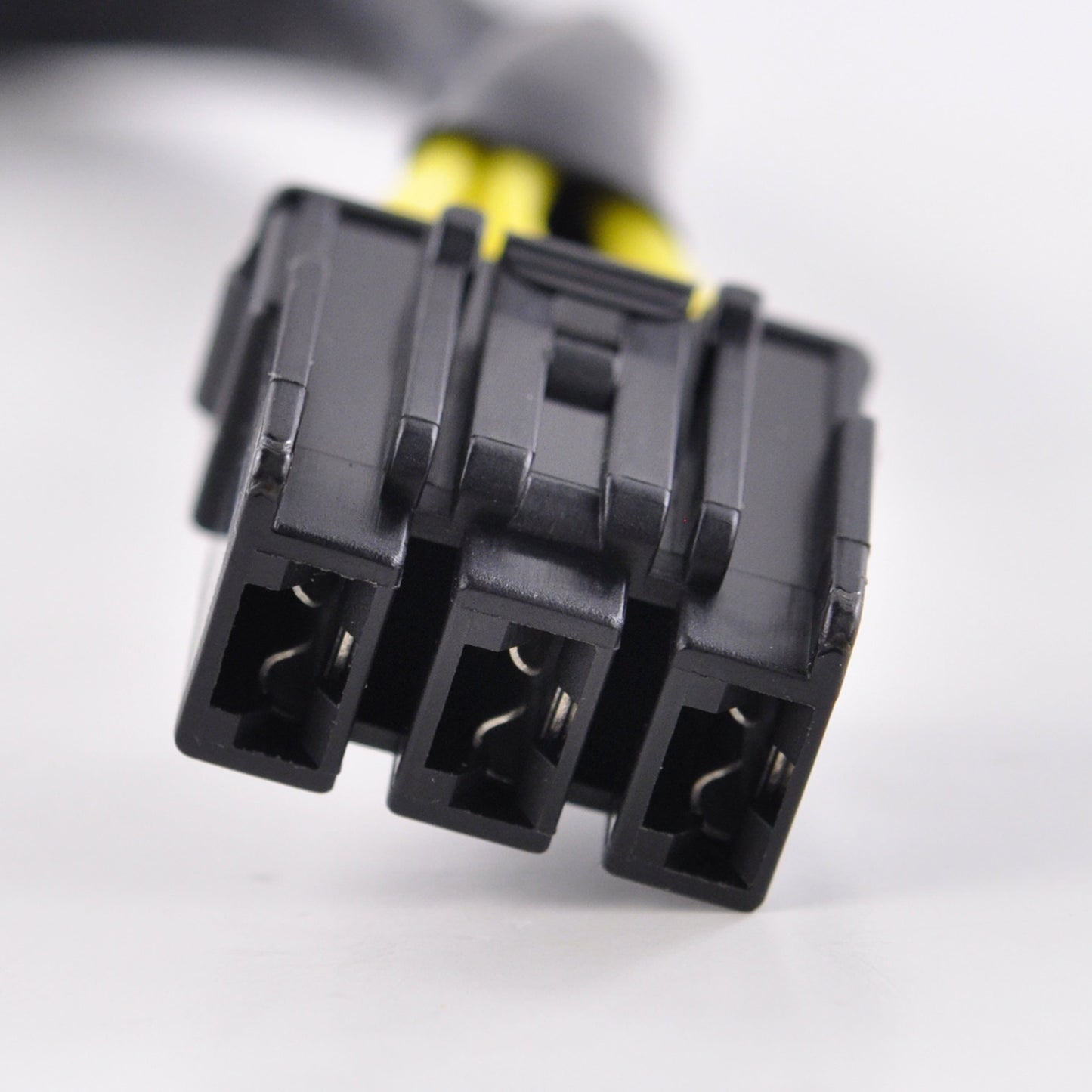

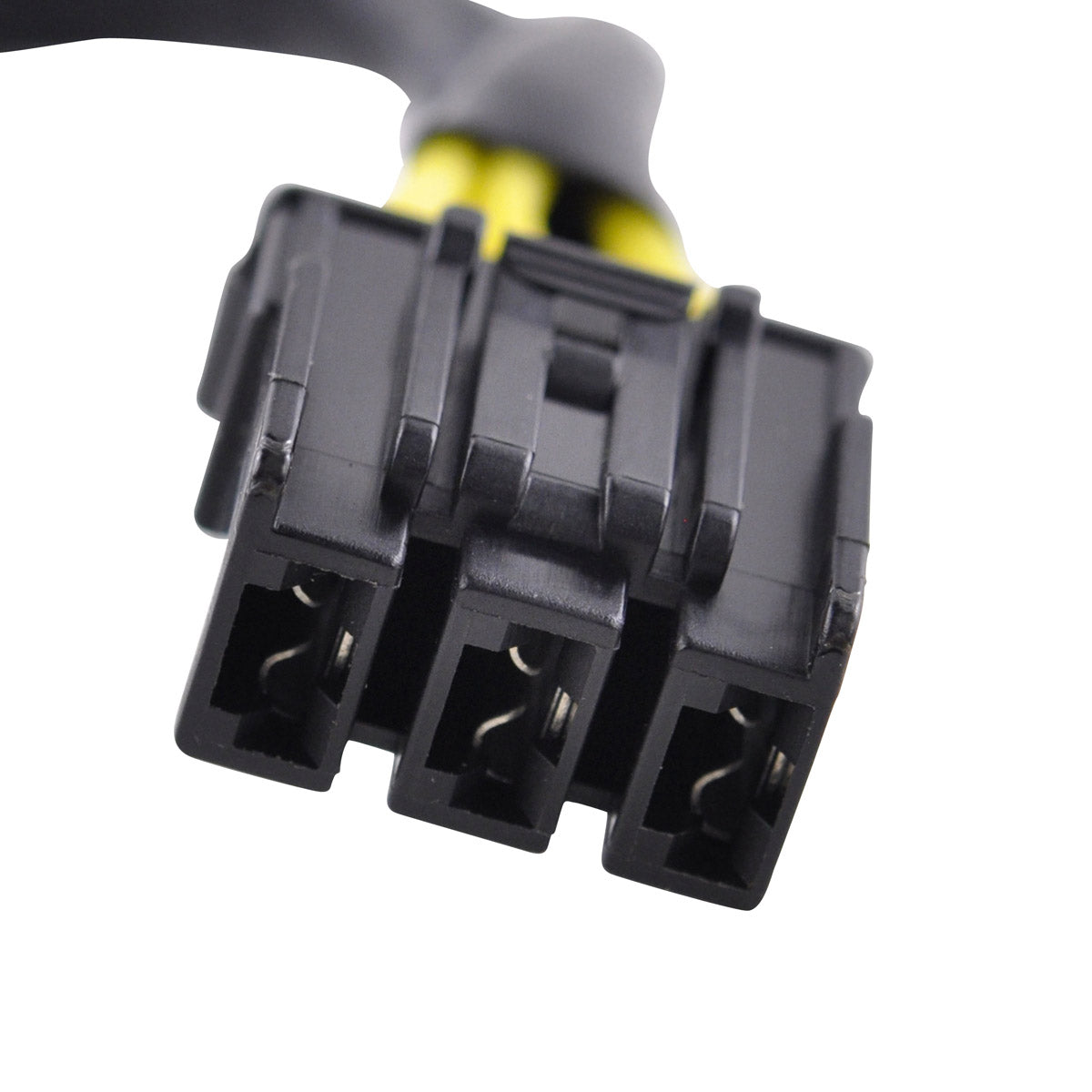

- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01568 |
| Interior diameter | 38 mm |
| Exterior diameter | 104 mm |
| Thickness | 12 mm |
| Wire length, stator to grommet | 95 mm |
| Wire length, grommet to plug 1 | 540 mm |
| Wire length, grommet to plug 2 | 310 mm |
| Pickup coil wire to grommet | 55 mm |
| Number of wires | 5 |
| Number of plugs | 2 |
| Alternator resistance (white to white) | 0.5 ohms +/- 20% |
| Pickup resistance (white/yellow to yellow) | 473 ohms +/- 20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda CBR 1000 RR Hurricane | 2008-2009 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-MFL-641 | Honda |
Frequently Asked Questions
Will this fit without modification?
Yes. The RM01568 is a direct replacement for the original stator on the 2008-2009 Honda CBR 1000 RR Hurricane. It matches the original 104 mm exterior diameter and 38 mm interior diameter, uses the same 5 wires into 2 plugs, and comes with the correct rubber grommet, so it fits the original cover and harness with no cutting or splicing.
What is included?
The stator itself, the pick up pulsar coil, the connector and the rubber grommet. Everything needed to replace the original assembly is supplied in the box, and the unit is tested before it is shipped.
How do I know my old stator has failed?
Test it with a multimeter. Measured white to white, the alternator windings should read 0.5 ohms +/- 20%. Measured white/yellow to yellow, the pickup should read 473 ohms +/- 20%. An open circuit, a shorted reading, continuity to earth, or readings well outside those tolerances indicate the stator has failed. Visible burnt or discoloured windings are another clear sign.
Why does the winding temperature rating matter?
Original stators most often fail because the insulation on the windings breaks down from sustained heat inside the engine case. This unit uses the highest grade copper windings rated to resist 200 degrees Celsius on the highest grade lamination materials, which directly targets that failure mode.
