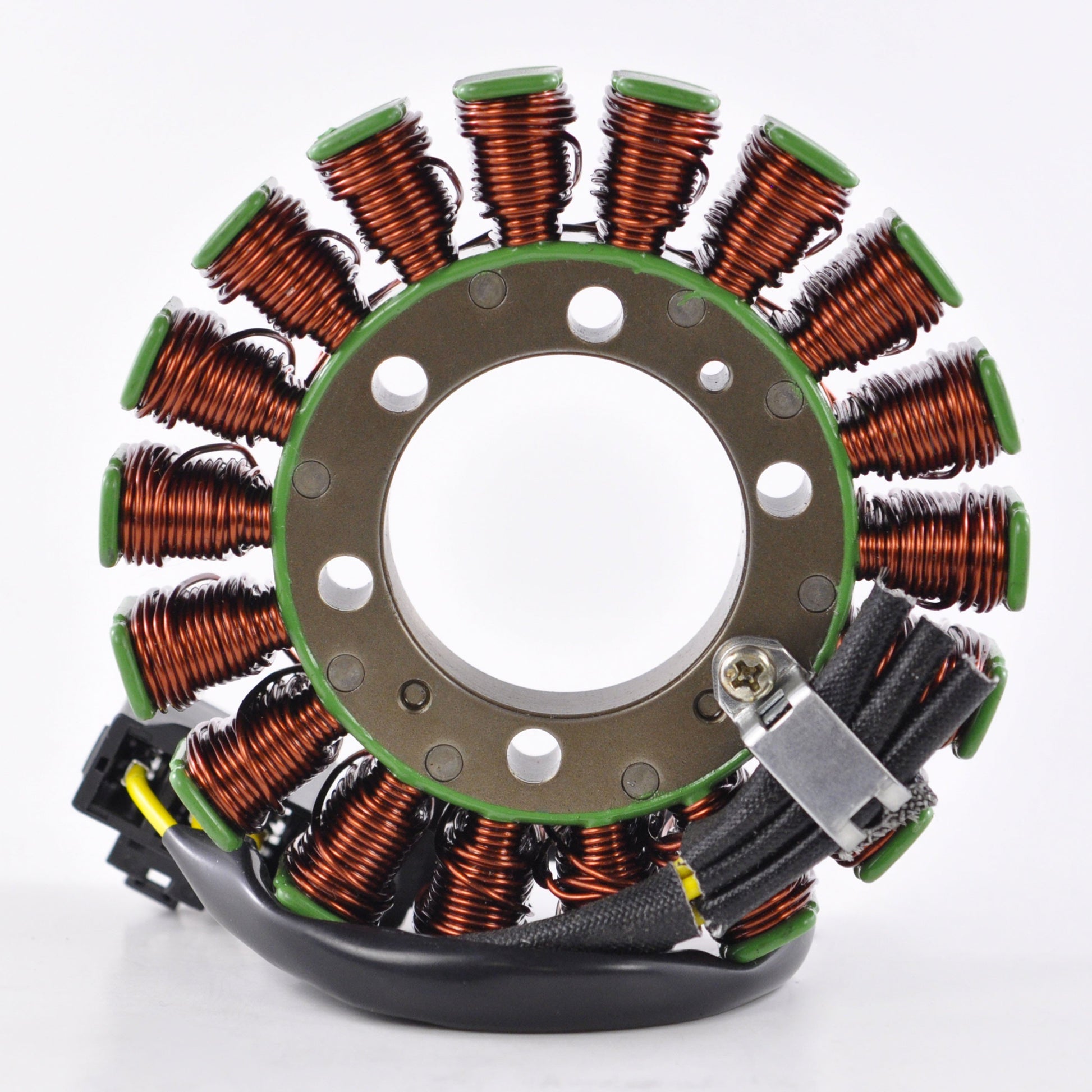

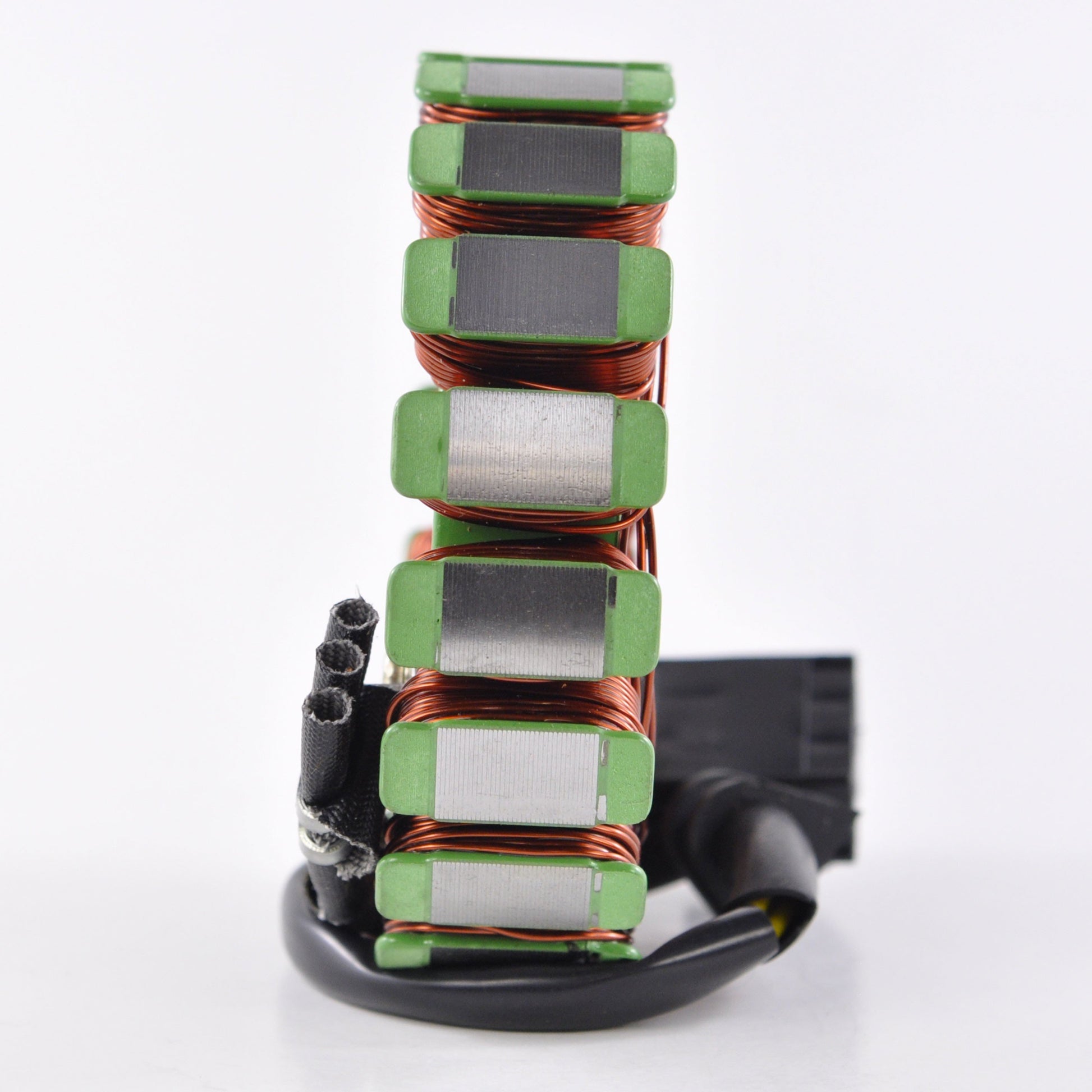

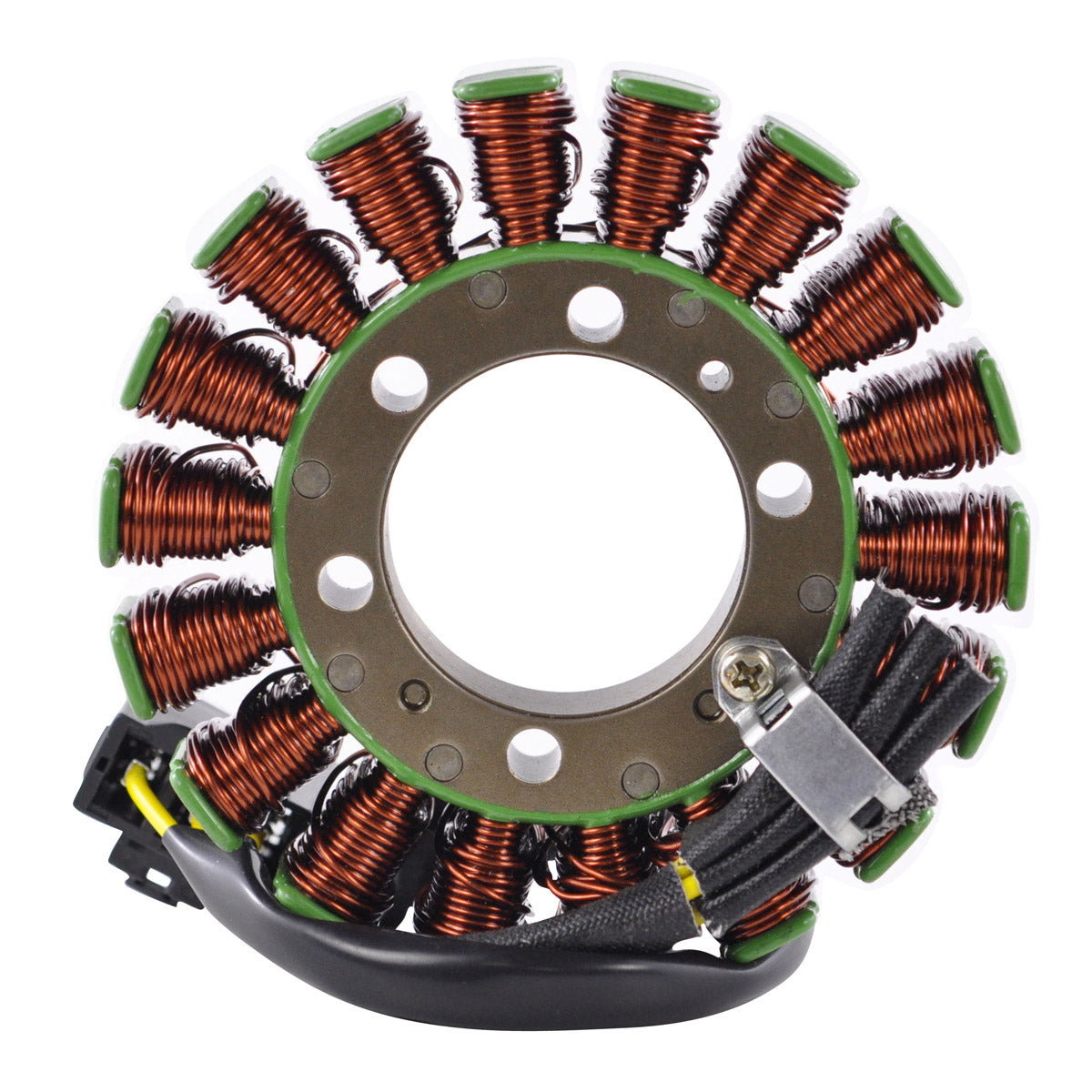

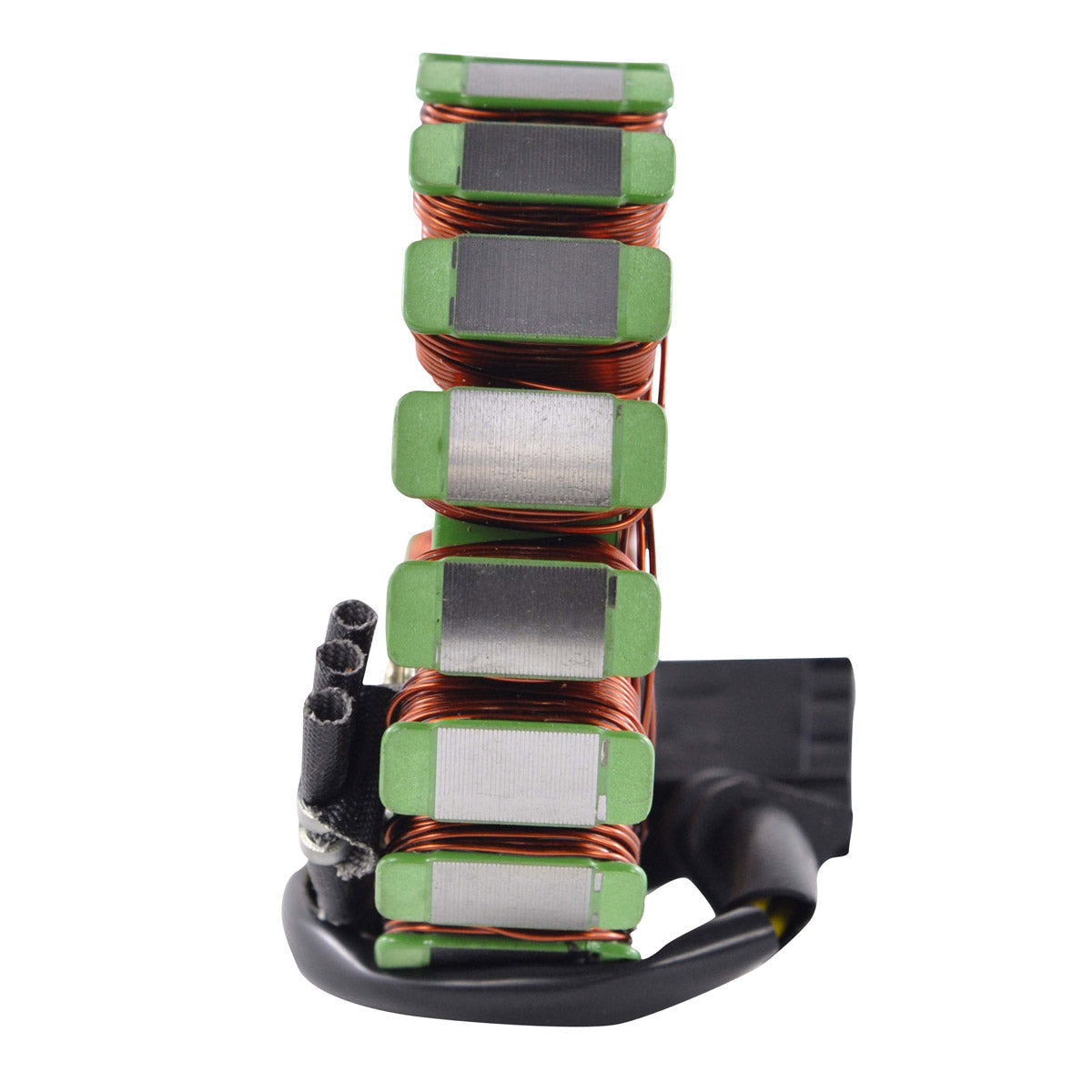

Generator Stator for Honda CBR 600 RR
Honda CBR 600 RR 2003-2006 - Part number RMS010-101510
This is a brand new aftermarket generator stator, built as a direct replacement for the original unit fitted to the Honda CBR 600 RR. It is a plug-and-play, direct fit part: it bolts into the original position and plugs into the original three-pin connector, so no modification of the wiring loom is required.
The core uses the highest grade of lamination materials and the windings are the highest grade of copper, resistant to 200 degrees Celsius. The connector and rubber grommet are included, and we also supply the opposite connector for the main harness side - these are often found melted, corroded or defective, and are a major cause of repeat electrical issues that can persist even after a new stator is fitted. All products shipped are tested.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

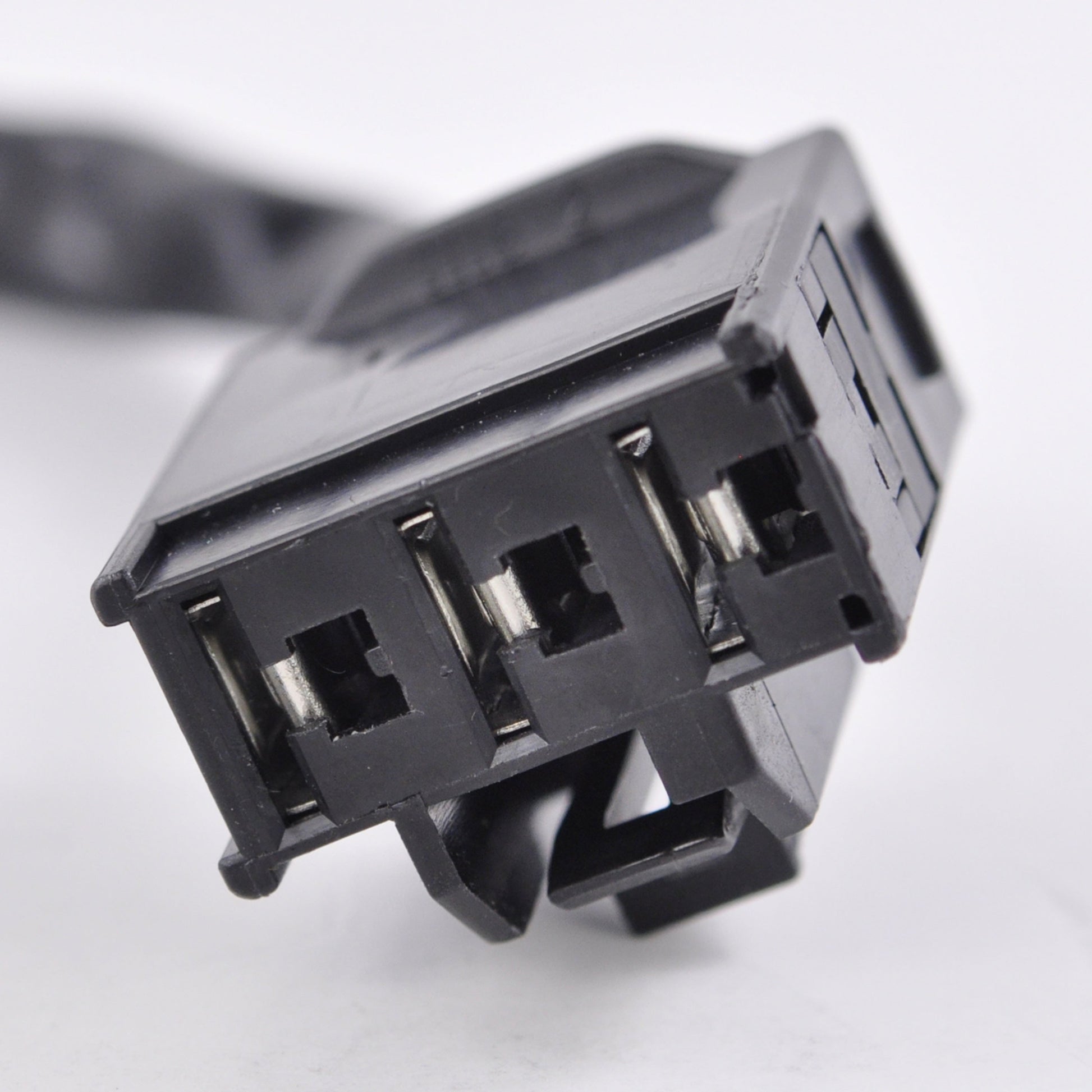

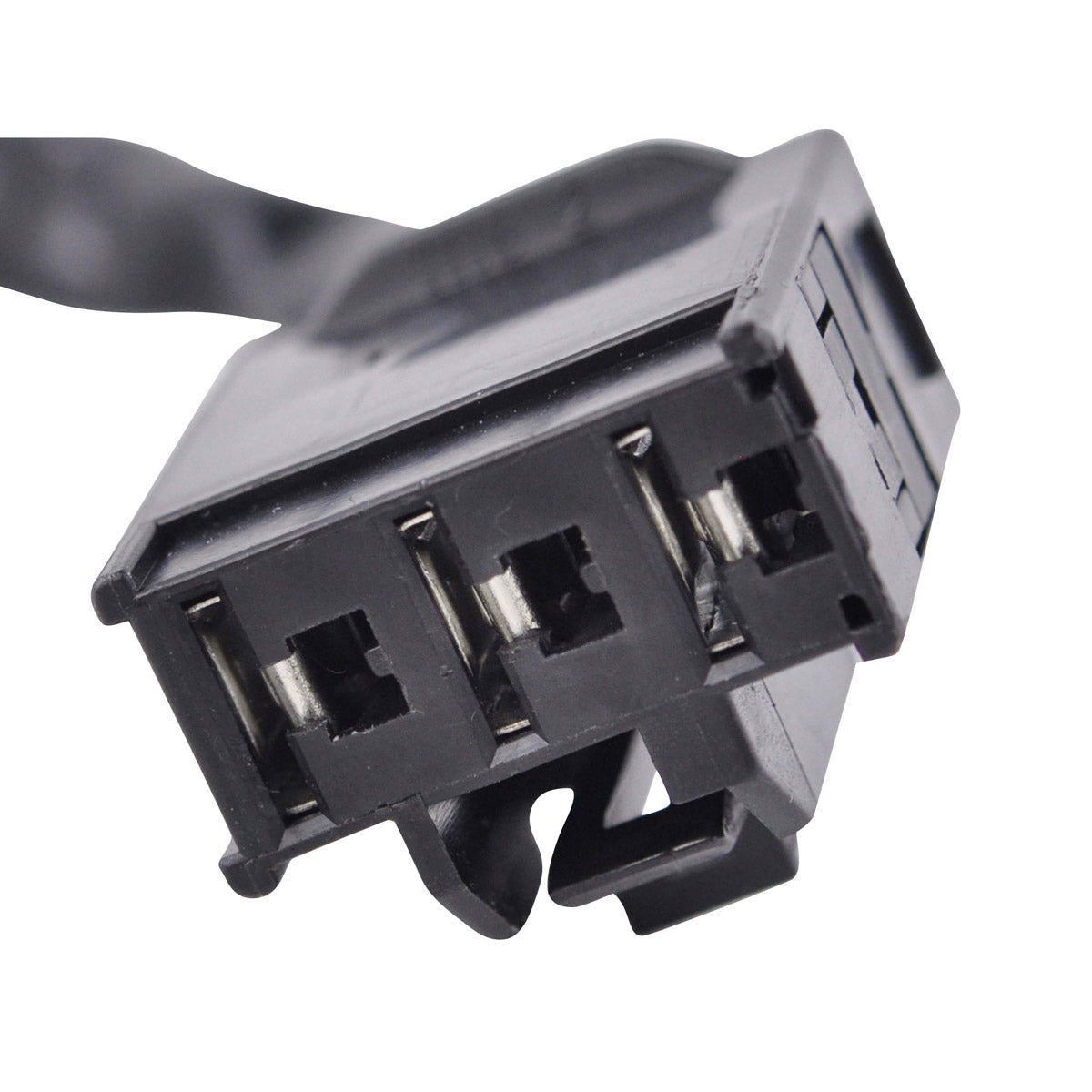

- Connector included
- Rubber grommet included
- Opposite connector (main harness side) also supplied
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-101510 |
| Interior diameter | 42 mm |
| Exterior diameter | 107 mm |
| Thickness | 21 mm |
| Wire length, stator to grommet | 95 mm |
| Wire length, grommet to plug | 130 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance (between each Yellow) | 0.5 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda CBR 600 RR | 2003-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-MEE-003 | Honda |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original CBR 600 RR stator, using the original mounting and the original 3-pin plug. No cutting or splicing of the harness is required. Please confirm OEM number 31120-MEE-003 against your original unit before ordering.
What is included in the box?

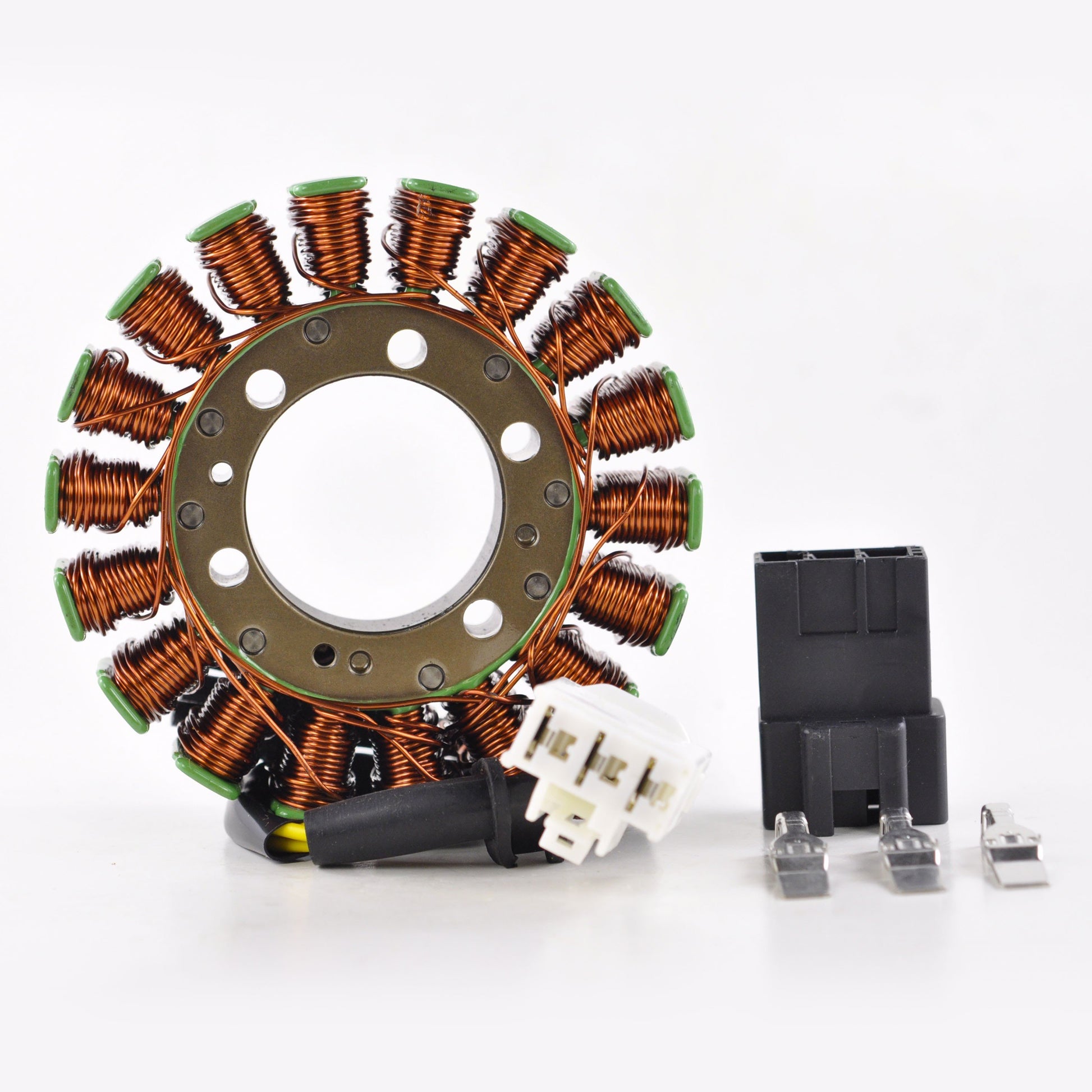

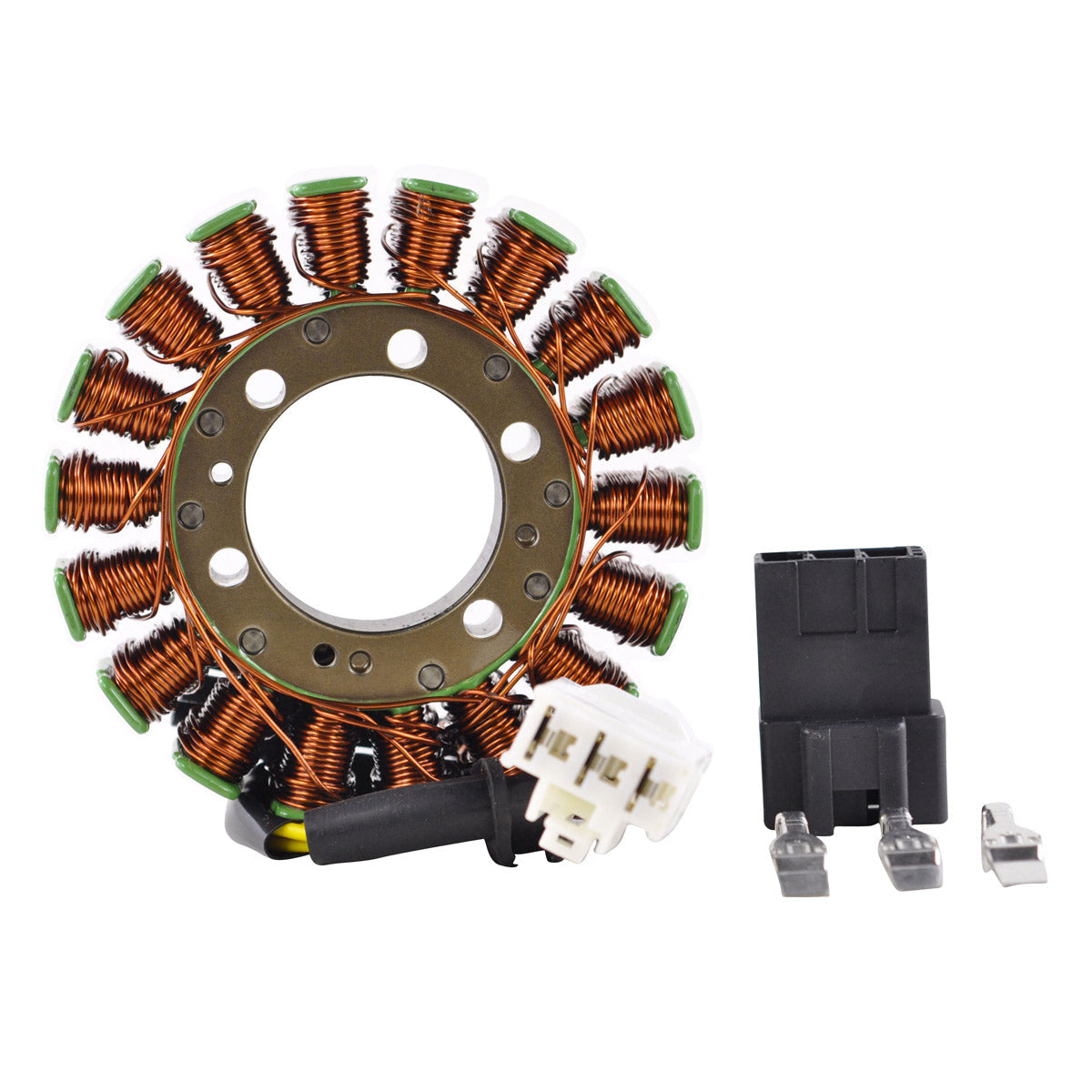

You receive the stator with its connector and rubber grommet fitted, plus the opposite connector for the main harness side. That extra connector is included because the original is often melted, corroded or defective and is a major cause of repetitive electrical issues.
How do I tell if my old stator has failed?
Unplug the stator and measure resistance between each pair of the three yellow wires - each pair should read 0.5 ohms +/-20%. Then check between any yellow wire and the engine case; there should be no continuity. An open circuit, a badly unbalanced reading, or a short to earth indicates the stator has failed. A battery that will not hold charge and browning of the windings are supporting symptoms.
Does this stator include a pick-up or pulsar coil?
No. This is the three-phase alternator stator only - 3 wires into a single 3-pin plug. The CBR 600 RR pulse generator is a separate component and is not part of this assembly.
