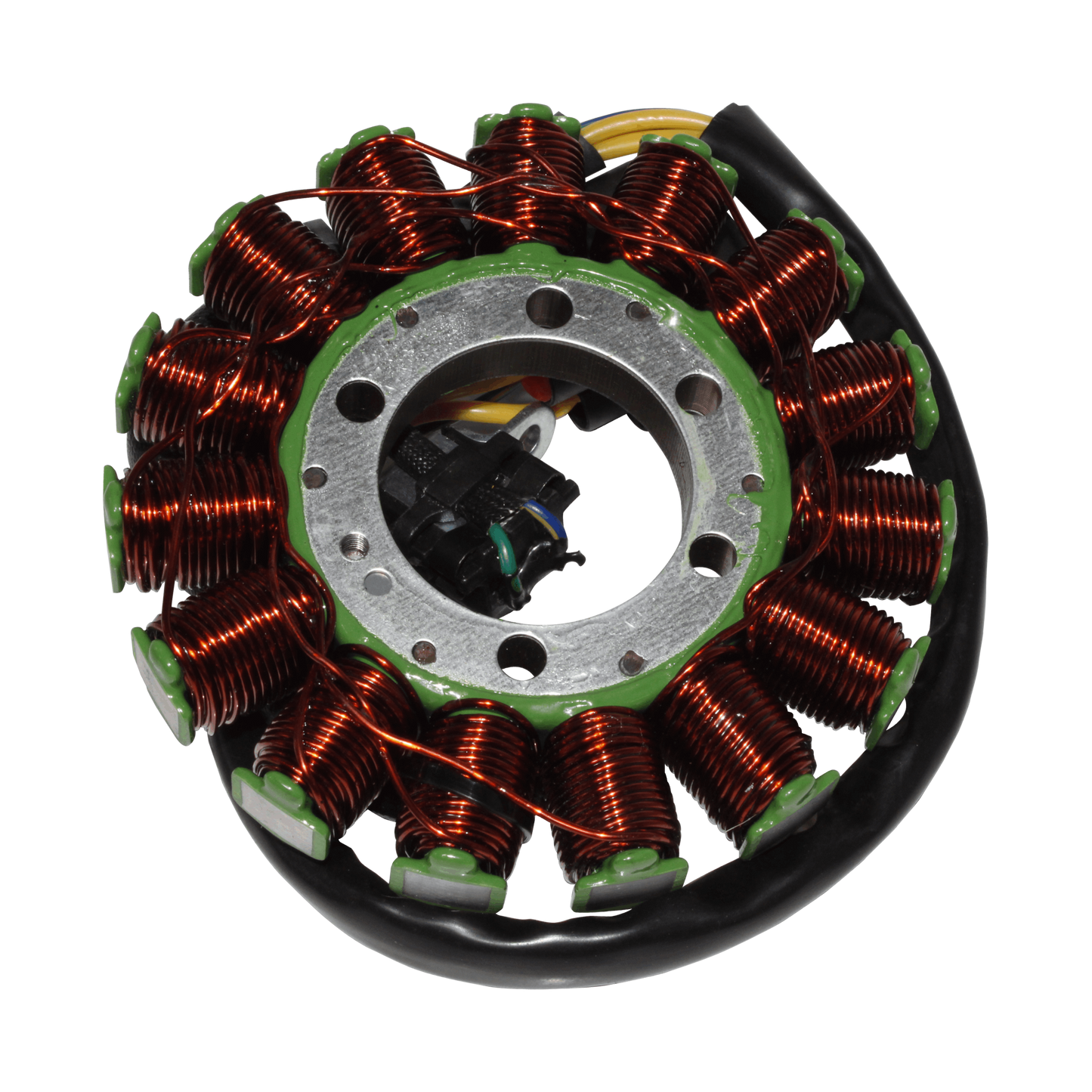

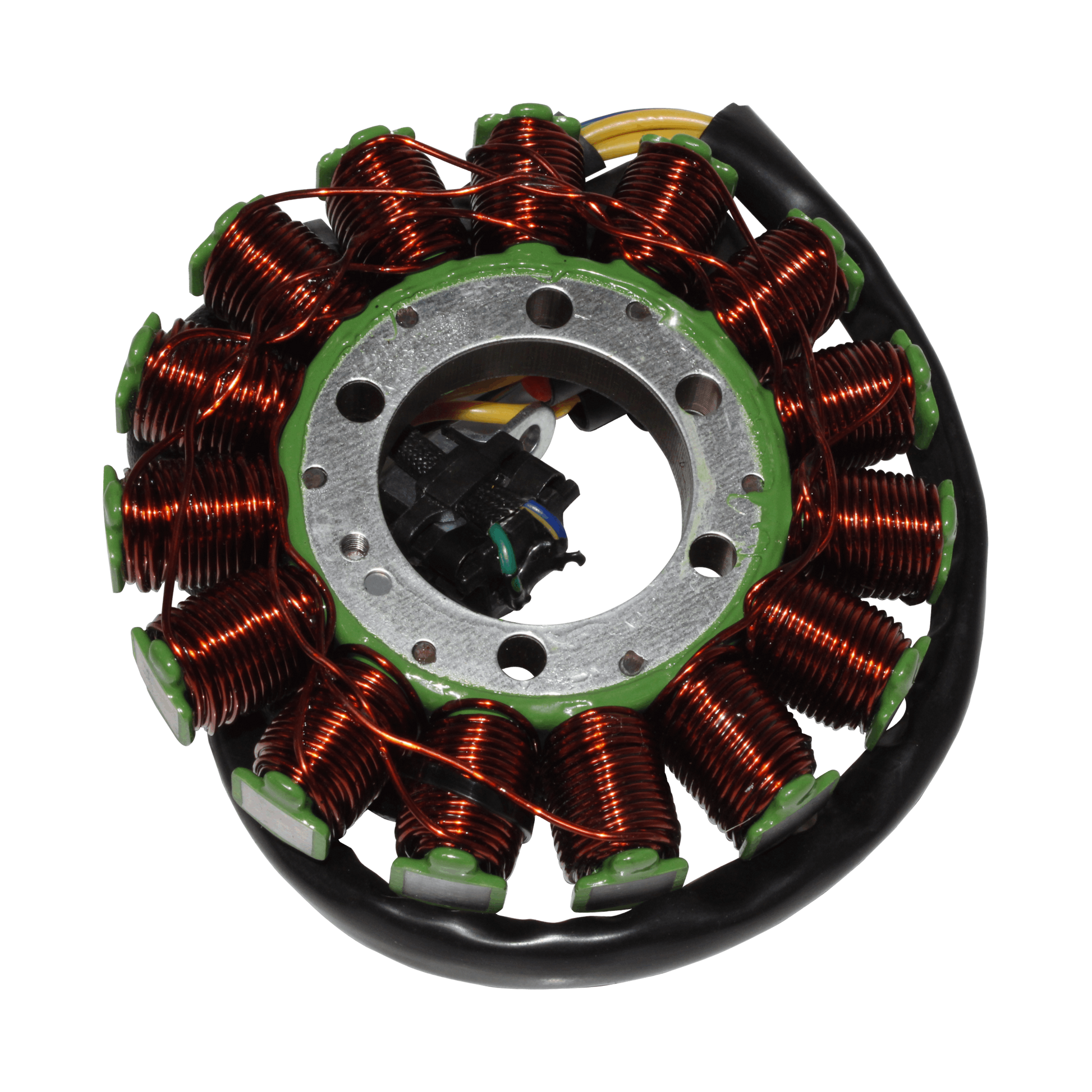

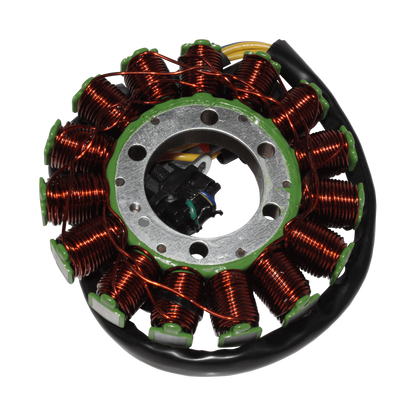

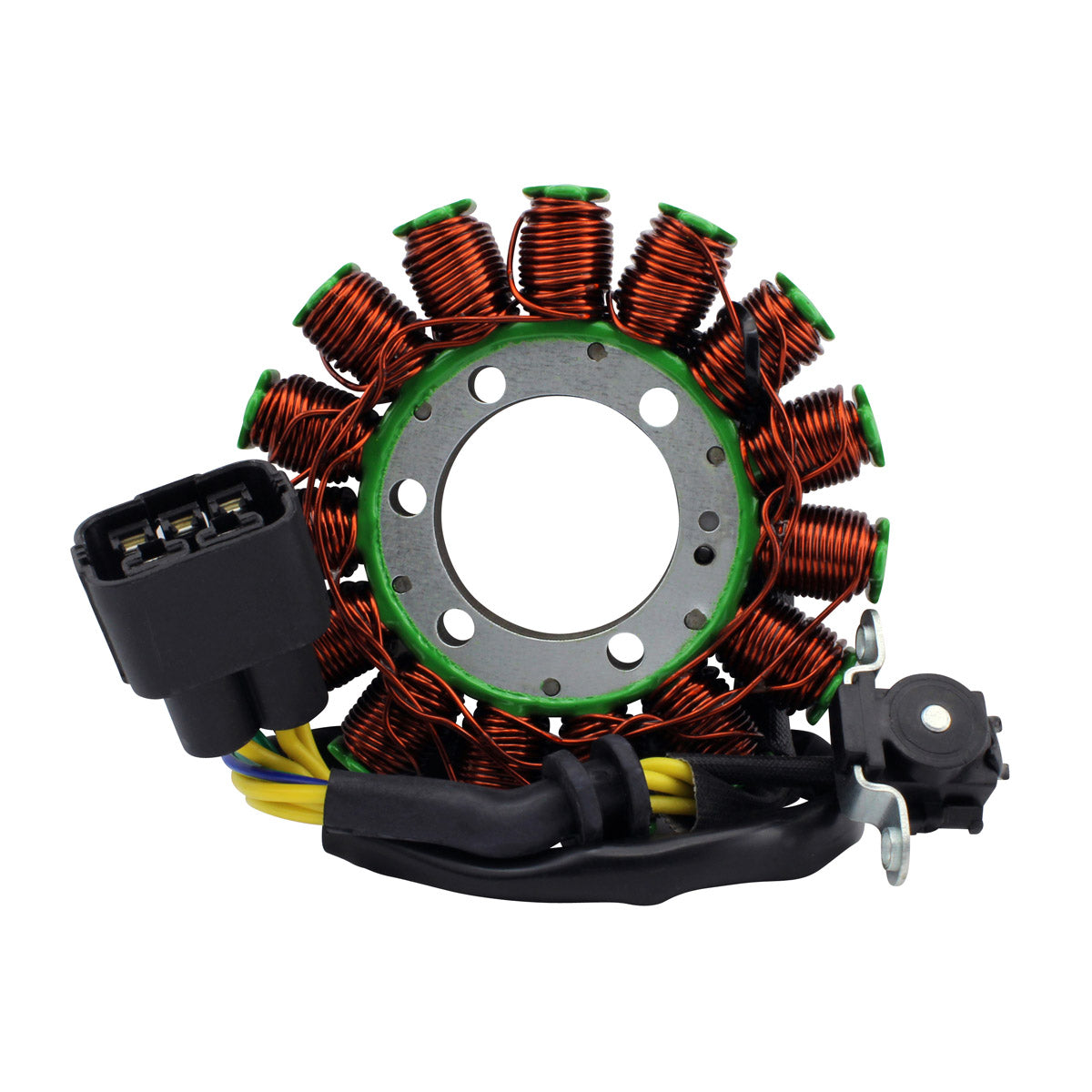

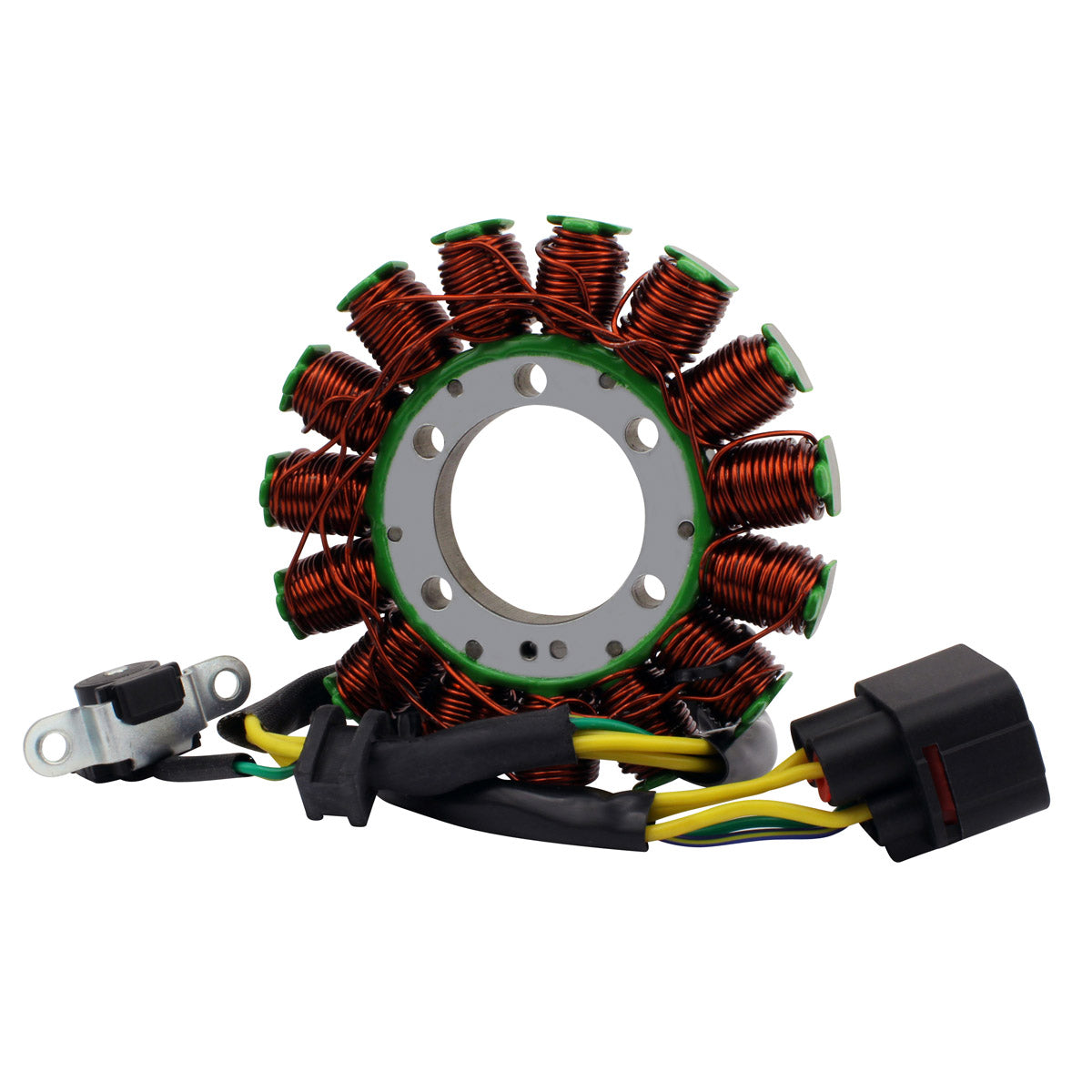

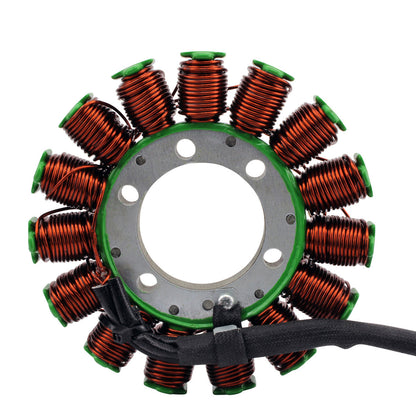

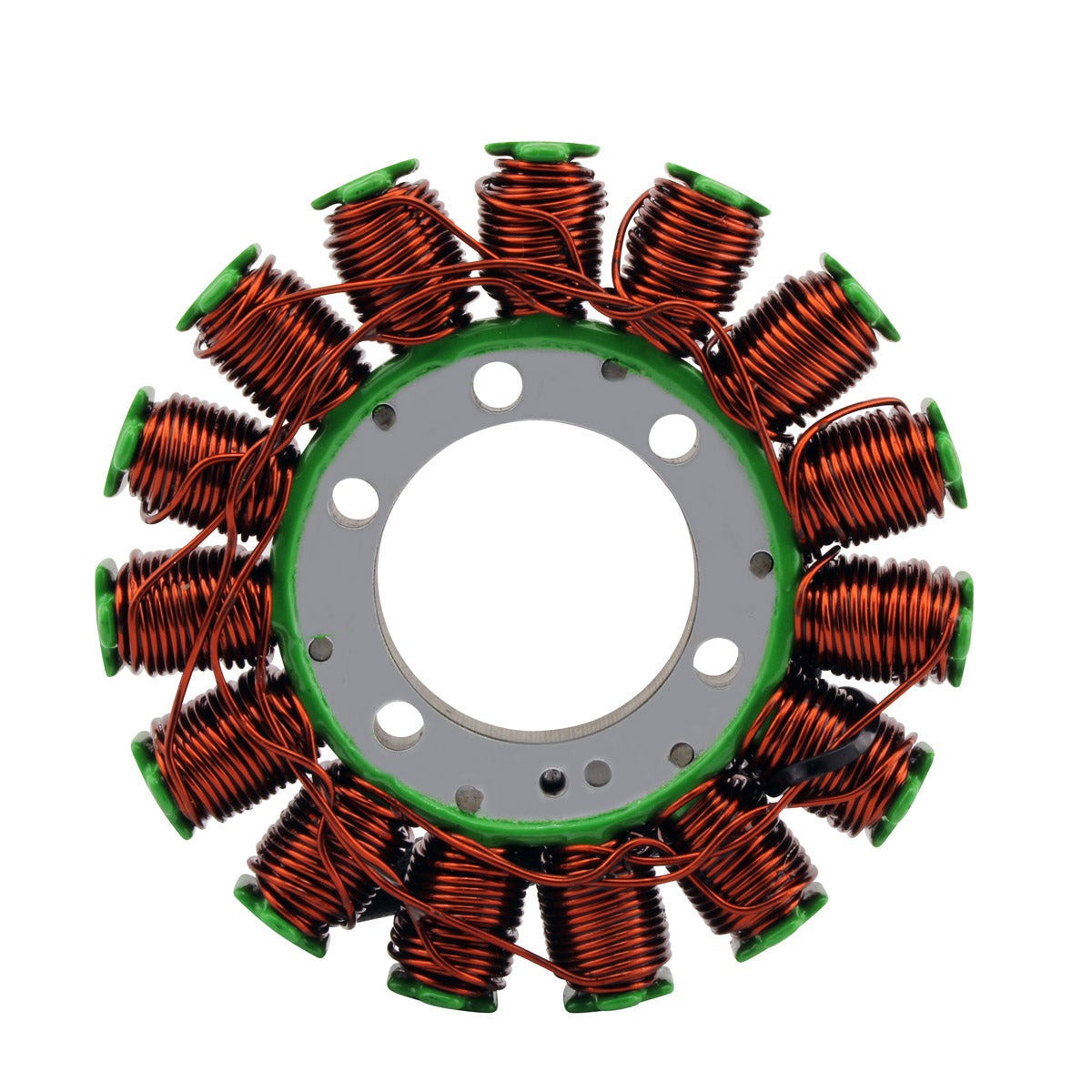

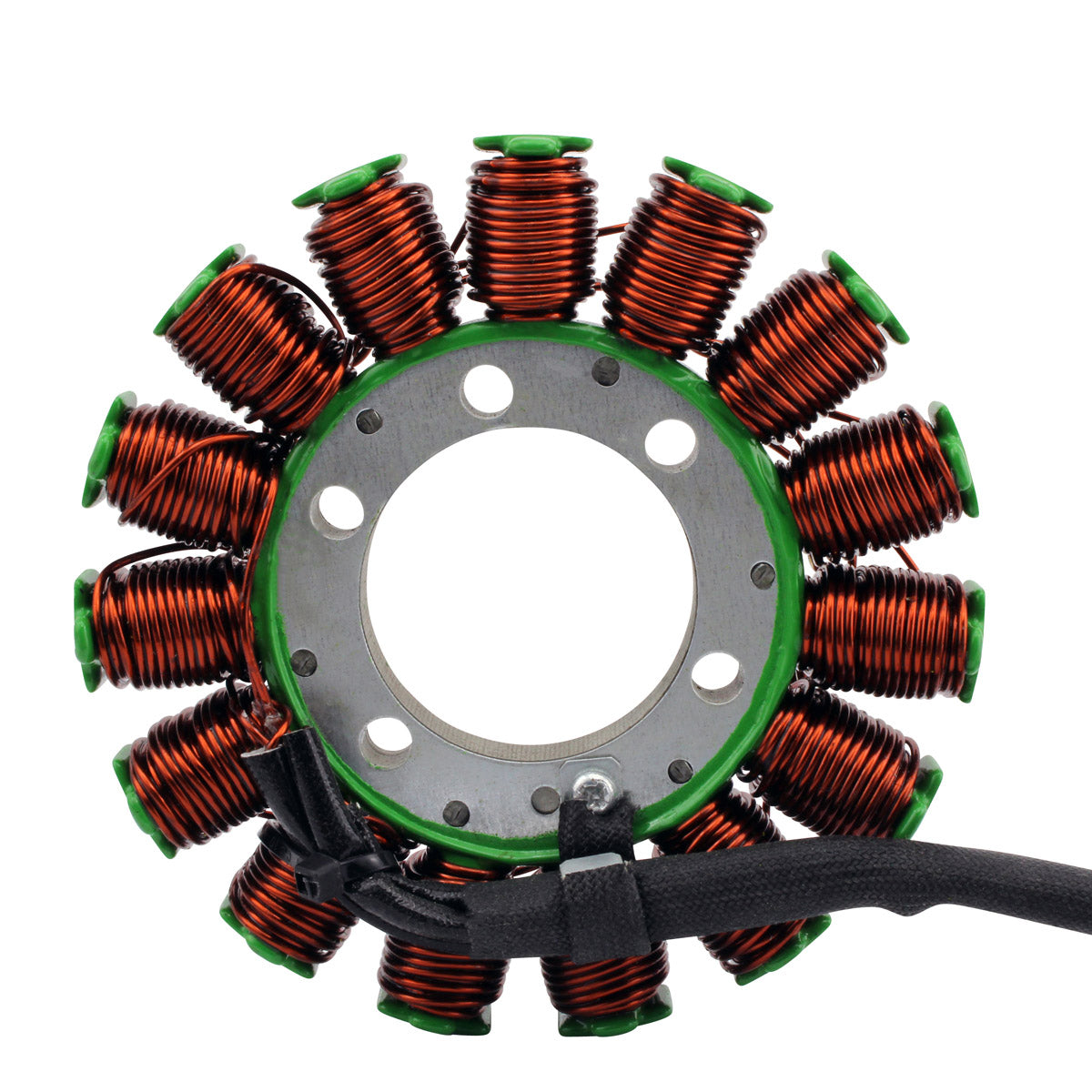

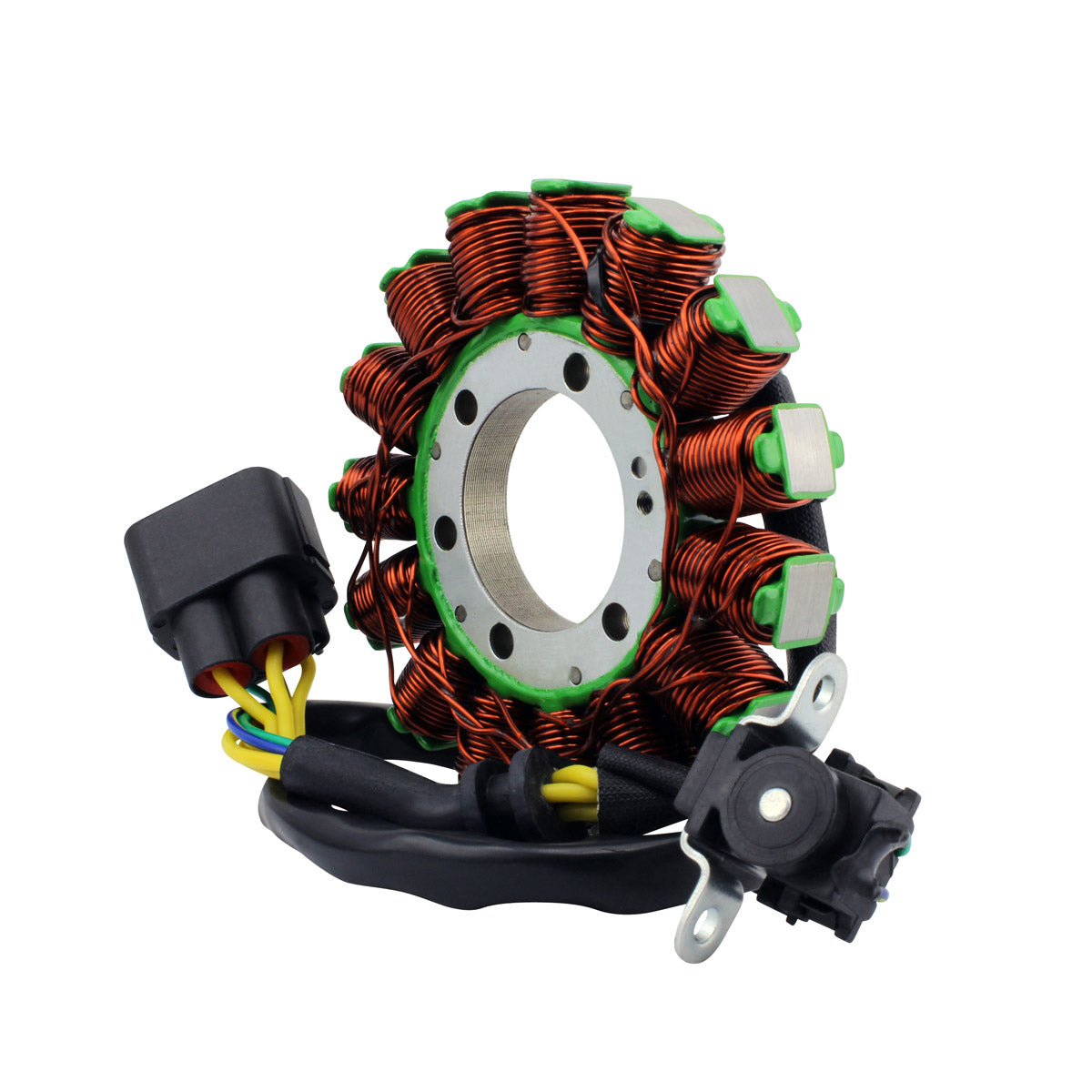

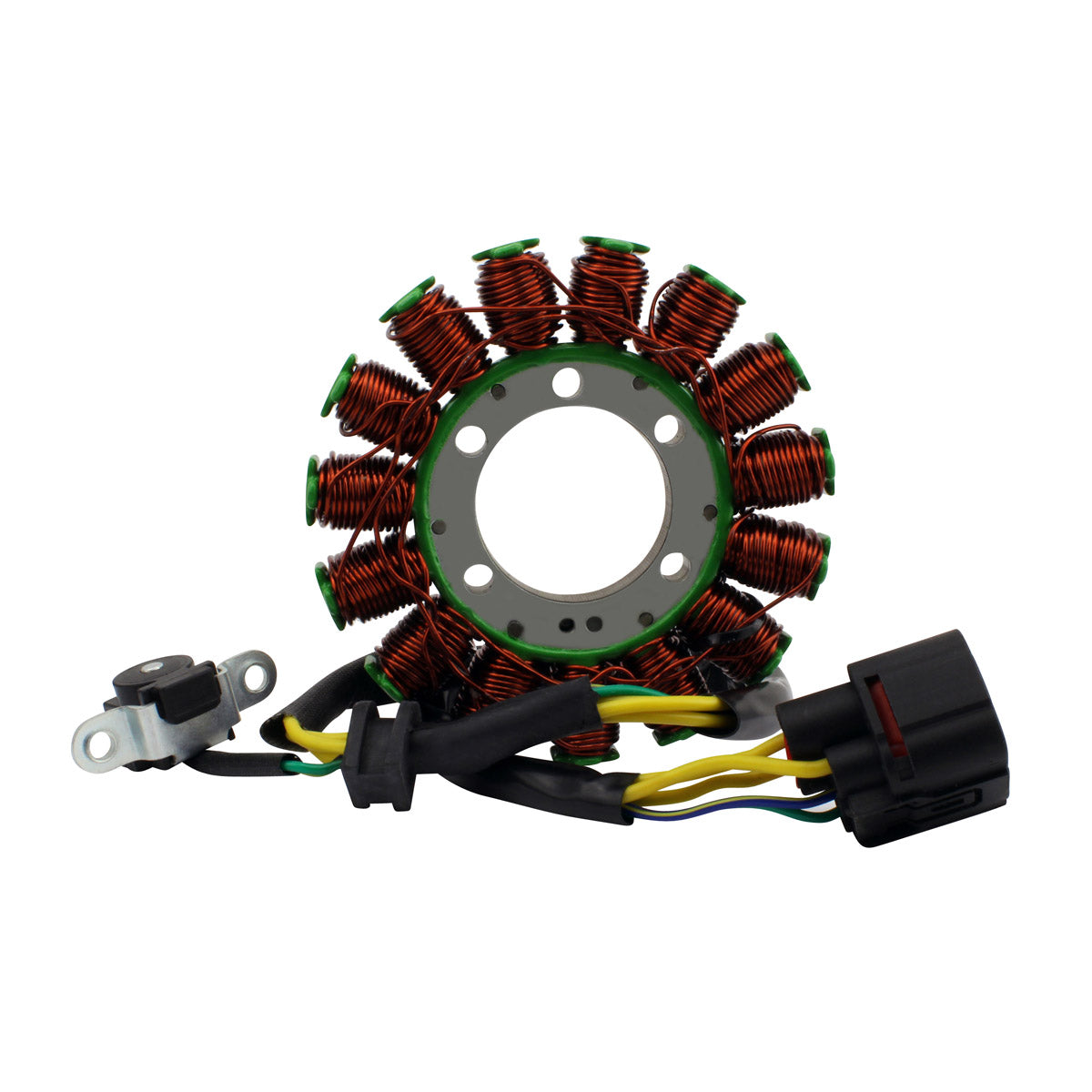

Brand new aftermarket generator stator, built as a direct replacement for your original unit on the Honda SXS700 Pioneer 700. It is a plug-and-play, direct fit part with easy installation, and every unit is tested before it is shipped. The pickup pulsar coil, connectors and rubber grommet are supplied with the stator.

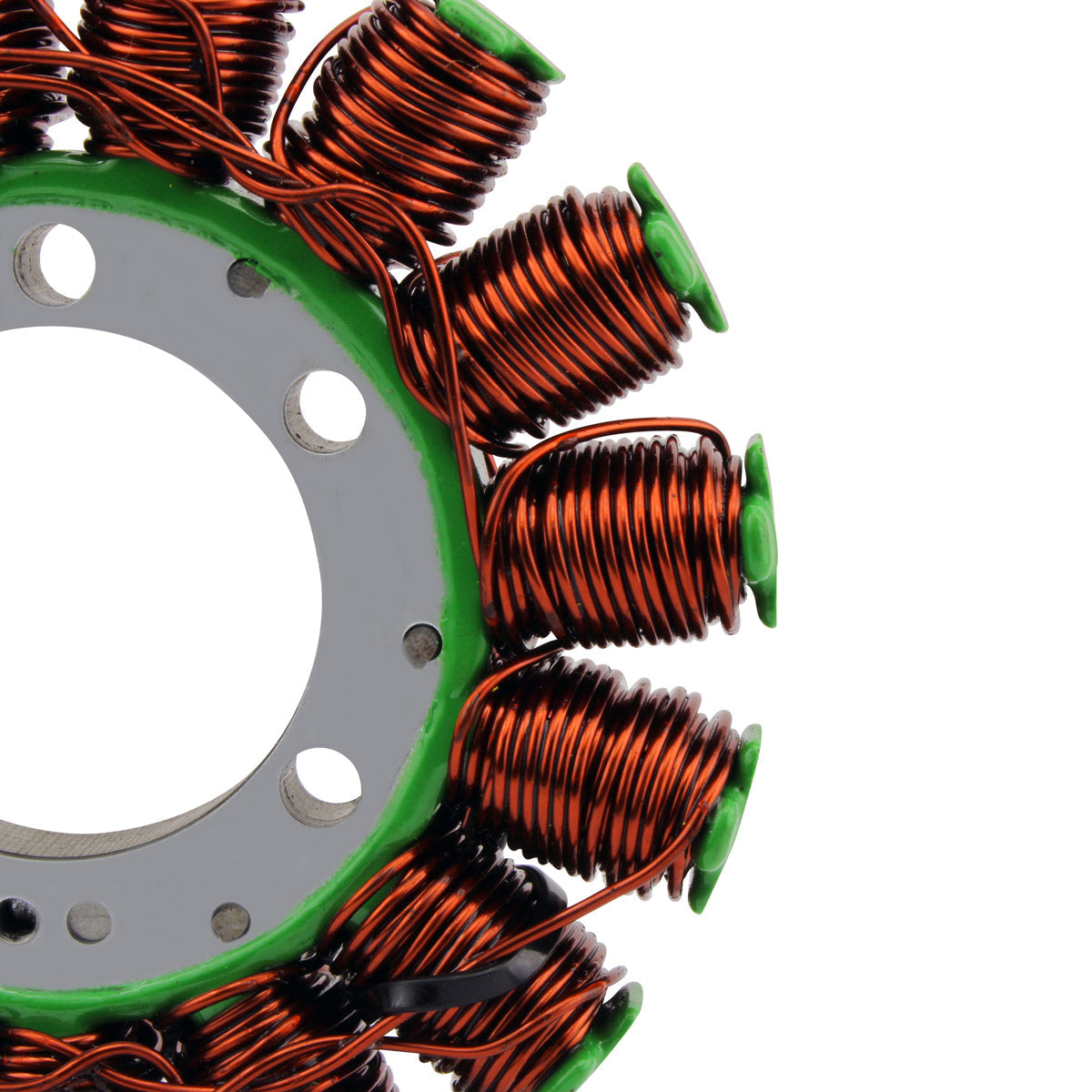

The stator is wound with the highest grade of copper winding, rated to 200 degrees Celsius, on the highest grade of lamination materials. It measures 115 mm on the exterior diameter and 42 mm on the interior diameter, is 10 mm thick and carries 15 poles across 5 wires into a single 5-pin plug. Alternator resistance reads 0.4 ohms plus or minus 20 per cent yellow to yellow, and the pickup coil reads 240 ohms plus or minus 20 per cent blue/yellow to green.
Key Features
- Brand new aftermarket stator - not a remanufactured core
- Direct replacement to your original unit, plug-and-play and direct fit

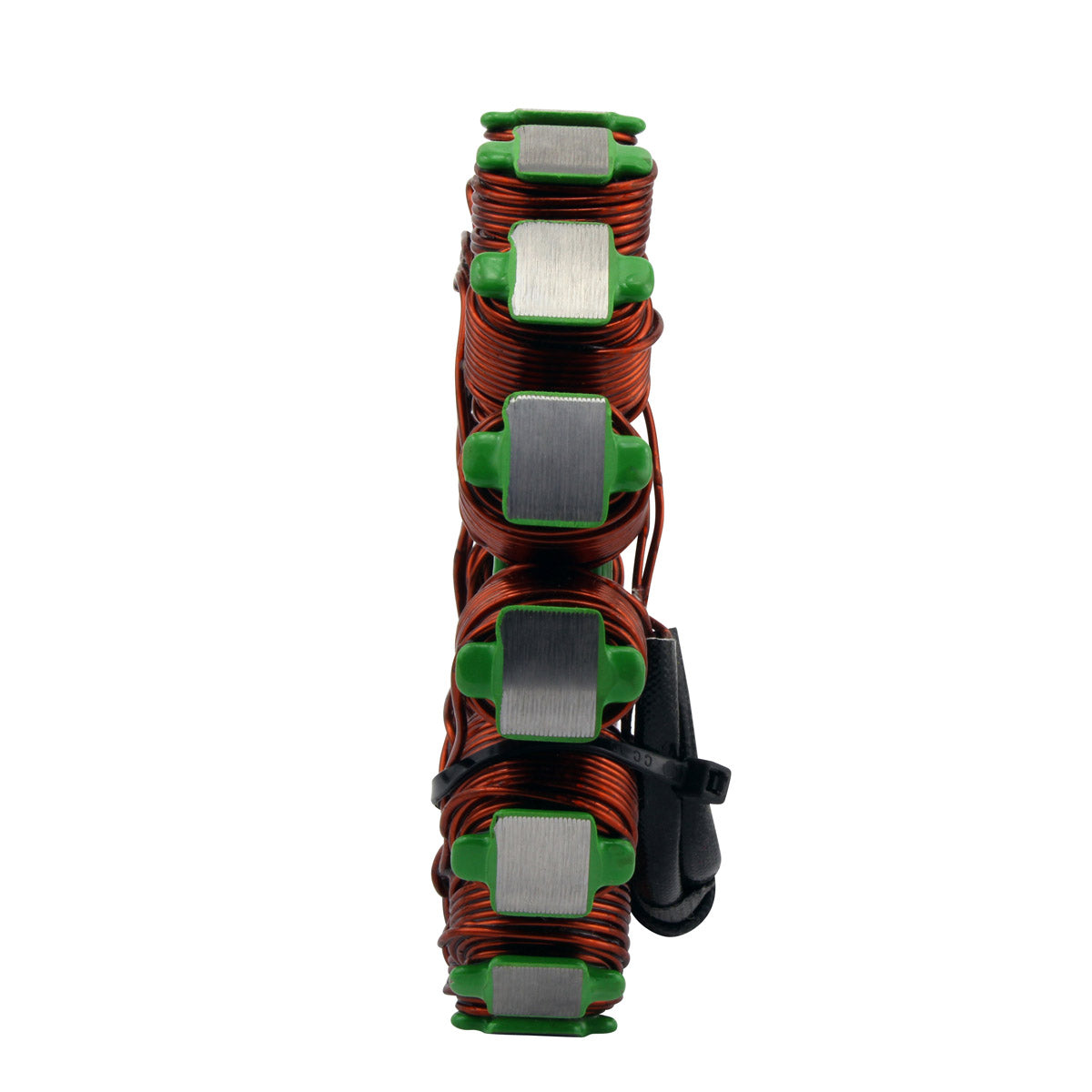

- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

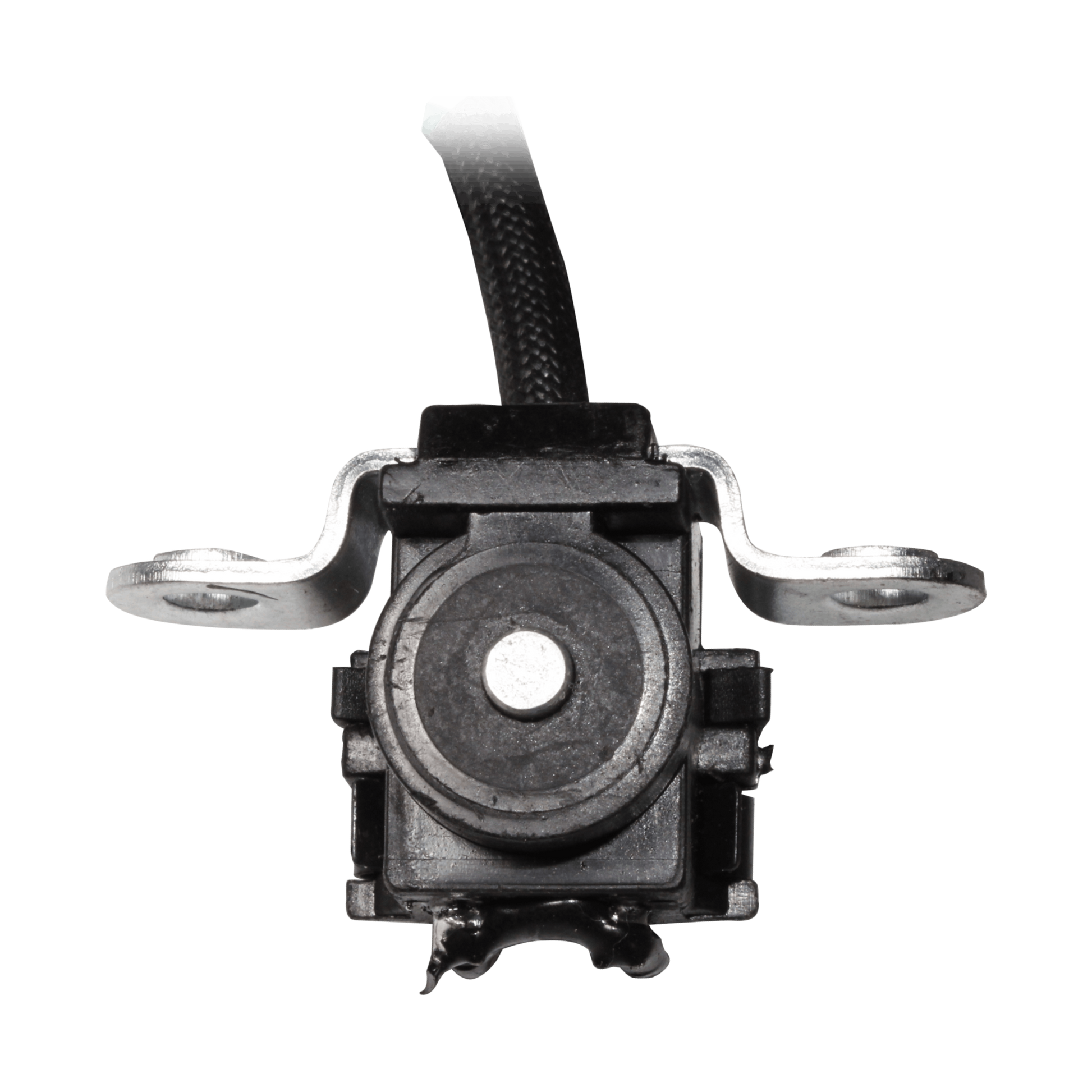

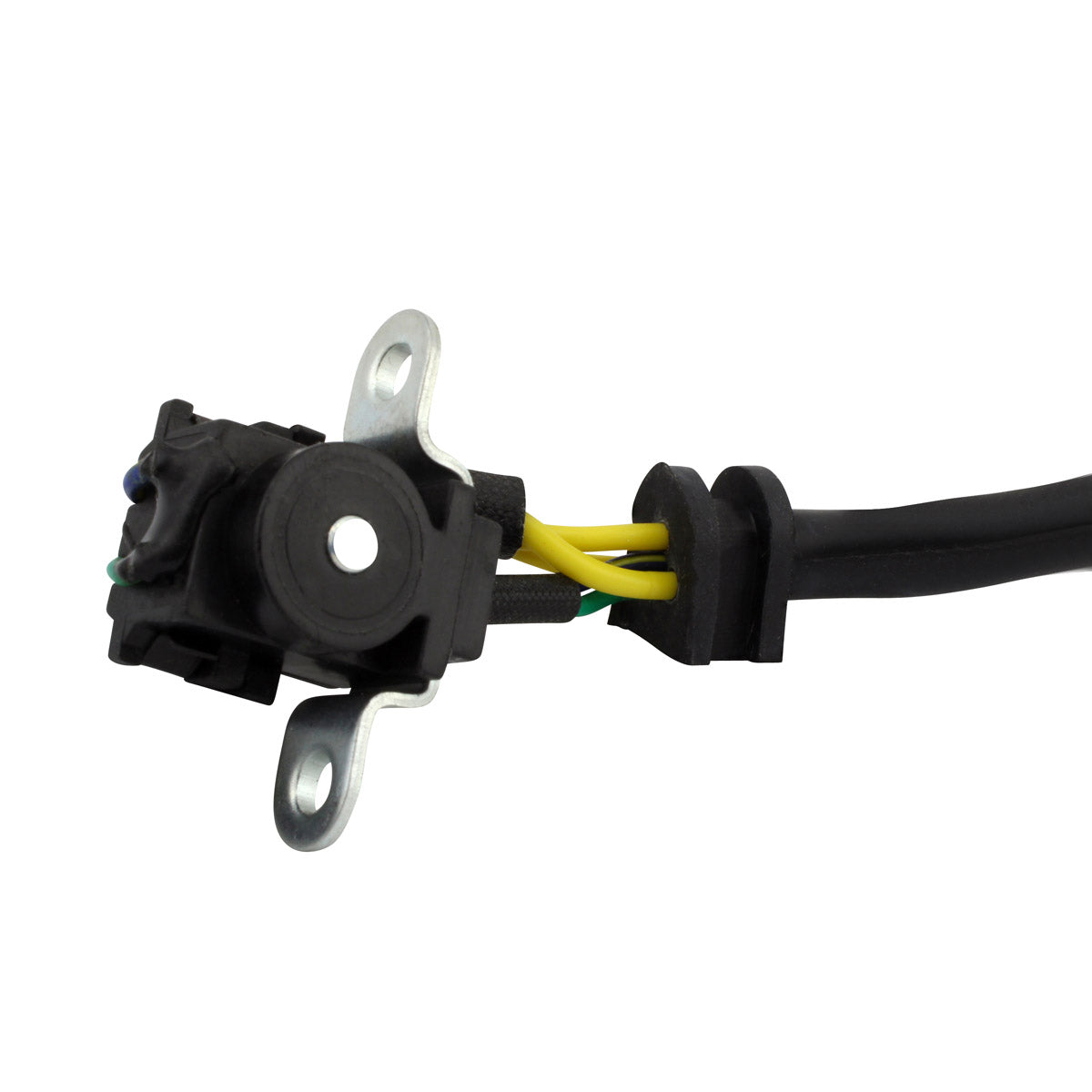

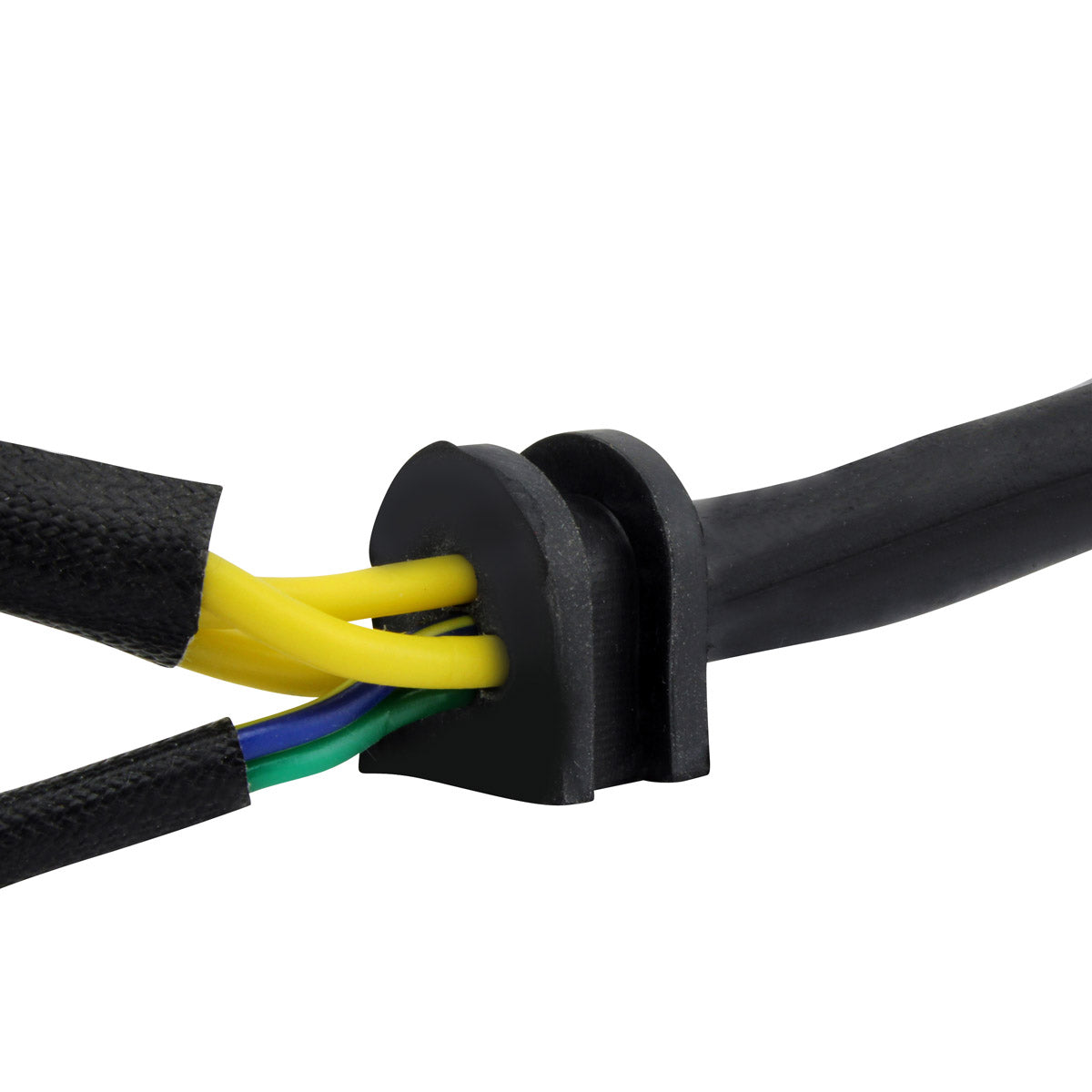

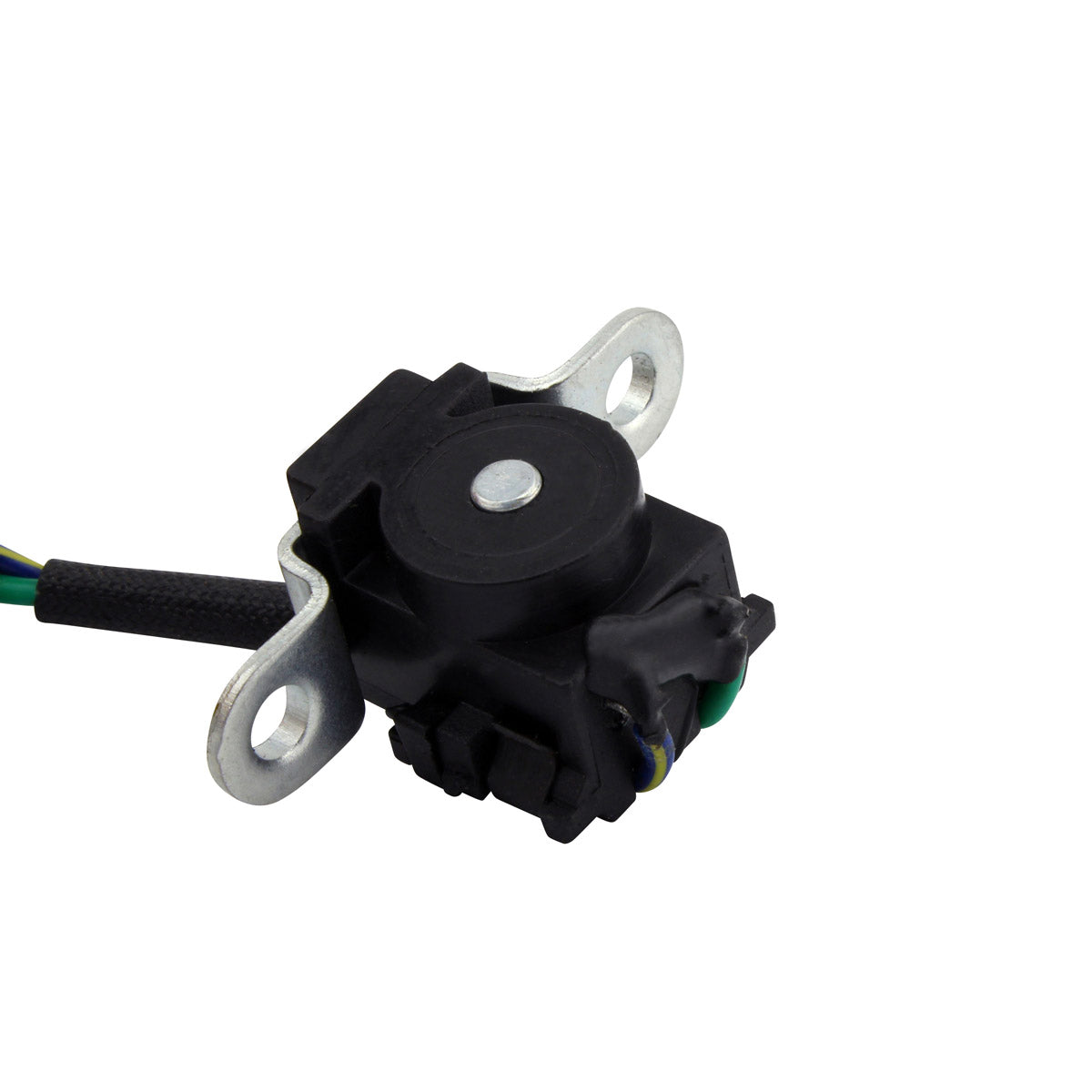

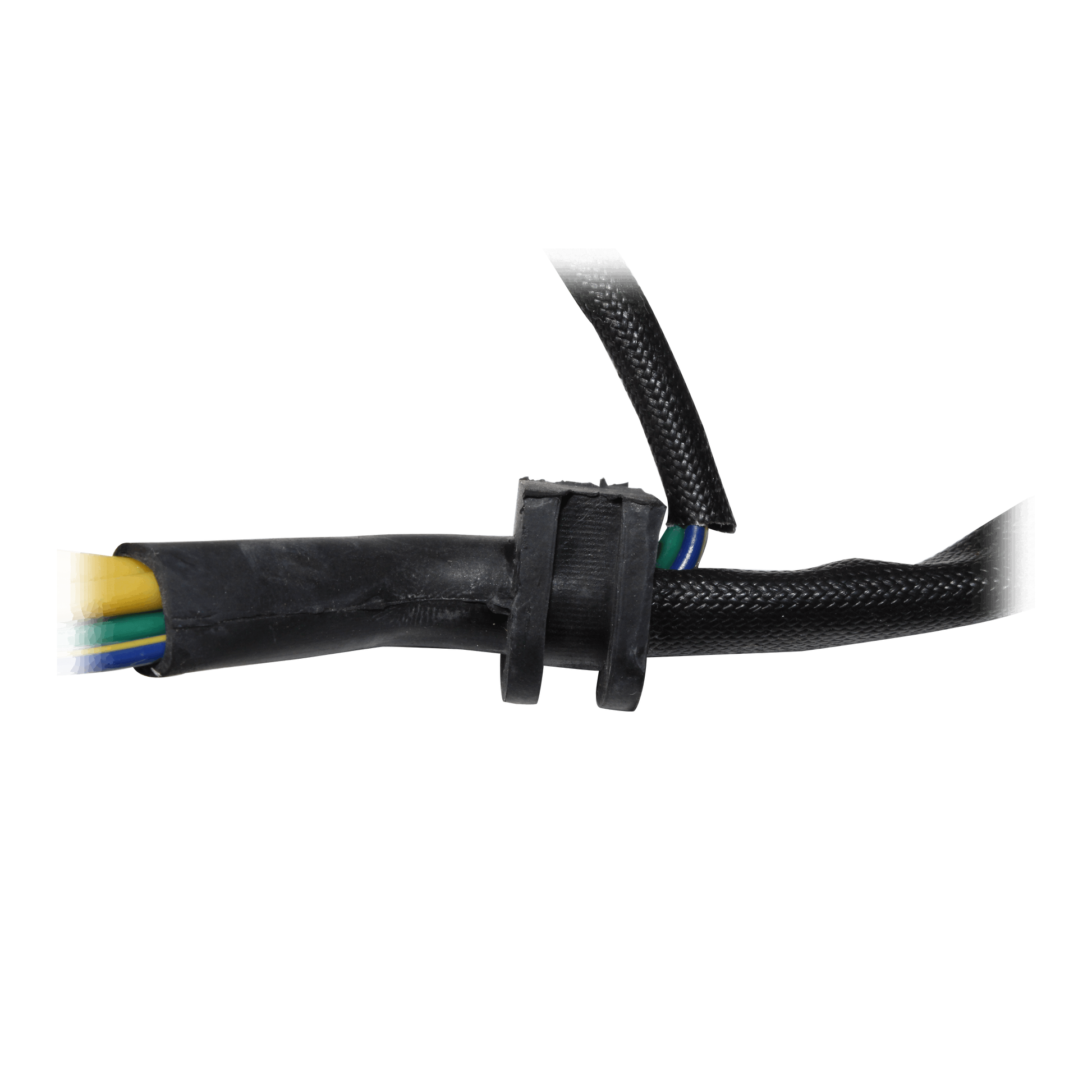

- Pickup pulsar coil, connectors and rubber grommet included
- All products shipped are tested
- Dispatched from the UK with technical fitment support
Technical Specs
| Specification |
Detail |
| SKU / Part Code |
RMS010-108248 |
| Component |
Generator Stator |
| Interior diameter |
42 mm |
| Exterior diameter |
115 mm |
| Thickness |
10 mm |

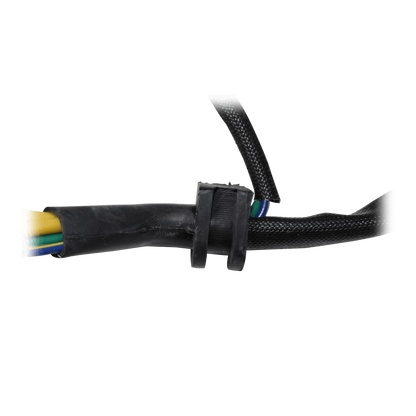

| Wire length (stator to grommet) |
90 mm |
| Wire length (grommet to plug) |
40 mm |
| Pickup coil wire length |
320 mm |
| Number of wires |

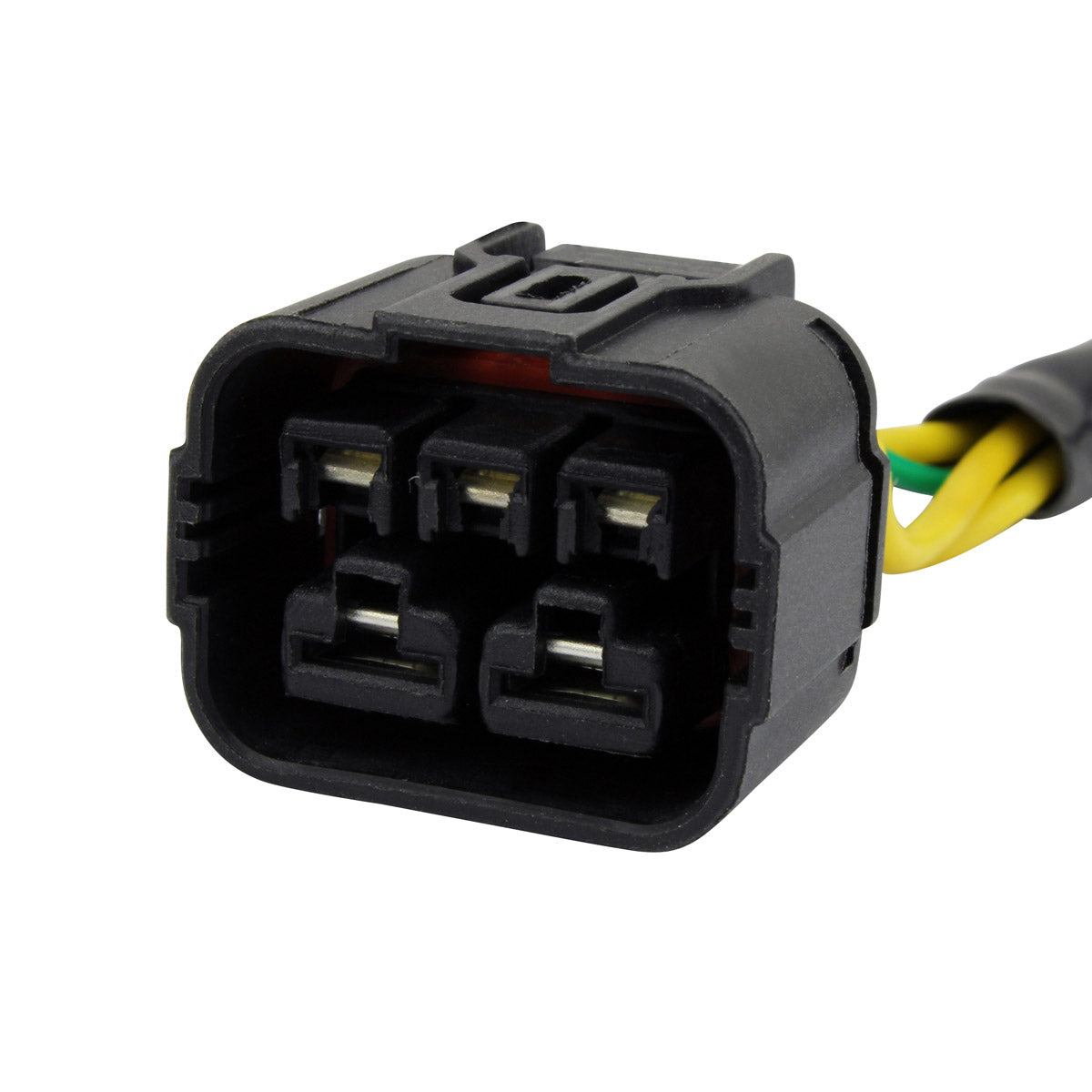

5 |

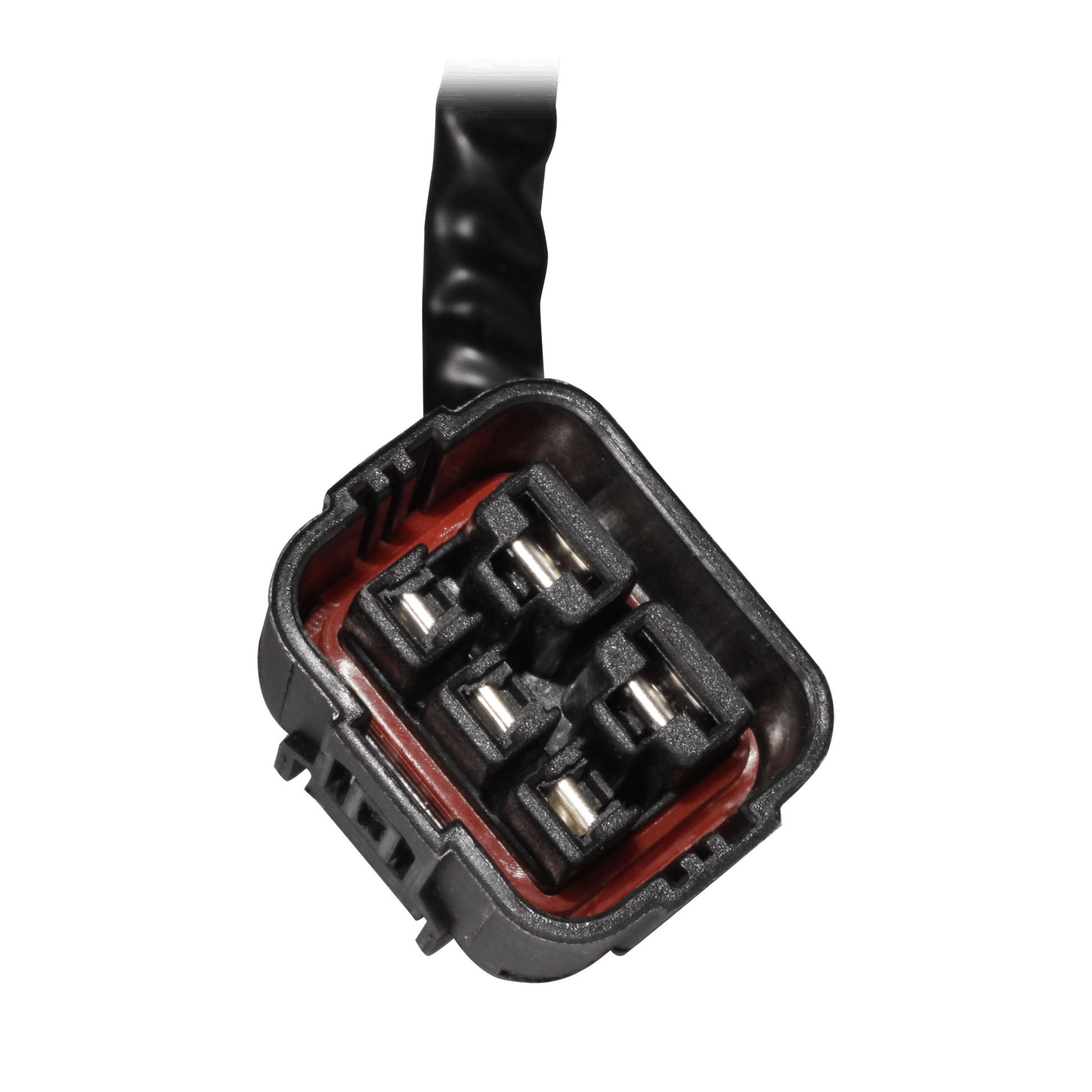

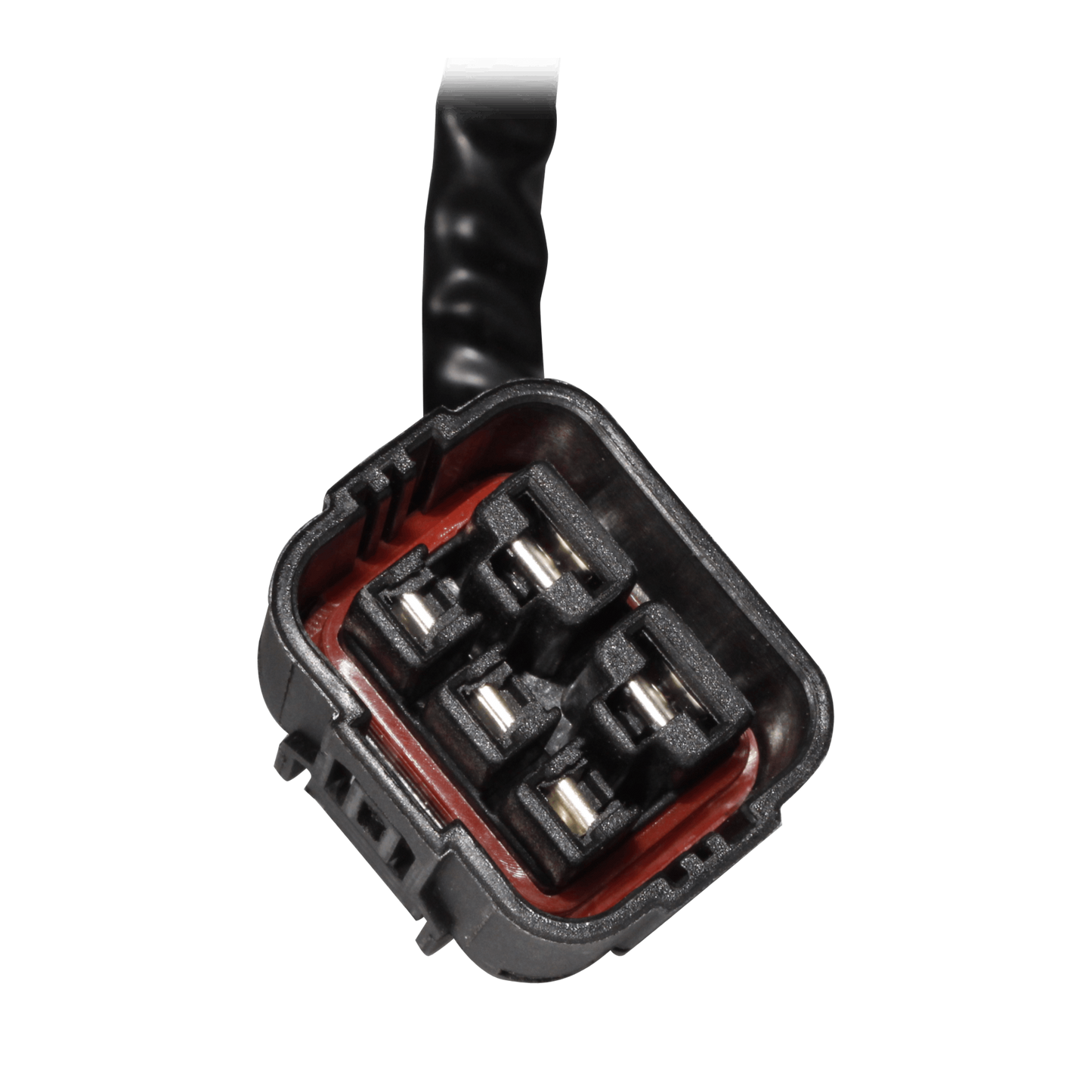

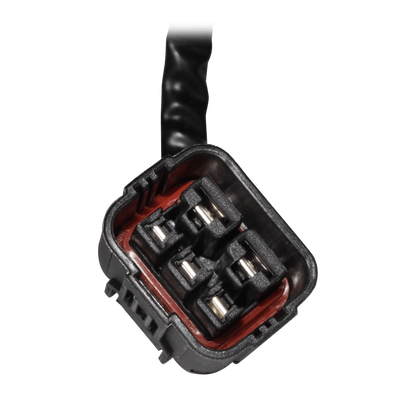

| Number of plugs |
1 |
| Number of pins |
5 |
| Number of poles |
15 |
| Alternator resistance |
Yellow to Yellow = 0.4 ohms +/-20% |
| Pickup resistance |
Blue/Yellow to Green = 240 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
| Condition |
New aftermarket |
| Warranty |
12 months |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda SXS700 Pioneer 700 |
2014-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-HL3-A01 |
Honda |
Frequently Asked Questions
Does it fit without modification?
Yes. On the Honda SXS700 Pioneer 700 listed above it is a plug-and-play direct fit that replaces the original stator with no wiring changes or modification.
What is included?
The generator stator, the pickup pulsar coil, the connectors and the rubber grommet.
How do I tell the old stator has failed?
Check the alternator winding resistance yellow to yellow - it should read 0.4 ohms plus or minus 20 per cent - and the pickup coil blue/yellow to green, which should read 240 ohms plus or minus 20 per cent. A reading that is open circuit, shorted, far outside those figures, or any continuity from a winding to earth, means the stator has failed.
Why is the copper winding temperature rating important?
A stator sits in hot oil close to the engine, and cheap winding insulation breaks down under heat and shorts turn to turn. This unit uses the highest grade of copper winding, resistant to 200 degrees Celsius, on the highest grade of lamination materials.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
