Generator Stator - Honda TRX 500 & 520 Fourtrax Foreman Rubicon FA

Honda TRX 500 / 520 Fourtrax Foreman Rubicon FA 2015-2021 - RMSTATOR part RMS010-107181

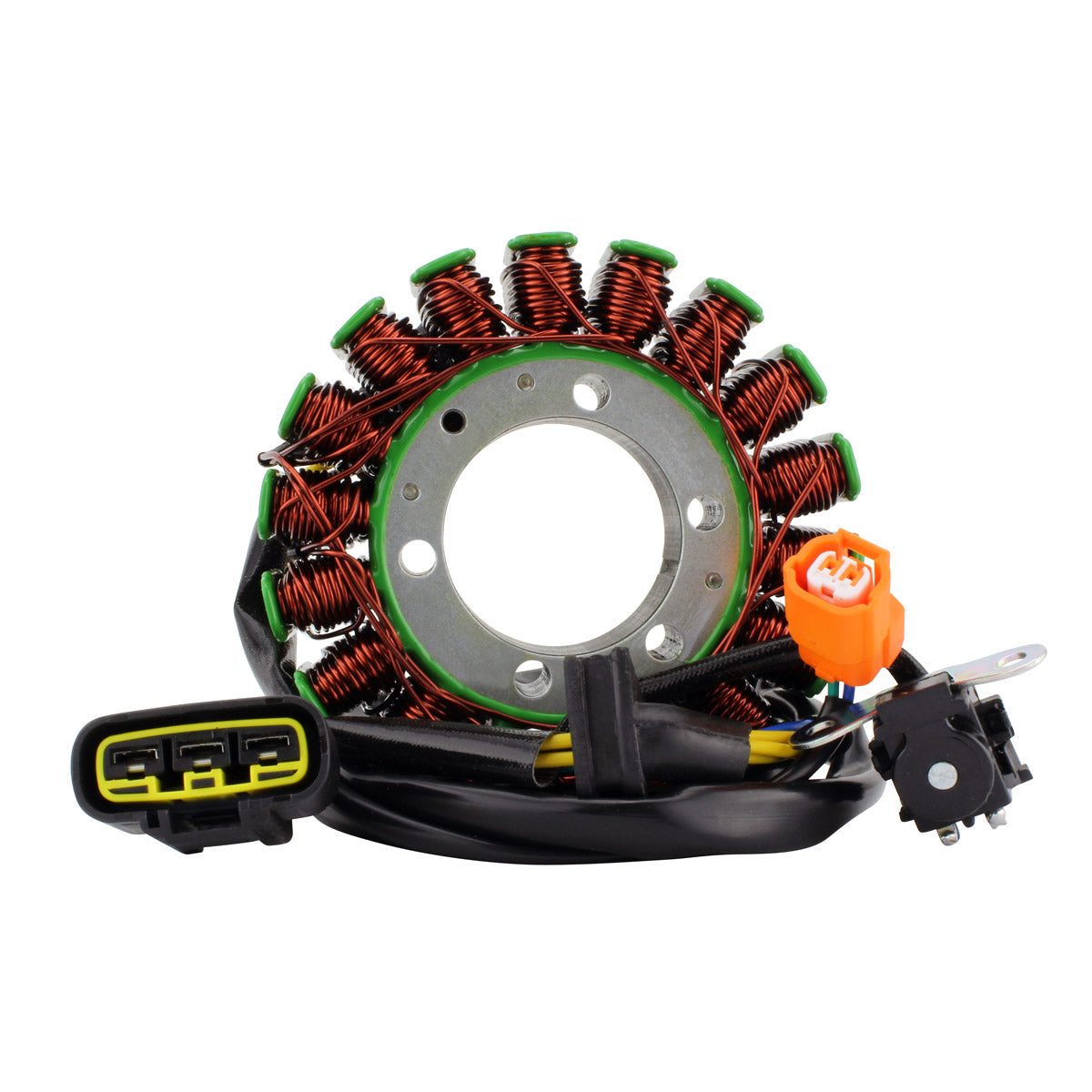

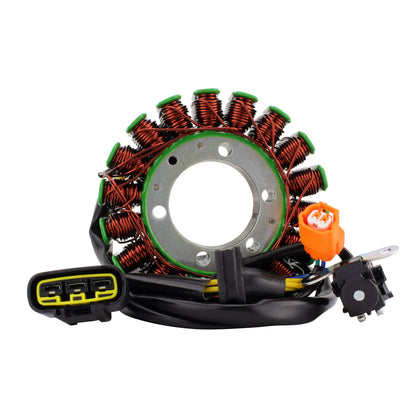

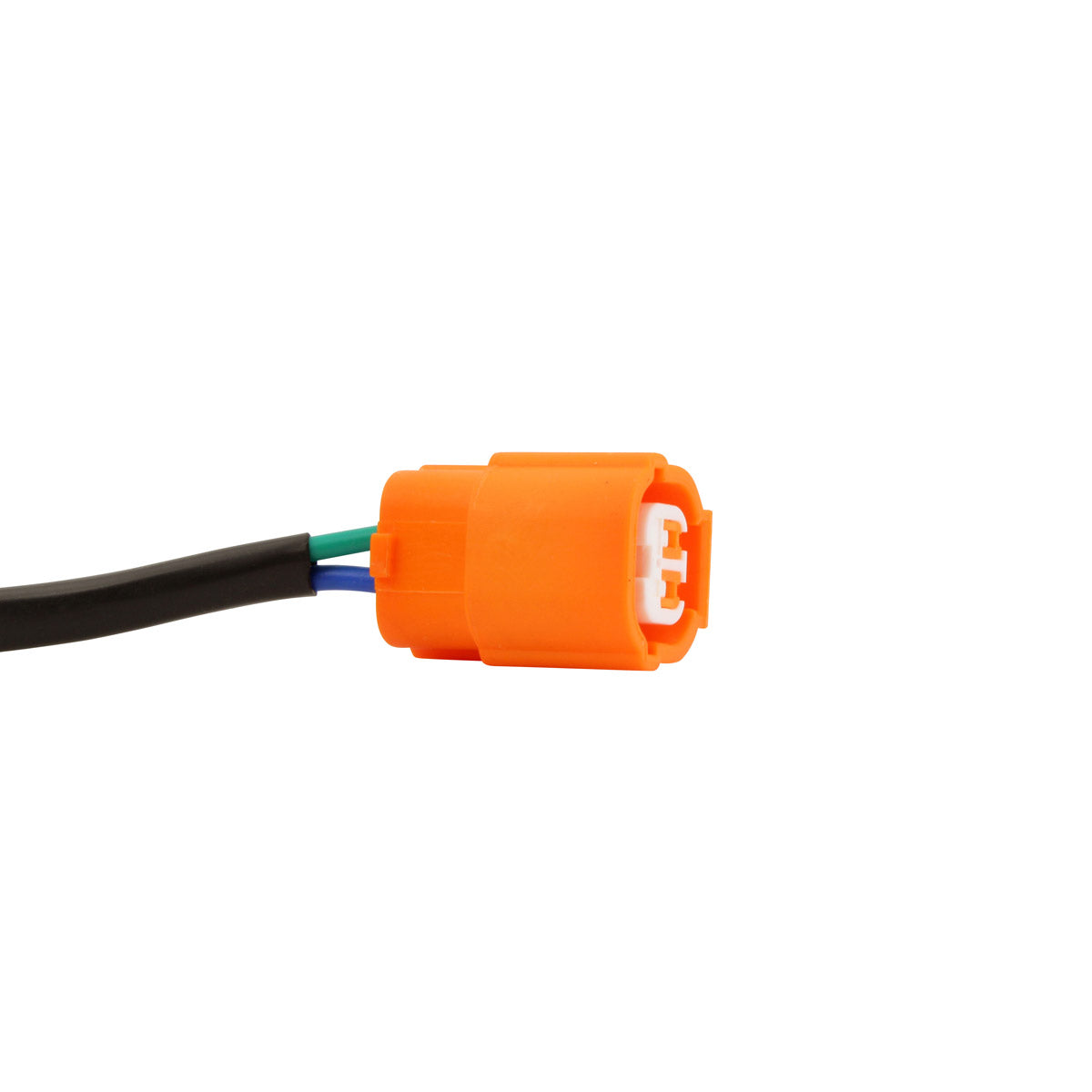

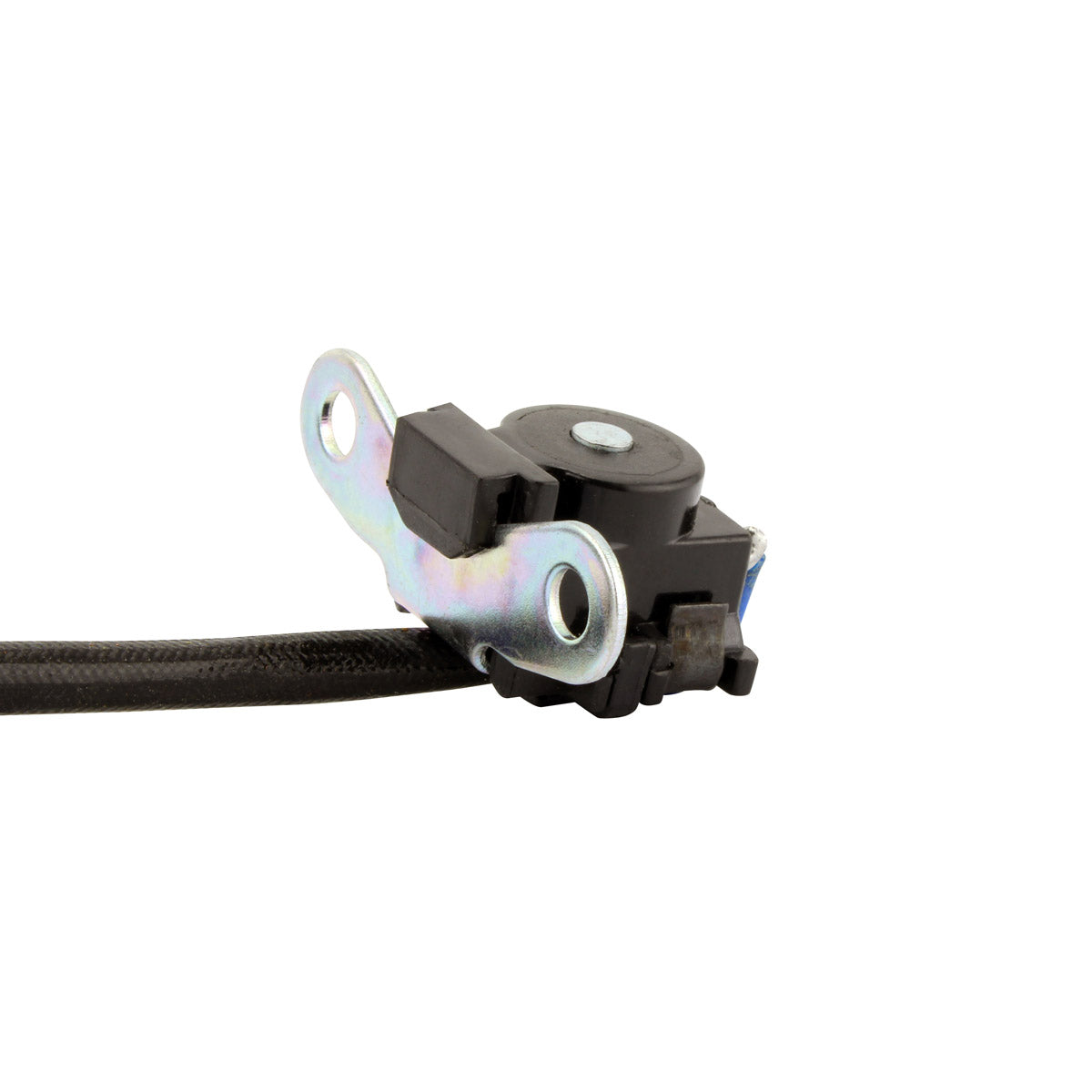

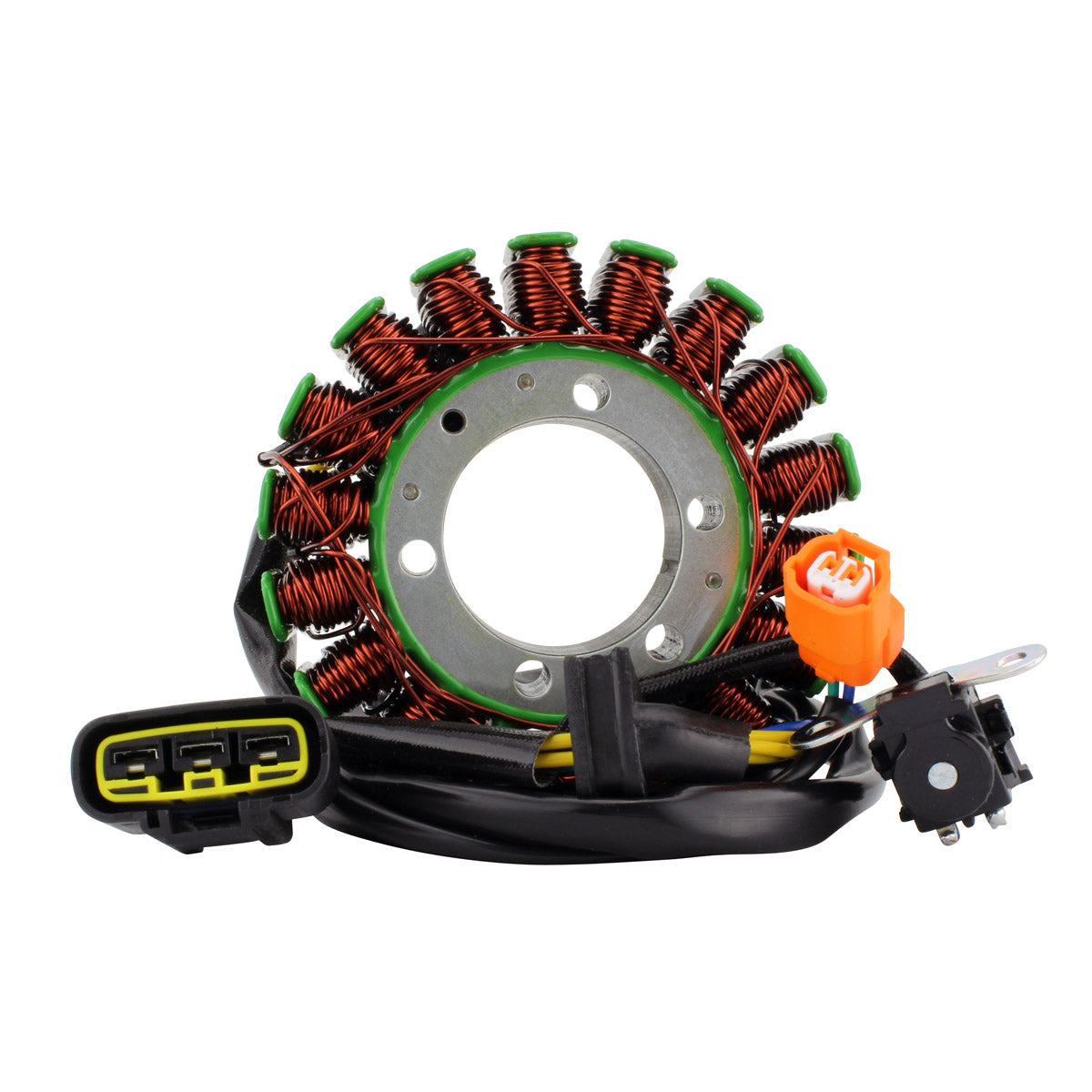

This is a brand new aftermarket generator stator built as a direct replacement for the original unit in the Honda TRX 500 and TRX 520 Fourtrax Foreman Rubicon FA. It is a plug-and-play, direct fit assembly supplied with the pick up pulsar coil, the connectors and the rubber grommet, so the complete unit seats in the engine cover and plugs into the standard harness with no modification.

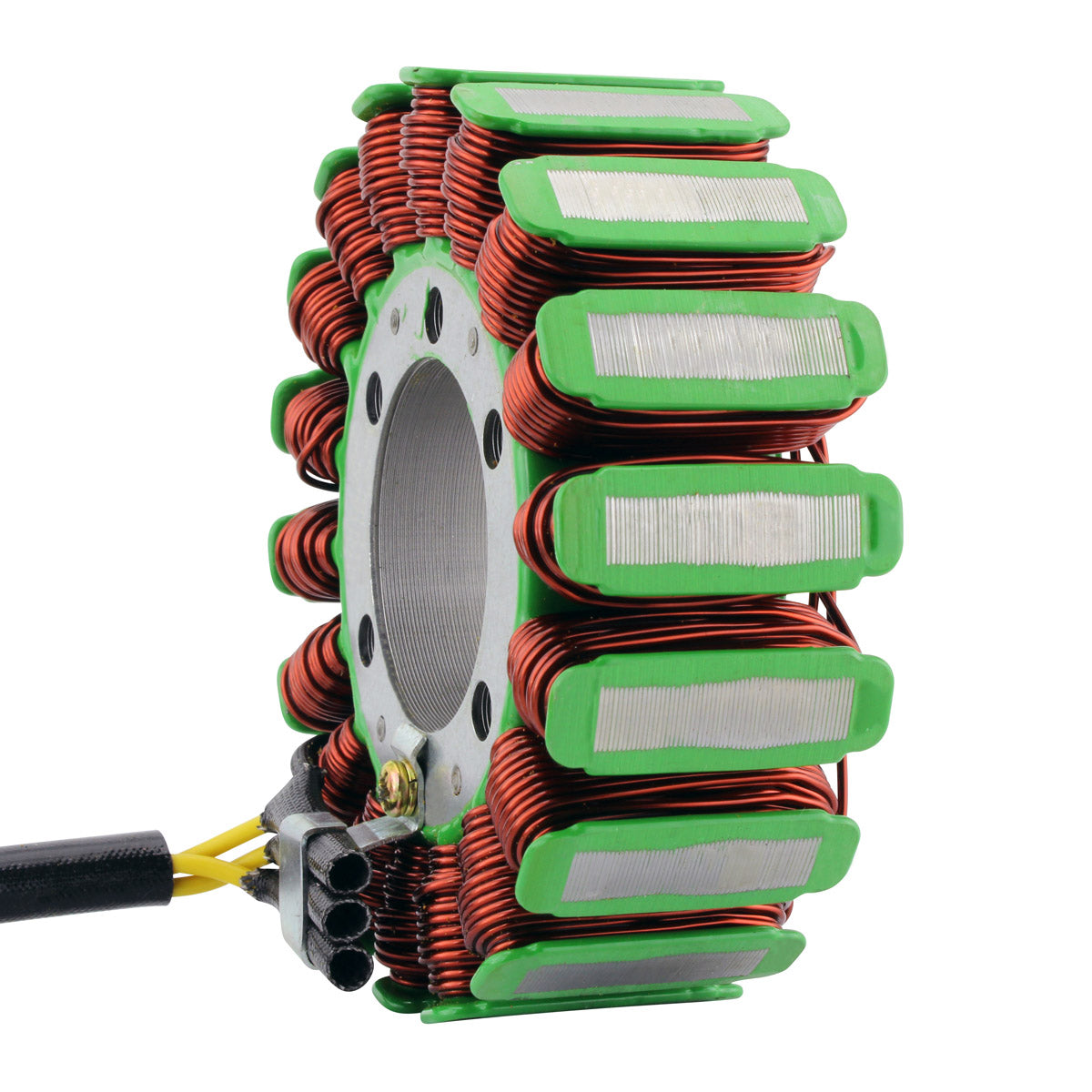

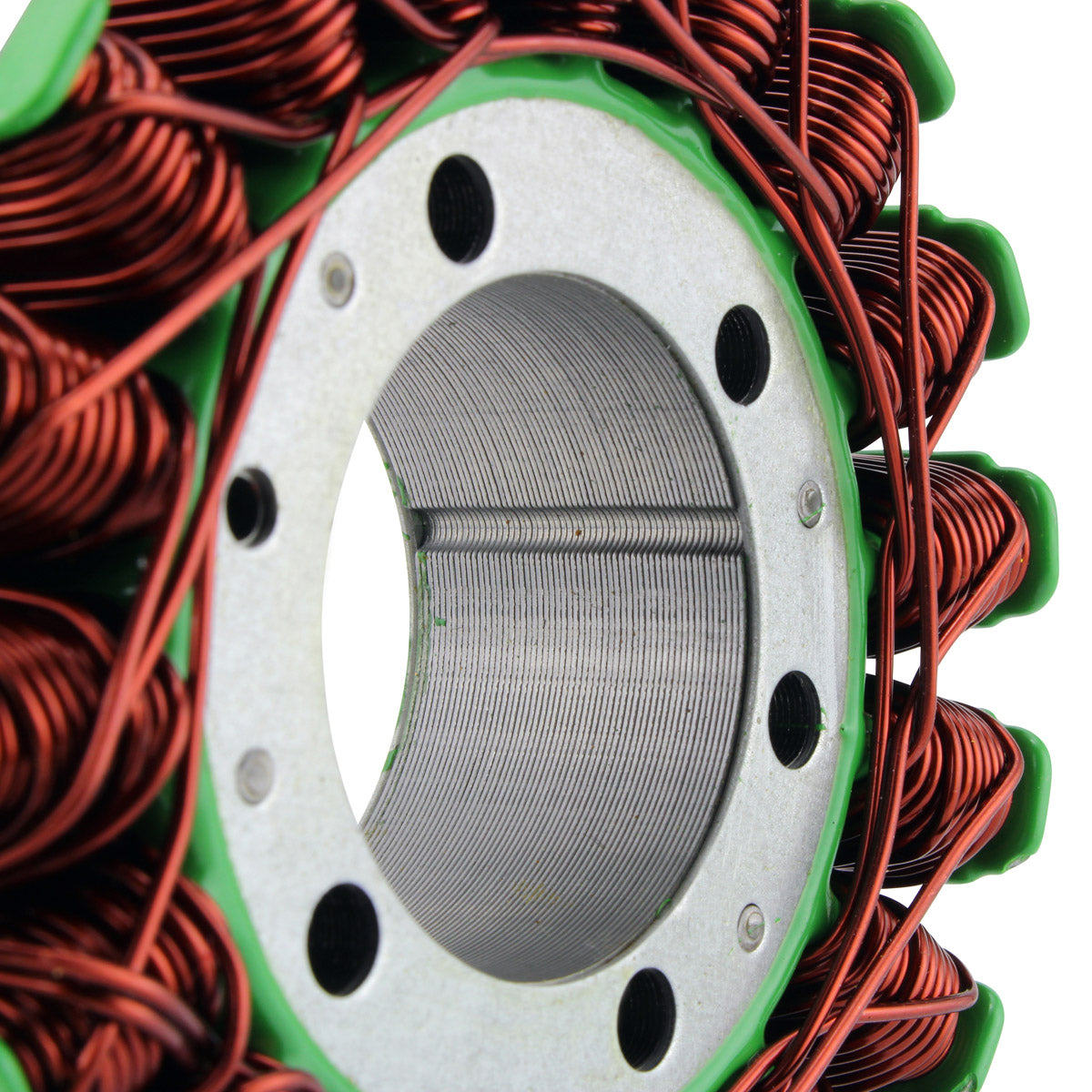

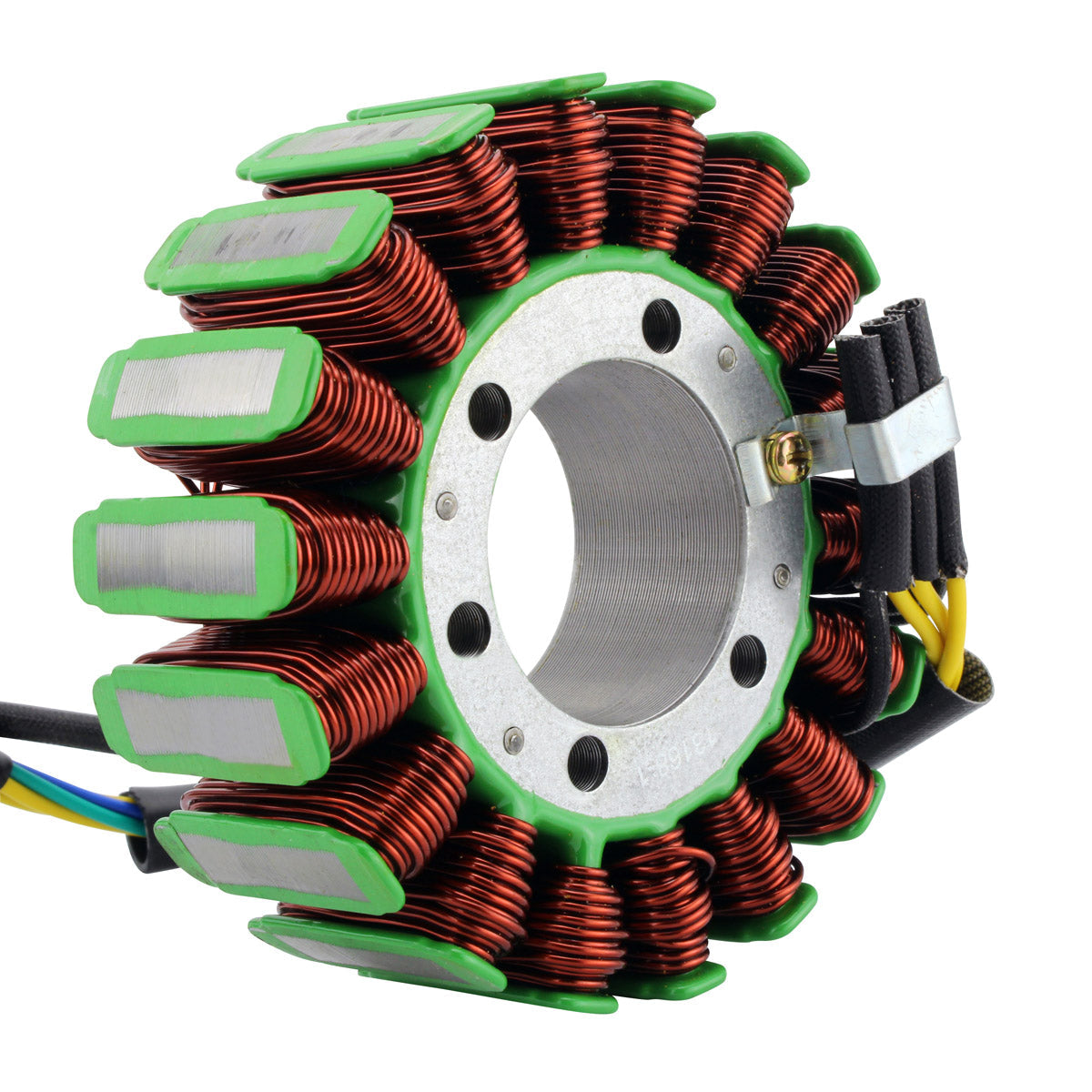

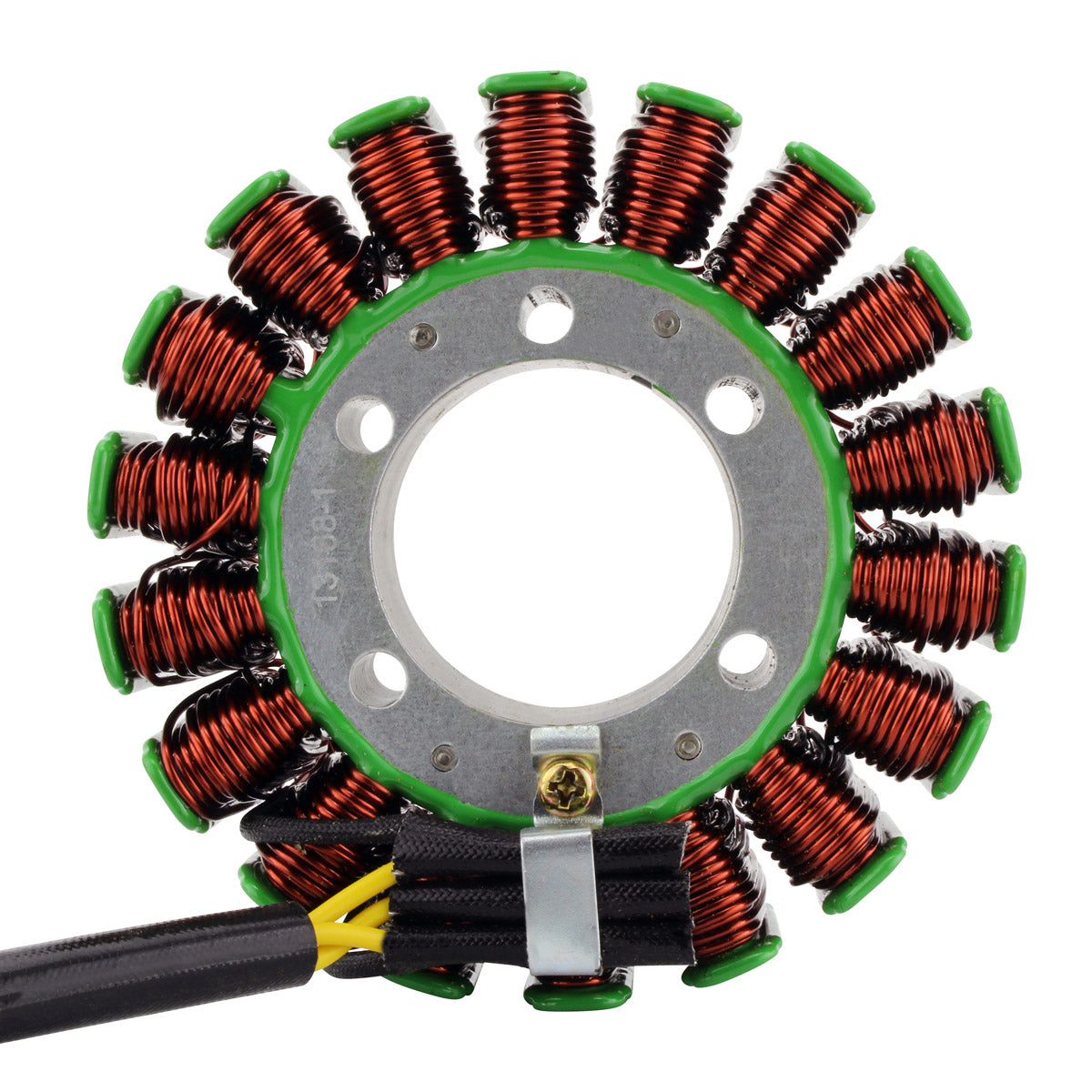

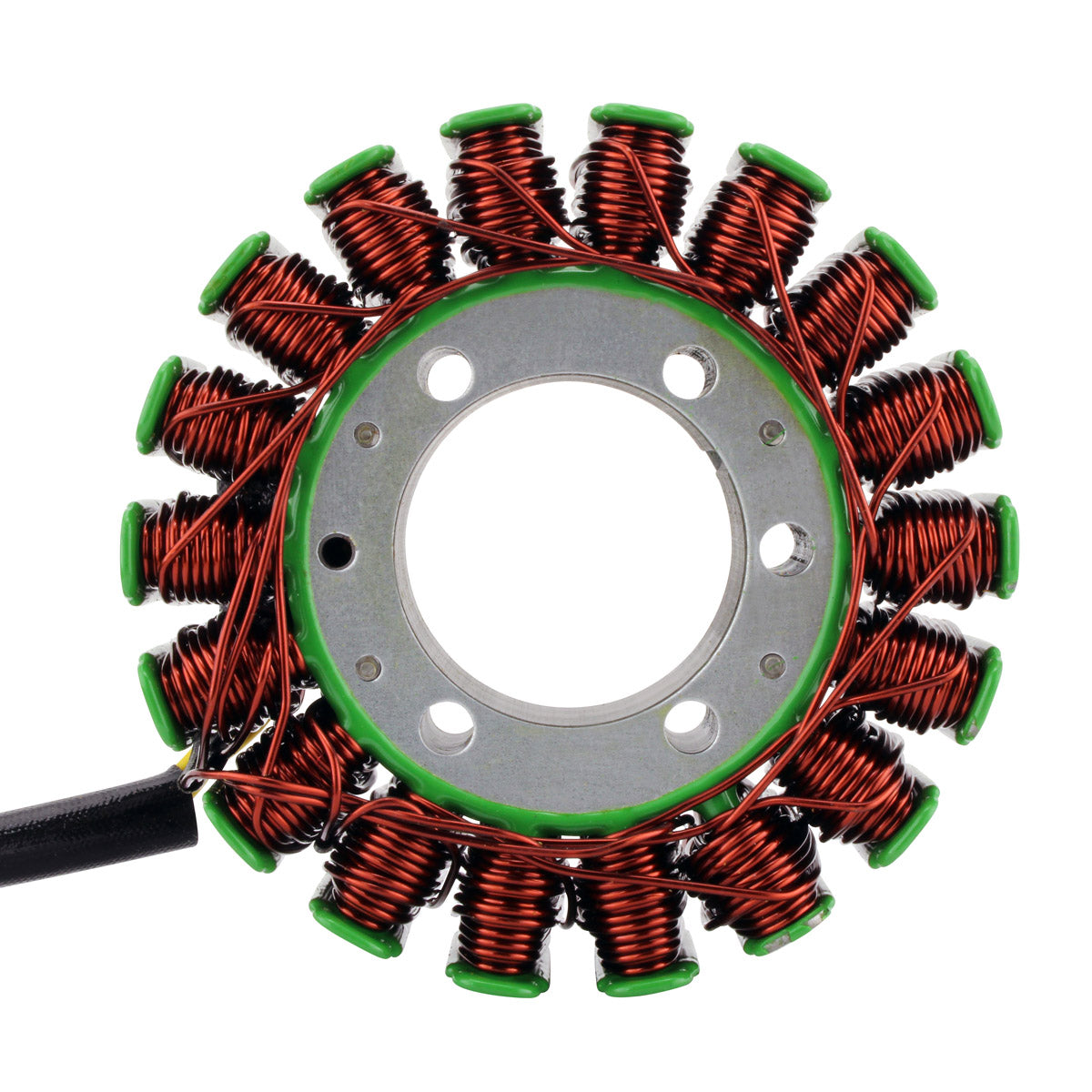

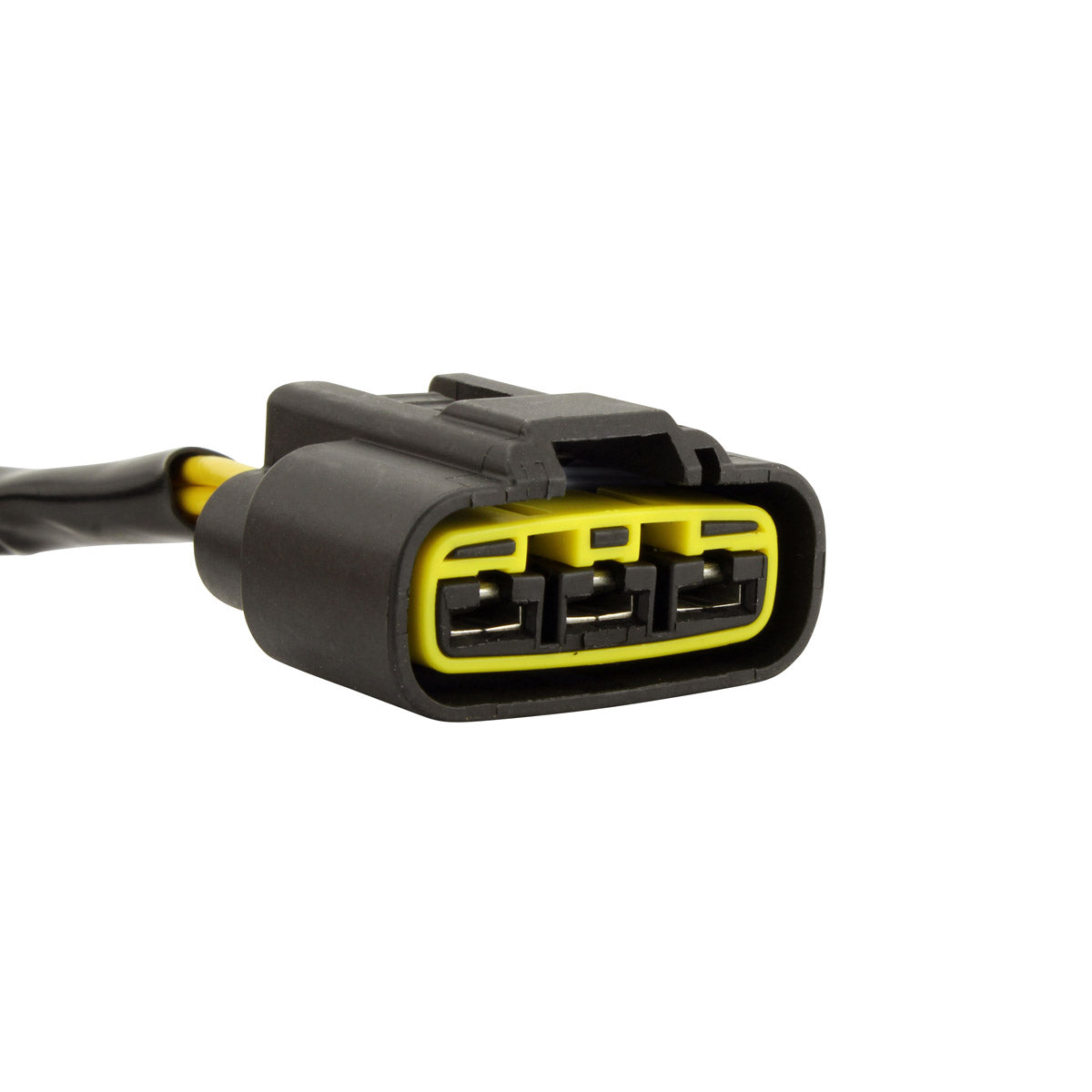

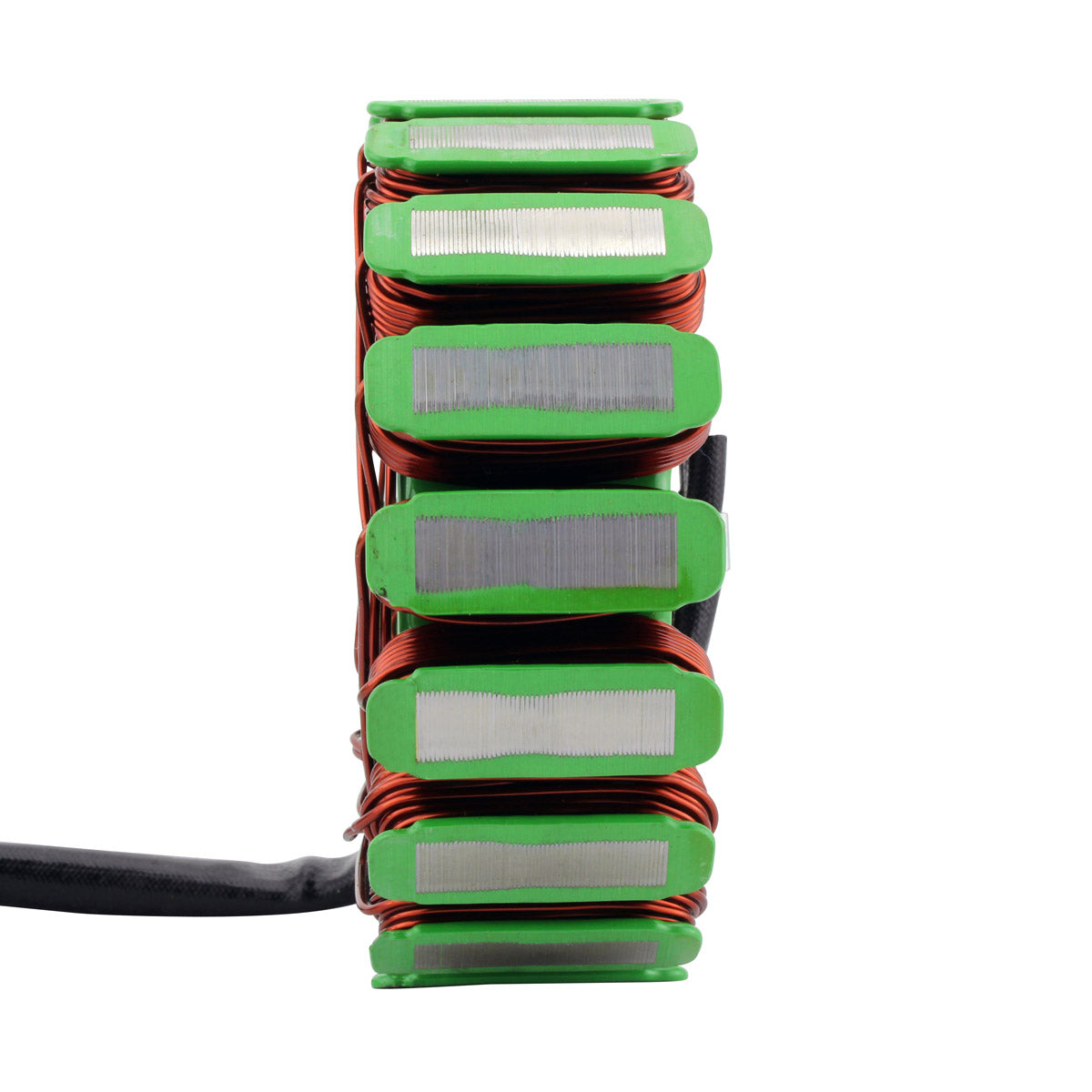

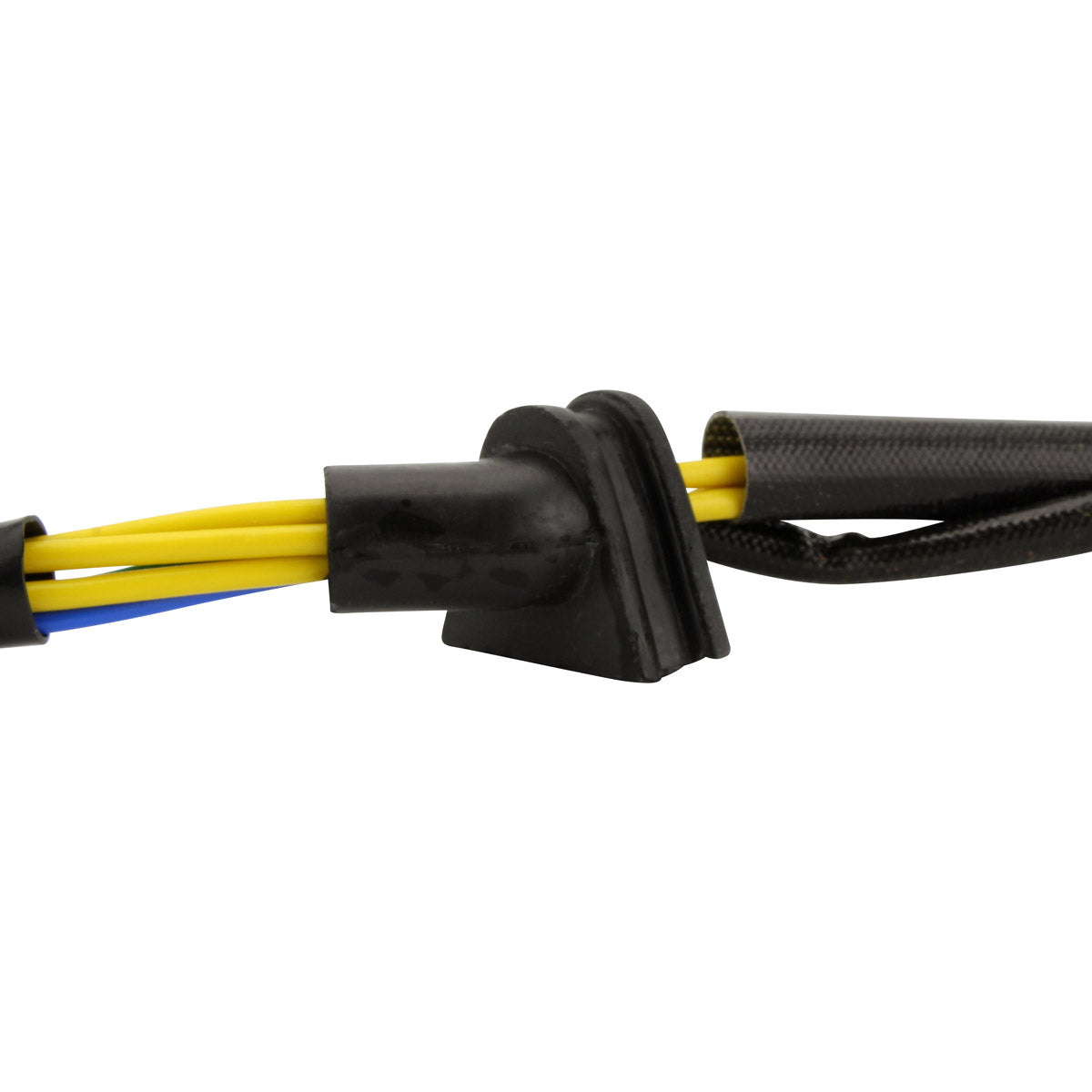

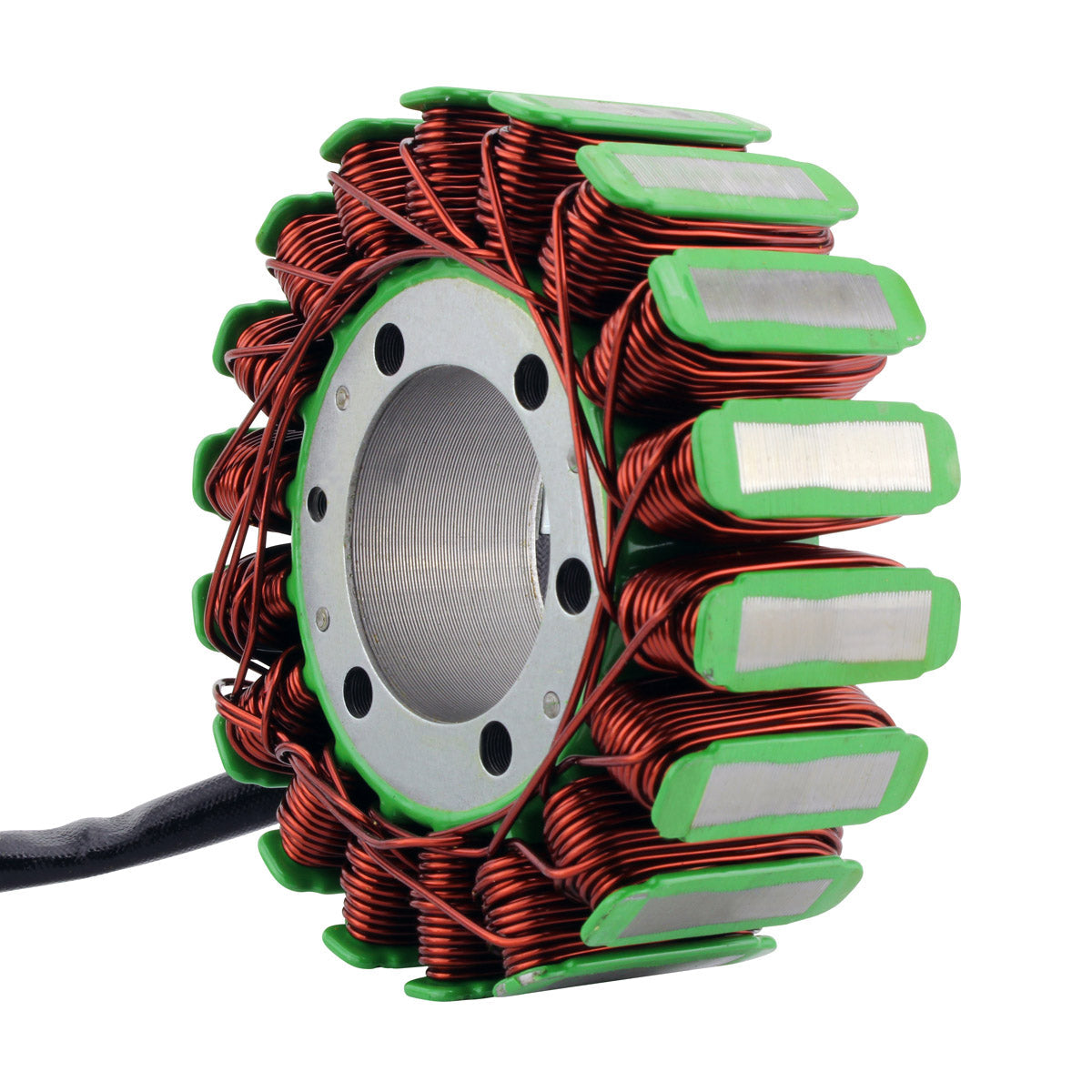

The stator is wound on the highest grade of lamination materials using the highest grade of copper winding, rated to withstand 200 degrees Celsius. It measures 107 mm on the exterior diameter with a 42 mm interior diameter and 31 mm of thickness, and carries 18 poles across 5 wires, 2 plugs and 5 pins. Two harness legs leave the grommet, one at 335 mm and one at 855 mm. Alternator resistance measures 0.6 ohms yellow to yellow and the pickup measures 235 ohms from blue to green, both within plus or minus 20 per cent. Every unit is tested before it is shipped.

The Foreman Rubicon FA is an electric-shift machine, so its whole transmission depends on stable system voltage. A stator that has lost a phase will first show up as a battery that never quite charges, then as shifting that hesitates or refuses, and finally as a machine that will not start. Because the pick up pulsar coil is part of the same assembly, replacing the stator restores the ignition trigger circuit at the same time.
