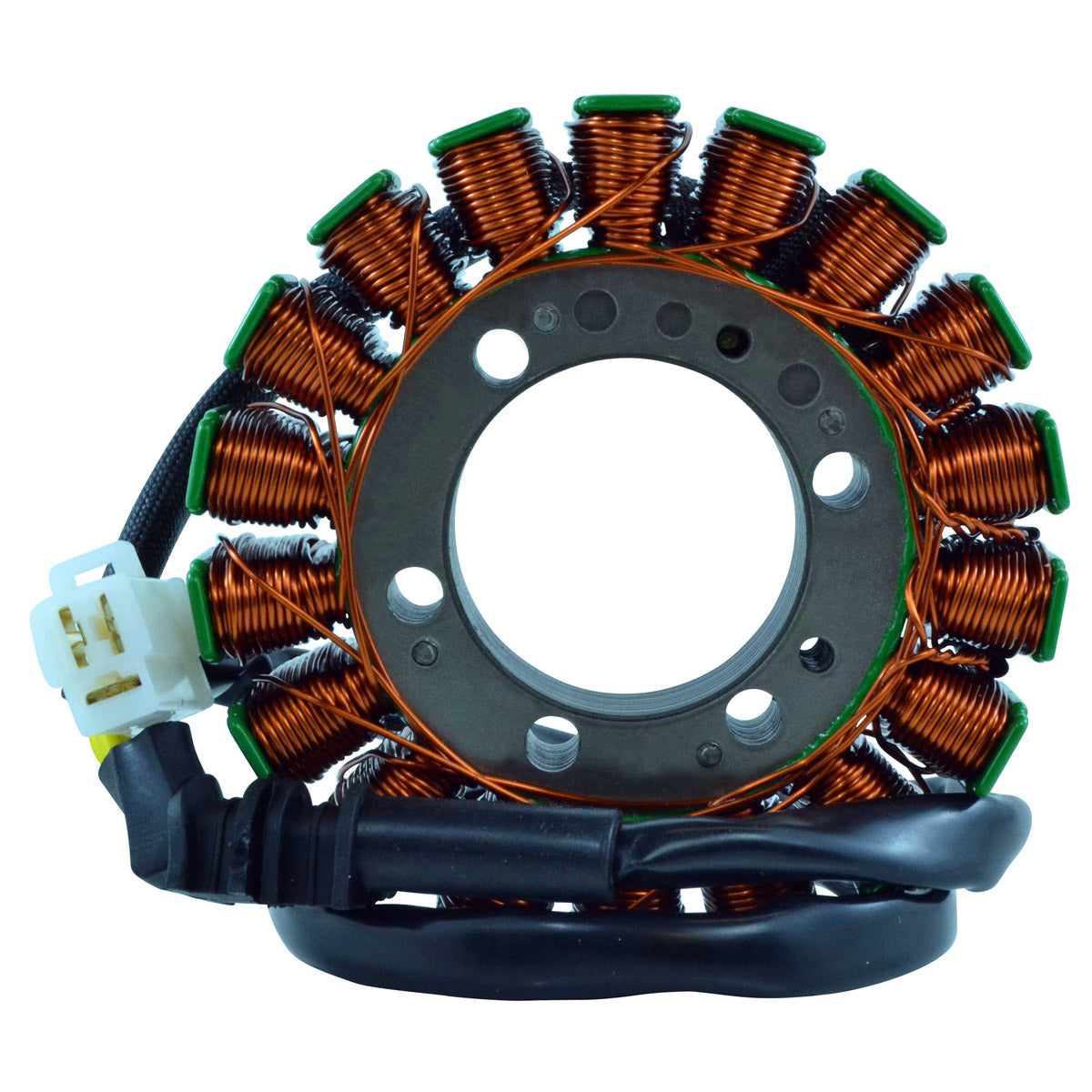

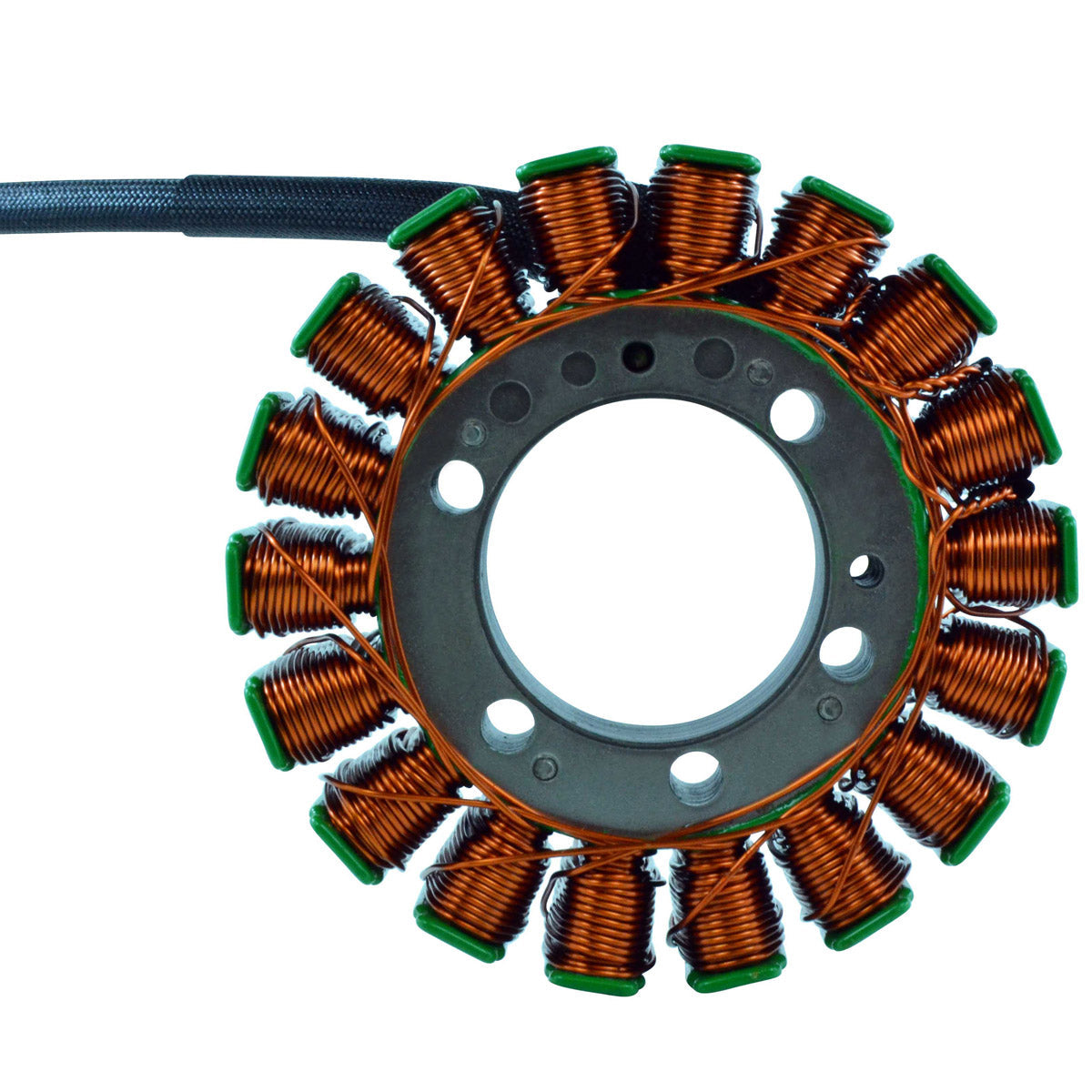

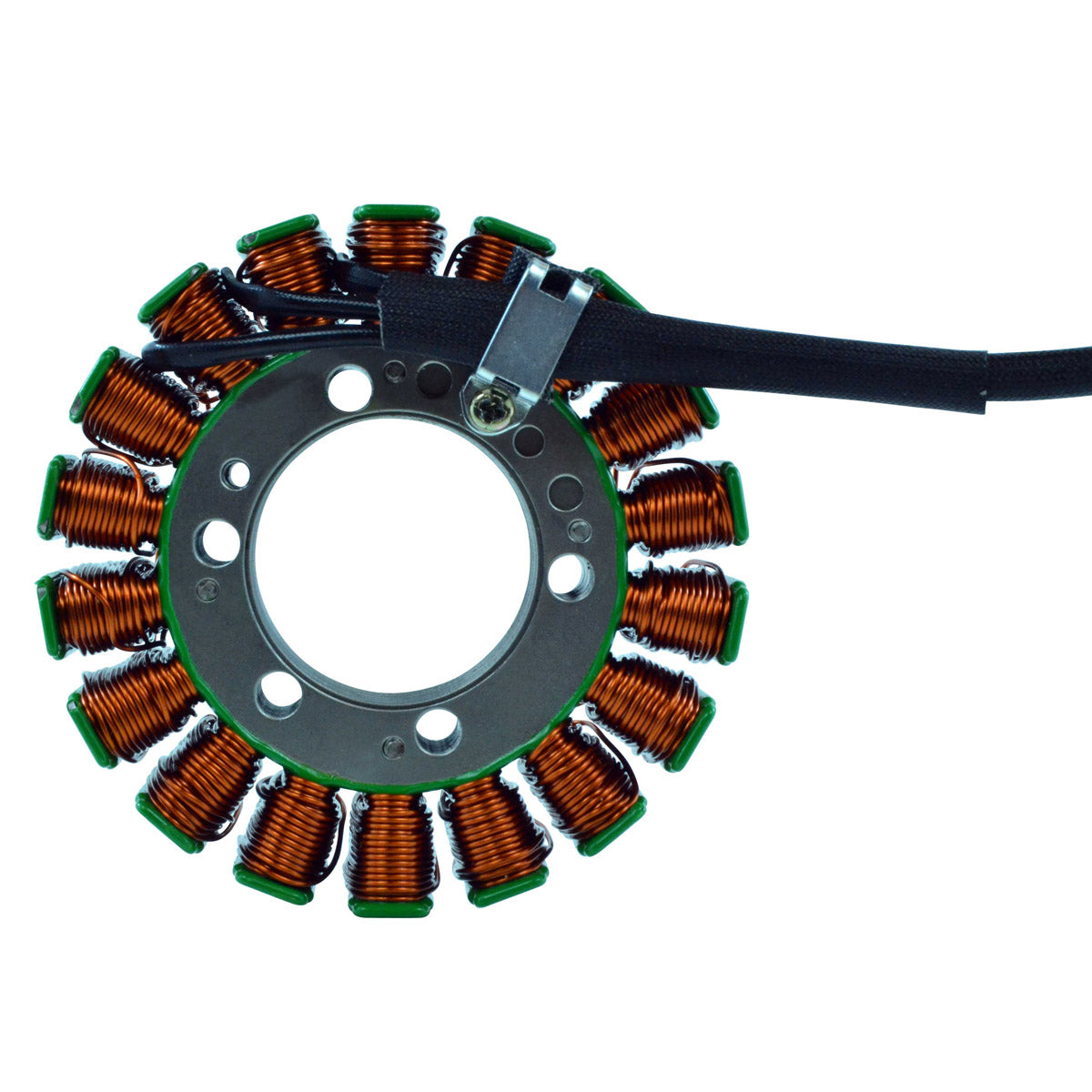

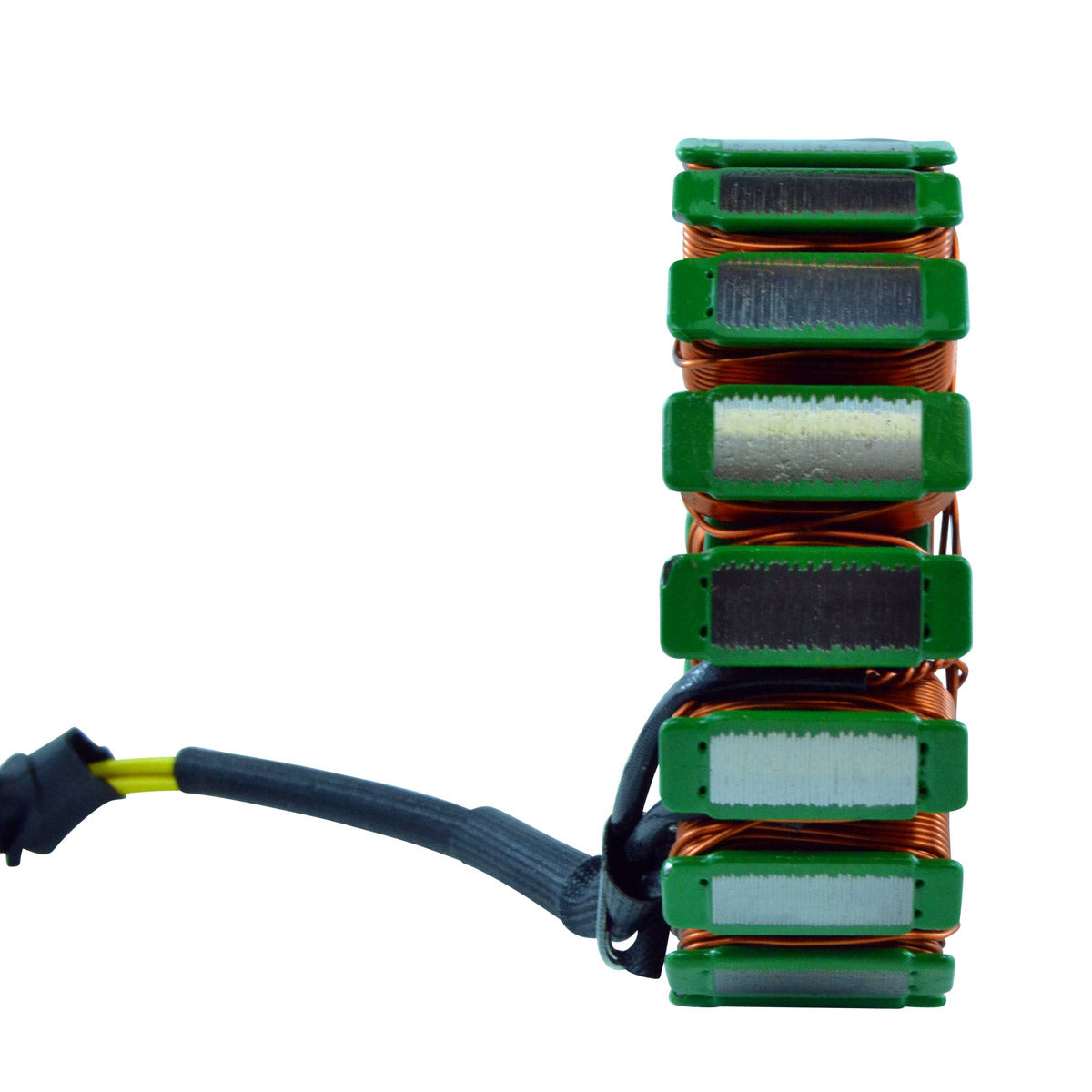

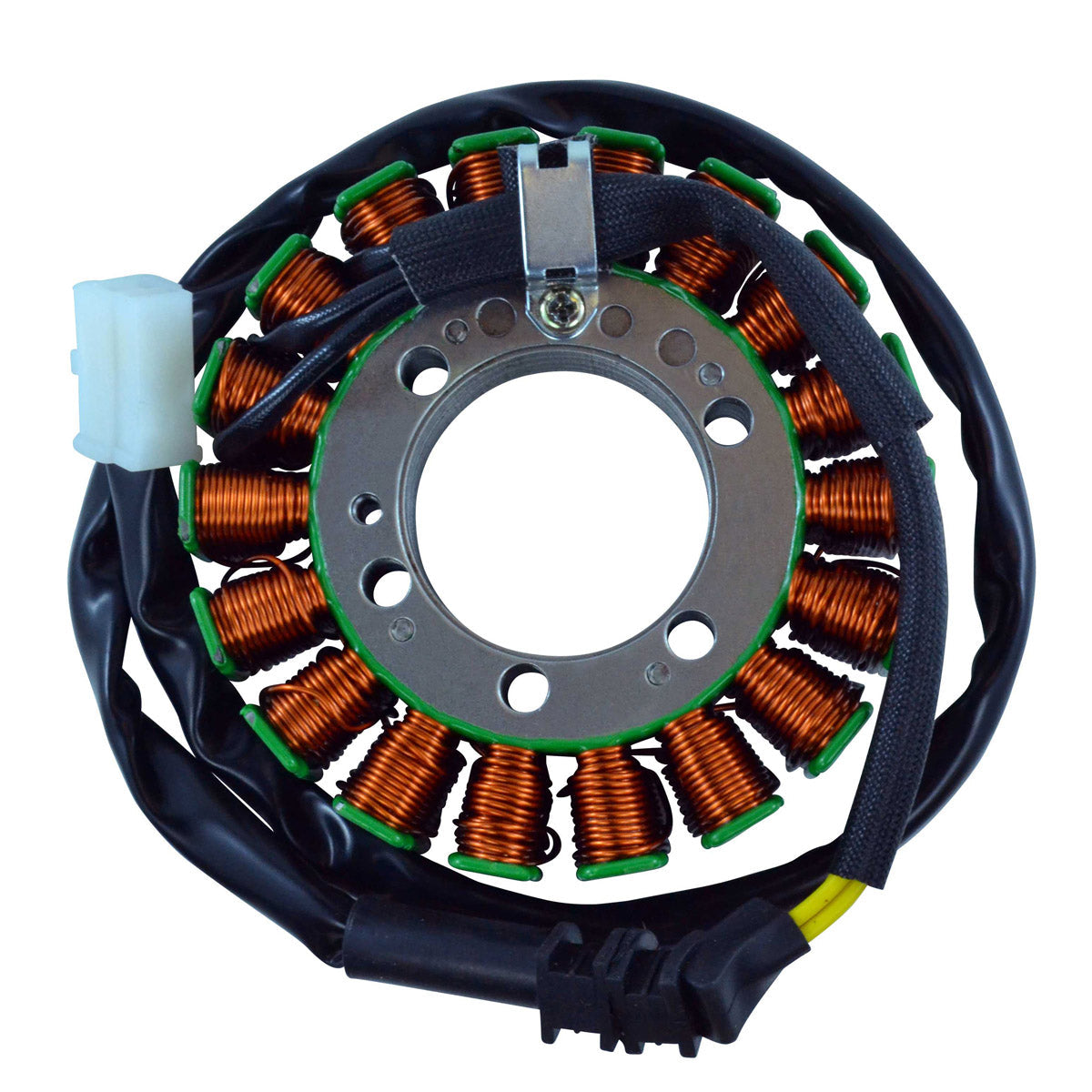

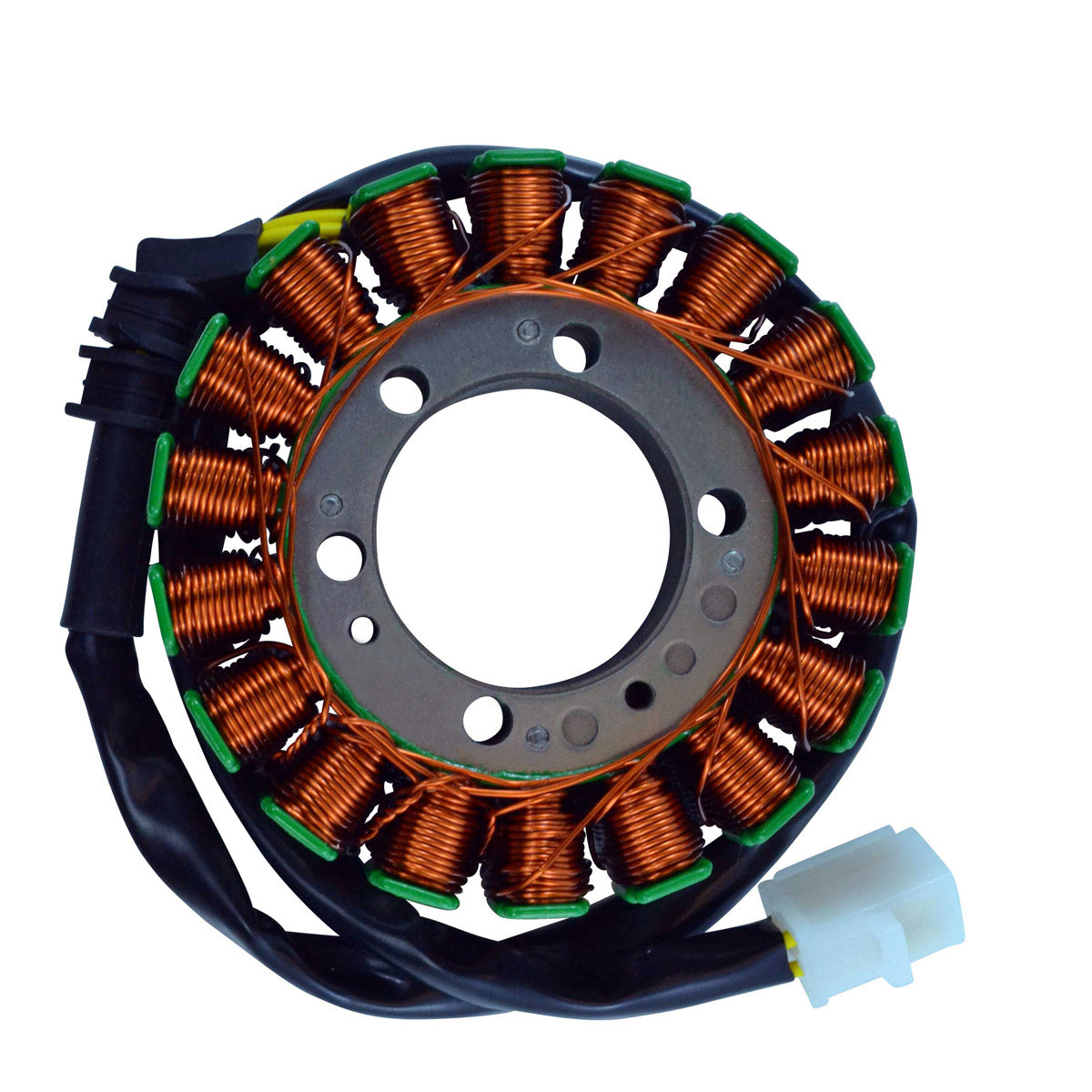

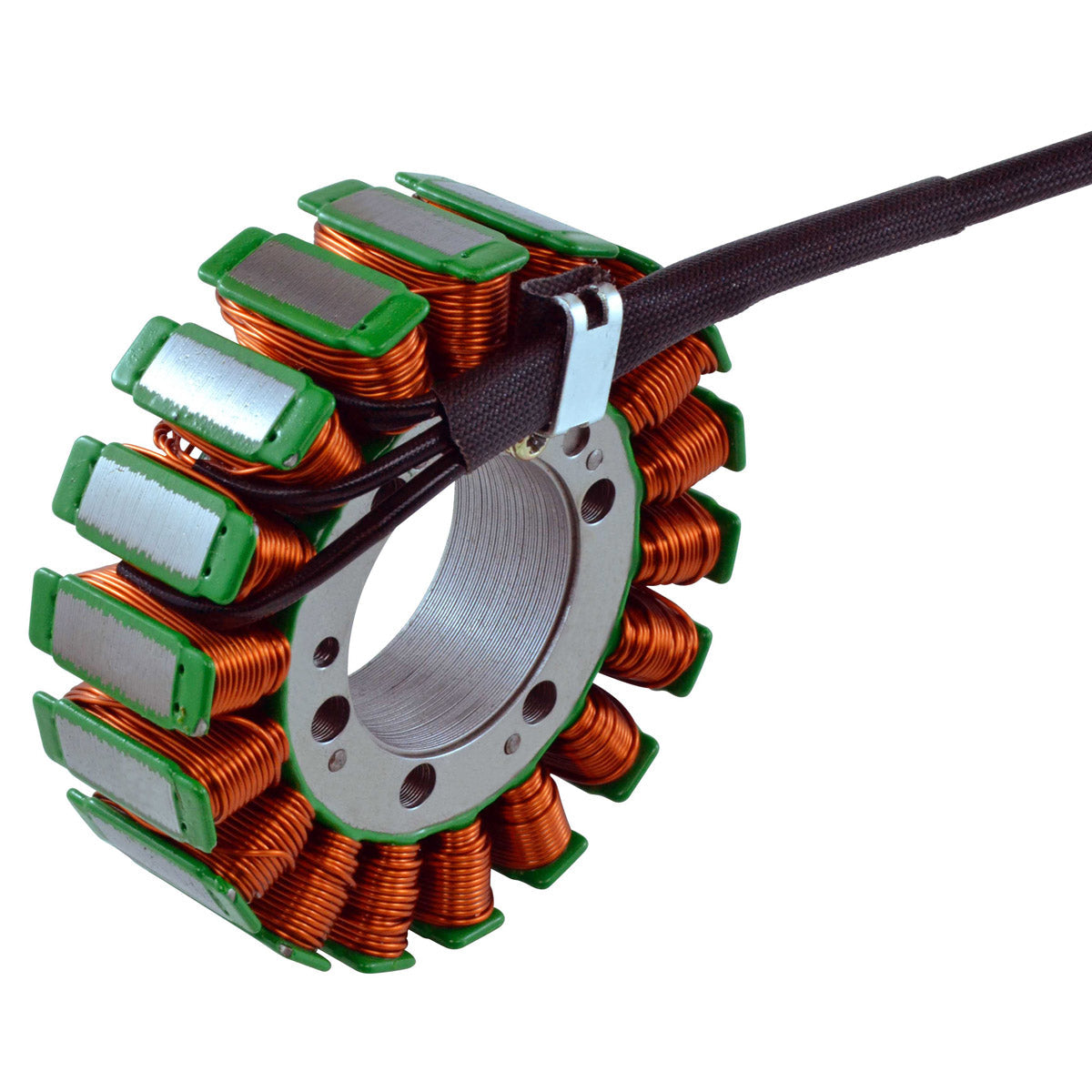

This is a brand new aftermarket generator stator, built as a direct replacement for the original charging unit fitted to the Honda VFR 750 Interceptor, also listed as the VFR750, from 1990 to 1993. It is a plug-and-play, direct fit part, so the existing loom does not have to be cut, spliced or modified in order to install it. It replaces Honda part number 31120-MT4-004.

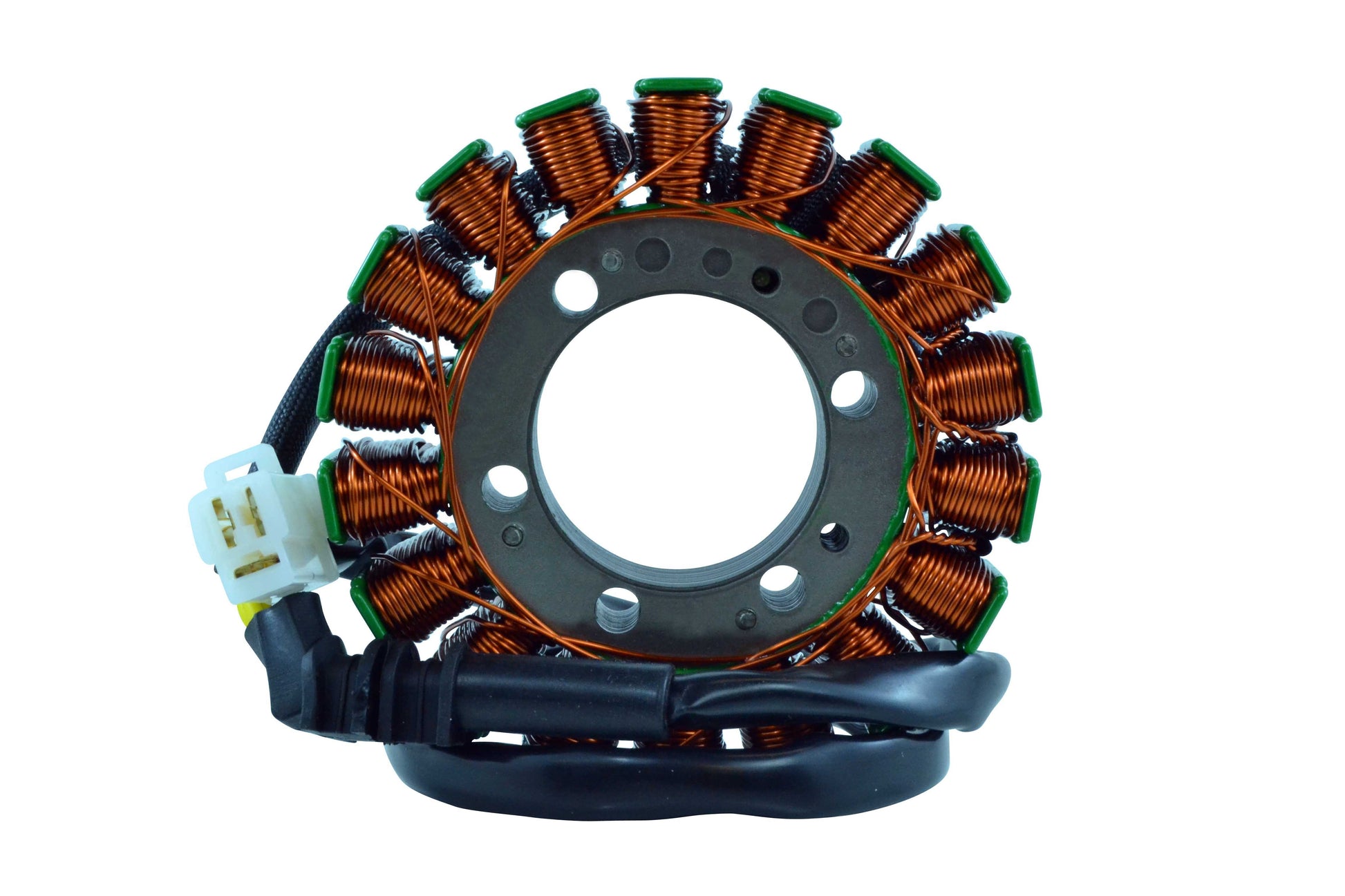

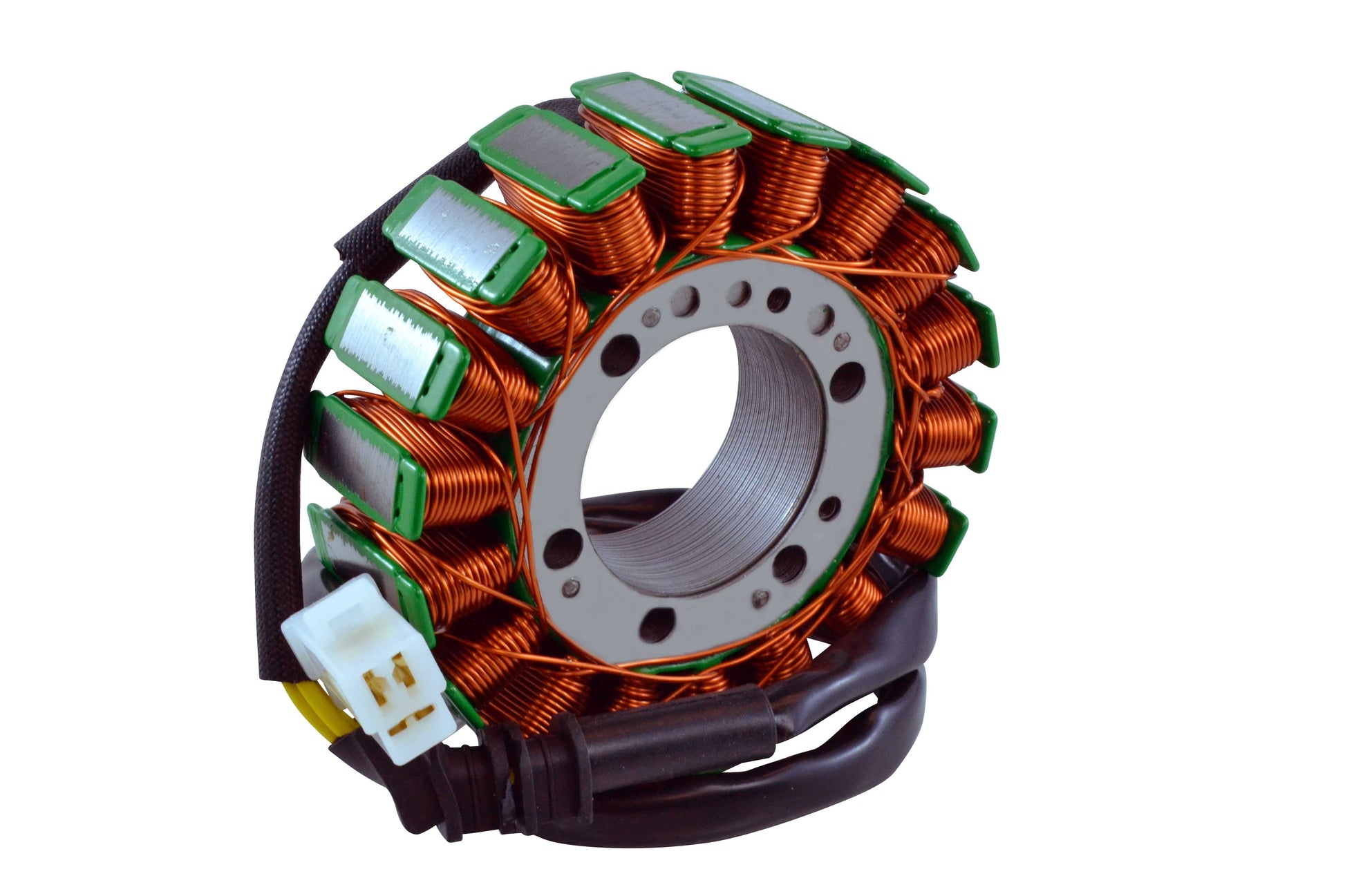

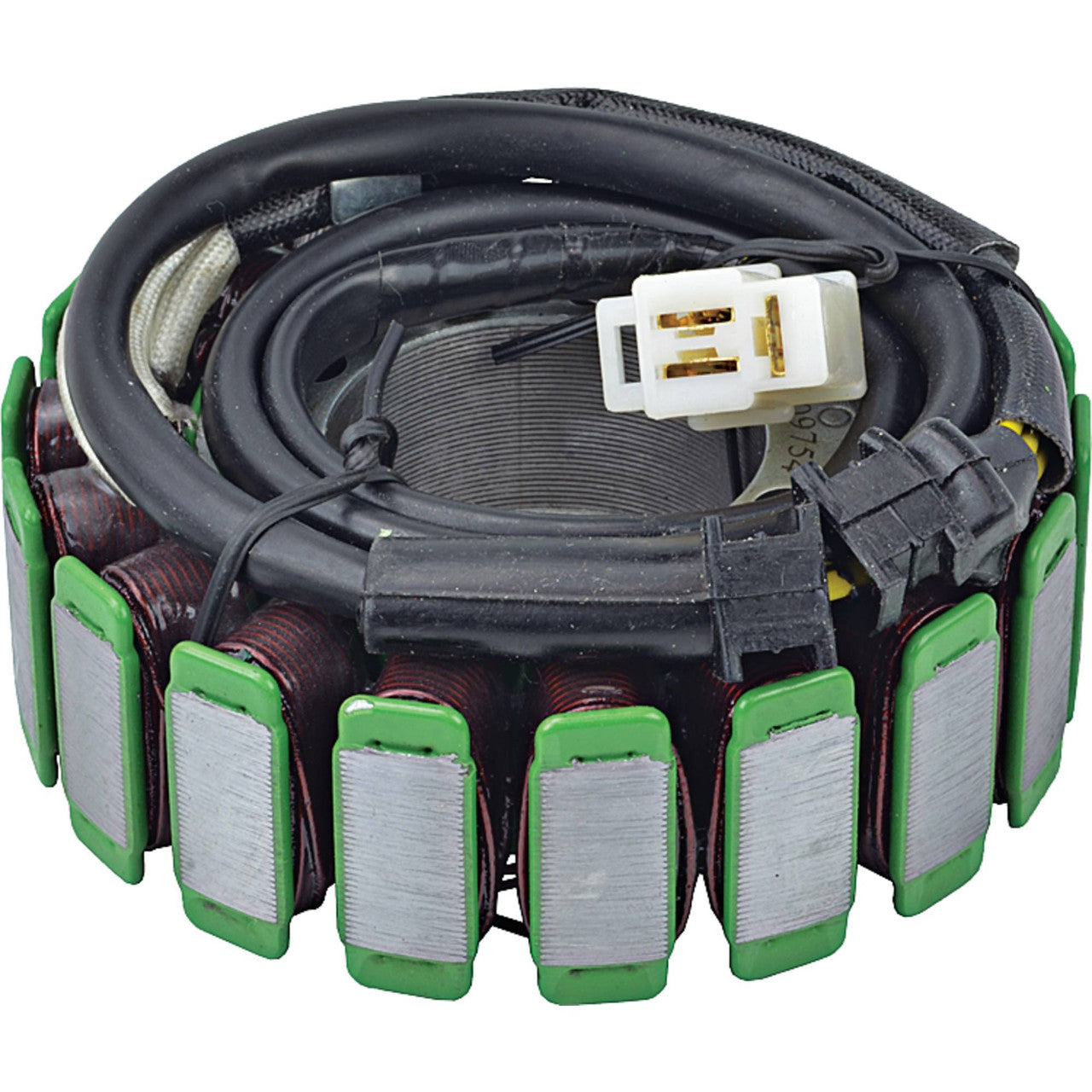

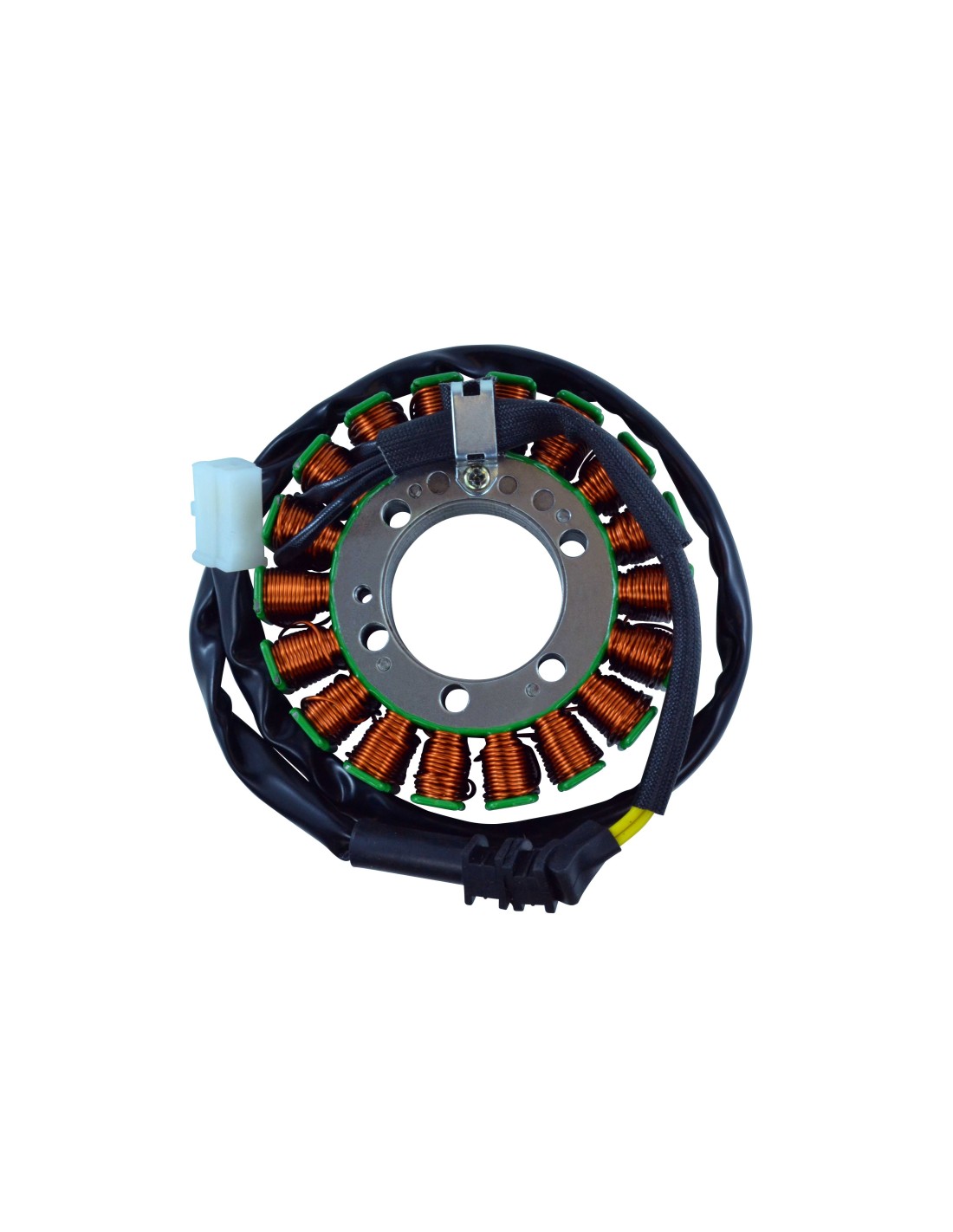

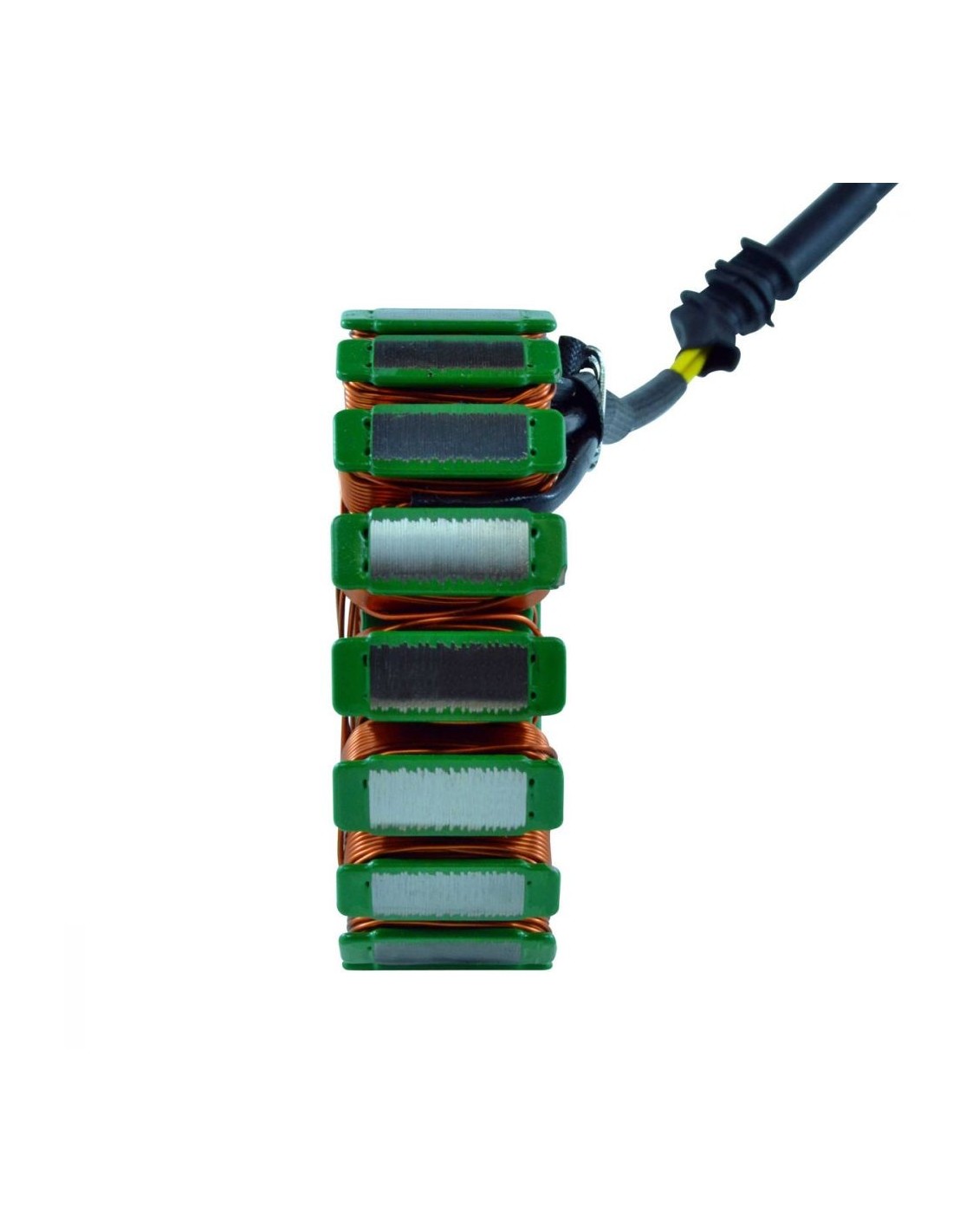

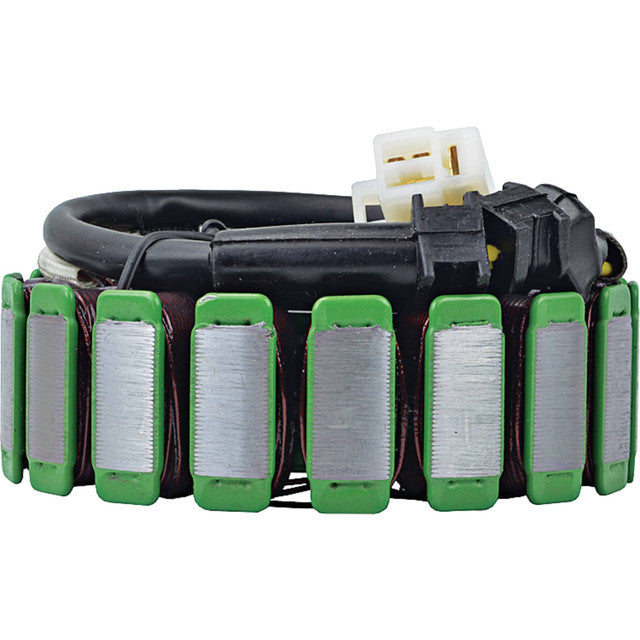

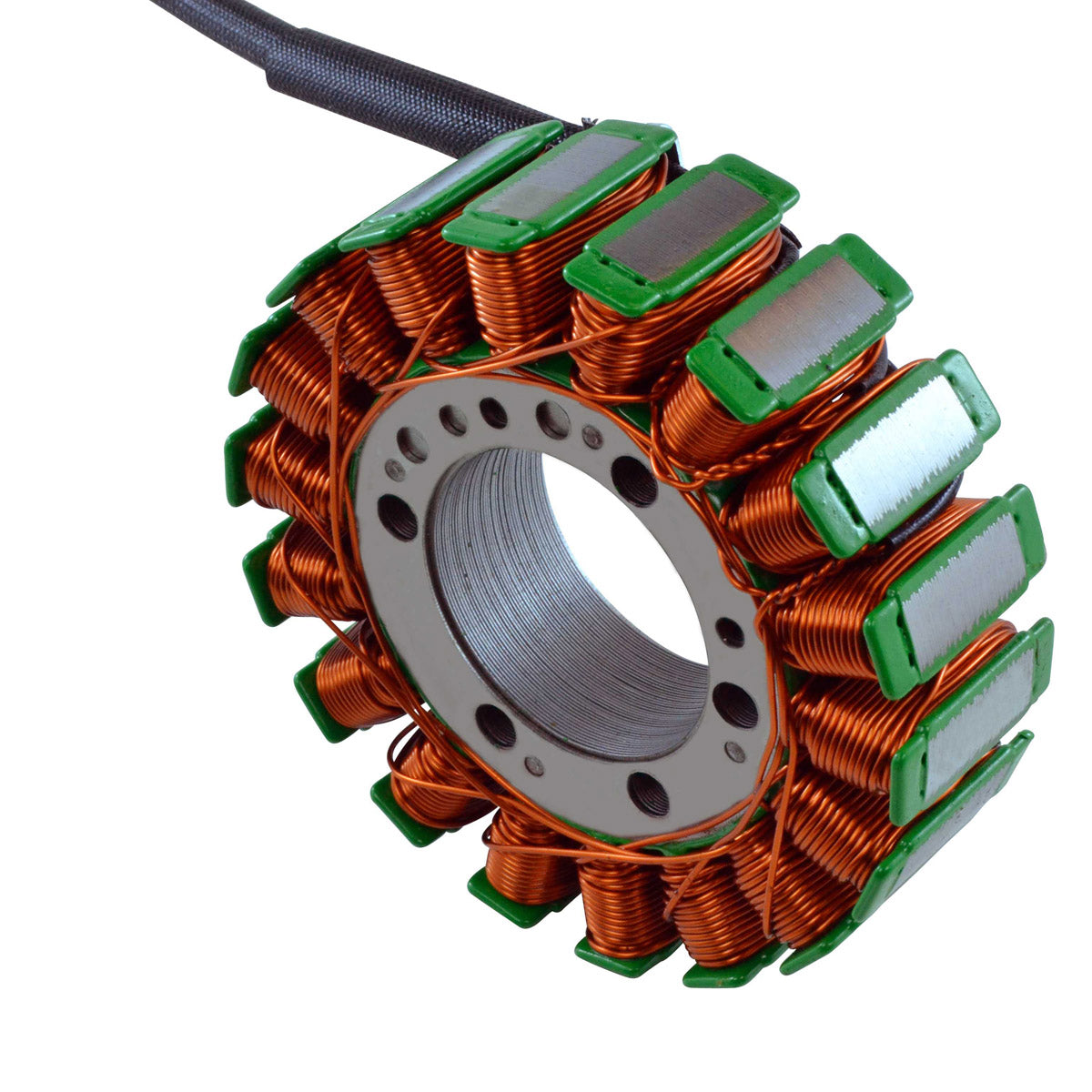

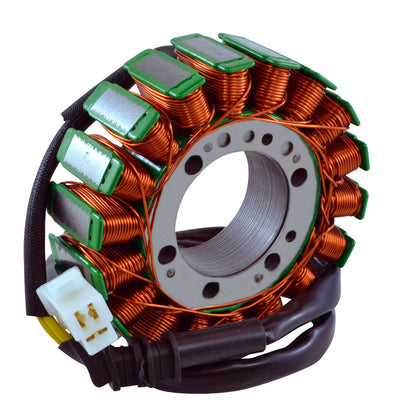

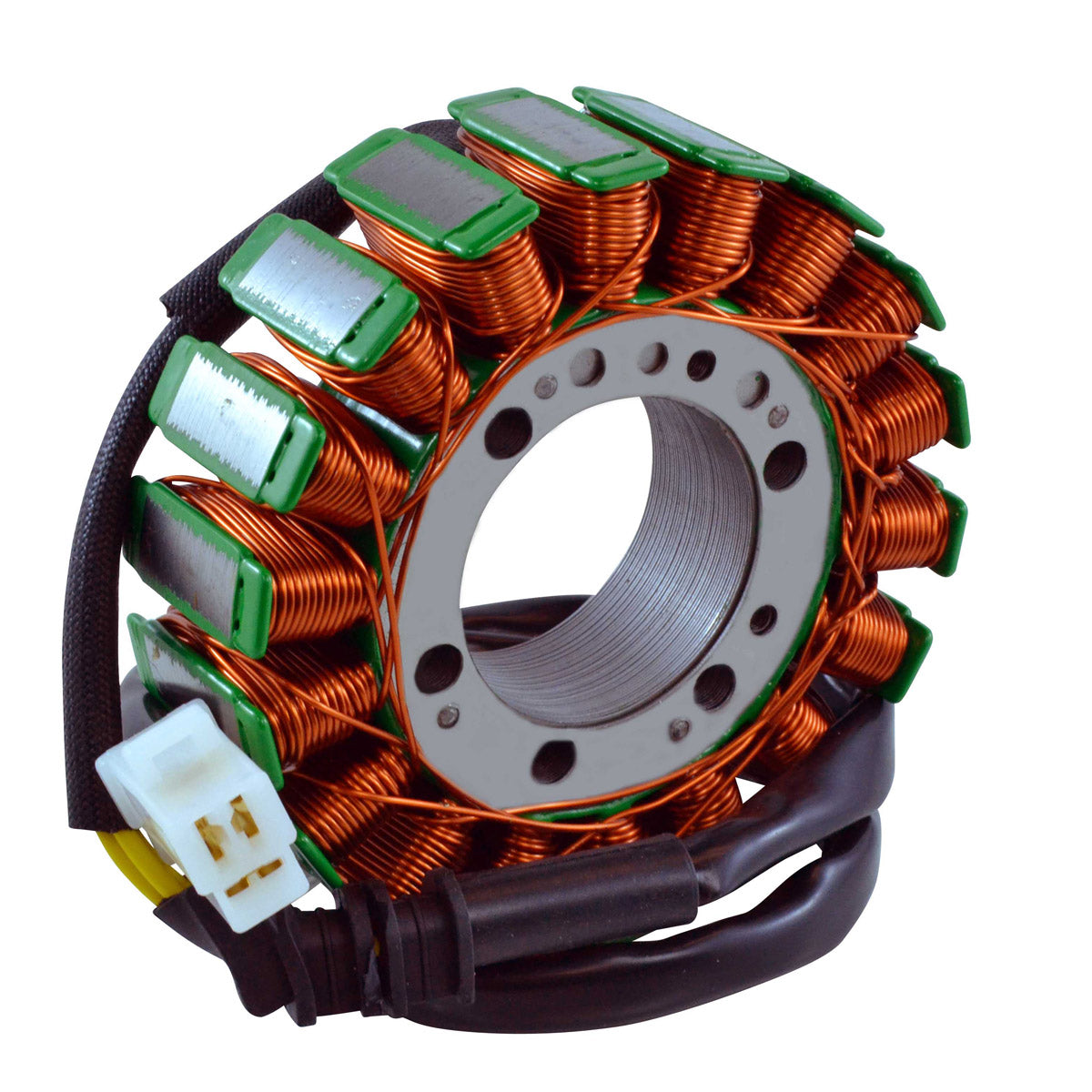

The unit is an eighteen-pole stator wound with premium copper winding rated to withstand 200 degrees Celsius, built on a high grade lamination stack, and every stator is tested before it is shipped. Three yellow output wires run to a single three-pin plug, matching the original arrangement exactly. The stator is supplied with its connector and rubber grommet already fitted, so it goes straight into the engine case in place of the old unit.
Key Features
- Direct replacement for the original unit - plug-and-play, direct fit, easy installation

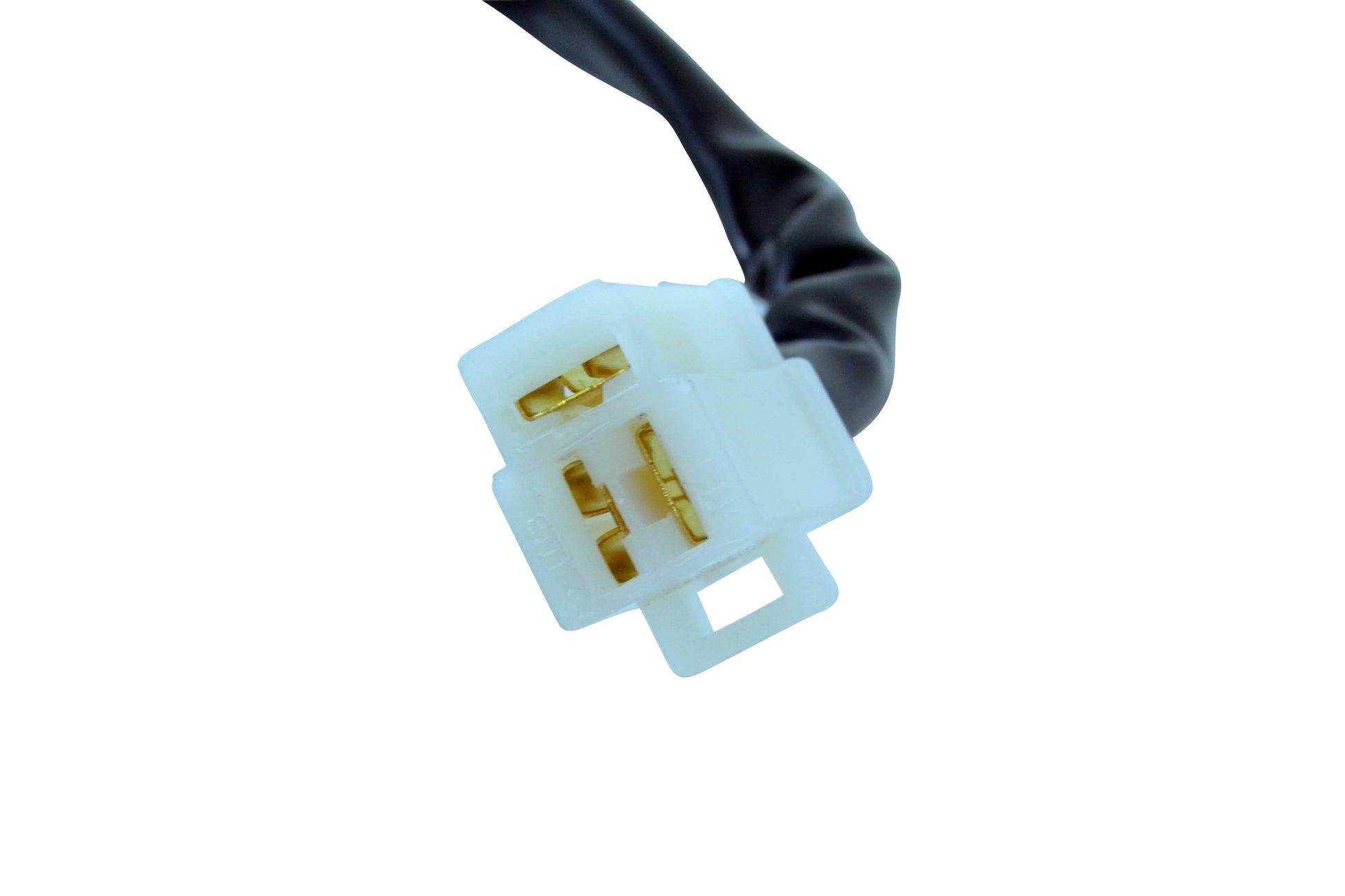

- Eighteen-pole winding, three yellow wires to a single three-pin plug
- Premium copper winding, resistant to 200 degrees Celsius
- High grade lamination materials

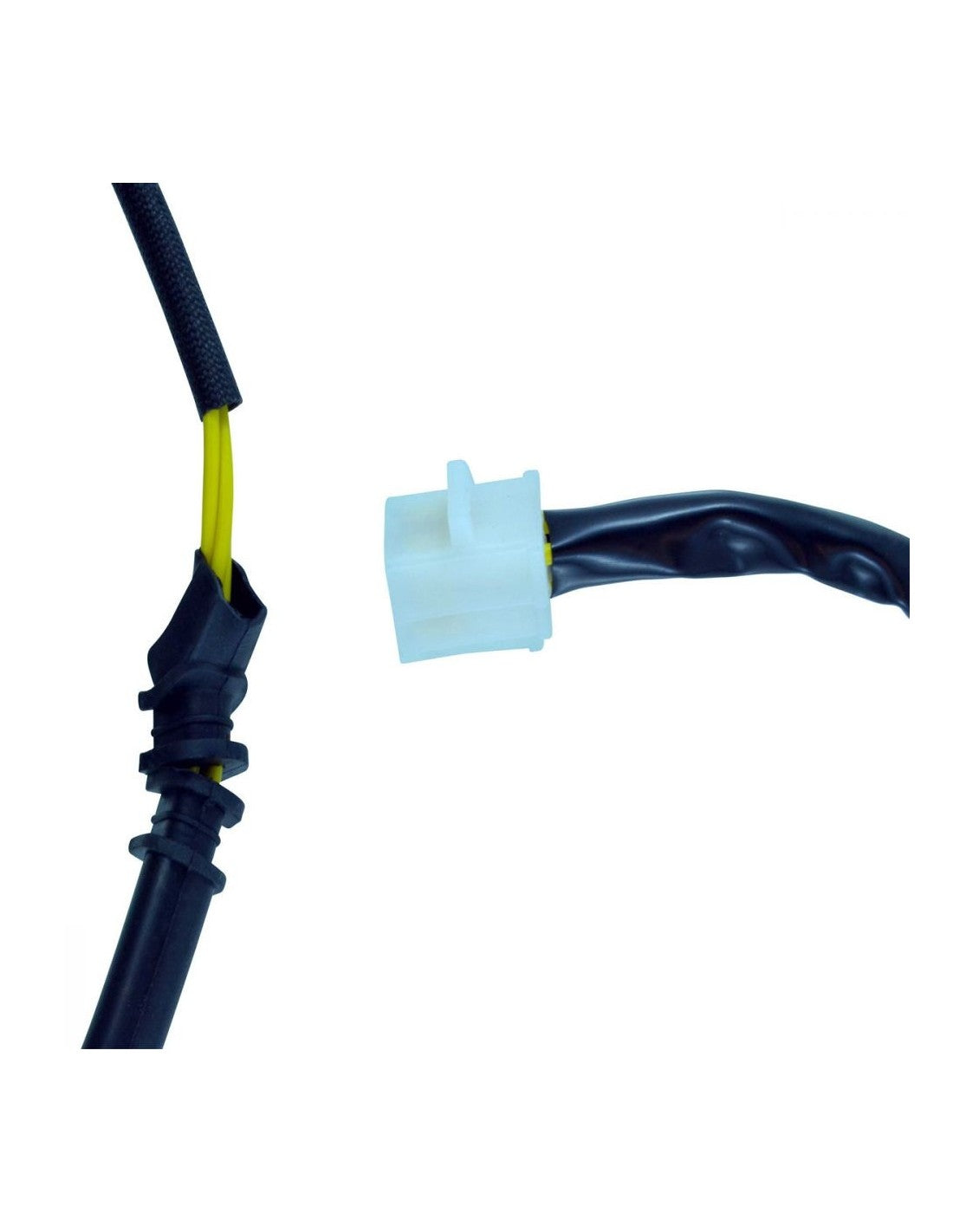

- Supplied with connector and rubber grommet fitted
- Every unit tested before shipping
Technical Specs
| Specification |
Detail |
| Interior diameter |
42 mm |
| Exterior diameter |
104 mm |

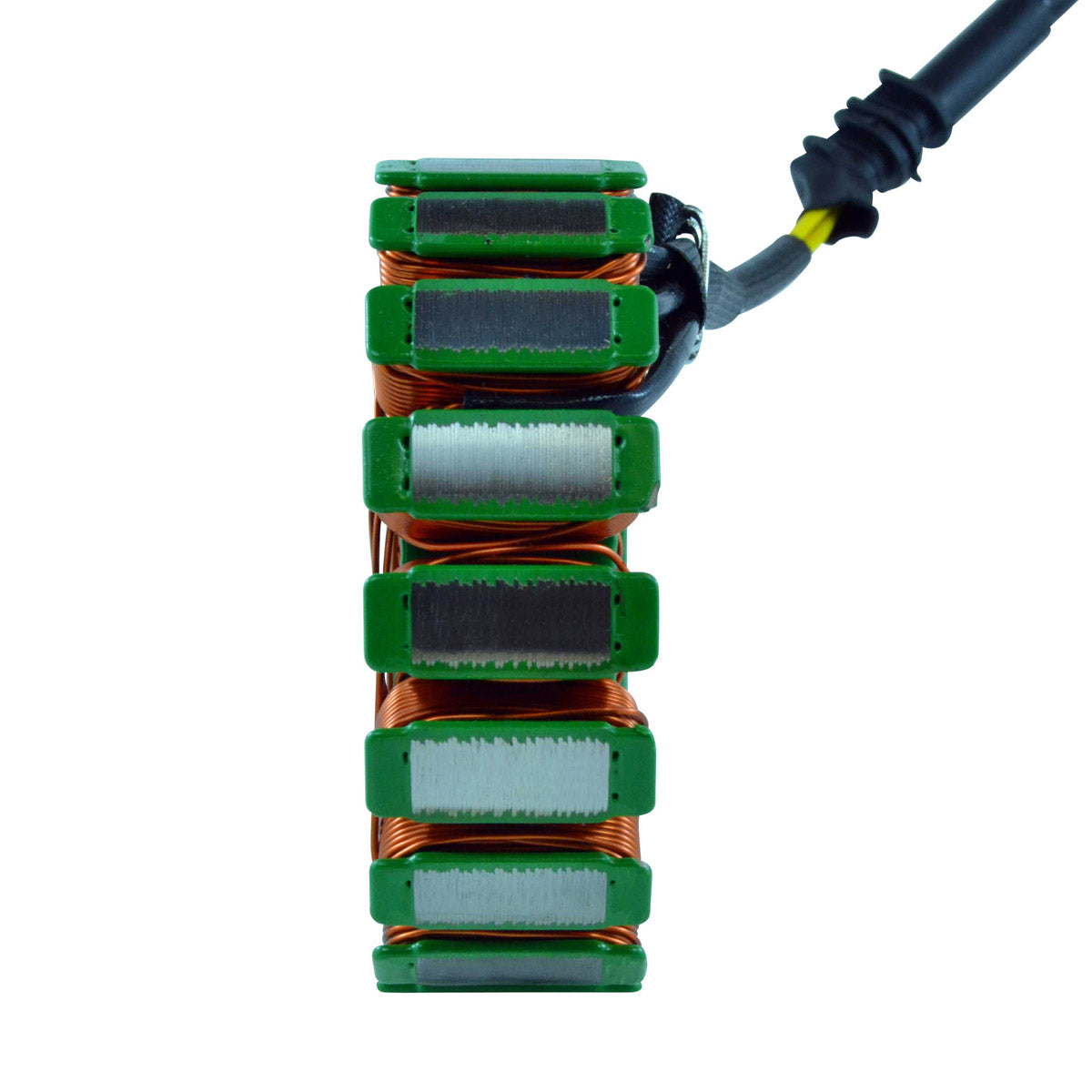

| Thickness |
23 mm |

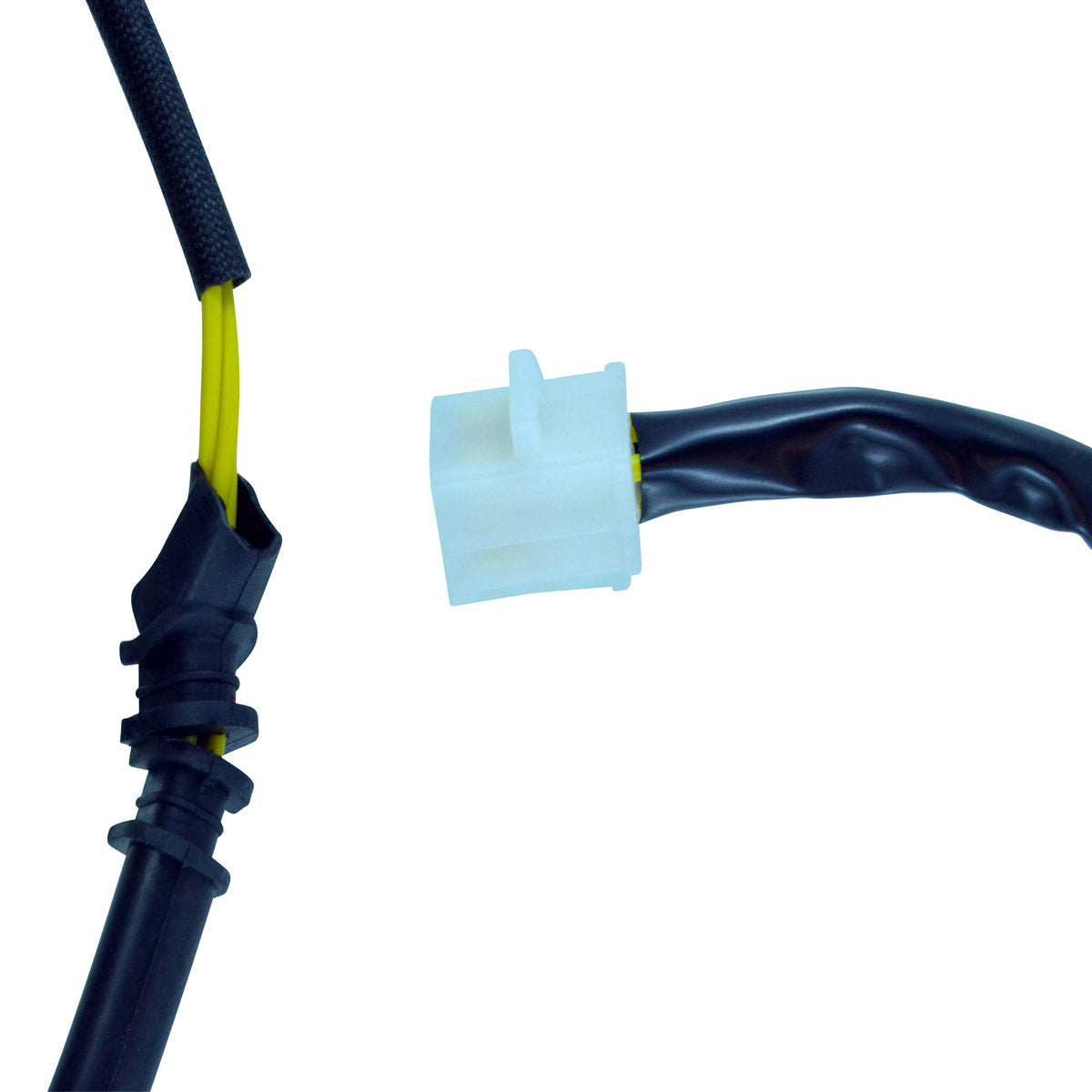

| Wire length, stator to grommet |
115 mm |
| Wire length, grommet to plug |
510 mm |
| Number of wires |
3 |
| Number of plugs |
1 |

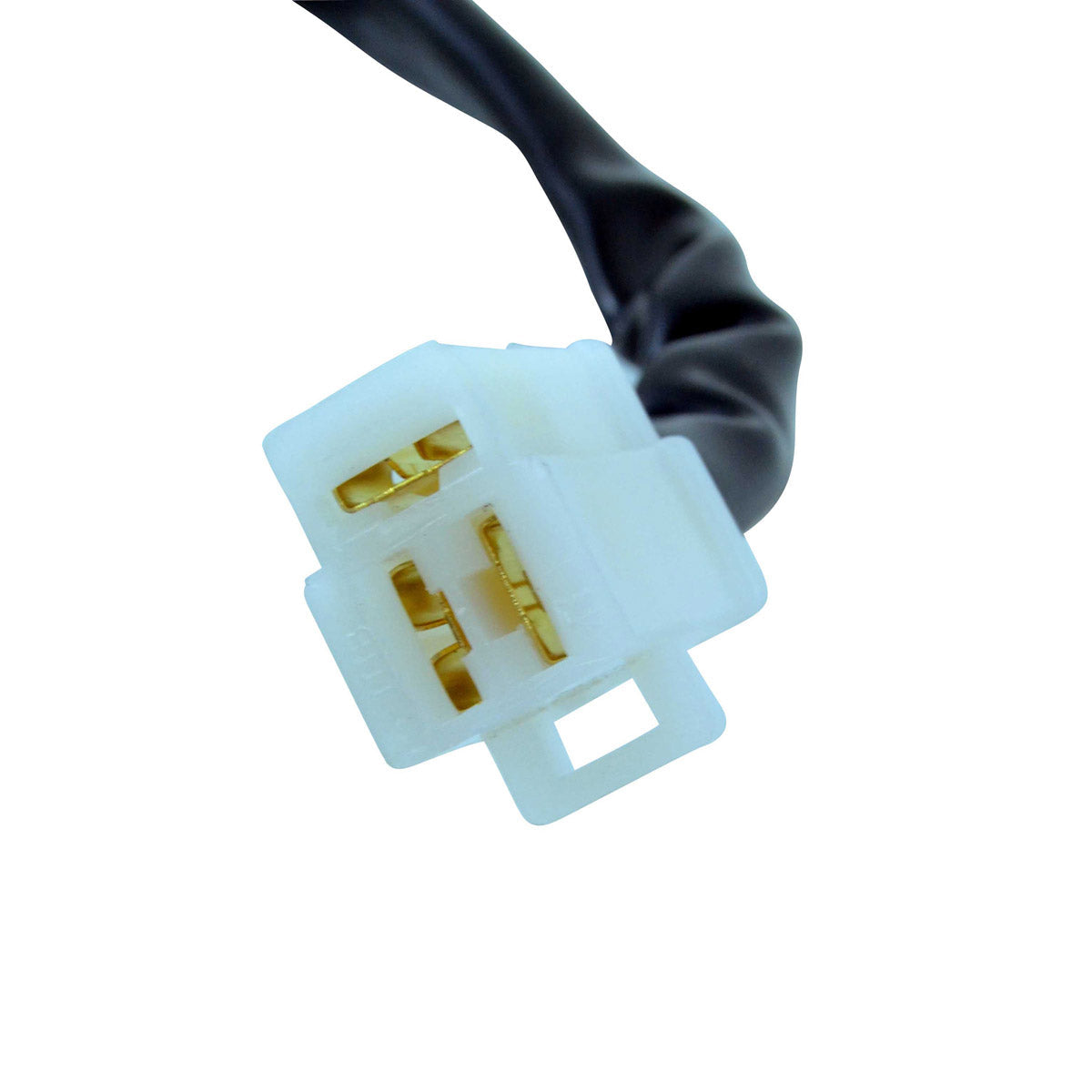

| Number of pins |
3 |
| Number of poles |
18 |
| Alternator resistance, yellow to yellow |
0.6 ohms, plus or minus 20% |
| Alternator to ground |
O.L (open line) |
| Winding temperature rating |
200 degrees Celsius |
| Part number |
RMS010-104676 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Honda VFR 750 Interceptor (VFR750) |
1990-1993 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-MT4-004 |
Honda |
Frequently Asked Questions
Does this stator need any wiring modification to fit?
No. It is a direct fit, plug-and-play replacement using the same three-wire, three-pin plug as the original Honda unit, so the standard loom does not need to be cut or spliced.
What is included in the box?
The generator stator unit with its connector and rubber grommet fitted.
How do I tell whether my old stator has failed?
Disconnect the three-pin plug and measure between each pair of yellow wires. Each pair should read about 0.6 ohms, within roughly 20%. Measuring from any yellow wire to the stator body or engine earth should give O.L, an open line. An open circuit between a pair, or continuity to earth, confirms a failed winding. A battery that will not stay charged with the engine running is the usual symptom.
Is this the correct part for my VFR 750?
This stator covers the VFR 750 Interceptor built between 1990 and 1993 and replaces Honda part number 31120-MT4-004. Check that number against the one stamped on or listed for your original unit before ordering.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
