Generator Stator for Honda VT750 Shadow ACE and Spirit 750
Honda VT750 Shadow ACE / Spirit 750 1998-2007 - Part number RMS010-102019

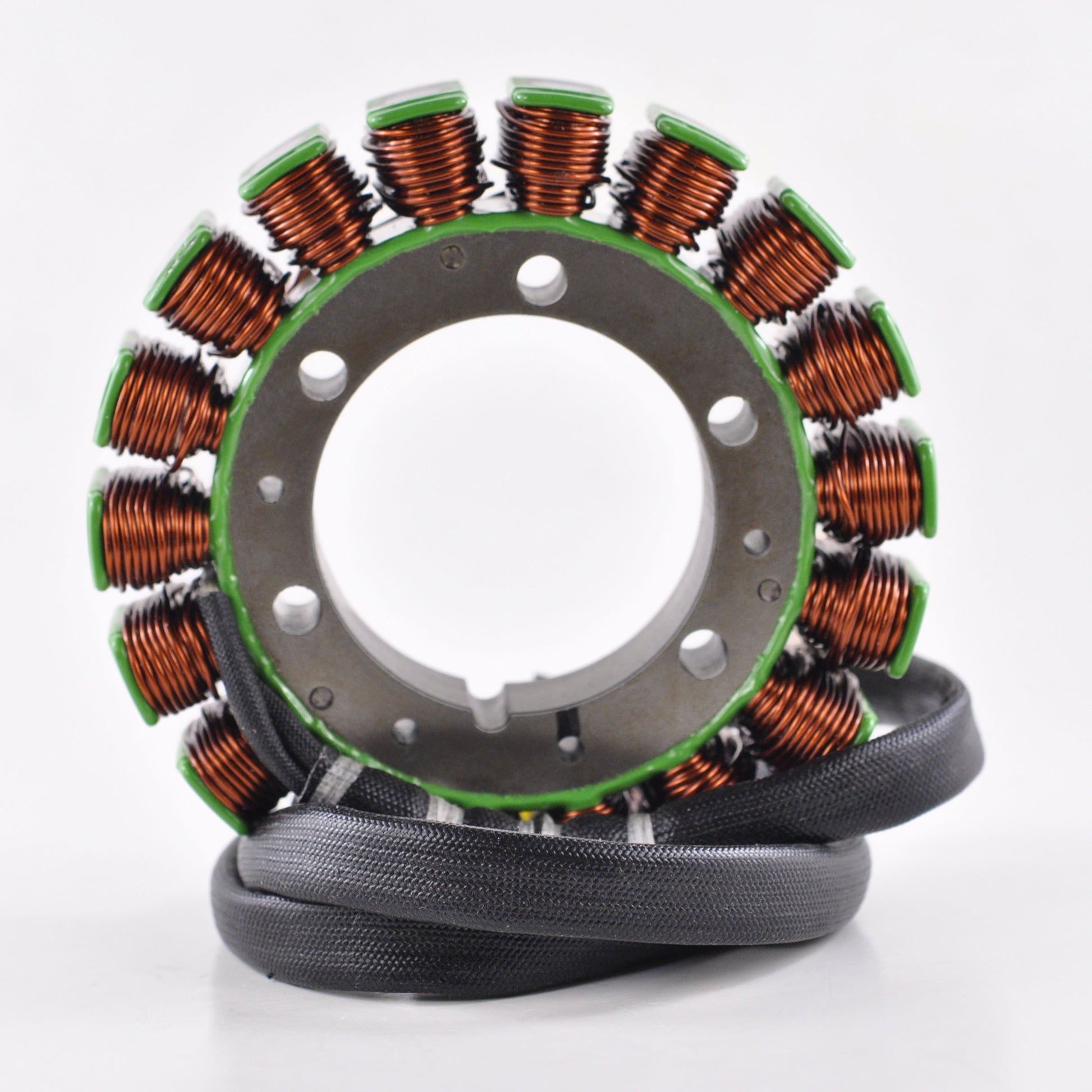

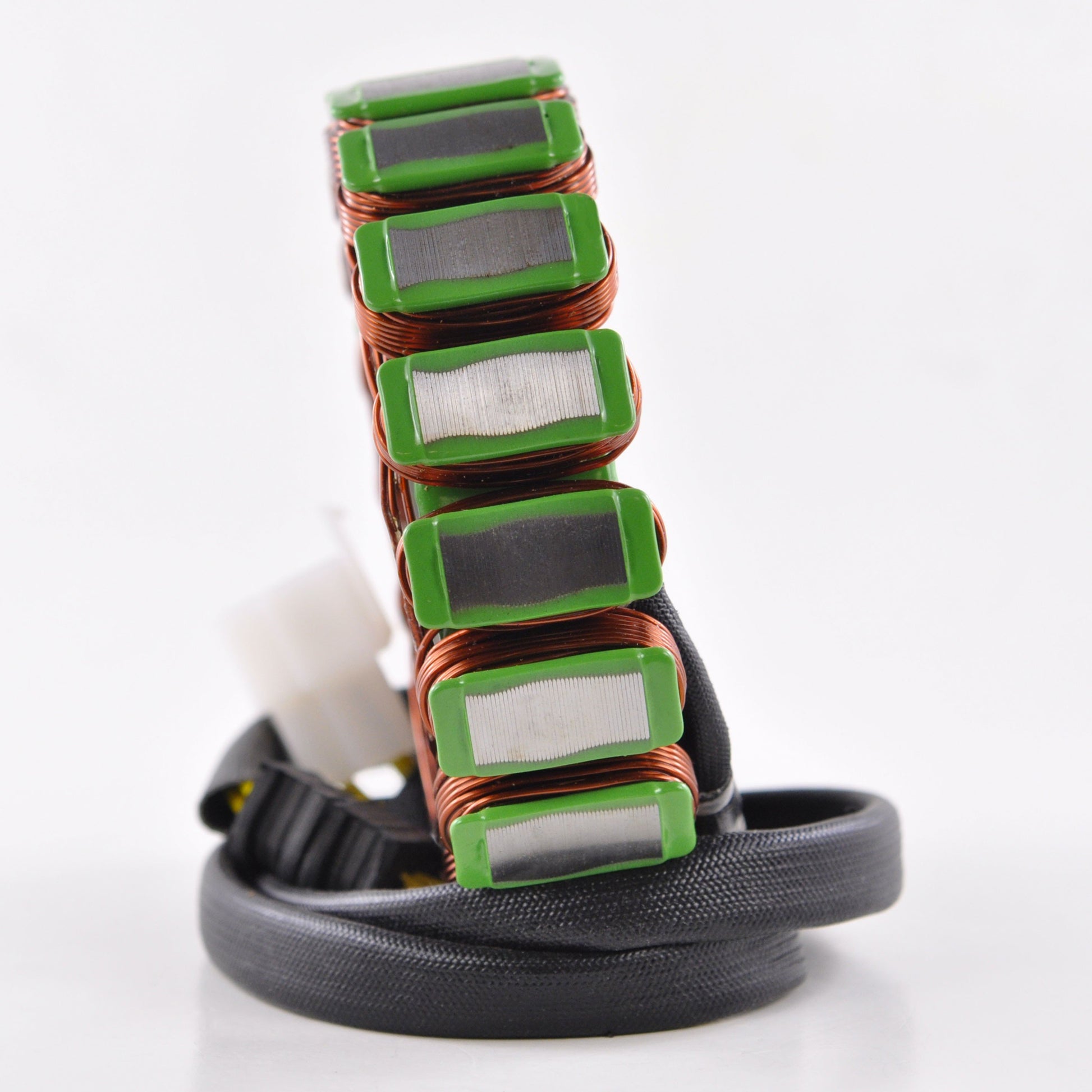

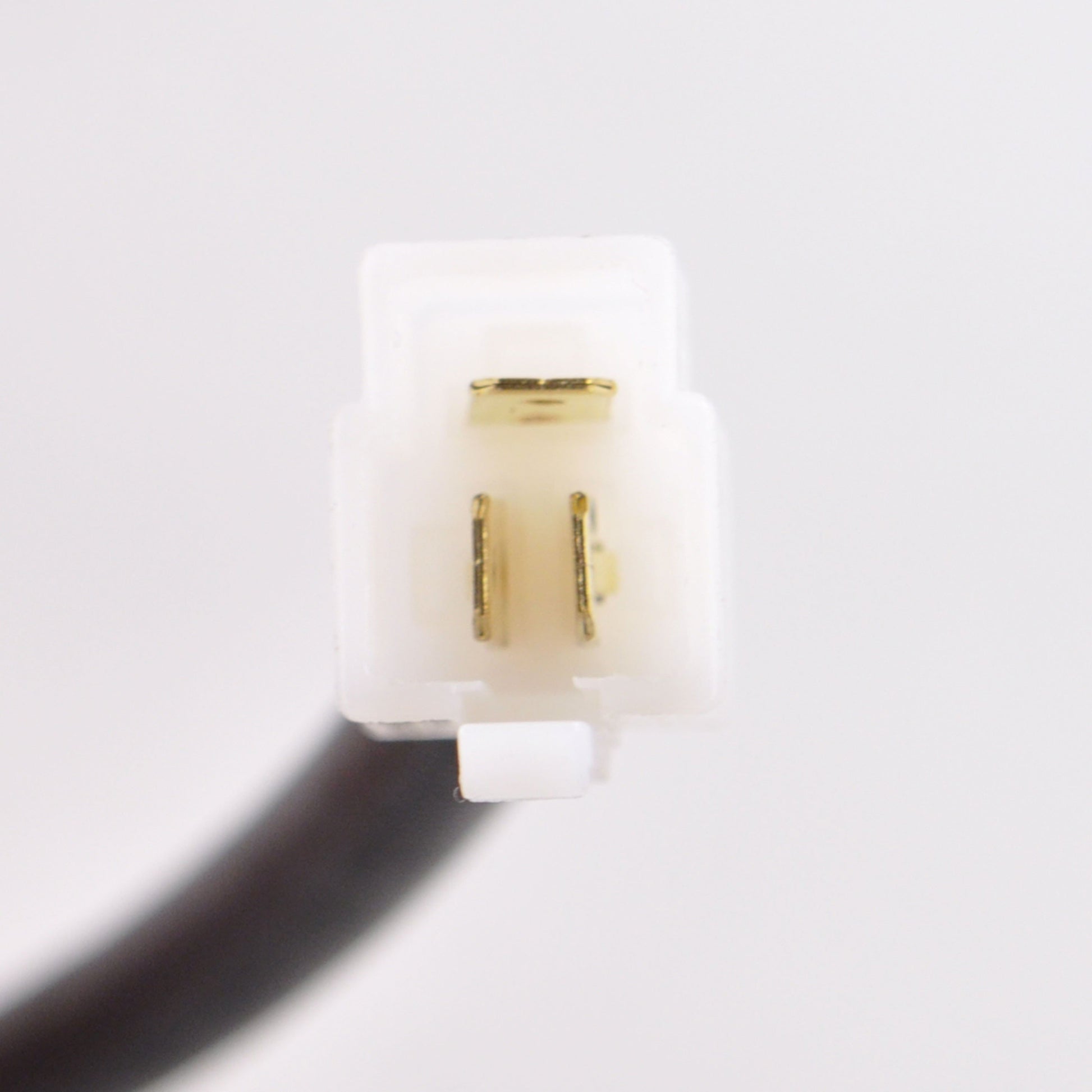

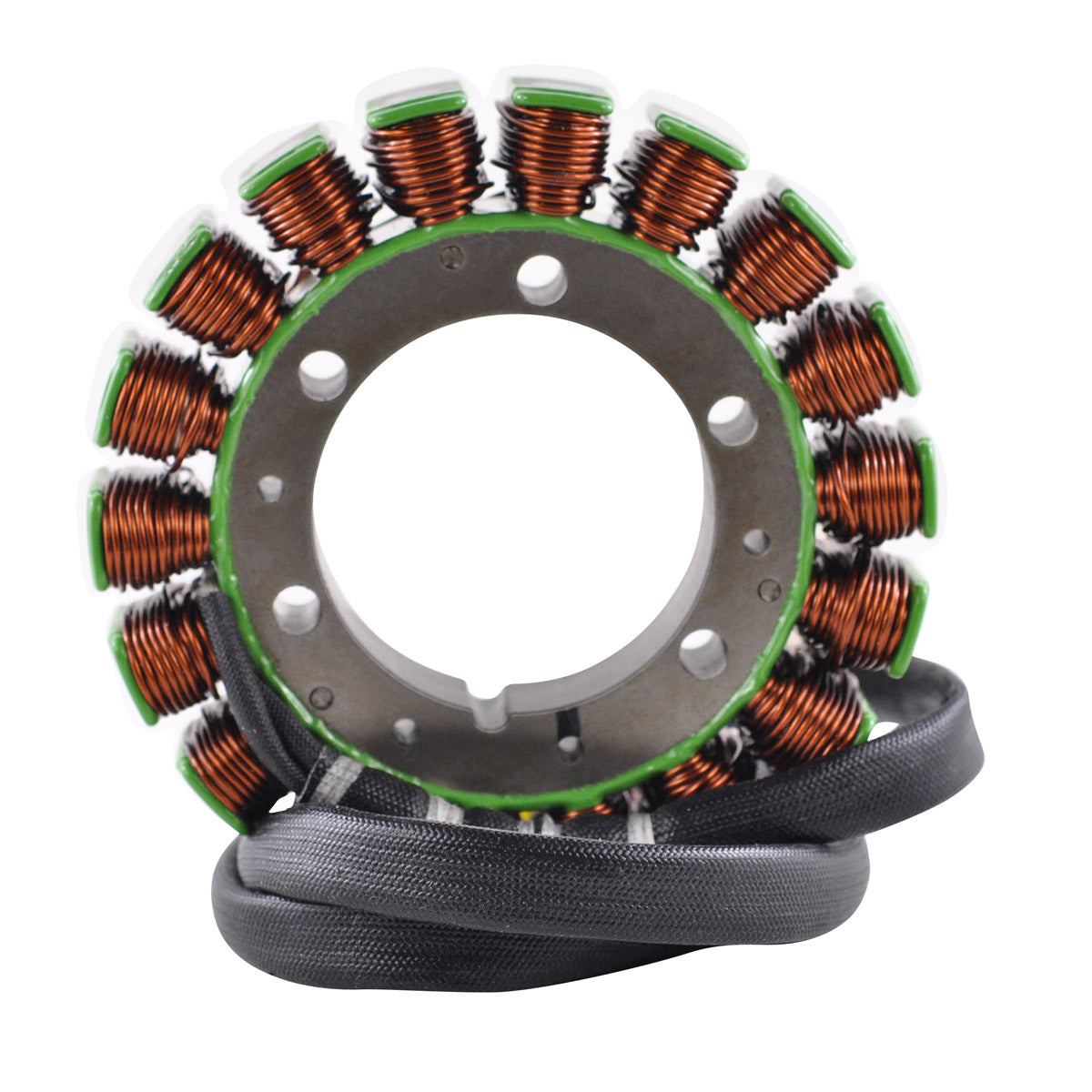

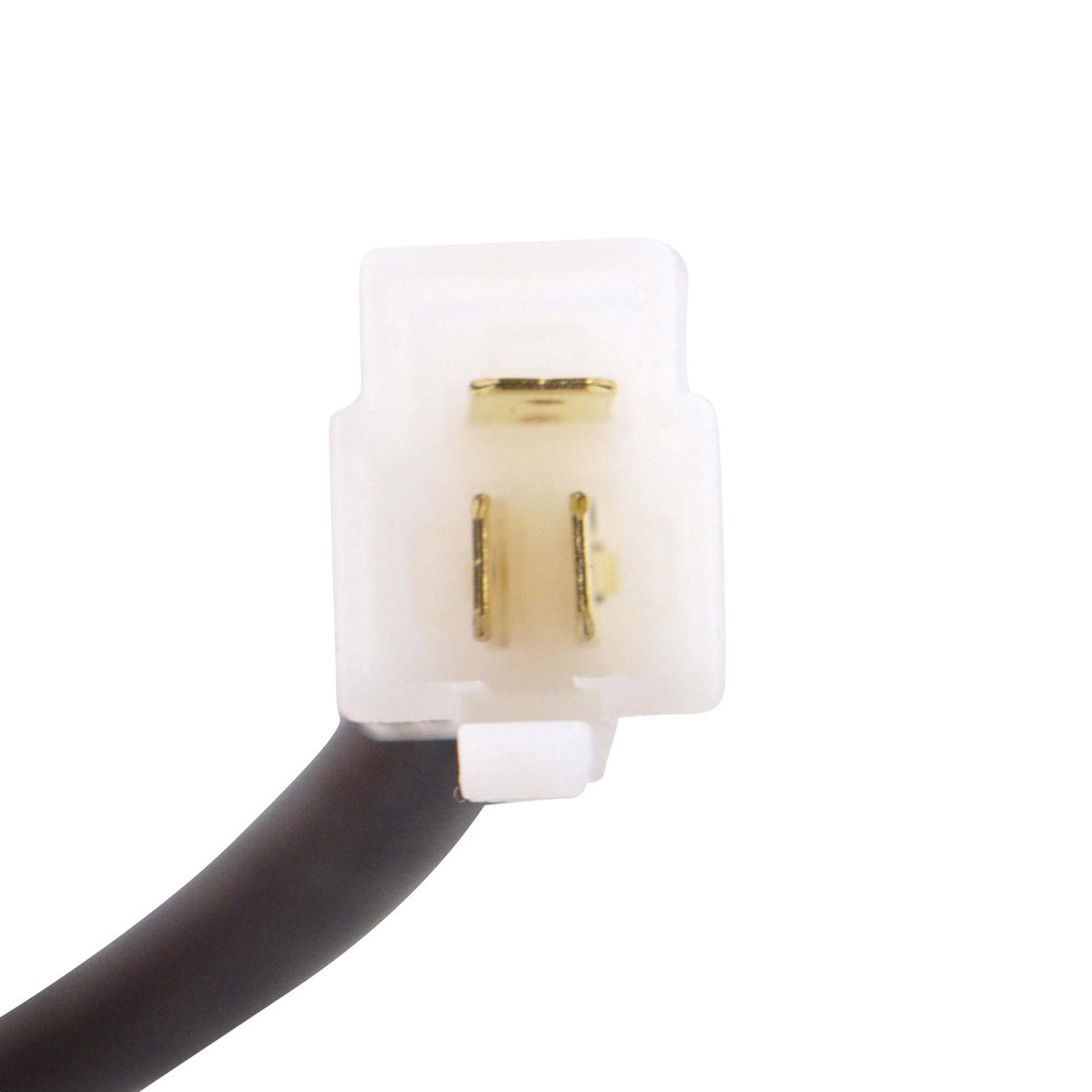

This is a brand new aftermarket generator stator, built as a direct replacement for the original unit fitted to the Honda VT750 Shadow ACE and Spirit 750. It is a plug-and-play, direct fit part that mounts in the original position inside the left-hand engine cover and plugs into the original three-pin connector, so no modification of the wiring loom is required.
The core uses the highest grade of lamination materials and the windings are the highest grade of copper, resistant to 200 degrees Celsius. This is a large-diameter cruiser stator - 113 mm across and 24 mm thick - with generous 600 mm leads from the grommet to the plug. The connector and rubber grommet are included, and we also supply the opposite connector for the main harness side, because the original is often melted, corroded or defective and is a major cause of repeat electrical issues. All products shipped are tested.
Key Features
- Brand new aftermarket stator, direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included

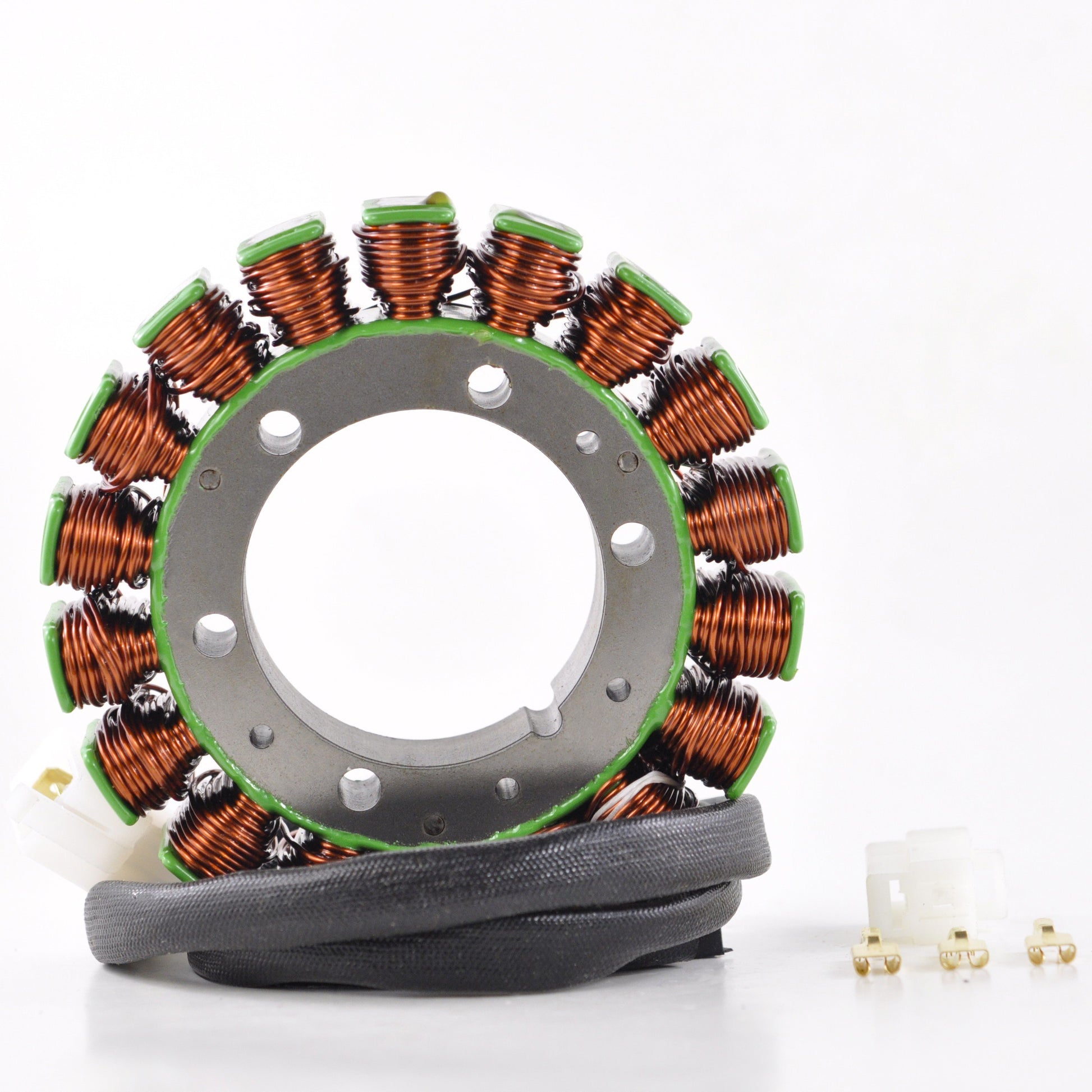

- Opposite connector (main harness side) also supplied
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RMS010-102019 |
| Interior diameter | 54 mm |
| Exterior diameter | 113 mm |
| Thickness | 24 mm |
| Wire length, stator to grommet | 140 mm |
| Wire length, grommet to plug | 600 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Alternator resistance (between each Yellow) | 0.4 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda VT750 Shadow ACE | 1998-2007 |
| Honda Spirit 750 | 1998-2007 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-MBA-004 | Honda |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play, direct fit replacement for the original VT750 stator, using the original mounting and the original 3-pin plug. No cutting or splicing of the harness is needed. Please confirm OEM number 31120-MBA-004 against your original unit before ordering.
What is included in the box?
You receive the stator with its connector and rubber grommet fitted, plus the opposite connector for the main harness side. That extra connector matters on these bikes: a burnt or corroded harness-side plug will keep causing charging faults even after a new stator is fitted.
How do I tell if my old stator has failed?
Unplug the stator and measure resistance between each pair of the three yellow wires - each pair should read 0.4 ohms +/-20%. Then check between any yellow wire and the engine case; there should be no continuity. An open circuit, an unbalanced reading between pairs, or a short to earth confirms the stator has failed. A battery that goes flat on a run and browned or blackened windings are supporting symptoms.
Are the leads long enough to reach the original connector?
Yes. The wiring runs 140 mm from the stator body to the rubber grommet and a further 600 mm from the grommet to the plug, matching the original routing on the VT750 so the connector meets the loom in its factory position.
