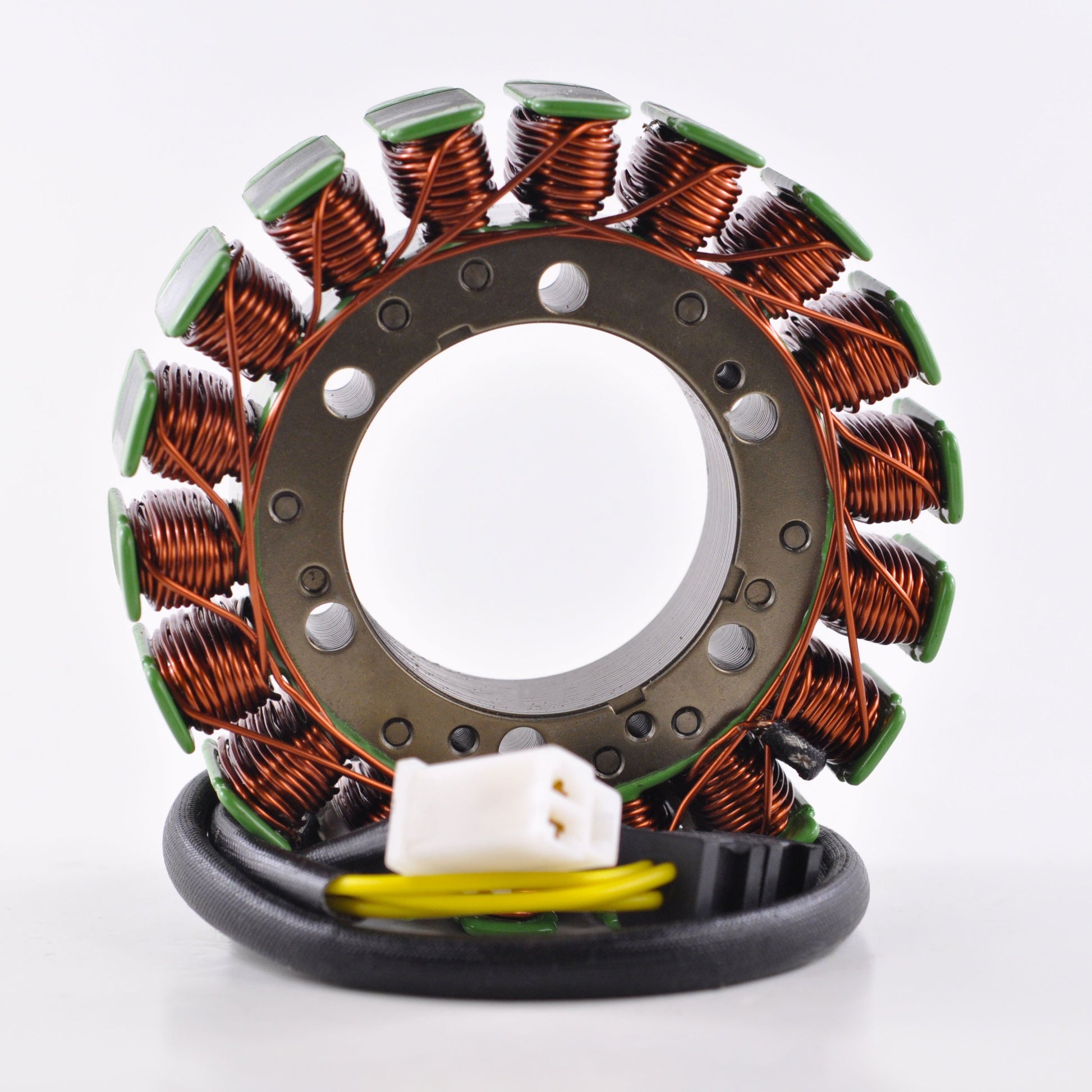

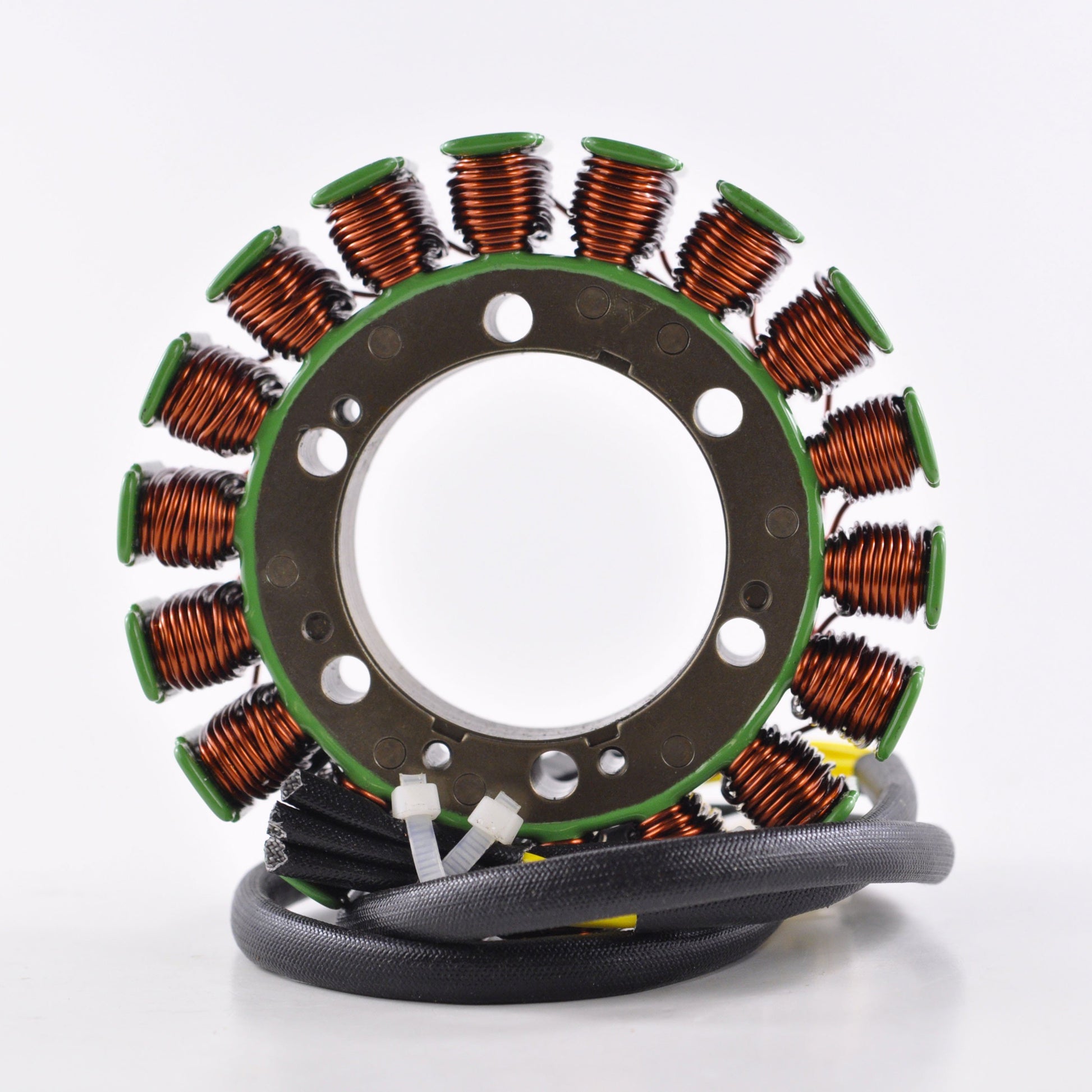

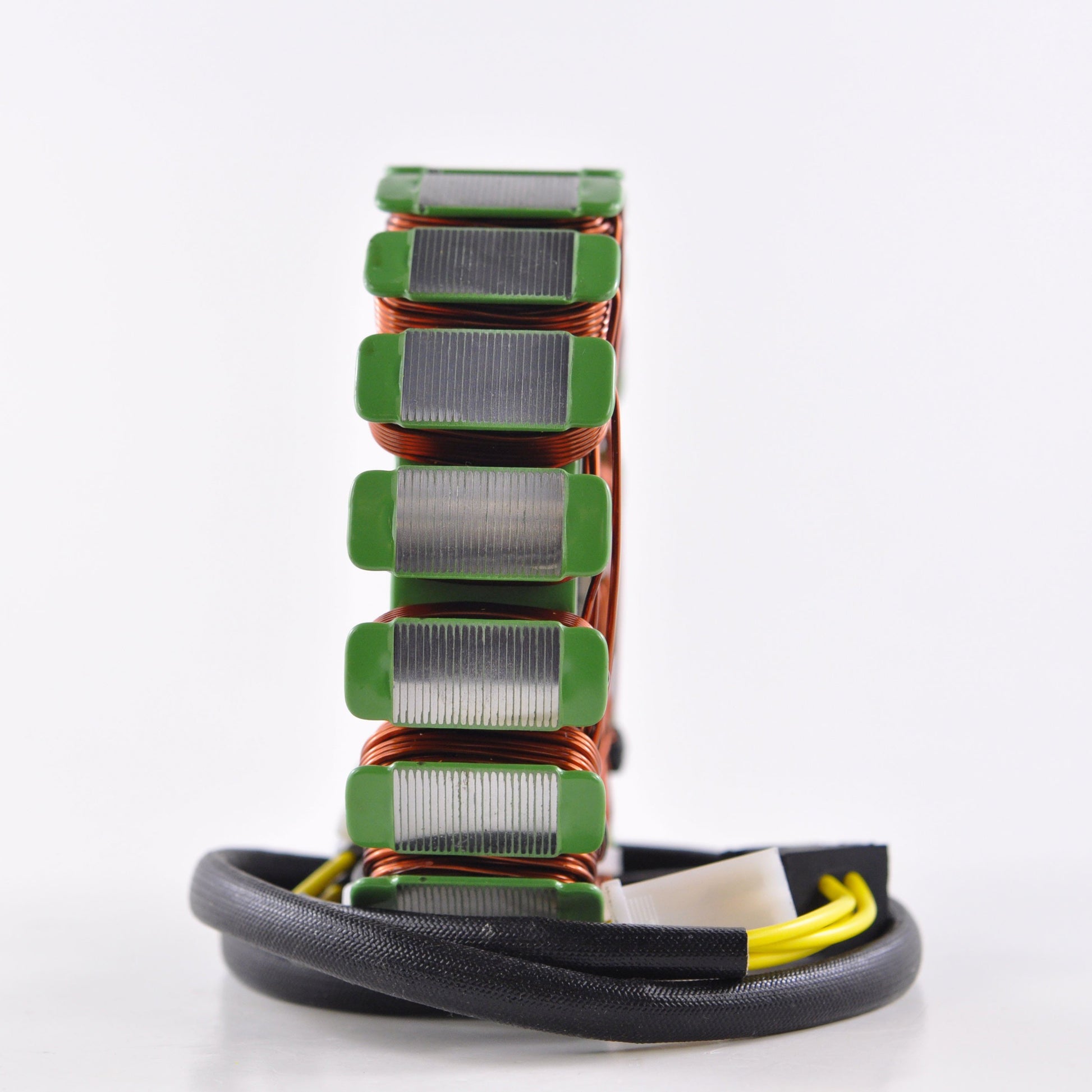

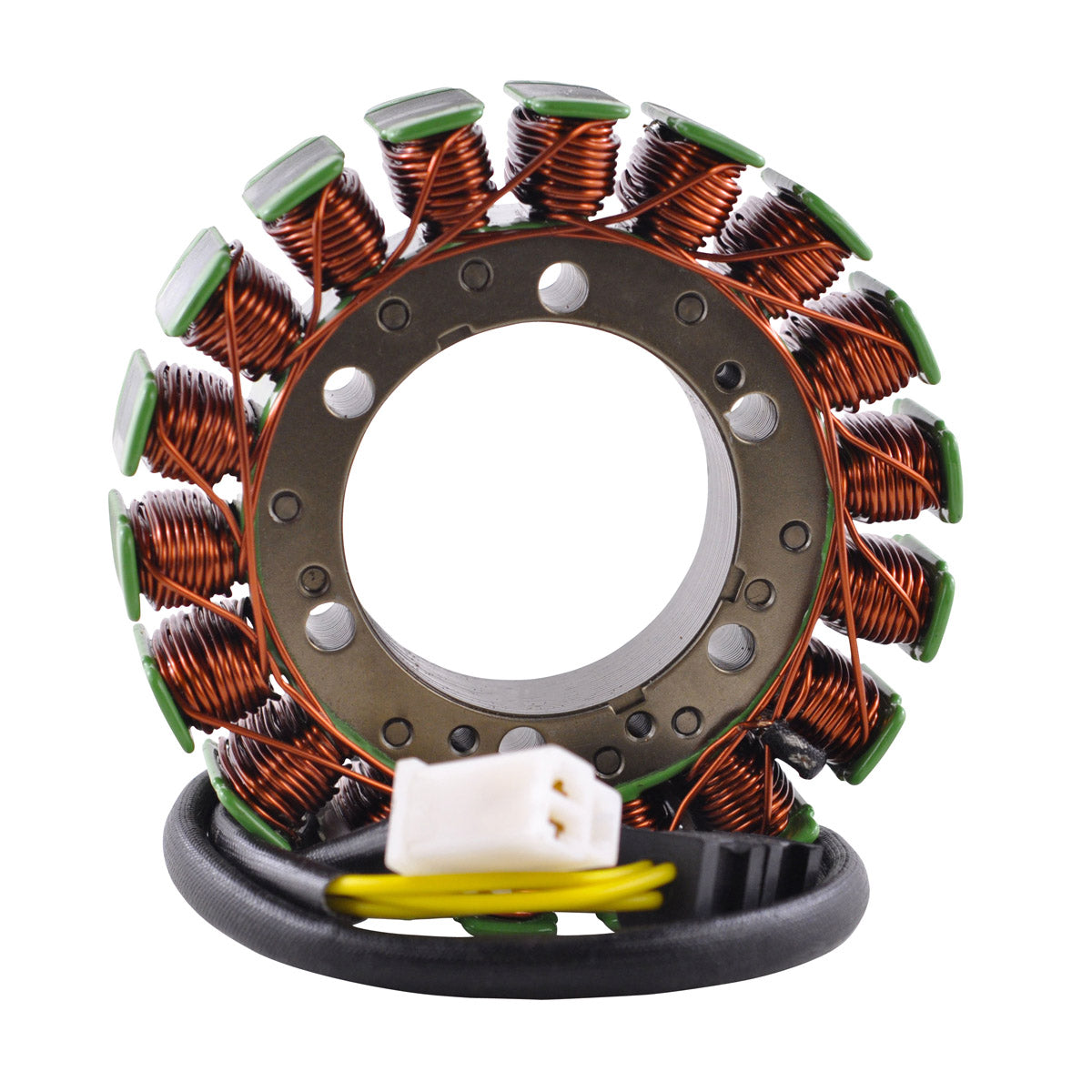

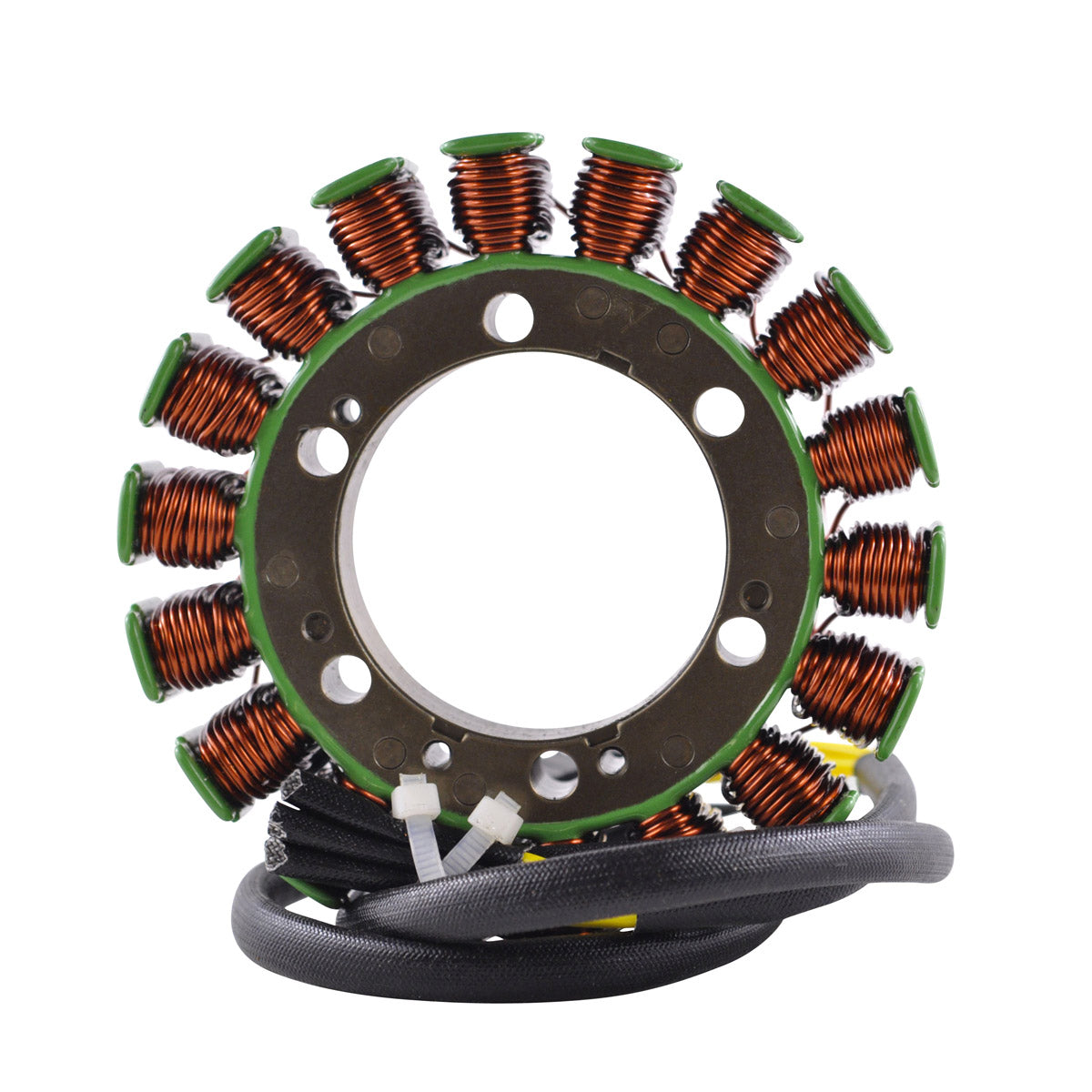

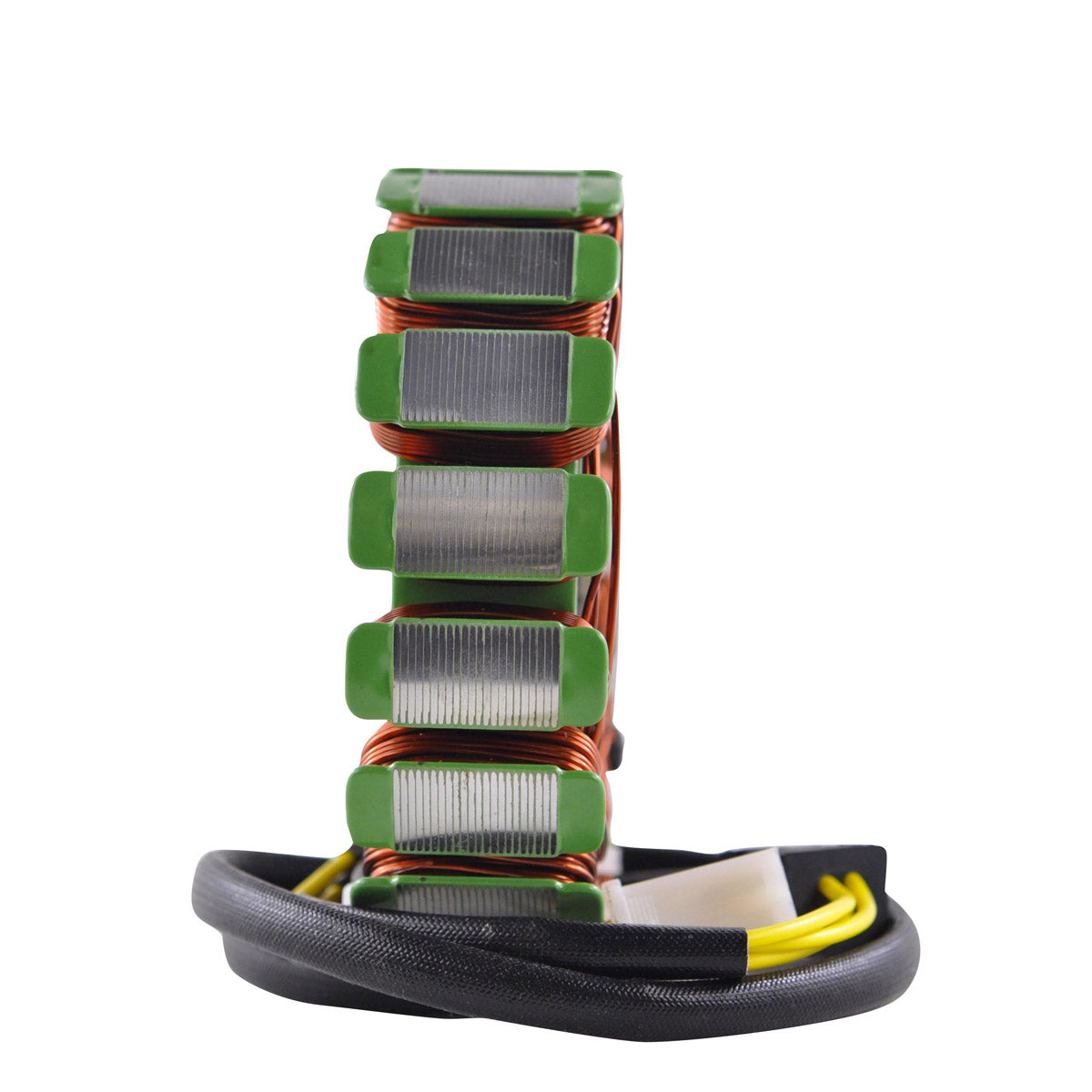

Generator Stator for Honda VTR 1000 F - OEM 31120-MBB-641
Honda VTR 1000 F 1998-2005 - part number RM01581
A brand new aftermarket generator stator for the Honda VTR 1000 F of 1998 to 2005, built as a direct replacement for the original charging unit. It is plug-and-play and a direct fit, using the standard mounting points and the standard connector, so it goes straight in behind the generator cover with no rewiring, no splicing and no modification to the bike.
The V-twin Firestorm runs its alternator hard and hot, and a stator that has started to break down usually shows up first as a battery that will not hold charge on longer rides. This replacement is built on highest grade lamination materials and wound with highest grade copper windings rated to resist 200 degrees Celsius. At 24 mm it is a thick, deeply wound unit with a 115 mm outer diameter, and the 495 mm lead from the grommet to the plug matches the original routing so nothing has to be extended or re-clipped. Every unit is tested before it is shipped, and the connector and rubber grommet are supplied with it.
Key Features
- Brand new aftermarket stator - direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

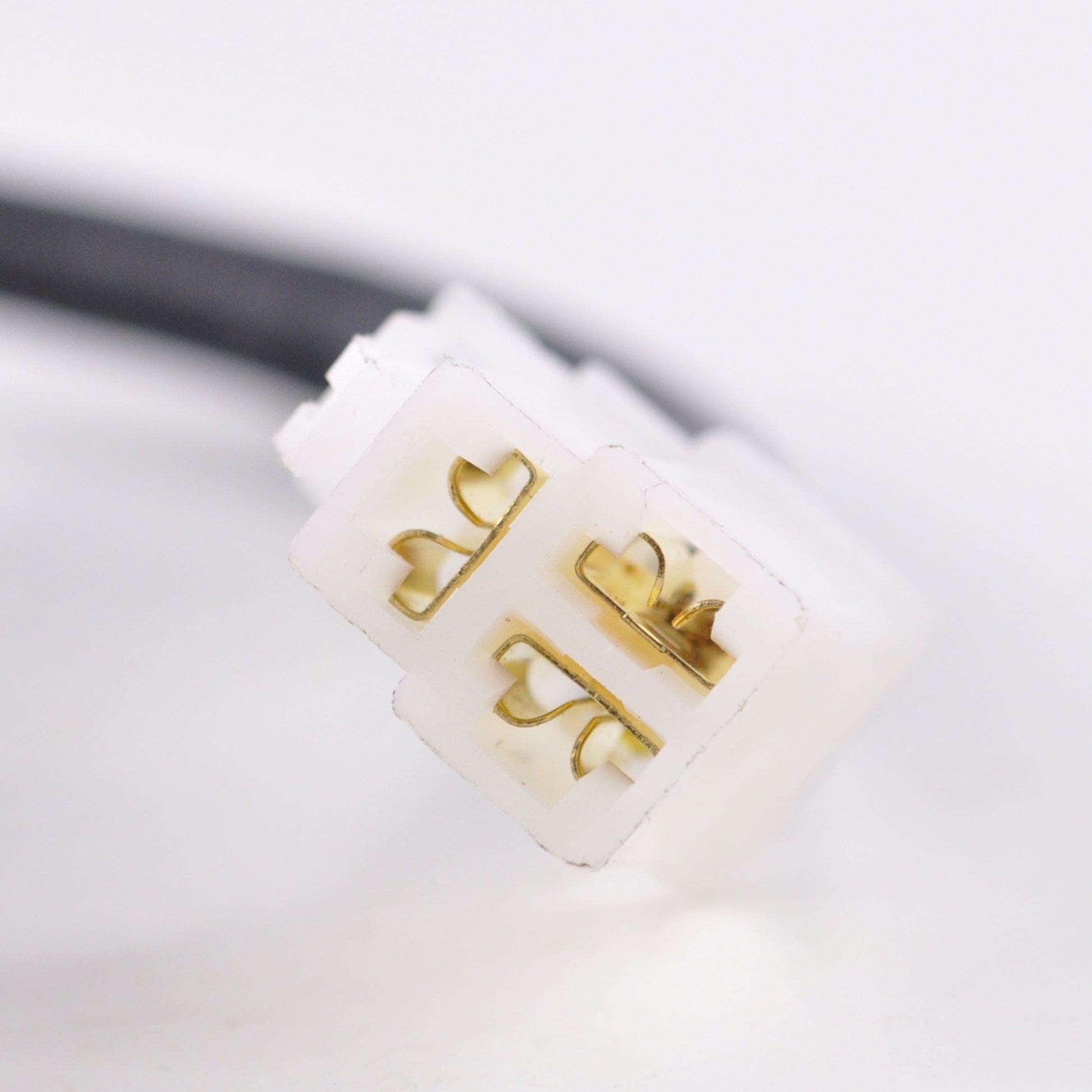

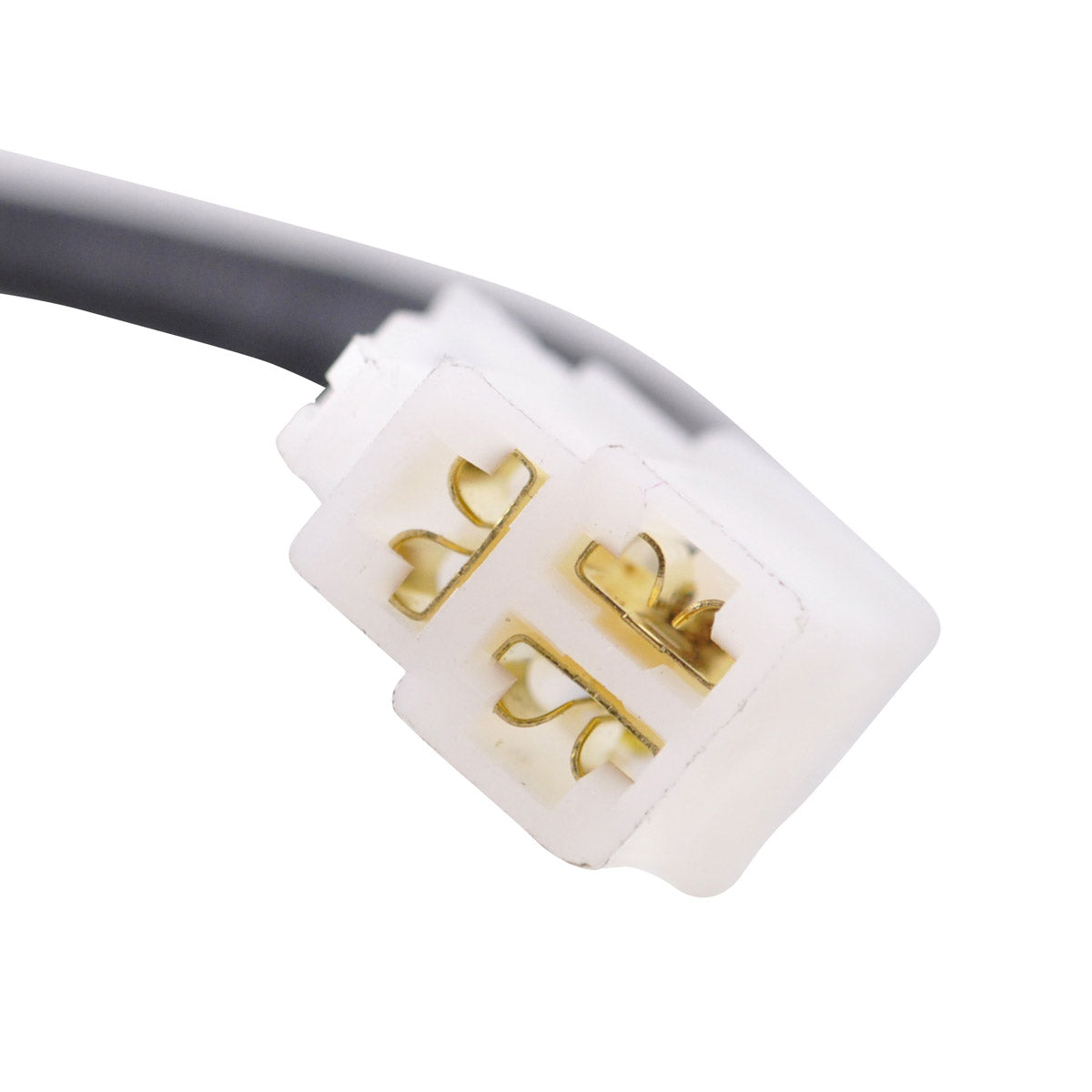

- Connector included
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM01581 |
| Interior diameter | 54 mm |
| Exterior diameter | 115 mm |
| Thickness | 24 mm |
| Wire length, stator to grommet | 65 mm |
| Wire length, grommet to plug | 495 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Alternator resistance, Yellow to Yellow | 0.6 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda VTR 1000 F | 1998-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-MBB-641 | Honda |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original unit and installs plug-and-play using the standard mounting holes and the standard connector. Confirm that the number on your existing stator reads 31120-MBB-641 before ordering.
What is in the box?
The generator stator, the connector and the rubber grommet. All products shipped are tested.
How can I tell the old stator has failed?
With the plug disconnected, measure between each pair of the three yellow output wires. Each pair should read about 0.6 ohms, plus or minus 20 per cent, and the three readings should be close together. A pair that reads open circuit, or any continuity between a yellow wire and the stator body, means the winding has broken down.
Why is this stator 24 mm thick?
That is the original depth of the winding stack on the VTR 1000 F, sitting inside a 115 mm outer diameter with a 54 mm bore. The dimensions are matched to the original so the flywheel clears correctly and the generator cover seats without packing or spacing.
