Generator Stator for Husaberg, Husqvarna and KTM
Husaberg FE and FX 390 570, Husqvarna TE 250 300 i, KTM 500 505 525 ECX, XC-W and SX-F, 2008-2023

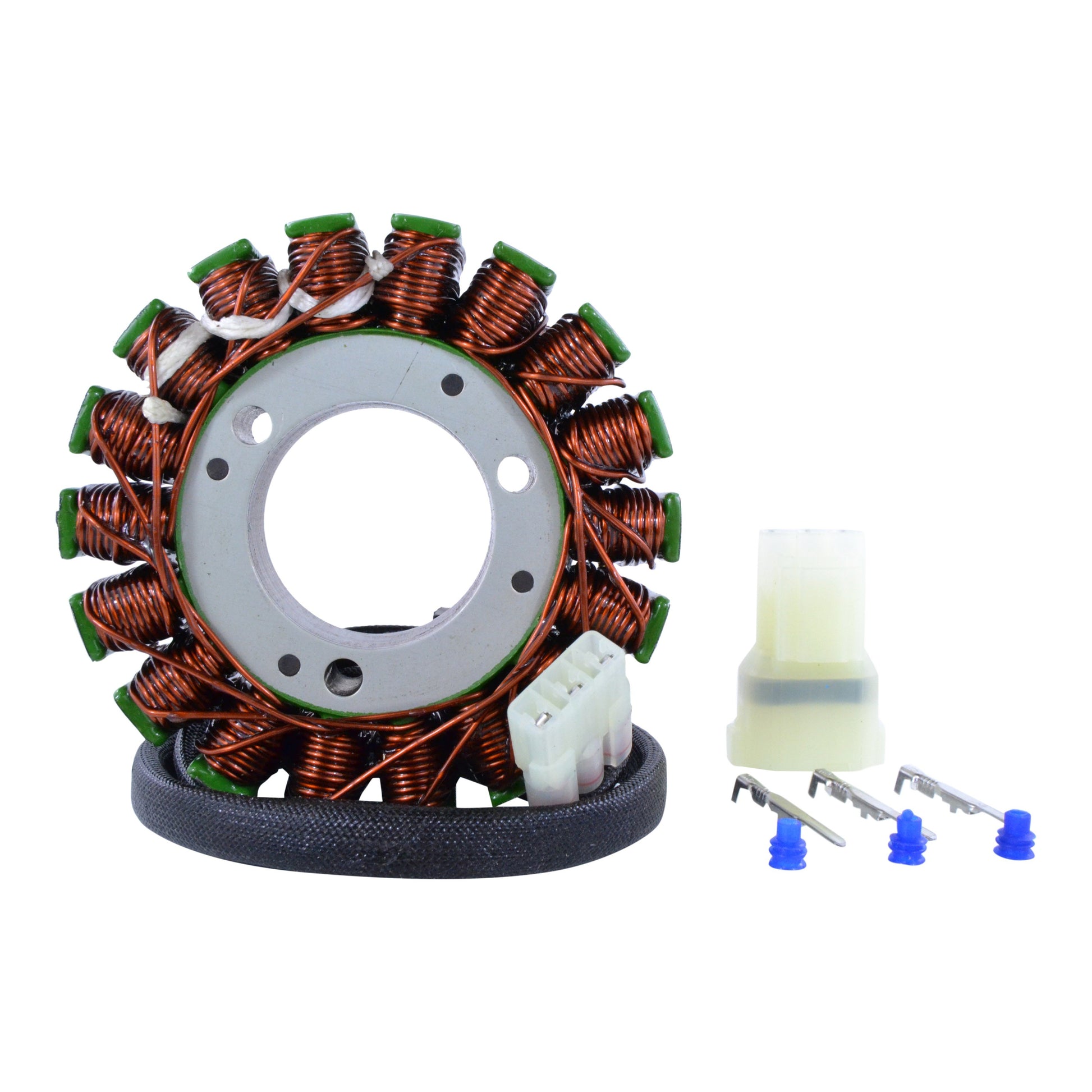

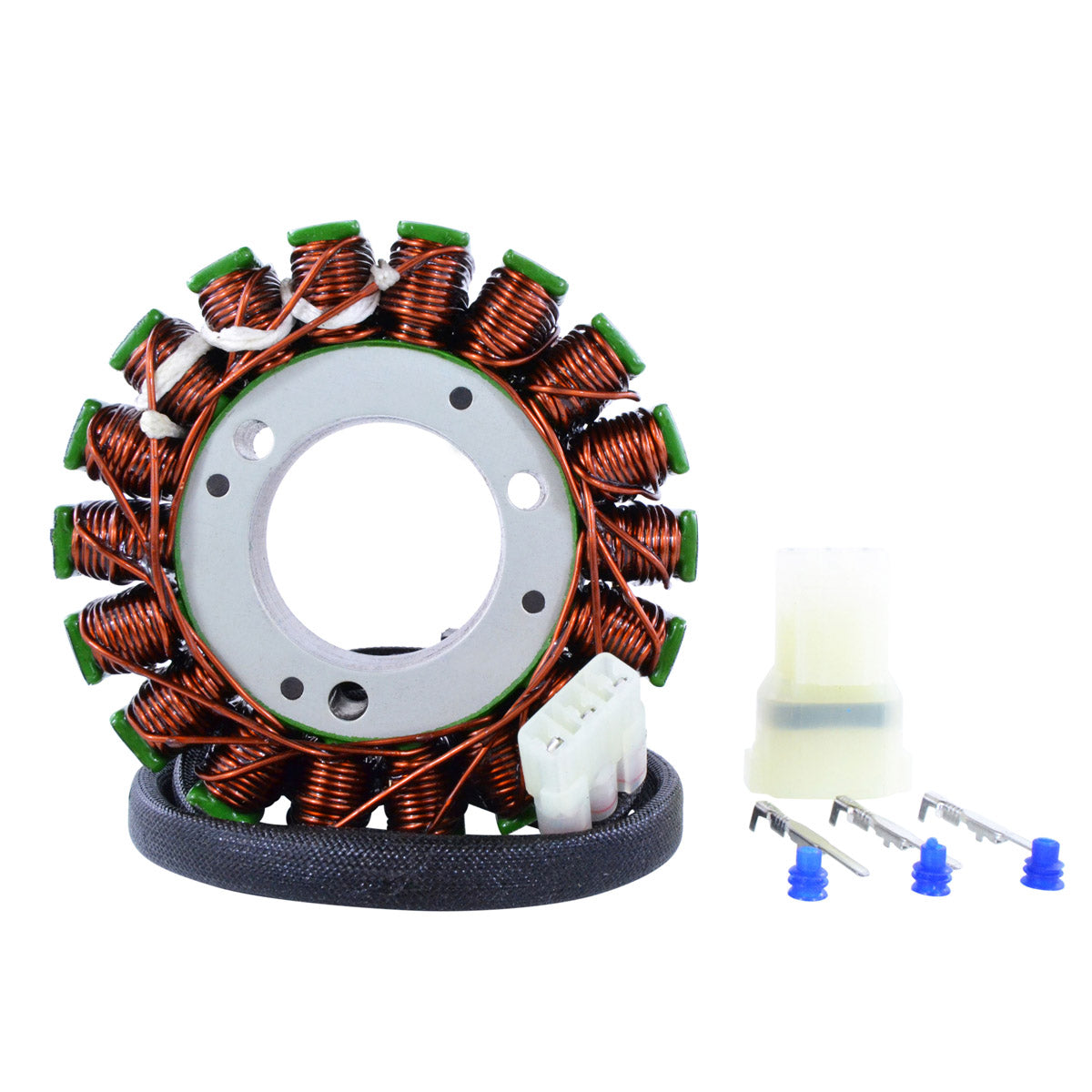

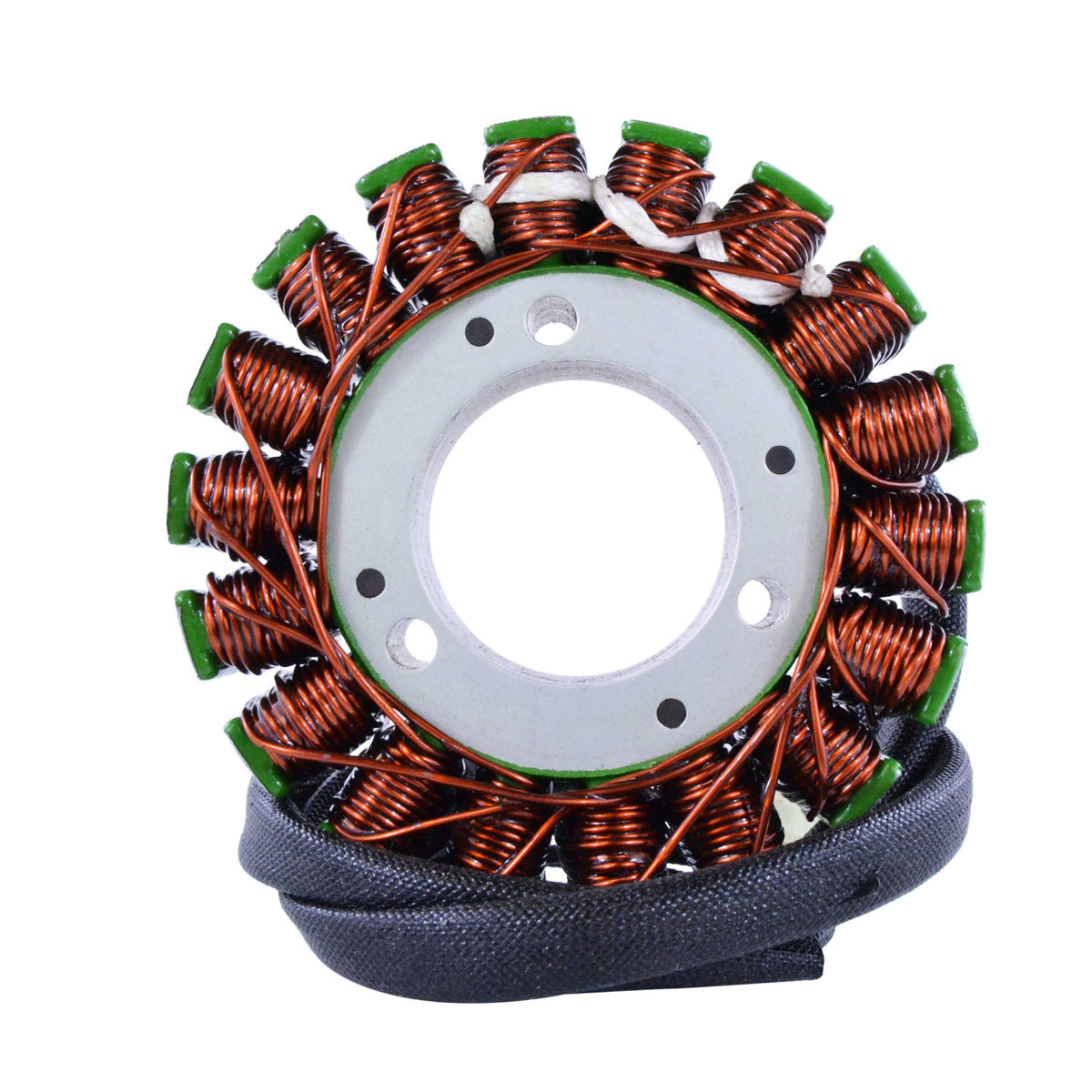

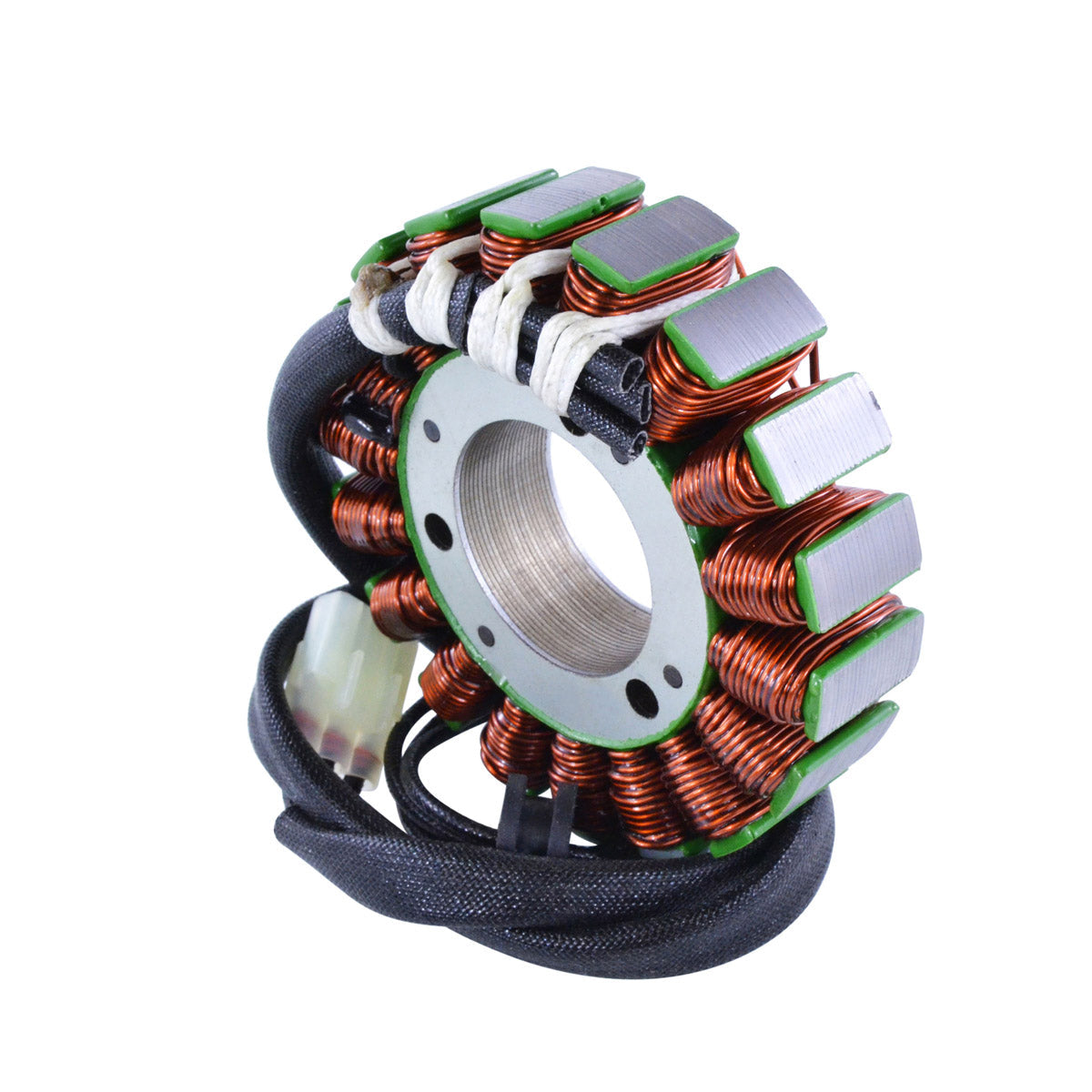

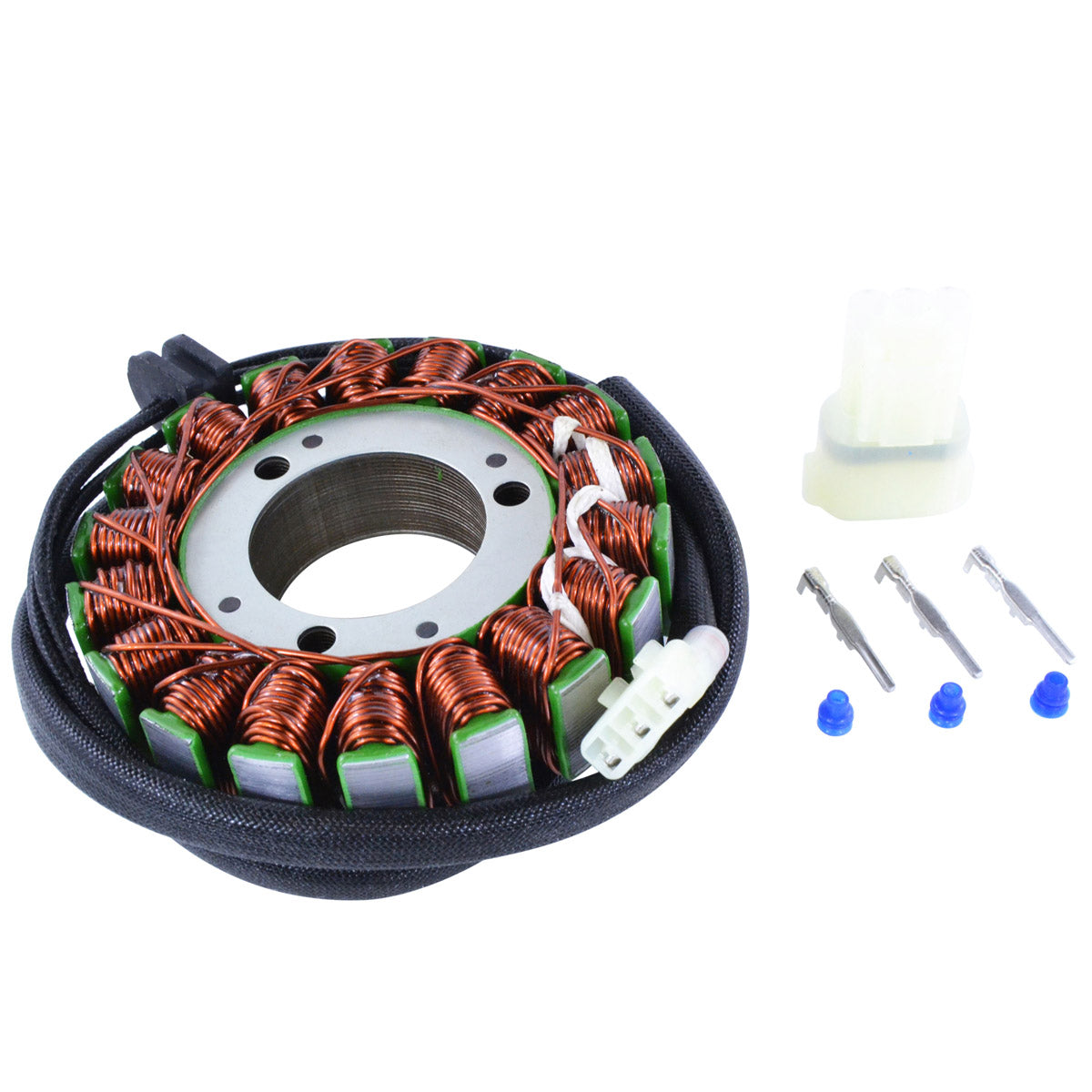

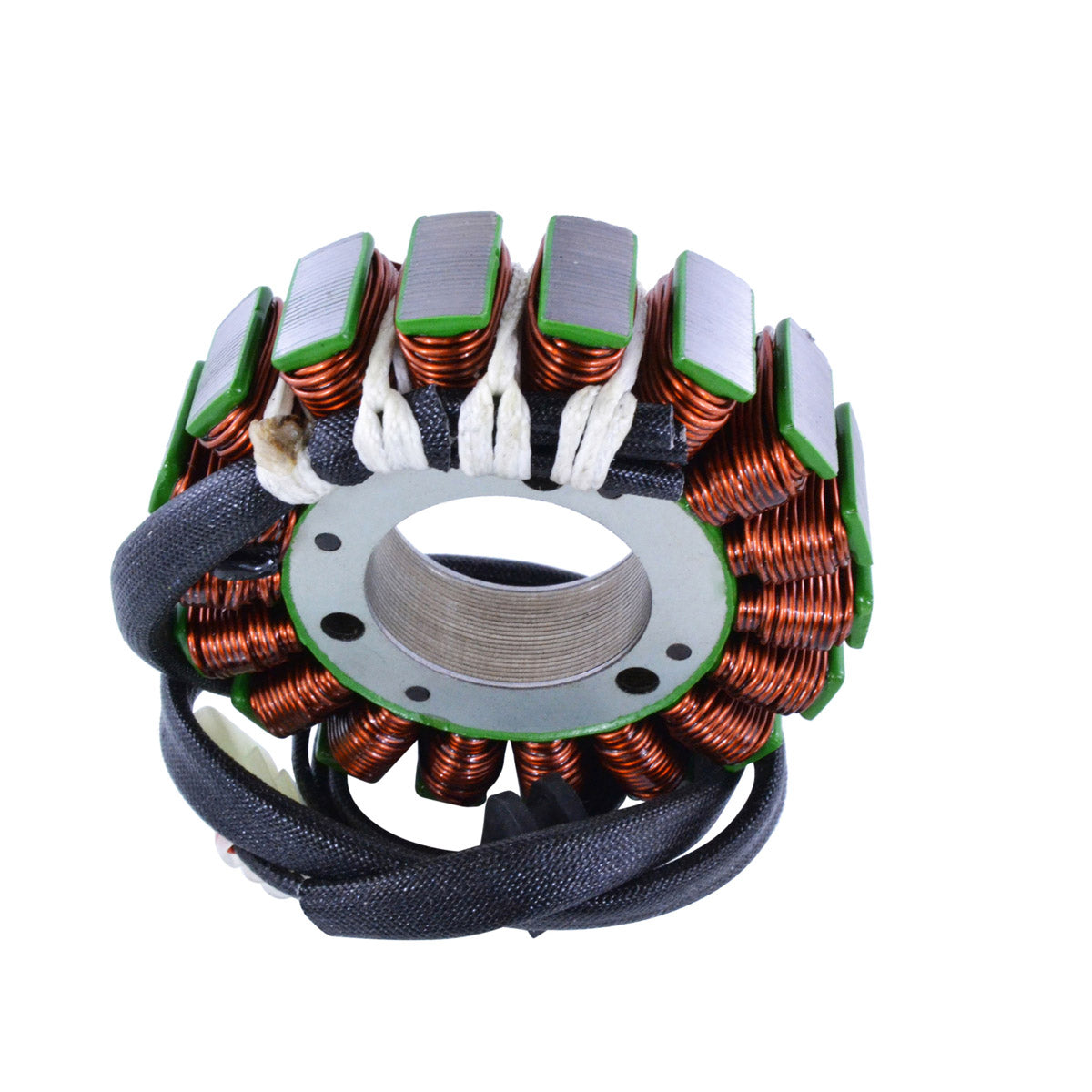

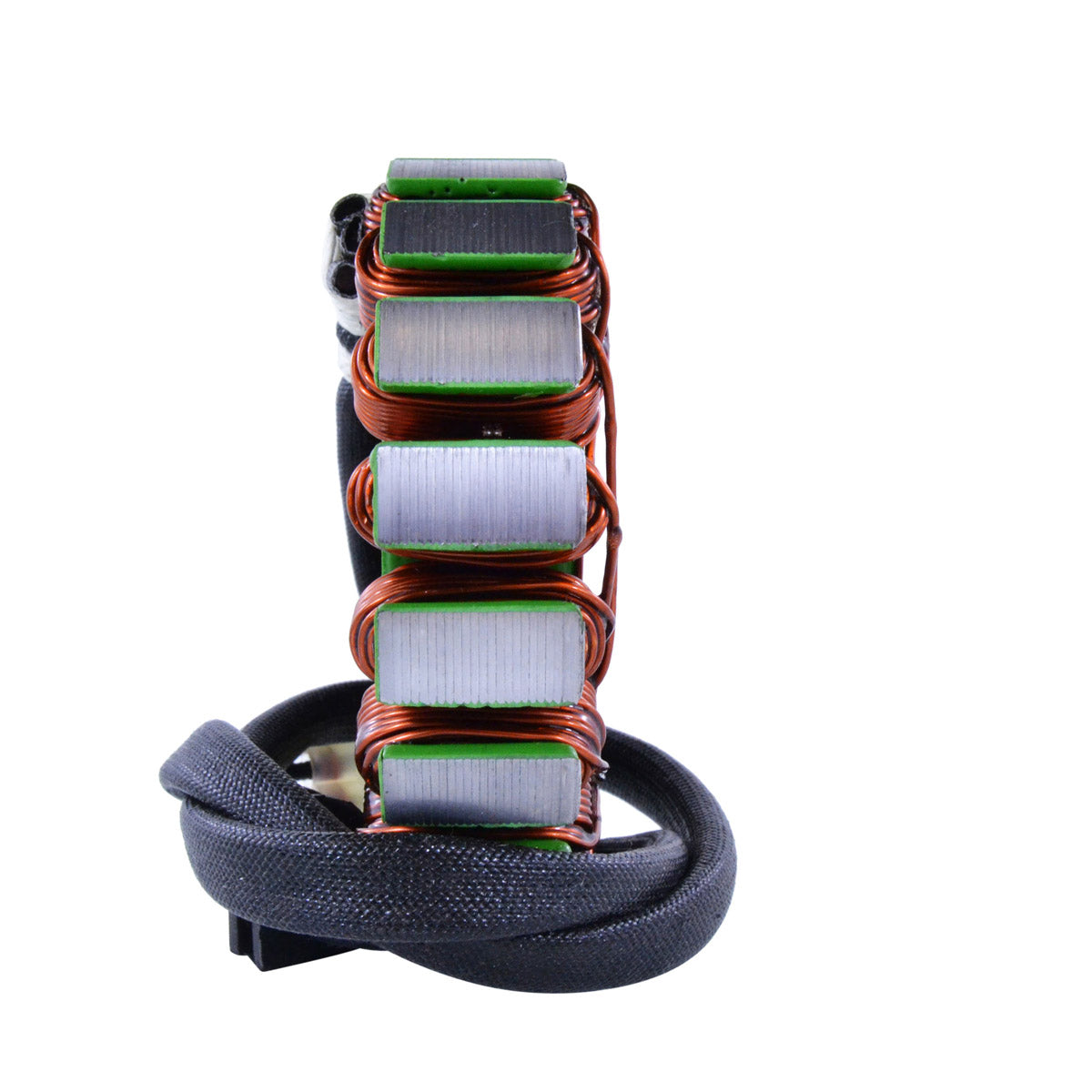

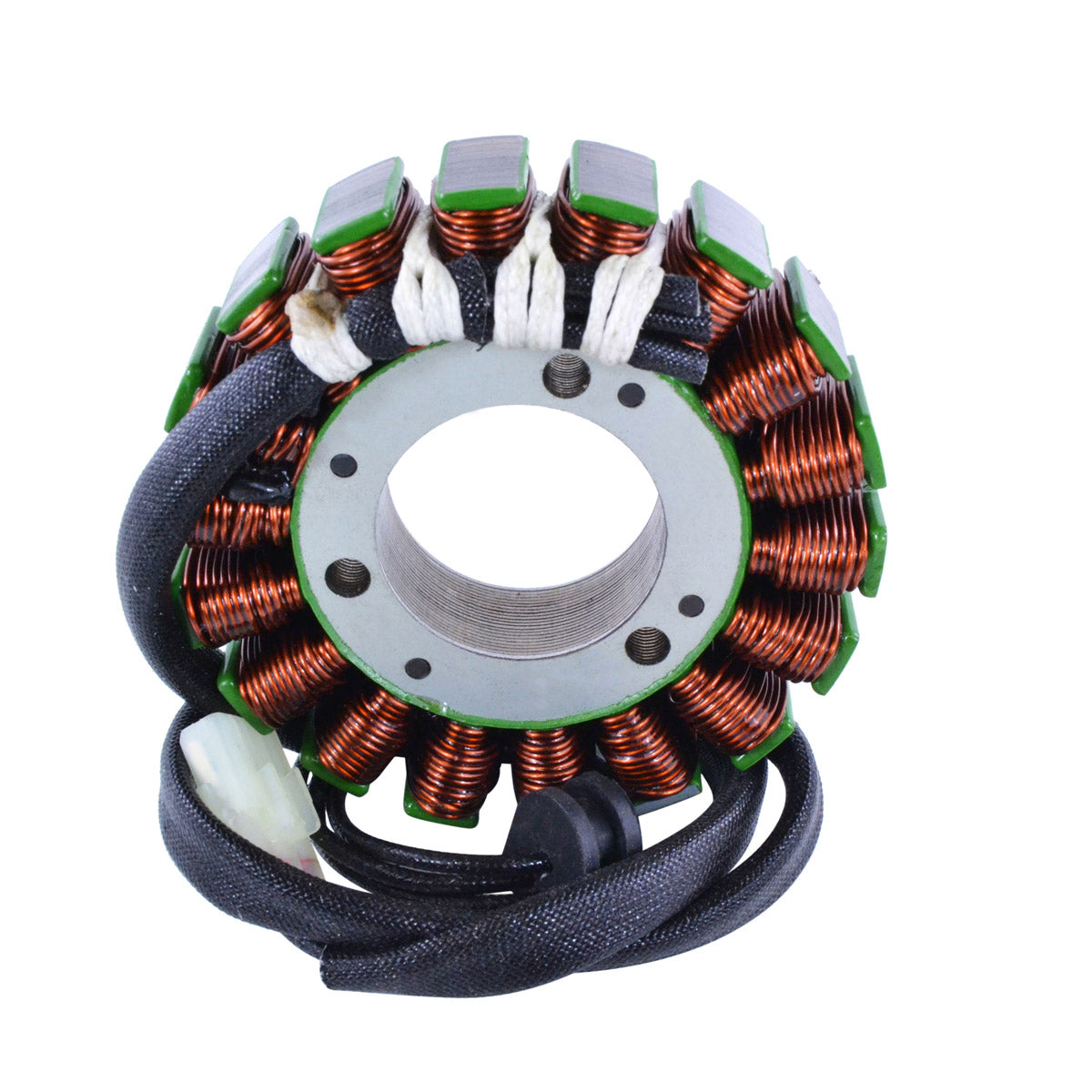

This is a brand new aftermarket generator stator, built as a direct replacement for the original unit fitted to Husaberg FE and FX 390 and 570 models, Husqvarna TE 250 and TE 300 i models, and KTM 500, 505 and 525 ECX, XC-W and SX-F models built between 2008 and 2023. It is a plug-and-play, direct fit part, so installation is straightforward and no modification to the wiring loom or to the engine cases is required.

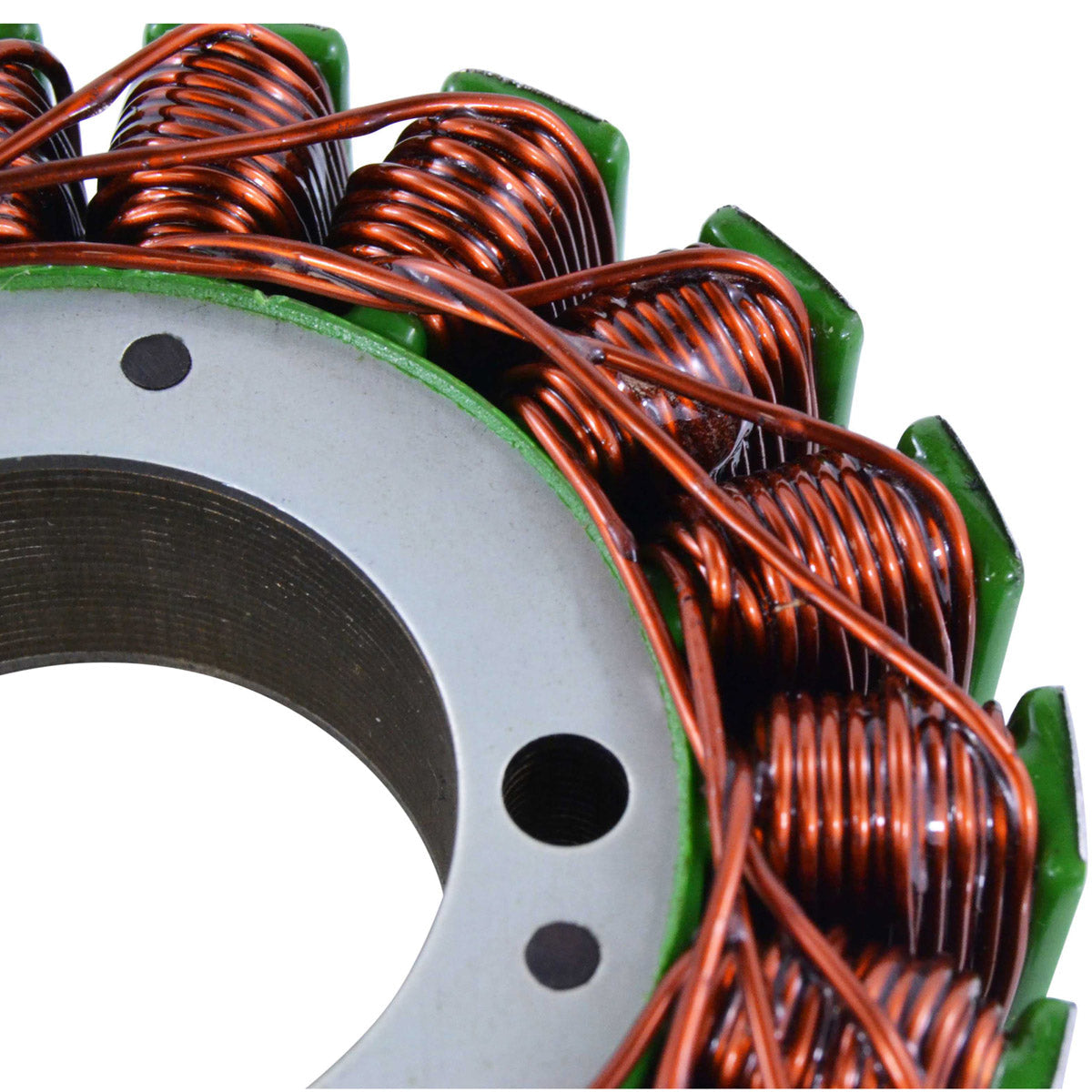

The stator is built on the highest grade lamination materials and wound with the highest grade copper windings, rated to resist 200 degrees Celsius. A connector and a rubber grommet are supplied with the unit. Every part is tested before it is shipped. Our part number for this stator is RMS010-103210.
Key Features
- Brand new aftermarket generator stator, not a rewound or repaired unit
- Direct replacement for the original stator
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius

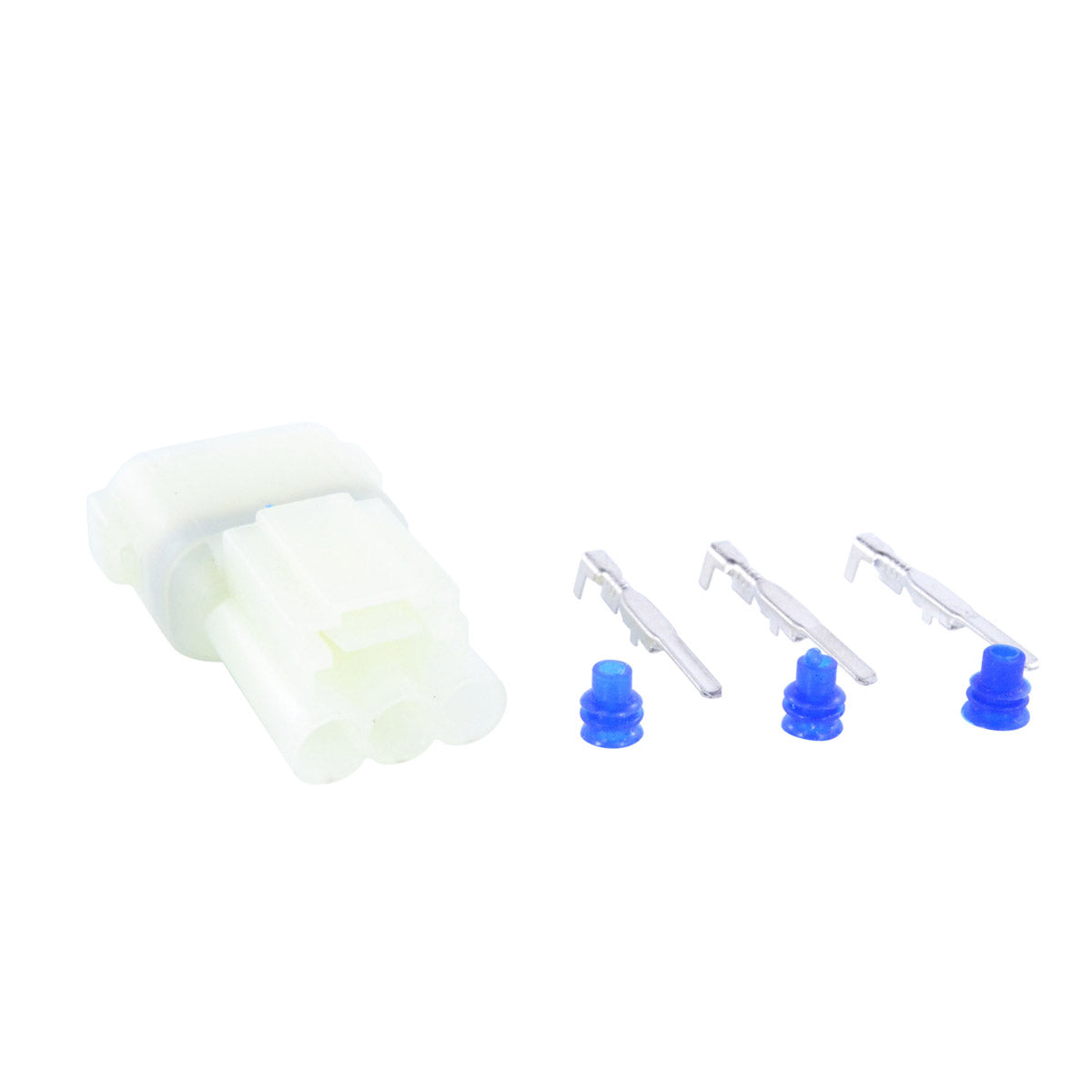

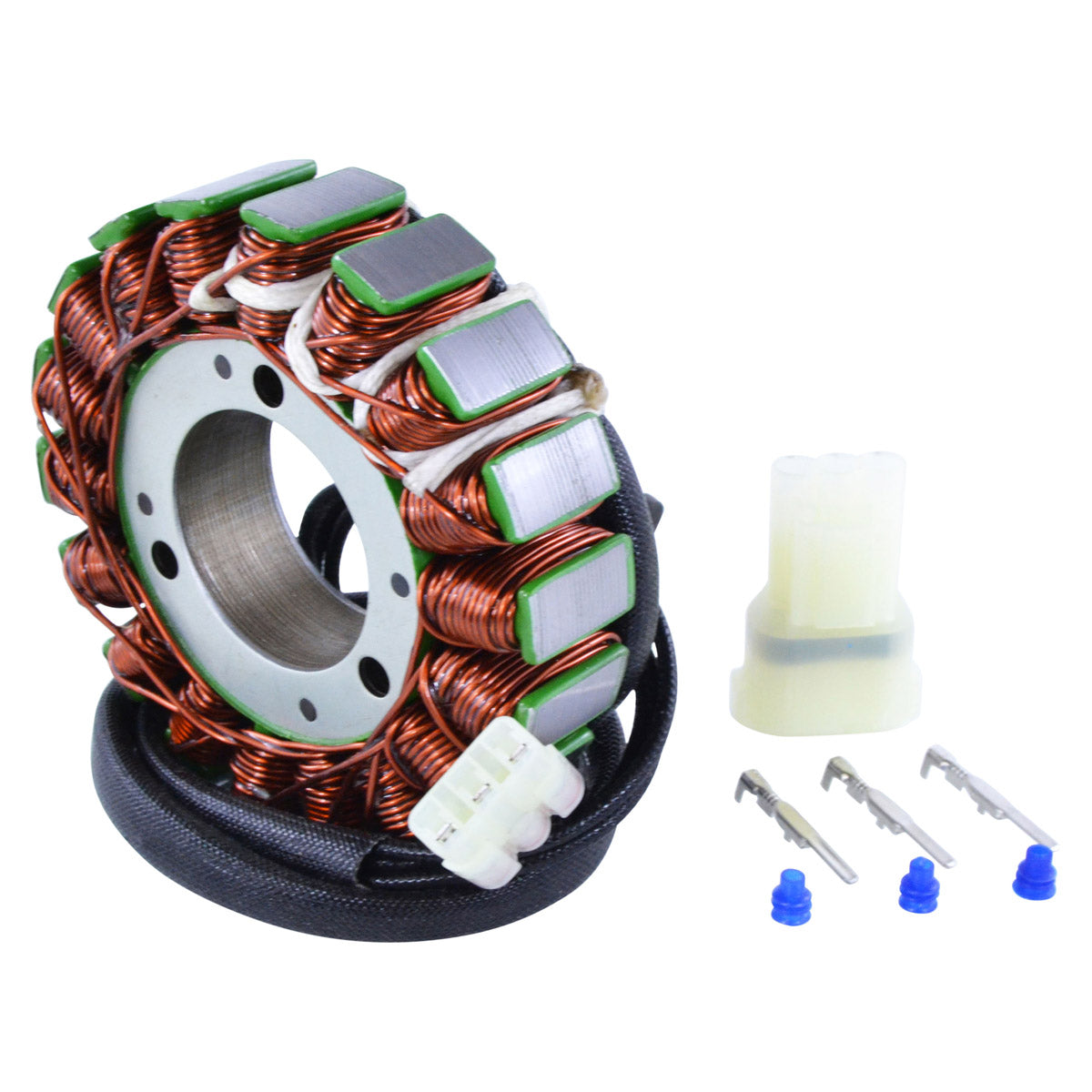

- Connector included
- Rubber grommet included

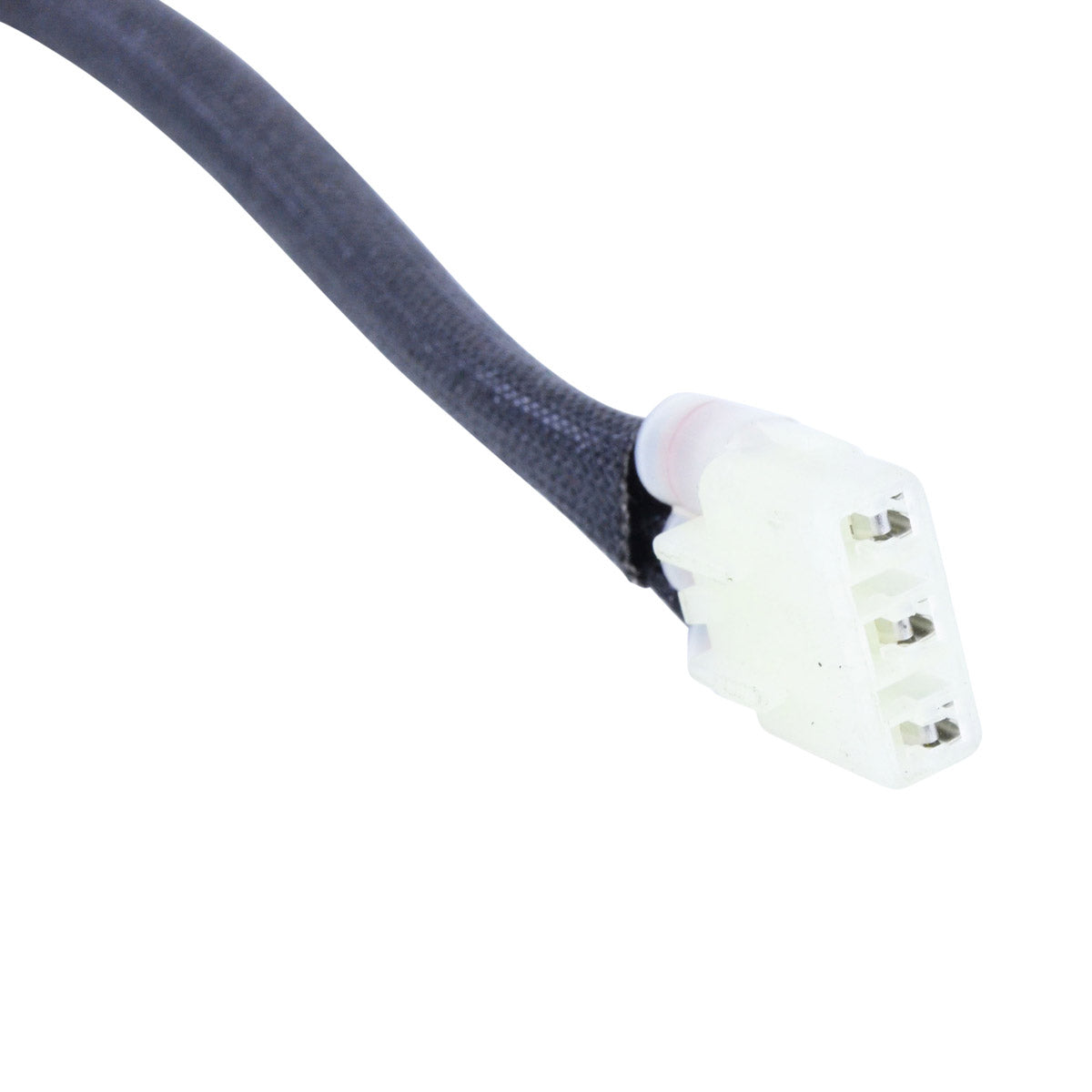

- Three wires, one plug, three pins
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RMS010-103210 |
| Interior diameter |
35 mm |
| Exterior diameter |
89 mm |
| Thickness |
18 mm |
| Length of wires, stator to grommet |
94 mm |
| Length of wires, grommet to plug |
406 mm |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of pins |
3 |
| Alternator resistance, Black to Black |
0.4 ohms +/- 20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Husaberg FE 390 and FE 570 |
2008-2023 |
| Husaberg FX 390 and FX 570 |
2008-2023 |
| Husqvarna TE 250 and TE 300 i |
2008-2023 |
| KTM 500, 505 and 525 ECX |
2008-2023 |
| KTM 500, 505 and 525 XC-W |
2008-2023 |
| KTM 500, 505 and 525 SX-F |
2008-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 8303900400 |
OEM reference |
| 83039004000 |
OEM reference |
| 55439104000 |
OEM reference |
| 55439104100 |
OEM reference |
Frequently Asked Questions
Will this stator fit without modification?
Yes. It is a direct replacement for the original unit, described by the manufacturer as plug-and-play and direct fit. No cutting, splicing or modification of the loom is needed on the applications listed above.
What is included?
The generator stator, a connector and a rubber grommet.
How can I tell that my old stator has failed?
Typical symptoms are a battery that will not hold charge, dim or flickering lights and difficult starting. With the stator unplugged, measure the resistance between the two Black alternator wires: it should read 0.4 ohms with a tolerance of plus or minus 20%. A reading well outside that range points to a failed winding.
What are the physical dimensions?
The stator measures 35 mm interior diameter, 89 mm exterior diameter and 18 mm thick. The wires run 94 mm from the stator to the grommet and a further 406 mm from the grommet to the plug. Compare these against your original unit if you are unsure.
